TIP: The front light is not sold separately due to precise bonding requirements. Please purchase the complete bonded product. For temperature details, refer to the display screen specifications.
| |
|

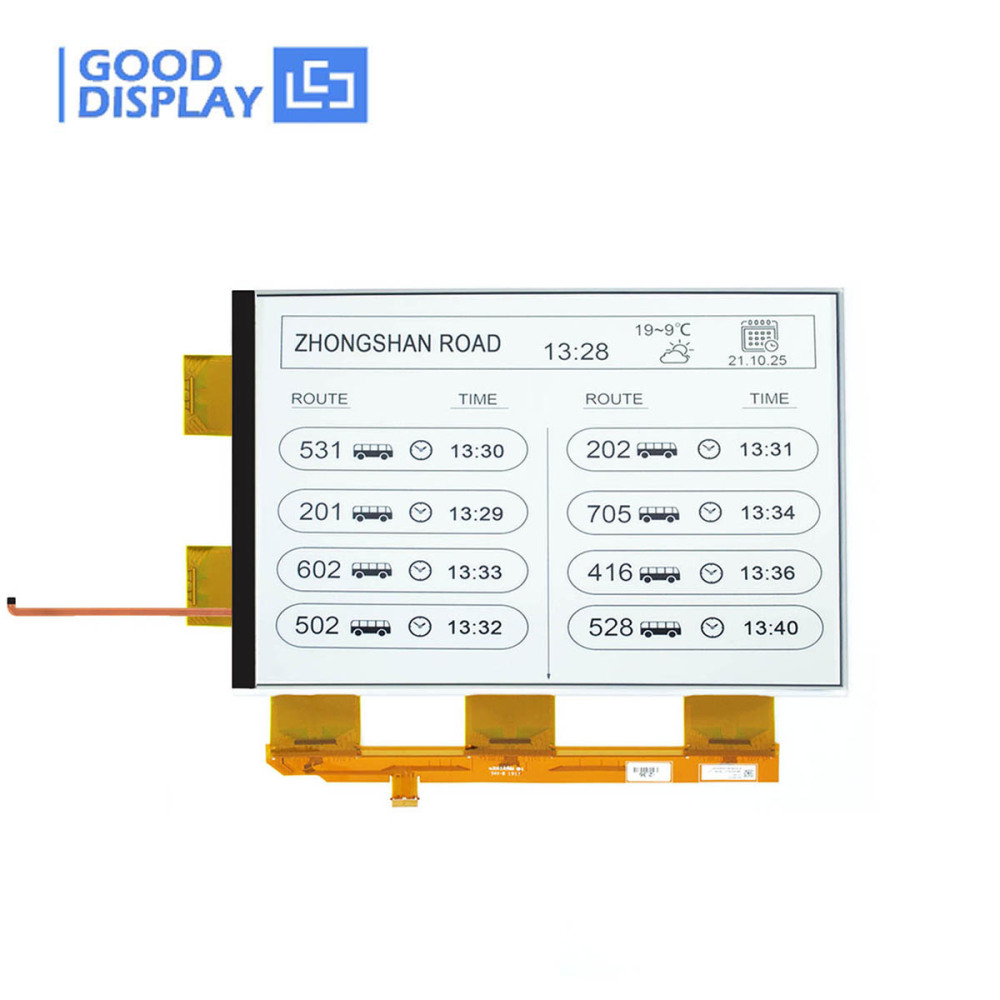

13.3-Inch ePaper Display Revolutionizing Visuals with Innovation
|
|
|
| |
|
Meet the future of display technology with our cutting-edge 13.3-inch ePaper Display. Engineered to perfection, this screen merges high resolution with remarkable functionality, offering a visual experience that's as clear as it is versatile. With a stunning resolution of 1600x1200 and a crisp black-and-white display enhanced by 16 shades of grayscale, every detail pops with incredible clarity. Whether you're reading text, viewing intricate diagrams, or presenting detailed graphics, this ePaper Display delivers unparalleled sharpness and readability. But the magic doesn’t stop there. Imagine a screen that’s as adaptable as you are. This display operates comfortably within a temperature range of -15℃ to 65℃, making it perfect for both frosty office environments and warm industrial settings. It features a full refresh rate every second, ensuring that your visuals are always up-to-date, while the bistable display technology retains content even after a power outage—so you won’t miss a beat, even in the face of unexpected interruptions.
|
|
|
| |
|
Special Features
|
|
|
| |
|
Our product boasts distinctive features that set it apart from the competition |
|
|
| |
|

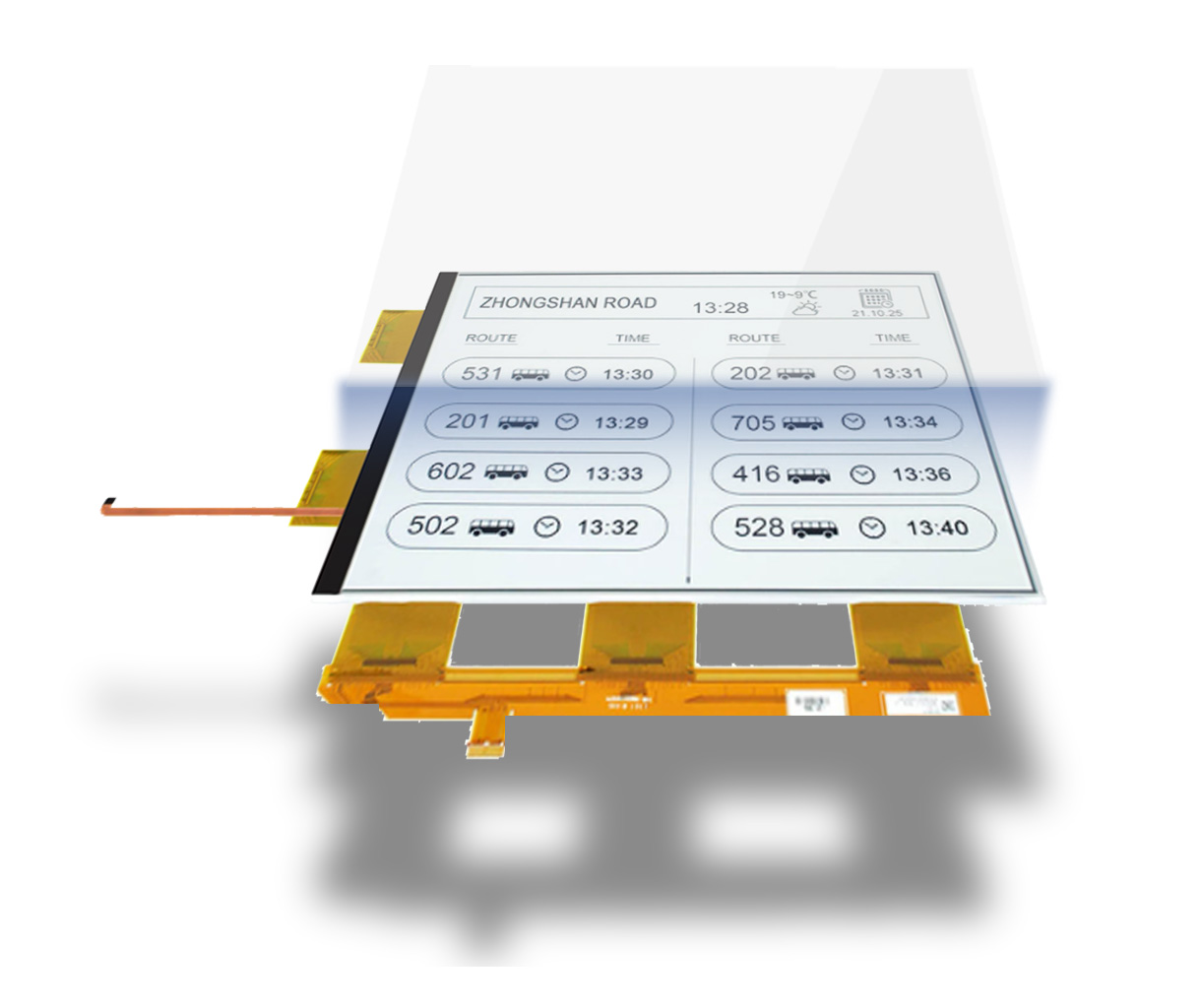

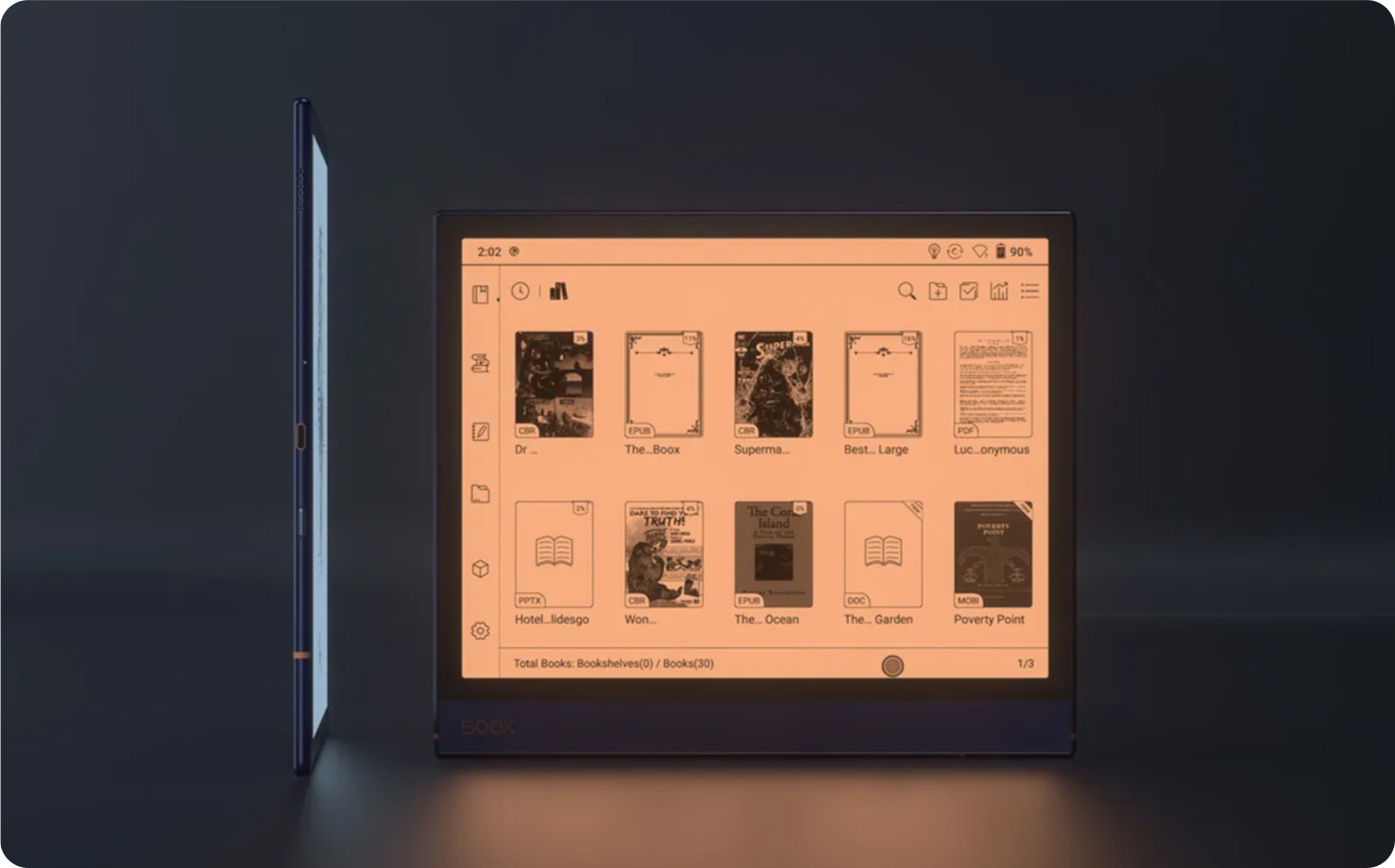

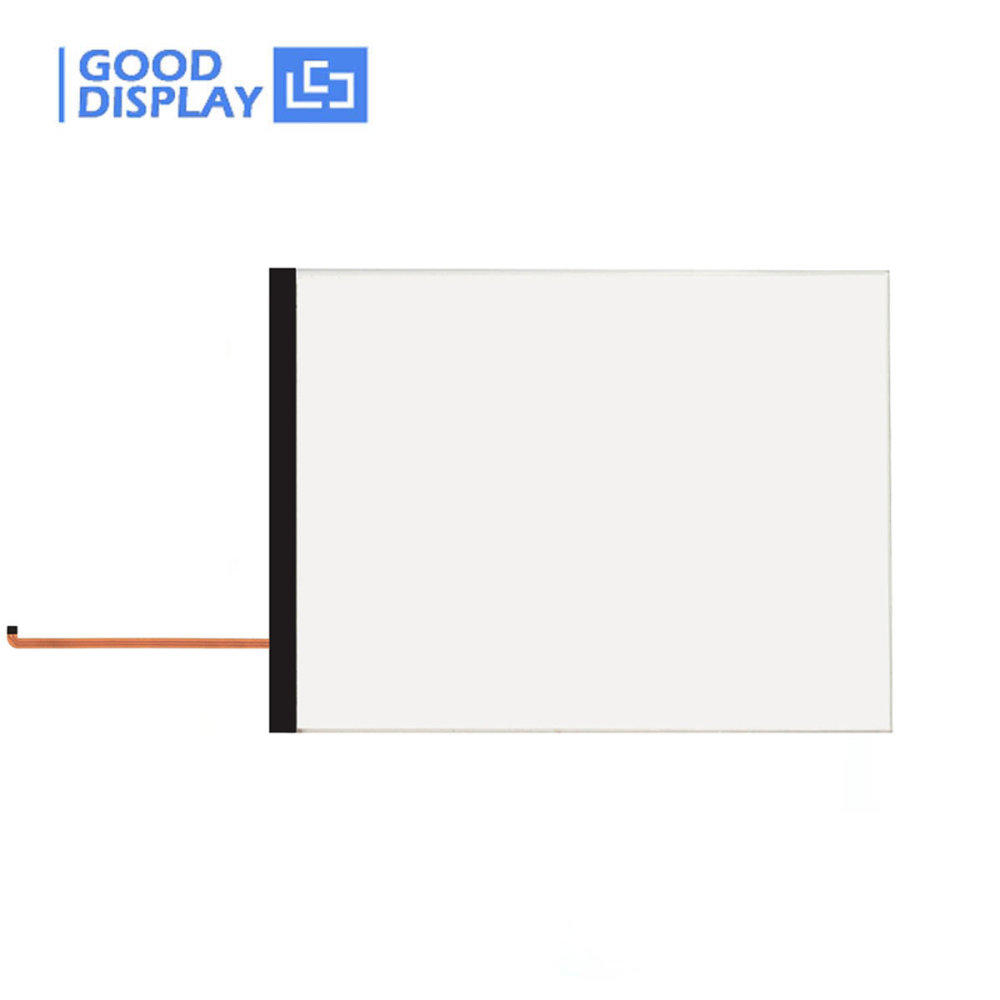

● The front-light E Ink display combines the readability and comfort of E Ink technology with the even illumination of front lighting, offering a clear and comfortable reading experience in any lighting condition while being energy-efficient and easy on the eyes.
● Stunning Visual Clarity: With a resolution of 1600x1200 and 16 grayscale levels, every detail is rendered with crisp precision and rich contrast. Enjoy a display that's perfect for both vibrant content and sharp text.
● Versatile Temperature Range: Operate with confidence in any environment. This display thrives in extreme conditions with an operating temperature range of -15°C to 65°C, ensuring reliable performance wherever you are.
● Fast and Efficient: Experience smooth transitions with a refresh rate of just 1 second for full-screen updates. Whether you're flipping through pages or viewing detailed images, enjoy rapid, fluid performance.
● Innovative Display Technology: Featuring bistable display technology, your content remains visible even after a power outage. The display’s pure reflection mode provides exceptional clarity and is easy on the eyes, with no blue light emission or radiation.
● Enhanced Durability: The hard-coated surface offers superior anti-glare protection, ensuring visibility from wide angles (over 170 degrees) and resilience against everyday wear and tear.
● Eco-Friendly and Energy Efficient: Save on power with a display that consumes no energy when not refreshing the screen. Ideal for those who value sustainability and efficiency.
|
|
|
| |
|
Technical Details
|
|
|
| |
|

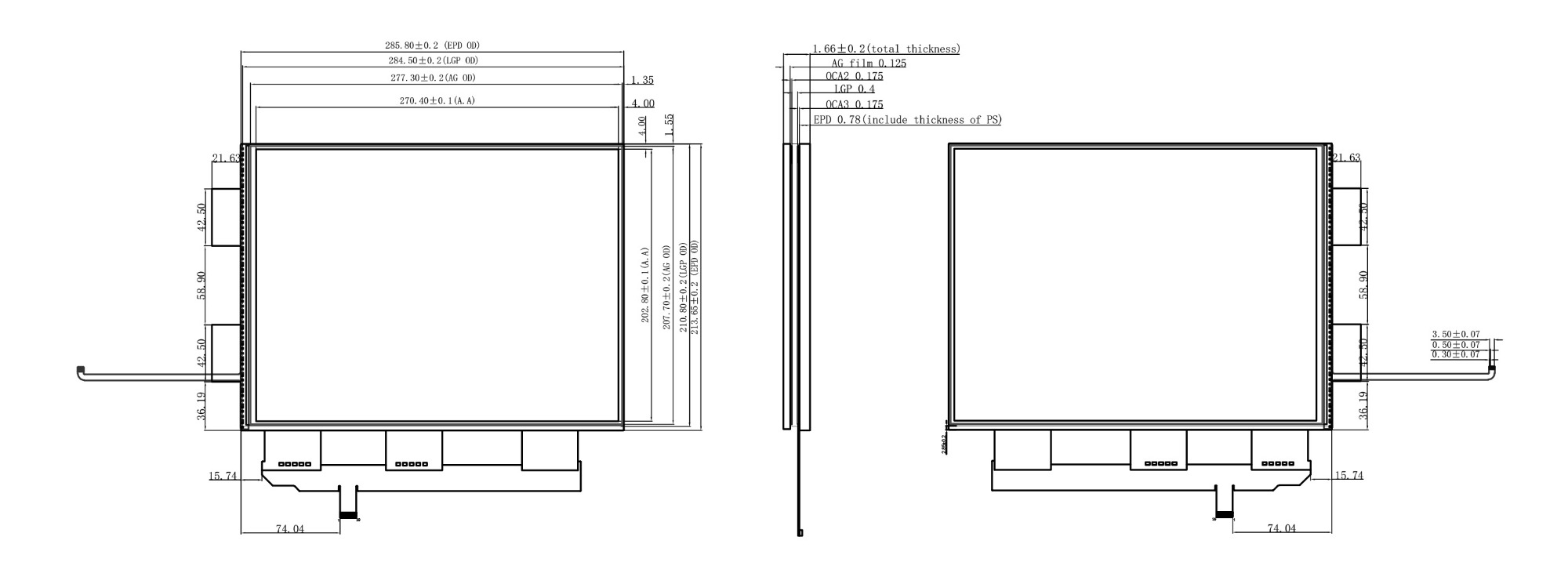

Please refer to the product drawings for detailed dimensions |
|
|
|
|
| |
|
Product Specifications
|
|
|
| |
|
Please refer to the product specifications for more details |
|
|
| |
|
| PART NUMBER |
GDEP133UT3-FL |
CONNECTOR |
39 PIN FPC |
| SIZE |
13.3 inch |
Front optical connector |
8PIN |
| TYPE |
Dot Matrix |
Front optical operating voltage (V) |
28V |
| RESOLUTION |
1600x1200 |
Front optical working current（mA） |
8-10mA |
| OUTLINE SIZE(mm) |
285.80x213.65x1.18 |
LED |
18 lights |
| ACTIVE SIZE(mm) |
270.4x202.8(Single screen) |
Circuit mode |
Series connection |
| PIXEL PITCH(mm) |
0.169x0.169(Single screen) |
Front optical working temperature |
15~+60℃ |
| OPERATING TEMP. |
-15℃~60℃ |
Front |
Cold light and warm light |
| STORAGE TEMP. |
-25℃~65℃ |
Sequential control |
External timing Control (eTC) |
| MAX GRAYSCALE |
16 |
POWER CONSUMPTION OF THE REFRESH(mW) |
265 |
| COLOR |
Black, White |
STANDBY POWER CONSUMPTION (mW) |
0.4 |
| Transmission mode |
Parallel interface |
TIME FOR REFRESH(s) |
1 |
|
|
|
| |
