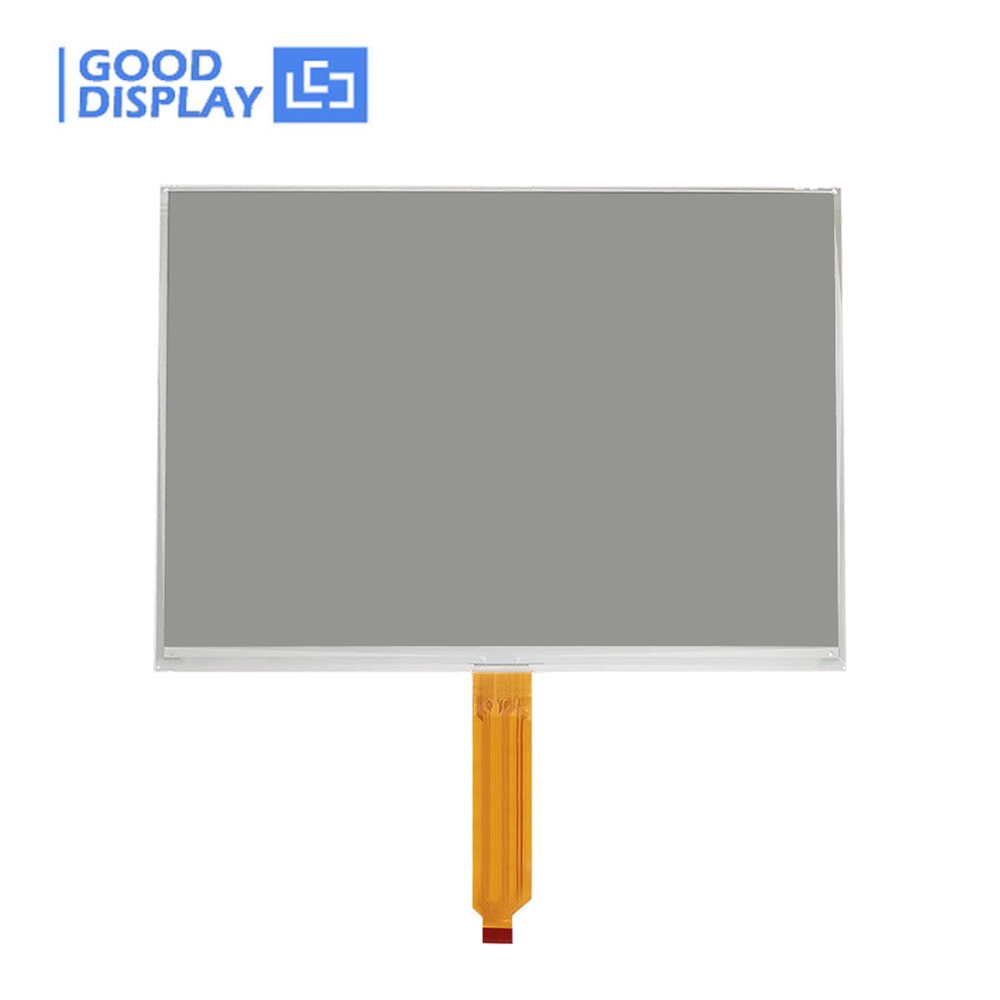

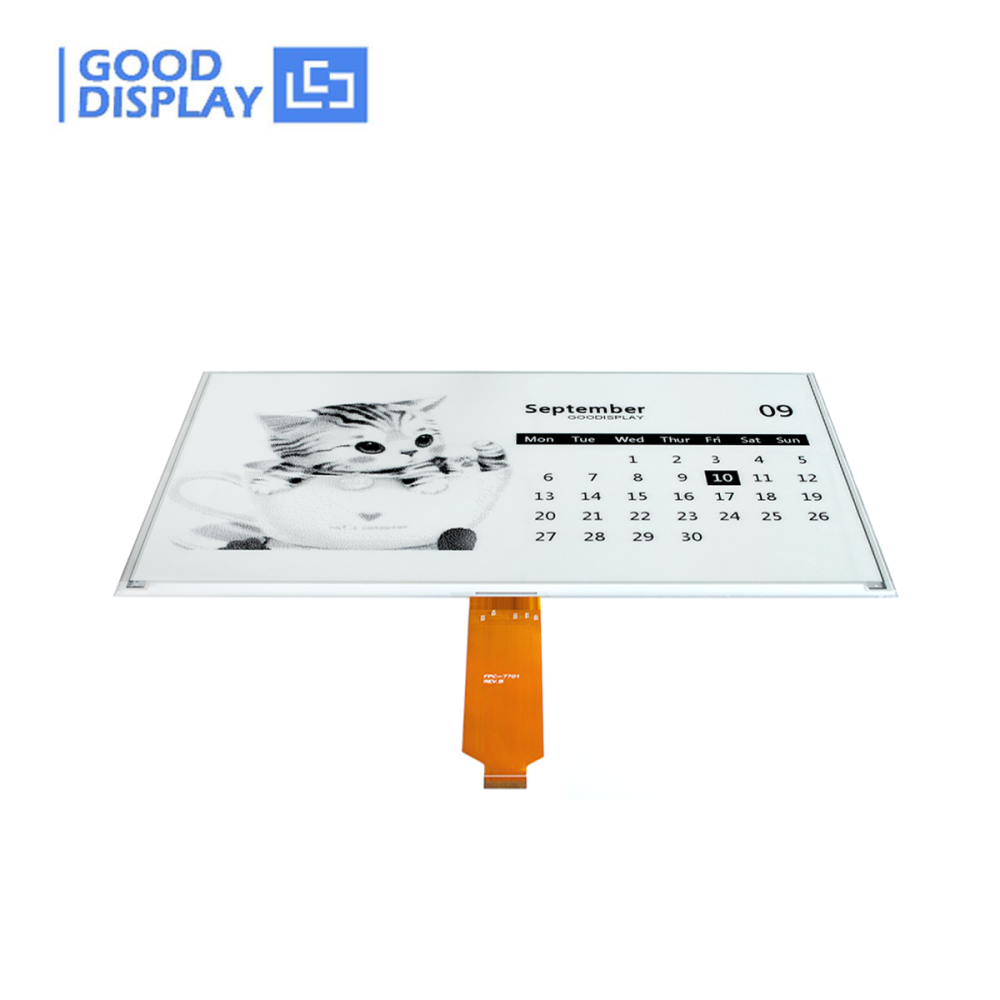

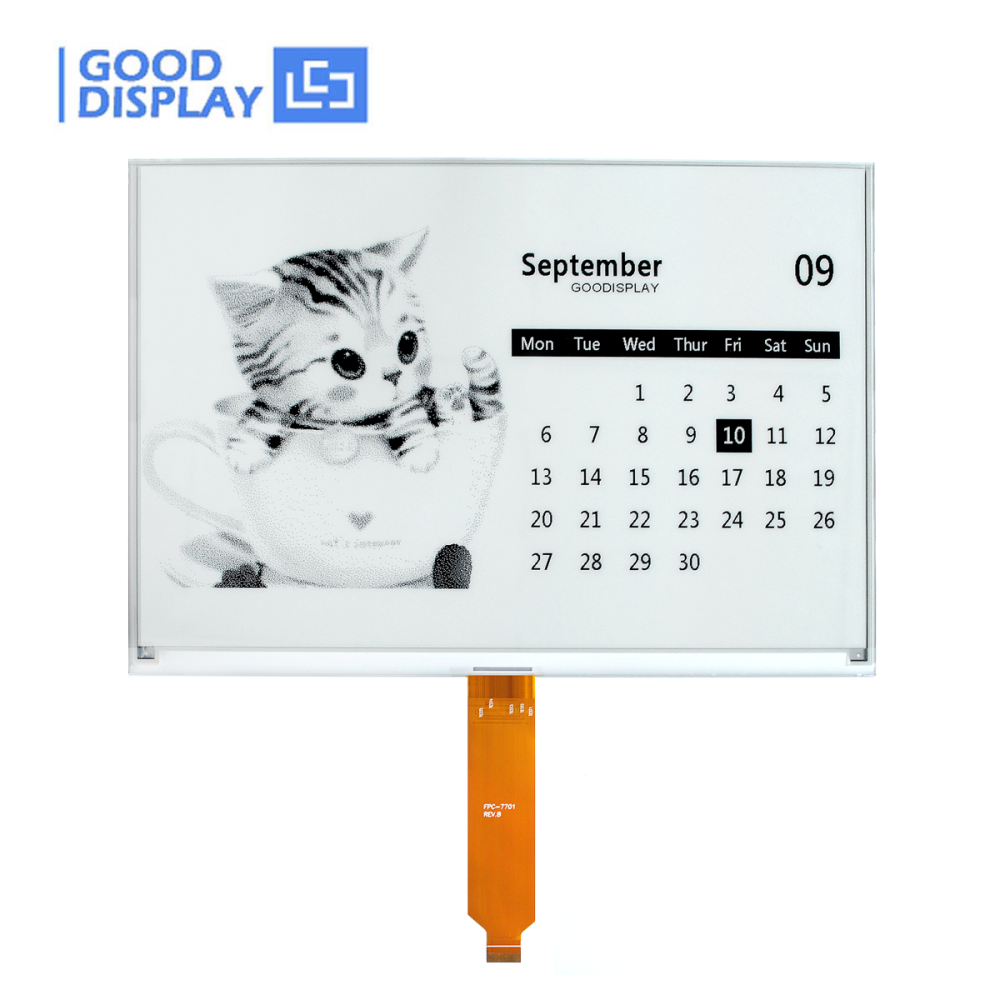

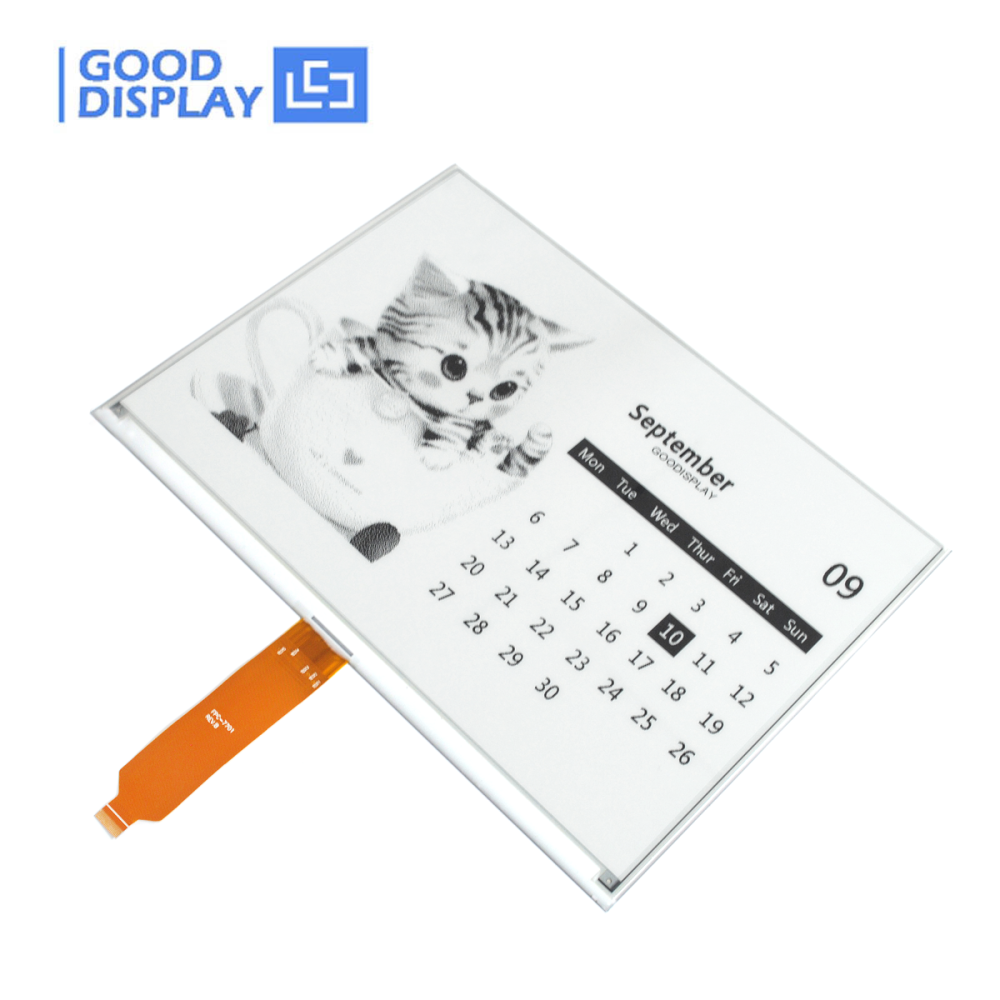

13.3 inch A4 E-ink Display Large SPI E-Paper HD Electronic Paper Screen

GDEM133T91
Sold:2
Have a question?
Price:
USD
$150.00
  • Product:

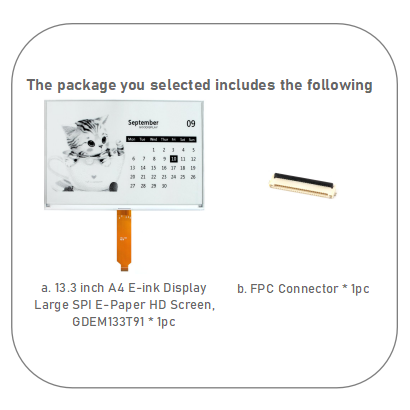

    EPD

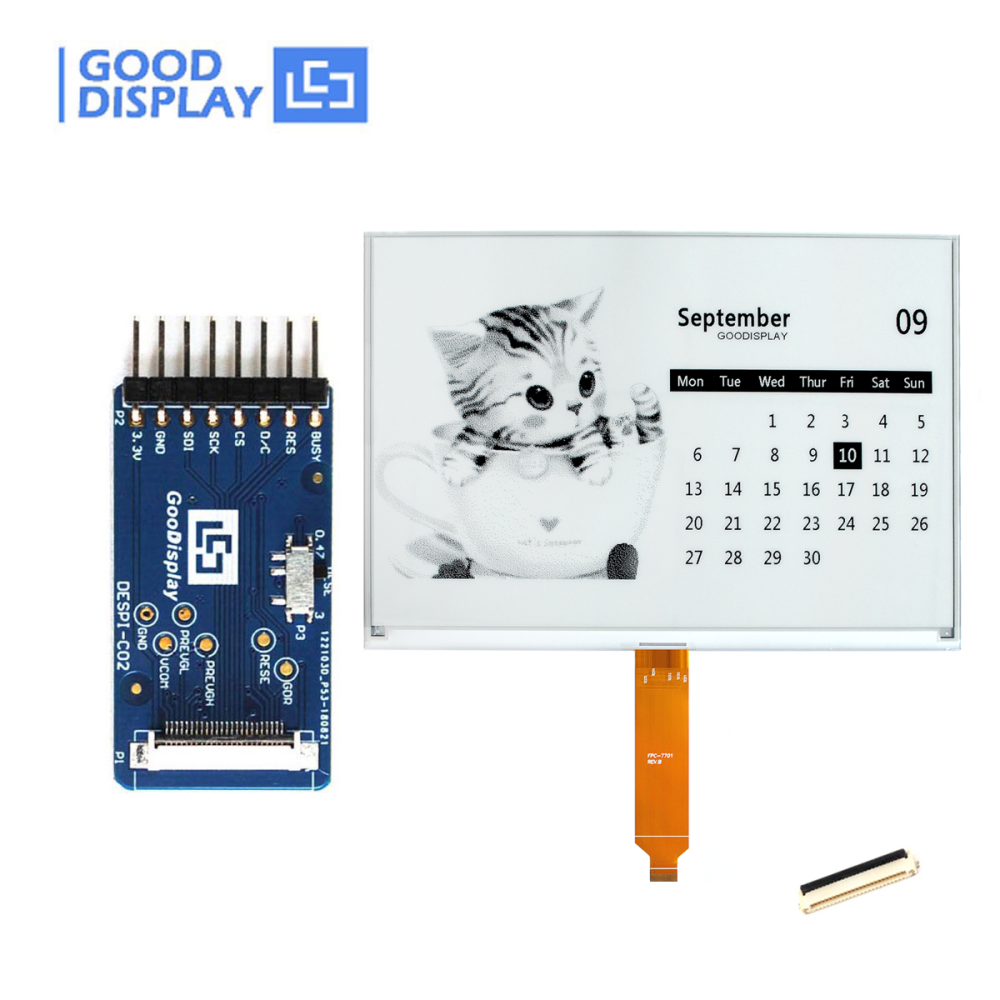

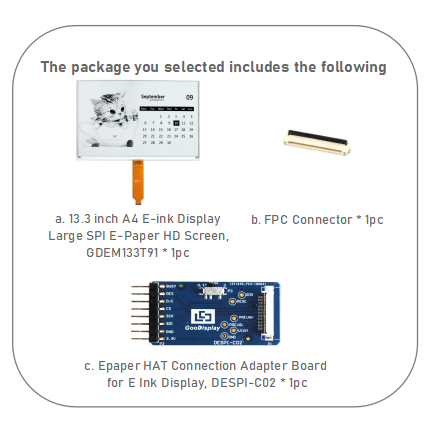

    EPD with adapter board

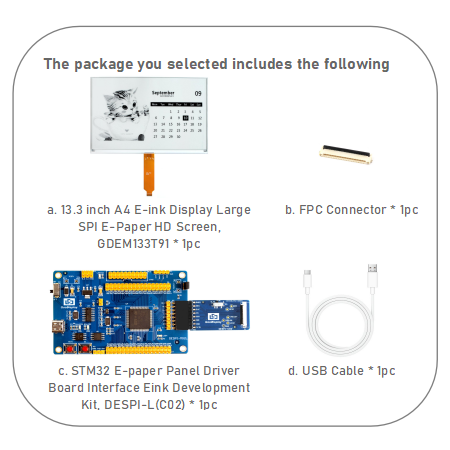

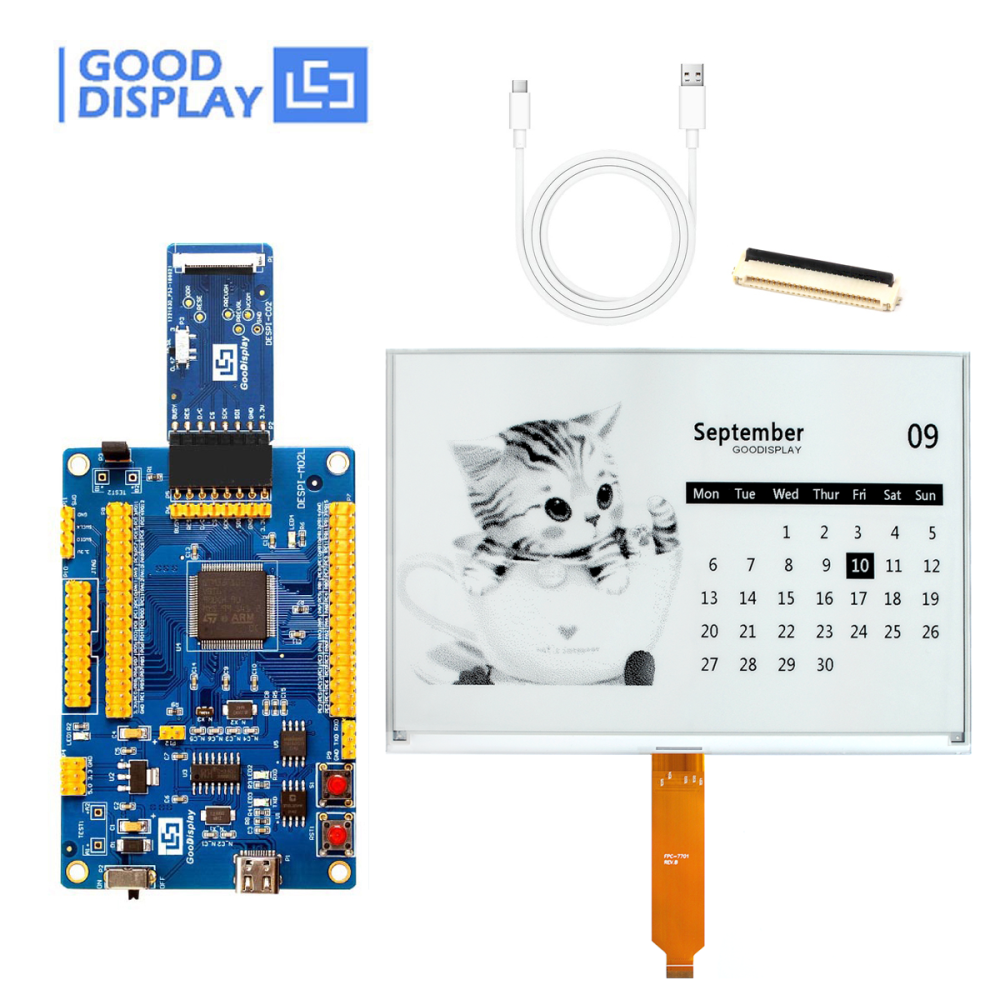

    EPD with STM32 Demo Kit

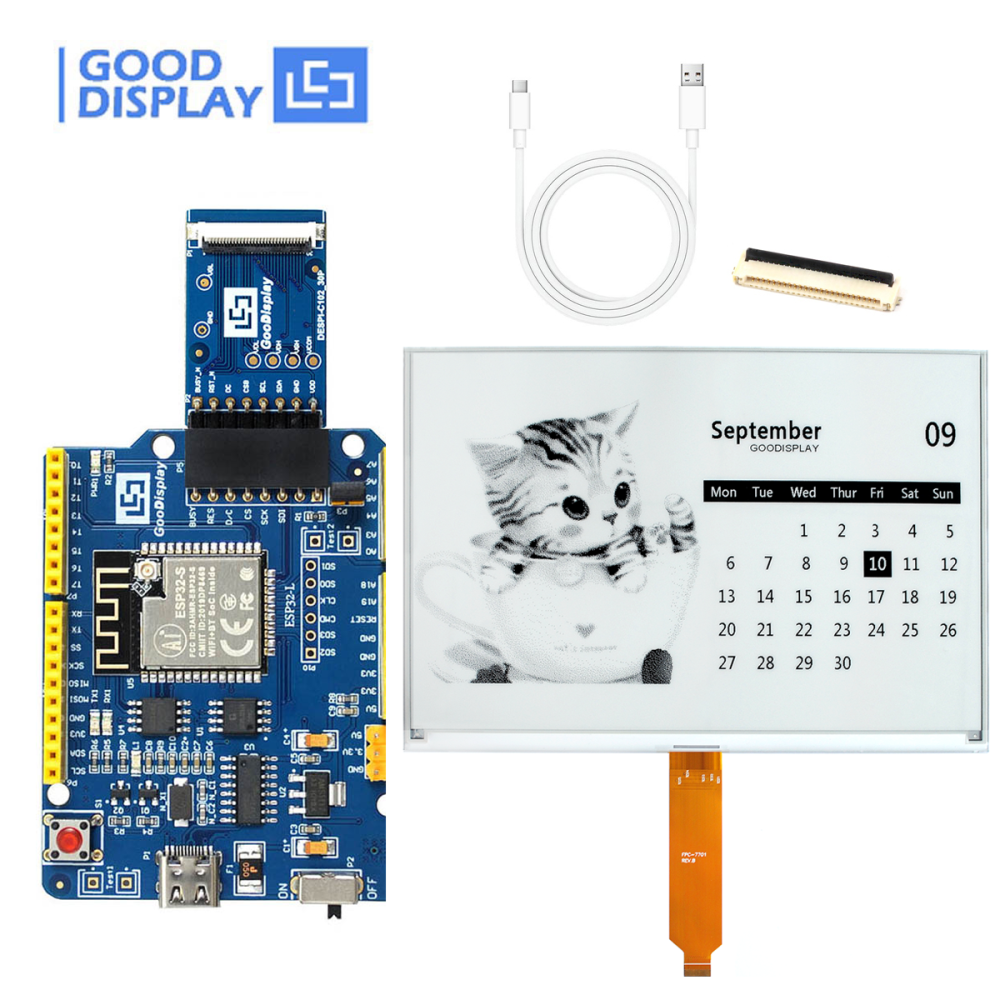

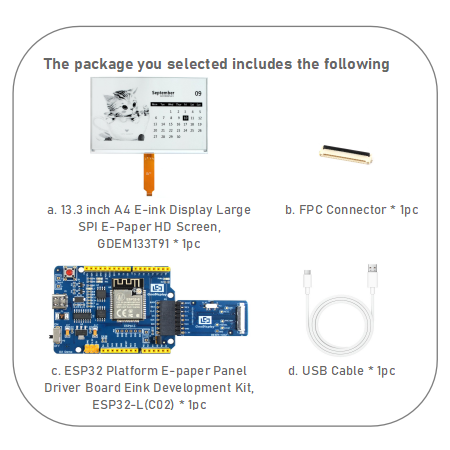

    EPD with ESP32 Demo Kit
Quantity:
-
+
(90 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews


13.3-Inch HD E-Ink Screen, 960x680, SPI Interface – Perfect for Reading, Retail, and More!




This is a 13.3 inch e-ink display large electronic paper screen, with 960x680 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 13.3 inch e-paper display GDEM133T91 is an ideal choice for applications such as industrial instrument, ebook reader, electronic menu and so on.








Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  With a 0.4-second partial refresh time, the screen can update its display content swiftly, ensuring a quicker user interaction, perfect for scenarios requiring frequent content updates. This fast partial refresh also helps reduce ghosting, a common issue with e-paper when static images linger too long, keeping the display crisp and clear.
  ●  The reading experience is akin to that of real paper, which helps reduce eye strain, making it ideal for long periods of reading or document viewing. E-paper is incredibly energy-efficient, consuming virtually no power when displaying static content, which translates to extended battery life.
  ●  Moreover, e-paper is perfectly readable in bright sunlight, making it an excellent choice for outdoor or brightly lit environments. Its high contrast ratio ensures that text and images are sharp and clear, making it suitable for reading text and viewing simple graphics.







Technical Details

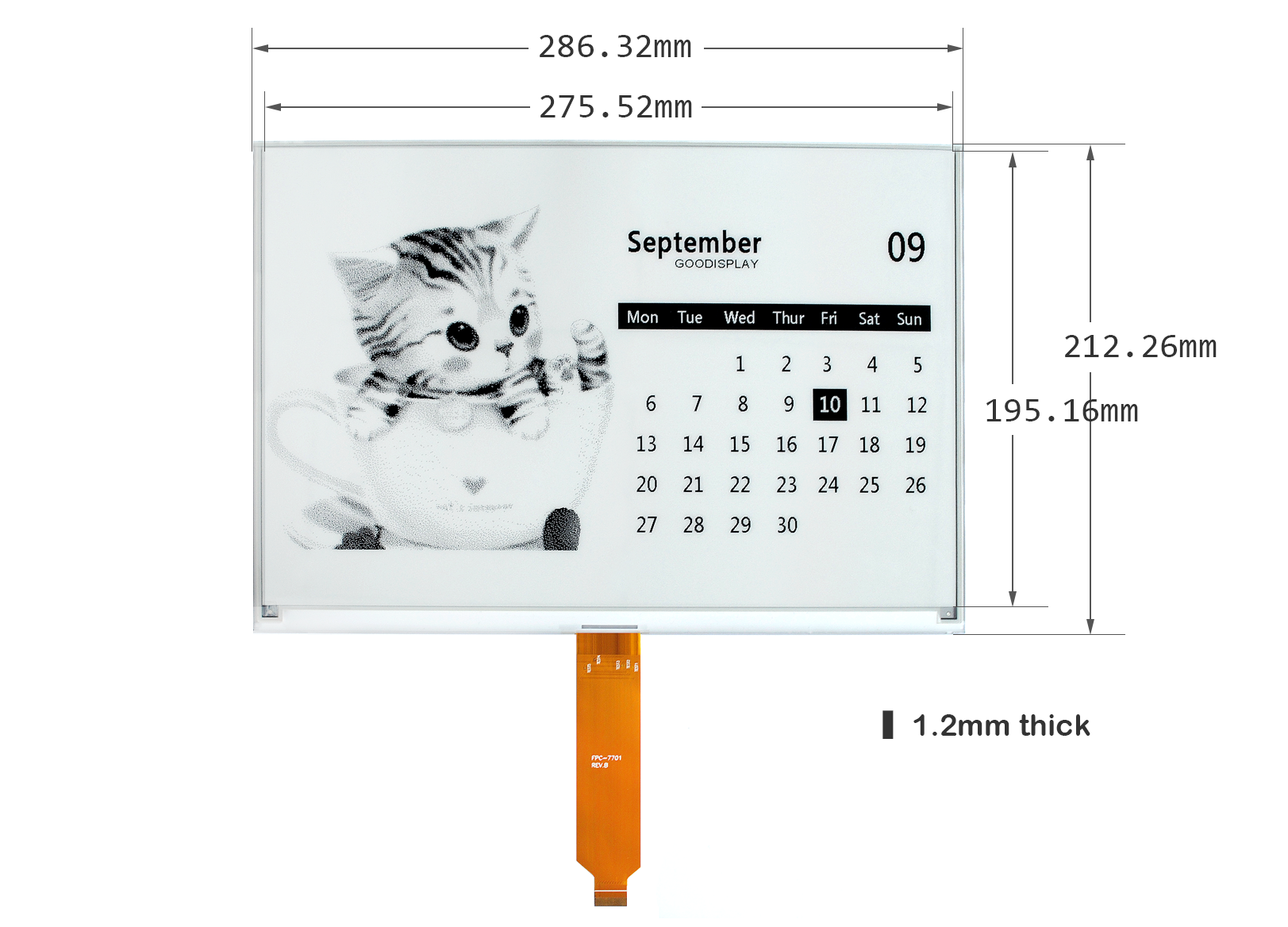

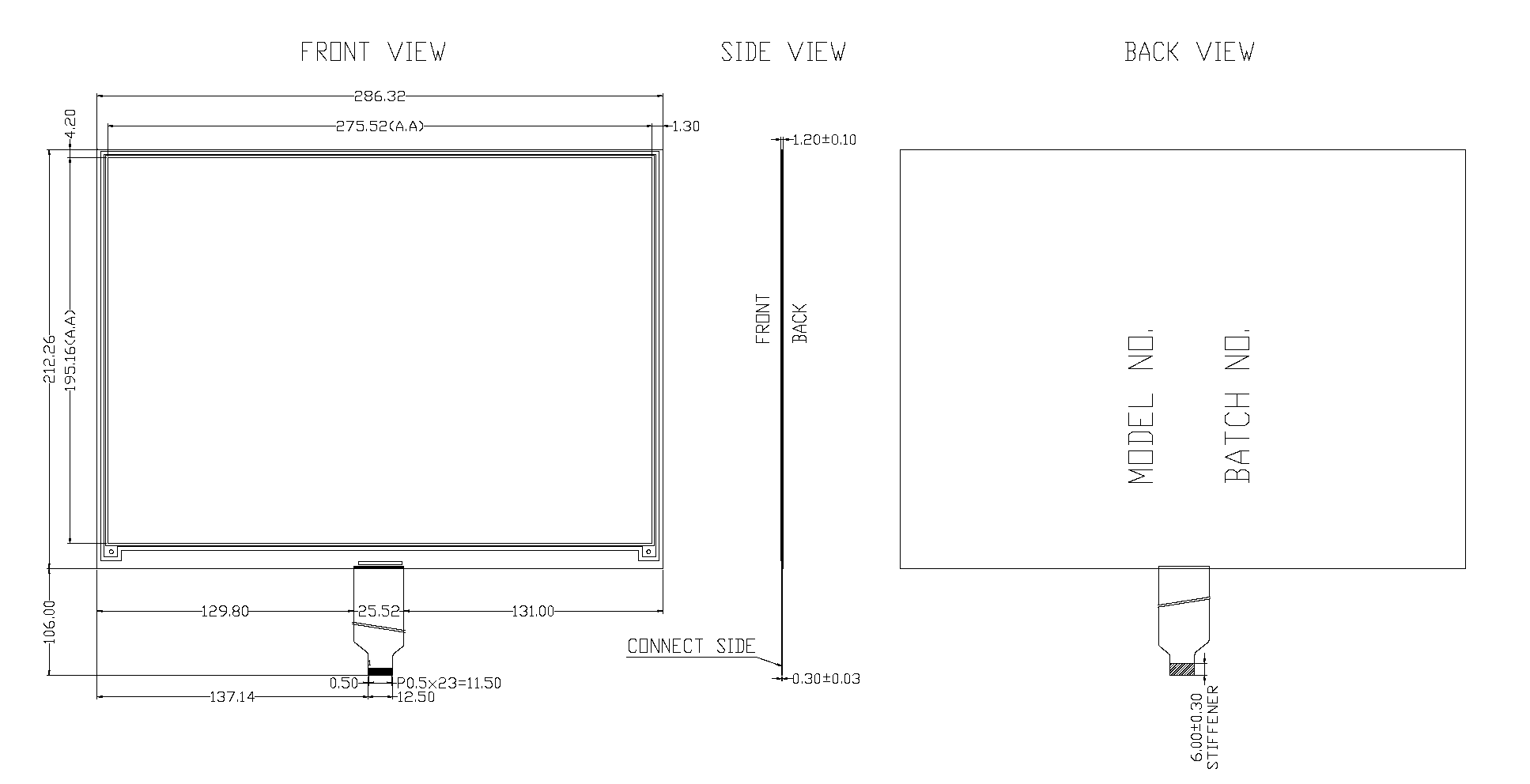

    Please refer to the product drawings for detailed dimensions








Product Specifications


    Please refer to the product specifications for more details

PART NUMBER GDEM133T91 CONNECTOR 24 PIN
SIZE 13.3 inch COLOR Black,White
IC SSD1677 INTERFACE SPI
RESOLUTION 960x680 MAX GRAYSCALE 4
OUTLINE SIZE(mm) 286.32x212.26x1.20 REFRESH UPDATE(s) 4
ACTIVE SIZE(mm) 275.52x195.16 PARTIAL UPDATE(s) 0.4
PIXEL PITCH(mm) 0.287x0.287 POWER CONSUMPTION(mW) 66
OPERATING TEMP. 0℃~50℃ STANDBY POWER CONSUMPTION(mW) 0.003
STORAGE TEMP. -25℃~70℃







  Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

a.DESPI-C02 (E-ink Display adapter Board) b.DESPI-L(C02) (STM32 Demo Kit) c.ESP32-L(C02) (ESP32 Demo Kit)






Related Information Download

Click on the subheadings below to download

  ● GDEM133T91_Specification ● GDEM133T91 ESP8266 Sample Code
  ● SSD1677 Driver IC Datasheet ● GDEM133T91 ESP32 Sample Code
  ● Picture Production and Bitmap Convert for GDEM1085T51 ● The latest Catalog of ePaper display
  ● GDEM133T91 STM32 Sample Code ● Why can't I download the files?
