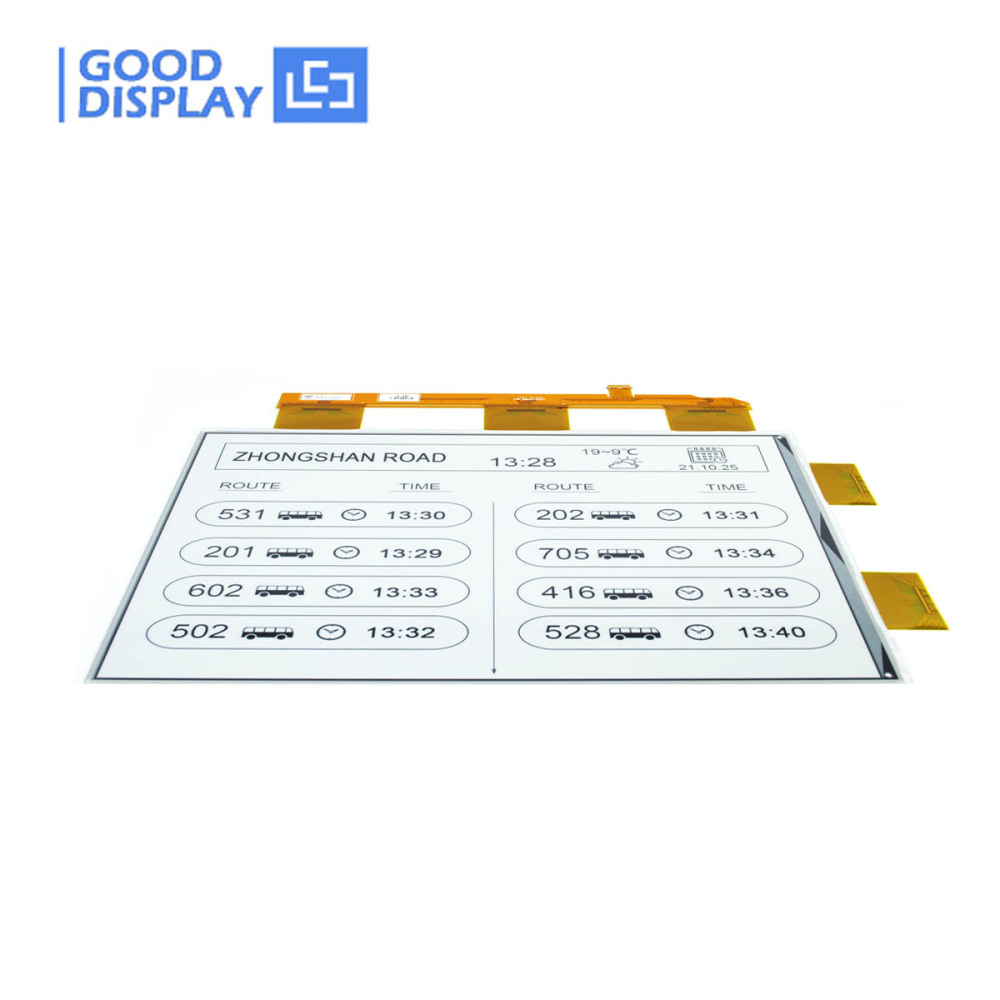

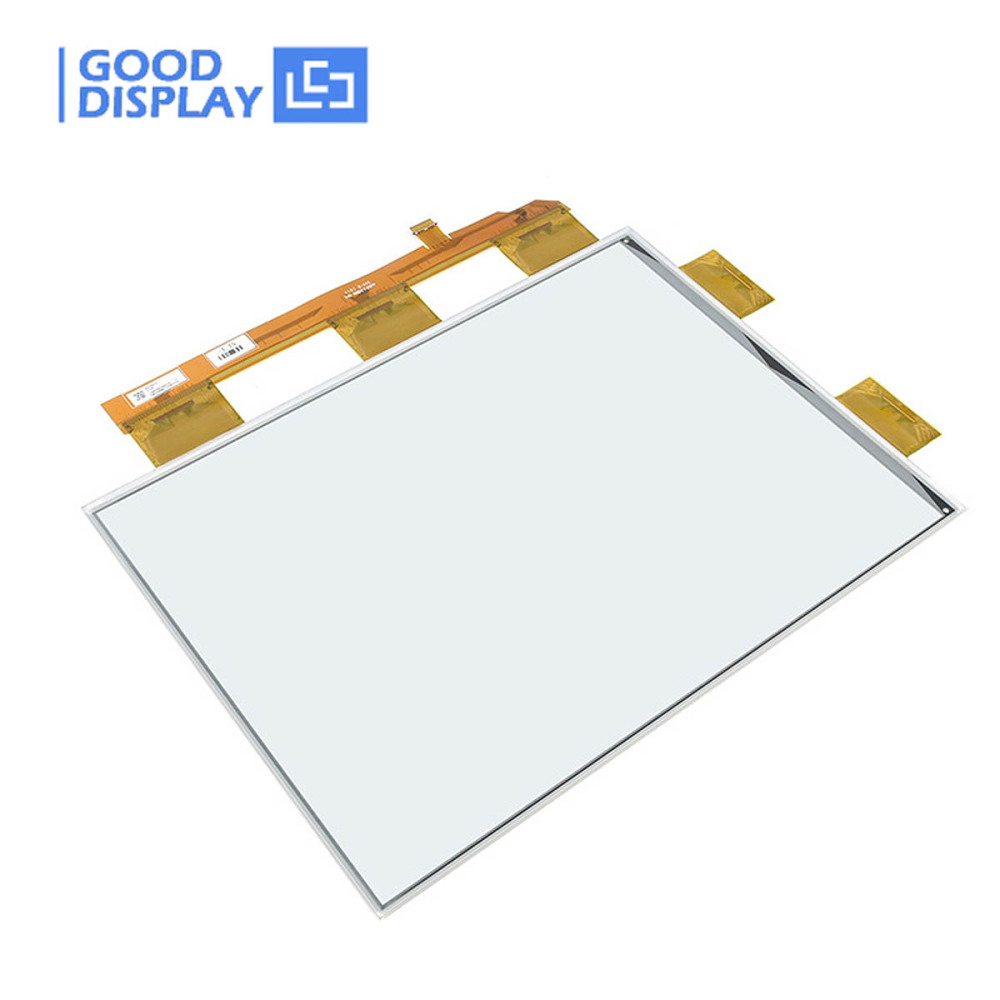

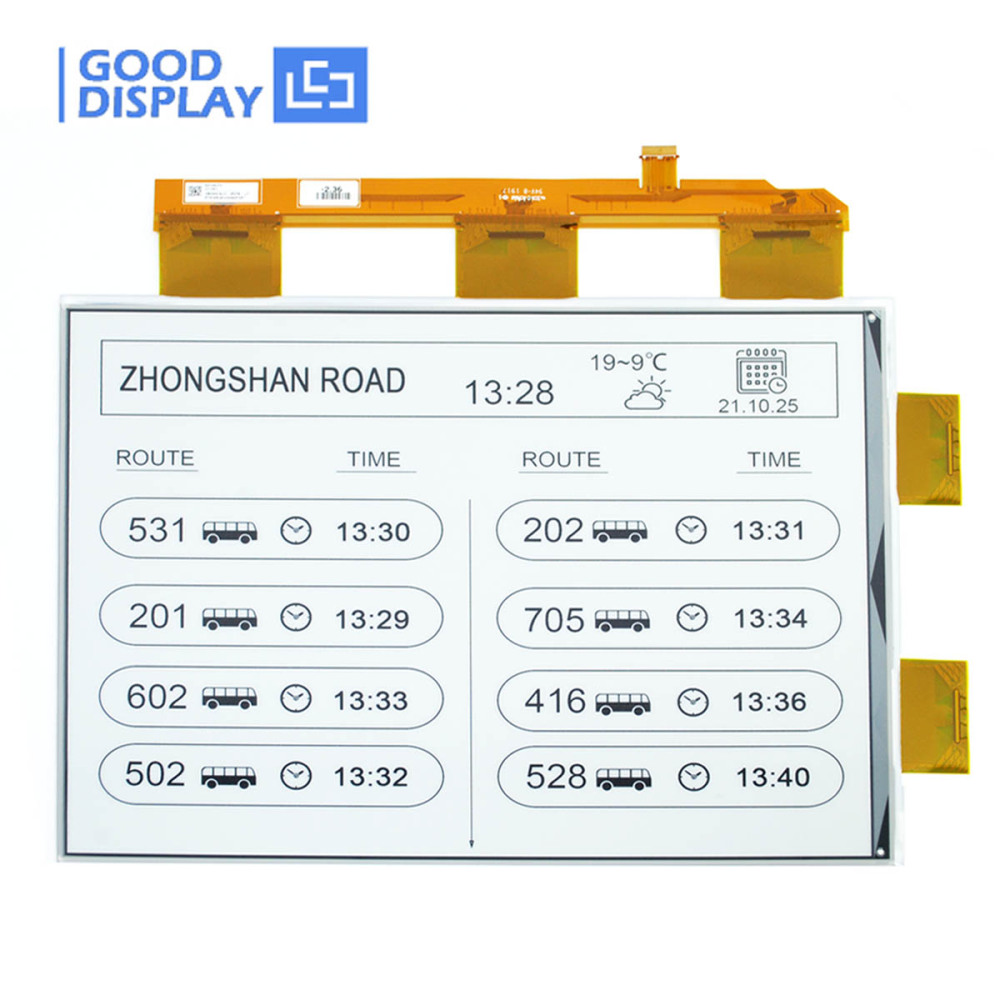

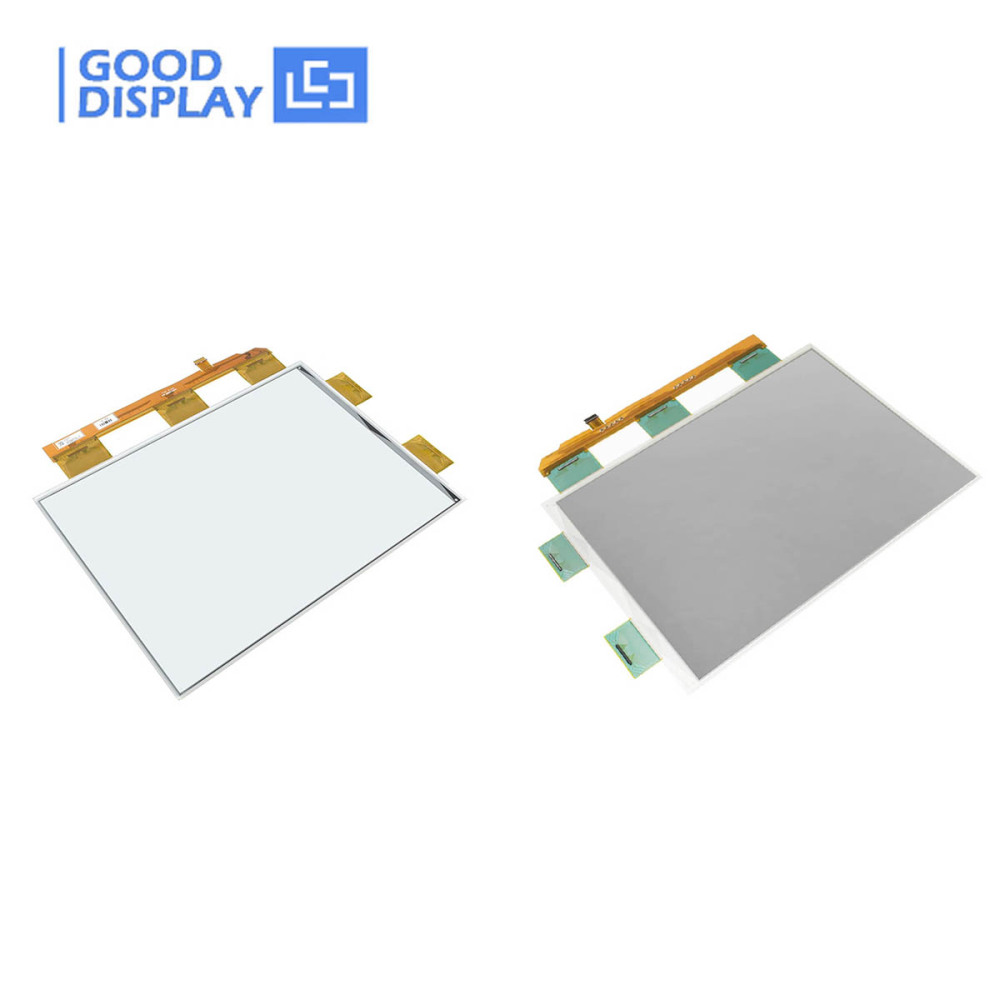

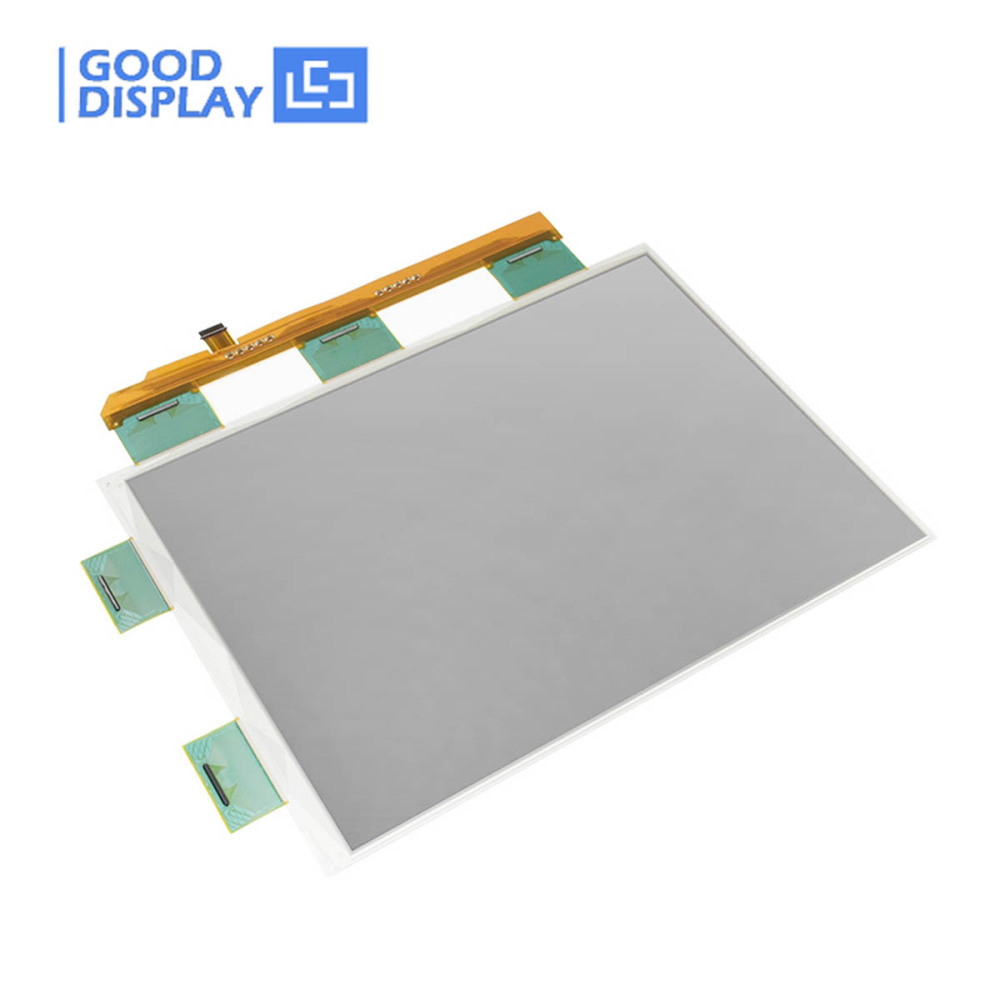

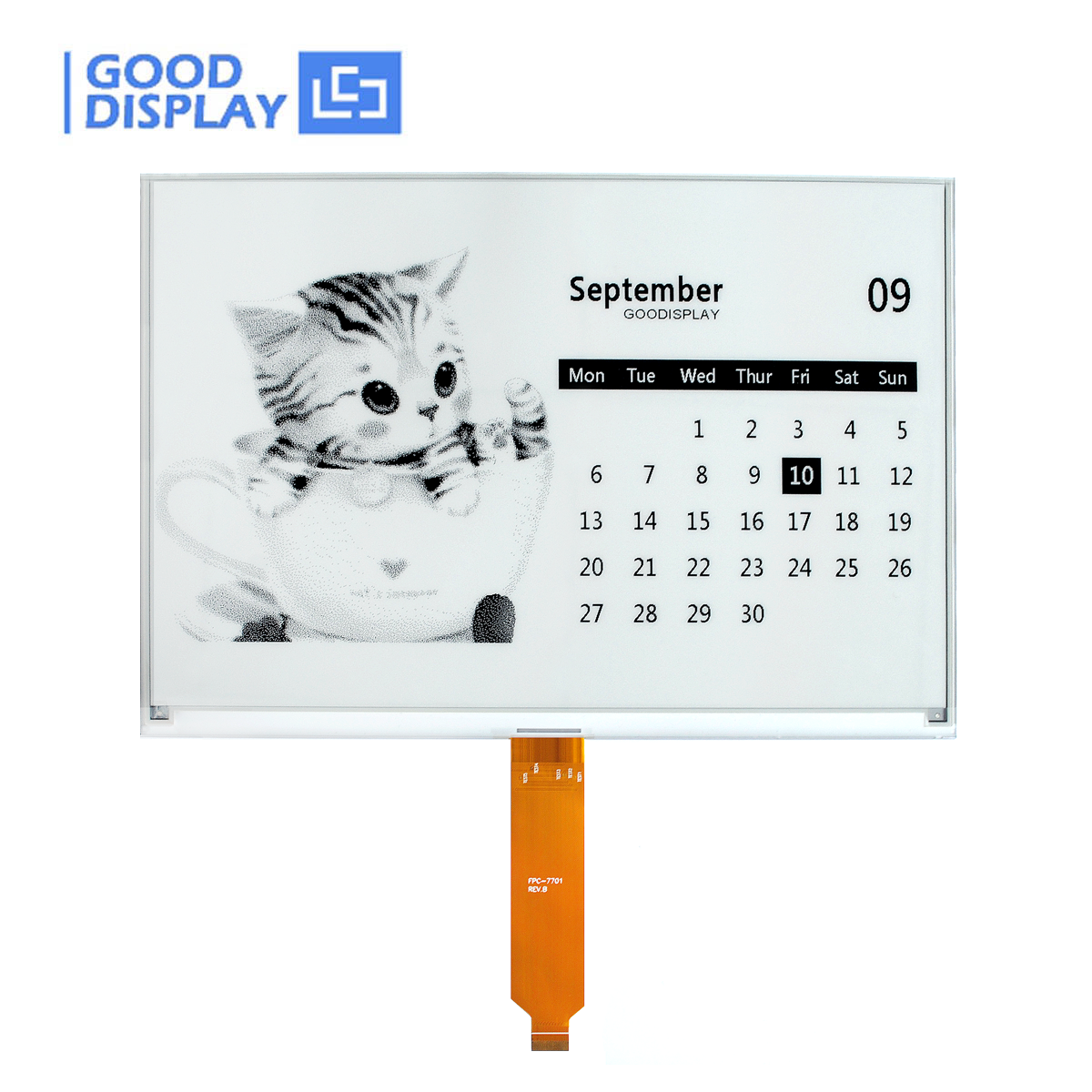

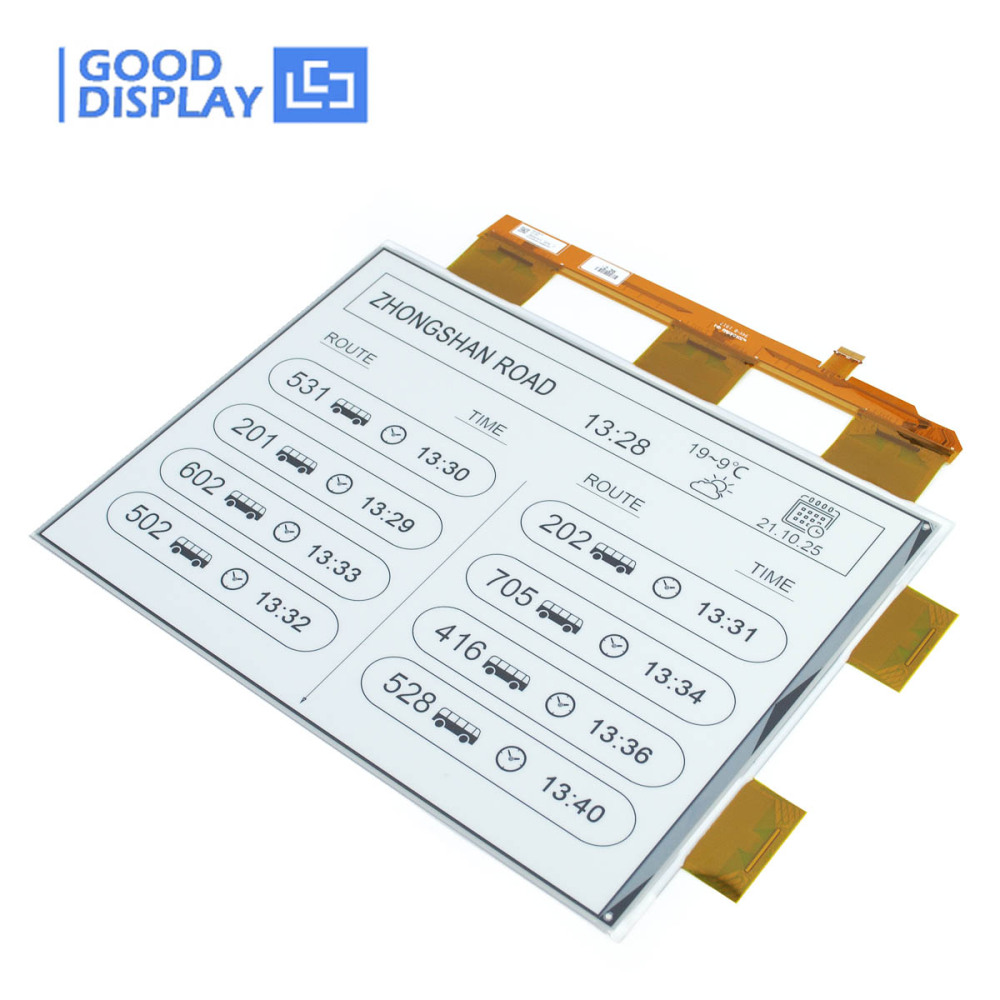

Monochrome 13.3 inch Big E-ink Display HD 1600x1200 Resolution E-paper Screen

GDEP133UT3
This is a 13.3 inch e-ink display large electronic paper screen, with 1600x1200 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, the
3 Review(s) Sold:25
Have a question?
Price:
USD
$276.00
  • Product:

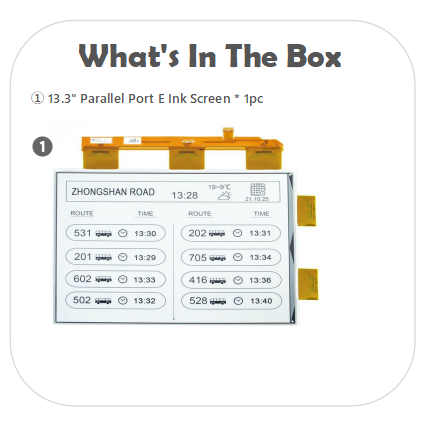

    EPD
    EPD with EPDIY Demo Kit

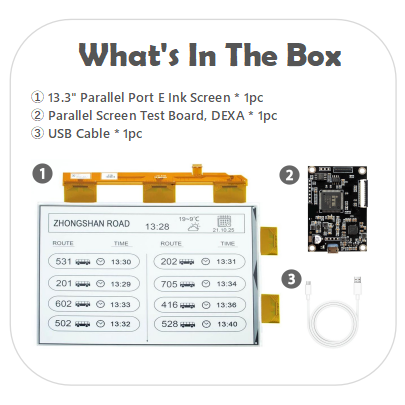

    EPD with DEXA Demo Kit
    EPDiy Demo Kit
Quantity:
-
+
(26 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(3)


13.3 inch wide temperature A4 E Ink Display Screen





This is a 13.3-inch e-ink display featuring a high resolution of 1600x1200 pixels and support for 16 grayscale levels. With a wide operating temperature range of -15℃ to 65℃, versatile display orientation options, and a rapid full refresh rate of 1 second, this display is perfect for smart home applications and industrial instruments. Its bistable, energy-efficient design, coupled with a wide viewing angle exceeding 170 degrees and anti-glare surface treatment, ensures comfortable viewing in various environments without blue light emission or radiation, making it ideal for prolonged use.













Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  True-to-Life Imagery with Rich Colors: Boasting a whopping 1600x1200 resolution and 16 grayscale levels, this display delivers images so lifelike, you'll swear they're jumping off the screen.
  ●  Lightning-Fast Full Screen Refresh: Say goodbye to lag. With a lightning-quick 1-second refresh rate, your content appears in the blink of an eye, keeping you in the flow of things.
  ●  Built to Handle Extreme Conditions: From freezing temperatures to scorching heat, this display thrives in the toughest environments, ensuring reliability when you need it most.
  ●  Persistent Performance Even During Power Outages: Thanks to its innovative bistable display technology, your content stays put even when the power's out, ensuring uninterrupted productivity.
  ●  Wide-Angle Viewing with No Blind Spots": With a viewing angle exceeding 170 degrees, everyone in the room gets a perfect view, no matter where they're seated.
  ●  Eye-Friendly Design for Endless Comfort": Designed with your well-being in mind, this display emits zero blue light radiation, meaning you can binge-watch or work late into the night without worrying about eye strain.
  ●  Sequential Control: External Timing Control (Driver comparison of iTC and eTC)










Technical Details

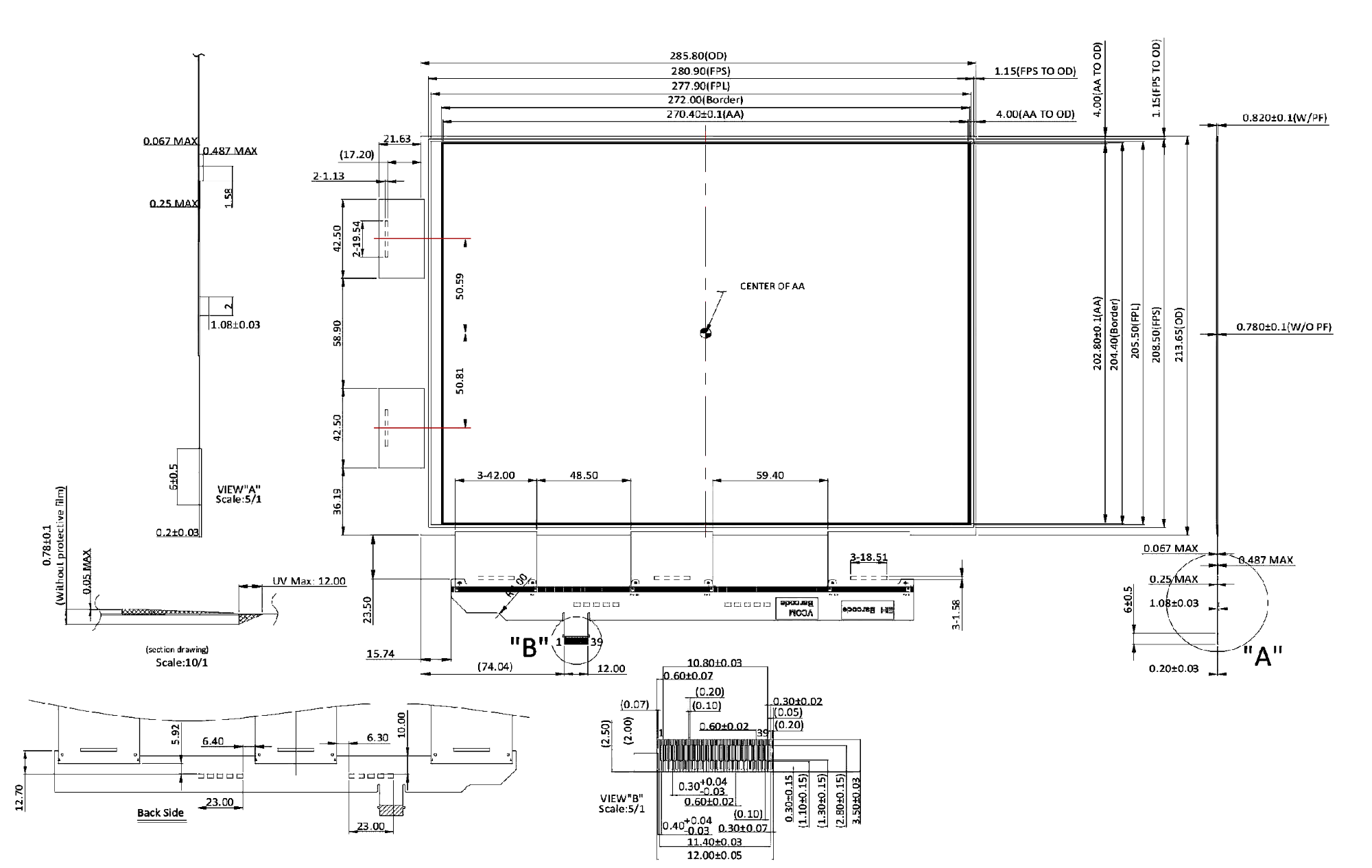

    Please refer to the product drawings for detailed dimensions








Product Specifications


    Please refer to the product specifications for more details

PART NUMBER GDEP133UT3 CONNECTOR 39 PIN
SIZE 13.3 inch TYPE Dot Matrix
RESOLUTION 1600x1200 MAX GRAYSCALE 16
OUTLINE SIZE(mm) 285.80x213.65x0.78 COLOR Black, White
ACTIVE SIZE(mm) 270.4x202.8 SEQUENTIAL CONTROL External Timing Control (eTC)
PIXEL PITCH(mm) 0.169x0.169 TIME FOR REFRESH(s) 1
OPERATING TEMP. -15℃~65℃ POWER CONSUMPTION OF THE REFRESH(mW) 265
STORAGE TEMP. -25℃~70℃ STANDBY POWER CONSUMPTION (mW) 0.4

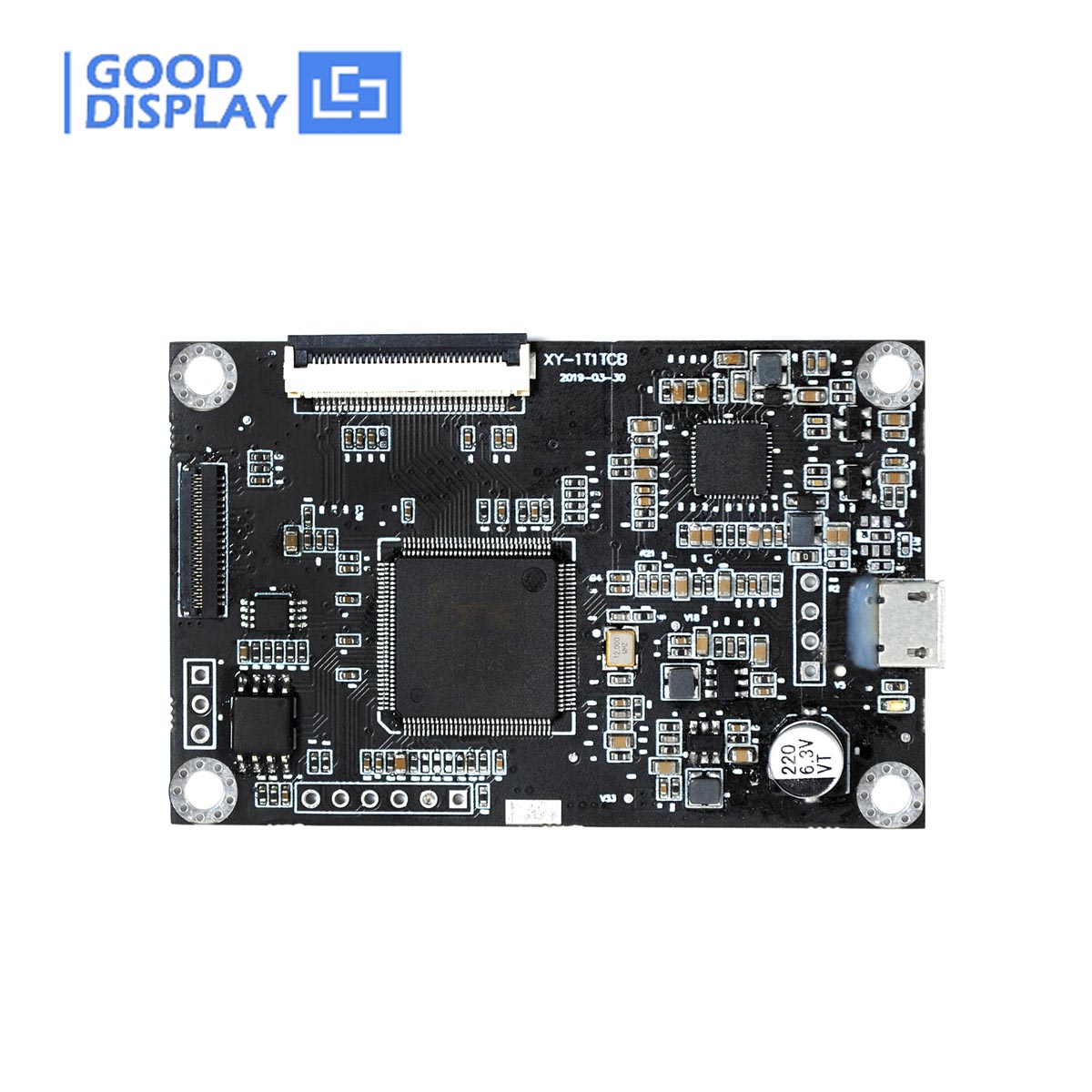

Matching Driver Board


To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

a. E-ink Display Kit for 13.3 inch E-Paper Display, EPDiy >> b. E-ink Display Kit for 13.3 inch E-Paper Display, DEXA >>








Related Information Download

Click on the subheadings below to download

  ● GDEP133UT3 Specification ● The latest Catalog of ePaper display
  ● 13.3-inch Host Computer Software ITE_TCon_DemoAP_v.2.5.4 ● Why can't I download the files(updated)?









Every day is Earth Day


  You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.



Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

 Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.		 Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.




WE ALSO SUGGEST
Click the image below to learn more about our products

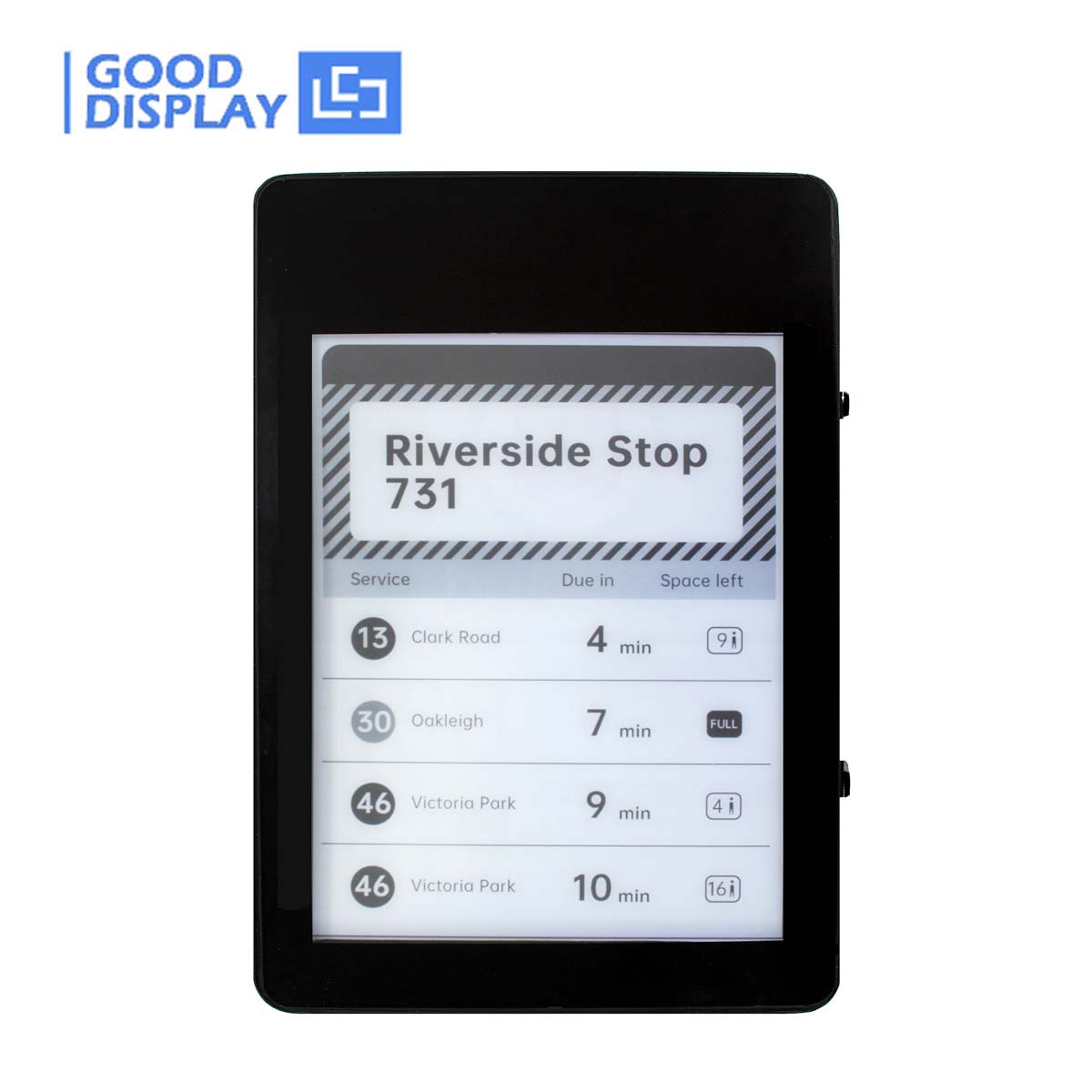

13.3 inch E-ink Display Large E-Paper HD Electronic Paper Screen, GDEM133T91 13.3 inch SPI E Ink screen black white red three color resolution 960x680 e-paper display screen, GDEM133Z91 13.3-inch high-saturation color e-ink module (E Ink Spectra 6) SPI display with a resolution of 1600x1200 GDEP133C02 13.3'' E Ink Real-Time Bus Arrival Display High-Resolution RTPI Electronic Sign with SPI Interface, DMPH133EC1
