13.3'' E Ink Real-Time Bus Arrival Display High-Resolution RTPI Electronic Sign

DMPH133EC1
Real-Time Passenger Information (RTPI) electronic signs display the number of minutes until the next bus arrives at a bus stop. 13.3 inch, 1600x1200 resolution, SPI interface
Price:
USD
$1109.00
Quantity:
-
+
(1 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews

13.3" Frontlight E Ink Sign

Introducing our 13.3-inch E Ink display with built-in front light—clear and comfortable in darkness, glare-free in sunlight. Perfectly readable day and night, it delivers continuous visibility without harsh backlight or constant power consumption. Update content easily via USB or Wi-Fi, and deploy anywhere from smart city signage to museums and bus stops—rain, shine, or night.

Core Advantages

All-Weather Visibility

Sunlight-readable with built-in front light for clear viewing in any lighting condition, from bright sun to total darkness.

Ultra-Low Power

Consumes just 3.5W during refresh and near-zero power on standby, perfect for solar or off-grid applications.

Rugged & Reliable

IP65 waterproof rating and wide temperature range (-15°C to 65°C) ensure durability in harsh environments.

Technical Specifications

Display Parameters

Part Number DMPH133EC1
Screen Size 13.3 inch
Screen Type Black and White E-Ink Display
Screen Resolution 1600x1200
Screen Grayscale 16 Gray

Port Parameters

USB2.0 One way HOST, one way OTG
HDMI-OUT 1 route
RJ45 1 route 10M/100M adaptive
TF Reserved (maximum expansion 128G)
KEY POWER, UP, DOWN, RESET

Power Consumption

Power supply mode 12-20V/2A power adapter
Refresh power ≤3.5W
Standby power ≤0.01W
Built-in battery No battery
Front Light Power ≤2.16W

Software & Hardware

Image update interval 2s
Image update method USB or WiFi image update
Language Supports multiple languages
Operating System Android 7.1
CPU Quad-core ARM Cortex A7
DDR 1GB
EMMC 8GB

Physical & Environmental

Waterproof Level IP65
Weight Approximately 5.75kg
Dimensions 375x250x65mm
Operating temperature -15°C to 65°C
Storage temperature -25°C to 70°C
Operating humidity 20% to 90%

Connectivity

WiFi frequency band 2.4GHz
Bluetooth 4.0

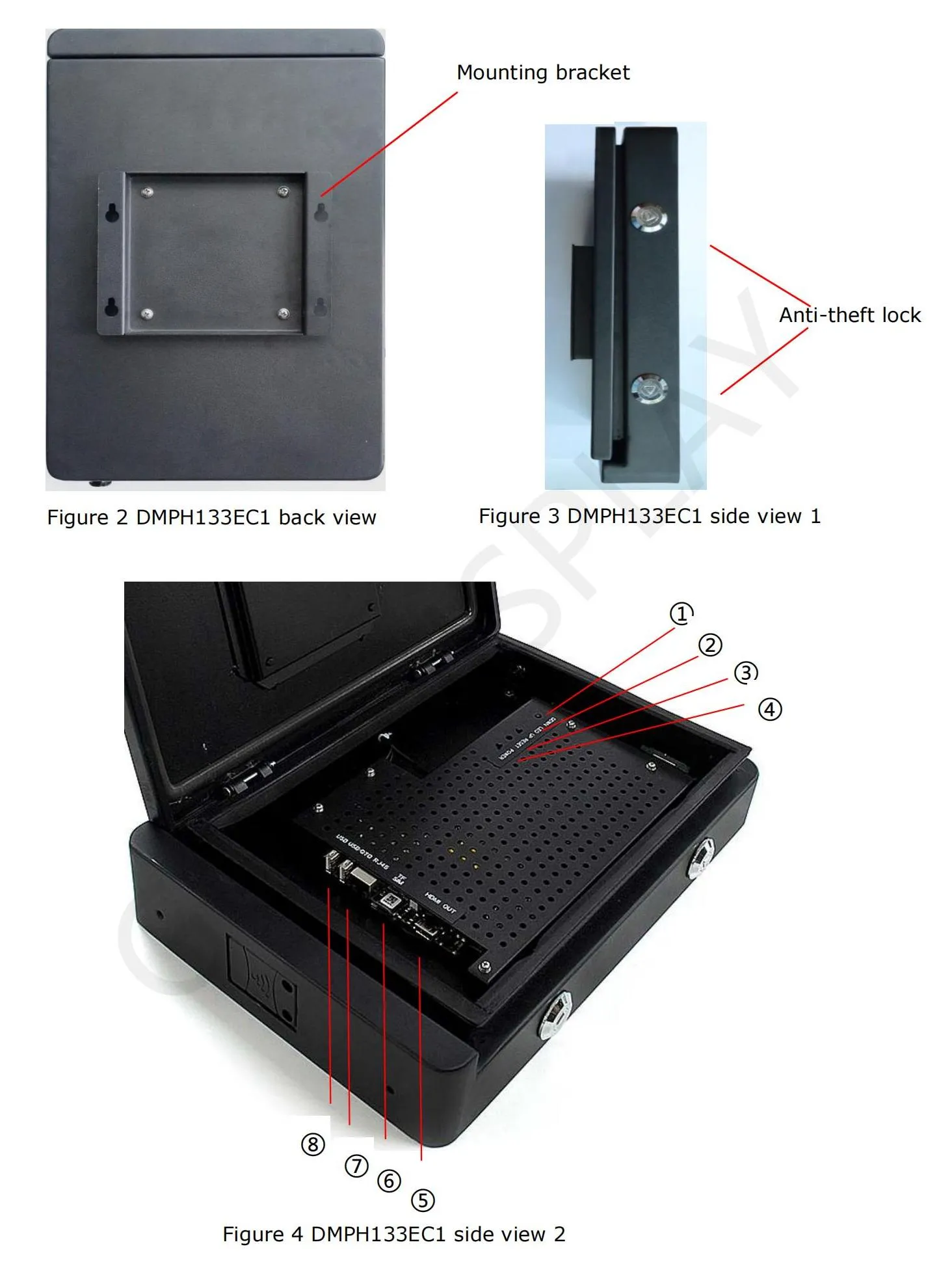

Structure Diagram Details

  • 1 USB 2.0 Port (Type-A): For inserting a USB flash drive to upload/update display content. FAT32 format recommended.
  • 2 USB 2.0 OTG Port: Used for mainboard debugging and firmware upgrades. OTG function can be toggled via long-press of [DOWN] key.
  • 3 Ethernet Port (RJ45): 10/100 Mbps LAN port for wired network connectivity.
  • 4 microSD (TF) Card Slot: Supports inserting a microSD card for additional storage (up to 128 GB).
  • 5 SIM Card Slot: For an optional 4G/LTE module. Insert an IoT (cellular) SIM card here if cellular data is required.
  • 6 HDMI Output: Connect an external monitor to output the Android mainboard's display content.
  • 7 Wi-Fi/4G Antenna Connector: SMA-style connector for the included antenna (used for Wi-Fi and 4G signals).
  • 8 USB-C (PD) Power Input: Used to connect the external 12–20 V DC power supply (USB-C PD adapter, optional).

Android WiFi Control App

WiFi Control App

Wireless Management Made Simple

Our intuitive Android app allows you to configure and control your E-Ink displays seamlessly via WiFi connection. Update content, manage multiple devices, and monitor status from anywhere.


Download Control App

Note: WiFi functionality requires USB cable power supply. For optimal performance, ensure your device is connected to a stable power source during updates.

Typical Applications




Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.

Why GooDisplay E-Paper Refreshes Faster



Optimized Fast-Refresh FPL

We rigorously select fast-refresh FPL films at the raw material level, laying a solid hardware foundation for high-speed performance.



Smart Temp-Controlled Drive

 Our engineers optimize waveform files for different temperature ranges, ensuring excellent display quality even during rapid refresh cycles.





Chip-Level Integrated Solution

Optimized waveforms are built into the display driver chip—activate fast refresh mode with a simple code call!

Display Type Refresh Capability Available Sizes
Black & White (B/W) Displays Supports fast refresh, partial refresh, and 4-level grayscale 0.97" to 10.3"
Black, White & Red (BWR) Displays Supports fast refresh and partial B/W refresh 2.13" to 11.6"
Black, White, Red & Yellow (BWRY) Displays Supports fast refresh with multi-color layered updating 0.97" to 11.6"
