☆ INTRODUCTION
The main purpose of this development kit is to assist developers in carrying out e-paper display projects more quickly and smoothly. It is specifically designed for 9.7-inch (GDEP097TC2) and 13.3-inch (GDEP133UT3) parallel e-paper displays. It is easy to operate and allows for easy control of display content through PC software, enabling refresh functions for 9.7-inch and 13.3-inch parallel e-paper displays.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
1) Epaper E-ink Display Upper Computer Development Kit, DEXA * 1pc
2) USB port cable * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
DEXA |
| INTERFACE |
USB Interface |

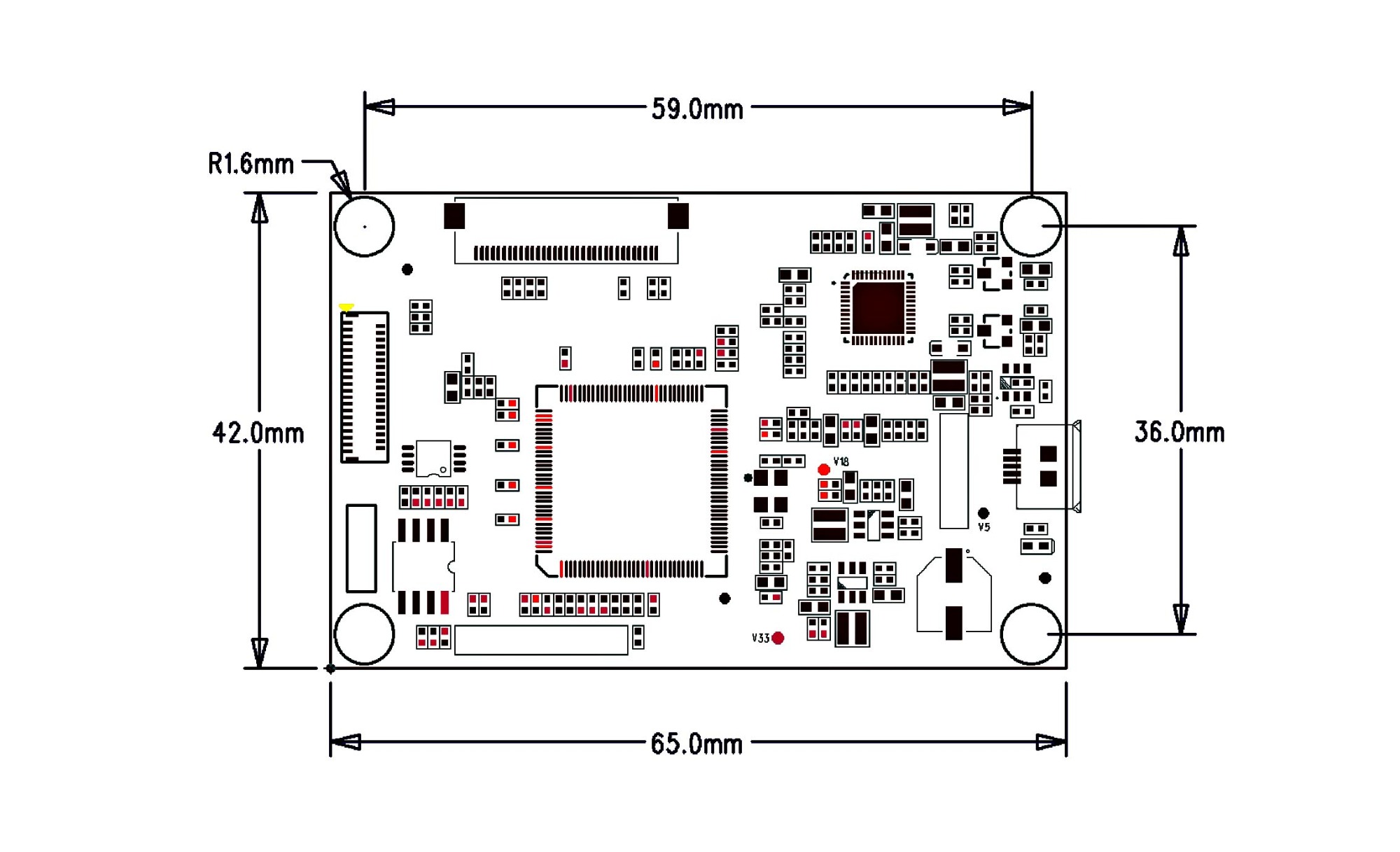

OUTSIDE DIMENSION |
65x42mm |
| POWER SUPPLY |
DC 5V |
OPERATING TEMP. |
-20℃~70℃ |
| OPERATING CURRENT |
50mA |
| MAIN FUNCTION |
Designed for 9.7 inch and 13.3 inch e-paper display, assist developers to test electronic ink screen applicaiton development faster and more smoothly. Directly through the upper computer software to transfer the images. |
☆ FEATURE
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● Support Partial Refresh. The partial refresh rate is 1s/frame
● Low power consumption, basically power is only required for refreshing
☆ DETAILS
☆ MATCHED E-INK DISPLAY
● GDEP097TC2 >>
This is a 9.7 inch e ink display panel with 1200x825 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries.
● GDEP133UT3 >>

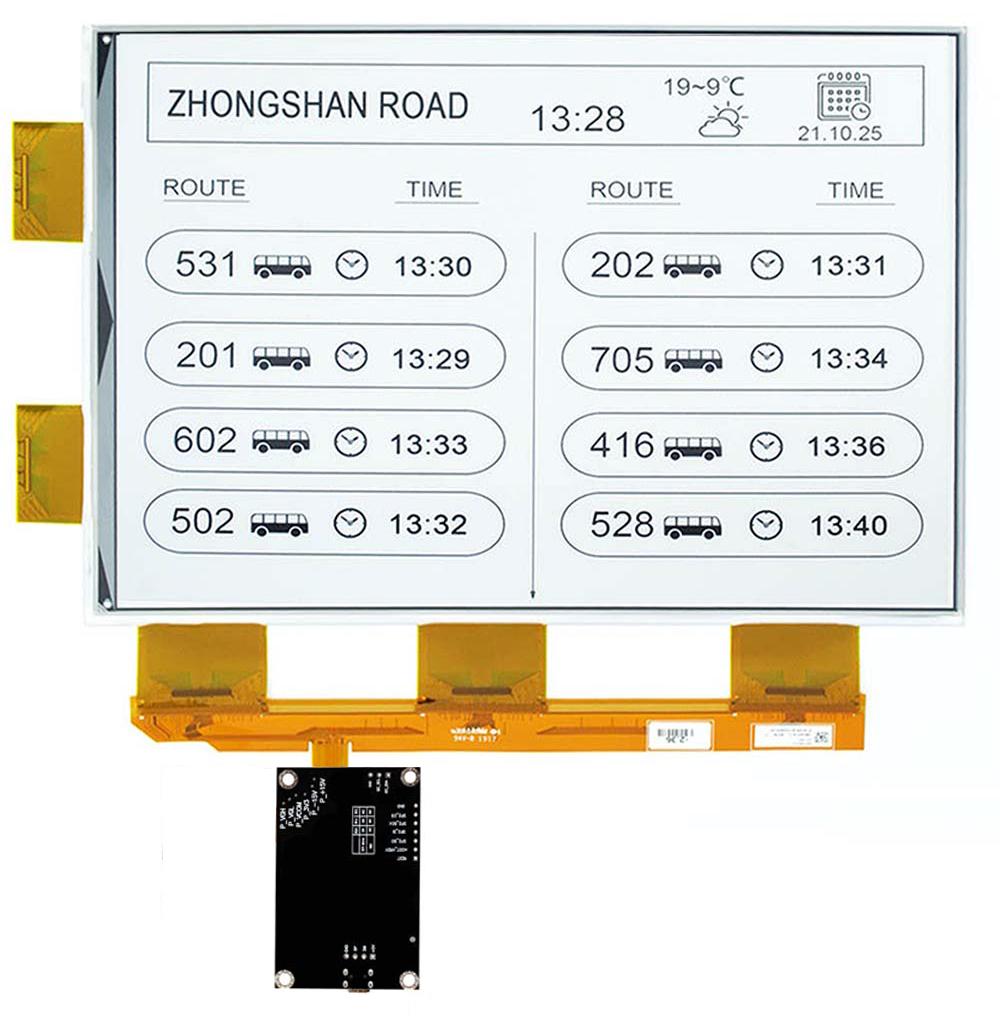

This is a 13.3 inch e-ink display large electronic paper screen, with 1600x1200 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries.
☆ RELATED INFORMATION DOWNLOAD
● DEXA-C097 Specification for 9.7 inch e-paper
● DEXA-C133 Specification for 13.3 inch e-paper
● 13.3-inch Host Computer Software ITE_TCon_DemoAP_v.2.5.4
