7.5-Inch Touch E-Paper E-Ink Display HAT 800x480 Resolution Black&White Paper-like Display

GDEY075T7-T01
This 7.5 inch electronic paper monitor GDEY075T7-T01 is perfect for low-power touchable devices.
4 Review(s) Sold:21
Have a question?
Price:
USD
$49.10
  • Product:
    EPD
    EPD with STM32 adapter board
    EPD with STM32 Development Board
    EPD with ESP32 adapter board
    EPD with ESP32 Development Board
    adapter board
Quantity:
-
+
(55 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(4)

mailTIP: The Touch Screen is not sold separately due to precise bonding requirements. Please purchase the complete bonded product. For temperature details, refer to the display screen specifications.



Goodisplay Touch ePaper Supplier

Enhance Interaction with Precision Touch

Good Display, with 17 years of expertise in e-paper technology, is dedicated to bringing the best e-paper solutions to its customers. This touchscreen e-paper panel seamlessly integrates a PET material touch sensor directly onto the top of the E Ink display, creating an advanced touch solution. This design not only reduces power consumption and costs but also improves the aesthetic appeal and visual clarity of the display. It's an ideal fit for a wide range of smart devices.






New Generation of Touch Screen ePaper



Resolution:
800x480

Max Grayscale: 4

Low Power Consumption

Fast Update: 1.5s

Partial Update: 0.3s

Full Update: 3s





E Ink Touch Screens for Every Need

Why We're the Best Choice for You

  • Advanced Touch Technology: GDEY075T7-T01 is a TFT active matrix electrophoretic display with capacitive touch panel-GT911, Supports 5-point touch and featuring an I2C interface.
  • Exceptional Transparency: The e-paper touchscreen offers superior light transmission, enhancing contrast and clarity.
  • Ultra-Low Power Consumption:  Both the e-paper display and touchscreen use minimal power.
  • Fast Refresh Rate: Faster touch response thanks to improved e-paper refresh rates.











Custom Touch Module Solutions

● Designed to be fully compatible with any 7.5-inch E Ink display, ensuring seamless integration.
● Our dedicated quality control team guarantees the highest product standards, delivering only the best to our customers.
● Backed by comprehensive technical support from our expert team, we're here to ensure your success every step of the way.










Technical Details
















Product Specifications



PART NUMBER

GDEY075T7-T01

CONNECTOR OF EPD

24 Pin FPC

TYPE

Dot Matrix

MAX GRAYSCALE

4

SIZE

7.5 inch

COLOR

Black,White

IC

UC8179

FULL REFRESH(s)

3

RESOLUTION

800x480

FAST REFRESH TIME(s)

1.5

OUTLINE SIZE(mm)

170.2x111.2x2.13

PARTIAL REFRESH TIME(s)

0.3

ACTIVE SIZE(mm)

163.2x97.92

POWER CONSUMPTION OF THE REFRESH(mW)

26.4
PIXEL PITCH(mm) 0.204x0.204 STANDBY POWER CONSUMPTION (mW) 0.0165

OPERATING ENVIRONMENT

0℃~50℃

TOUCHSCREEN CONNECTOR

6 pin FPC

STORAGE ENVIRONMENT

-25℃~70℃

TOUCHSCREEN CONTROLLER IC

GT911
INTERFACE SPI TOUCHSCREEN OPERATING VOLTAGE 2.8V~3.6V













Matching Driver Boards

Ⅰ. STM32-T01 (STM32 adapter Board)

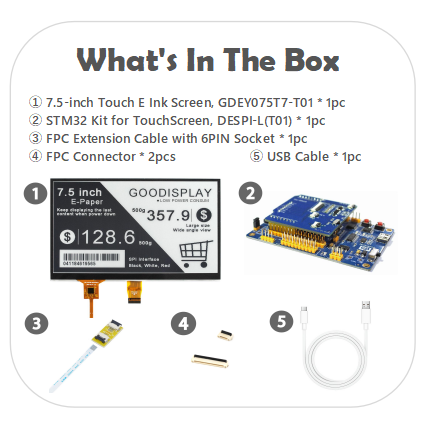

Ⅱ. DESPI-L(T01) (STM32 Demo Kit)

Ⅲ. ESP32-T01 (ESP32 adapter Board)

Ⅳ. ESP32-L(T01) (ESP32 Demo Kit)









Files And Download



● GDEY075T7-T01 (E-paper+Touch Screen) Specification

● GDEY075T7-T01 ESP32 Sample Code

● IC Driver GT911 Datasheet

● The latest Catalog of ePaper display

● TP075-Y01 Specification

● Why can't I download the files(updated)?

● GDEY075T7-T01 STM32 Sample Code













Product Application

E-Book Readers

Digital Handwriting Pads

Portable To-Do Lists/Planners

Smart Home Control Panels

Smart Notebooks
