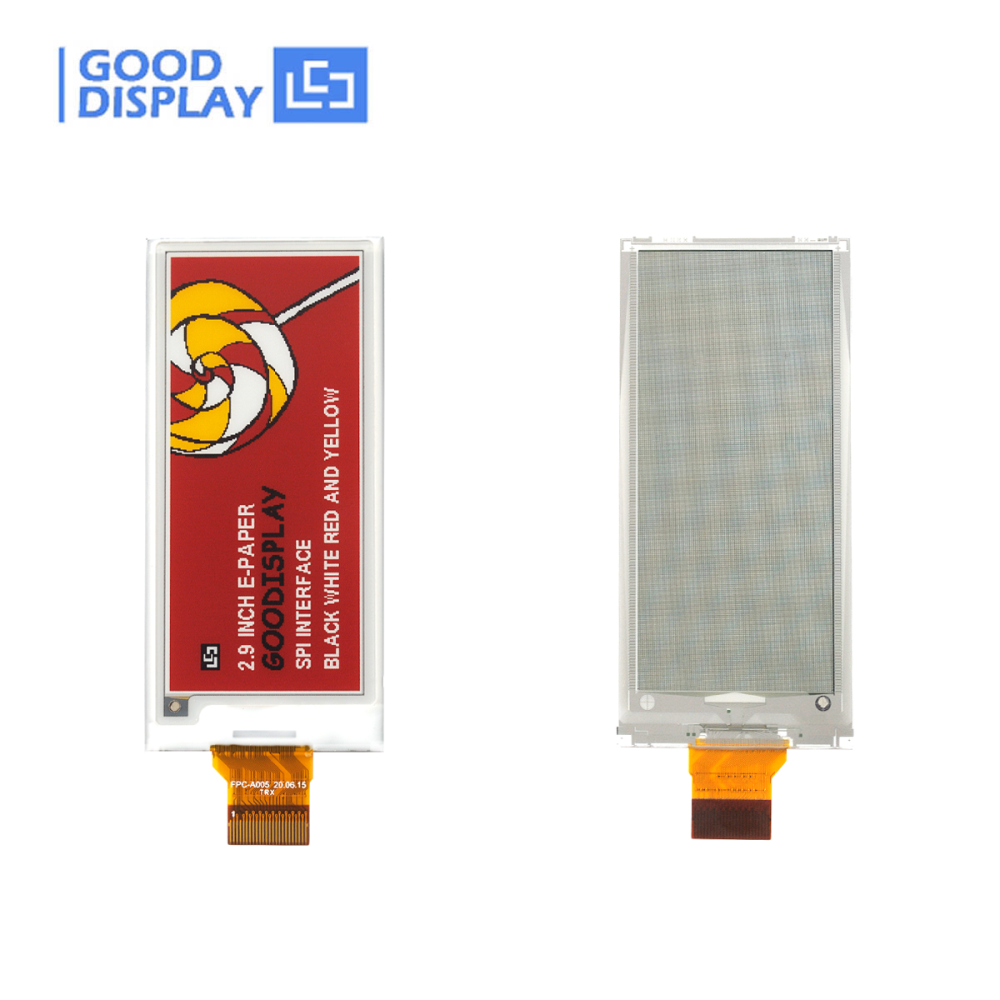

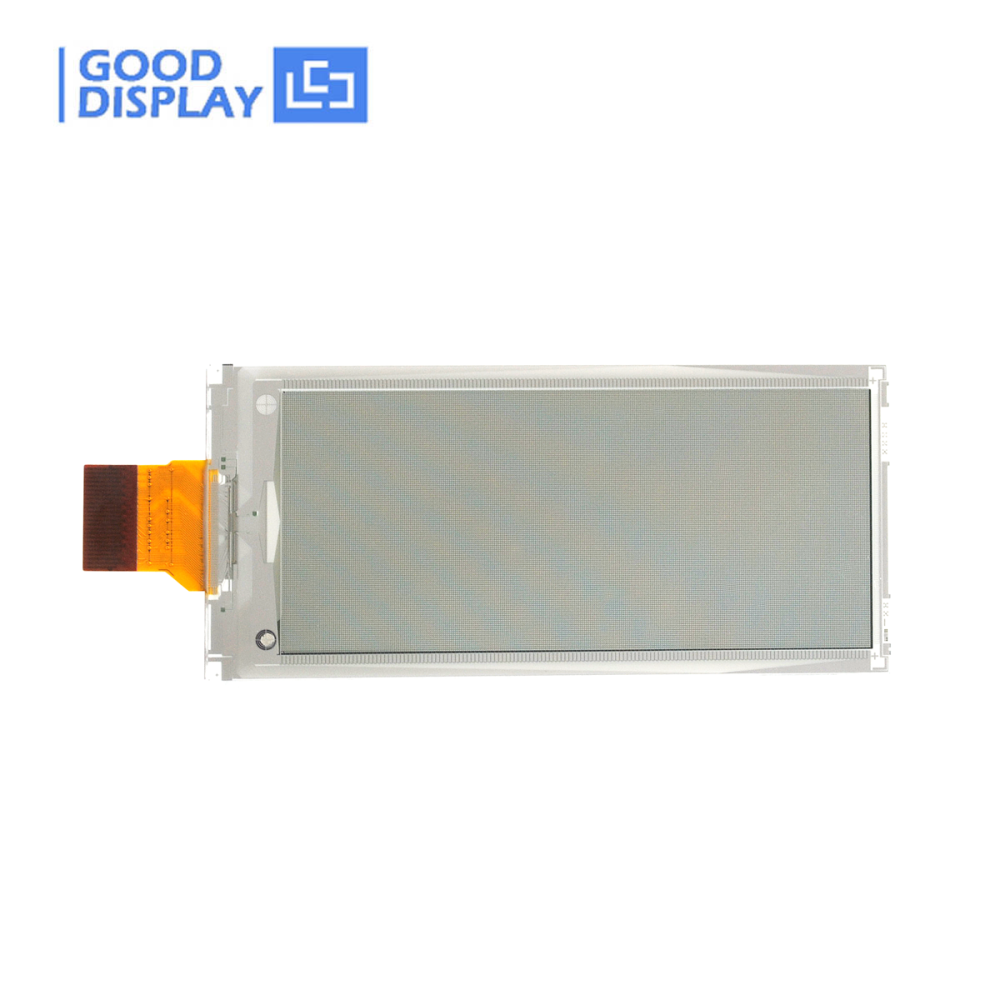

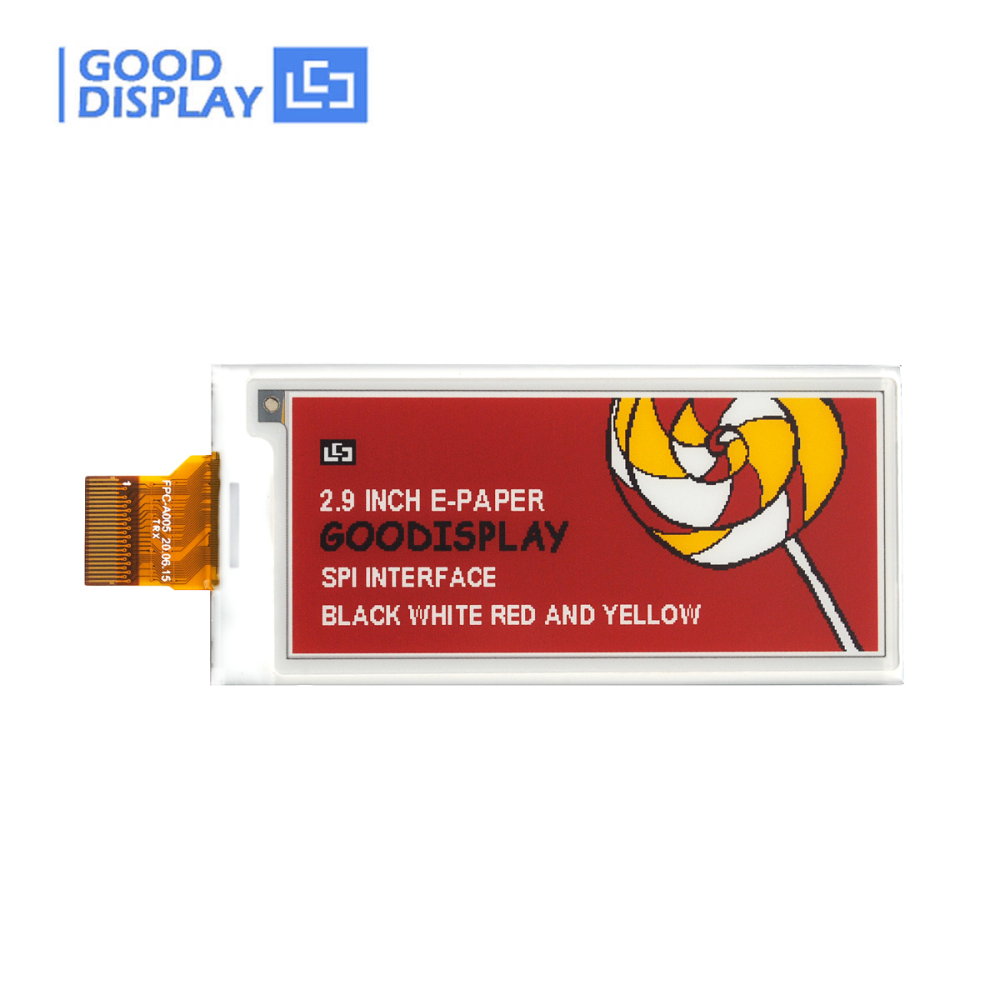

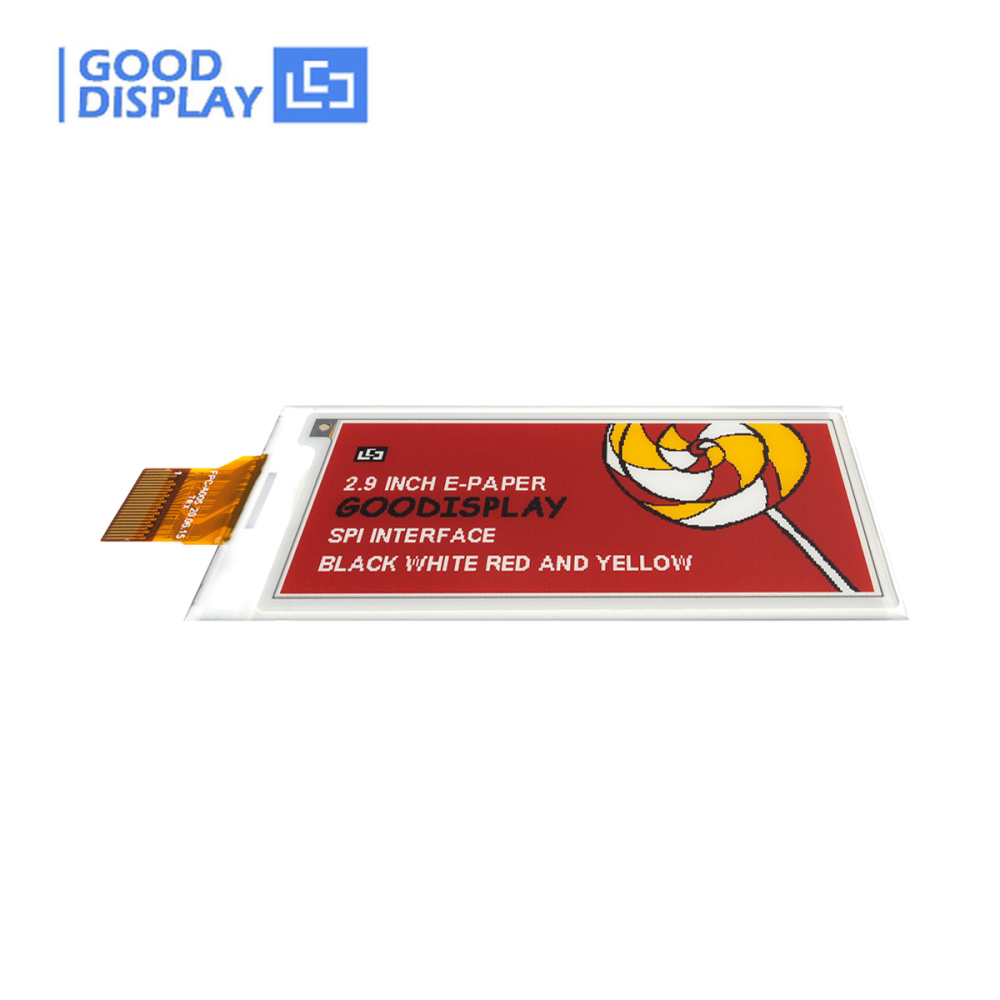

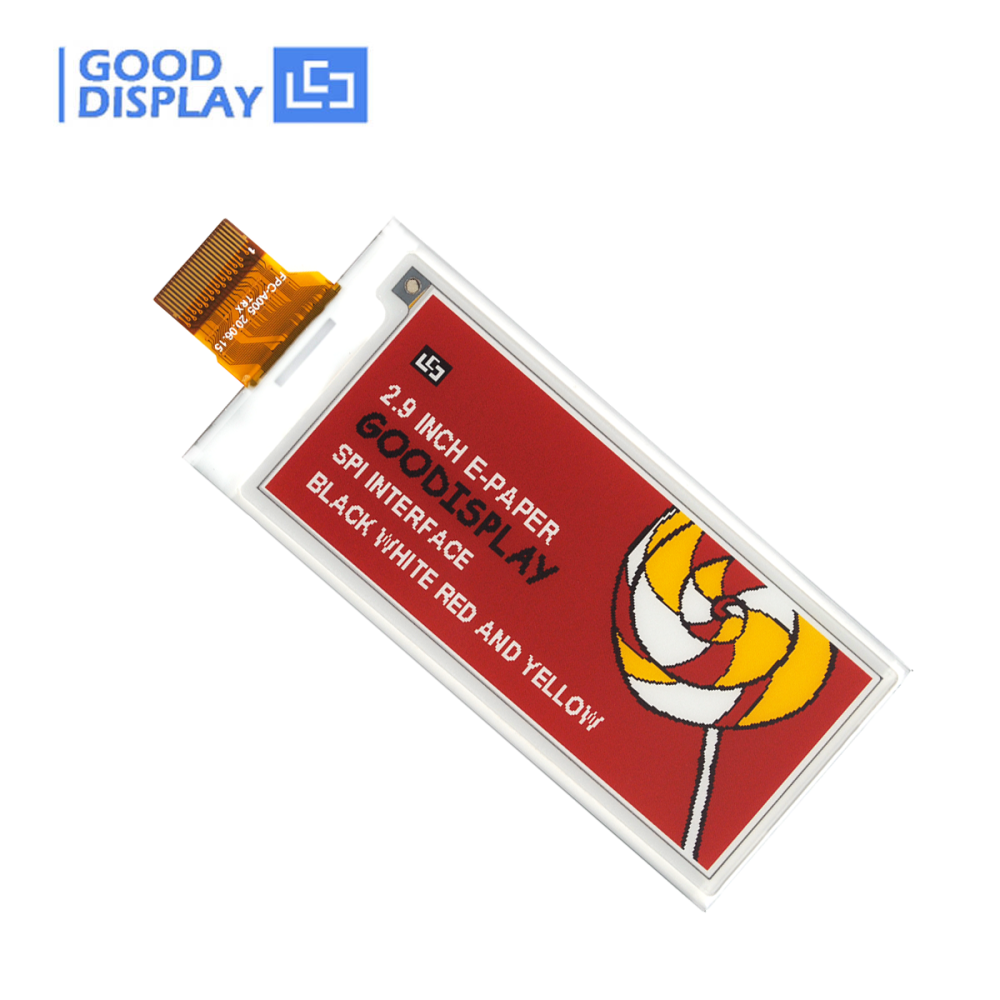

2.9-Inch E Ink Display Crisp 296x128 Resolution with Bold Black, White, Yellow, and Red Colors

GDEY029F51
Dazzles with vibrant colors and cutting-edge color mixing! Elevate your visuals with richer hues and endless display possibilities. Perfect for applications craving eye-catching, dynamic color displays that stand out from the crowd.
3 Review(s) Sold:138
Have a question?
Price:
USD
$5.91
$8.90
(34% OFF)
  • product:
    EPD

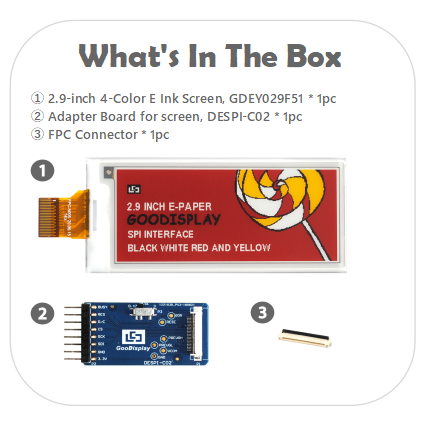

    EPD with adapter board
    EPD with NFC Board

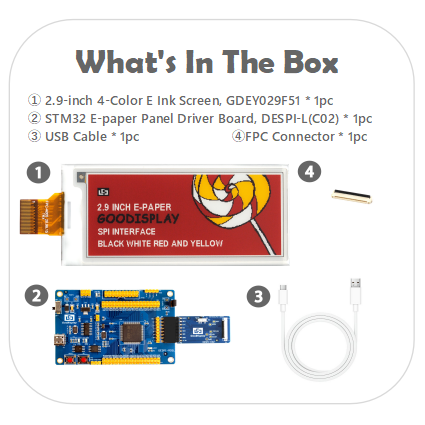

    EPD with STM32 Demo Kit

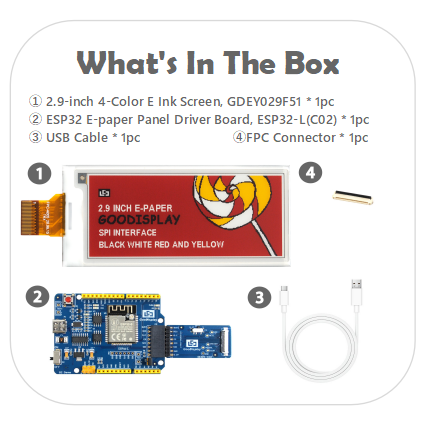

    EPD with ESP32 Demo Kit
    HAT Adapter Board
Quantity:
-
+
(199 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(3)


The 2.9-inch Tri-color ePaper Monochrome Partial Update at 296x128 Resolution




The 2.9-inch 4-Color ePaper Display: your go-to for savvy, low-power devices. With its crisp 296x128 resolution and the ability to showcase images in black, white, and red, this display is not just a screen—it's a power-saving marvel. Imagine setting your display, shutting down, and still having your content vividly preserved indefinitely! Perfect for anything from smart home panels and eco-friendly gadgets to dynamic retail signage and educational tools, it's a game-changer. Efficient, stylish, and effortlessly cool—this ePaper display keeps things smart and green, no strings (or wires) attached.









Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Color Spectacle: Black, white, yellow, and red—immerse yourself in a vibrant color experience that makes your content pop like never before!
  ●  Zero-Energy Hero: Thanks to dual-stable display technology, it holds your screen indefinitely even when the power's off, keeping your devices running effortlessly!
  ●  Wide-Angle Wonder: With over 170 degrees of viewing angle, whether you're horizontal or vertical, the display shines with realism and high-tech flair!
  ●  Eye Comfort: No blue light, no radiation—enhanced with a glare-resistant hard coating, it protects your vision for smooth, enjoyable viewing!
  ●  Versatile Applications: From smart homes to cutting-edge industrial instruments, and from smart tags to eco-friendly smart cards, it covers all bases for your diverse needs!
  ●  Environmental Vanguard: Powered by innovative technology and committed to sustainability, join us in safeguarding the planet's future!









Technical Details

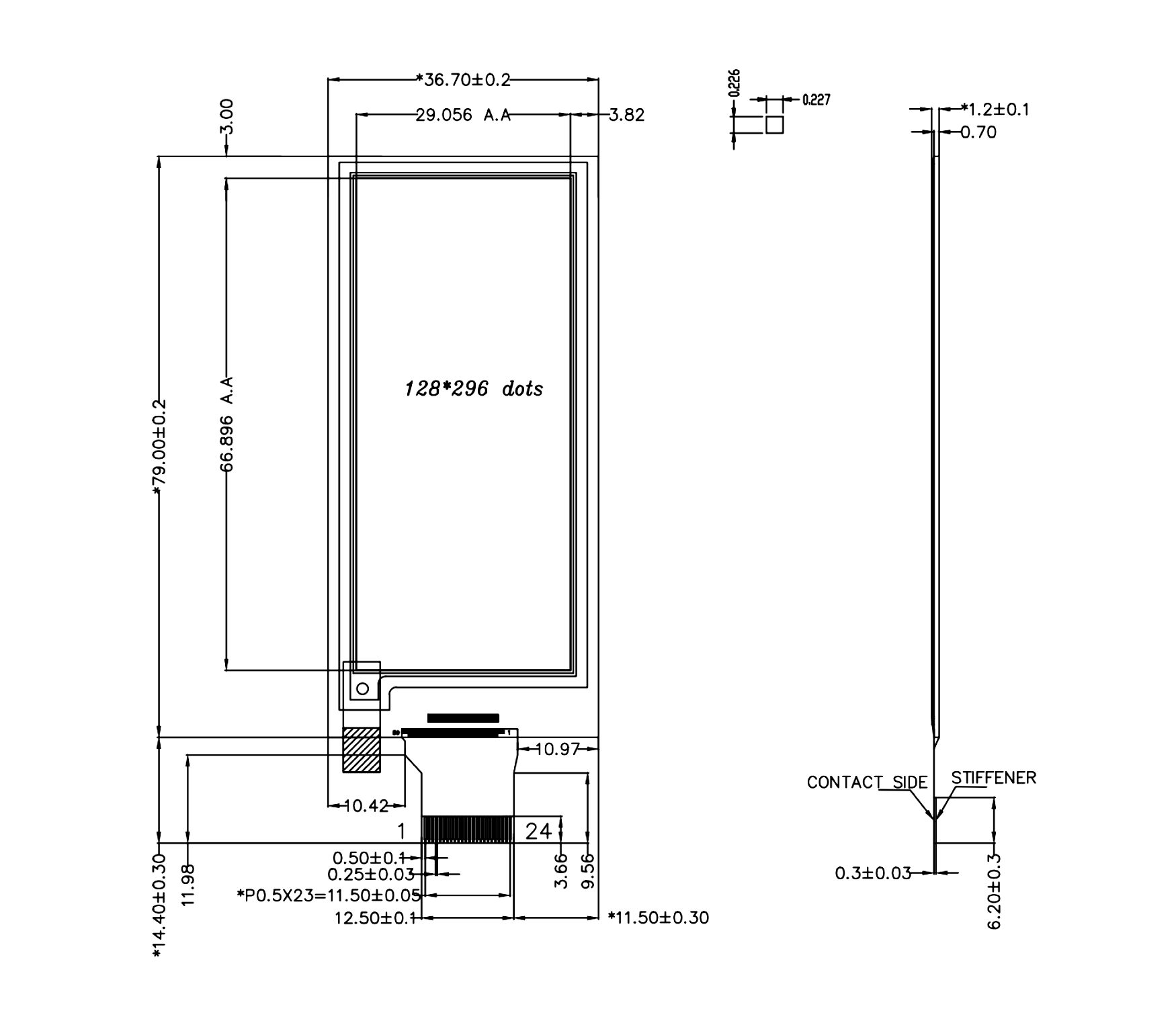

    Please refer to the product drawings for detailed dimensions








Product Specifications


    Please refer to the product specifications for more details

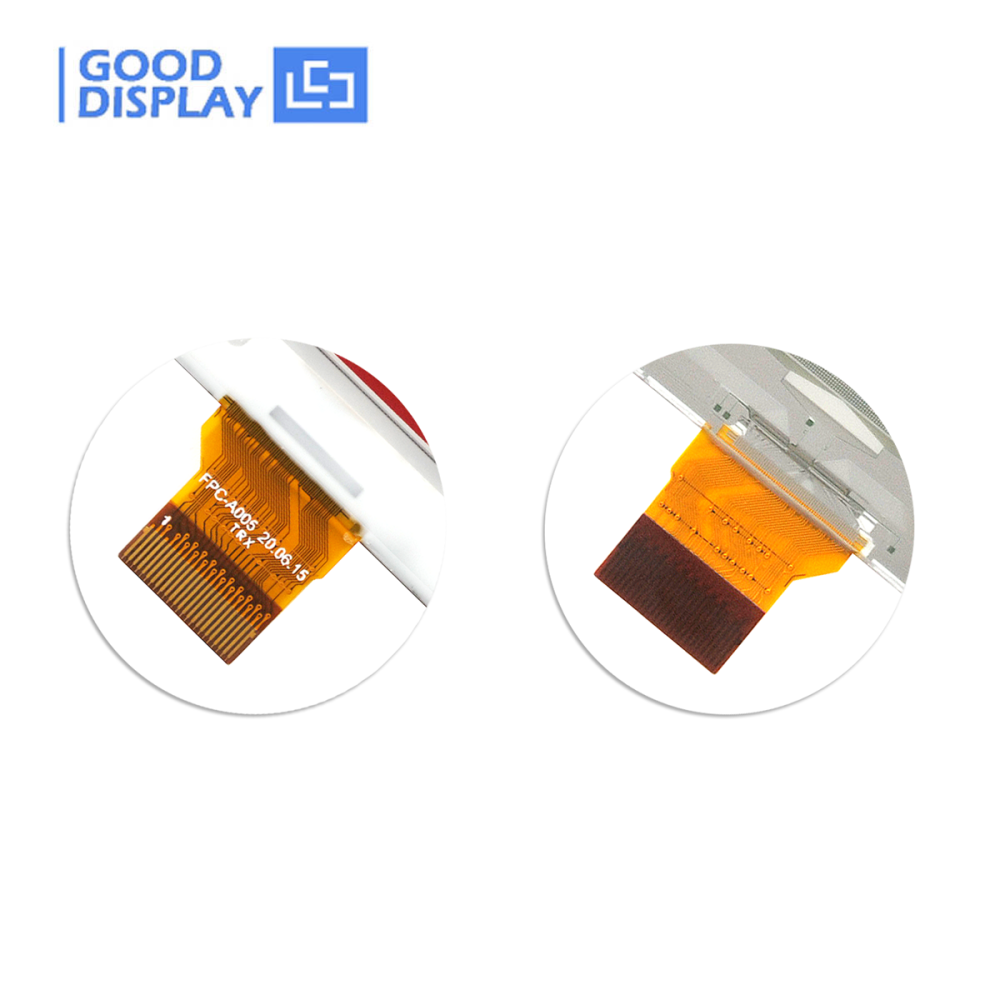

PART NUMBER GDEY029F51 CONNECTOR 24 Pin FPC
SIZE 2.9 inch TYPE Dot Matrix
RESOLUTION 296x128 IC JD79661
OUTLINE SIZE(mm) 79x36.7x1.2 COLOR Black, White, Red, Yellow
ACTIVE SIZE(mm) 66.896x29.056 INTERFACE SPI
PIXEL PITCH(mm) 0.227x0.226 FULL REFRESH(s) 25
OPERATING TEMP. 0℃~40℃ POWER CONSUMPTION OF THE REFRESH(mW) 9.9
STORAGE TEMP. -25℃~70℃ STANDBY POWER CONSUMPTION (mW) 0.003







Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

a. DESPI-C02 (E-ink Display adapter Board) b. DESPI-L(C02) (STM32 Demo Kit) c. DEArduino-L(C02) (Arduino Platform Demo Kit)
d.ESP8266-L(C02) (ESP8266 Demo Kit) e.ESP32-L(C02) (ESP32 Demo Kit) f. NFC-D3-029 (NFC Driver Board)








Related Information Download

Click on the subheadings below to download

  ● GDEY029F51 Specification ● GDEY029F51 ESP8266 Sample Code
  ● JD79661 Driver IC Datasheet ● GDEY029F51 Arduino Sample Code
  ● Picture Production and Bitmap Convert for GDEY029F51 ● The latest Catalog of ePaper display
  ● GDEY029F51 STM32 Sample Code ● Why can't I download the files(updated)?
  ● GDEY029F51 ESP32 Sample Code
