2.9 inch e-paper display 384x168 high resolution fast update , GDEY029T71H

This is a 2.9-inch e-ink screen with high resolution, fast refresh rate, capable of displaying images in black and white content.
Price:
USD
$9.50
  • product:
    EPD
    EPD with adapter board
    EPD with STM32 Demo kit
    EPD with ESP32 Demo Kit
Quantity:
-
+
(55 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews(1)

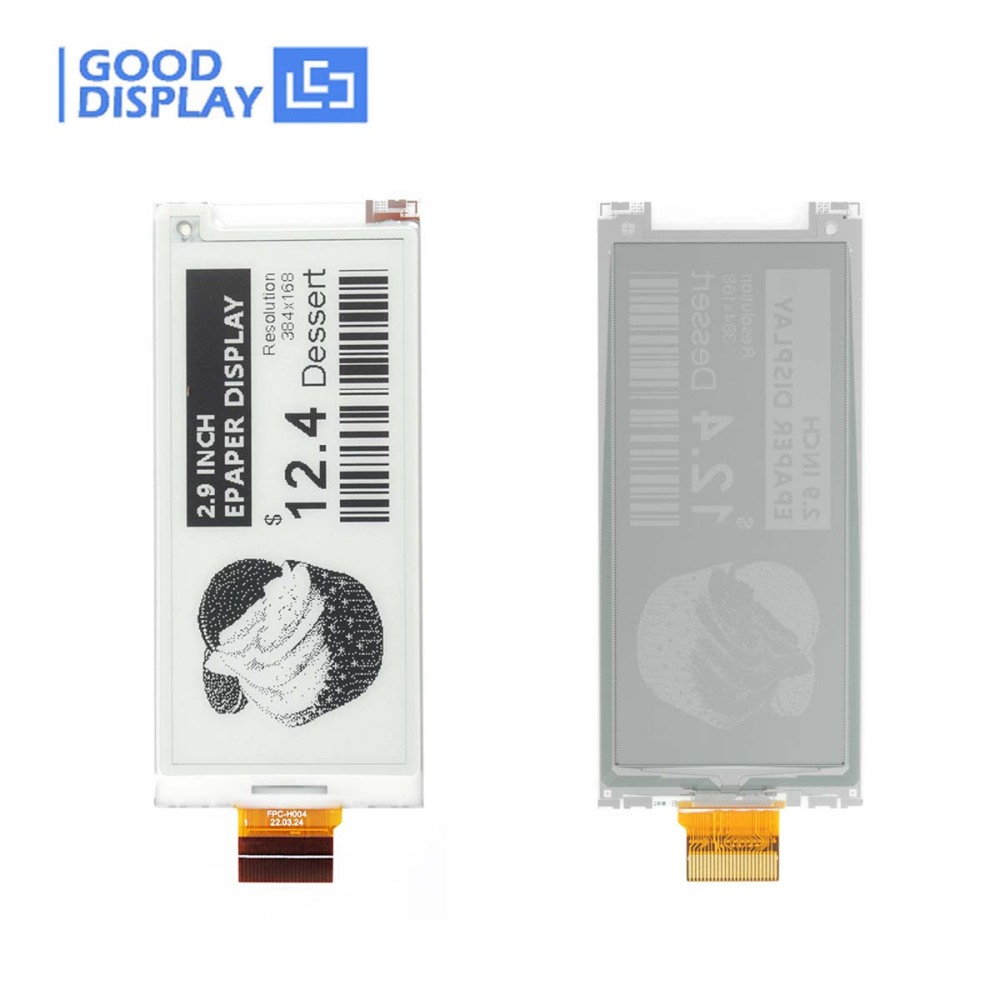

2.9 inch e-paper display fast update high resolution 384x168





This is a 2.9-inch black and white e-ink screen, with lightning-fast refresh rates, including a full refresh in just 3s, a swift fast refresh in 1.5s, and a lightning-quick partial refresh in a mere 0.2s, our display ensures your content stays current and captivating. Whether you're updating shelf tags, optimizing smart home applications, or streamlining industrial instruments, our ePaper Display delivers unrivaled speed without compromising on clarity or energy efficiency. Say hello to real-time updates and goodbye to lag - the future of digital signage starts here!








Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  High Resolution and Clarity: With a resolution of 384x168, our display delivers crisp images and text, making it perfect for showcasing a variety of information.
  ●  Fast Refresh Rate: Featuring rapid update functionality, our display can refresh in just 1.5s, ensuring timely and real-time information updates.
  ●  Low Power Consumption: With almost no power consumption when not refreshing the screen, our display conserves energy, prolonging device battery life especially during static states.
  ●  Bistable Display: Our display maintains current content even after power loss, making it ideal for scenarios requiring prolonged display of the same information while prioritizing energy efficiency.
  ●  Wide Viewing Angle: With a viewing angle exceeding 170 degrees, our display ensures clear visibility from nearly any angle, enhancing user experience and accessibility.









Product Specifications


    Please refer to the product specifications for more details

PART NUMBER GDEY029T71H CONNECTOR 24 Pin  0.5mm
TYPE Dot Matrix MAX GRAYSCALE 2
SIZE 2.9 inch COLOR Black,White
IC SSD1685 INTERFACE SPI
RESOLUTION 384x168 POWER CONSUMPTION OF THE REFRESH(mW) 12
OUTLINE SIZE(mm) 79.98x35.57x1.0 STANDY POWER CONSUMPTION (mW) 0.003
ACTIVE SIZE(mm) 67.58x29.57 TIME OF REFRESH (s) 3
PIXEL PITCH(mm) 0.176x0.176  FAST REFRESH (s) 1.5
OPERATING TEMP. 0℃~50℃  PARTICAL REFRESH (s) 0.2
STORAGE TEMP. -25℃~70℃

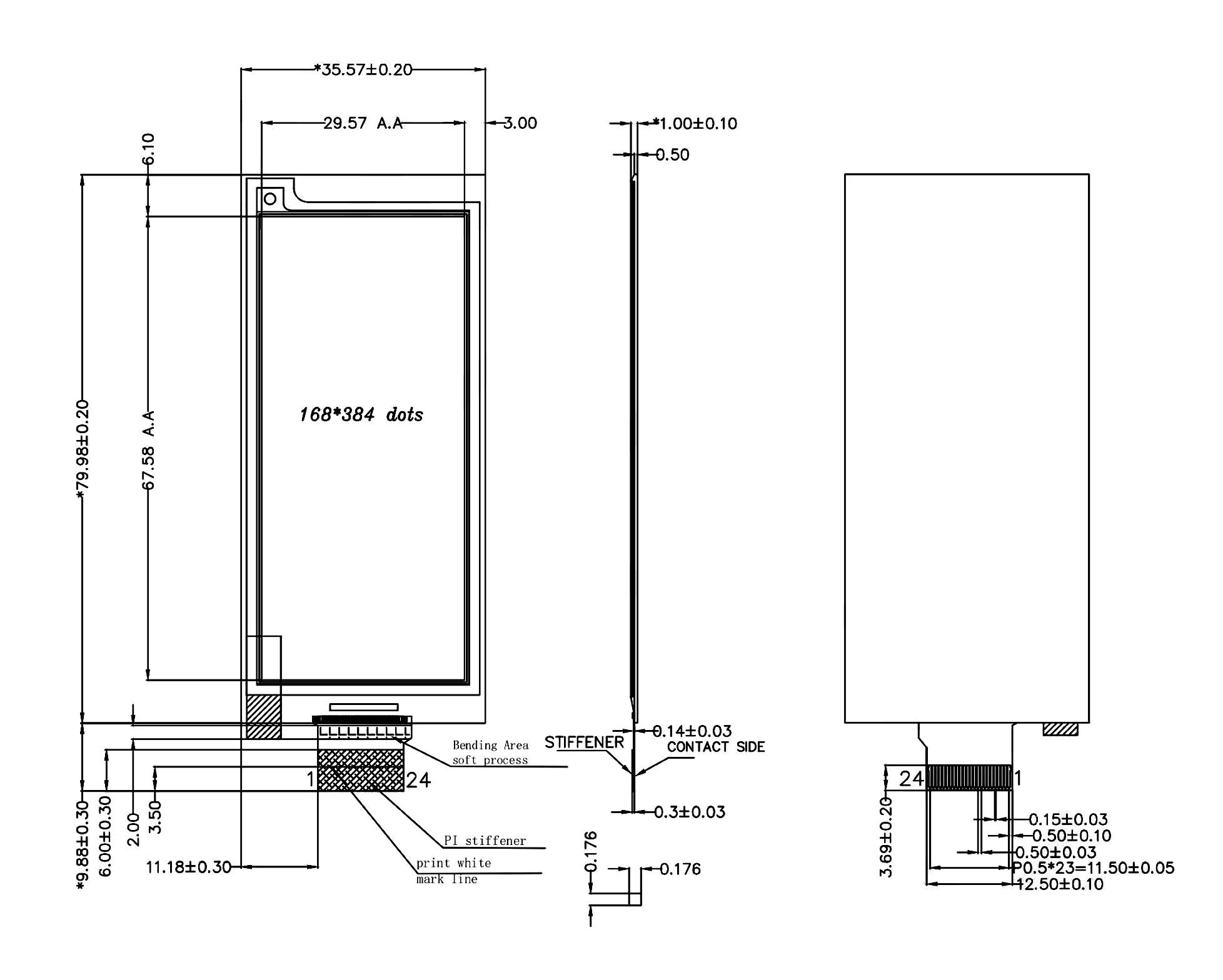

Product Drawings


    Please refer to the product drawings for detailed dimensions




Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.
Click image to buy

a.DESPI-C02 (E-ink Display adapter Board) b.DESPI-L(C02) (STM32 Demo Kit) c.DEArduino-L(C02) (Arduino Platform Demo Kit)

d.ESP8266-L(C02) (ESP8266 Demo Kit) e.ESP32-L(C02) (ESP32 Demo Kit)





Related Information Download

Click on the subheadings below to download

  ● GDEY029T71H Specification ● GDEY029T71H Arduino Sample Code
  ● SSD1685 Driver IC Datasheet ● GDEY029T71H ESP8266 Sample Code
  ● GDEY029T71H STM32 Sample Code ● The latest Catalog of ePaper display
  ● GDEY029T71H ESP32 Sample Code ● Disabling-Pop-Up-Blockers
