Home > Dev. Kit > HAT Adapter Board > E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
1/1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
Share:
Limited Offer!

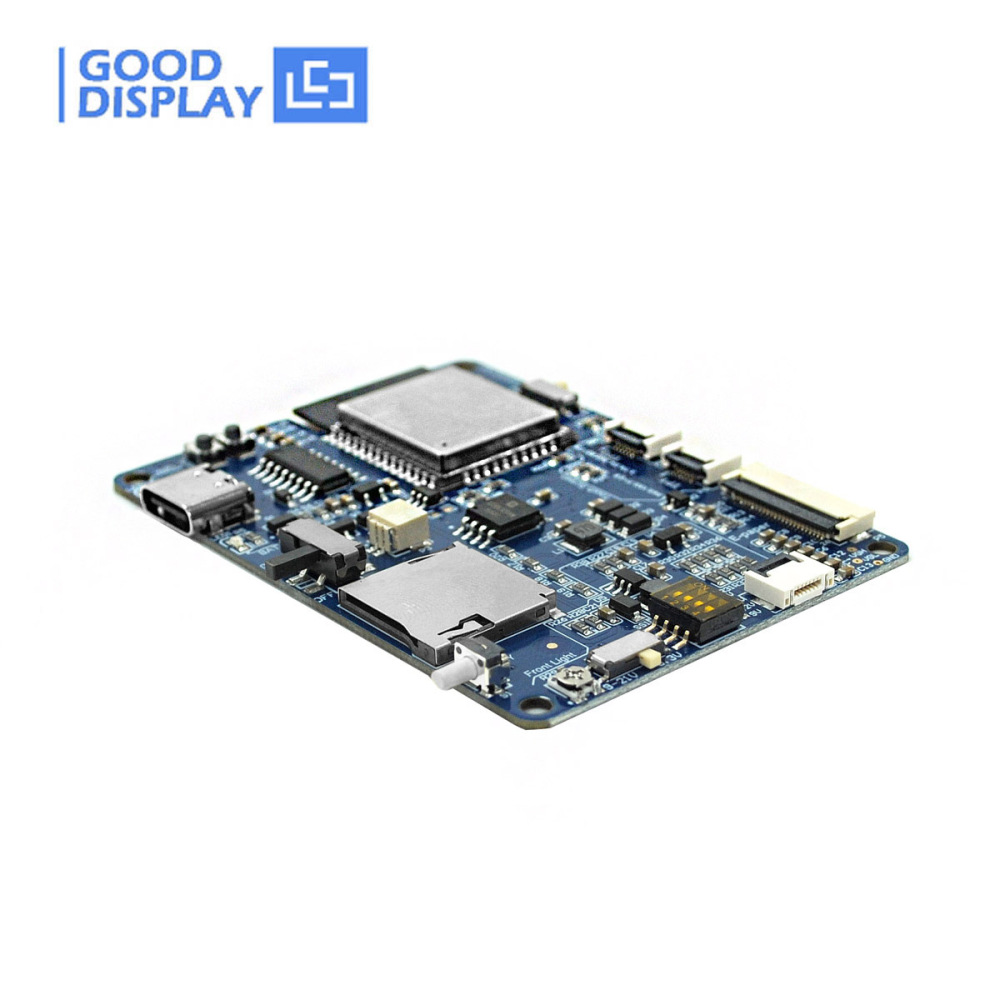

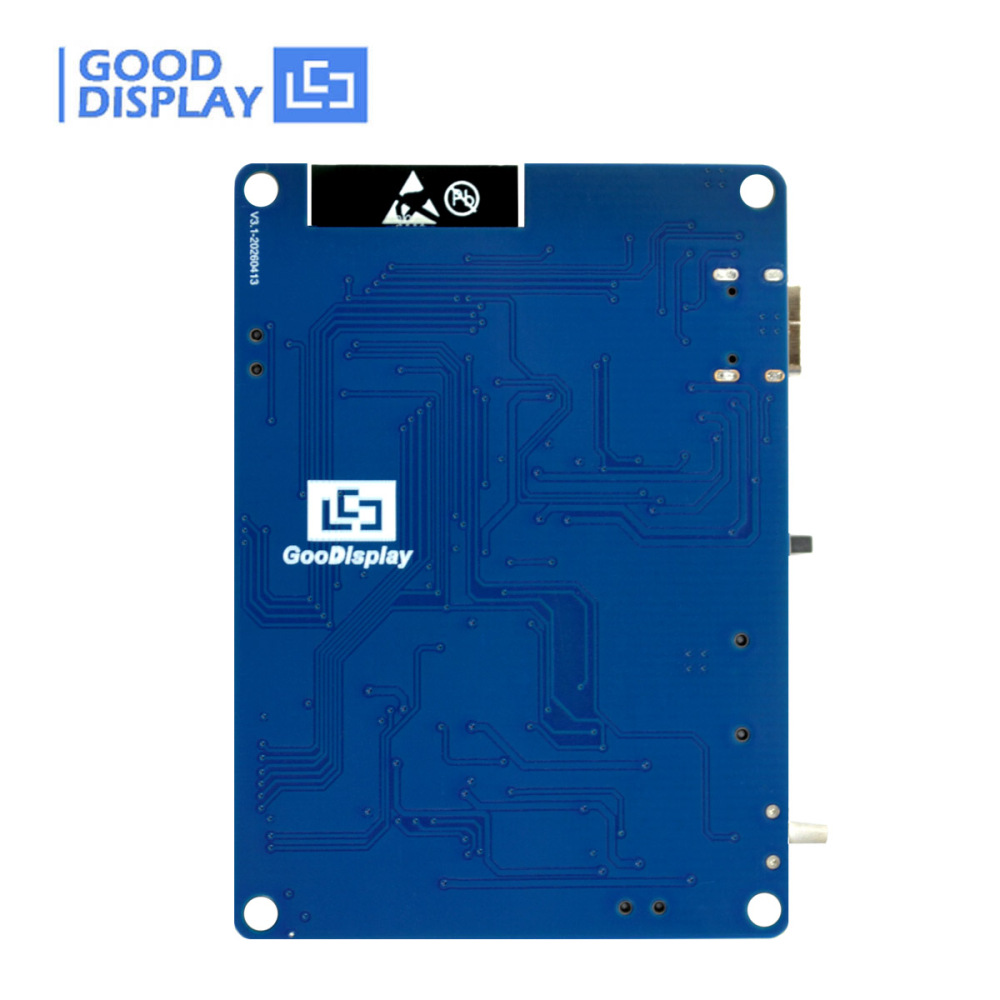

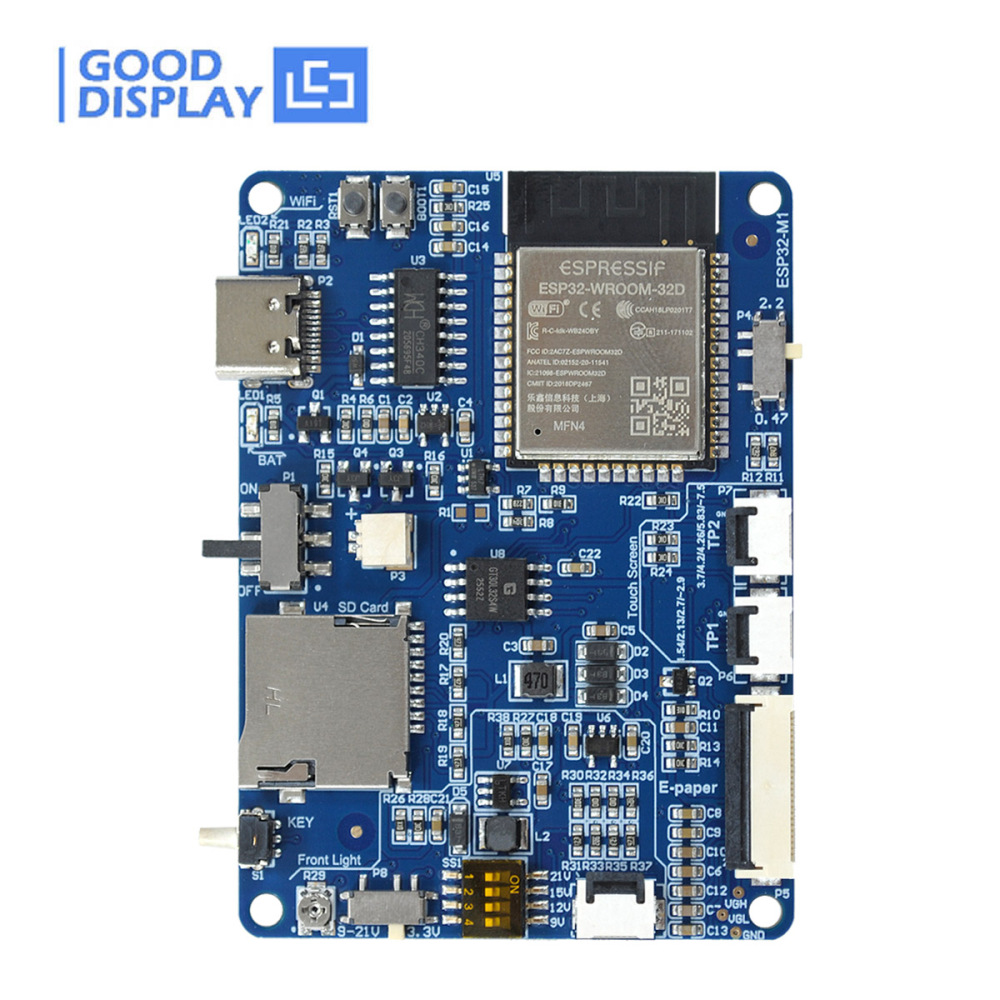

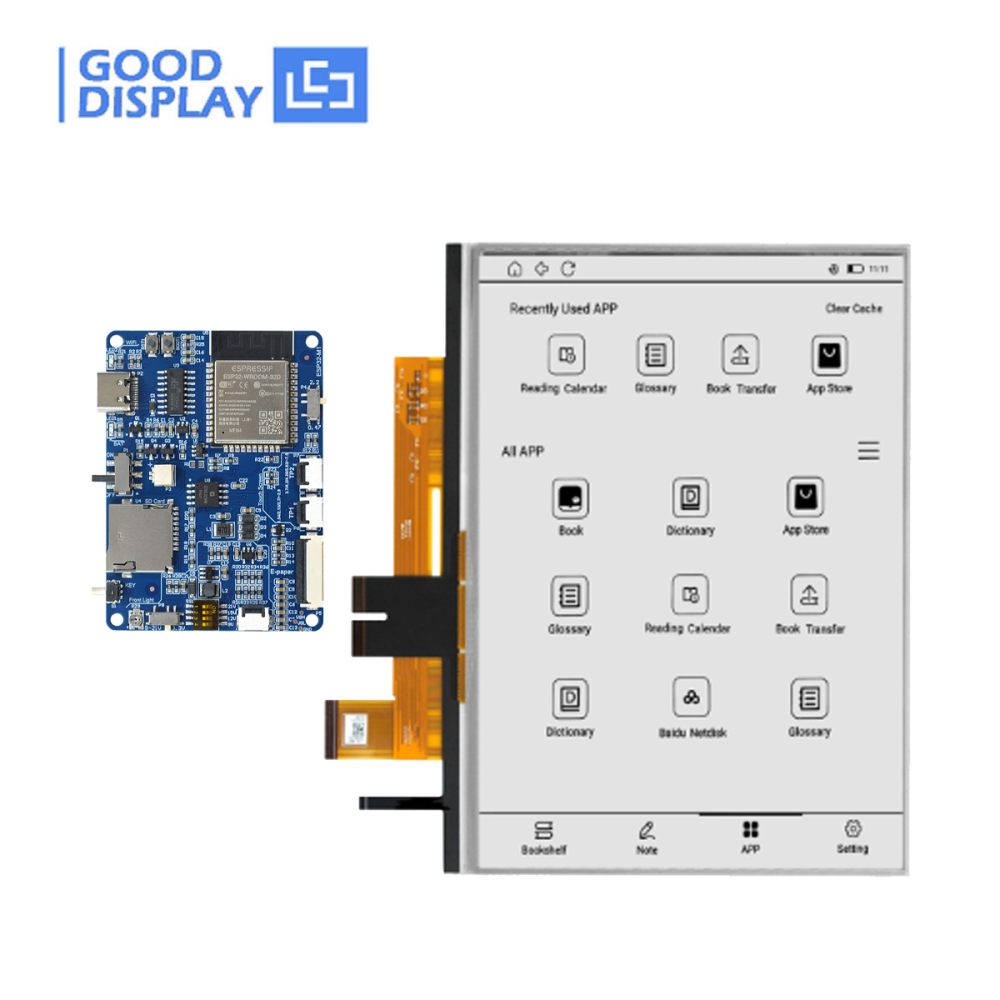

E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1

SKU: ESP32-M1
(0)
0 Sold
$18.40 $19.99
8% OFF

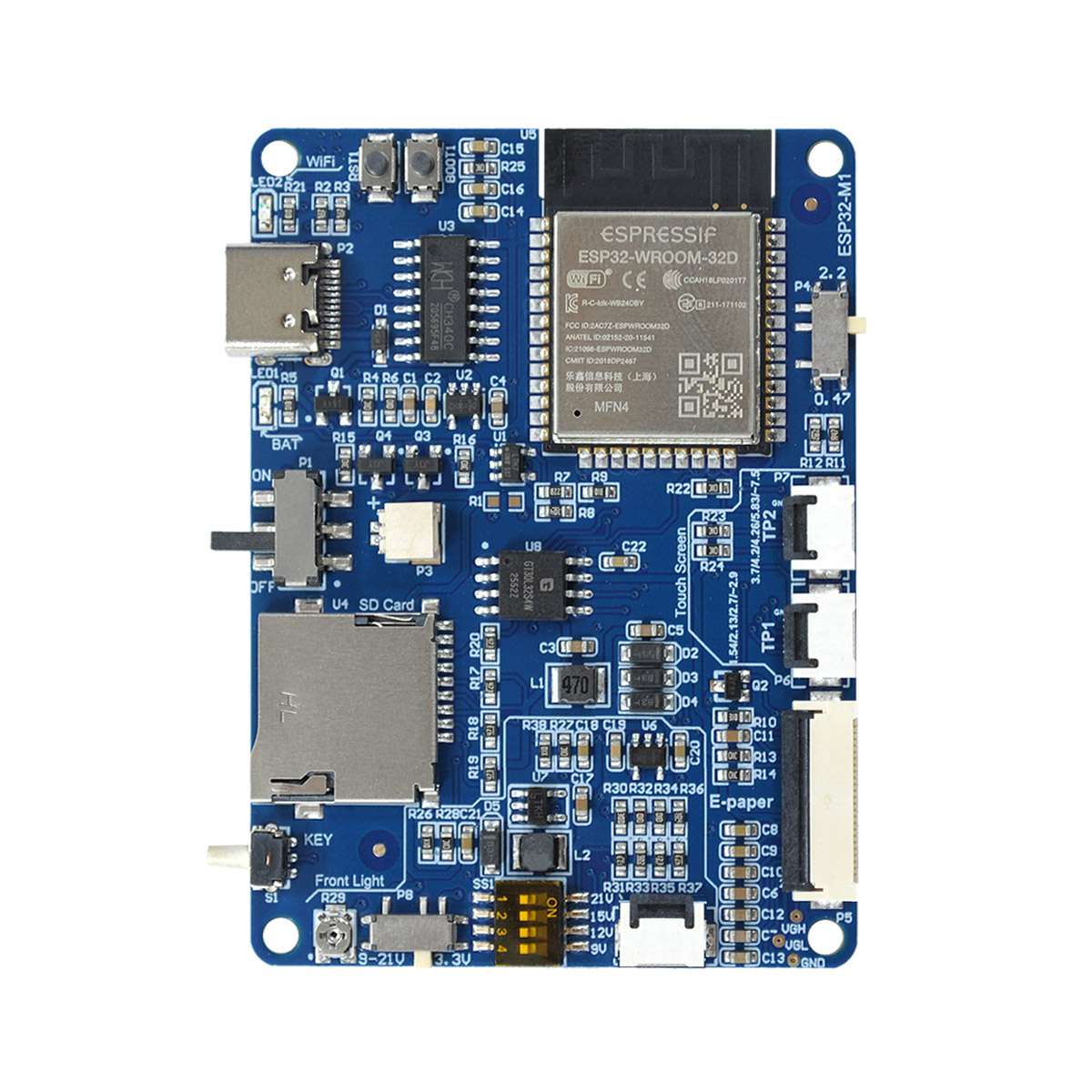

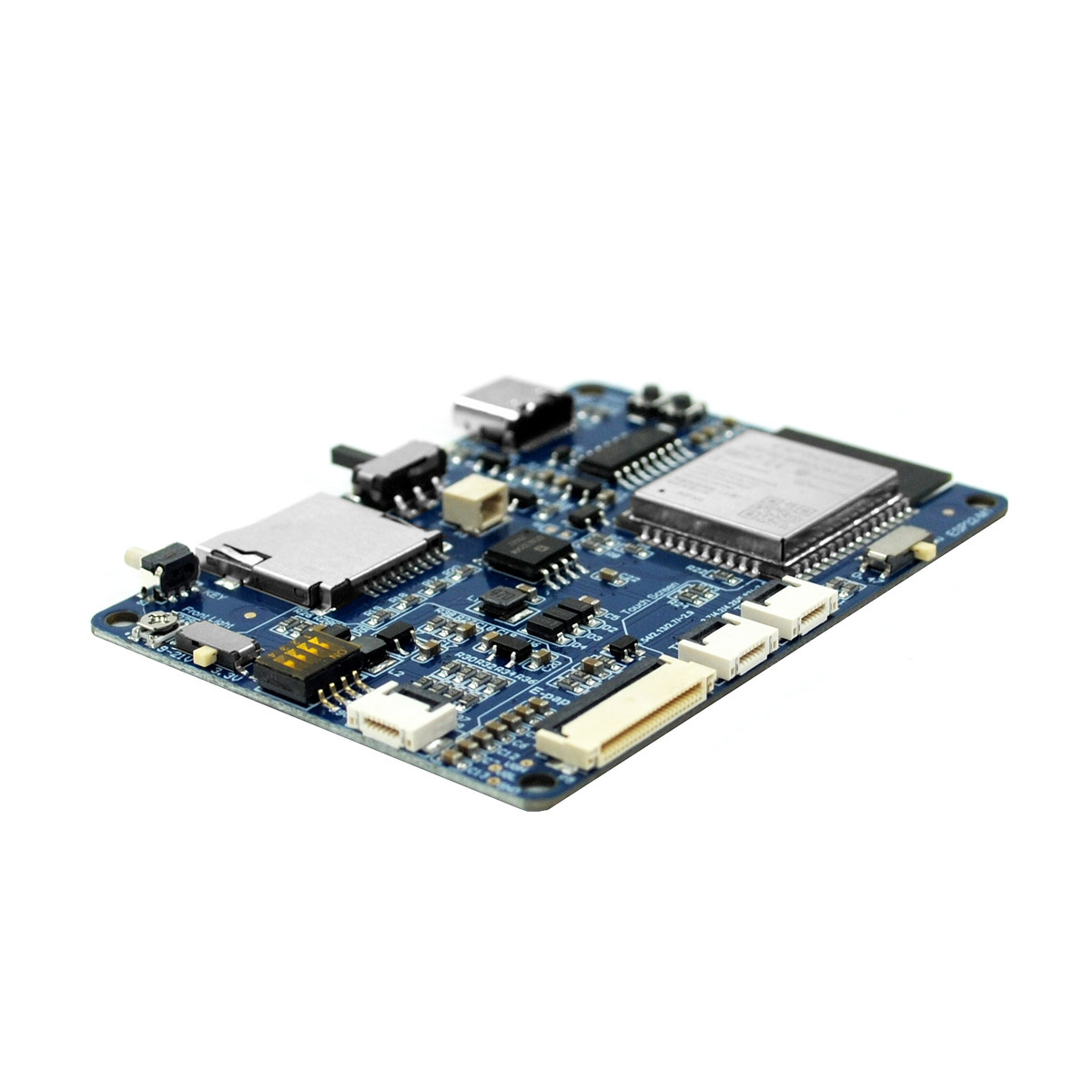

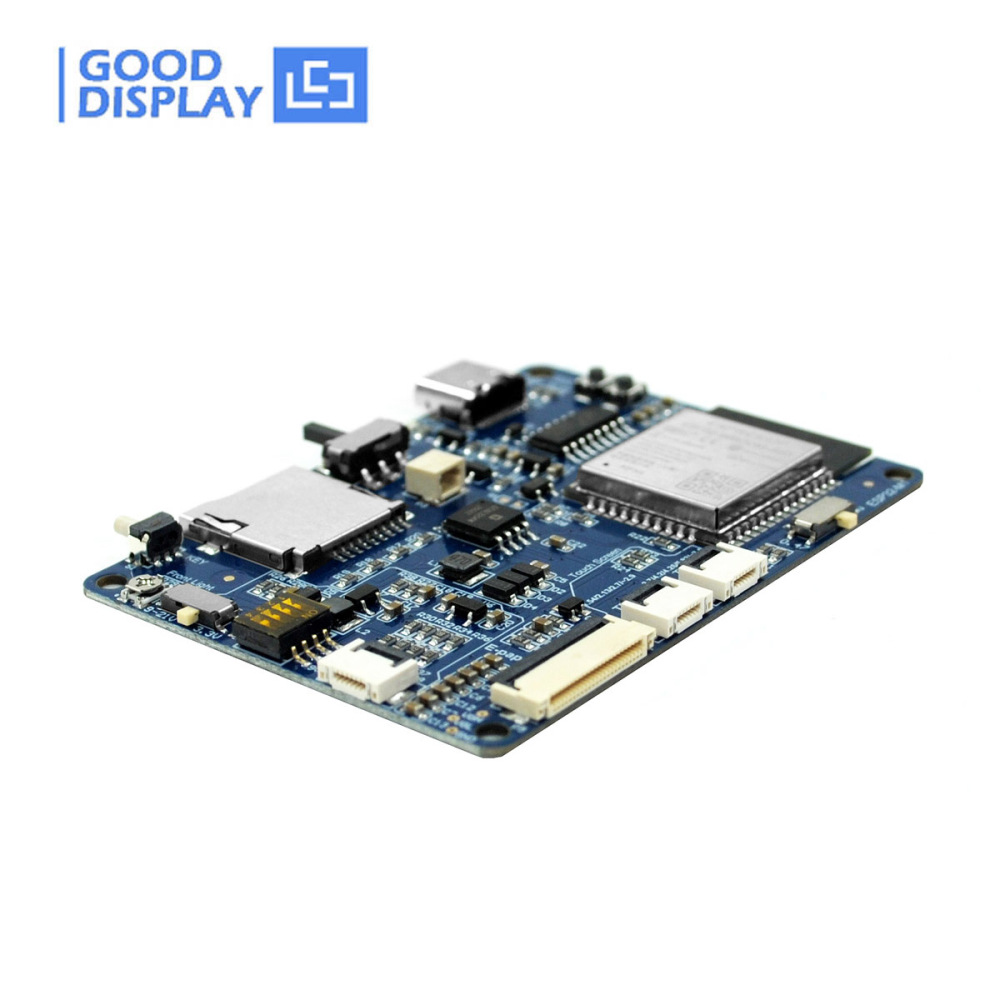

ESP32-M1 is a compact all-in-one driver board designed for SPI interface e-paper displays. It integrates front light, touch screen support and Micro SD card storage interface.
GET $3.00 OFF ON ORDERS OVER $59.00
Get it
ERP72QDC
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • 12% OFF WITH PURCHASE OVER 3 UNITS
  • 15% OFF WITH PURCHASE OVER 5 UNITS
  • 20% OFF WITH PURCHASE OVER 10 UNITS
18/05/2026/00:00:00 - 31/05/2026/00:00:00
    Please select the information you want X
  • Product:
    Driver Board
    Driver Board

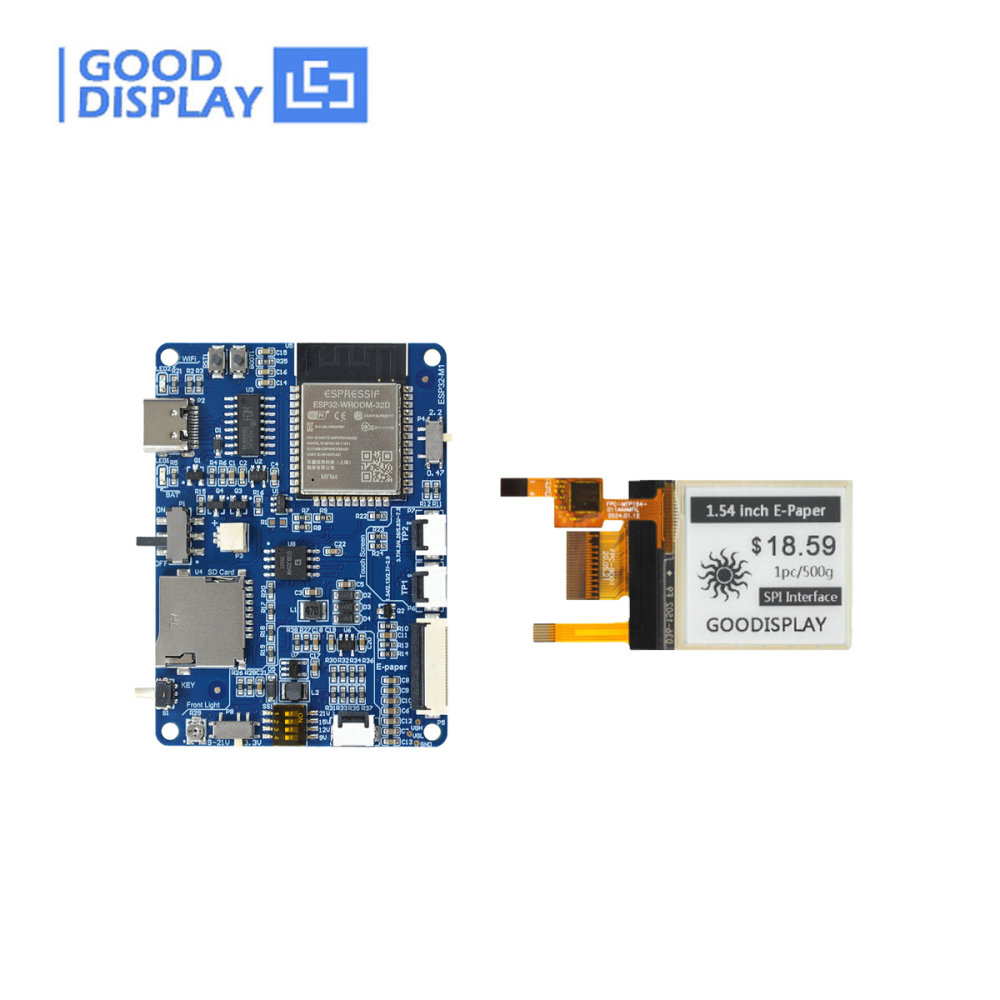

    Driver Board+1.54" Touch & Front-light Display
    Driver Board+1.54" Touch & Front-light Display

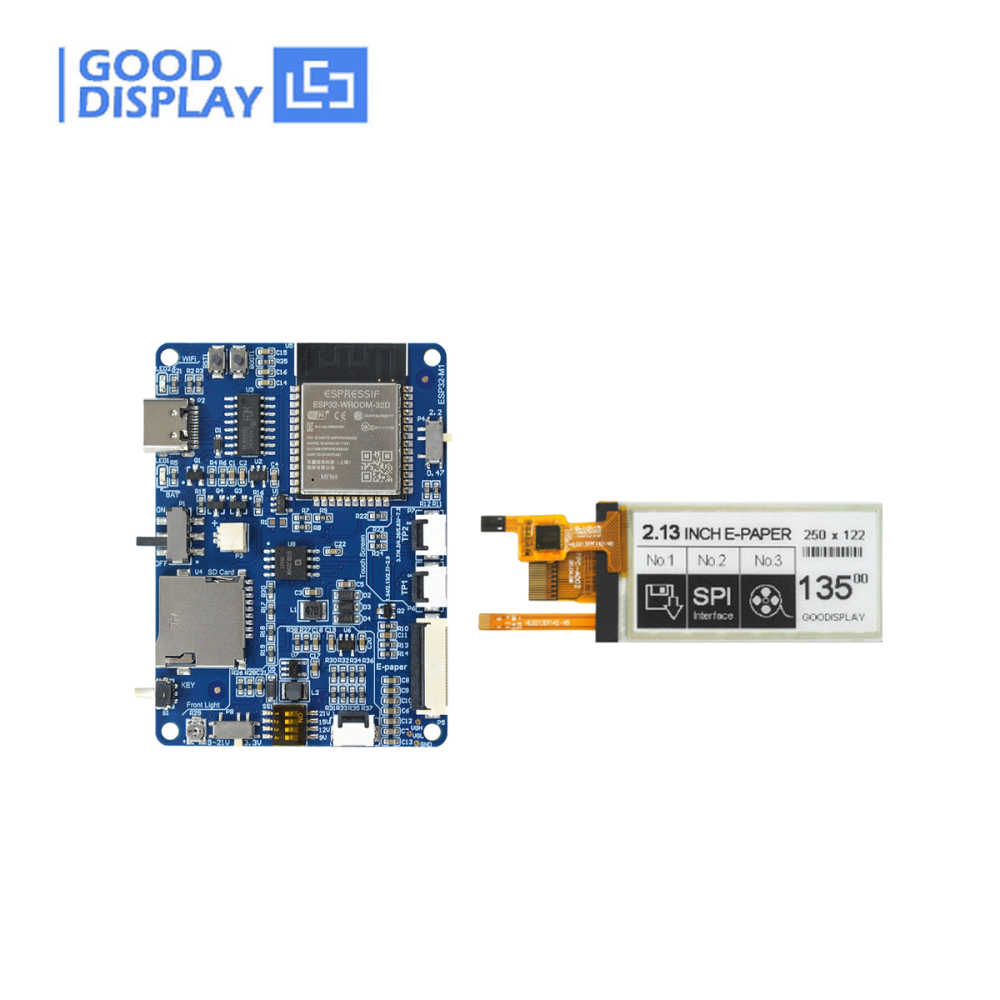

    Driver Board+2.13" Touch & Front-light Display
    Driver Board+2.13" Touch & Front-light Display

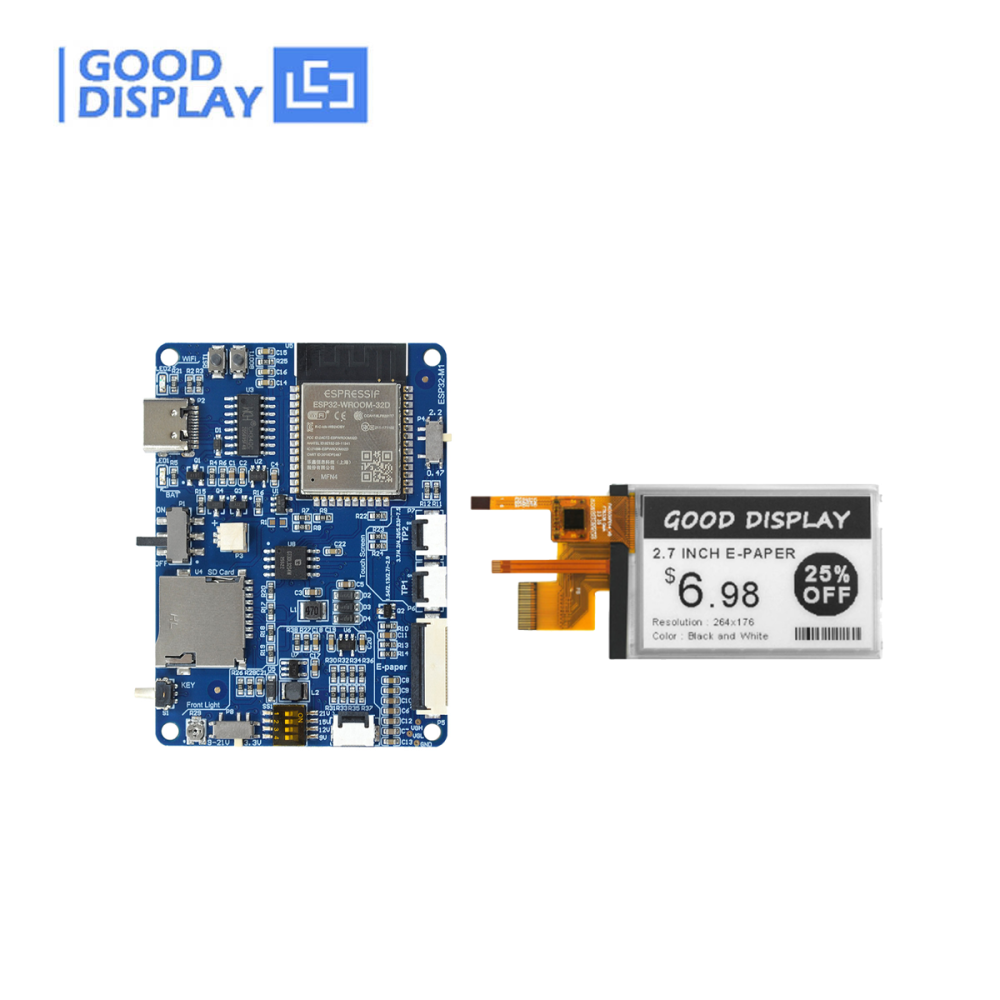

    Driver Board+2.7" Touch & Front-light Display
    Driver Board+2.7" Touch & Front-light Display

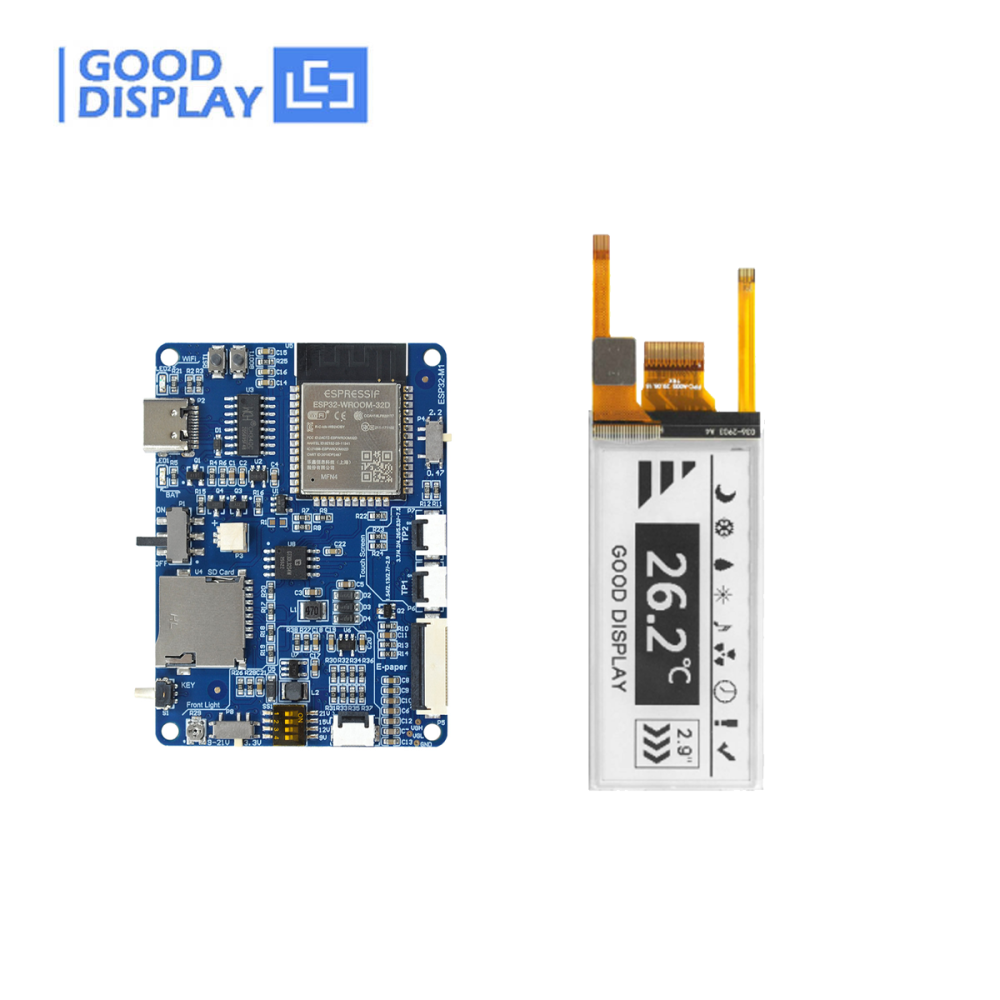

    Driver Board+2.9" Touch & Front-light Display
    Driver Board+2.9" Touch & Front-light Display

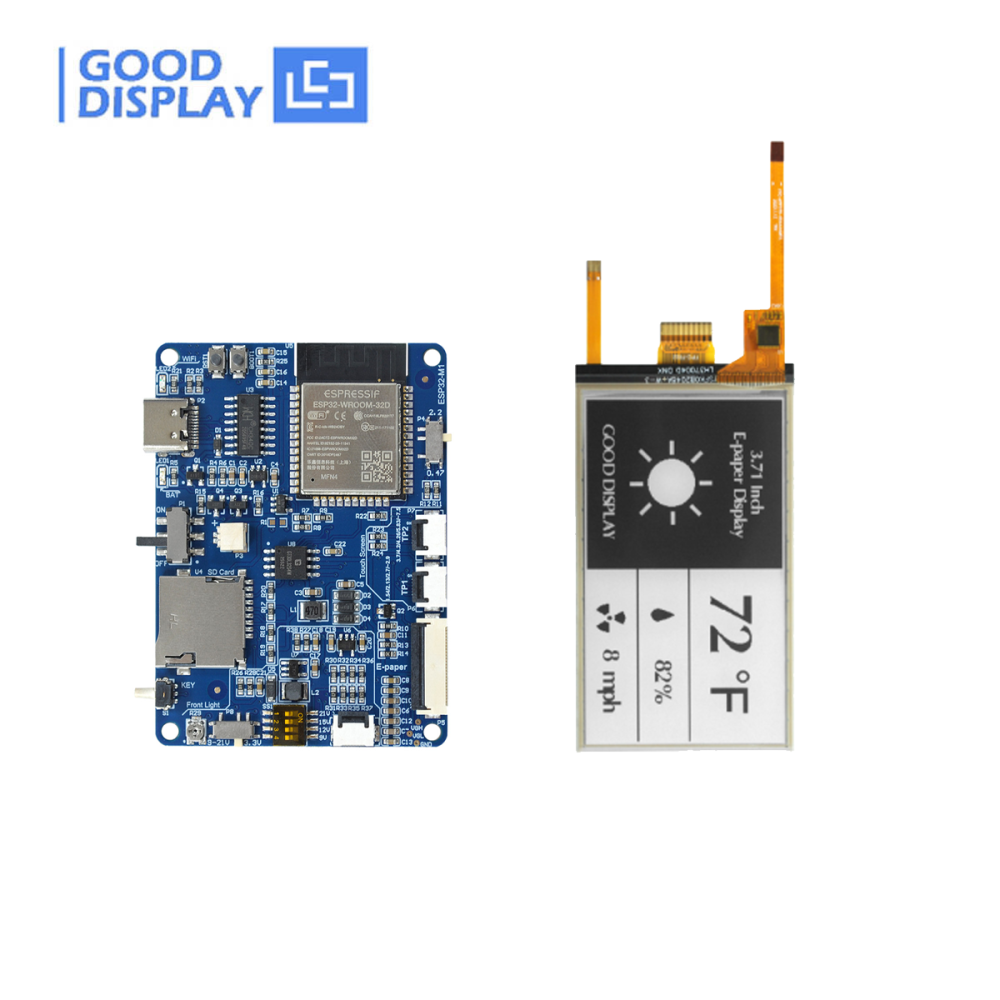

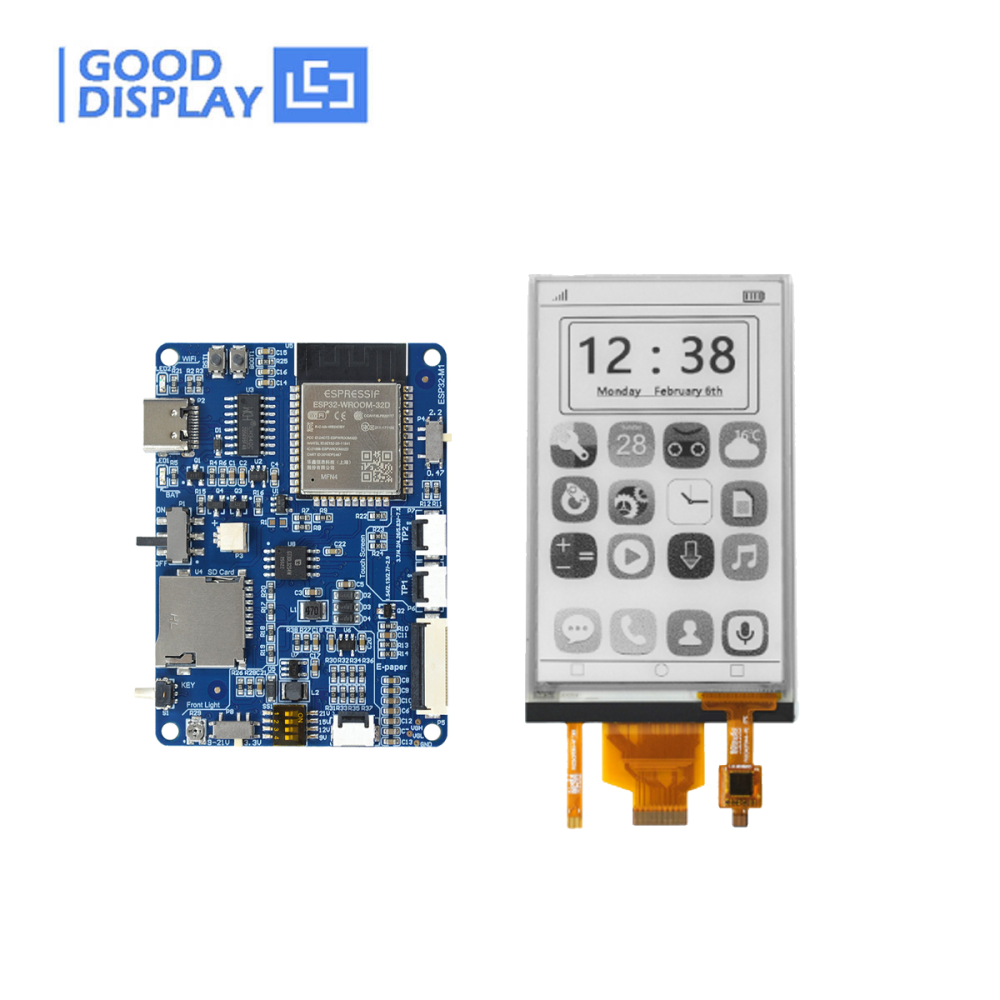

    Driver Board+3.7" Touch & Front-light Display
    Driver Board+3.7" Touch & Front-light Display

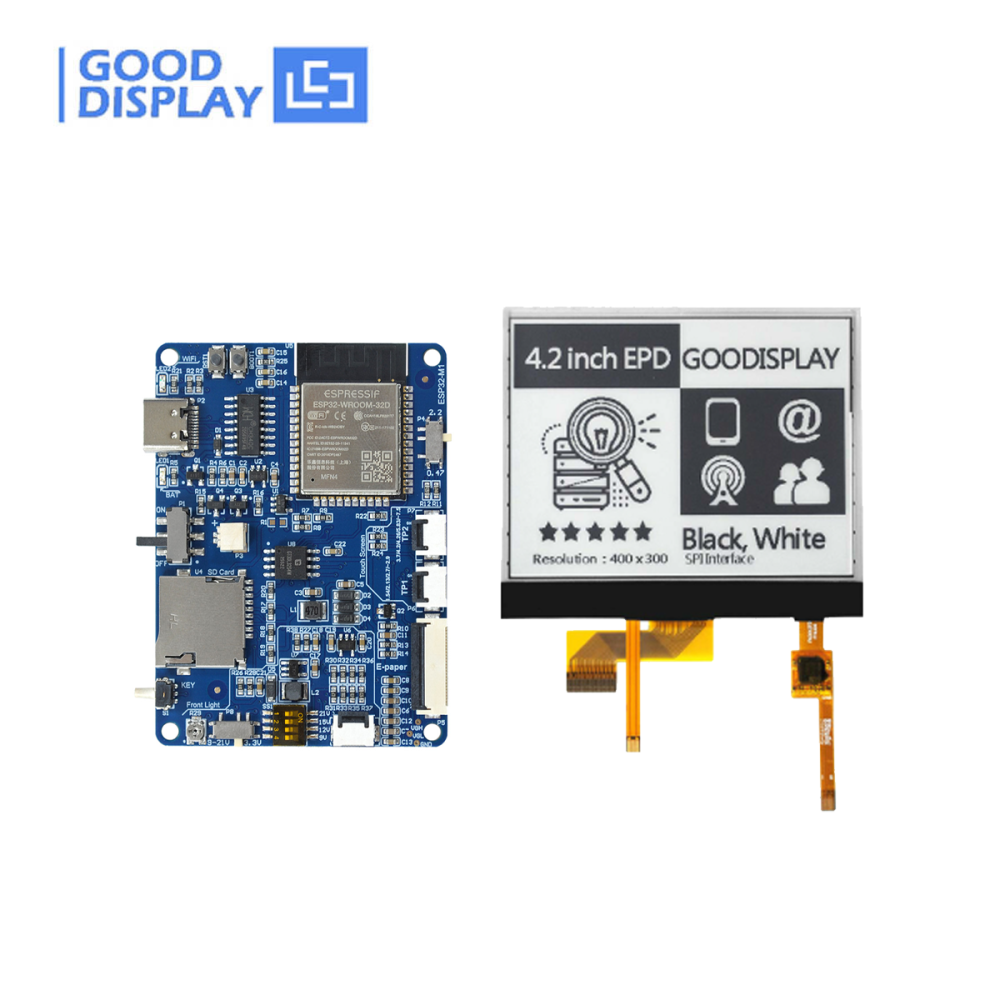

    Driver Board+4.2" Touch & Front-light Display
    Driver Board+4.2" Touch & Front-light Display
    Driver Board+4.26" Touch & Front-light Display
    Driver Board+4.26" Touch & Front-light Display
    Driver Board+10.3" Touch & Front-light Display
    Driver Board+10.3" Touch & Front-light Display
    Please select the information you wantX
Quantity:
0 in stock
Add to Favorites (0)
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
1/1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
  • E-Paper Driver Module Controller Board With Touch Screen Frontlight Function, ESP32-M1
Frequently Bought Together
more
Frequently Bought Together
  • Description

SPI E-Paper Driver Board with Front Light, Touch

This multifunctional SPI e-ink control board fits various sizes of e-paper screens up to 13.3 inches. It is compatible with monochrome, 3-color and 4-color electronic paper panels, and comes with built-in touch control, front lighting and microSD card expansion functions. Ideal for electronic paper project development, sample testing and quick solution design.

Technology Highlights

Up to 13.3" e-Paper

Drives all SPI electronic paper displays (24-pin interface) below 13.3 inches, including monochrome, tri‑color, and four‑color variants.

Touch & Front Light

Integrated connectors for capacitive touch (≤7.5") and front light (3.3V–21V selectable) with onboard dimming resistor.

microSD Card Slot

Expandable storage for images, fonts, and data logging — ideal for GUI applications and offline assets.

Li-ion Battery Support

3.7V battery charging circuit (SH1.0 connector) with charging indicator, plus power switch for portable projects.（Batteries not included）

Arduino & ESP32epdx Library

Full support for official Good Display Arduino library, sample codes, and ESP32 development environment.

Flexible e-Paper Matching

Onboard RESE resistor switch (0.47Ω / 2.2Ω) compatible with UC (UltraChip) and SSD (Solomon) driver ICs.

Technical Specifications

Screen size ESP32-M1
Platform Arduino
Function   Drive E-paper Display
Outside Dimension 66x48x1.0mm
Suitable Size E-paper with SPI interface below 13.3 inches (24PIN)
Interface Type-C
Power Input DC5V
Recommended Too Arduino
Example Code Available
Reserved Functio
Supports touch screen driver, front-light driver, and micro SD card interface.
Supports 3.7V lithium battery power supply and customizable button control.

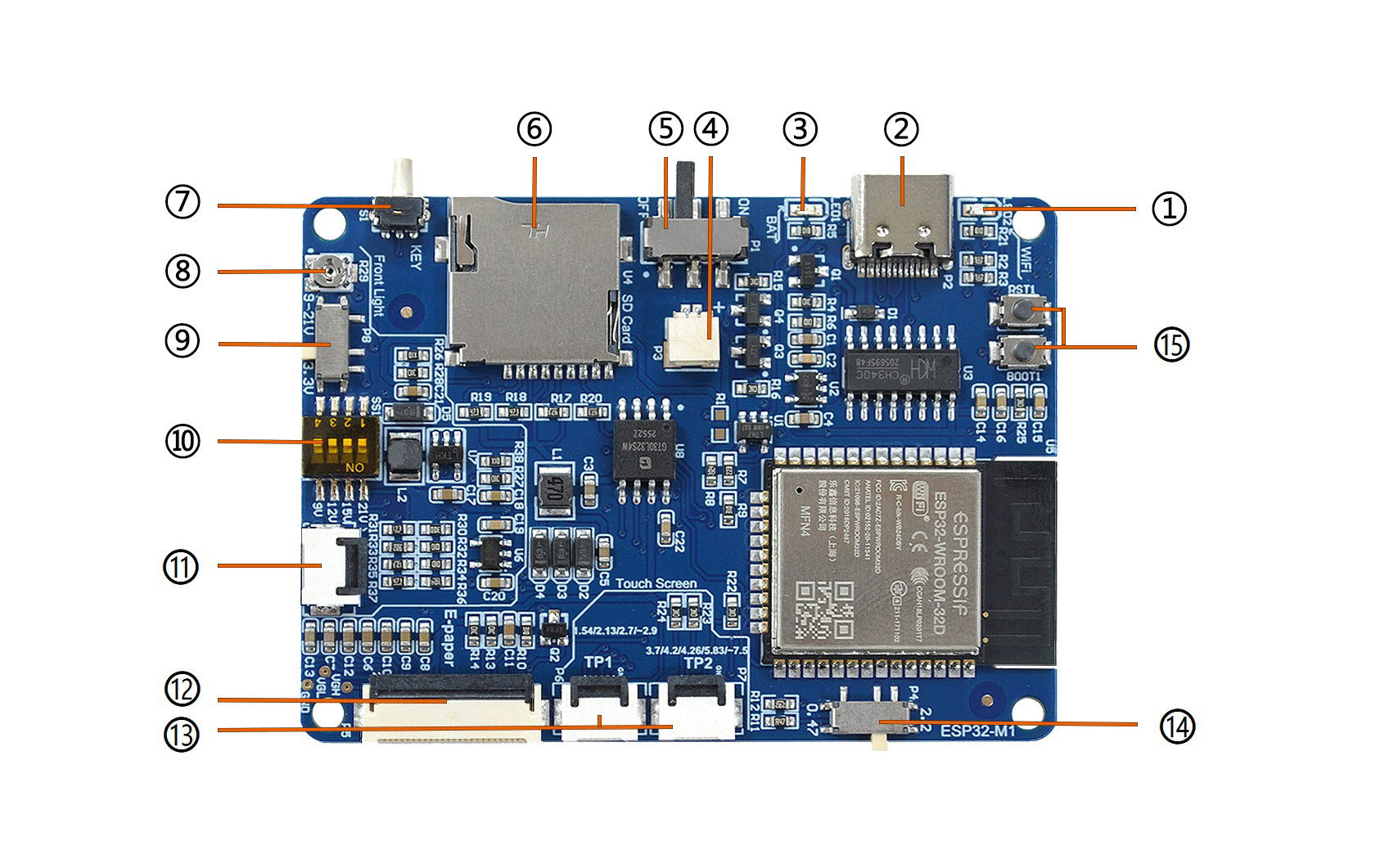

Structure Diagram Details

  • 1 WiFi status LED
  • 2
    Type‑C (5V power & data)
  • 3 Charge LED (on=charging, off=full)
  • 4 3.7V Li‑ion (SH1.0)
  • 5 Power switch
  • 6 microSD slot
  • 7 User button
  • 8 Brightness adjust (RT)
  • 9 Front light voltage select
  • 10 Front light HV switch
  • 11 Front light FPC
  • 12 e‑Paper FPC
  • 13Touch FPC
  • 14 e‑Paper resistor match
  • 15RST & BOOT buttons

How to Drive Front-Light Touchscreens Efficiently: Examples
+ =

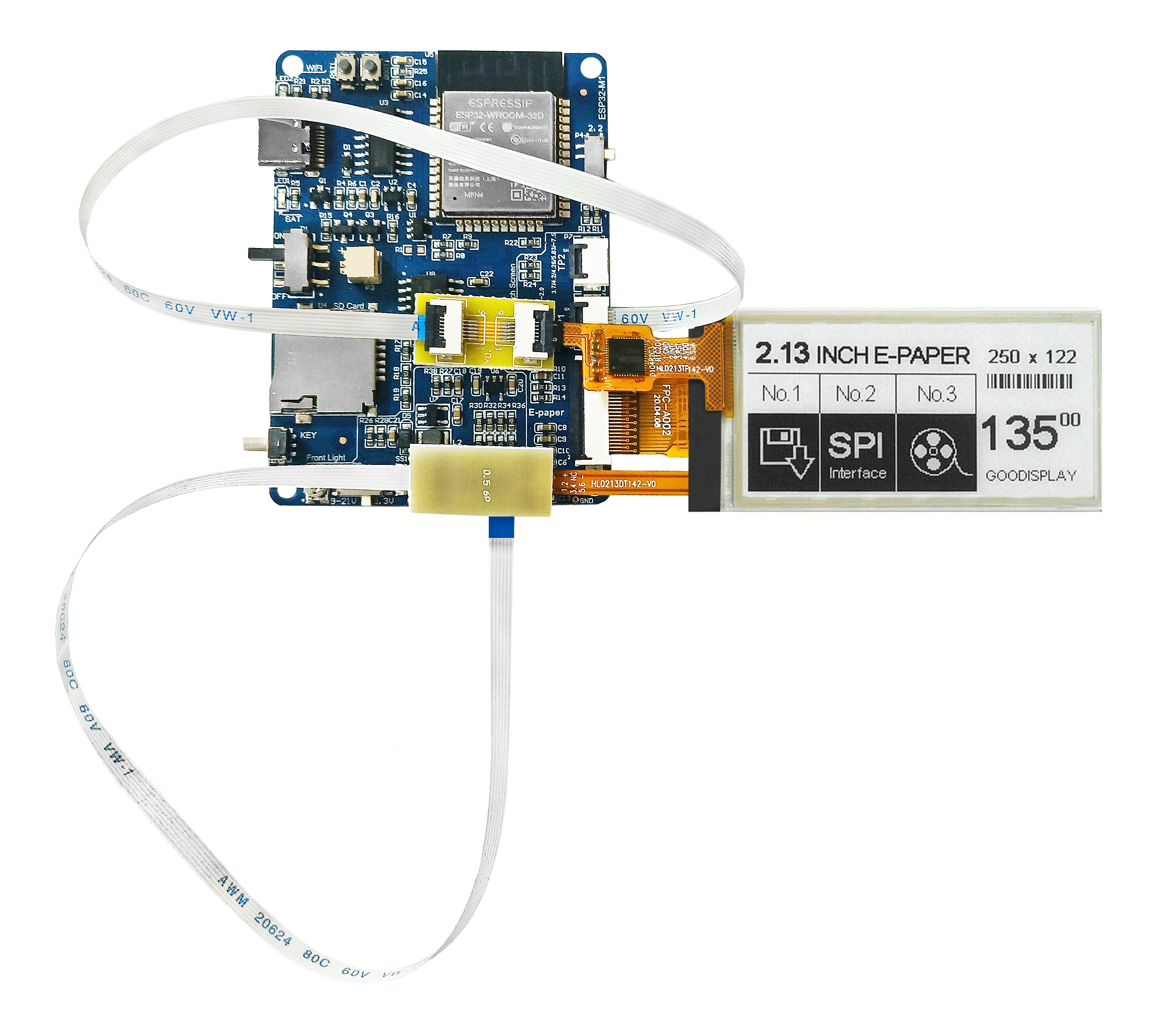

GDEY0213B74-FT11   ESP32-M1   Complete Solution




Compatible Frontlight & Touch E-Paper

GDEY0154D67-FT01

View Details

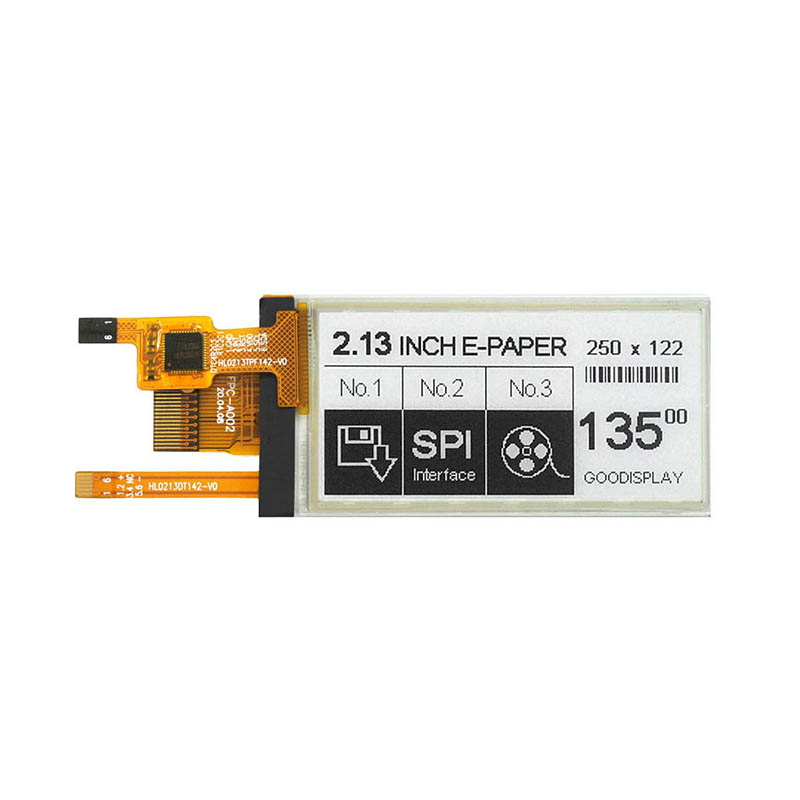

GDEY0213B74-FT11

View Details

GDEY027T91-FT11

View Details

GDEY029T94-FT01

View Details

GDEY037T03-FT21

View Details

GDEY042T81-FT02

View Details

Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.

About Us

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at www.good-display.com.
If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at buyepaper@good-display.com.

Certifications

ISO 14001 Environmental Management
RoHS Compliant | Energy Star Certified

Contact Our Engineers

CUSTOMER REVIEWS

0.0 0 Reviews
Write a review
Reviews
With Media
$0.00 $0.00
Please choose options.Back to top
Close
$0.00 $0.00
