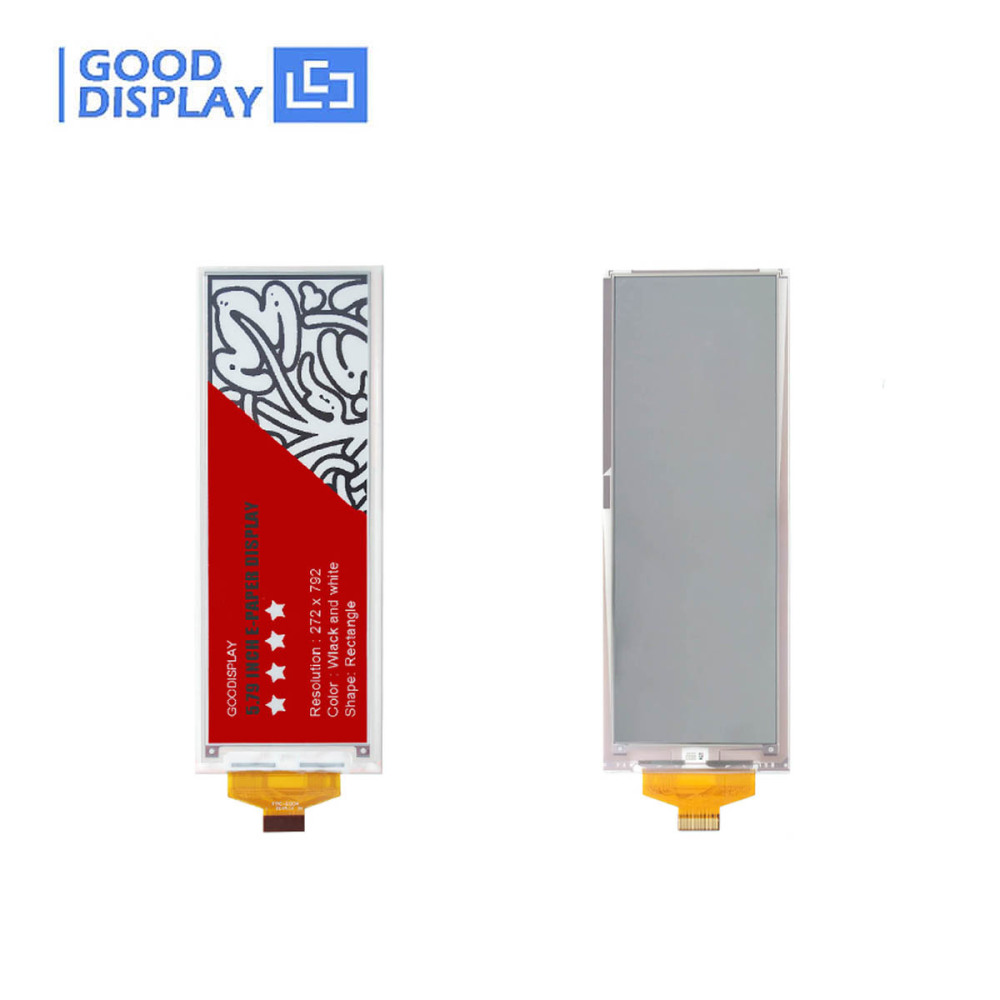

5.79 inch display epaper GDEY0579Z93 color eink epd with Eink HAT

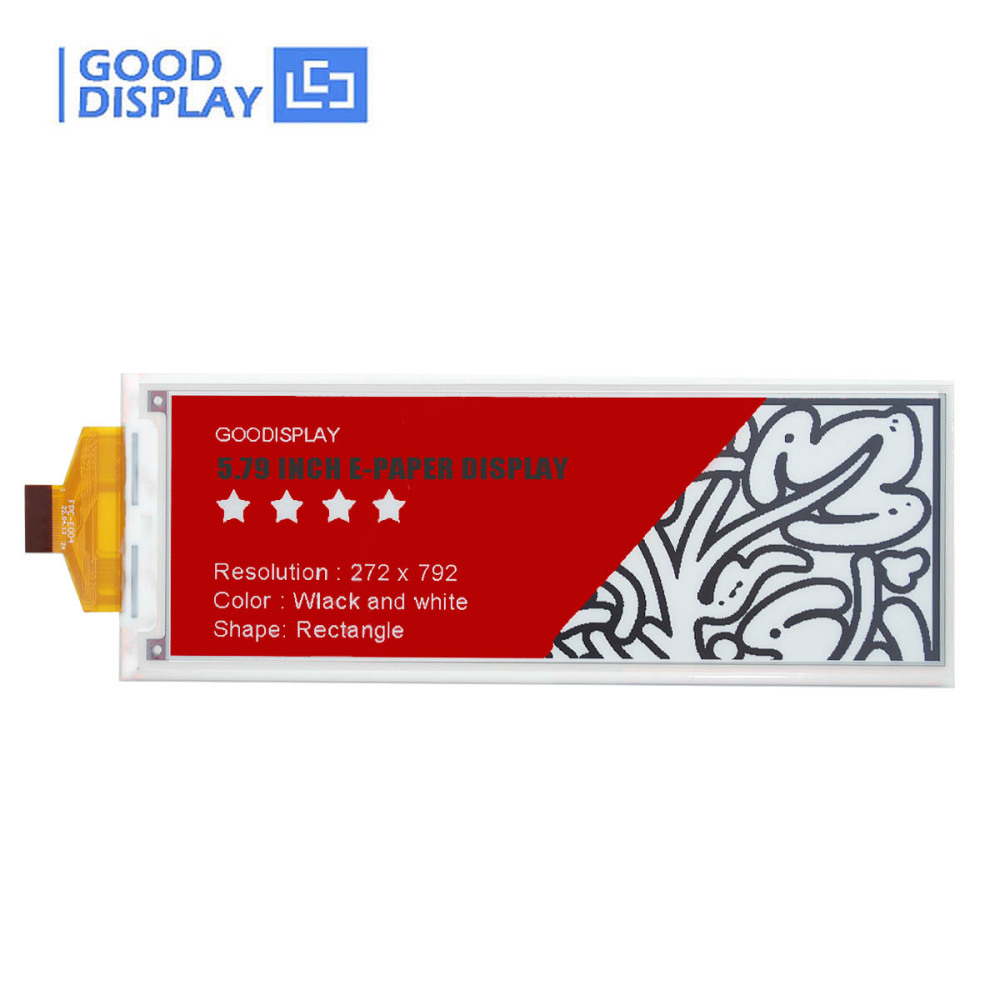

This is a 5.79 inch color epaper with 792x272 resolution, SPI interface, and the electronic paper screen is capable to display images with black, white and red
Sold:1
Price:
USD
$34.99
Wholesale:
1-29
$34.99
30+
$33.24
Quantity:
-
+
(9 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews



☆ INTRODUCTION




This is a set of epaper display module consist of 5.79 inch color epaper with 792x272 resolution, SPI interface, and the electronic paper screen is capable to display images with black, white and red content. Once these e-ink display modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.  Your image holds indefinitely without power – put up your image, then shut down the power.


This 5.79 inch e-ink display GDEY0579Z93 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

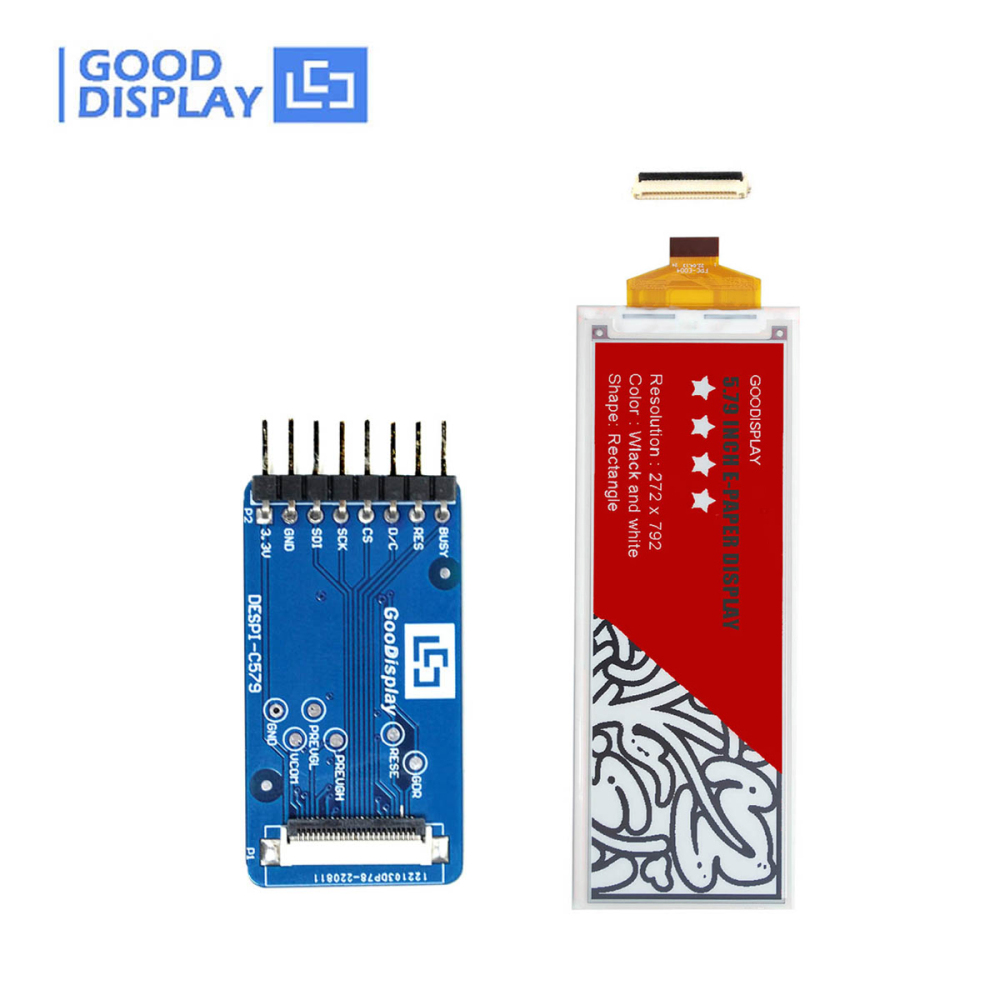

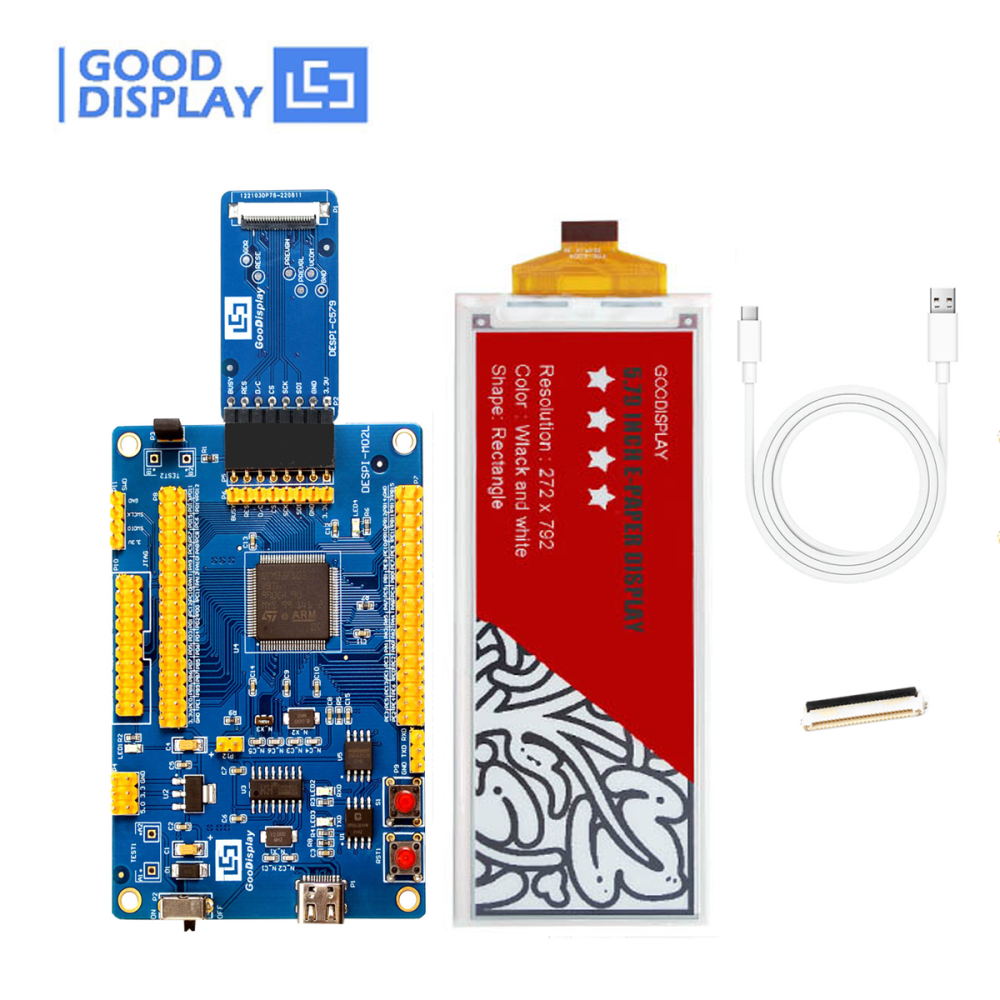

 THE ABOVE PRICE INCLUDE



1) 5.79 inch e-paper display Morochrome SPI e-ink screen module * 1pc
2) FPC Connector * 1pc
3) Epaper HAT connection adapter board * 1pc








 MAIN PARAMETERS




PART NUMBER

GDEY0579Z93

SIZE

5.79 inch

STORAGE TEMP. -25℃~70℃

TYPE

Dot Matrix

CONNECTOR 24 Pin FPC, Pitch:0.5mm

IC

SSD1683

COLOR Black,White,Red

RESOLUTION

792x272 INTERFACE SPI

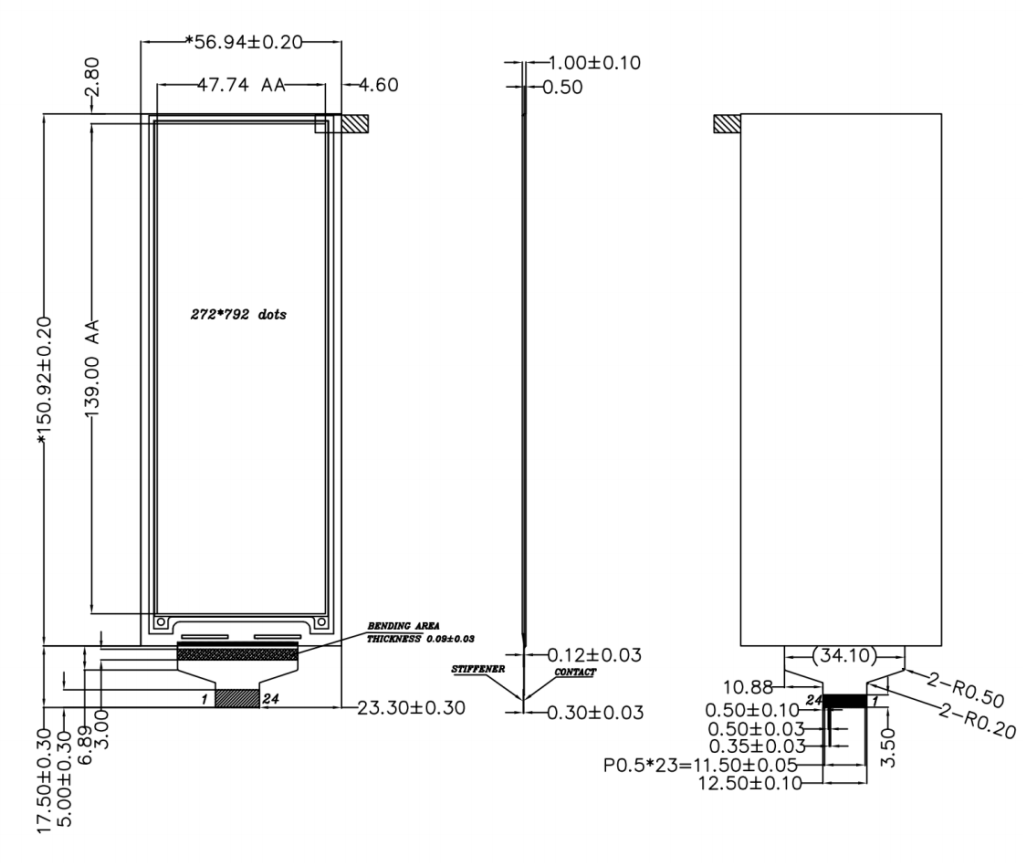

OUTLINE SIZE(mm)

150.92x56.94x1.0 FULL REFRESH(s) 20

ACTIVE SIZE(mm)

139.00×47.74 POWER CONSUMPTION OF THE REFRESH(mW) 27

PIXEL PITCH(mm)

0.1755×0.1755 STANDBY POWER CONSUMPTION (mW) 0.006

OPERATING TEMP.

0℃~40℃

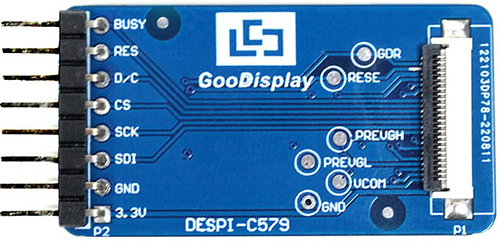

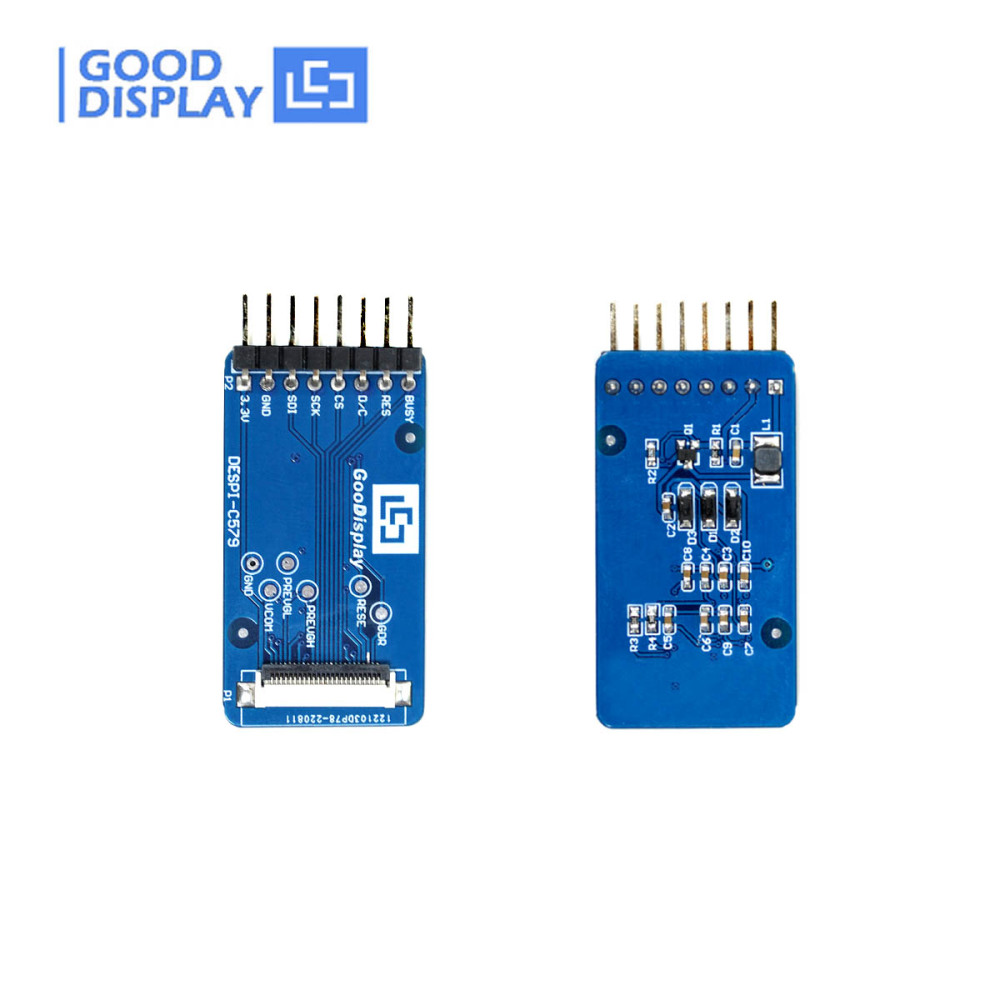

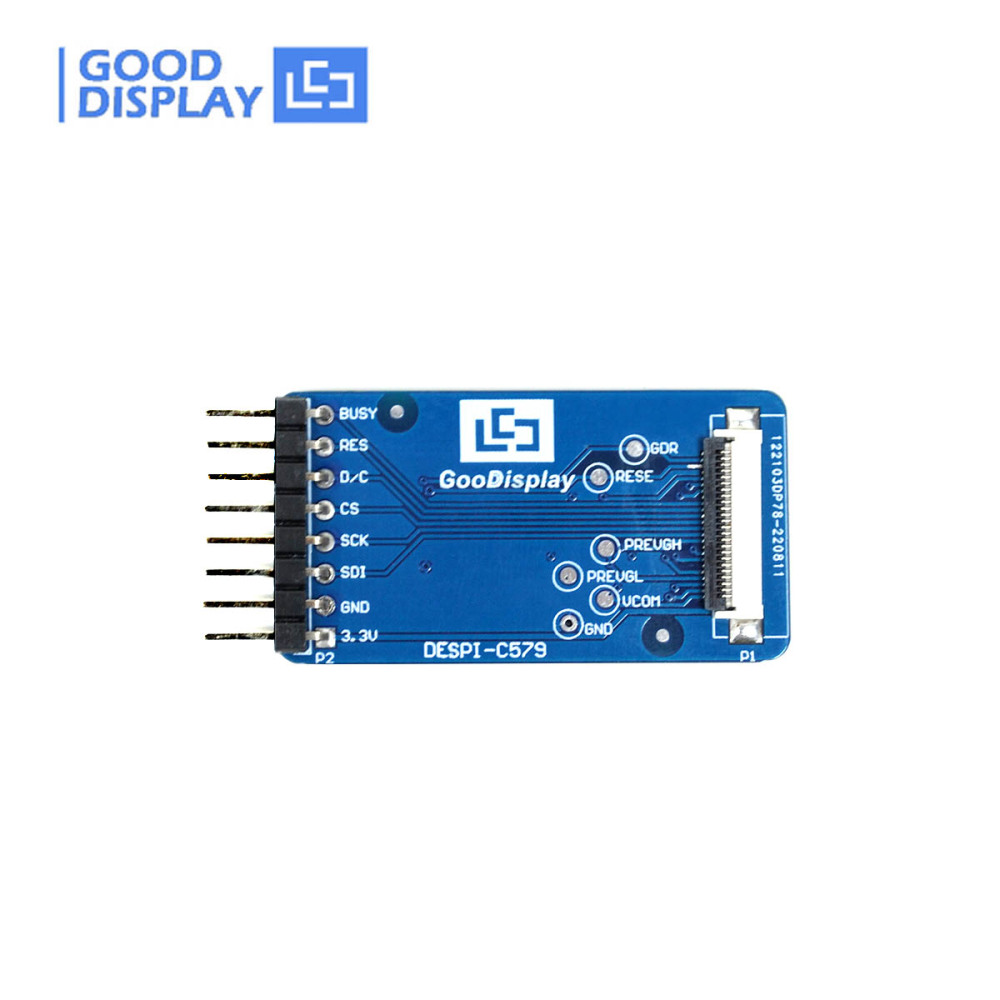

PART NUMBE DESPI-C579
FUNCTION Connection 5.79 inch E-paper Display with Main Board
OUTSIDE DIMENSION 41x22mm
INTERFACE SPI
POWER INPUT DC3.3V







 FEATURE




●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful

●  Versatile. Use in portrait or landscape format.

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor.






 DETAIL









 ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com




 SPECIFICATION DOWNLOAD




1. Product Specification
1)  GDEY0579Z93 Specification
2)  GDEY0579Z93 STM32 SAMPLE CODE
3)  GDEY0579Z93 ESP8266 SAMPLE CODE
4)  GDEY0579Z93 ESP32 SAMPLE CODE


2. E-paper Display IC Datasheet
1)  IC Driver SSD1683 Datasheet


3. Image to E-paper Display Software
1) Slave Computer Software-Image to EPD V3.6
2) Image to EPD Instruction Manual


4. Relevant information of DESPI-C579
1)  DESPI-C579 Specification
2)  DESPI-C579-SCH



PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0097T50 0.97'' BW 2 184x88 22.264x10.648 4 0℃~50℃   SPI
GDEW0097C50 0.97'' BWY 2 184x88 22.264x10.648 22 0℃~40℃     SPI
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI

GDEW0102I4FC

1.02''

BW

2

128x80

21.76x14

3

0℃~50℃

SPI

GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEY0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEY0154Z90 1.54'' BWR 2 200x200 27x27 16 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEY0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEY0266Z90 2.66'' BWR 2 296x152 60.088x30.704 12 0℃~40℃     SPI
GDEY027T91 2.7'' BW 4 264x176 57.29x38.19 3 0℃~50℃   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEQ031T10 3.1'' BW 2 320x240 62.72x47.04 3 0℃~50℃     SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEY037T03 3.71'' BW 2 416x240 81.54x47.04 3 0℃~50℃     SPI
