☆ INTRODUCTION

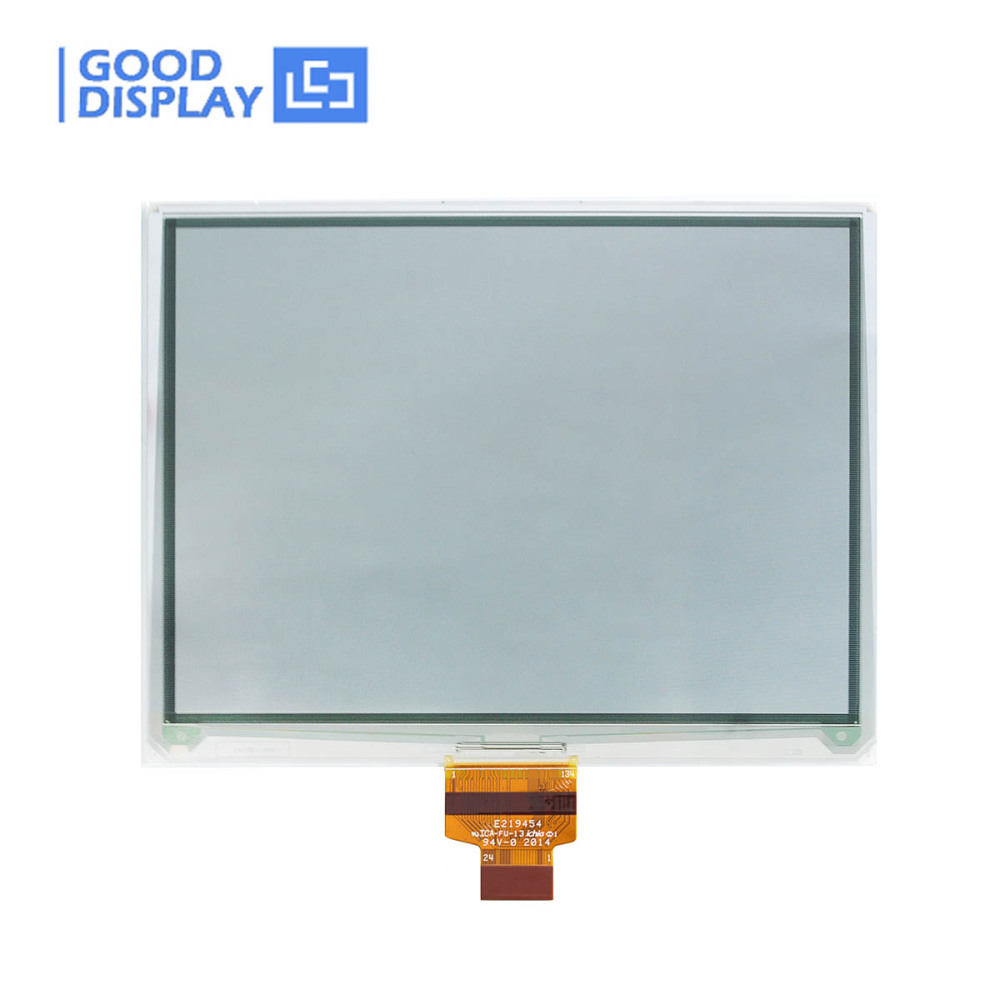

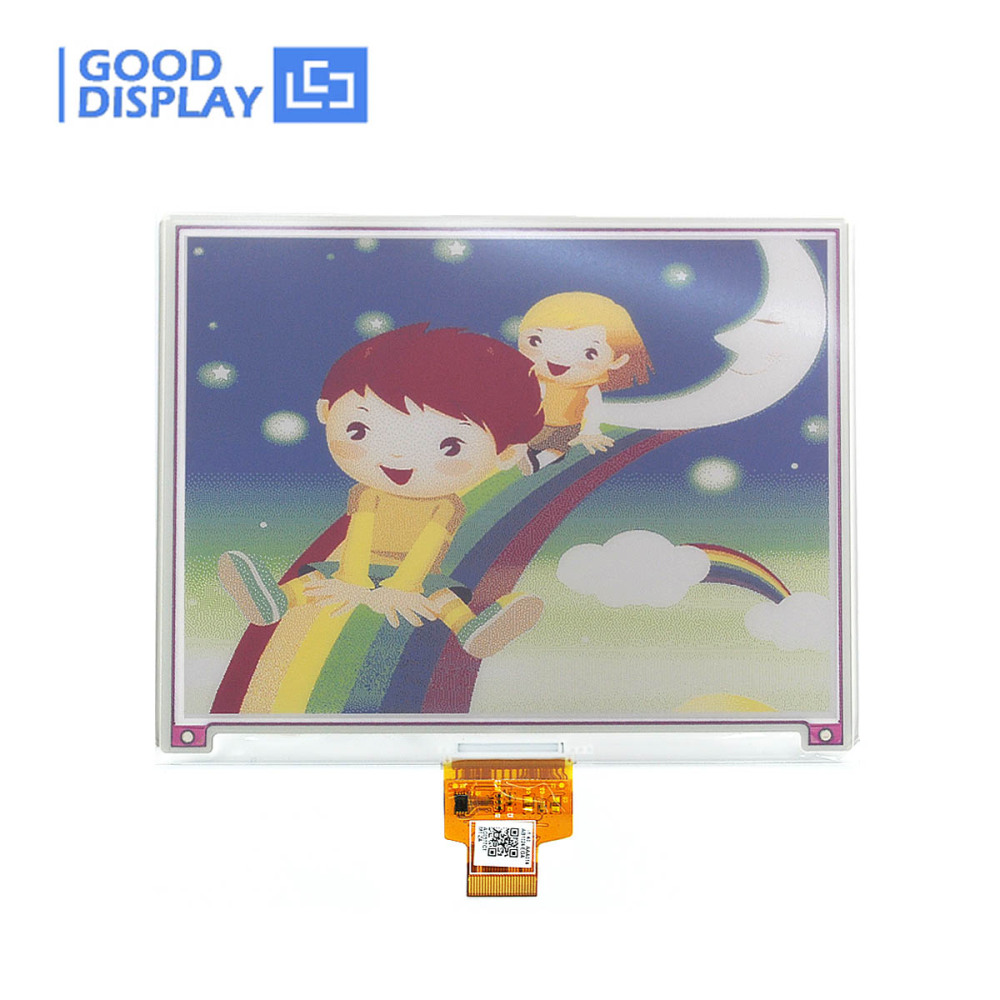

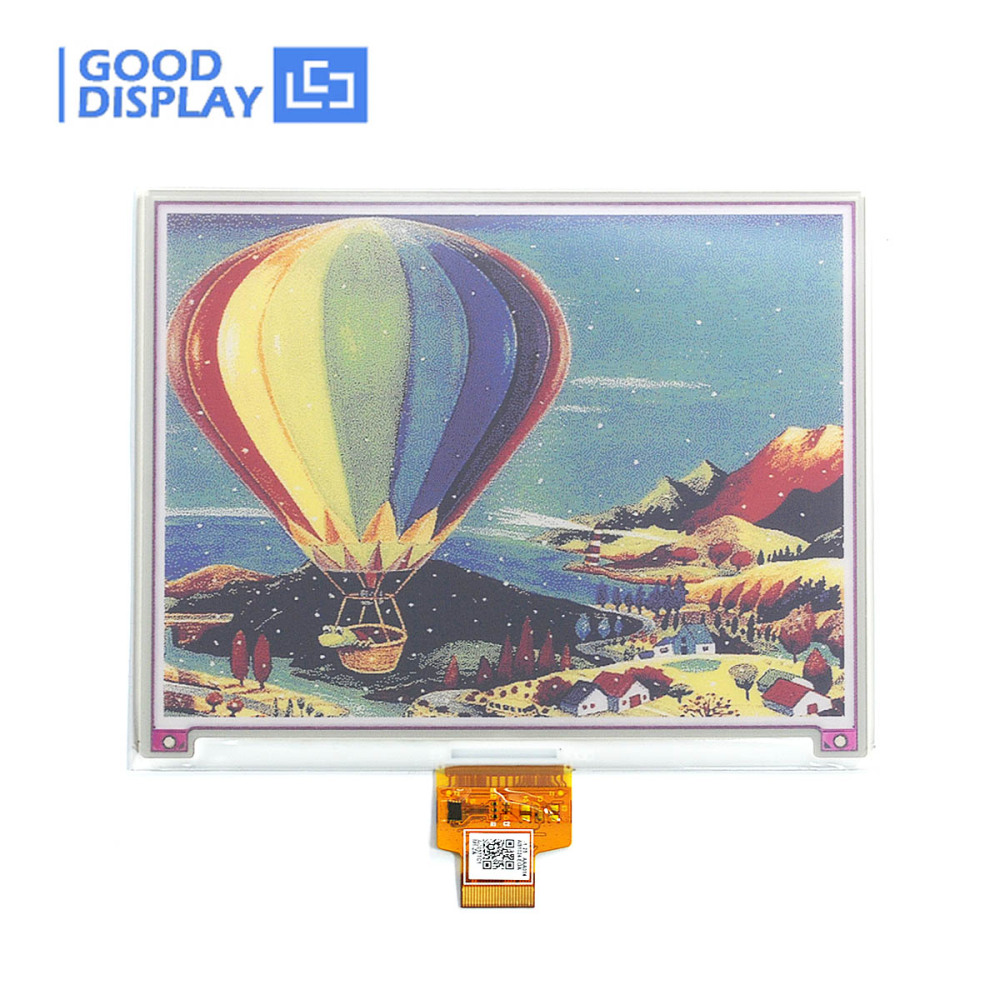

This E-ink Display has 7 colors (black, white, red yellow blue, green and orange). The 5.65 inch colorful e-paper support 600x448 resolution. The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC boost circuit, and memory to store the frame buffer and lookup tables, and additional circuitry to control VCOM and BORDER settings. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.
Relevant manual about this product on our official website (www.good-display.com), contact us please.

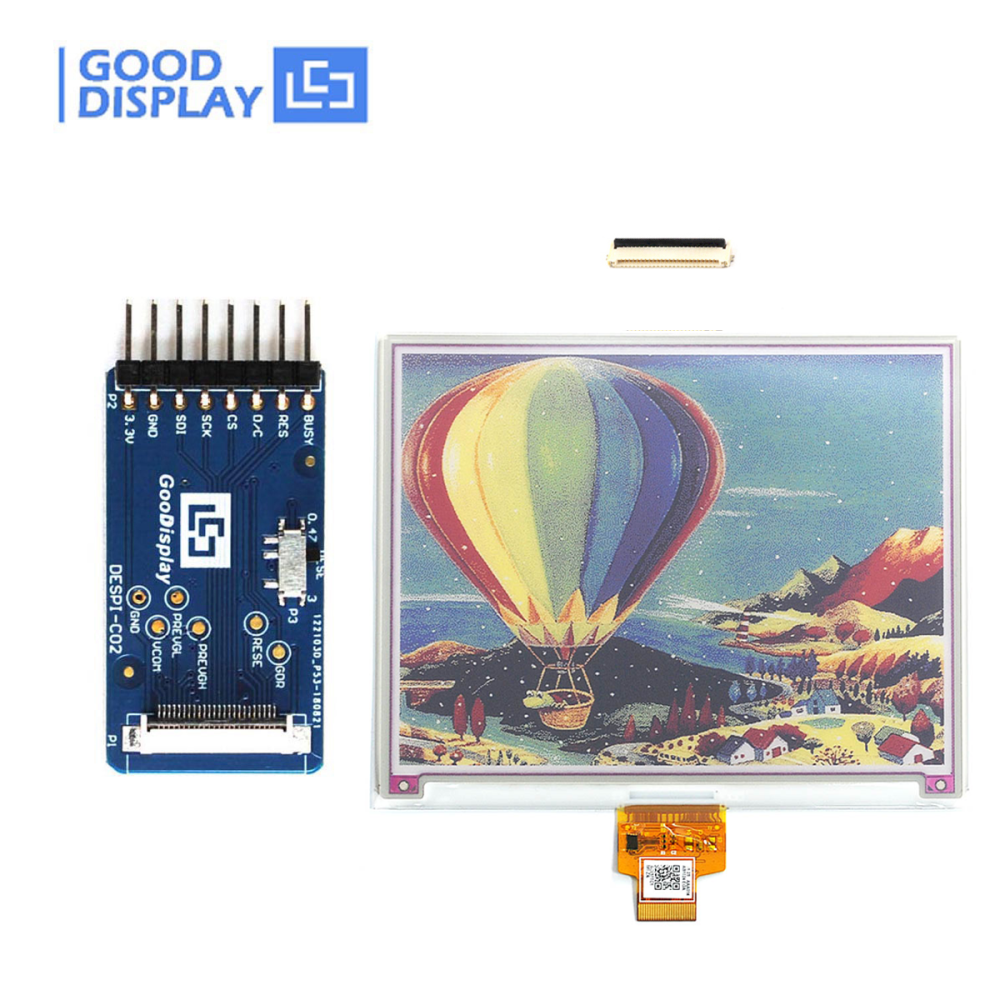

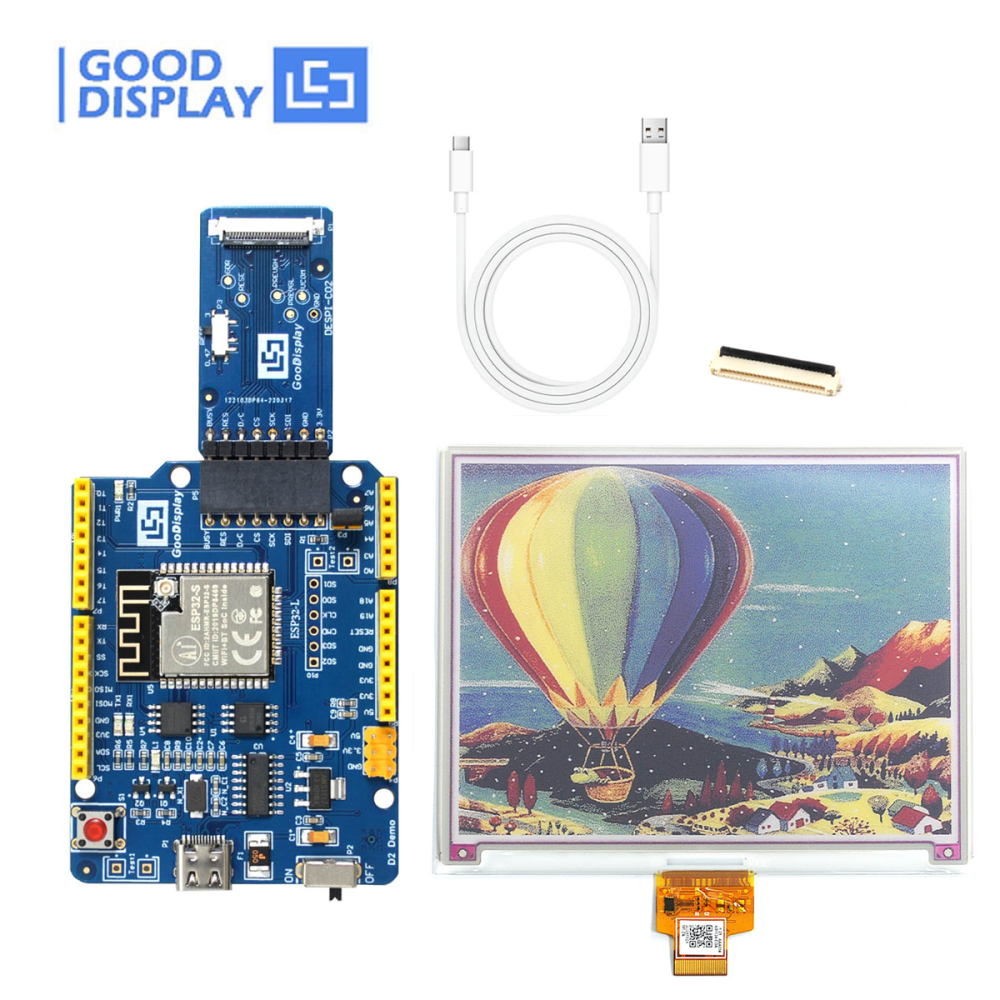

☆ THE ABOVE PRICE INCLUDE
☆ MAIN PARAMETERS
| PART NUMBER |
GDEP0565D90 |
| SIZE |
5.65 inch |
STORAGE TEMP. |
-25℃~60℃ |
| TYPE |
Dot Matrix |
OPERATING TEMP. |
15℃~35℃ |
| RESOLUTION |
600x448 |
INTERFACE |
SPI |
| OUTLINE SIZE(mm) |
125.4x99.5x0.91 |
COLOR |
7-colors |
| ACTIVE SIZE(mm) |
114.9x85.8 |
CONNECTOR |
24 Pin FPC |
| PIXEL PITCH(mm) |
0.191x0.191 |
TIME OF REFRESH(s) |
22 |
| POWER CONSUMPTION OF THE REFRESH(mW) |
72.6 |
STANDBY POWER CONSUPTION Pc(mW) |
0.66 |
☆ FEATURE
● Supports 7-color display
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● Ultra low power consumption, basically power is only required for refreshing
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays

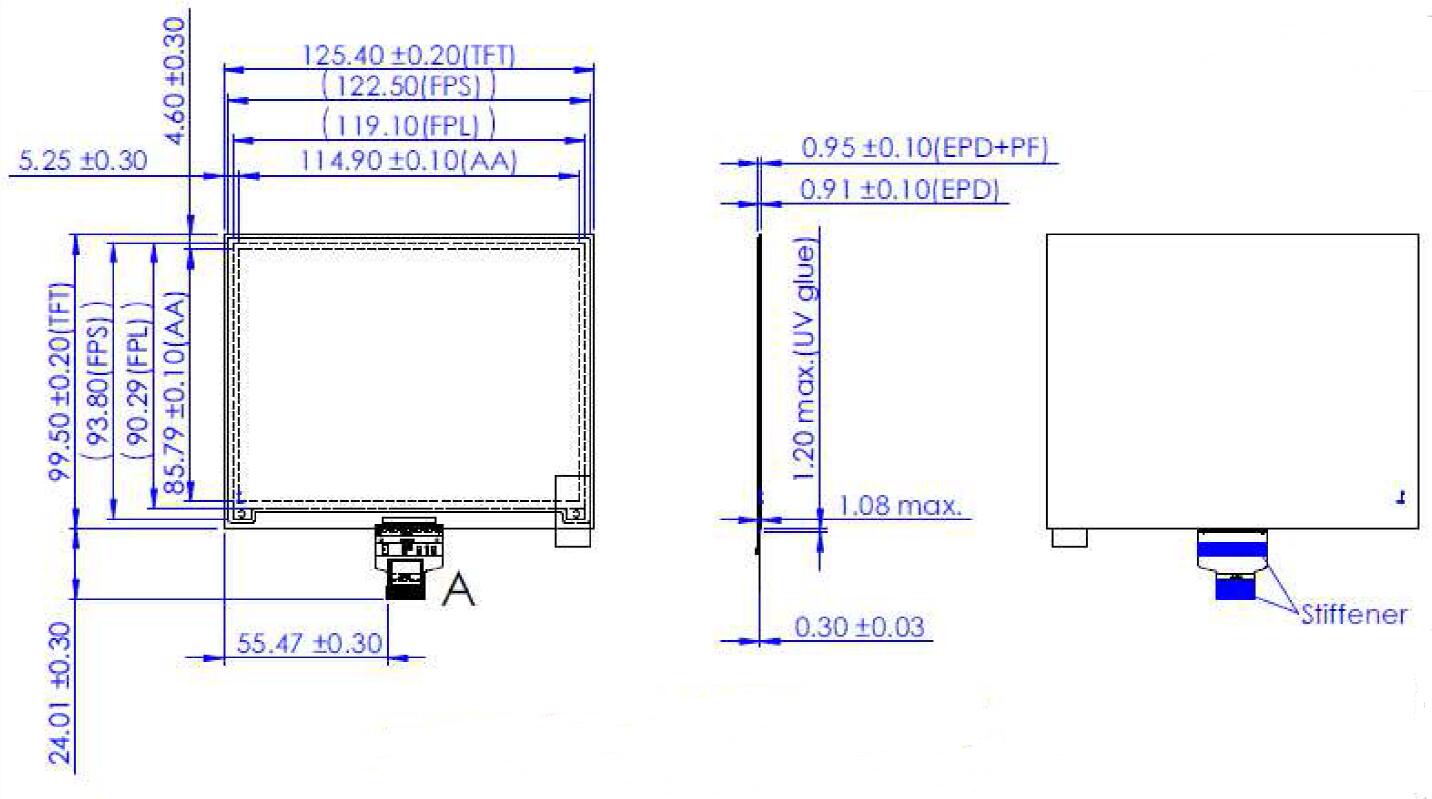

☆ DRAWING
☆ MATCHED DEVELOPMENT KIT

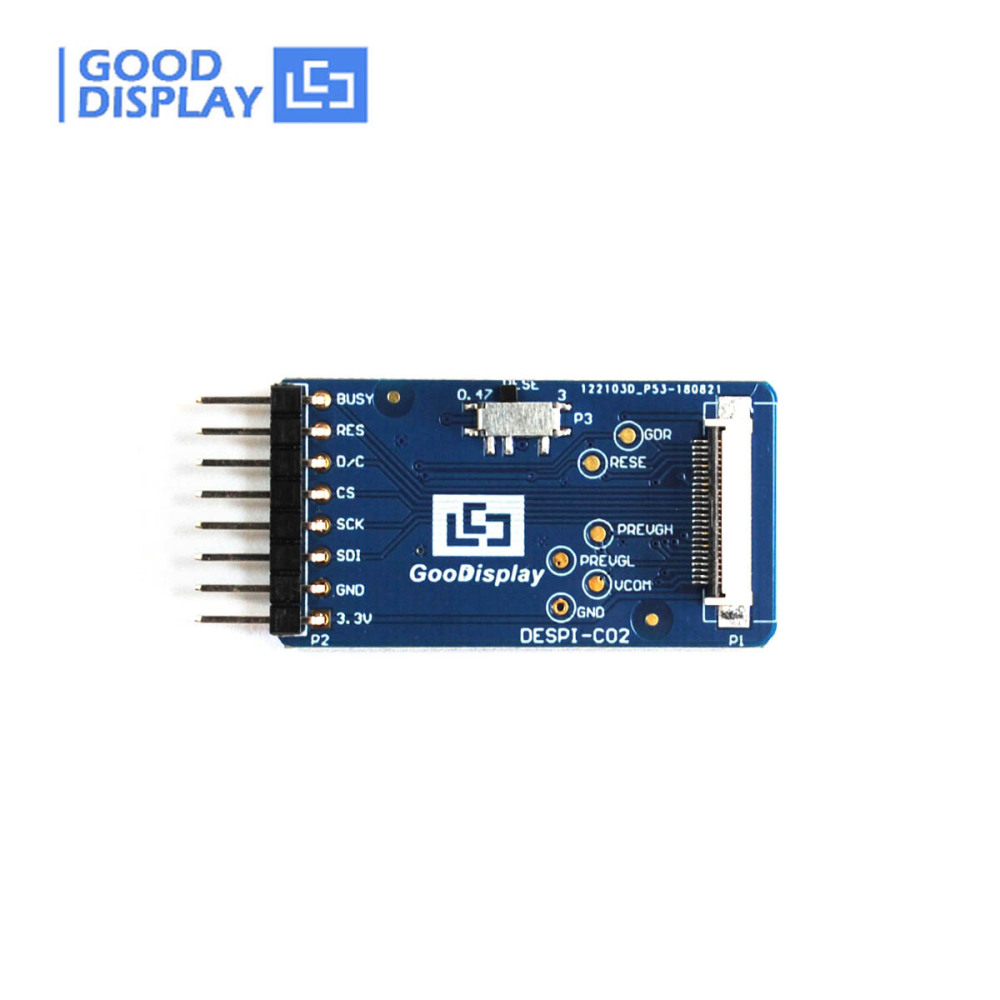

● DESPI-M02L
● ESP32-L
● ESP8266-L
● Arduino UNO-L
☆ RELATED INFORMATION DOWNLOAD
● GDEP0565D90 Specification
● GDEP0565D90 Bitmap Conversion
● GDEP0565D90 STM32 Sample Code
● GDEP0565D90 ESP32 Sample Code
● GDEP0565D90 ESP8266 Sample Code
● GDEP0565D90 Arduino Sample Code
● How to choose EPD
