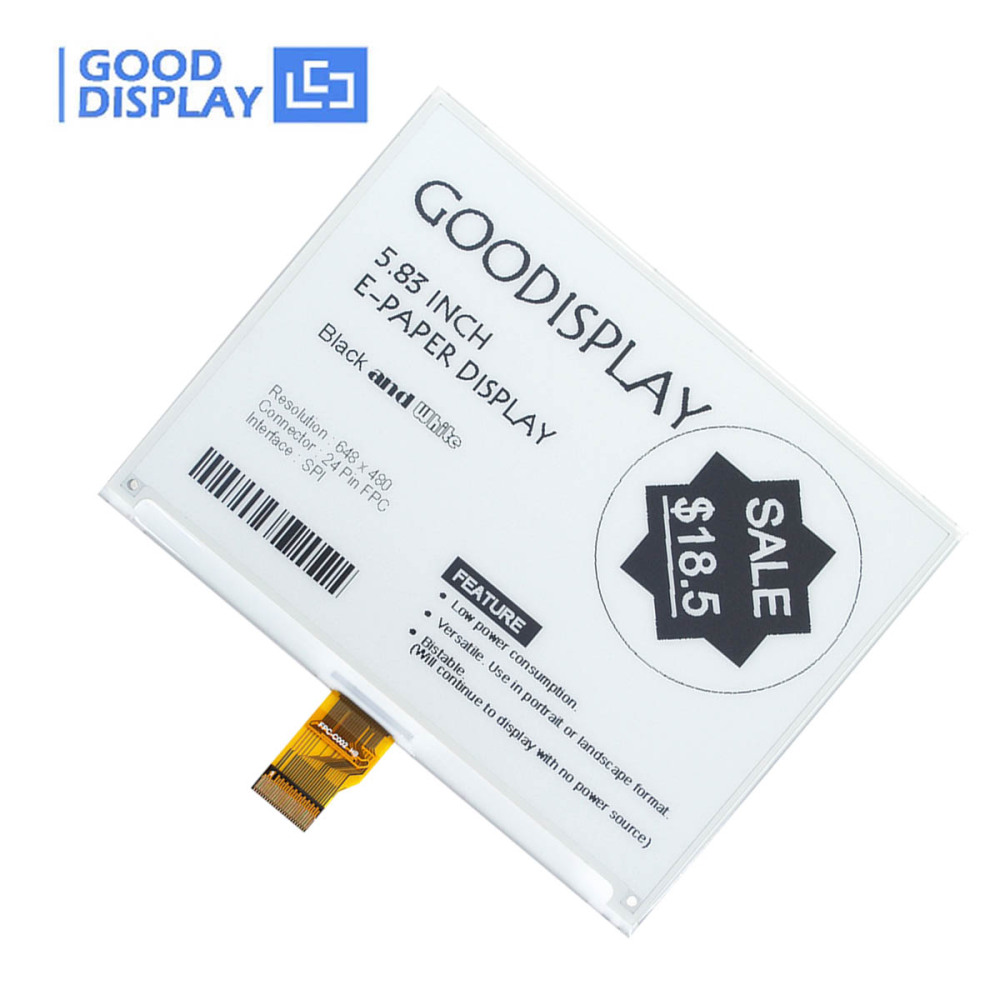

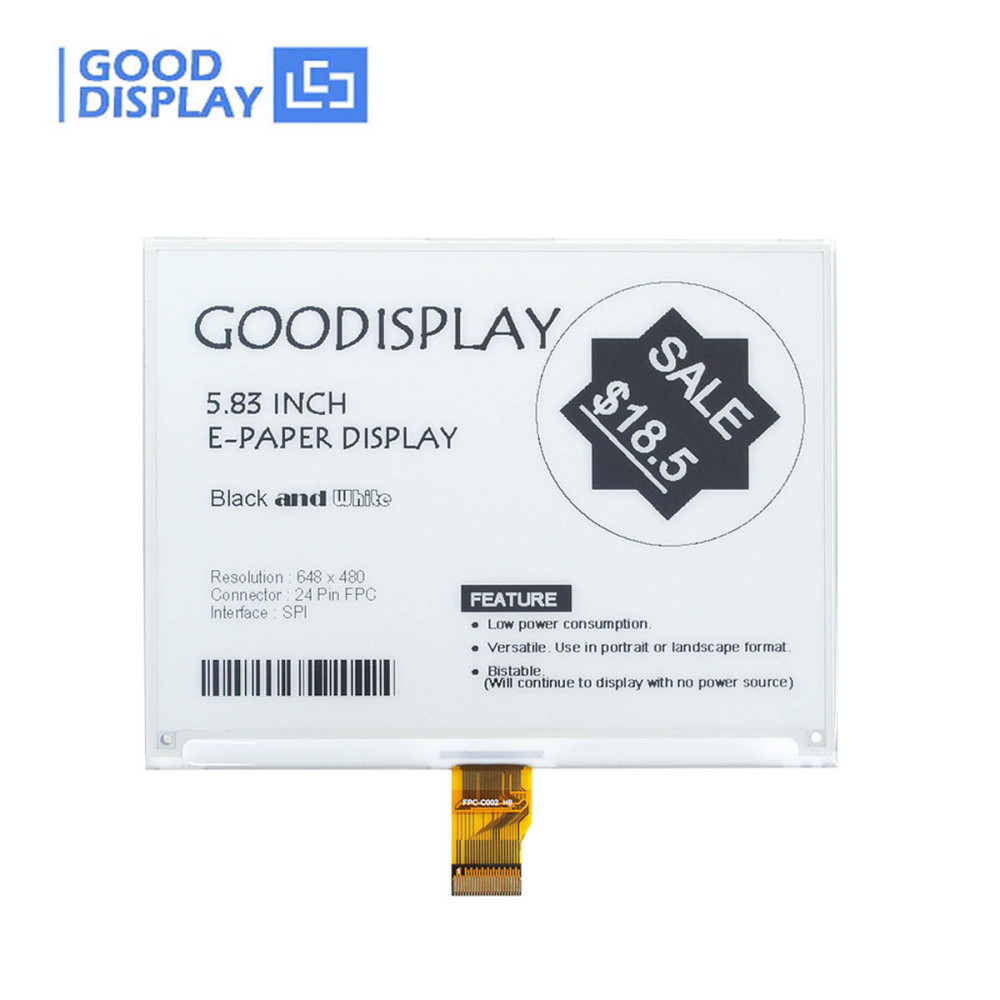

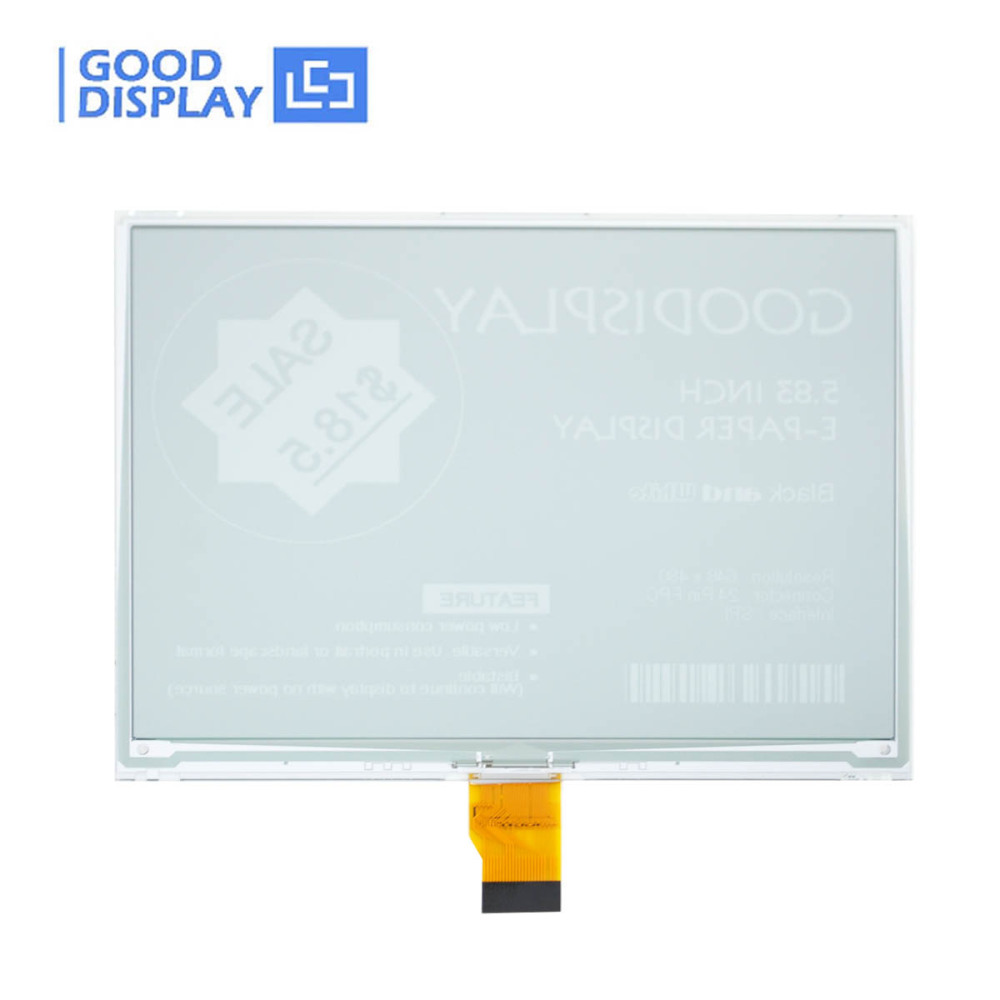

5.83 inch high resolution 1.5s for fast update 648x480, e-paper display, black and white,0.34s for partial update

GDEY0583T81

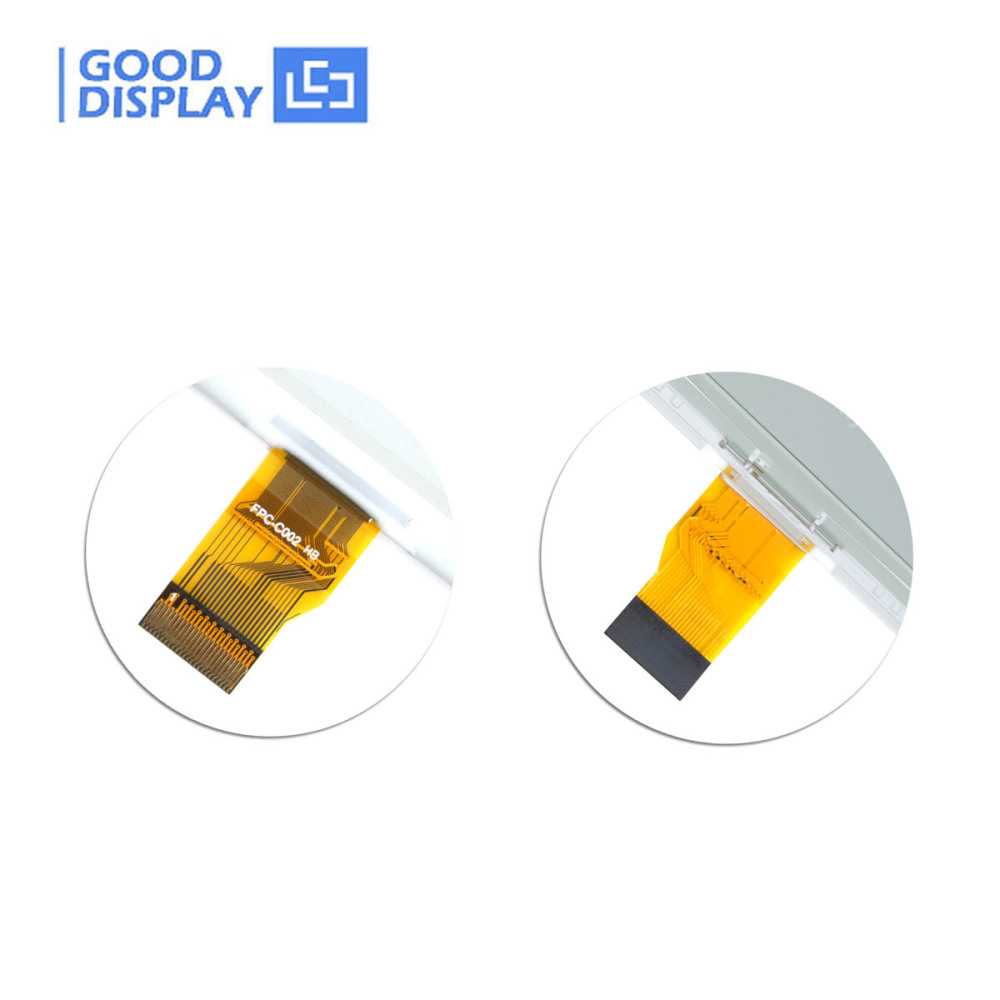

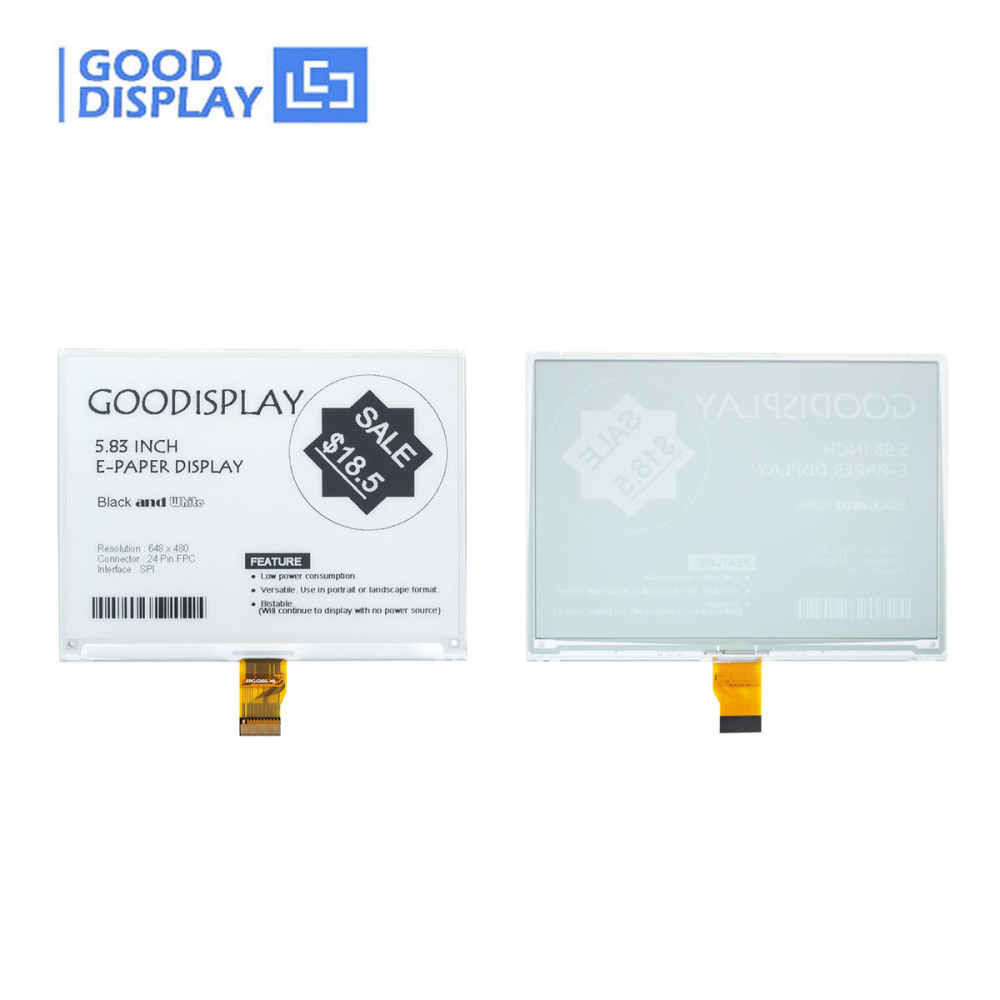

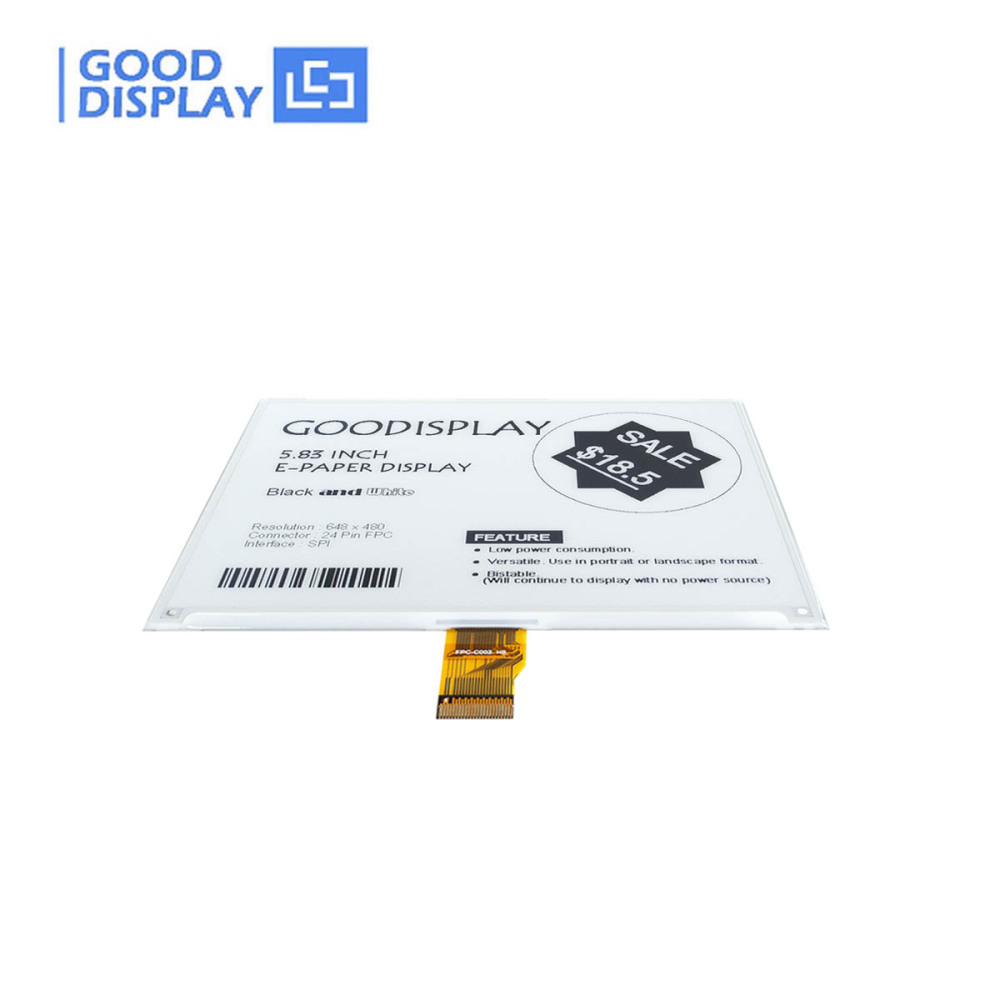

This is a 5.83 inch e-ink display with 648x480 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform.
1 Review(s) Sold:12
Have a question?
Price:
USD
$32.00

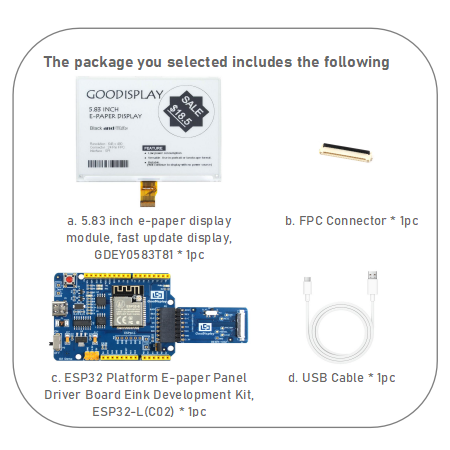

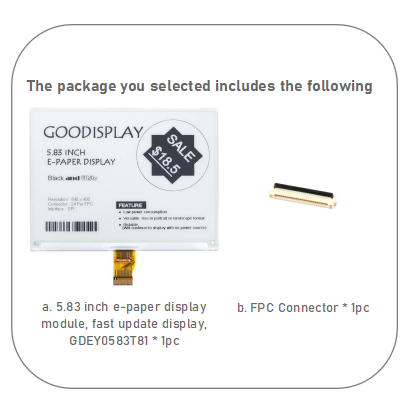

  • Product:
    EPD

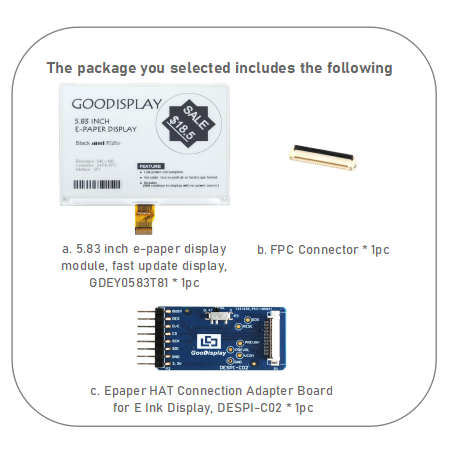

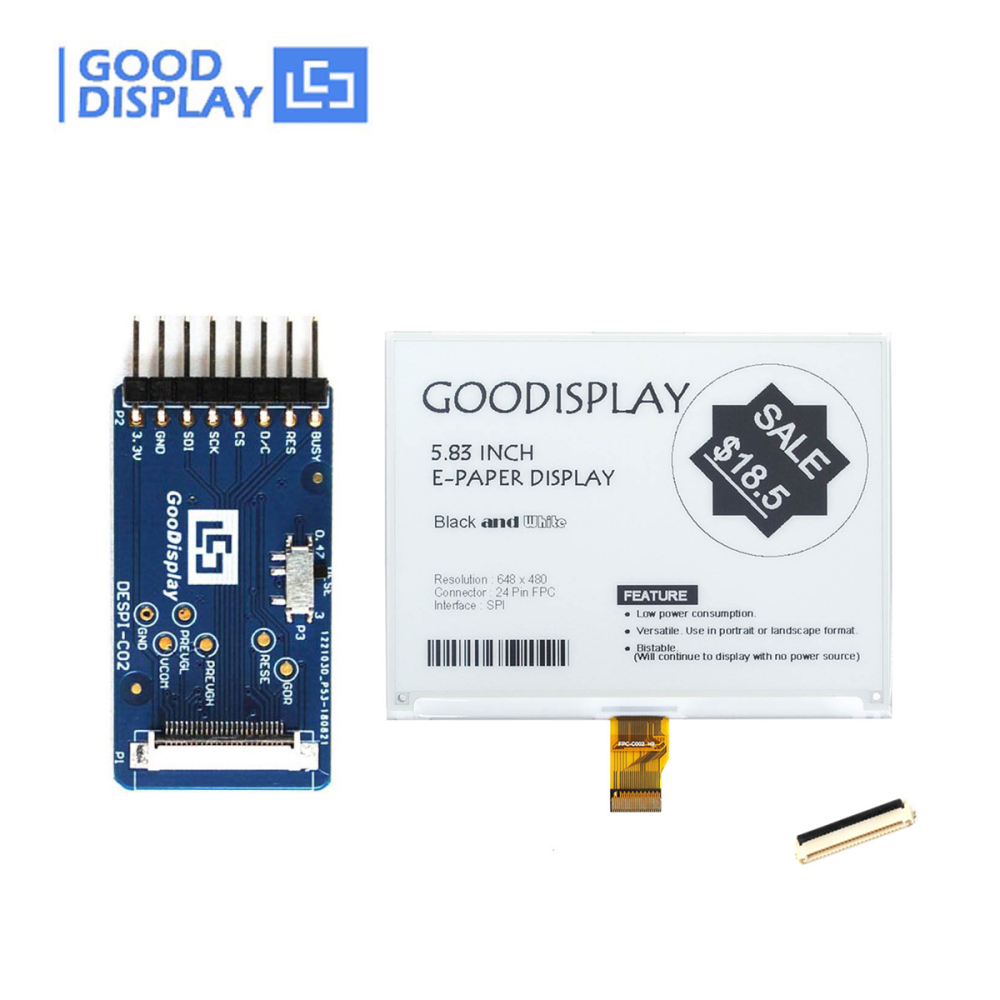

    EPD with adapter board

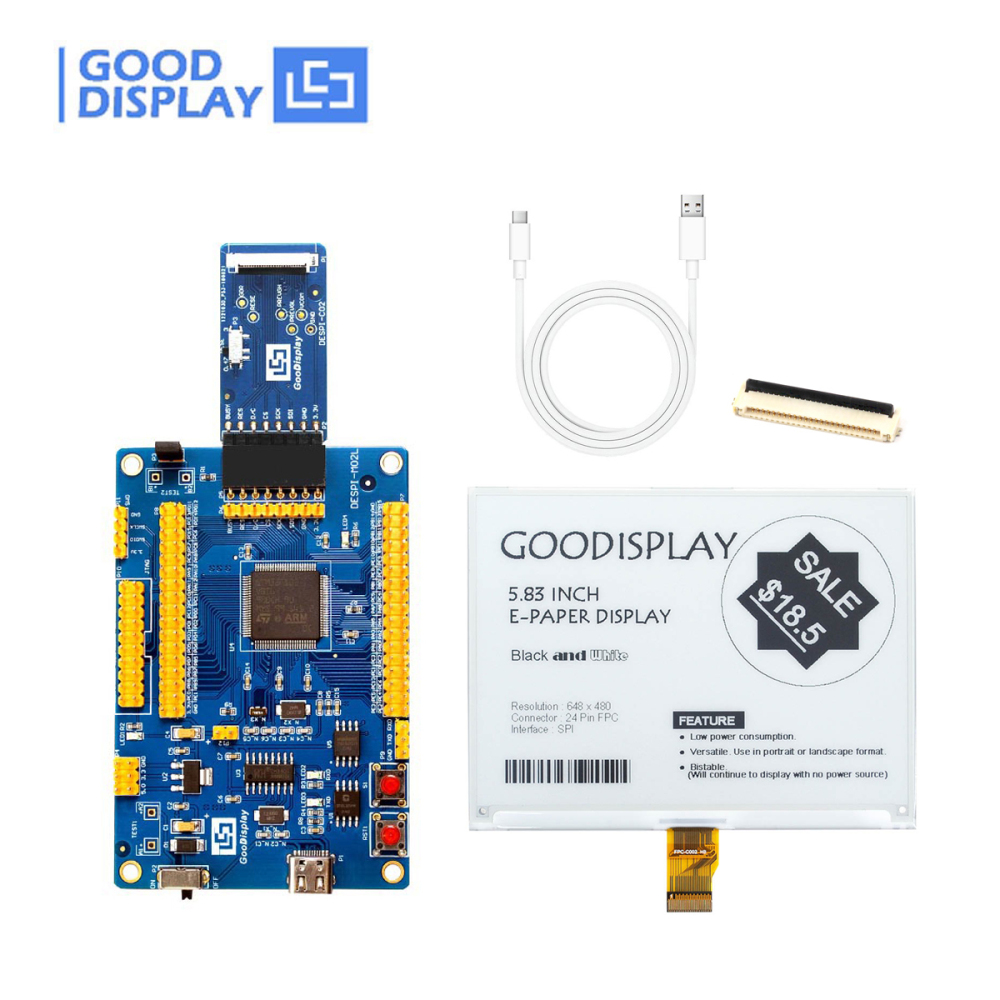

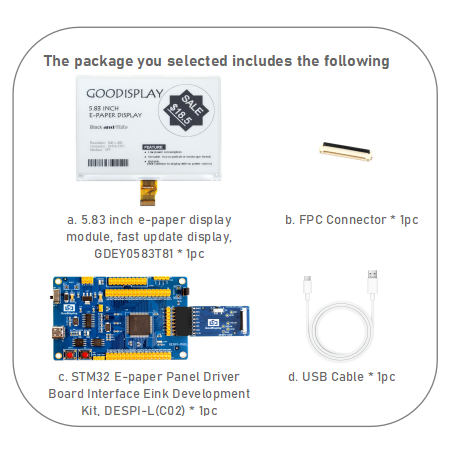

    EPD with STM32 Demo Kit

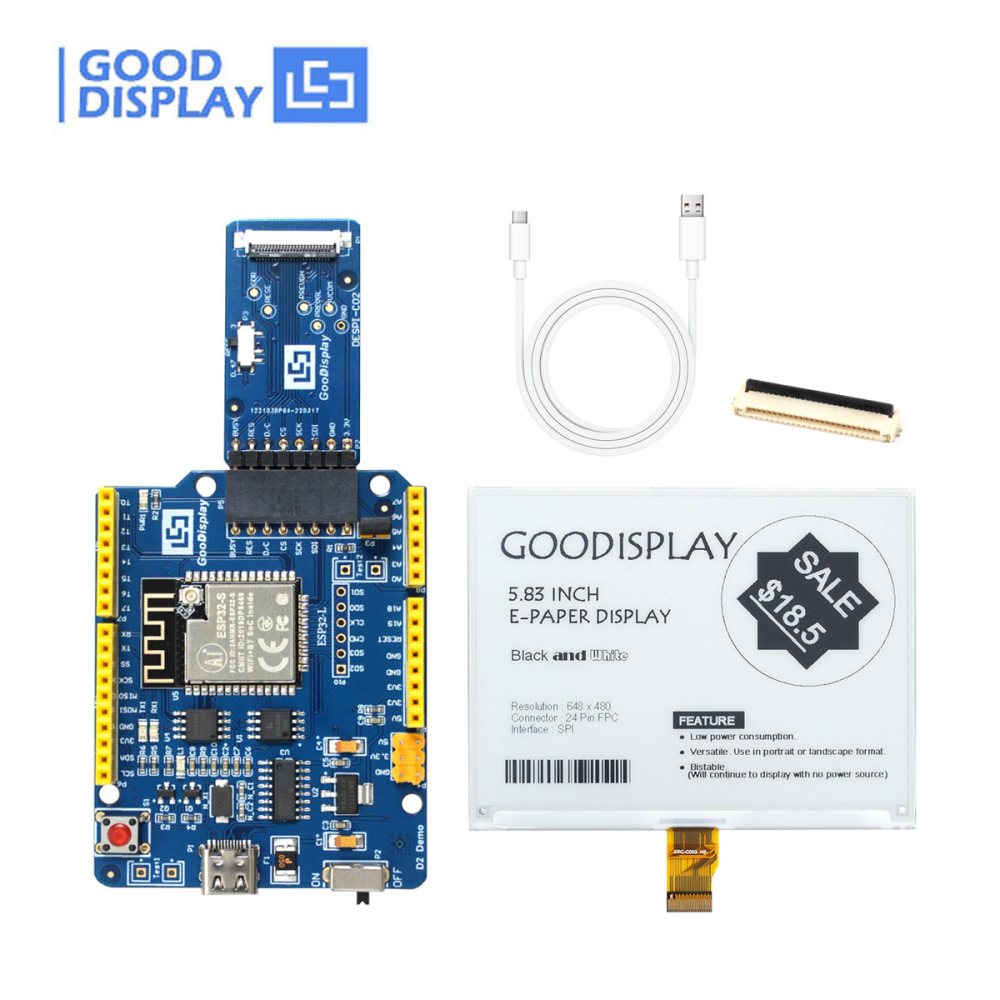

    EPD with ESP32 Demo Kit
    adapter board
Quantity:
-
+
(327 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(1)


5.83" E-Ink Display Module Quick Update High Resolution 648x480 SPI Interface




Introducing our 5.83-inch E-Paper Display Module (GDEY0583T81) with a high resolution of 648x480 and SPI interface, driven by UC8179. This black and white display offers full refresh in 3.5s, fast refresh in 1.5s, and partial refresh in 0.34s. It supports both horizontal and vertical display orientations and operates efficiently at 3.3V within a temperature range of 0-50℃. Key features include a bistable display that retains content without power, a wide 170° viewing angle, anti-glare surface, and zero power consumption when idle. Ideal for smart signs, smart home applications, and industrial instruments, this e-paper display ensures energy conservation and eye protection with no blue light emission.








Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Ultra-Efficient Energy Consumption: Enjoy unparalleled power efficiency with zero power consumption when not refreshing, perfect for long-term display needs.
  ●  Eye-Friendly Reading: Say goodbye to eye strain with a display that emits no blue light and offers zero radiation, ensuring a comfortable viewing experience even during extended use.
  ●  Crystal Clear Contrast: Benefit from high-contrast black and white display that remains readable even in direct sunlight, making it ideal for any environment.
  ●  Wide Viewing Angle: With a viewing angle exceeding 170 degrees, your content stays sharp and clear from virtually any perspective.
  ●  Persistent Display Quality: Thanks to its bistable technology, this e-paper display retains content without power, perfect for static information that needs to be visible at all times.
  ●  Quick and Responsive Updates: Enjoy fast partial refresh times of just 0.3 seconds, making it perfect for applications that require frequent and quick content updates.







Technical Details

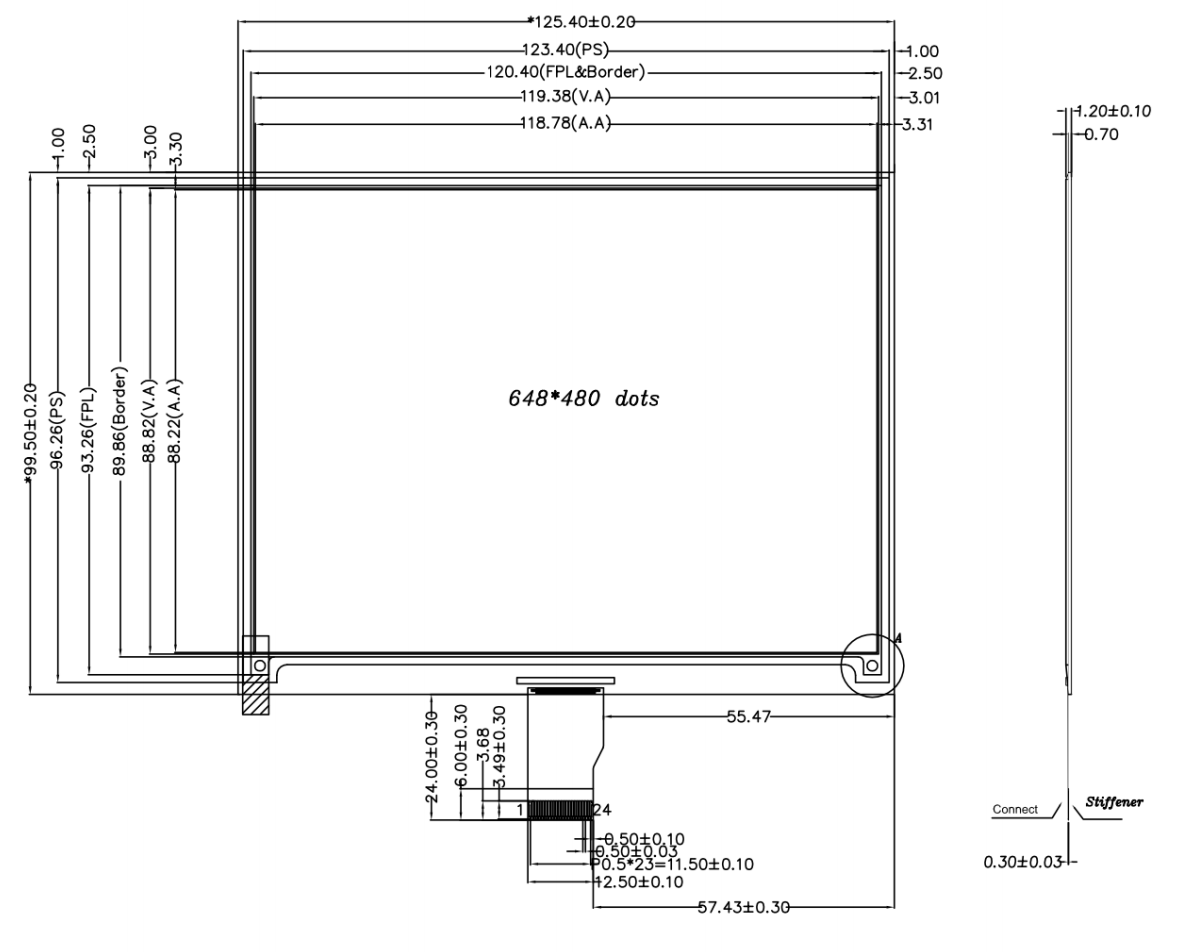

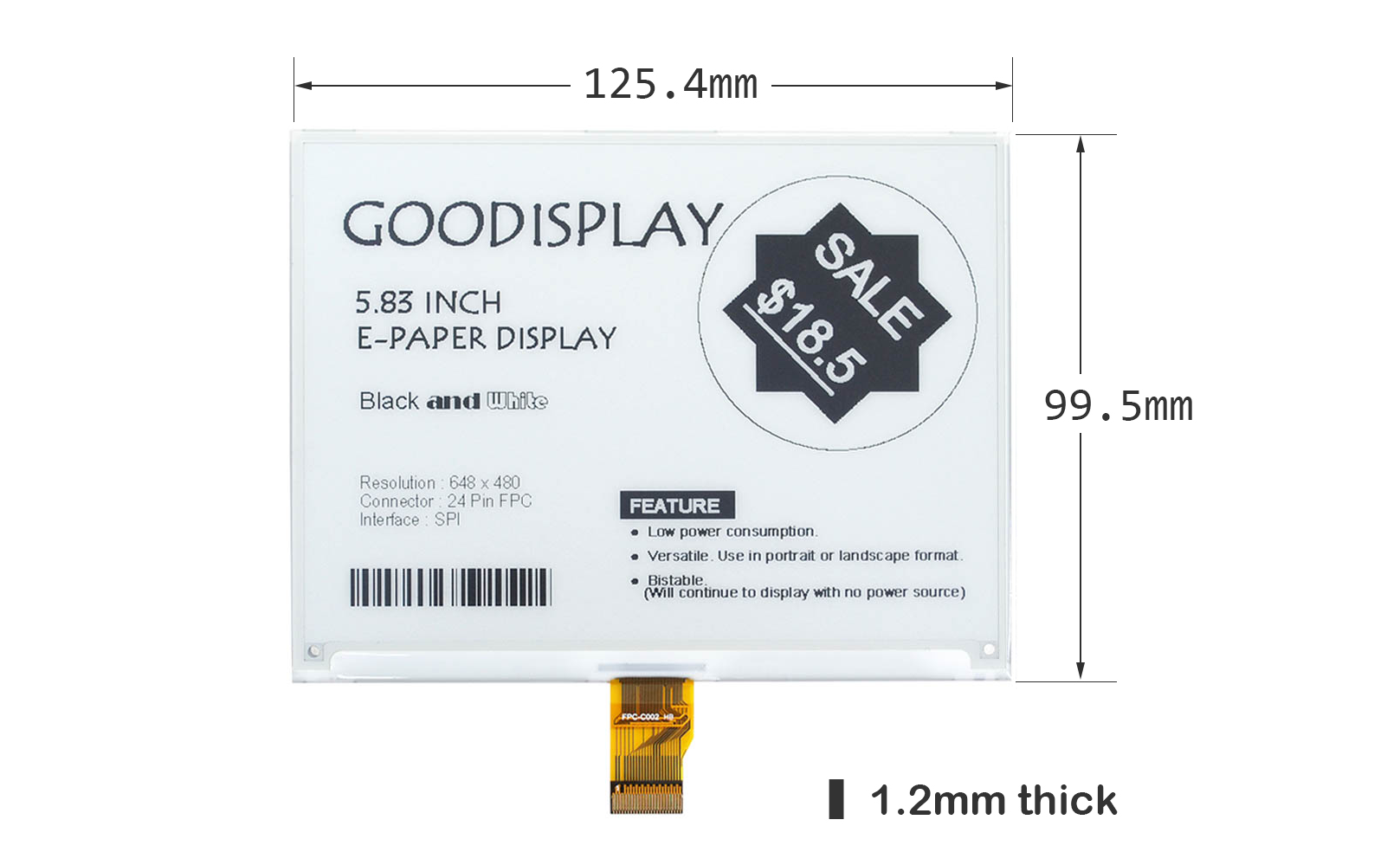

    Please refer to the product drawings for detailed dimensions








Product Specifications


    Please refer to the product specifications for more details

PART NUMBER GDEY0583T81 CONNECTOR 24 Pin FPC
SIZE 5.83 inch MAX GRAYSCALE 4
TYPE Dot Matrix COLOR Black,White
IC UC8179 INTERFACE SPI
RESOLUTION 648x480 FULL REFRESH(s) 3
OUTLINE SIZE(mm) 125.4x99.5x1.2 FAST REFRESH(s) 1.5
ACTIVE SIZE(mm) 118.78x88.22 PARTIAL REFRESH(s) 0.3
PIXEL PITCH(mm) 0.1833x0.1833 4 GRAYSCALE REFRESH(s) 2
OPERATING TEMP. 0℃~50℃ POWER CONSUMPTION OF THE REFRESH(mW) 33
STORAGE TEMP. -25℃~70℃ STANDBY POWER CONSUMPTION (mW) 0.003
POWER SUPPLY 3.3v







  Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.
a. DESPI-C02 (E-ink Display adapter Board) b. DESPI-L(C02) (STM32 Demo Kit) c. DEArduino-L(C02) (Arduino Demo Kit) d. ESP32-L(C02) (ESP32 Demo Kit)






Related Information Download

Click on the subheadings below to download

  ● GDEY0583T81 Specification ● GDEY0583T81 ESP8266 SAMPLE CODE
  ● IC Driver UC8179 ● GDEY0583T81 ESP32 SAMPLE CODE
  ● Picture Production and Bitmap Convert for GDEY0583T81 ● The latest Catalog of ePaper display
  ● GDEY0583T31 STM32 Sample Code ● Why can't I download the files?







  Every day is Earth Day
  You don't need to be an environmental scientist to make sustainable choices.
At Good Display, we passionately integrate sustainability into the production of e-paper.



Substitute for Paper Usage

Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.

 Device Packaging
95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.		 Energy Efficiency
Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.



WE ALSO SUGGEST
Click the image below to learn more about our products

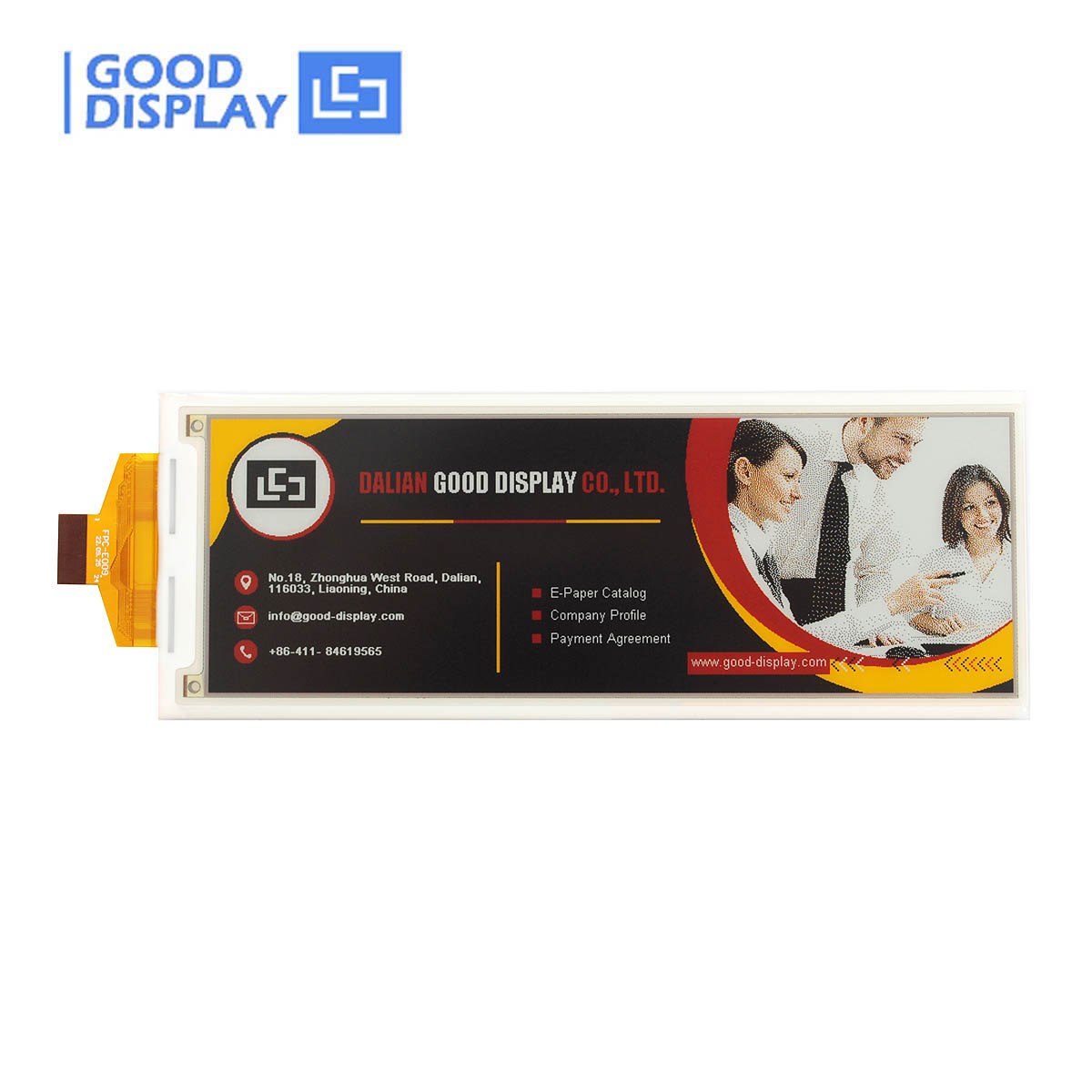

5.79-Inch Four-Color Long Strip E-Paper Display High-resolution 792x272

5.83 Inch Color E-Ink EPD Display Square Display Module with Full Refresh (Black/White/Red), GDEY0583Z31

5.83 inch 3-color three colors yellow e-paper display eink screen module GDEW0583C64

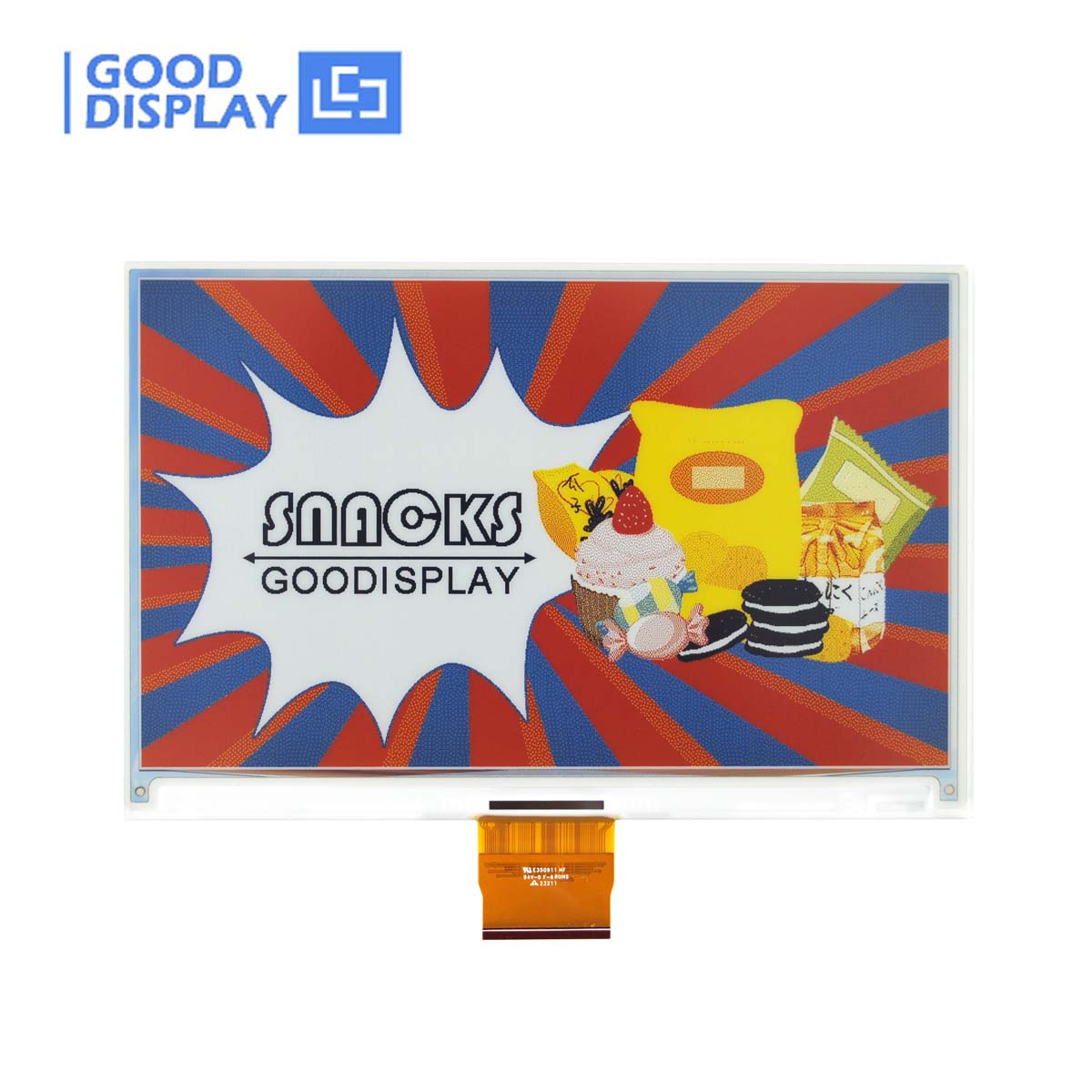

 7.3-inch E6 color e-ink display high-saturation 800x480 ePaper display module, GDEP073E01
