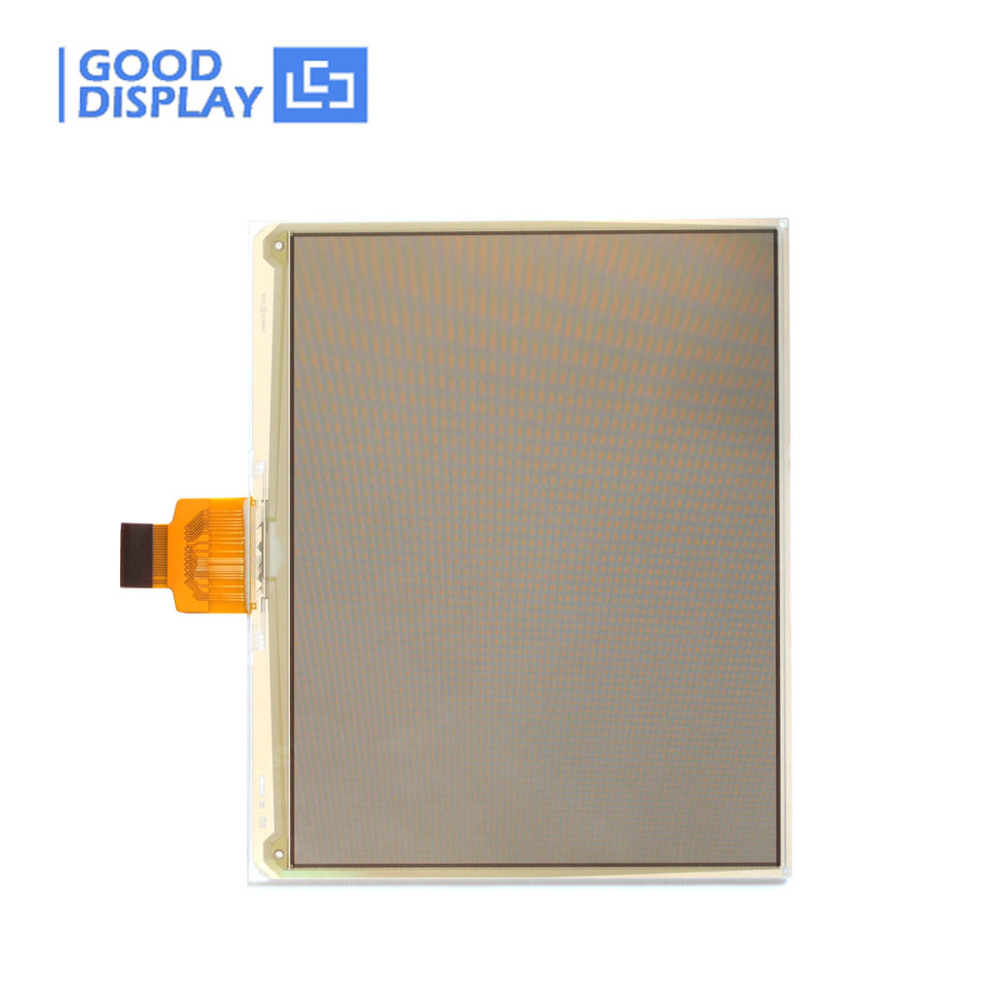

5.83 inch high resolution color red e-paper display Tri-color e-ink screen module buy

GDEW0583Z83
This is a higher resolution E ink E paper display panel, 5.83 inch, 648x480 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, supports black, white and red.
2 Review(s) Sold:12
Have a question?
Price:
USD
$37.00
Wholesale:
1+
$37.00
  • Product:

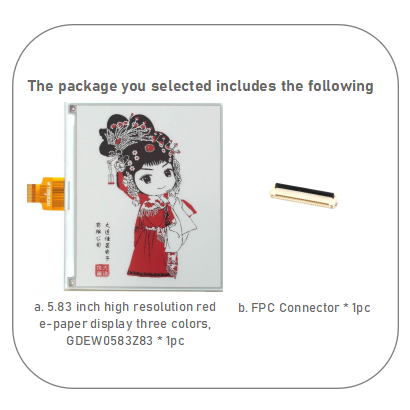

    EPD

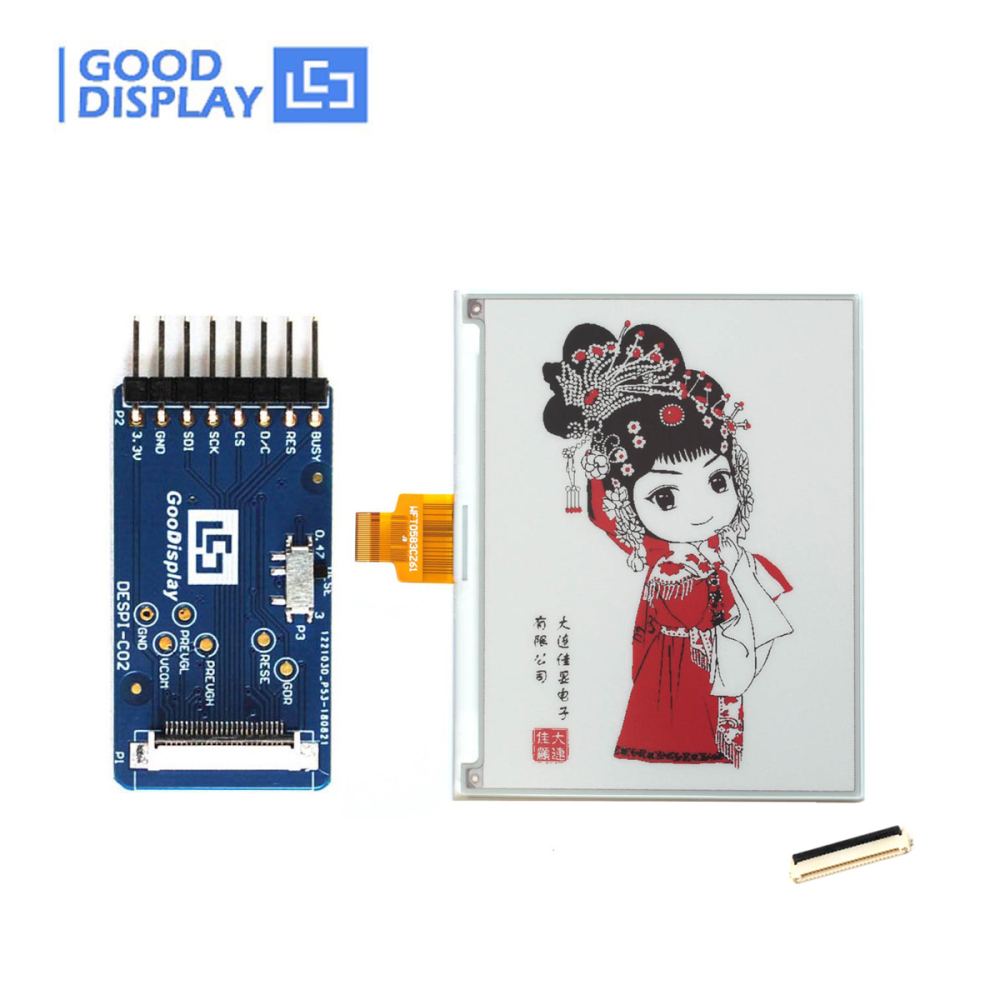

    EPD with adapter board

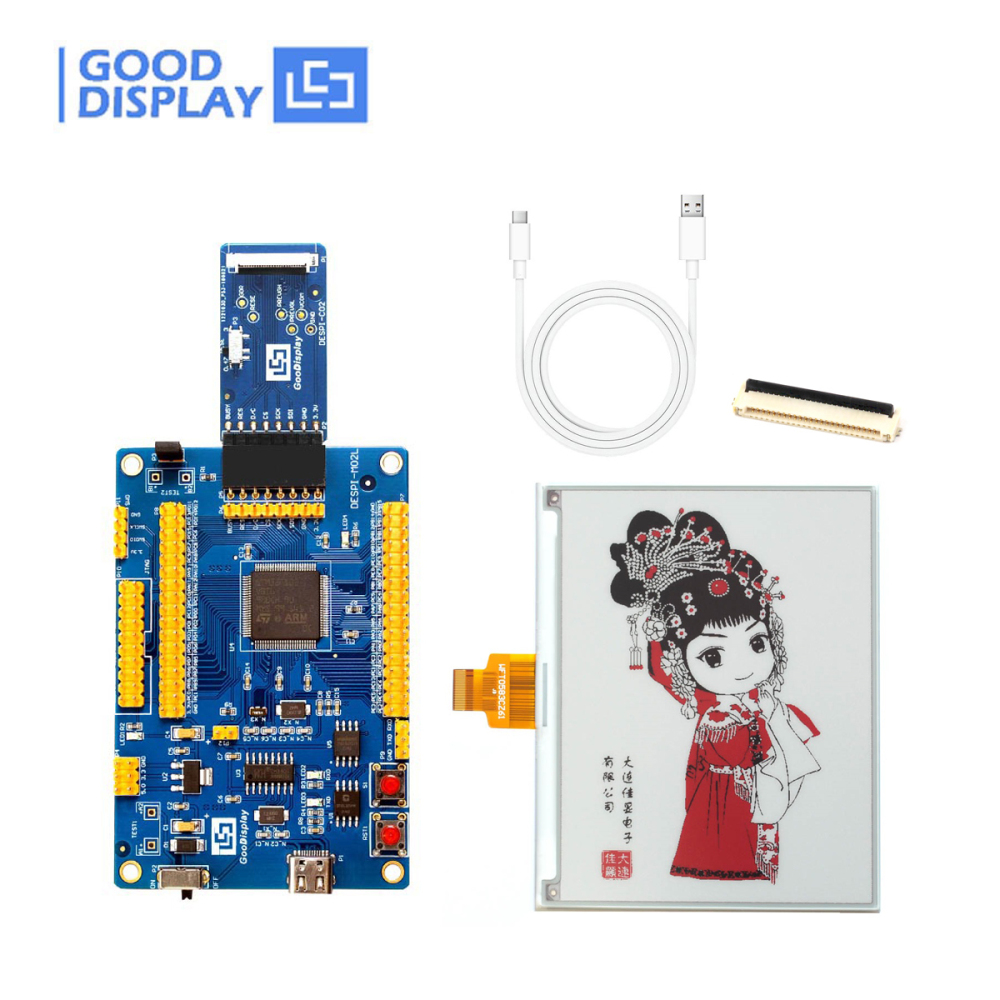

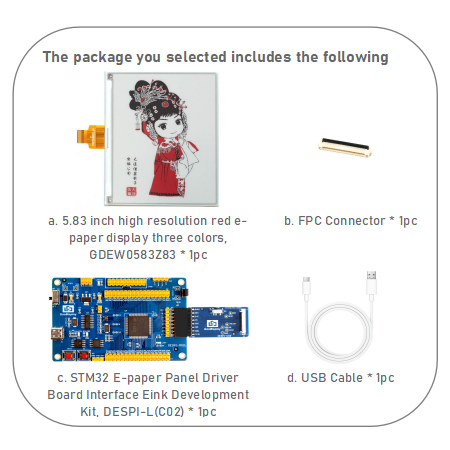

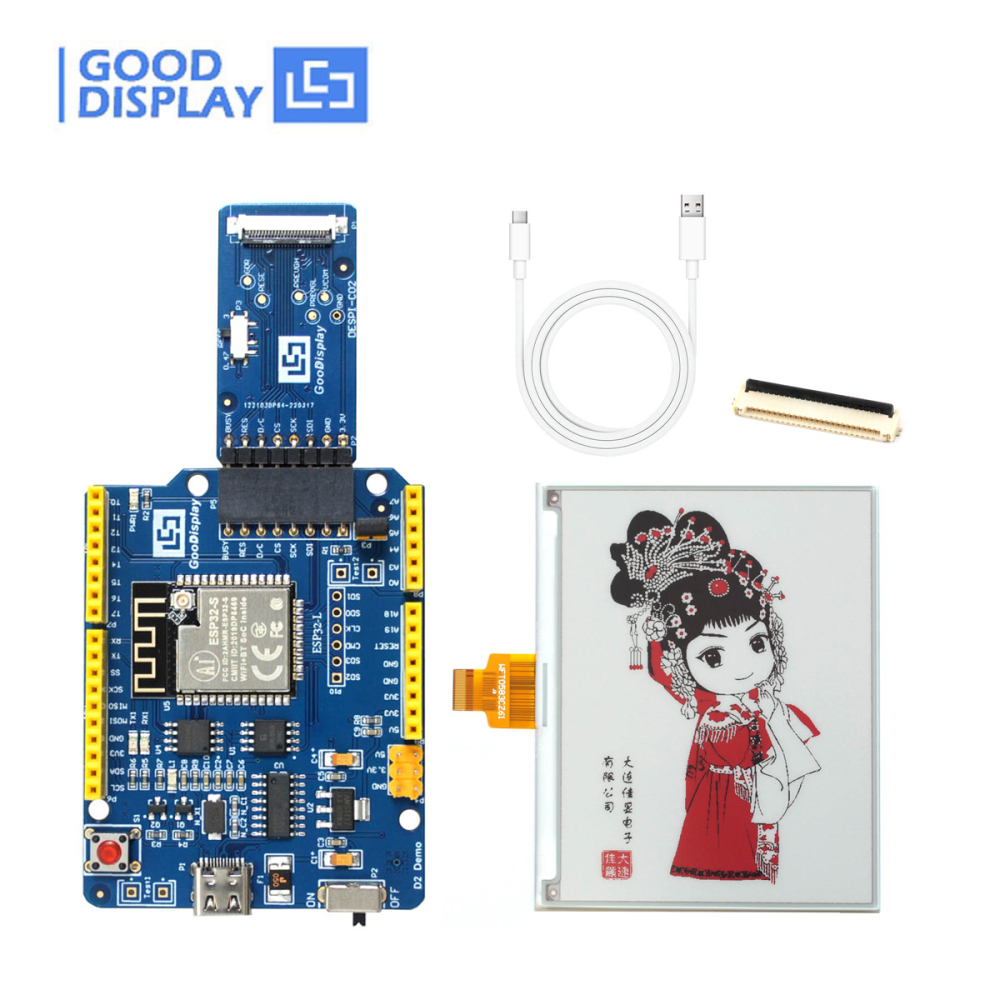

    EPD with STM32 Demo Kit
    EPD with Arduino Demo Kit

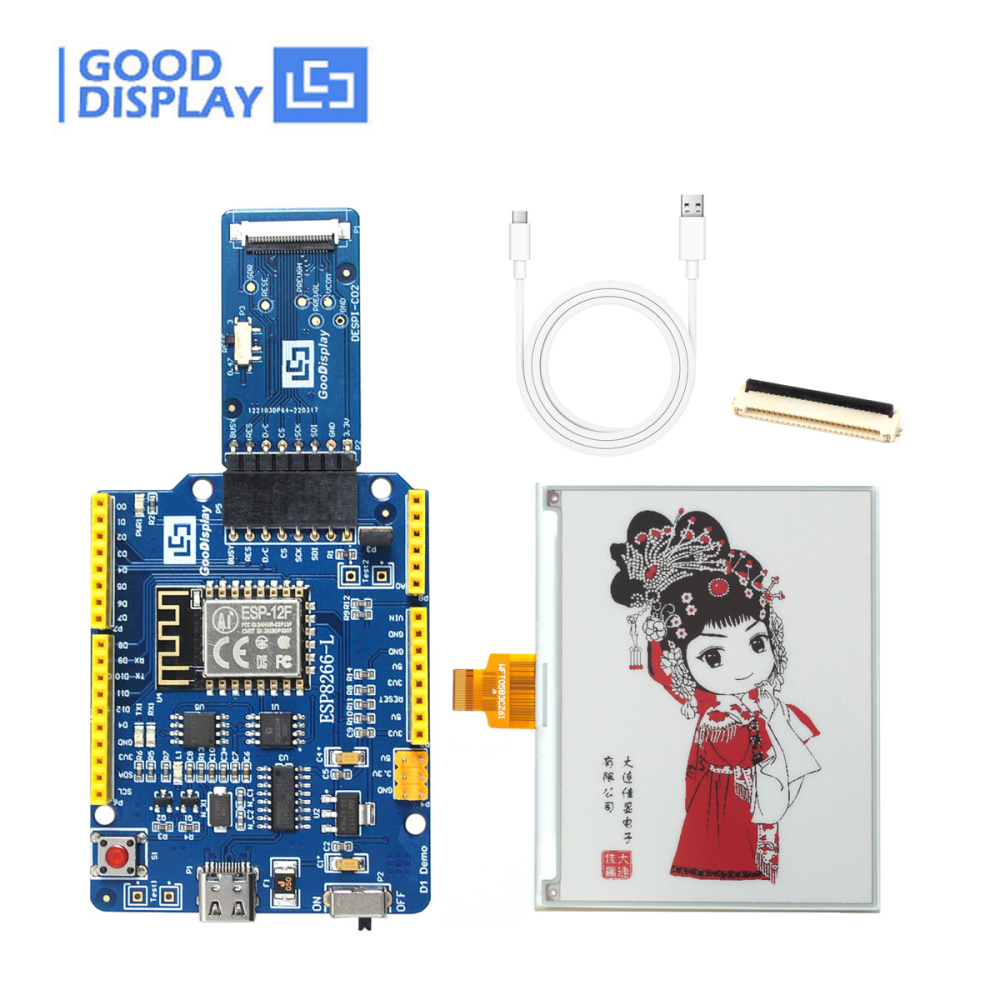

    EPD with ESP8266 Demo Kit

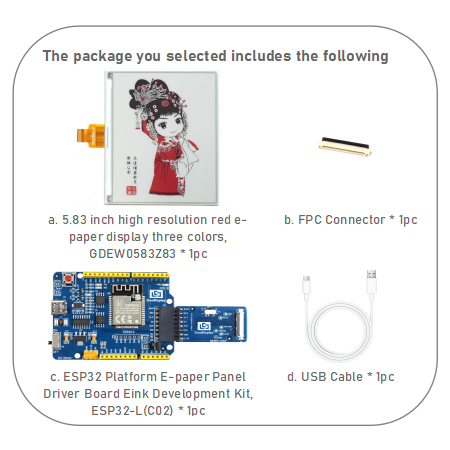

    EPD with ESP32 Demo Kit
    adapter board
Quantity:
-
+
(30 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
5.83-inch Upgraded Version
Add to Favorite Items
  • Description
  • Reviews(2)
We recommend using the updated E Ink Screen with better display performance: GDEY0583Z31, available for long-term stable supply.



Unleash the Potential of the 5.83-Inch Black, White, and Red E-Paper Display

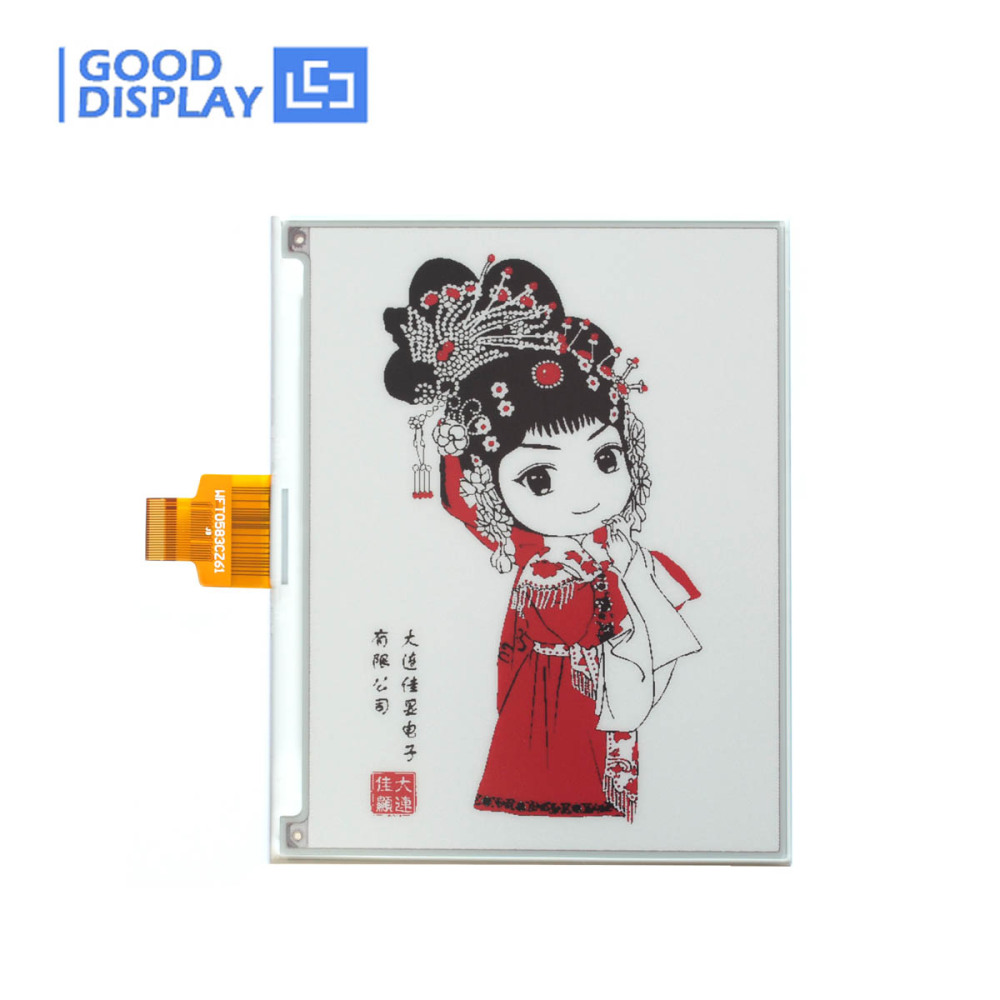

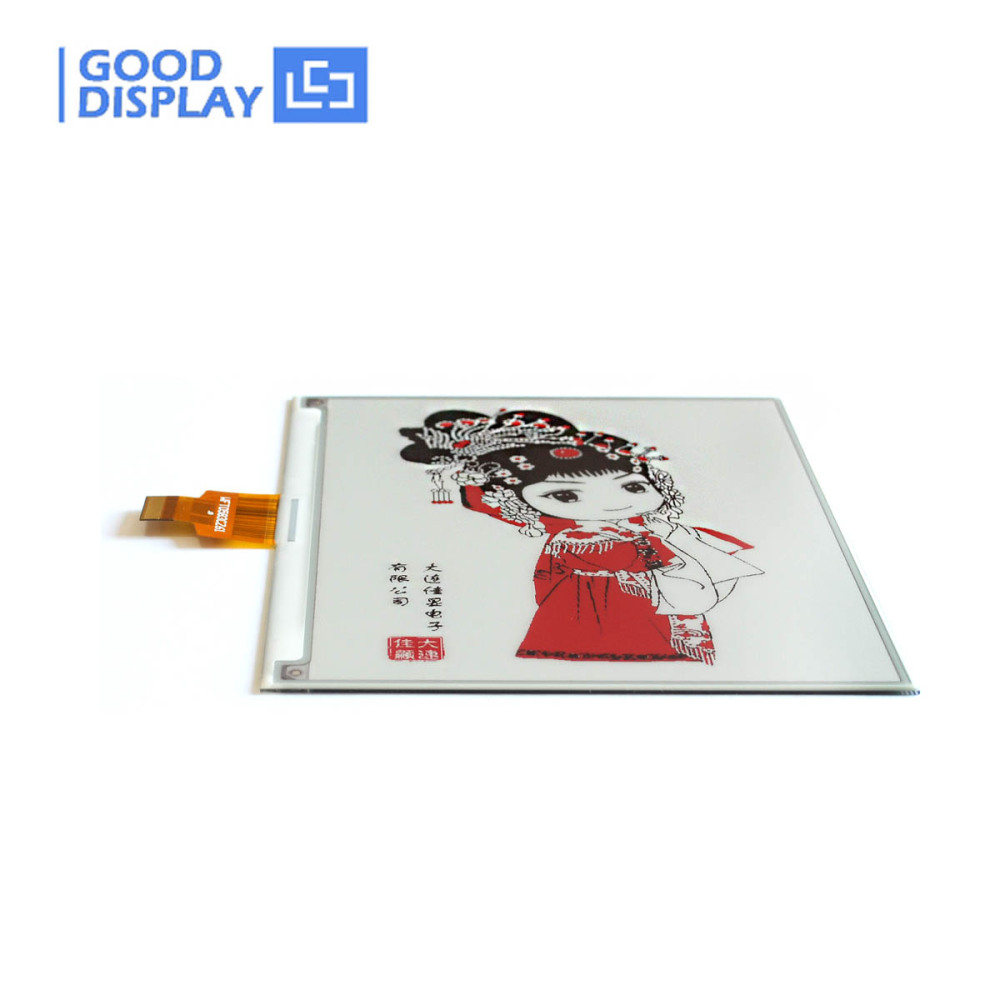

This is a 5.83 inch color e-ink display with 648x480 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. This 5.83 inch e-ink display GDEW0583Z83 is perfect for low power devices powered by solar or batteries. or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.








Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Energy Efficiency: The display consumes no power when not refreshing, making it highly energy-efficient and suitable for battery-powered applications.
  ●  Eye Protection: It provides a comfortable viewing experience with no blue light emission and zero radiation, reducing eye strain.
  ●  Wide Viewing Angle: With a viewing angle exceeding 170 degrees, the display ensures clear visibility from almost any direction.
  ●  Bistable Display: The content remains visible even after a power outage, which is useful for applications where constant power supply cannot be guaranteed.
  ●  Durability and Visibility: The display features a hard-coated surface for anti-glare effects, enhancing durability and visibility in various lighting conditions.






Technical Details

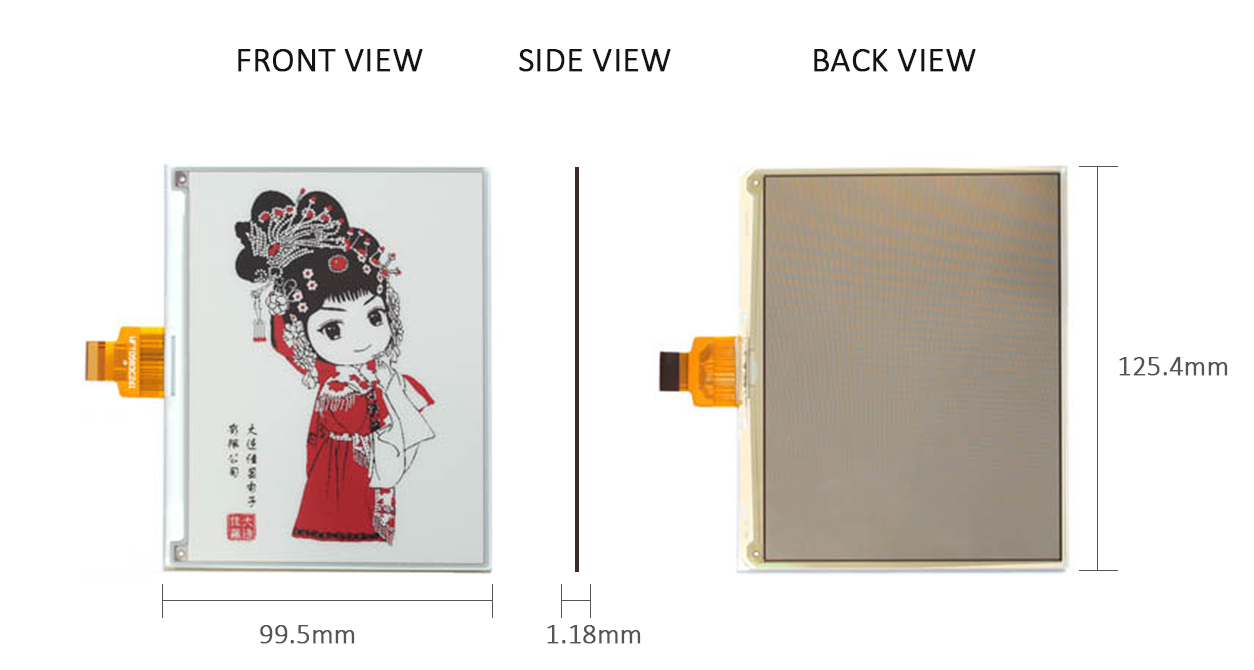

    Please refer to the product drawings for detailed dimensions








Product Specifications


    Please refer to the product specifications for more details

PART NUMBER GDEW0583Z83 CONNECTOR 24 Pin FPC
SIZE 5.83 inch TYPE Dot Matrix
IC UC8179 MAX GRAYSCALE 2
RESOLUTION 648x480 COLOR Black, White, Red
OUTLINE SIZE(mm) 125.4x99.5x1.18 INTERFACE SPI
ACTIVE SIZE(mm) 119.232x88.32 FULL REFRESH(s) 12
PIXEL PITCH(mm) 0.184x0.184 POWER CONSUMPTION OF THE REFRESH(mW) 26.4
OPERATING TEMP. 0℃~40℃ STANDBY POWER CONSUMPTION (mW) 0.71
STORAGE TEMP. -25℃~60℃







  Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

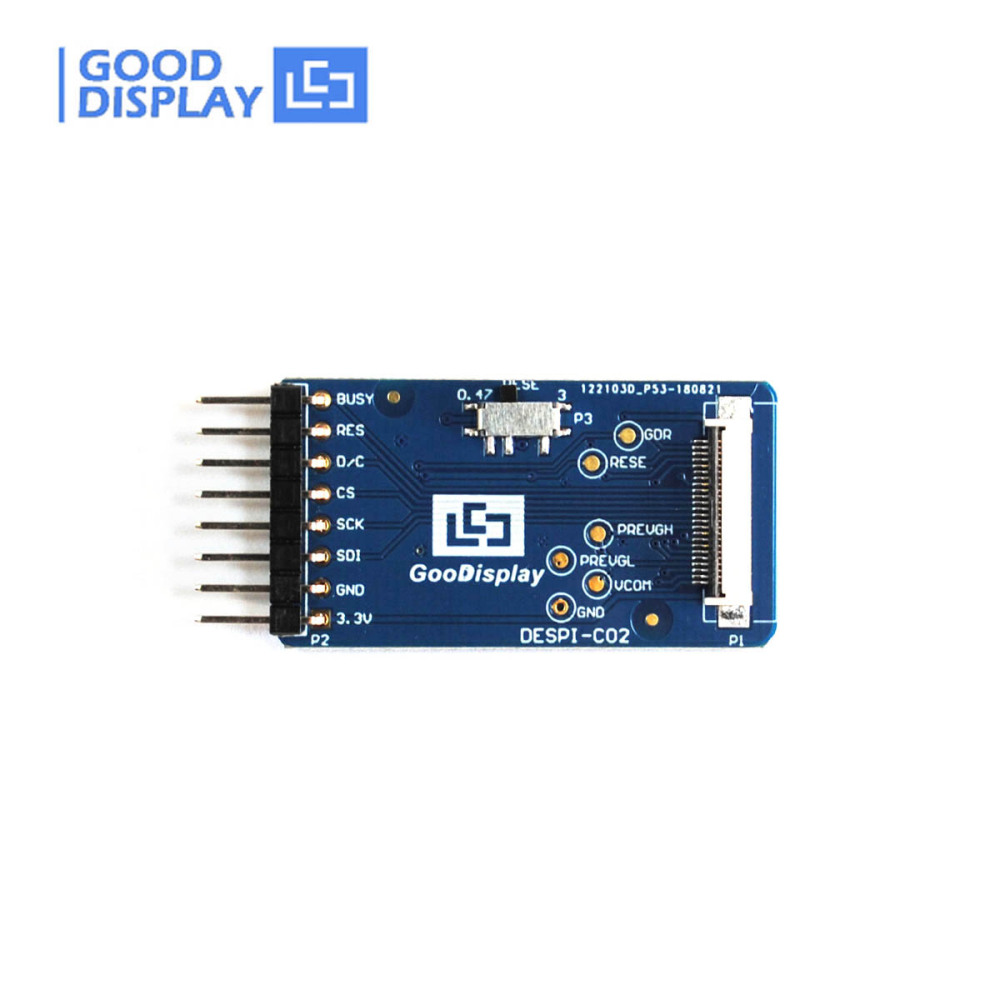

a. DESPI-C02 (E-ink Display adapter Board) b. DESPI-L(C02) (STM32 Demo Kit) c. ESP8266-L(C02) (ESP8266 Demo Kit) d. ESP32-L(C02) (ESP32 Demo Kit)






Related Information Download

Click on the subheadings below to download

  ● GDEW0583Z83_Specification ● GDEW0583Z83 ESP8266 SAMPLE CODE
  ● IC Driver UC8179 ● GDEW0583Z83 ESP32 SAMPLE CODE
  ● Picture Production and Bitmap Convert for GDEW0583Z83 ● The latest Catalog of ePaper display
  ● GDEW0583Z83 STM32 Sample Code ● Why can't I download the files?
