☆ INTRODUCTION

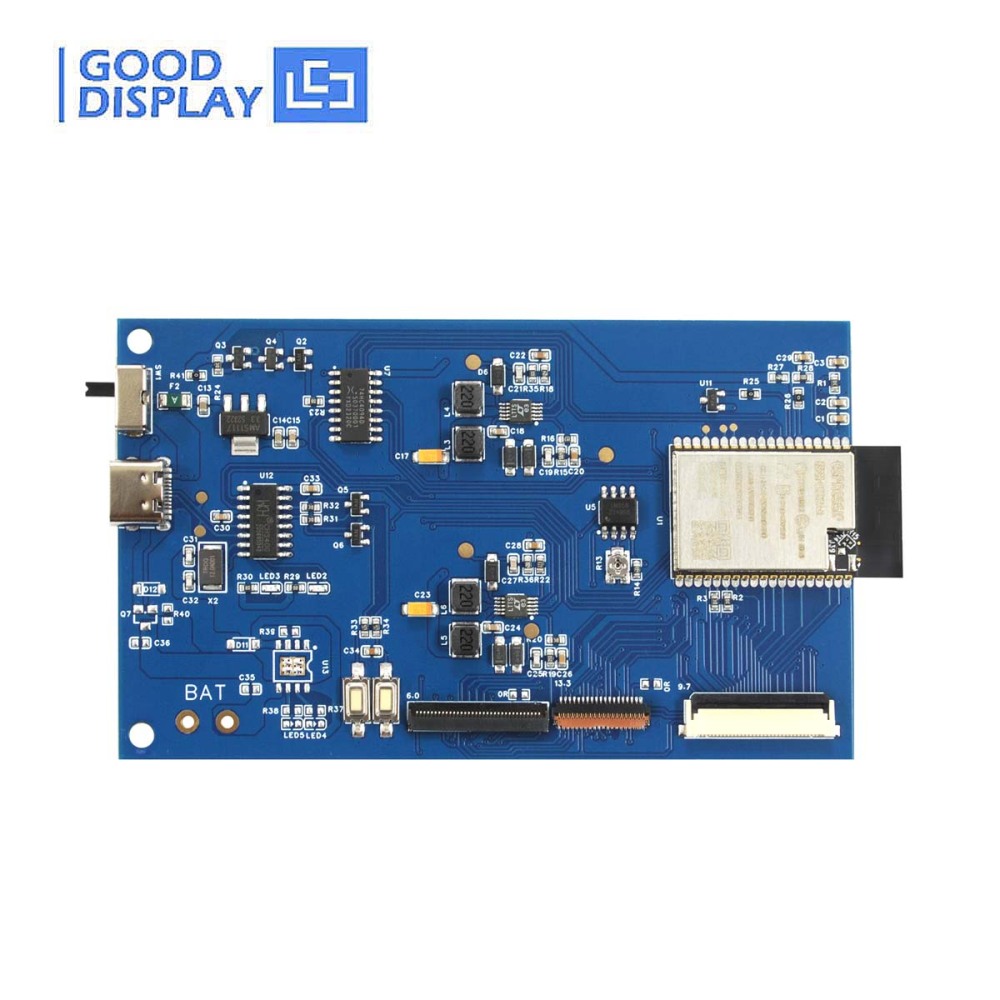

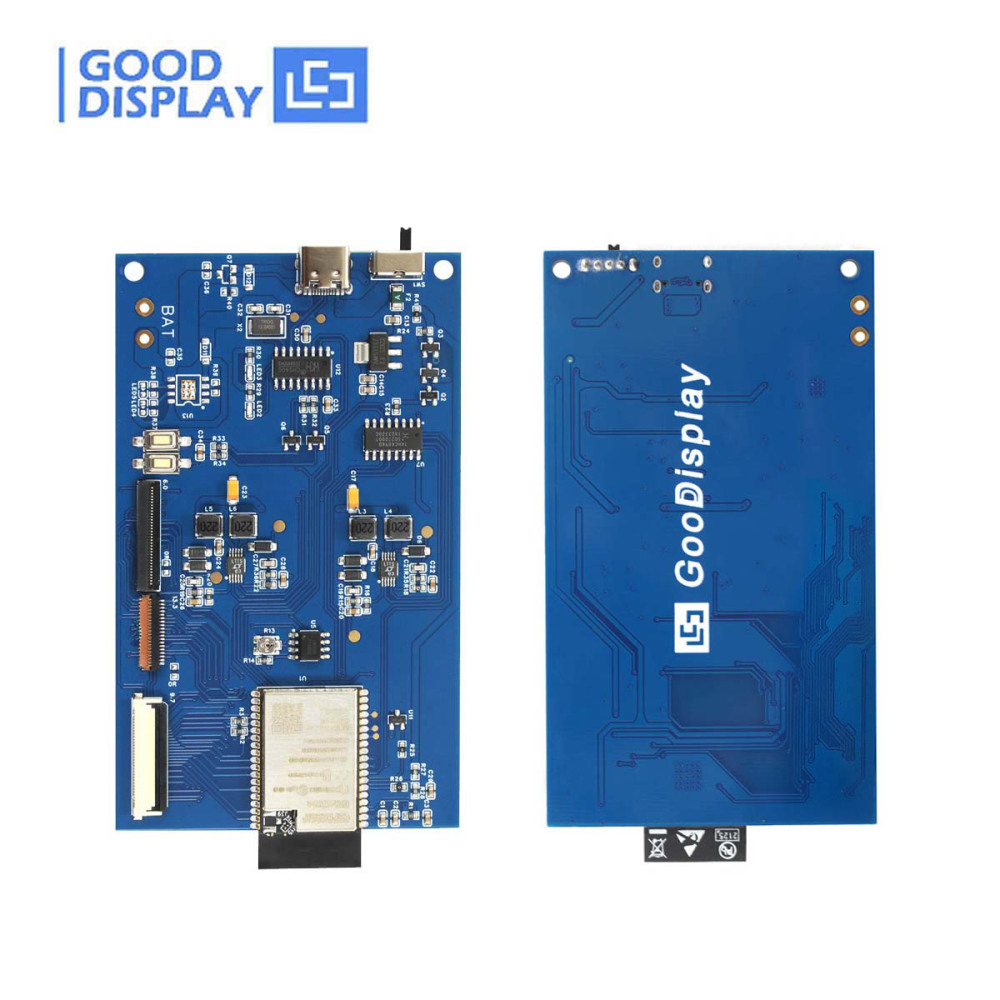

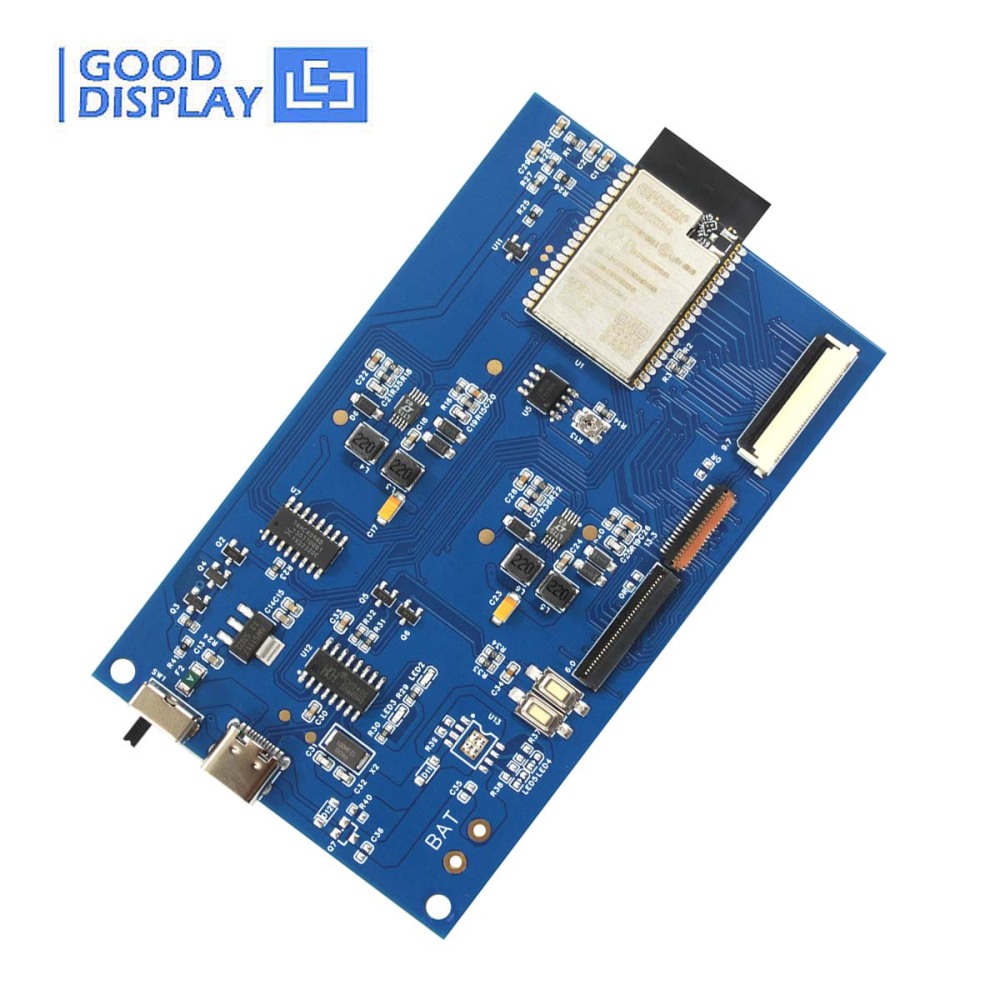

The EPDiy development kit assists developers in faster and smoother development of ePaper display projects. It is specifically designed for parallel port ePaper displays, supporting 16-level grayscale rendering and compatible with ESP-IDF and Arduino drivers. It can drive various sizes of parallel port ePaper displays, including 6-inch, 9.7-inch (GDEP097TC2), and 13.3-inch (GDEP133UT3), among others. Compared to other parallel port driver solutions, EPDiy offers cost-effectiveness and ease of use, allowing users to carry out secondary development according to their project's specific requirements. It is an excellent choice for driving parallel port ePaper displays.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
1) 9.7-inch and 13.3-inch Parallel Screen Test Board Development Kit, EPDiy * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
EPDiy
|
| FUNCTION |
Drive 9.7" and 13.3" eink screen |
|
OUTLINE SIZE
|
99.8mm*57.8mm
|
|
INTERFACE
|
33 pin 9.7-inch e-paper, adapter boards are suitable for other sizes
|
|
POWER SUPPLY MODE
|
USB / lithium battery (solderless)
|
|
MCU
|
Onboard ESP32 microcontroller with integrated Wi-Fi and Bluetooth 4.0 (BLE)
|
|
WORKING CURRENT
|
50mA
|
| POWER INPUT |
DC 5V |
| OPERATING TEMP. |
-20℃~70℃ |
| GRAYSCALE LEVEL |
Max 16 Grayscale |
| REFRESH TIME (s) |
3 |

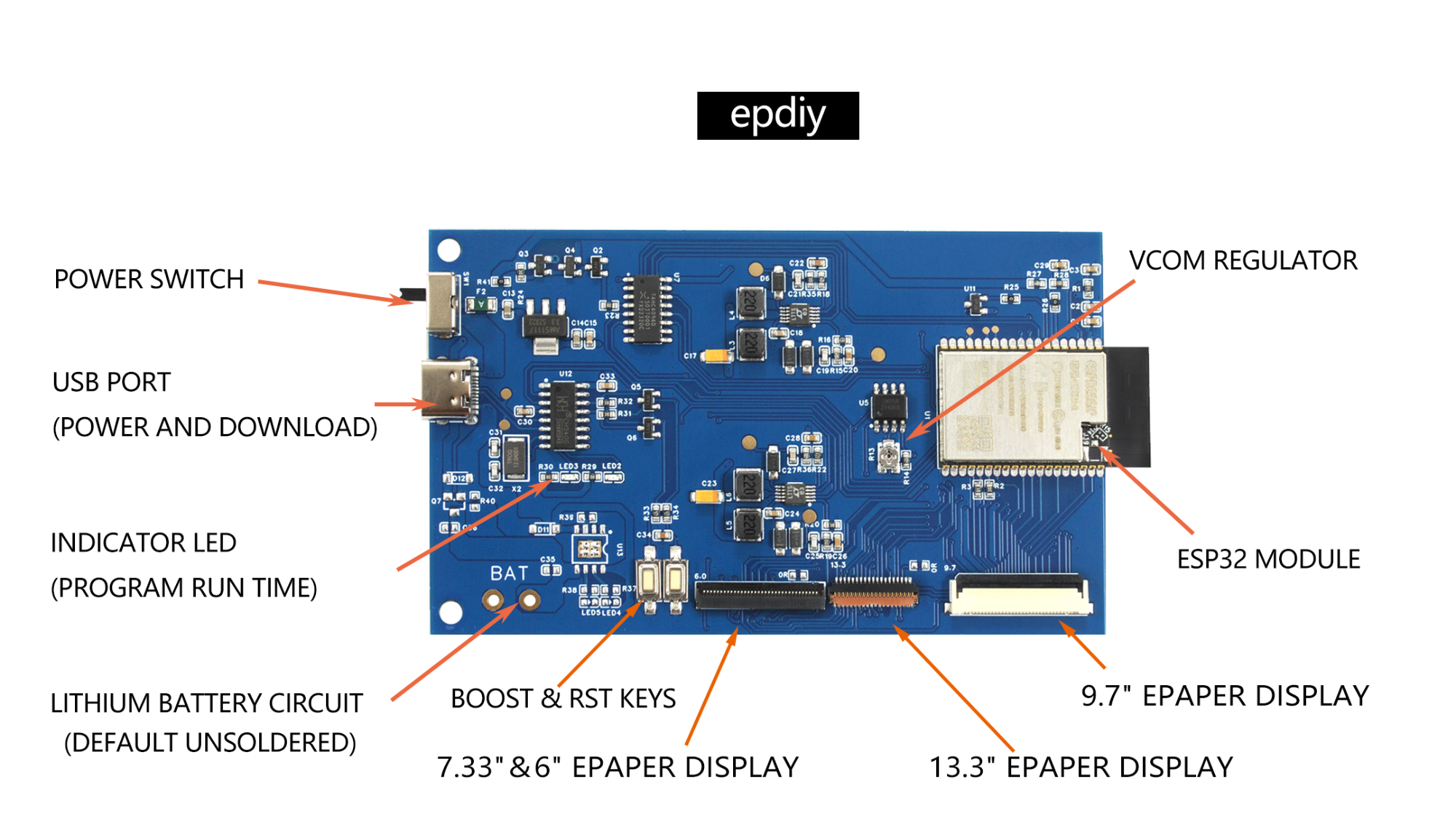

☆ DRAWING
☆ RELATED INFORMATION DOWNLOAD
● epdiy _Specification
● epdiy_SCH

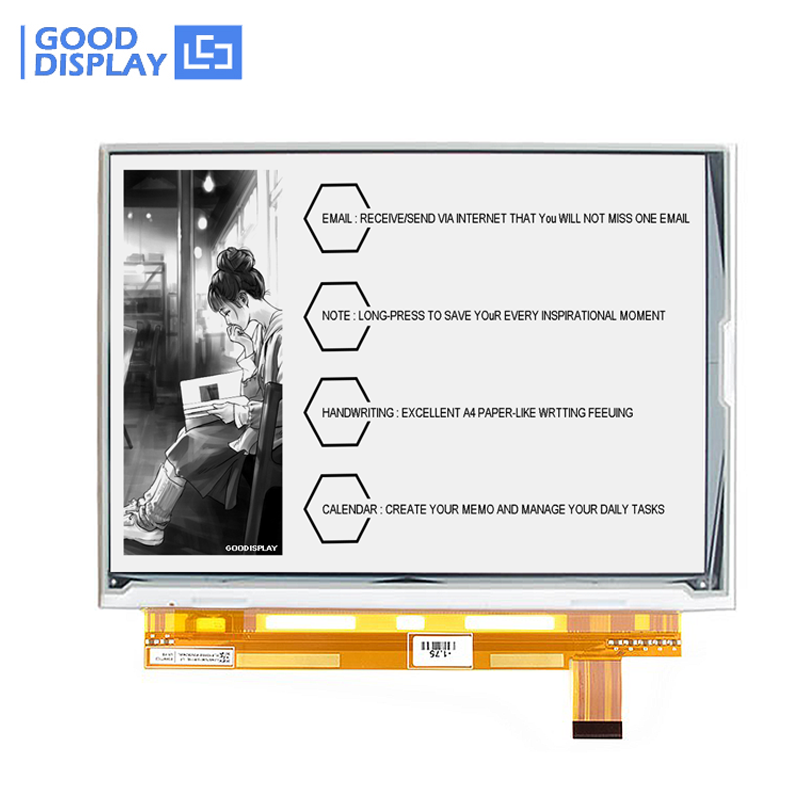

☆ SUITABLE E-PAPER DISPLAY
