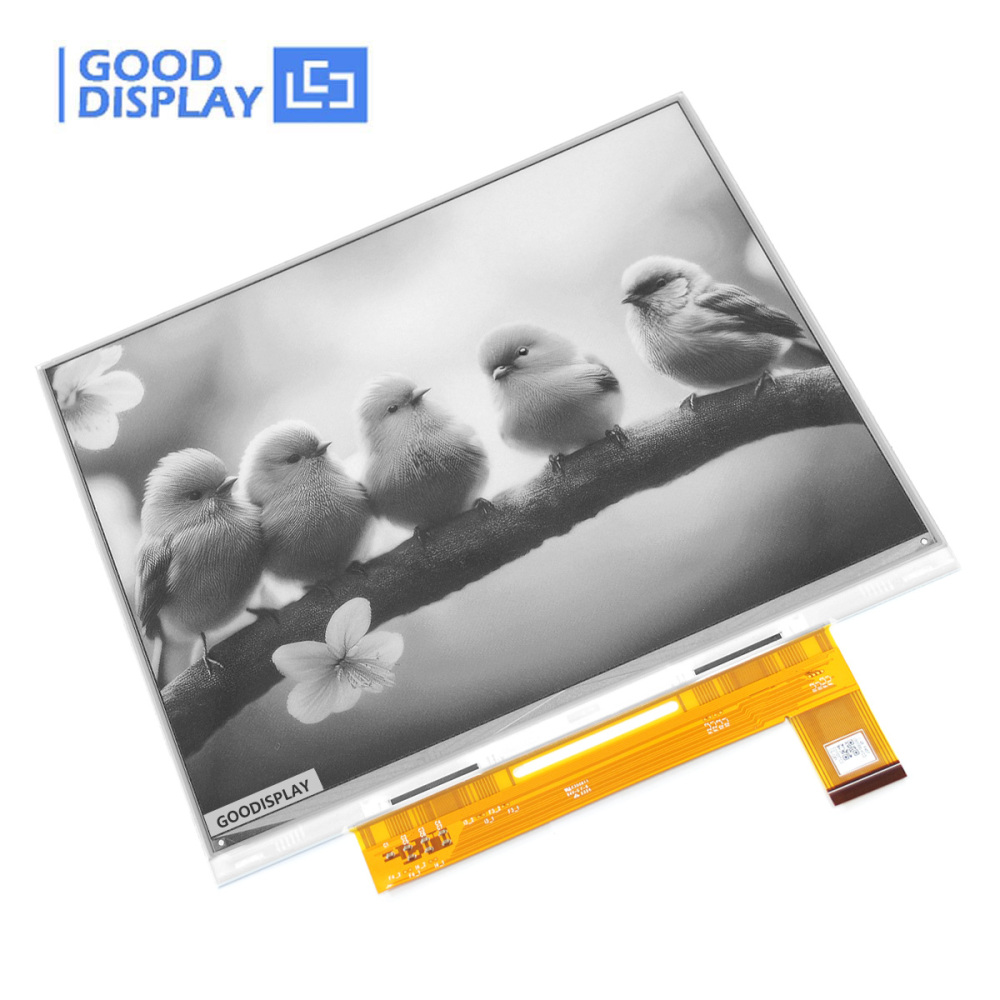

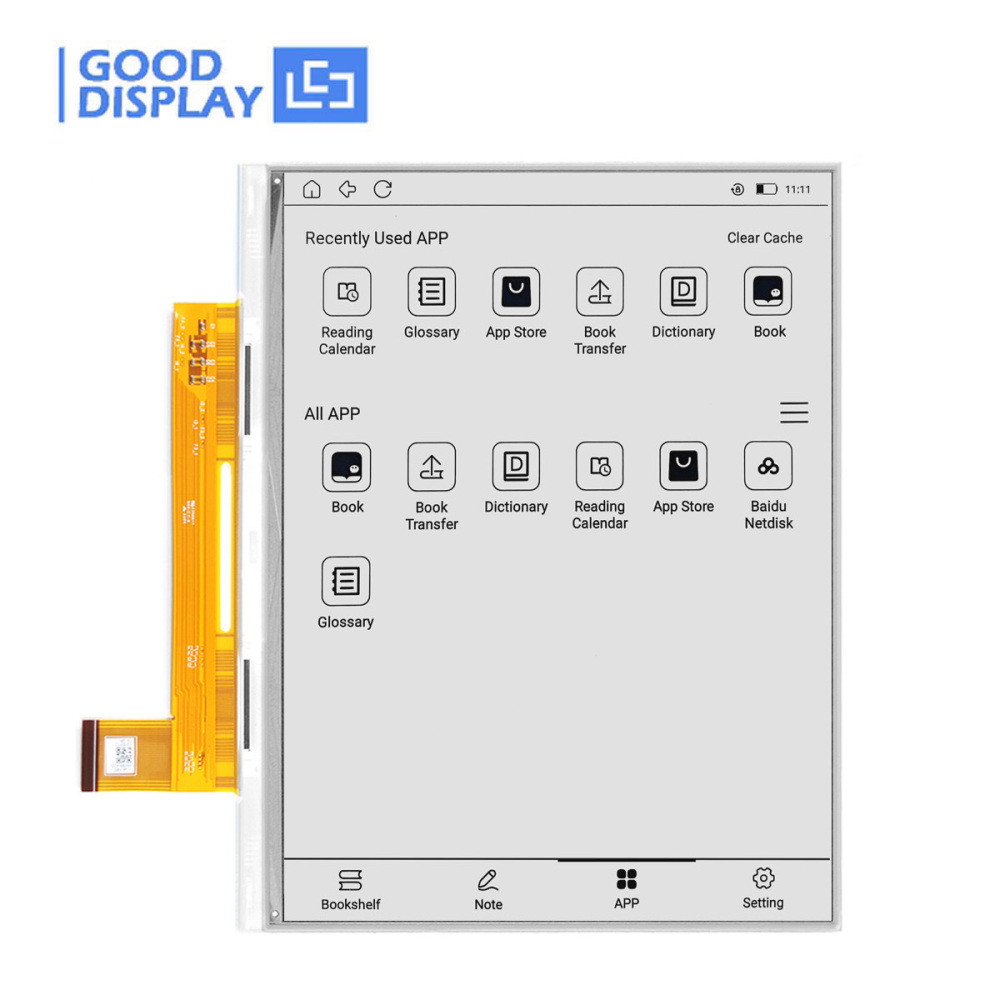

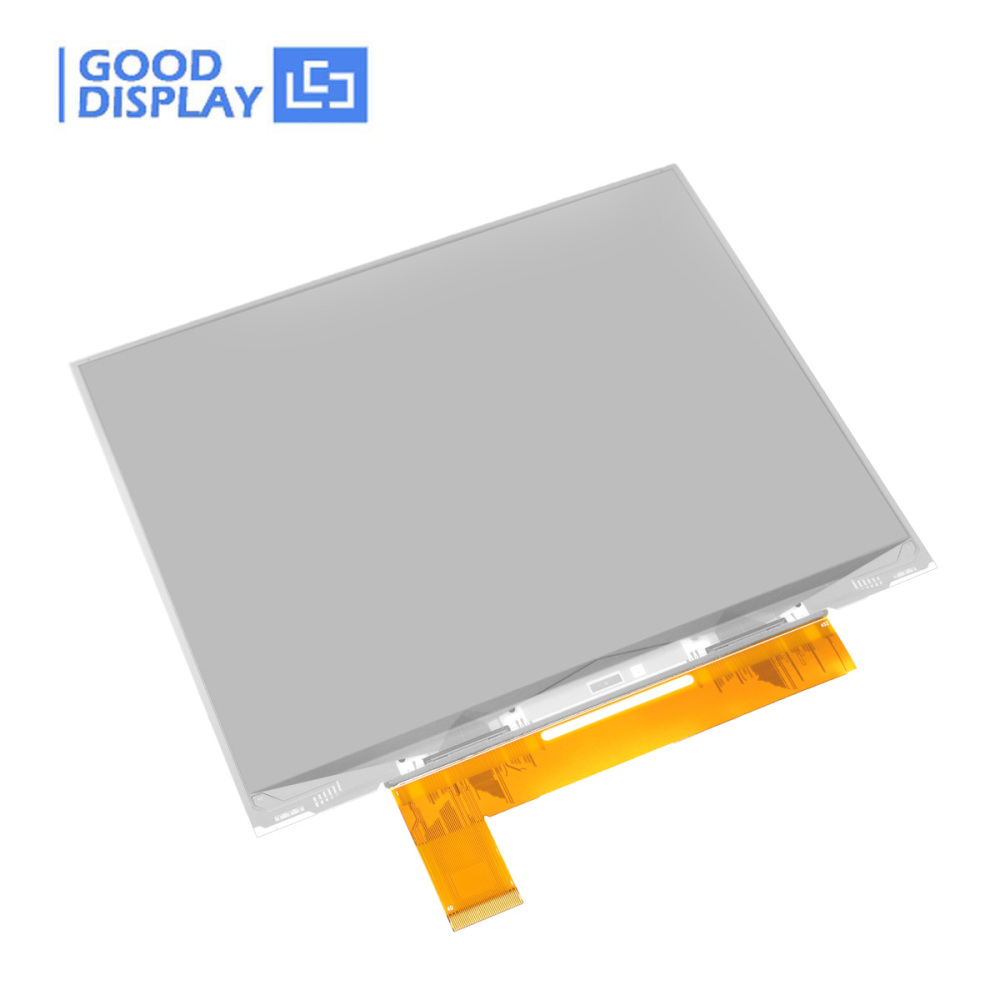

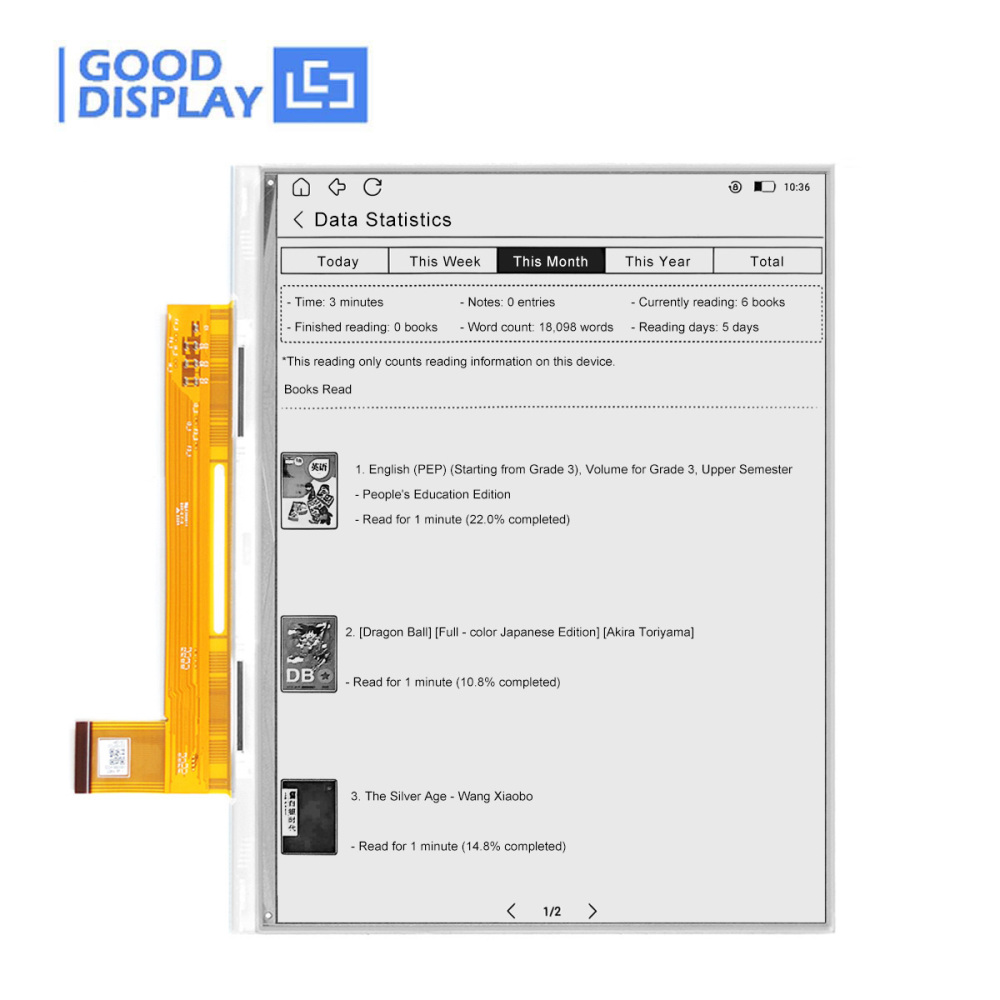

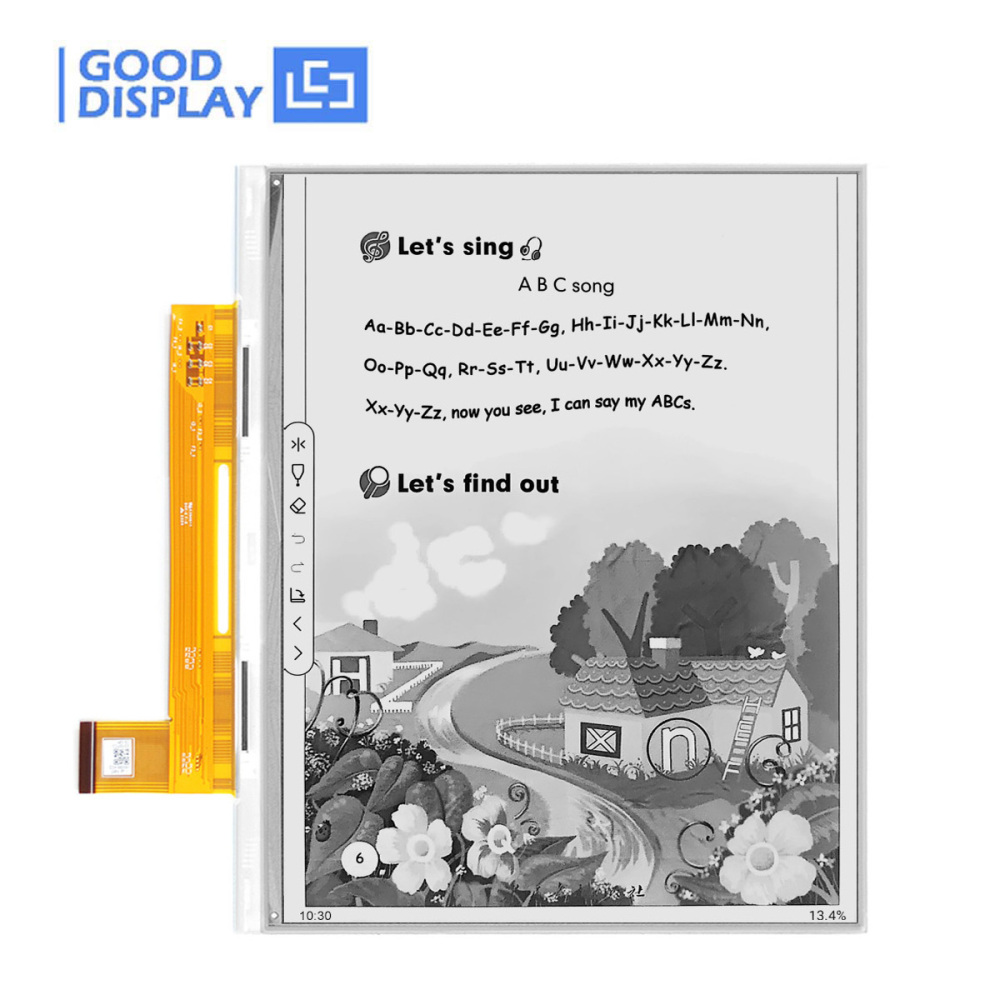

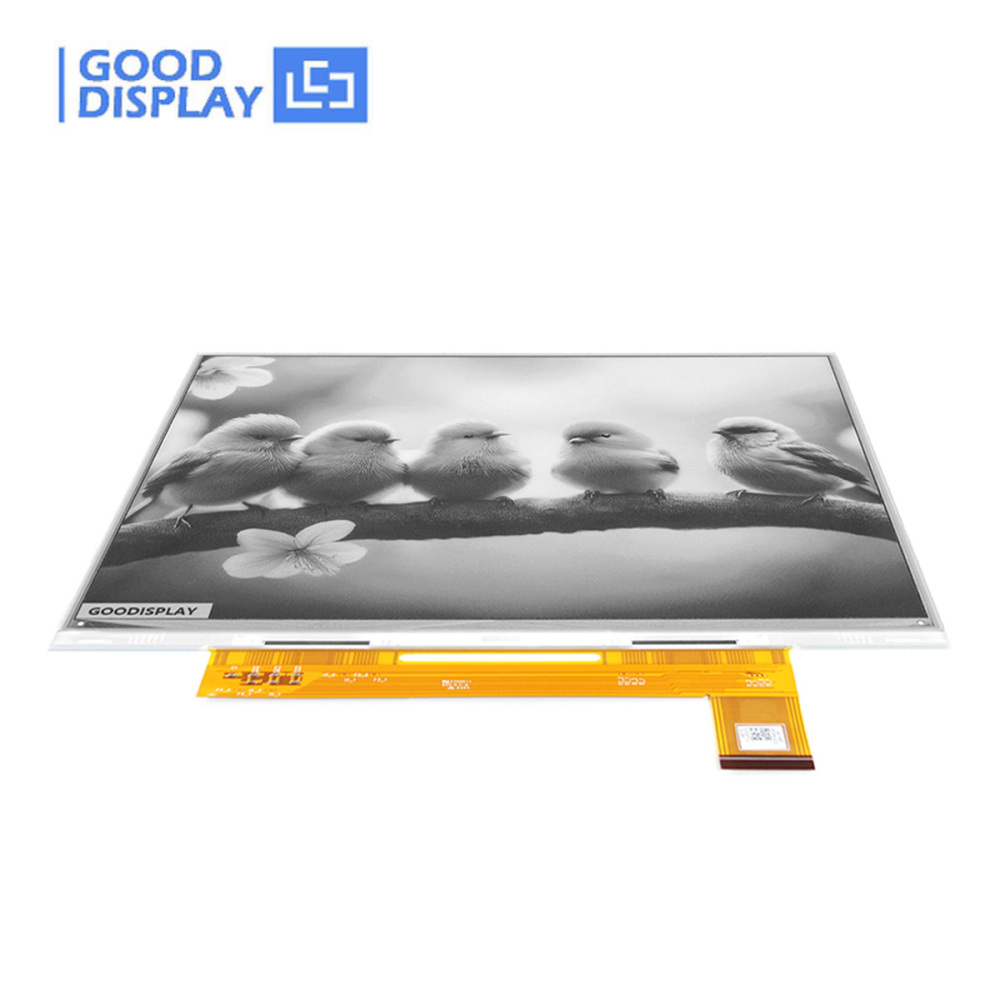

Large 10.3-Inch Parallel Port E Ink Raw Display 1872×1404 High-Resolution Paper Electronic Display

GDEP103TC2
The 10.3-inch E-Paper E Ink display features a 1404×1872 resolution and fast refresh capabilities, making it ideal for learning devices, smart price tags, and e-book readers. This parallel interface display offers exceptional clarity and performance for a
1 Review(s) Sold:1
Have a question?
Price:
USD
$98.90
  • Product:
    EPD
    EPD with Wifi version
    EPD with Bluetooth version
Quantity:
-
+
(5 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(1)

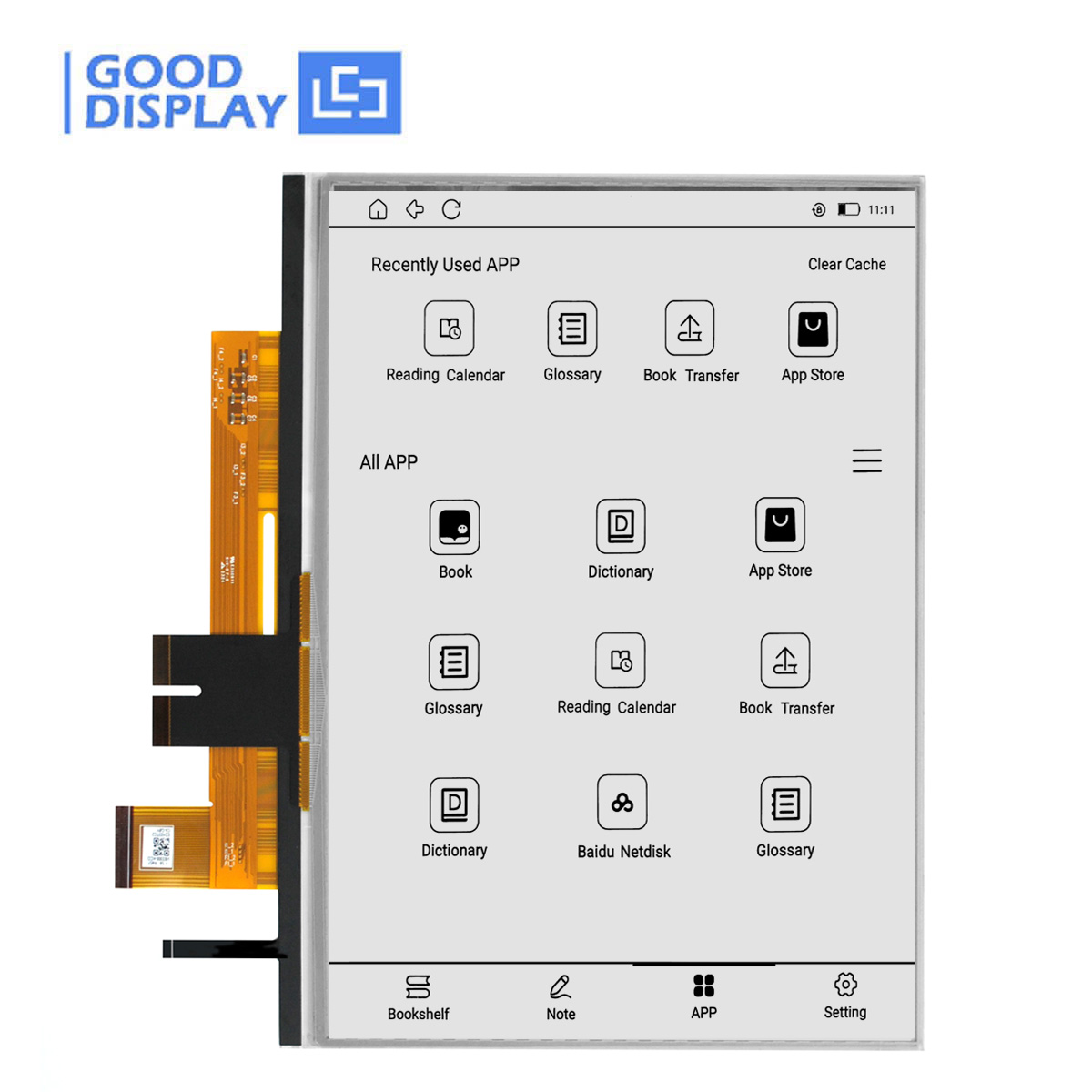

10.3" High-Resolution E Ink Display

Experience paper-like readability with 1872×1404 resolution, ultra-low power consumption, and eye-friendly technology perfect for extended reading and professional applications.

Key Features

Eye Comfort Technology

170° wide viewing angle with anti-glare coating and optional front light reduces eye strain during prolonged use, making it perfect for reading and professional applications.

Ultra-Low Power

Consumes power only during refresh with zero power consumption in static display mode. Perfect for battery-powered devices needing long operational life.

Fast Refresh Modes

Experience no flicker or ghosting with our advanced refresh technology, making it ideal for e-readers and real-time content displays where smooth transitions matter.

Technical Specifications

Display Properties

Part Number
GDEP103TC2
Display Size
10.3 inch
Resolution
1404 (V) × 1872 (H)
Grayscale
16 levels

Physical Dimensions

Outline Size
174.4 × 216.7 × 0.78 mm
Active Area
157.25 × 209.66 mm
Surface Treatment
Anti-glare coating

Performance

Interface
Parallel (TTL)
Operating Temp
0℃ ~ 50℃
Storage Temp
-25℃ ~ 70℃

Refresh Mode Comparison

Mode Refresh Time Flash Ghosting Best For
GC (Global Clear) 450ms Visible None High-quality images, static content
GL (Global) 450ms Visible Slight Text reading, static content
DU (Partial) 220ms None Slight Handwritten notes, dynamic content
A2 (Fast Partial) 120ms Visible Some Quick page turning, dynamic video

TTL vs SPI Interface

Feature TTL Interface SPI Interface
Data Transfer Parallel (16+ wires) Serial (3-4 wires)
Speed Faster (smooth animations) Slower (ideal for static content)
Power Consumption Higher Lower (battery-friendly)
Wiring Complexity Complex (multiple control lines) Simple (SCLK, MOSI, CS)
Best Applications Large high-res screens, fast refresh needs Small displays, battery-powered projects

TTL's parallel interface delivers faster screen updates by moving multiple data streams simultaneously

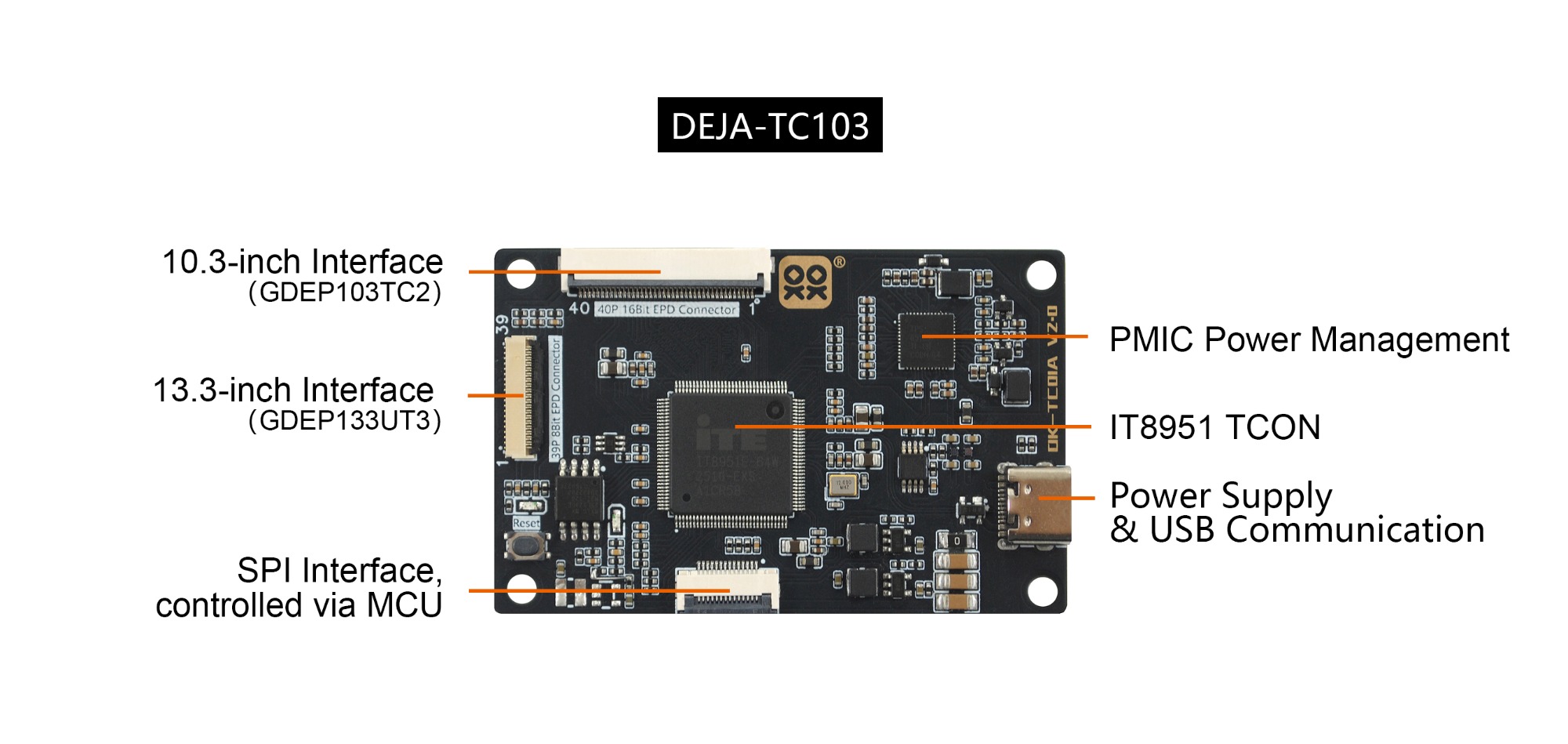

Development Platform

Development Platforms

Files & Downloads

GDEP103TC2 Specification Latest ePaper Catalog Download Troubleshooting Guide
