Arduino UNO for EPD e-paper display multi-function development board demo kit HAT Raspberry Pi DEArduino(C03)

DEArduino(C03)
DEArduino(C03) is a simple I/O platform based on open source code and uses a language like Java, C language, which is the basic C language actually. Has the interface for touch panel, and the power supply interface for frontlight.
Price:
USD
$25.99
    Please select the information you wantX
Quantity:
-
+
(100 available)
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com

Arduino is a simple I/O platform based on open raw code, using languages similar to Java and C. The Arduino language functions some of the parameter settings so that users don't need to know the underlying code.

This development kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Display's black-white e-paper display and three-color (black, white and red/Yellow) e-paper display: 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''. And it is added the functions of USB serial port and LED indicator light, etc. It also supports being updated by computer directly. What’s more, DESPI-C03 can drive touch panel and front light panel.

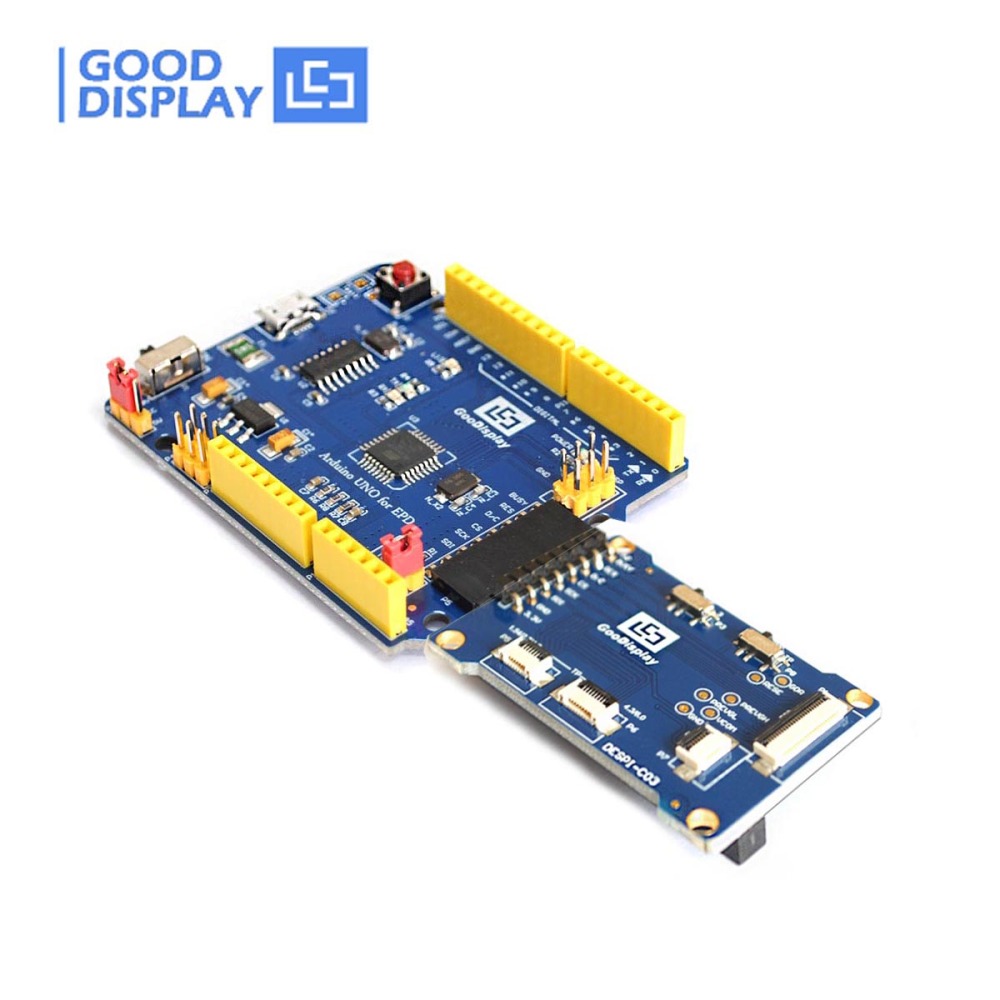

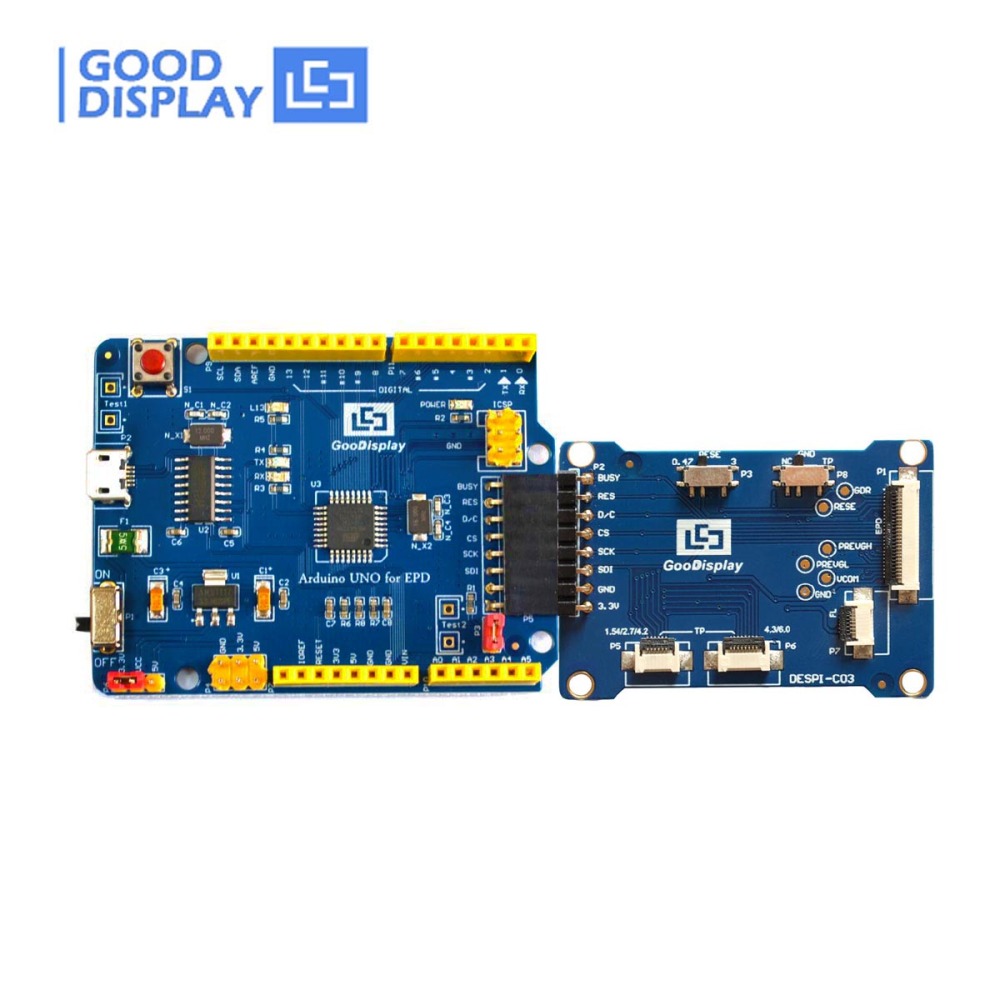

DEArduino(C03) development kit consists of motherboard Arduino UNO for EPD and connector board DESPI-C03.

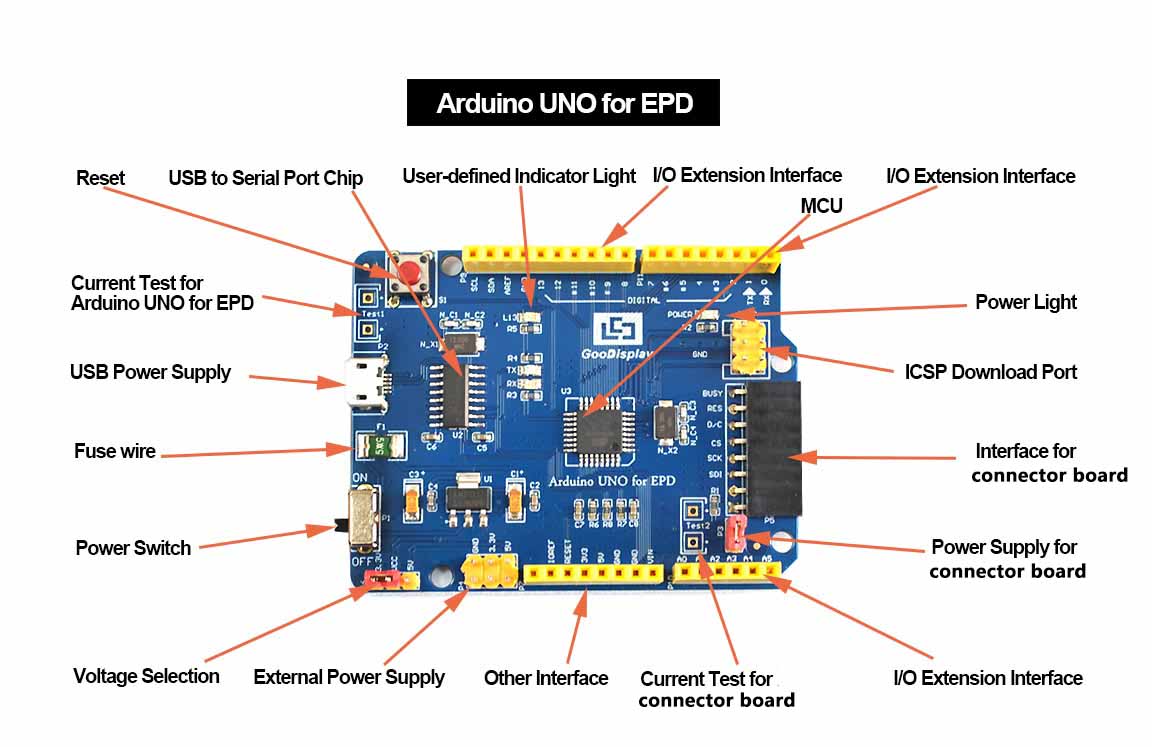

· USB serial port and LED indicator light.

. Supports being updated by computer directly.

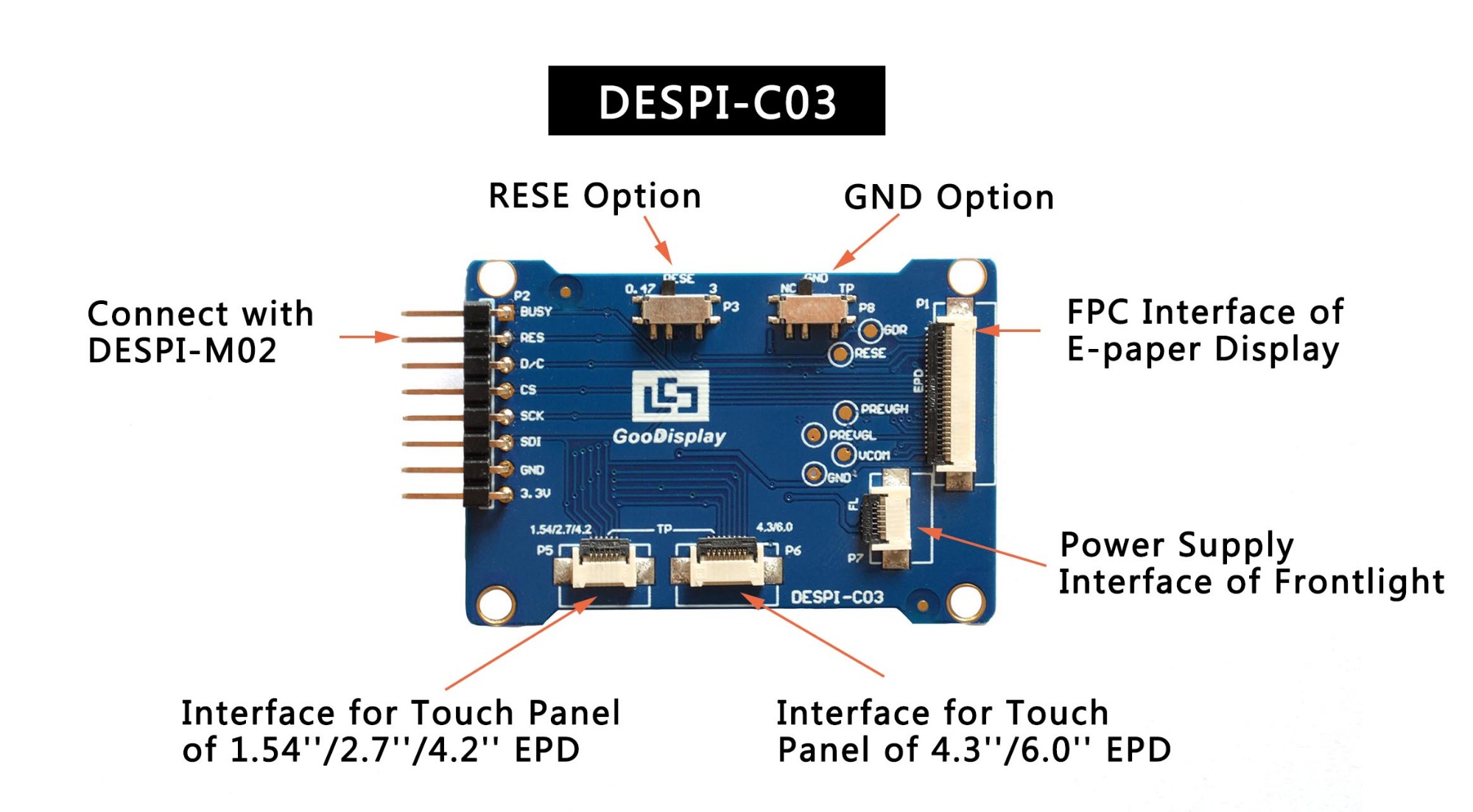

· The connector board DESPI-C03 adds driving function for touch panel and frontlight.

· Learn how to drive E-Paper Display based on Arduino.

· Test and evaluate the E-Paper Display.

. Secondary development based on DEArduino.

· Come with resources and manual.

Part Number

DEArduino(C03)

MCU

Arduino

Function

Drive E-paper Display

Outside Dimension

70mm x 54mm (Arduino UNO for EPD)
52mm x 36mm (DESPI-C03)

Power Interface

USB Interface

Sample Code

Available (please contact sales)

Operating Temp

-20~70℃

Main Function  1. Learn to drive e-paper display
2. Test and evaluate e-paper display
3. For secondary development.
Additional Function  USB to serial port, indicator light, keys, current detection
and so on.


1. Driving board Arduino UNO for EPD *1pc
2. Connector board DESPI-C03  *1pc
3. USB port cable *1pc
4. Helpful resources and manual(sent via email or download link) *1pc



RESE To 0.47 Ω:
1.1.54 inch E-Paper Display:
GDEW0154T8,GDEW0154Z17,GDEW0154Z04,GDEW0154C39
2.2.13 inch E-Paper Display:  GDEW0213T5,GDEW0213I5F,GDEW0213C38,GDEW0213V7LT
3.2.6 inch E-Paper Display: GDEW026T0,GDEW026Z39
4.2.7 inch E-Paper Display:  GDEW027W3  GDEW027C44
5.2.9 inch E-Paper Display:  GDEW029T5,GDEW029Z10,GDEW029I6F
6.3.71 inch E-Paper Display: GDEW0371W7,GDEW0371Z80
7.4.2 inch E-Paper Display:  GDEW042T2,GDEW042Z15,GDEW042C37
8.5.83 inch E-Paper Display:  GDEW0583Z21,GDEW0583C64
9.7.5 inch E-Paper Display:  GDEW075Z09,GDEW075C21

RESE To 3 Ω:
1.1.54 inch E-Paper Display:
GDEH0154D67,GDEM0154E97LT
2.2.04 inch E-Paper Display: GDE021A1
3.2.13 inch E-Paper Display:
GDEH0213D30LT,GDEH0213B73
4.2.9 inch E-Paper Display: GDEH029A1,GDEH029D56LT
5.5.83 inch E-Paper Display: GDEW0583T7
6.7.5 inch E-Paper Display: GDEW075T8

http://www.e-paper-display.com/products_detail/productId=420.html
