E-paper demo kit drive board with multifunction connection adapter board DESPI-V3.0

DESPI-V3.0
This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper with provided source code to create more differentiated solutions. Supports black-white and three-color E-paper.
Sold:2
Price:
USD
$25.99
    Please select the information you wantX
Quantity:
-
+
(98 available)
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews
Any questions, just feel free to contact me, my email is: clara@good-display.com

This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. It supports driving Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) Good Display ‘s E-paper Display: 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''.



And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.And the connector board DESPI-C03 adds driving function for touch panel and frontlight.

· For SPI interface EPD, power interface is MicroUSB interface.

· USB serial port and LED indicator light.

· it is added the functions of USB serial port and LED indicator light ect.

. Supports being updated by computer directly.

· Come with helpful development demo kit with resources and manual (STM32 platform )

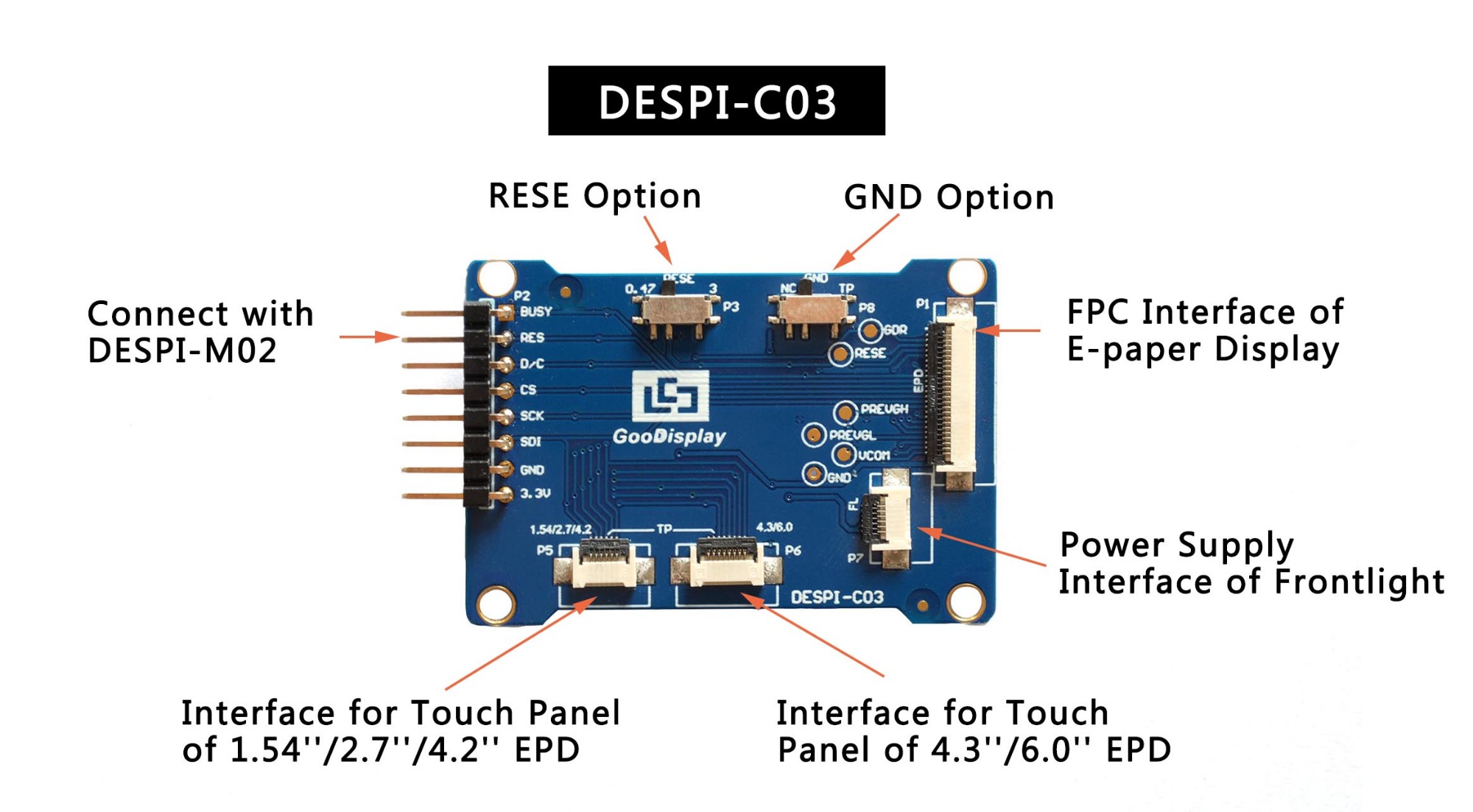

· The connector board DESPI-C03 adds driving function for touch panel and frontlight.


1. Driving board DESPI-M02 *1pc
2. Connector board DESPI-C03  *1pc
3. USB port cable *1pc
4.Helpful resources and manual(sent via email or download link) *1pc

Part Number

DESPI-V3.0

Platform

STM32

Function

Drive E-paper Display

Outside Dimension

90mmx60mm (DESPI-M02)
52mmx36mm (DESPI-C03)

Power Interface

USB Interface

Main Function

EPD driving, touch panel driving and frontlight driving.

Sample Code

Available (please contact sales)

Additional Function

USB to serial port, indicator light, keys, current detection
and so on.

Operating Temp

-20~70℃

Recommended Tool

Keil4






RESE To 0.47 Ω:
1.1.54 inch E-Paper Display:
GDEW0154T8,GDEW0154Z17,GDEW0154Z04,GDEW0154C39
2.2.13 inch E-Paper Display:  GDEW0213T5,GDEW0213Z16,GDEW0213I5F,GDEW0213C38,GDEW0213V7LT
3.2.6 inch E-Paper Display: GDEW026T0,GDEW026Z39
4.2.7 inch E-Paper Display:  GDEW027W3  GDEW027C44
5.2.9 inch E-Paper Display:  GDEW029T5,GDEW029Z10,GDEW029I6F,GDEW029C32
6.3.71 inch E-Paper Display: GDEW0371W7,GDEW0371Z80
7.4.2 inch E-Paper Display:  GDEW042T2,GDEW042Z15,GDEW042C37
8.5.83 inch E-Paper Display:  GDEW0583Z21,GDEW0583C64,GDEW0583Z83
9.7.5 inch E-Paper Display:  GDEW075Z09,GDEW075C21,GDEW075C64,GDEW075Z08

RESE To 3 Ω:
1.1.54 inch E-Paper Display:
GDEH0154D67,GDEM0154E97LT
2.2.04 inch E-Paper Display: GDE021A1
3.2.13 inch E-Paper Display:
GDEH0213D30LT,GDEH0213B73
4.2.9 inch E-Paper Display: GDEH029A1,GDEH029D56LT
5.5.83 inch E-Paper Display: GDEW0583T7
6.7.5 inch E-Paper Display: GDEW075T8

DEMO does not provide electronic paper screen, the screen must be purchased separately



http://www.good-display.com/product/219.html
