1.54 inch OLED screen SPD0301 128x64 Resolution small mono oled display, GDOA0154W

SKU: GDOA0154W

(0)

0 Sold

$9.10 ~~$9.89~~

8% OFF

This is a white OLED display panel, 1.54 inch with 128x64 pixels. The controller IC SPD0301 communicates via 6800/8080 8-bit parallel and I2C/4-wire serial interface.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

12% OFF WITH PURCHASE OVER 3 UNITS
15% OFF WITH PURCHASE OVER 5 UNITS
20% OFF WITH PURCHASE OVER 10 UNITS

18/05/2026/00:00:00 - 31/05/2026/00:00:00

Add to Favorites (0)

1/1

Description

Any questions, just feel free to contact me, my email is: info@good-display.com

☆ INTRODUCTION

This is a white OLED display panel, 1.54 inch with 128x64 pixels. The controller IC SPD0301 communicates via 6800/8080 8-bit parallel and I2C/4-wire serial interface.

This OLED display possessing the excellent characteristics such as autoluminescence, wide angle of view, wide temperature range becomes the ideal choice for instruments and apparatus.

Relevant manual about this product on our official website (www.good-display.com), contact us please.

☆ FEATURE

● Self-luminous, no backlight is required.

● Ultra low power consumption.

● Wide operating temperature: -40℃~70℃

☆ THE ABOVE PRICE INCLUDE

1) 1.54 inch OLED screen SPD0301 128x64 Resolution small mono oled display * 1pc

☆ MAIN PARAMETERS

PART NUMBER	GDOA0154W
DIAGONAL SIZE	1.54"
DISPLAY MODE	Passive Matrix
DISPLAY COLOR	White
DRIVE Duty	1/64 Duty
INTERFACE	8-bit 68XX/80XX Parallel, 4-wire SPI, I2 C
Driver IC	SPD0301

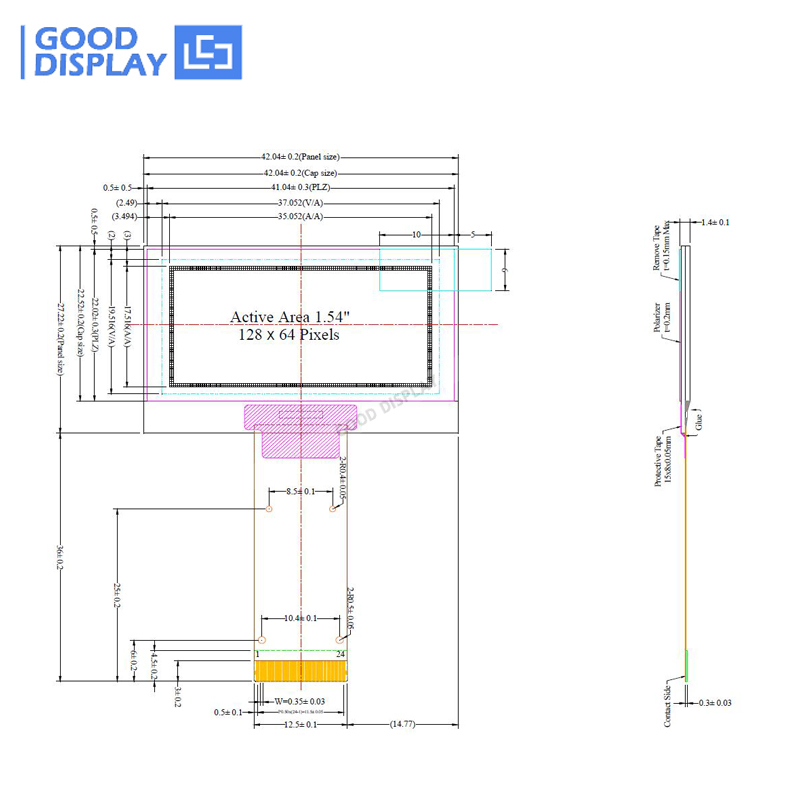

OUTLINE DIMENSION(mm)	42.04x27.22x1.4
ACTIVE AREA(mm)	35.052x17.516
PIXEL PITCH(mm)	0.274x0.274
BRIGHTNESS(Typ)	110cd/m2
VIEW ANGLE	160
OPERATING TEMP.	-40℃~70℃
STORAGE TEMP.	-40℃~85℃
POWER SUPPLY(Typ)	2.8V
