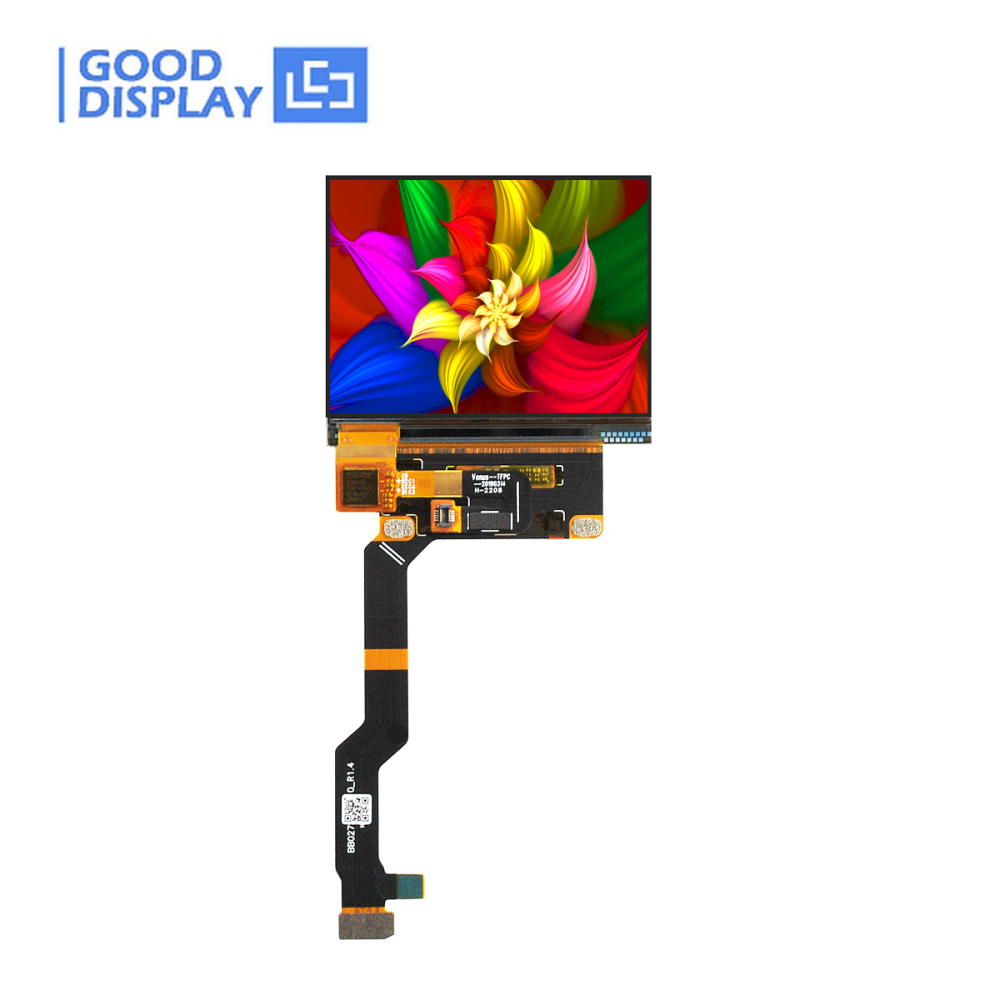

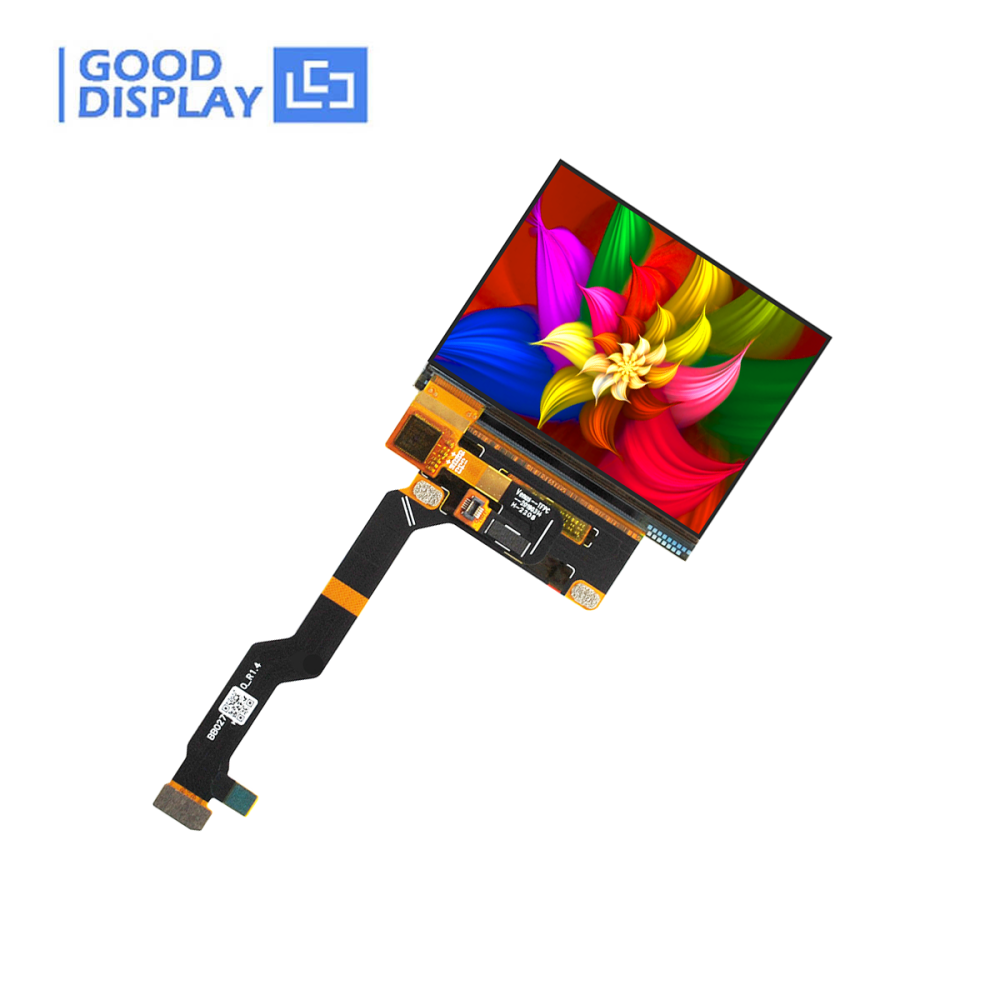

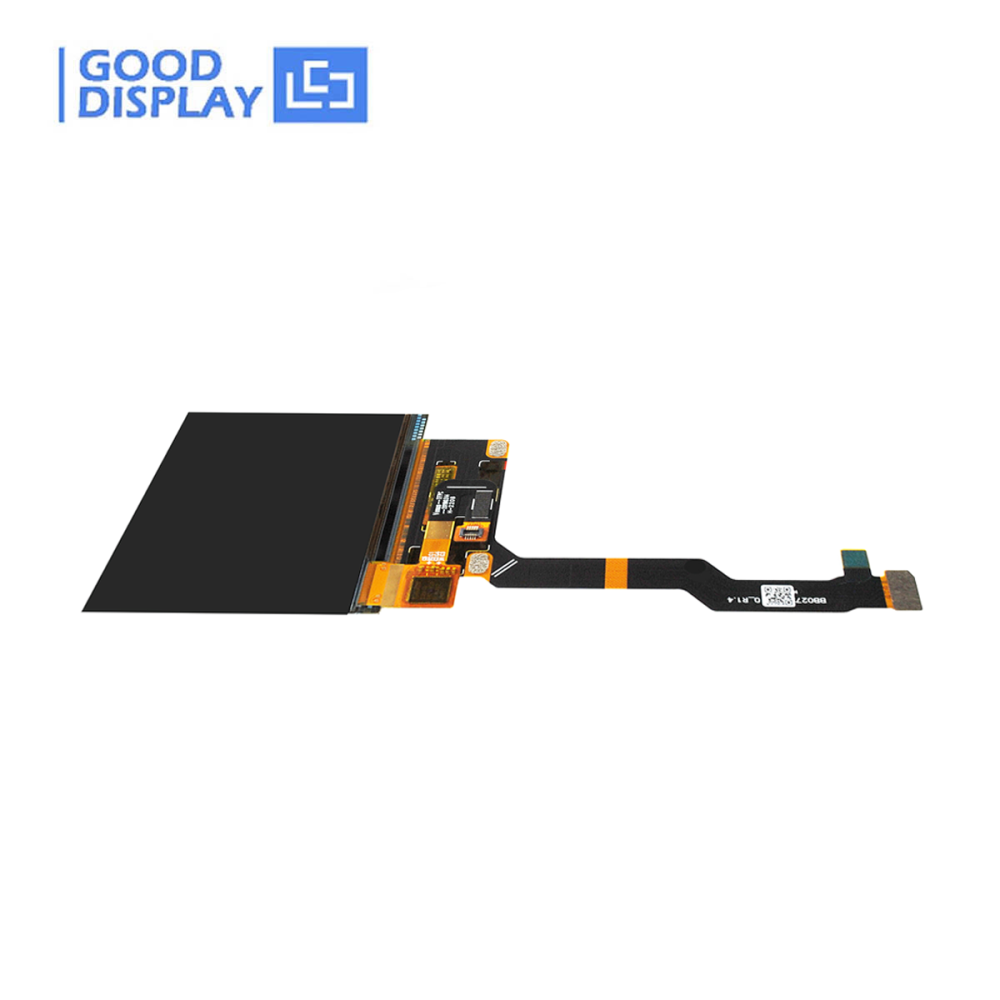

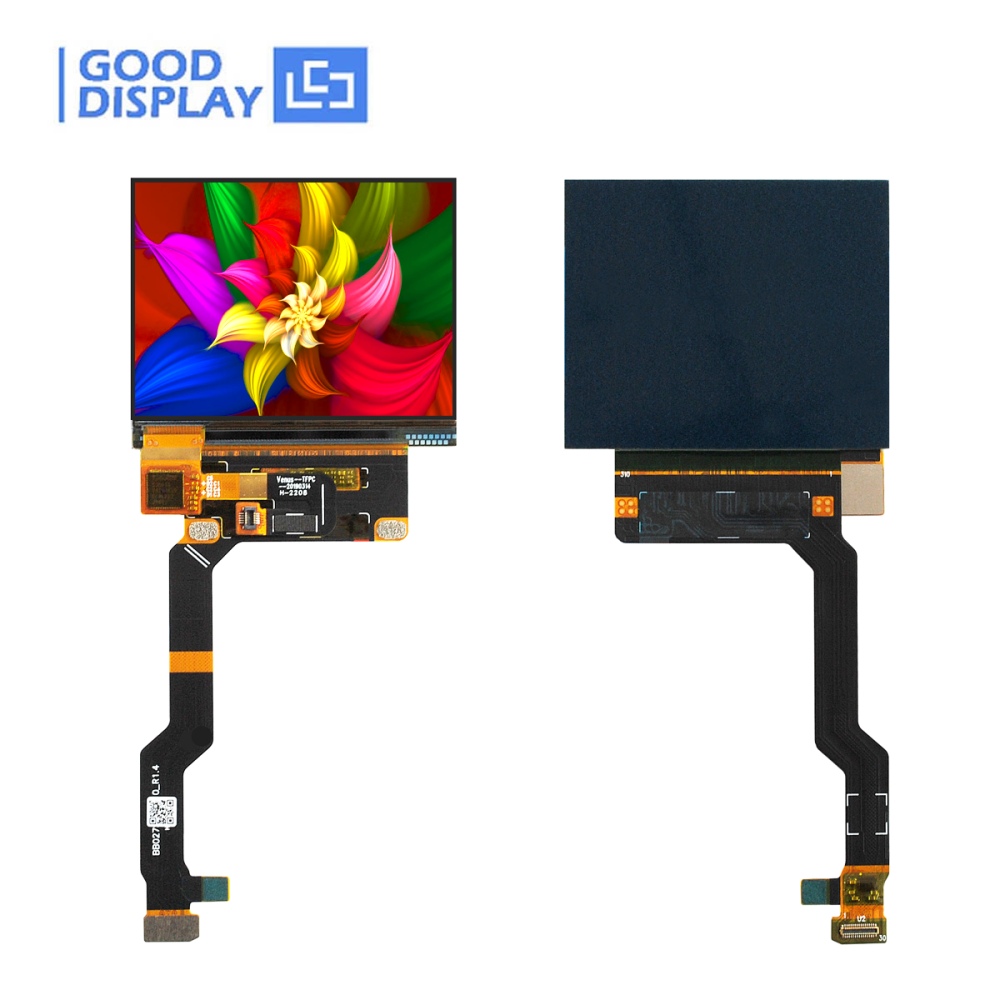

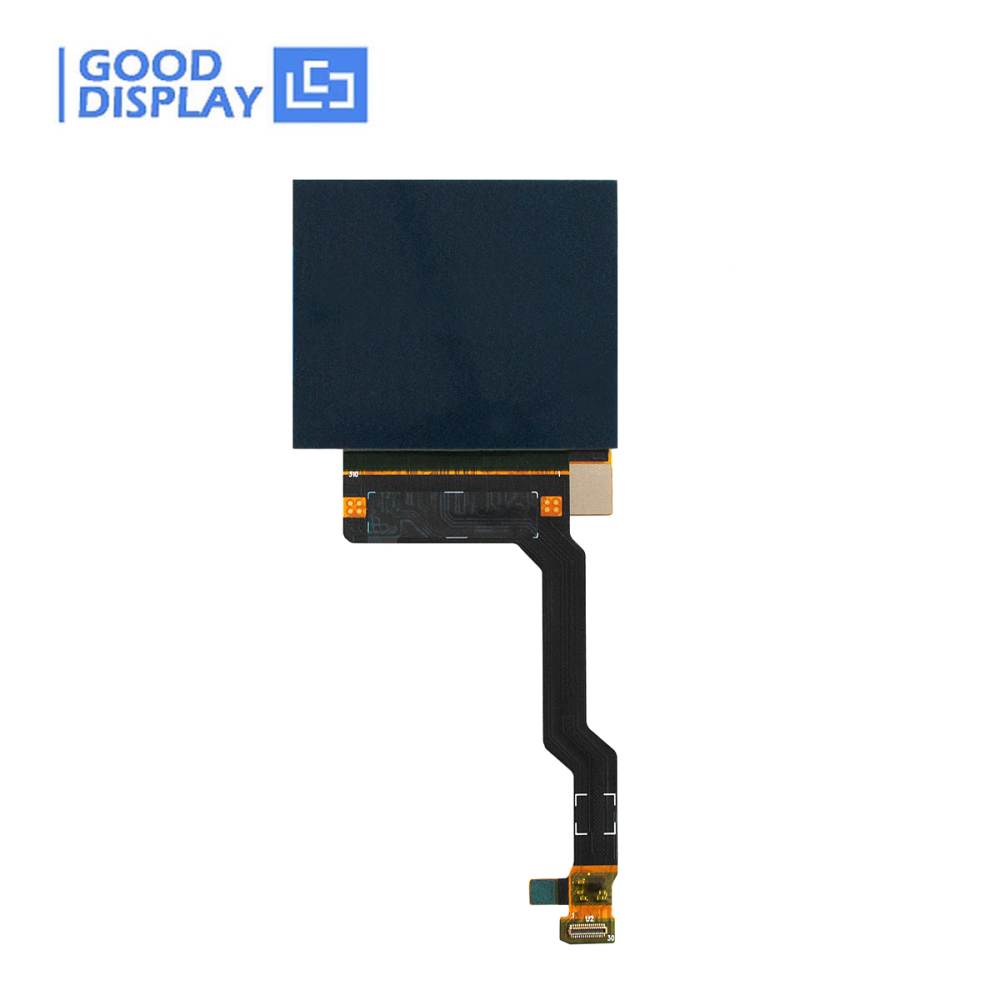

2.69 inch 800x600 full color oled display with touch function, wide temperature -40~85C, GDOJ0269C01-T01

2.69 inch full color AM OLED display has a high level of clarity and vivid colors, with a resolution of 800x600 pixels and 16.7 million colors, which can present extremely delicate images and text. In addition, it also has fast response speed and high con
Price:
USD
$48.00
Quantity:
-
+
(5 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • OLED Product List
  • Reviews

☆ INTRODUCTION



GDOJ0269C01-T01 is a 2.69 inch full color AM OLED display, and has a 800x600 pixels. Display color 16.7M(RGB x 24bits), DSI 2-lane interface, pixel arrangement is pentile arrangement.

Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature. In view of so many advantages, GDOJ0269C01-T01 is a very good choice for various applications.



Relevant manual about this product on our official website (www.good-display.com), contact us please.




 FEATURE




● Wide temperature range(Operating temperature: -40℃~85℃)

● AM OLED display
● Self-luminous, no backlight is required.
● High contrast,extremely wide viewing angle 80/80/80/80

● Lightweight and thin, 2.69 inch 800x600

● Polarizer: Hard-coated polarizer

● Driver IC: RM69700

● Touch IC: S3601

● Interface: DSI 2-lane

● 16.7M (24-bit) color depth




 THE ABOVE PRICE INCLUDE



1) 2.69 inch AMOLED display panel, 800x600 resolution,GDOJ0269C01-T01 * 1pc



 MAIN PARAMETERS




PART NUMBER GDOJ0269C01-T01
DIAGONAL SIZE 2.69"
DISPLAY MODE Active Matrix
DISPLAY COLOR 16.7M
NUMBER OF PIXELS 800xRGBx600
INTERFACE DSI 2-lane

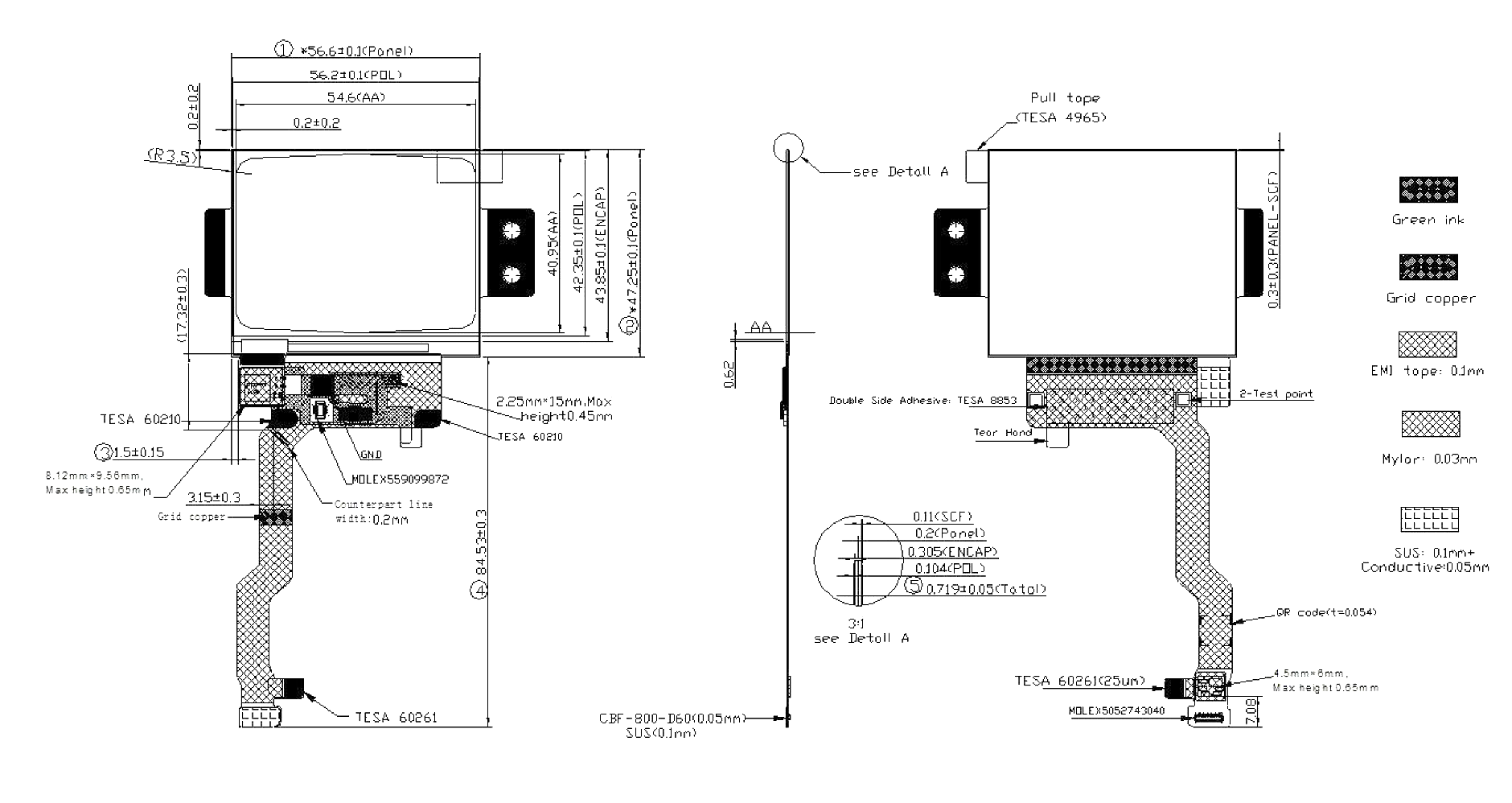

OUTLINE DIMENSION(mm) 56.6(W)x47.25(H)x0.505(T)
ACTIVE AREA(mm) 54.6(W)x40.95(H)

PIXEL PITCH(um)

68.25(W)x68.25(H)

BRIGHTNESS(Typ) 420 nit
VIEW ANGLE 80/80/80/80
OPERATING TEMP. -40℃~85℃
STORAGE TEMP. -55℃~125℃
Drive IC RM69700
Touch IC S3601

 DETAILS




☆ WE ALSO SUGGEST...

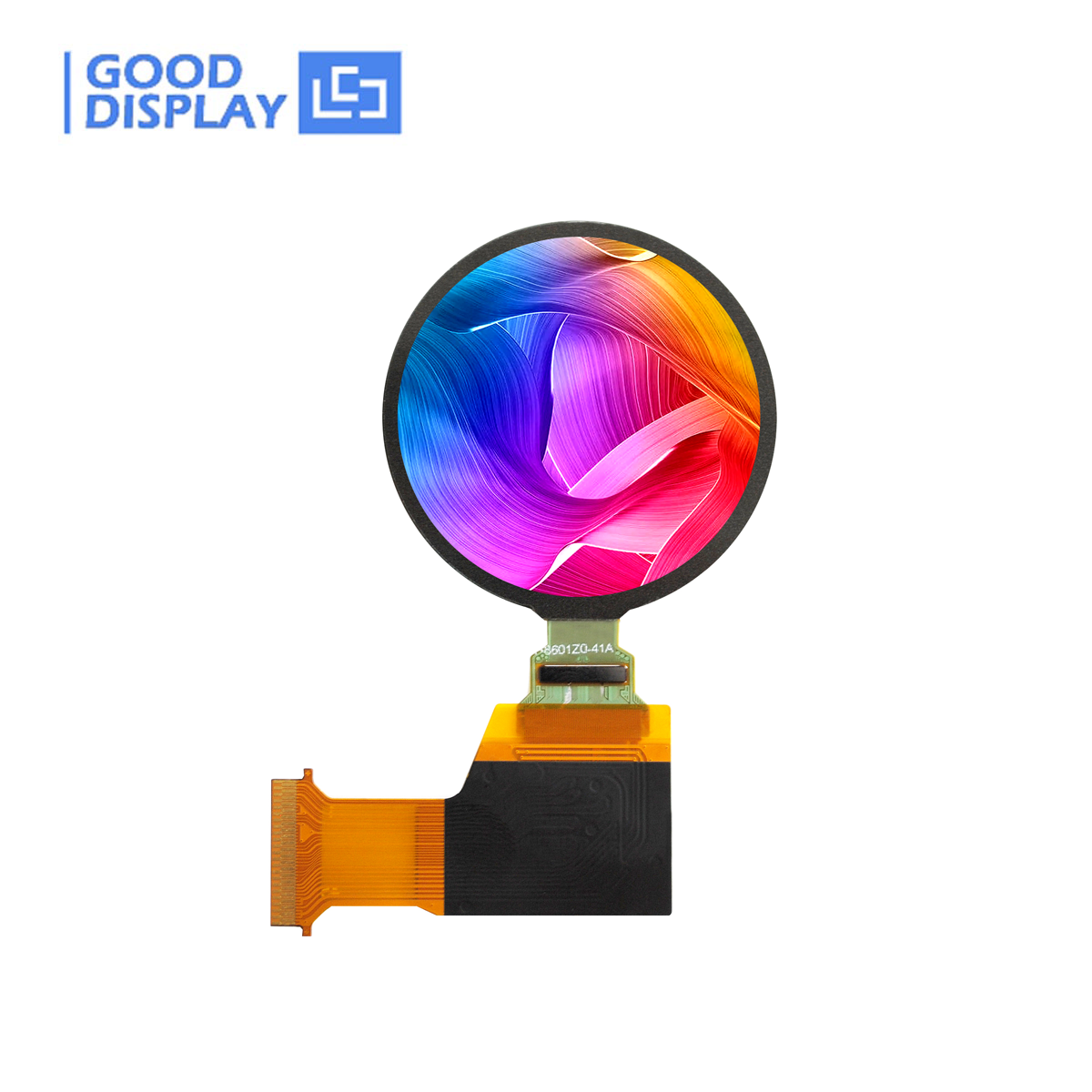

1.39 inch color AM OLED with resolution of
454x454, wide temperature range, suitable
for outdoor use, GDOD0139CP45



☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com




Part Number

Size

Color

Resolution

IC Driver

Operating Temp.

Brightness(Typ)

GDOR0075W

0.75 inch

White

128x128

SSD1327

-40℃~70℃

80cd/m2

GDO0091B

0.91 inch

Blue

128x32

SSD1306

-30℃~70℃

150cd/m2

GDO0096YB

0.96 inch

Yellow&Blue

128x64

SSD1306

-30℃~70℃

120cd/m2

GDON0096PGW

0.96 inch

White

128x64

SSD1315

-40℃~85℃

100cd/m2

GDMN0096WP30

0.96 inch

White

128x64

SSD1315

-40℃~85℃

100cd/m2

GDON0129RGW

1.29 inch

White

128x64

SSD1315

-40℃~85℃

110cd/m2

GDMN0129WP30

1.29 inch

White

128x64

SSD1315

-40℃~85℃

110cd/m2

GDOR0140CP20

1.39 inch

Colorful

400x400

--

-20℃~60℃

300cd/m2

GDO0150C

1.5 inch

Colorful

128x128

SSD1351

-30℃~70℃

90cd/m2

GDOE0240G

2.4 inch

Green

128x64

SSD1305

-40℃~70℃

120cd/m2
