1.29 inch 128x64 mini oled display wide temperature -40~85C SSD1315, GDON0129RGW

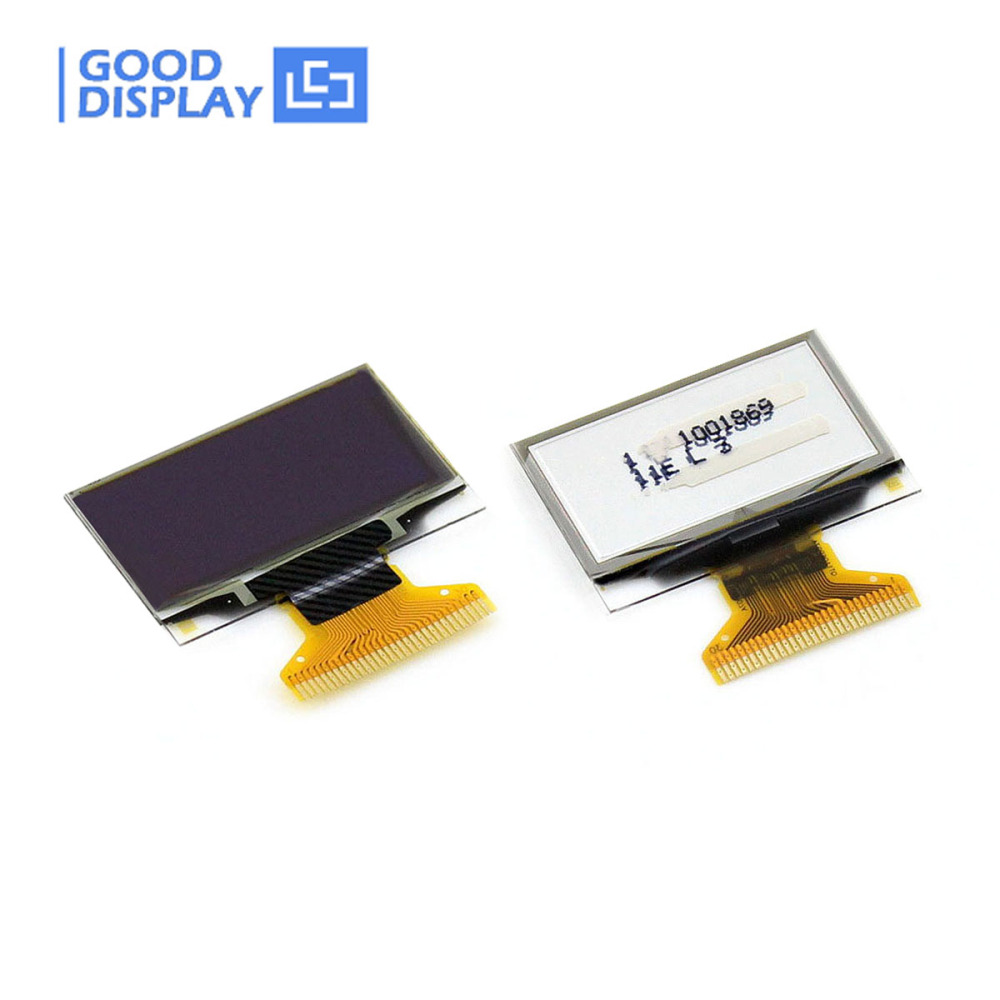

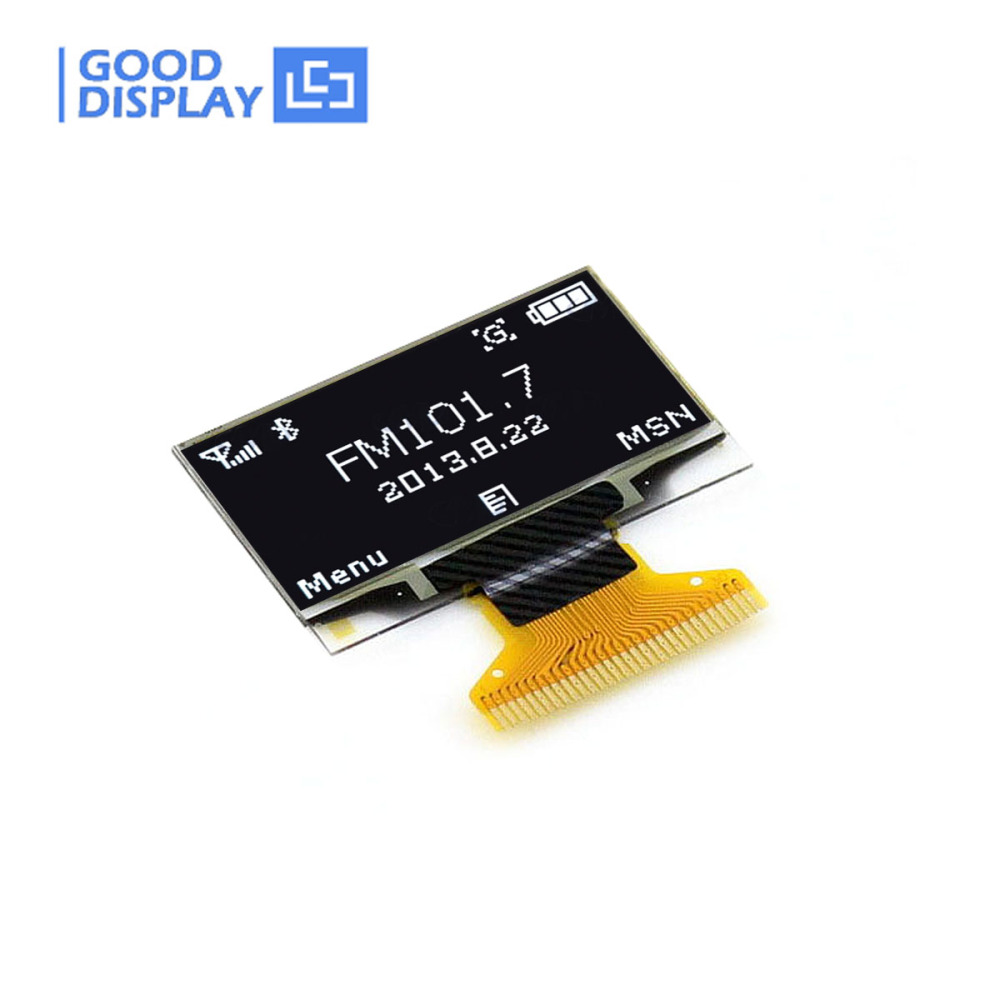

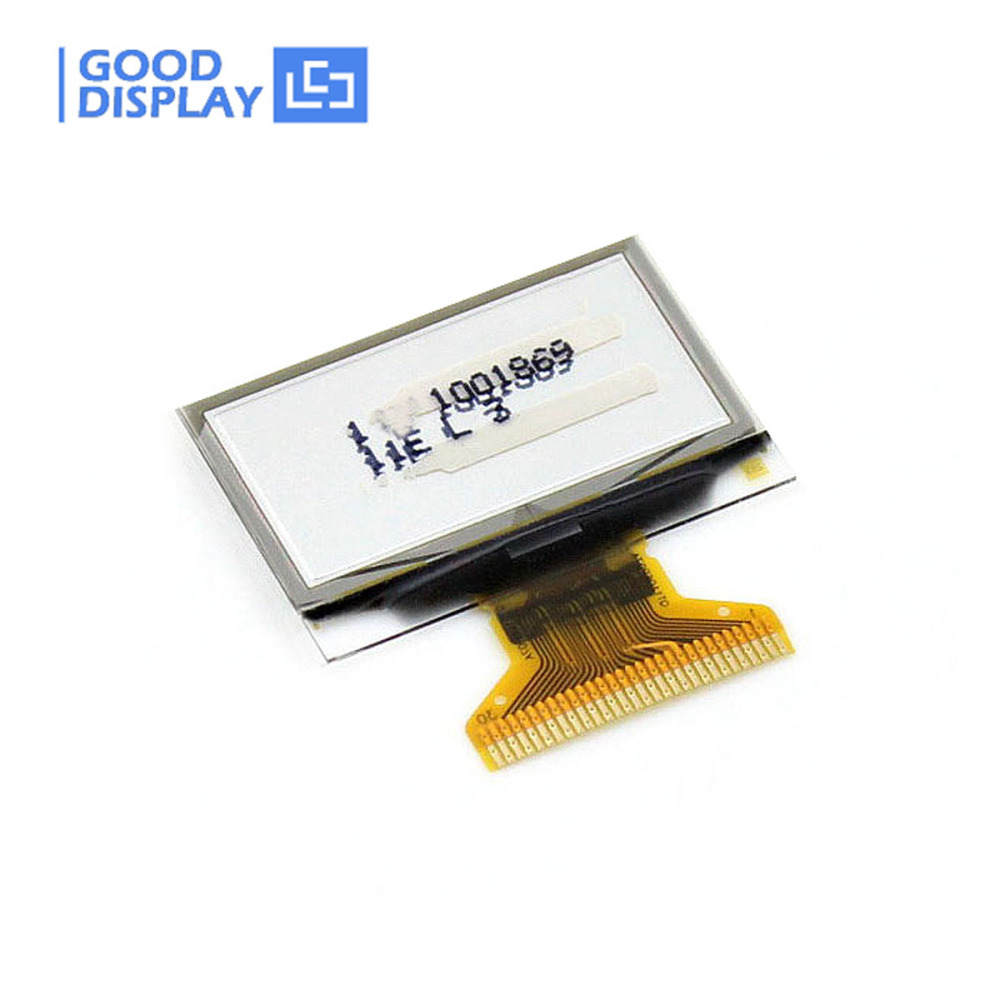

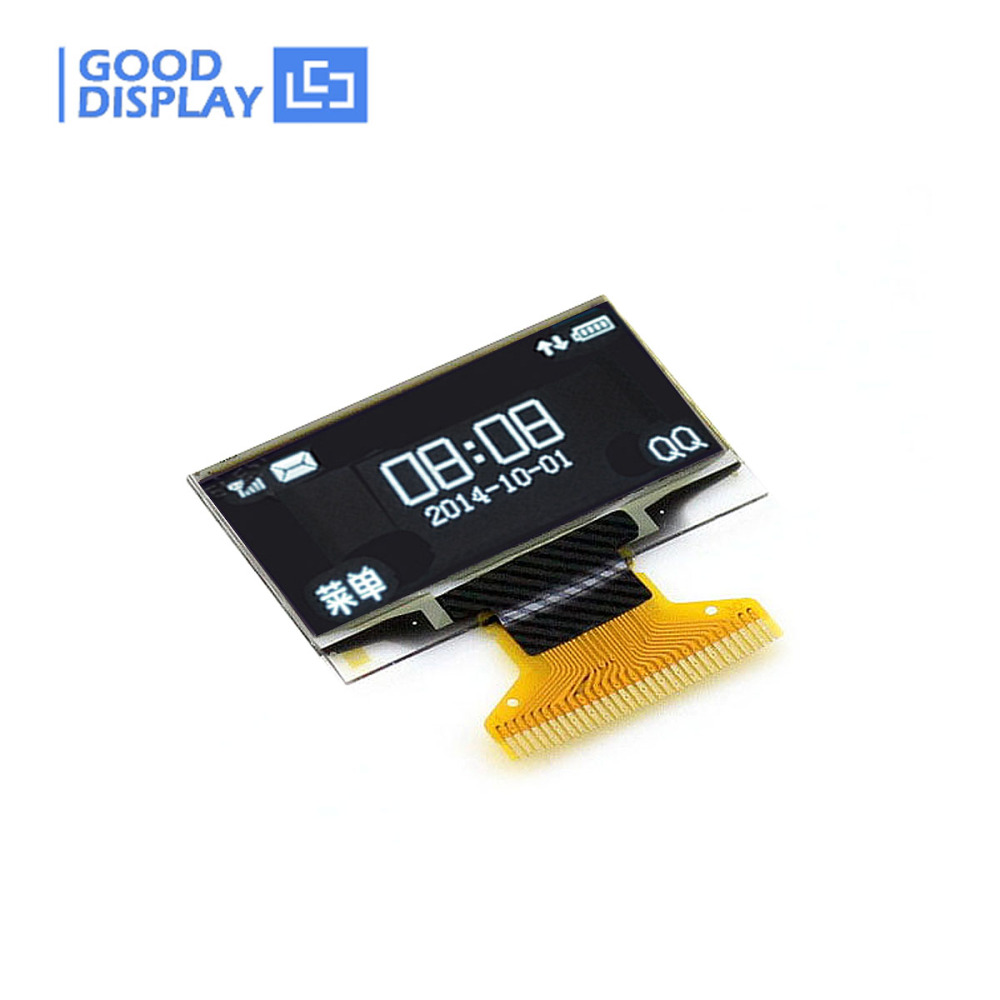

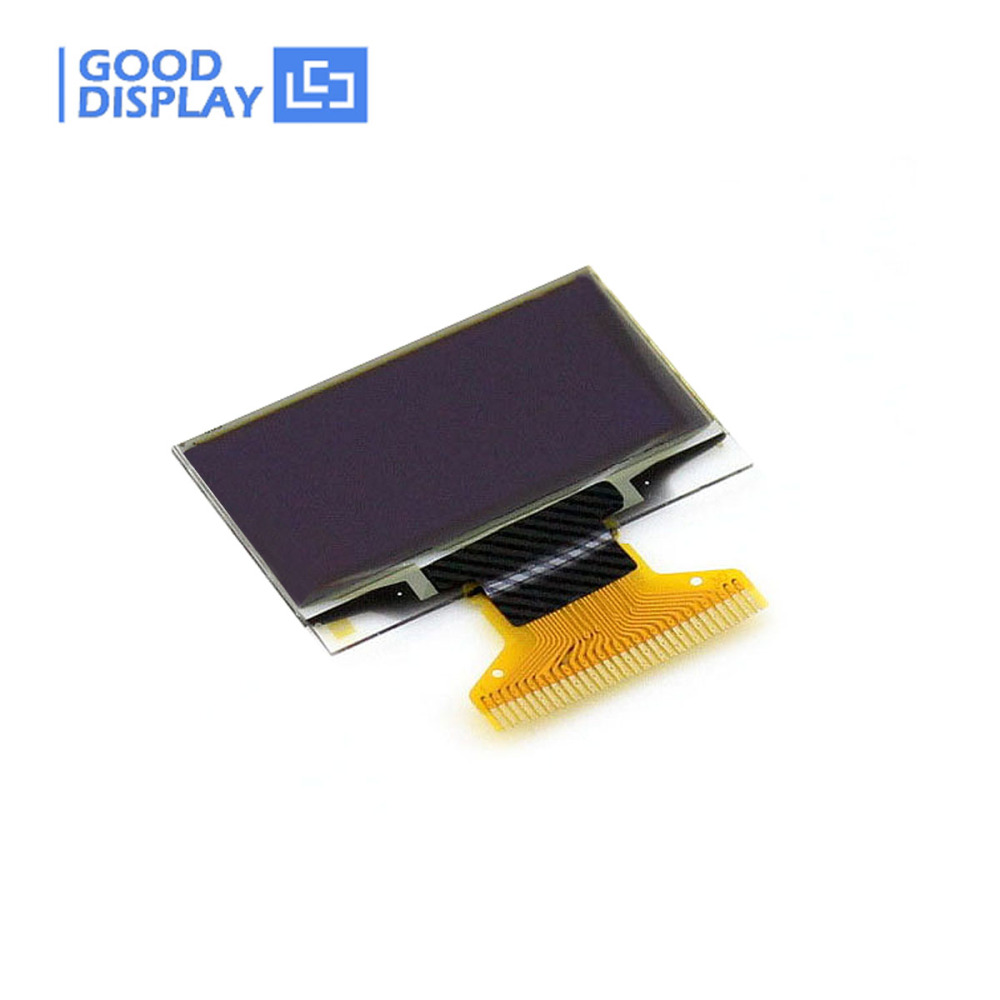

GDON0129RGW is the white graphic OLED display made of 128x64 OLED pixels,diagonal is 1.29 inch. The controller ic SSD1315.
Price:
USD
$3.67
Quantity:
-
+
(19 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Library
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




GDON0129RGW is the white graphic OLED display made of 128x64 OLED pixels,diagonal is 1.29 inch. The controller ic SSD1315, communicates via 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.

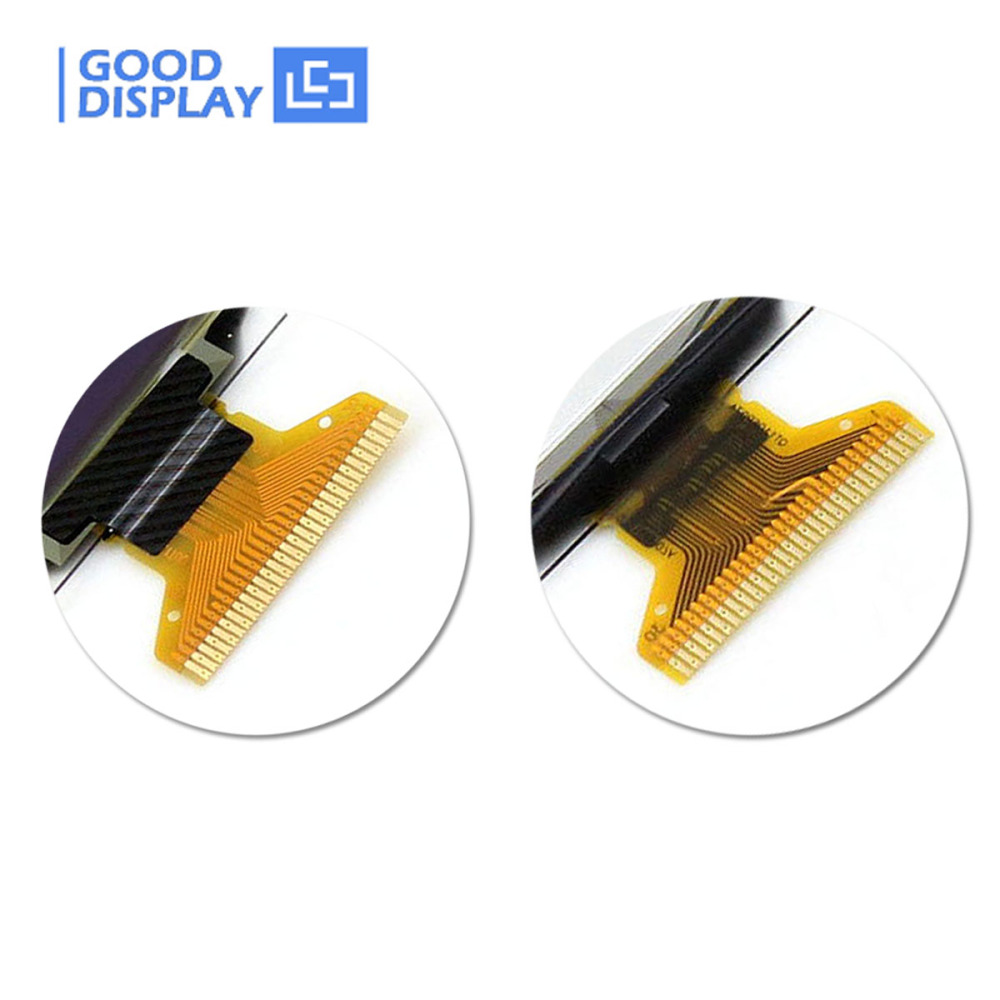

The FPC is the soldering type,no need connector.Just solder the FPC on your PCB directly. It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.



Relevant manual about this product on our official website (www.good-display.com), contact us please.




 FEATURE




● Self-luminous, no backlight is required.

● High contrast,extremely wide viewing angle

● It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi

● Wide operating temperature: -40℃~85℃






 THE ABOVE PRICE INCLUDE



1) 1.29 inch 128x64 mini oled display wide temperature -40~85C SSD1315 * 1pc




 MAIN PARAMETERS




PART NUMBER GDON0129RGW
DIAGONAL SIZE 1.29"
DISPLAY MODE Passive Matrix
DISPLAY COLOR White

DRIVE Duty

1/64 Duty

NUMBER OF PIXELS 128x64
INTERFACE 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
Driver IC SSD1315

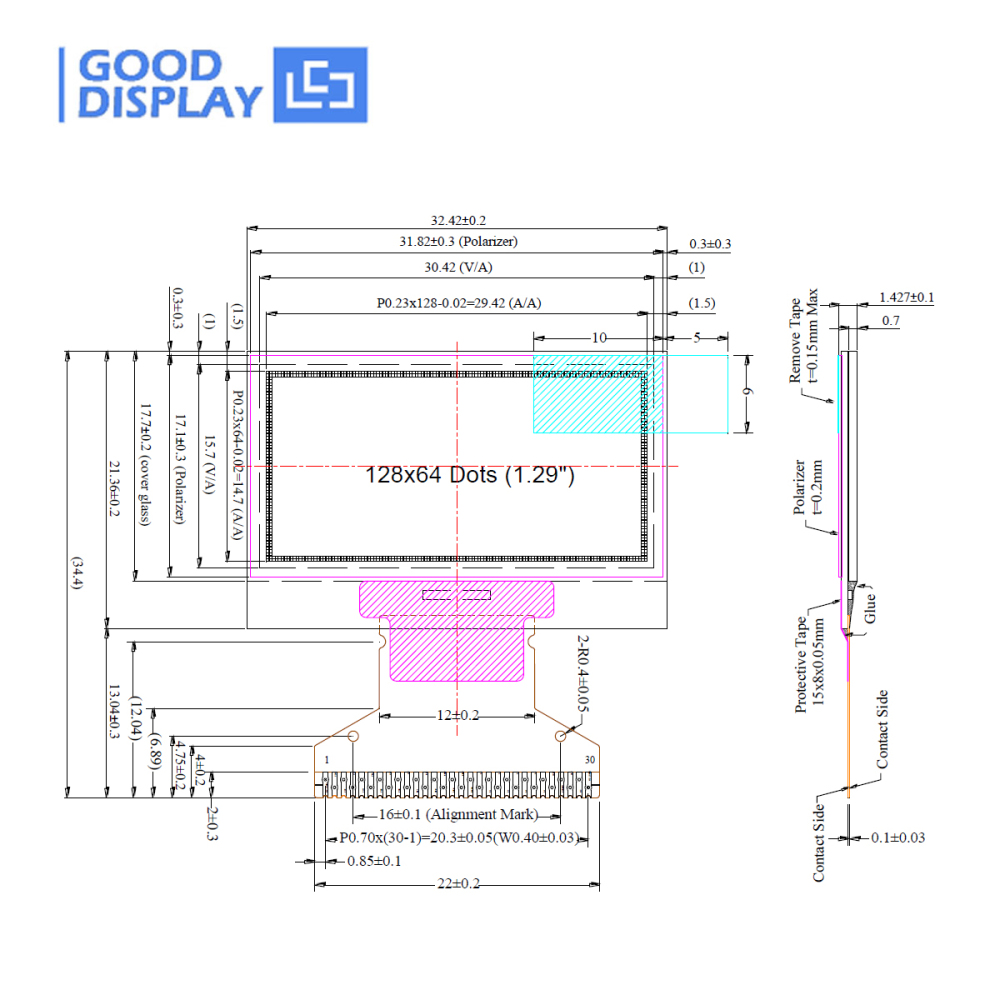

OUTLINE DIMENSION(mm) 32.42x21.36x1.427
ACTIVE AREA(mm) 29.42x14.7

PIXEL PITCH(mm)

0.23x0.23

PIXEL SIZE(mm)

0.21x0.21

BRIGHTNESS(Typ) 110 cd/m2
VIEW ANGLE Free
OPERATING TEMP. -40℃~85℃
STORAGE TEMP. -40℃~85℃

CONNECTION

FPC-Soldering

POWER SUPPLY(Typ) 3.3V






☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com




☆ SPECIFICATION DOWNLOAD




1)  GDON0129RGW Specification
2)  IC Driver SSD1315
3)  GDON0129RGW Sample Code
