☆ INTRODUCTION

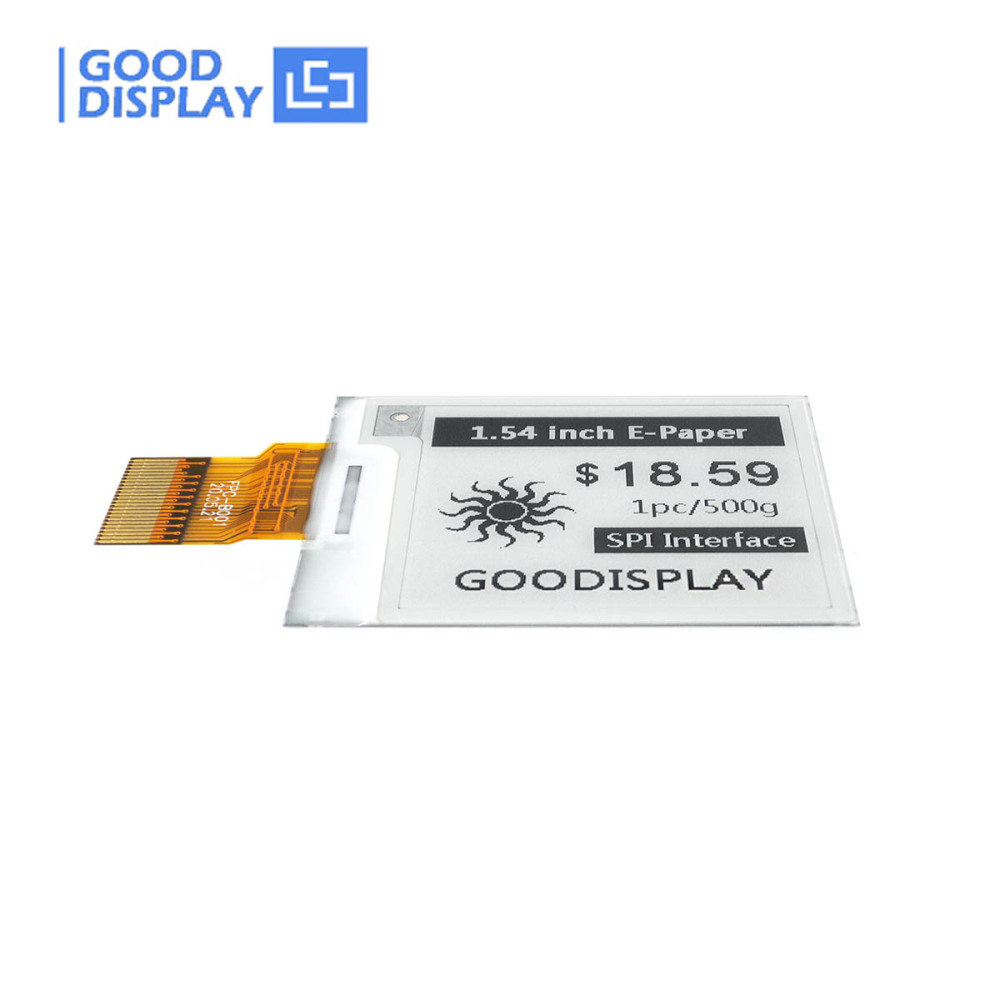

This is a Raspberry Pico E-paper Hat with 1.54 inch e-ink display, 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This electronic paper display GDEY0154D67 is perfect for low power devices powered by solar or batteries.

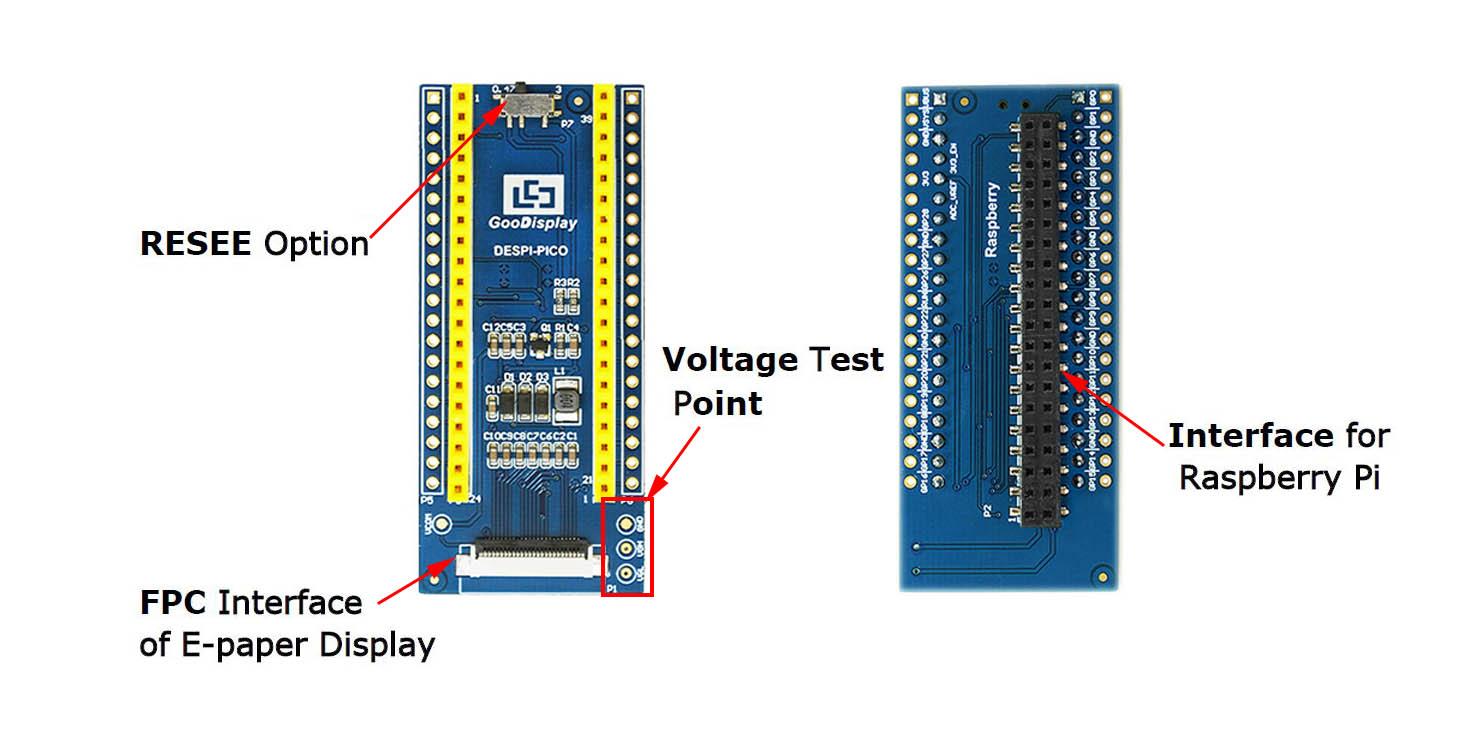

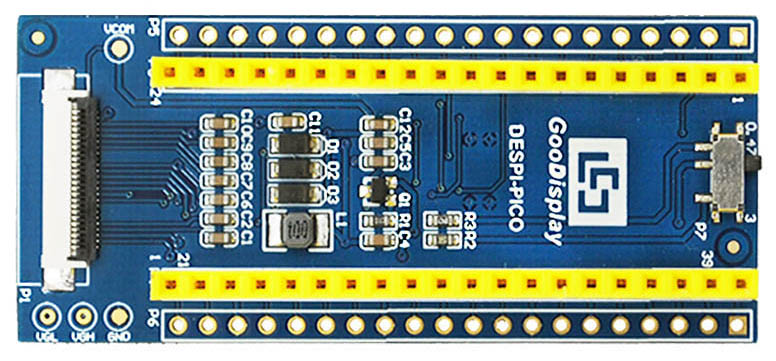

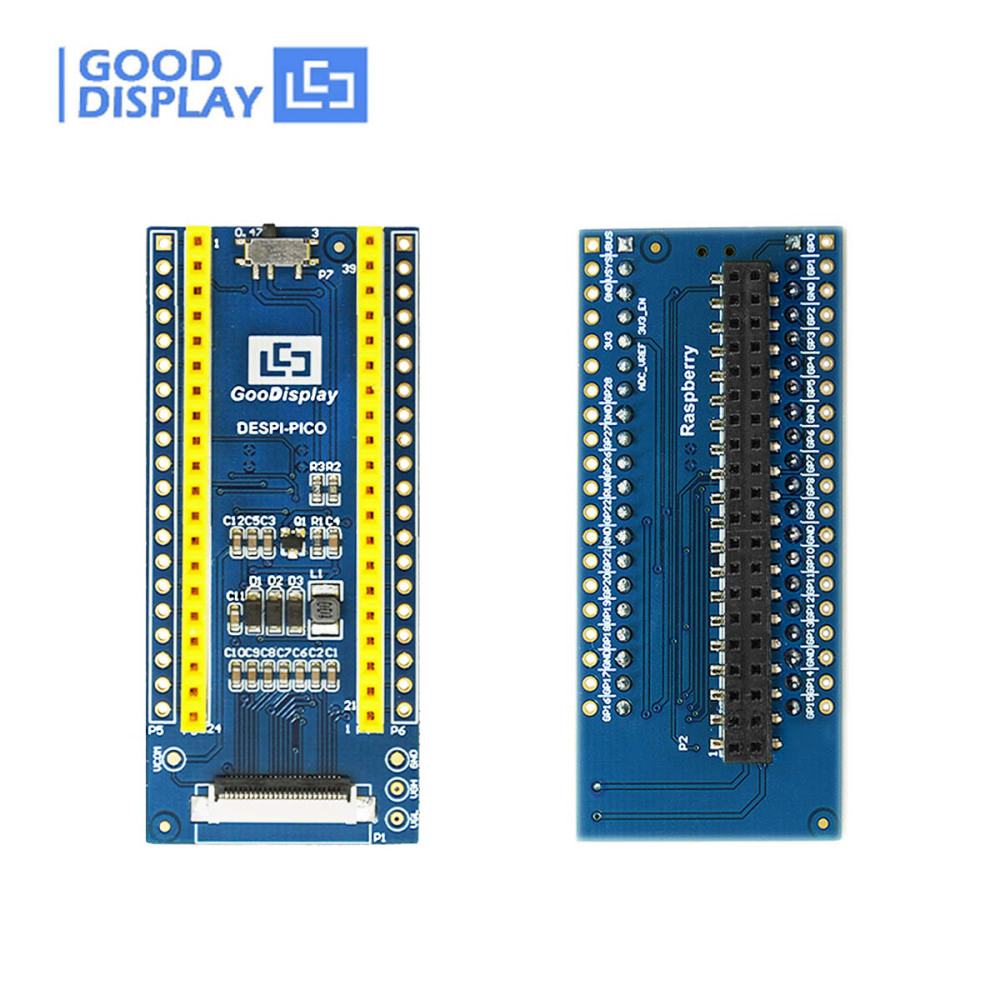

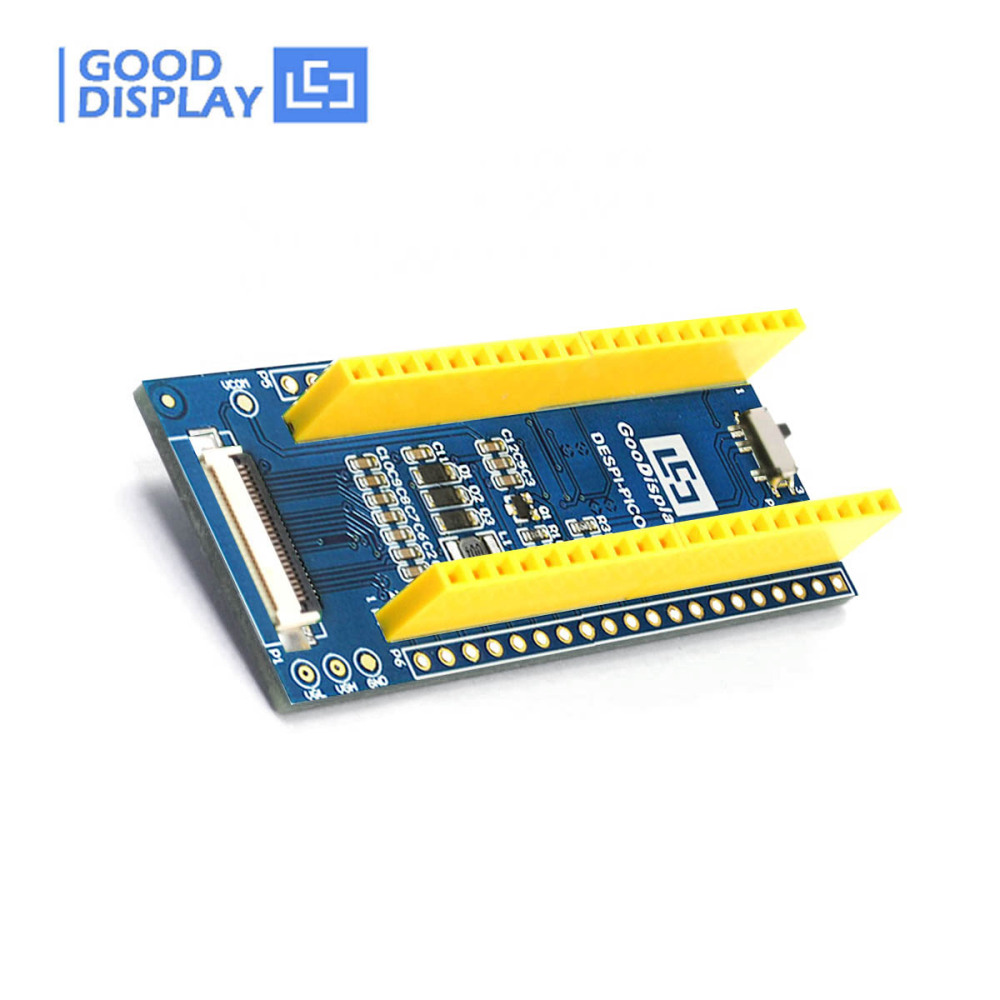

DESPI-PICO is designed for SPI e-paper display. It can boost the driving voltage of Good Display's black-white e-paper display and three-color (black, white and red/Yellow) e-paper display
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
☆ FEATURE
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● It supports partial refresh, the refresh rate is 0.26s/frame.
● Bistable. (Will continue to display with no power source)
● I²C Signal Master Interface to read external temperature sensor

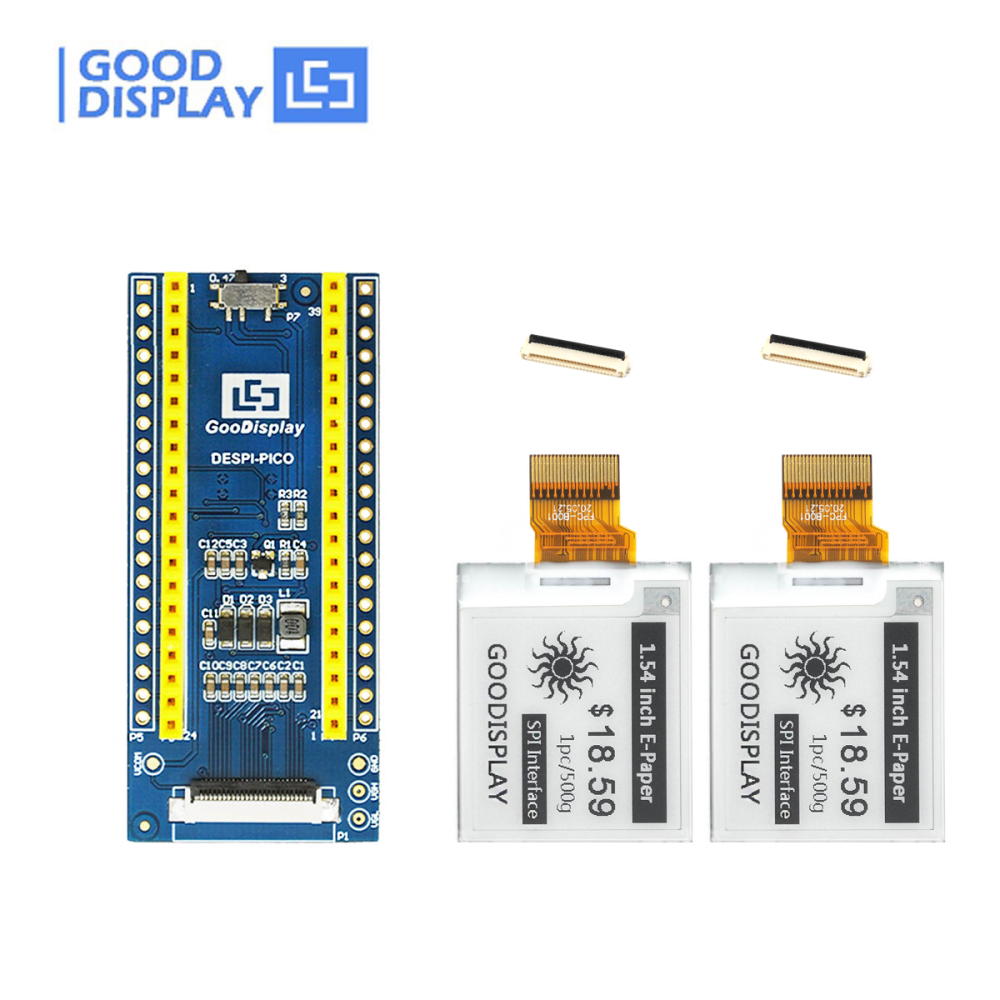

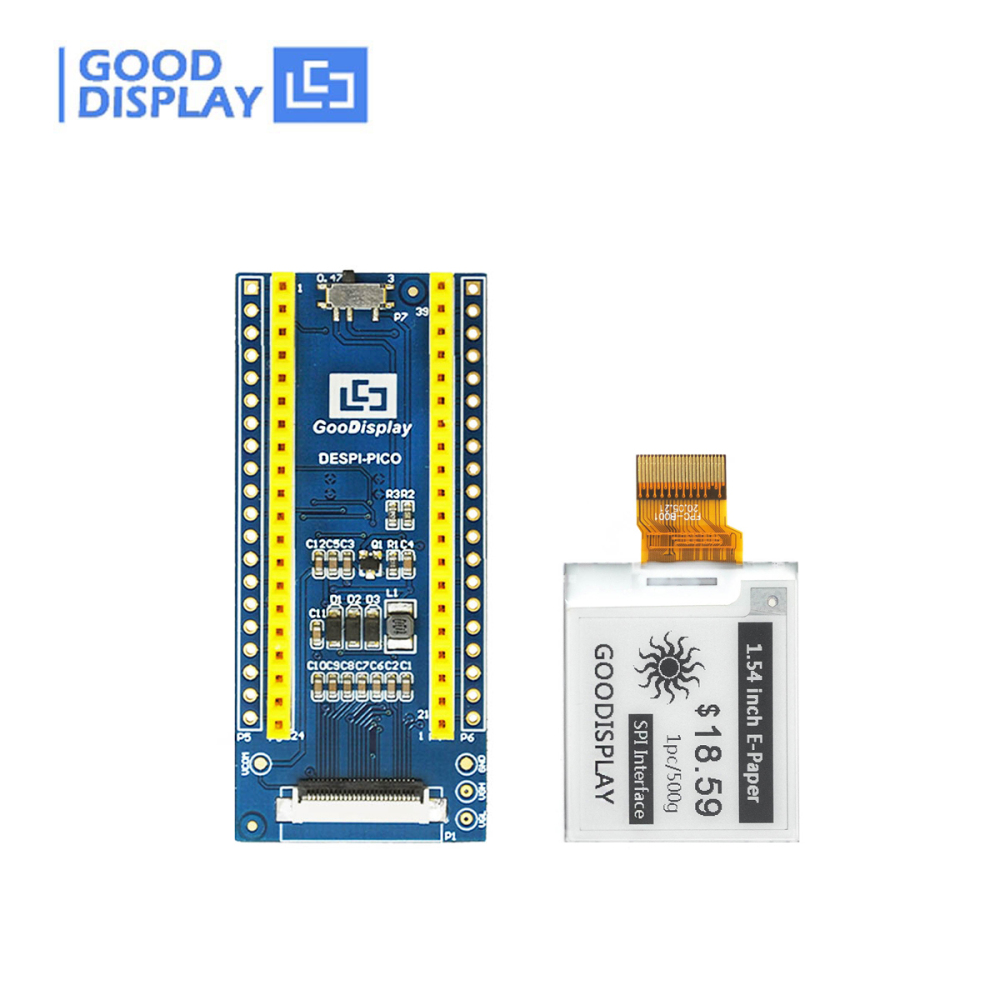

☆ THE ABOVE PRICE INCLUDE
1) 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen * 2pcs

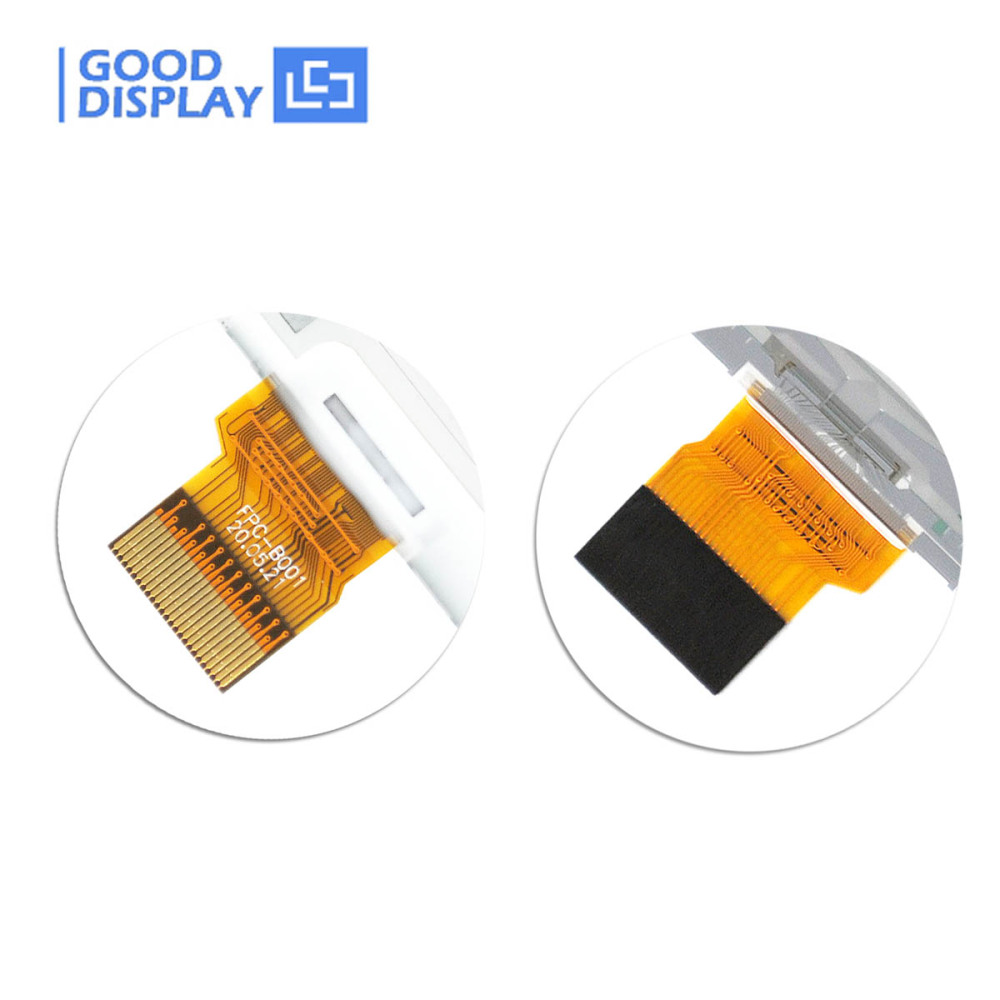

2) FPC Connector * 2pcs
3) Raspberry Pi E-paper HAT for Connecting SPI E-ink Display, DESPI-PICO * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEY0154D67
|
|
DISPLAY FORMAT
|
200x200
|
| IC |
SSD1681 |
|
OUTLIN DIMENSION(mm)
|
37.32x31.8x1
|
|
ACTIVE AREA(mm)
|
27x27
|
|
SIZE(mm)
|
1.54 inch
|
|
OPERATING TEMP.
|
0℃~50℃
|
| STORAGE TEMP. |
-25℃~70℃ |
| MAX GRAYSCALE |
4 |
| INTERFACE |
SPI |
| POWER CONSUMPTION OF THE REFRESH(mW) |
4.5 |
| STANDBY POWER CONSUMPTION (mW) |
0.003 |
| FULL REFRESH(s) |
2 |
| PARTIAL REFRESH TIME(s) |
0.26 |
| COLOR |
Black, White |
|
PART NUMBER
|
DESPI-PICO
|
|
PLATFORM
|
Raspberry Pi Pico
|
| DIMENSION(mm) |
64 x 29 |
|
POWER SUPPLY
|
3.3V
|
|
SAMPLE CODE
|
Available (please contact sales)
|
|
OPERATING TEMP.
|
-20°C ~+70°C
|
|
MAIN FUNCTION
|
Provide driving voltage for e-paper;
Provide interface for e-paper and Raspberry Pi Pico;
Help users operate e-paper quickly.
|
| ADDITIONAL FUNCTION |
Test of e-paper working condition. |

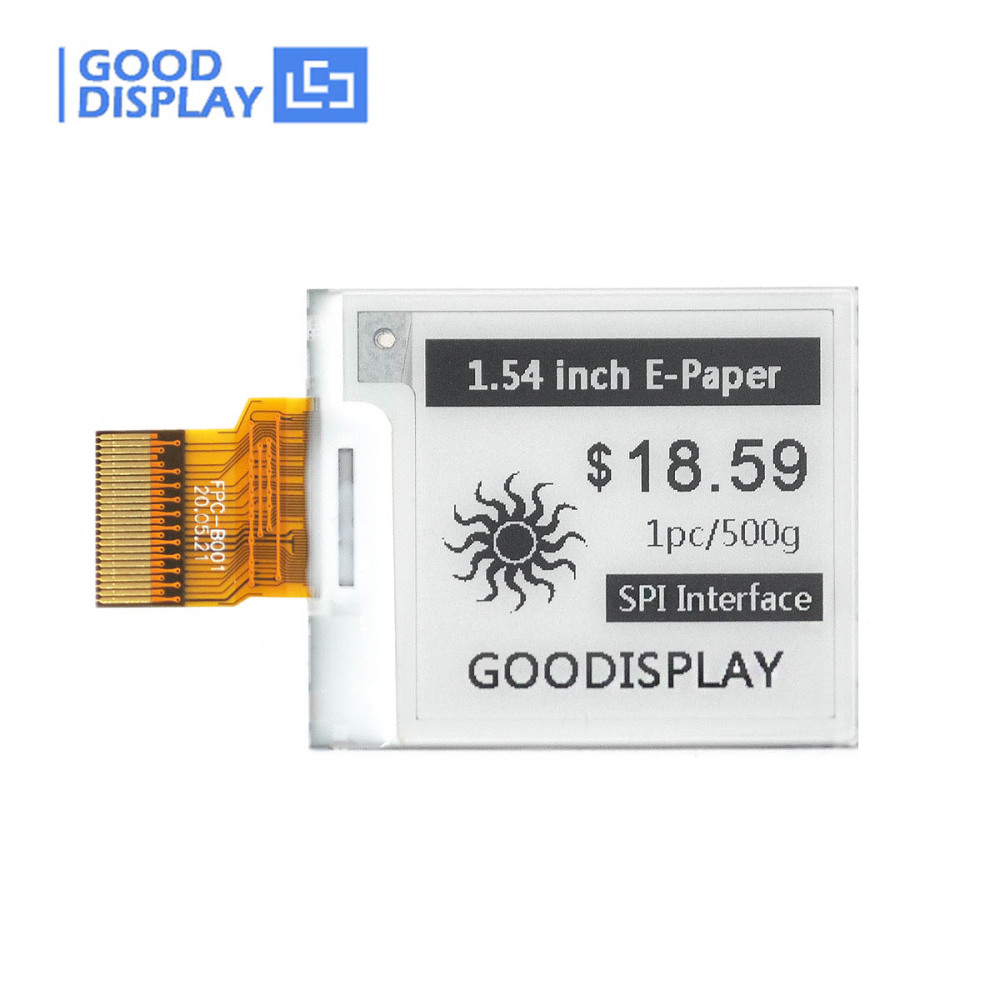

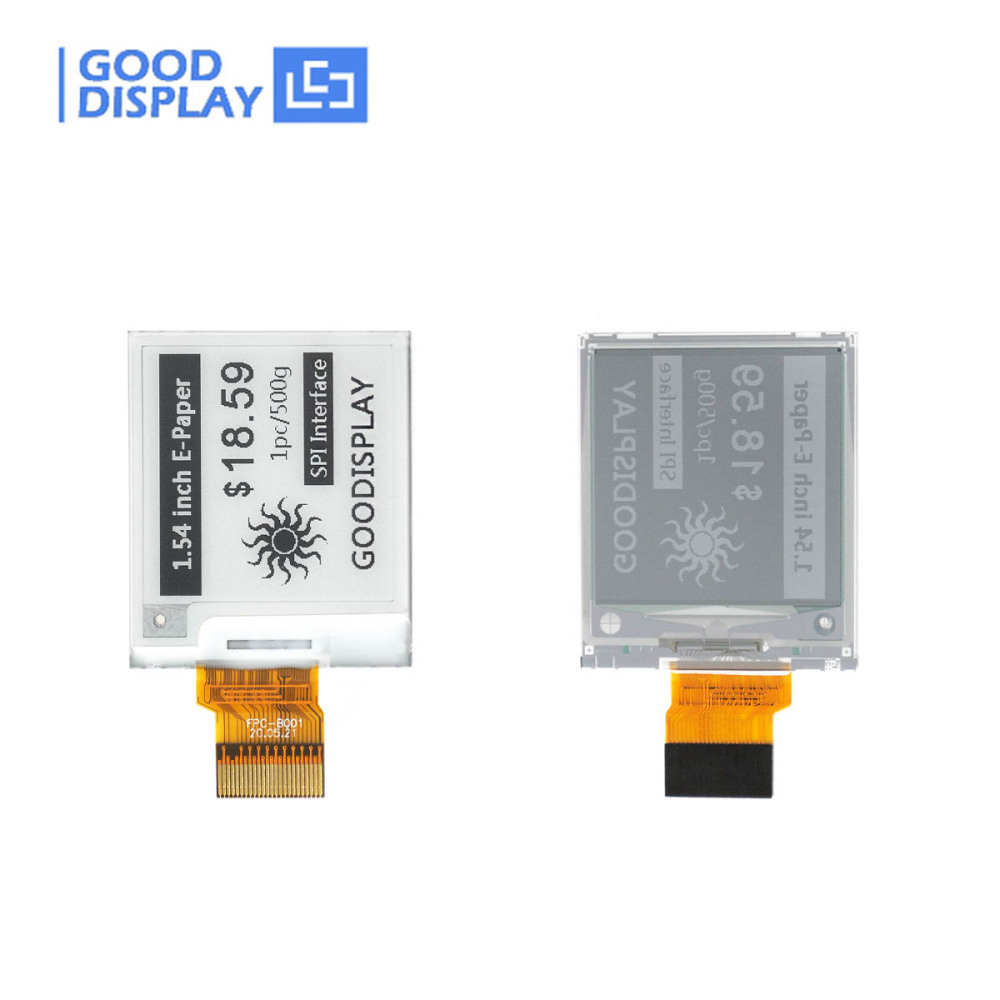

☆ 1.54 INCH E-PAPER DISPLAY
|
Part Number
|
Color
|
IC |
Resolution |
Features
|
Refresh Time |
| GDEW0154I9FC |
BW |
UC8151D |
152x152 |
Flexible, Partial Refresh |
3s |
|
GDEH0154D67-FL
|
BW
|
SSD1681 |
200x200
|
Partial Refresh, With Frontlight
|
2s
|
| GDEY0154D67 |
BW |
SSD1681 |
200x200 |
Partial Refresh |
2s |
| GDEW0154T11 |
BW |
UC8154 |
200x200 |
SPI Interface |
2s |
| GDEW0154M10 |
BW |
UC8151D |
152x152 |
DES, High Contrast Ratio |
3s |
|
GDEW0154T8-FL
|
BW
|
UC8151C |
152x152
|
Fast Refresh, Partial Refresh, With Frontlight
|
0.82s
|
|
GDEW0154T8D
|
BW
|
UC8151D |
152x152
|
Fast Refresh, Partial Refresh
|
0.82s
|
|
GDEH0154Z90
|
BWR
|
SSD1681 |
200x200
|
Colorful(Red)
|
15s
|
| GDEM0154Z91 |
BWR |
SSD1680 |
152x152 |
Colorful(Red) |
14s |
☆ ABOUT US
Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com
| PART NUMBER |
SIZE |
COLOR |
GREY SCALE |
RESOLUTION |
ACTIVE SIZE(mm) |
FULL REFRESH TIME (S) |
OPERATING TEMP. |
PARTIAL REFRESH |
FLEXIBLE |
INTERFACE |
| GDEW0102T4 |
1.02'' |
BW |
2 |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0102I3F |
1.02'' |
BW |
2 |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
|
GDEW0102I4FC
|
1.02'' |
BW |
2 |
128x80 |
21.76x14 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
| GDEW0154M10 |
1.54'' |
BW |
2 |
152x152 |
27.512x27.512 |
3 |
-10℃~60℃ |
|
|
SPI |
| GDEH0154D67 |
1.54'' |
BW |
4 |
200x200 |
27x27 |
2 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0154T8D |
1.54'' |
BW |
4 |
152x152 |
27.51x27.51 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEH0154Z90 |
1.54'' |
BWR |
2 |
200x200 |
27x27 |
15 |
0℃~40℃ |
|
|
SPI |
| GDEW0154I9FC |
1.54'' |
BW |
4 |
152x152 |
27.51x27.51 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
| GDEW0213M21 |
2.13'' |
BW |
2 |
212x104 |
48.548x23.712 |
3 |
-10℃~60℃ |
|
|
SPI |
| GDEW0213I5FD |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
| GDEQ0213B74 |
2.13'' |
BW |
4 |
250x122 |
48.55x23.7046 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEY0213Z98 |
2.13'' |
BWR |
2 |
250x122 |
48.55x23.7046 |
14 |
0℃~40℃ |
|
|
SPI |
| GDEW0213T5D |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW0213T5D-FL01(With Frontlight) |
2.13'' |
BW |
4 |
212x104 |
48.55x23.71 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW026T0D |
2.6'' |
BW |
4 |
296x152 |
60.09x30.7 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEY0266T90 |
2.66'' |
BW |
4 |
296x152 |
60.088x30.704 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW027W3 |
2.7'' |
BW |
4 |
264x176 |
57.288x38.192 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW027W3-T(With Touch Panel) |
2.7'' |
BW |
4 |
264x176 |
57.288x38.192 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEH029Z13 |
2.9'' |
BWR |
2 |
296x128 |
66.9x29.06 |
15 |
0℃~40℃ |
|
|
SPI |
| GDEY029T94 |
2.9'' |
BW |
4 |
296x128 |
66.896x29.056 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEY029Z94 |
2.9'' |
BWR |
2 |
296x128 |
66.896x29.056 |
12 |
0℃~40℃ |
|
|
SPI |
| GDEW029M06 |
2.9'' |
BW |
2 |
296x128 |
66.896x29.056 |
3 |
-10℃~60℃ |
|
|
SPI |
| GDEW029I6FD |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
√ |
SPI |
| GDEW029T5D |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEW029T5D-FL02(With Frontlight) |
2.9'' |
BW |
4 |
296x128 |
66.9x29.06 |
3 |
0℃~50℃ |
√ |
|
SPI |
| GDEY037Z03 |
3.71'' |
BWR |
2 |
416x240 |
81.54x47.04 |
12 |
0℃~40℃ |
|
|
SPI |
| GDEW0371W7 |
3.71'' |
BW |
2 |
416x240 |
81.536x47.04 |
4 |
0℃~50℃ |
|
|
SPI |
