☆ INTRODUCTION

This is a 1.54 inch e-paper display with frontlight, 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink display GDEH0154D67-FL is perfect for low power devices powered by solar or batteries, and can used in dark environment.

We could provide touch screen and other accessories for you.

Relevant manual about this product on our official website (www.good-display.com), contact us please.

Use our free e-paper software to prepare your bitmap image for this display.

☆ FEATURE

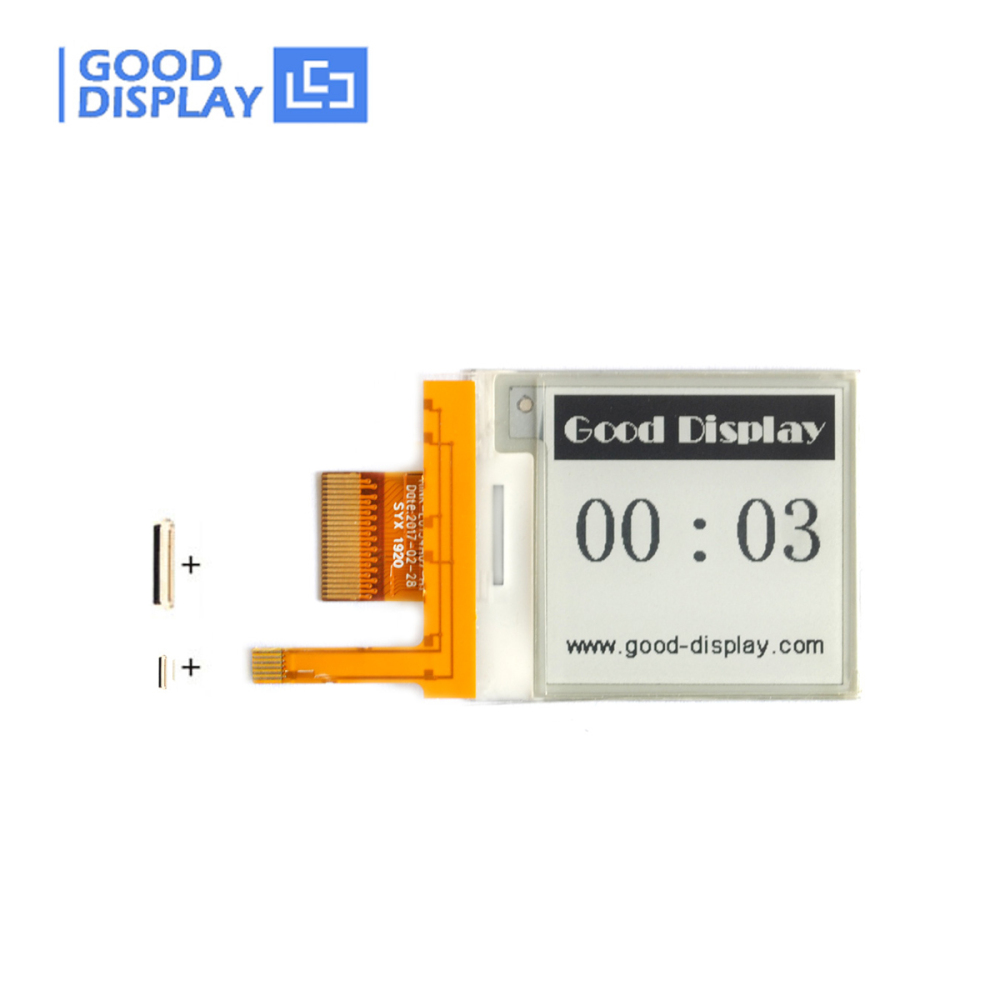

Name: New 1.54 inch e-paper display frontlight partial refresh E-ink GDEH0154D67-FL
Brand: GOOD DISPLAY
SKU: GDEH0154D67-FL
Price: 11.54 USD
Availability: InStock

● Black and white monochrome is easy to read.

● Versatile. Use in portrait or landscape format.

● It supports partial refresh, the refresh rate is 0.26s/frame.

● Bistable. (Will continue to display with no power source)

● I²C Signal Master Interface to read external temperature sensor.

● Compared with other 1.54 inch electronic paper displays, the power consumption is lower.

● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266

☆ THE ABOVE PRICE INCLUDE

1) New 1.54 inch e-paper display frontlight partial refresh E-ink * 1pc
2) FPC Connector * 1pc
3) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)

☆ MAIN PARAMETERS

PART NUMBER	GDEH0154D67-FL
TYPE	Dot Matrix
SIZE	1.54 inch
IC	SSD1681
RESOLUTION	200x200
OUTLINE SIZE(mm)	31.8x37.32x1.8
ACTIVE SIZE(mm)	27x27
PIXEL PITCH(mm)	0.135x0.135
OPERATING TEMP.	0℃~50℃
STORAGE TEMP.	-25℃~60℃
CONNECTOR	24 Pin FPC
MAX GRAYSCALE	4
COLOR	Black,White
INTERFACE	SPI
FULL REFRESH(s)	2
PARTIAL REFRESH TIME(s)	0.26
POWER CONSUMPTION OF THE REFRESH(mW)	4.95
STANDBY POWER CONSUMPTION (mW)	0.006

☆ OTHER PRODUCTS

Part Number	Color	Resolution	Features	Refresh Time
GDEH0154D67	BW	200x200	SSD1681, Partial Refresh	2s
GDEW0154M09	BW	152x152	JD79653, Fast Refresh, Partial Refresh	0.82s
GDEW0154M10	BW	152x152	UC8151D, DES, High contrast	3s
GDEW0154T8-FL01	BW	152x152	UC8151C, Fast Refresh, Partial Refresh, With Frontlight	0.82s
GDEW0154T8D	BW	152x152	UC8151D, Fast Refresh, Partial Refresh	0.82s
GDEH0154Z90	BWR	200x200	SSD1681, Colorful(Red)	15s

☆ ABOUT US

Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com

☆ SPECIFICATION DOWNLOAD

1)  GDEH0154D67 Specification
2)  Front-light Drawing of 1.54 inch EPD
3)  IC Driver SSD1681 Datasheet
4)  GDEH0154D67 Bitmap Conversion
5)  GDEH0154D67 STM32 Sample Code
6)  GDEH0154D67 Arduino Sample Code
7)  GDEH0154D67 Raspberry Pi Sample Code
8)  GDEH0154D67 ESP8266 Sample Code
9)  GDEH0154D67 ESP32 Sample Code
10)  GDEH0154D67 Raspberry Pi Pico Sample Code
