Home > Color ePaper > Fast/Partial Refresh ePaper > 12s Fast Refresh 5.83-inch 4-Color E-Paper Display 648x480 SPI Interface E Ink Screen

1/1

Limited Offer!

3 sold

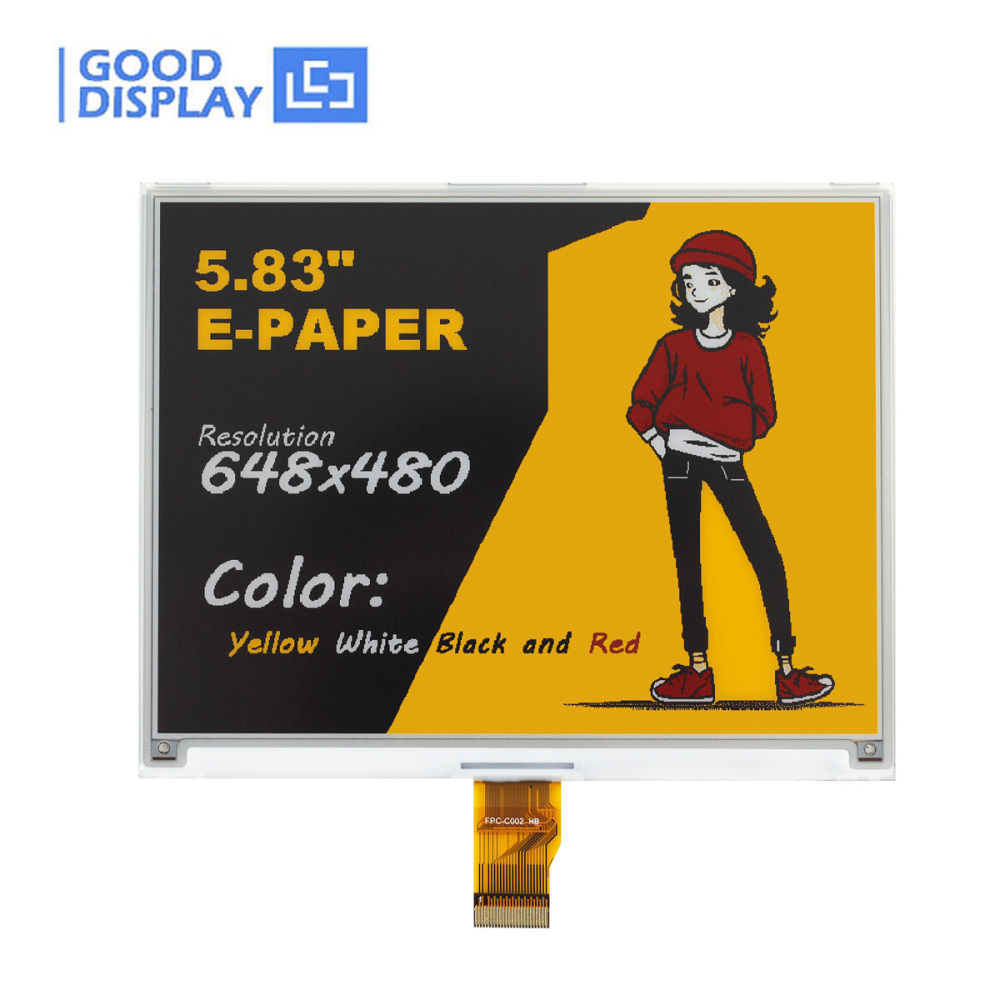

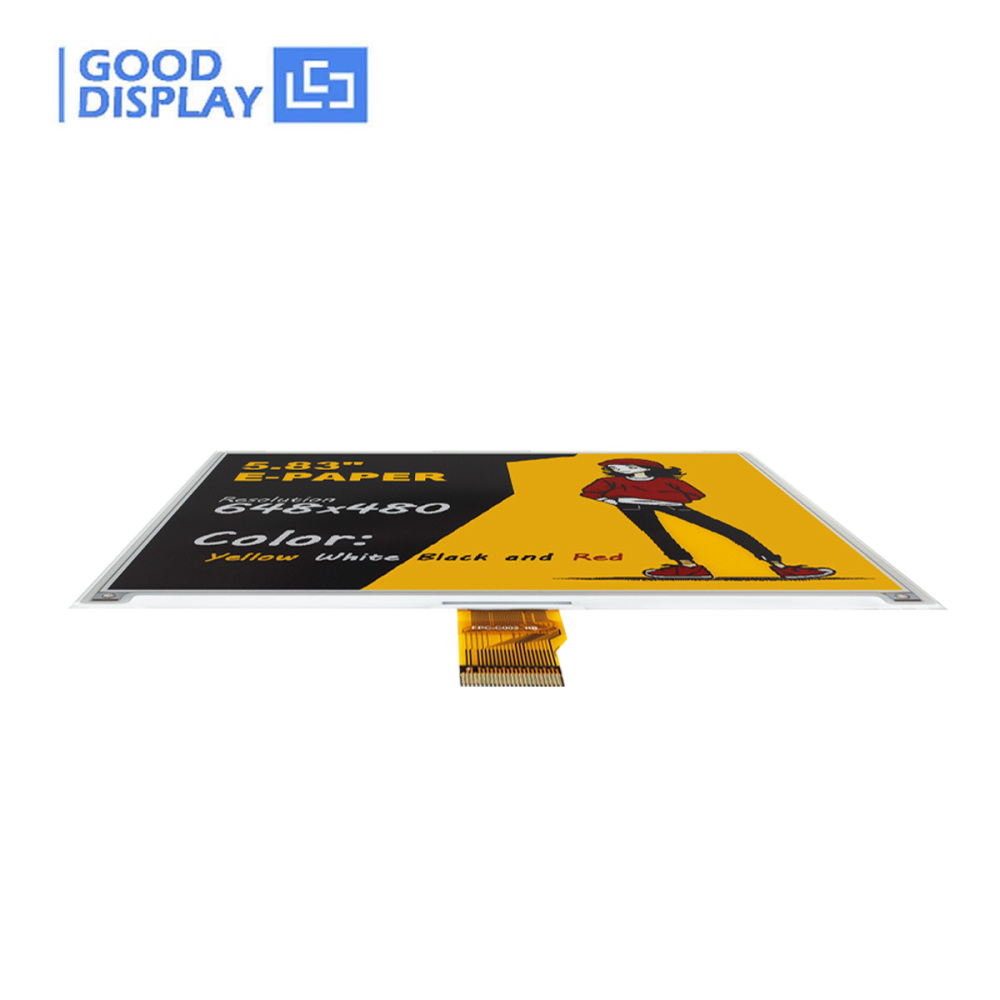

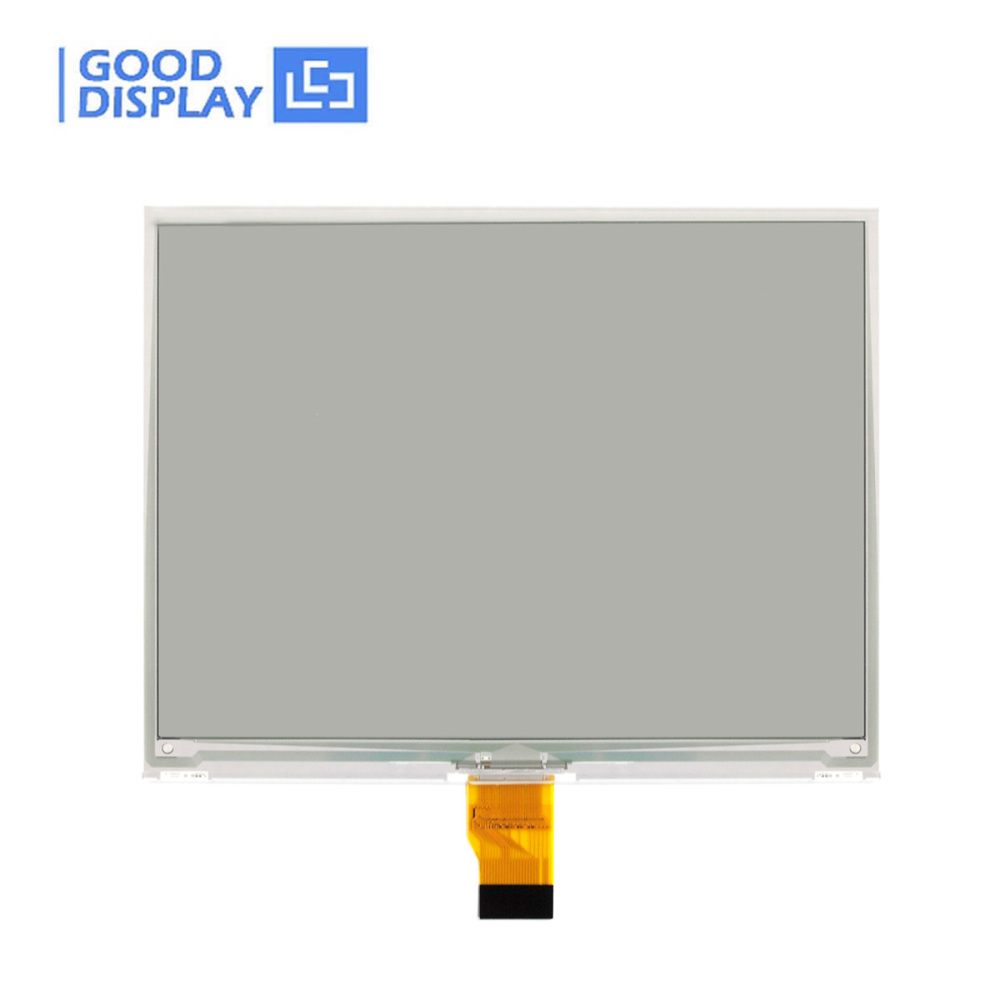

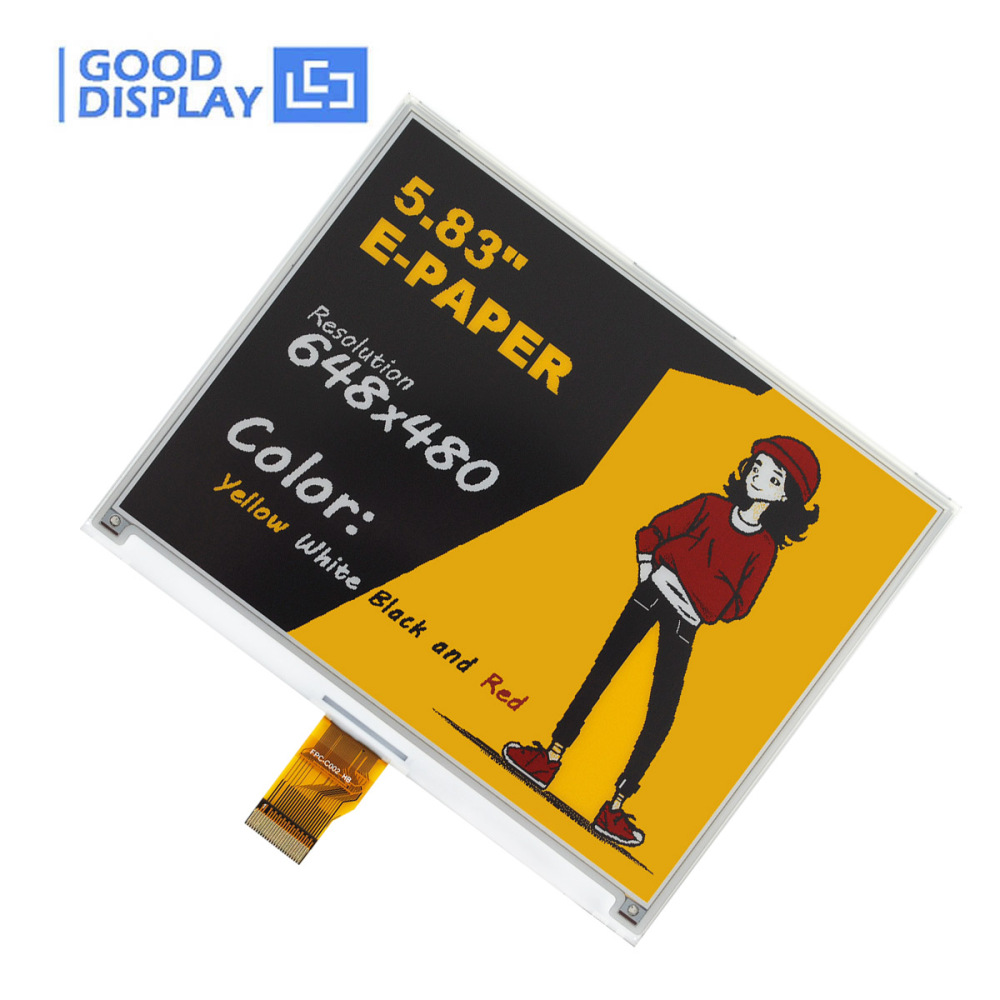

12s Fast Refresh 5.83-inch 4-Color E-Paper Display 648x480 SPI Interface E Ink Screen GDEY0583F41

(1)

24 Sold

$23.04 ~~$28.80~~

20% OFF

Industry-leading 5.83-inch 4-Color E Ink Display (648x480). Achieve 12s fast refresh & ultra-low power consumption (0.003mW standby) for retail signage, IoT, and industrial applications. SPI interface, wide viewing angle, and eye-friendly design. Explore

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Wholesale:

Quantity:

0 in stock

1 * $23.04 = $23.04

save $0.00

Add to Favorites (1)

1/1

Description

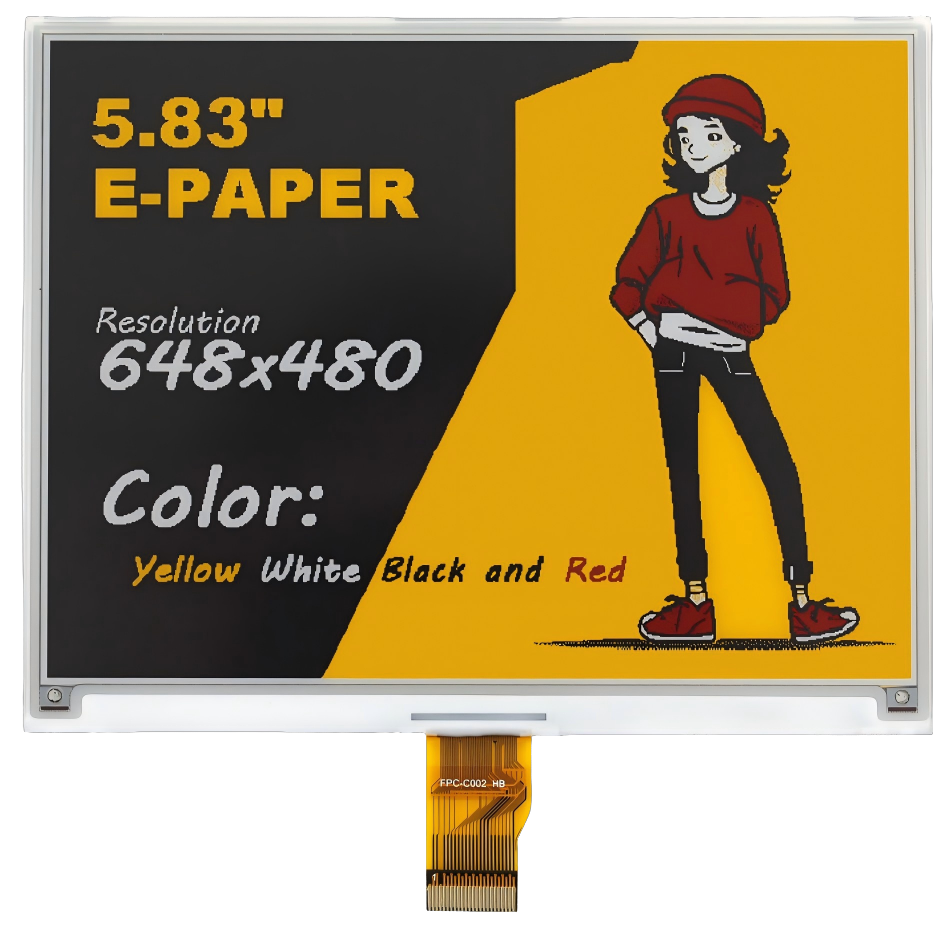

5.83" 4-Color E-Ink Display

Revolutionize Your Display. See the Difference in Color & Speed.
The GooDisplay's fastest 12s refresh on a 4-color E Ink screen. Achieve vivid signage and dynamic IoT interfaces with near-zero power consumption.

Experience the paper-like future, today.

Core Advantages

Lightning-Fast Refresh

Full Refresh

20s

Fast Refresh

12s

• faster than conventional e-paper

•Real-time content updates for dynamic applications•Supports rapid content switching

Superior Visual Clarity

138 DPI

Resolution

170°

Viewing Angle

•Anti-glare hard coating surface

•Paper-like reading experience•Zero backlight - eye comfort•Clear visibility from any angle

Zero-Power Operation

Active: 75.57W

Static: 0.003W

• 99% less power than LCD

• Bistable display technology• 5-10 year life• Zero power when displaying static content

Technical Specifications

Part Number GDEY0583F41

Type Dot Matrix

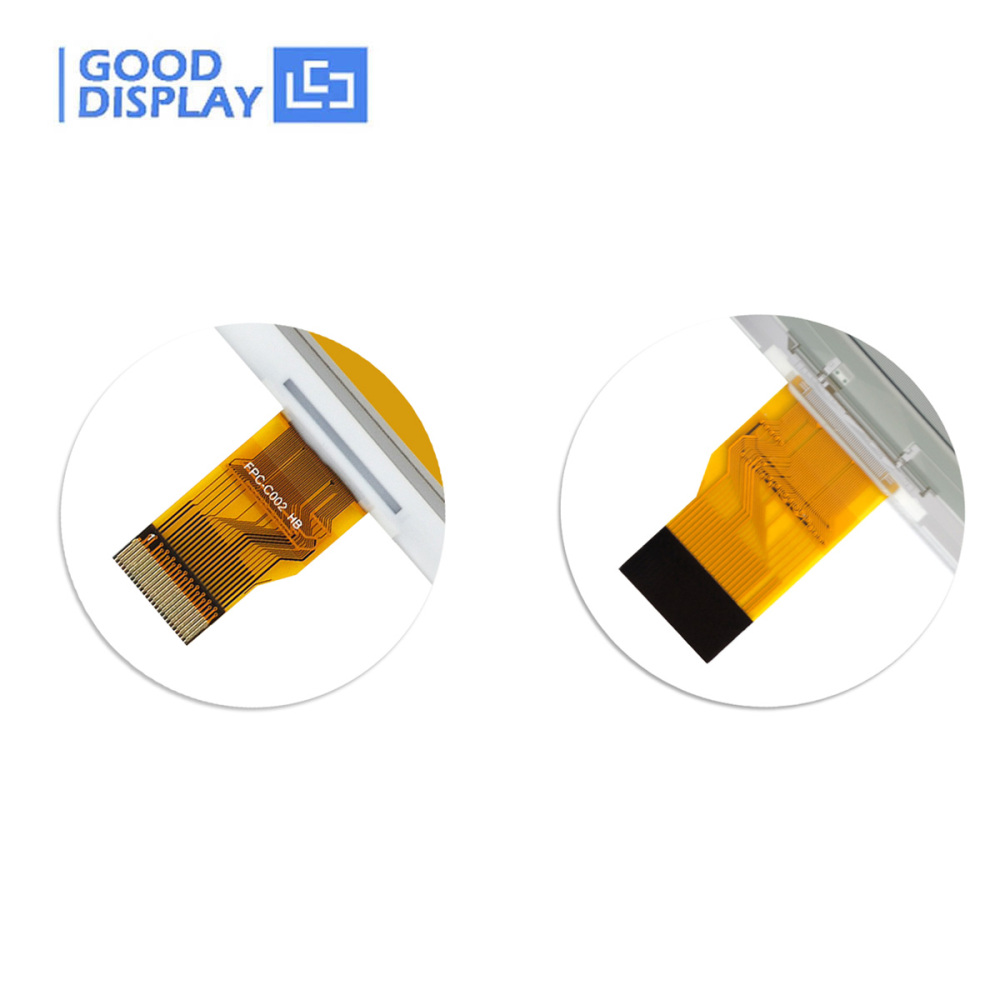

Connector 24 Pin 0.5mm

Size 5.83"

IC JD79665CA

Interface SPI

Resolution 648x480

Color Red, Yellow, Black, White

Operating Temp. 0℃~50℃

PPI 138

Full Refresh Time 20s

Storage Temp. -25℃~70℃

Outline Size 125.40x99.50x1.20mm

Fast Refresh Time 12s

Typical Power(mW) 75.57

Active Size 118.78x88.22mm

Pixel Pitch 0.1833x0.1833mm

Deep Sleep Power(mW) 0.003

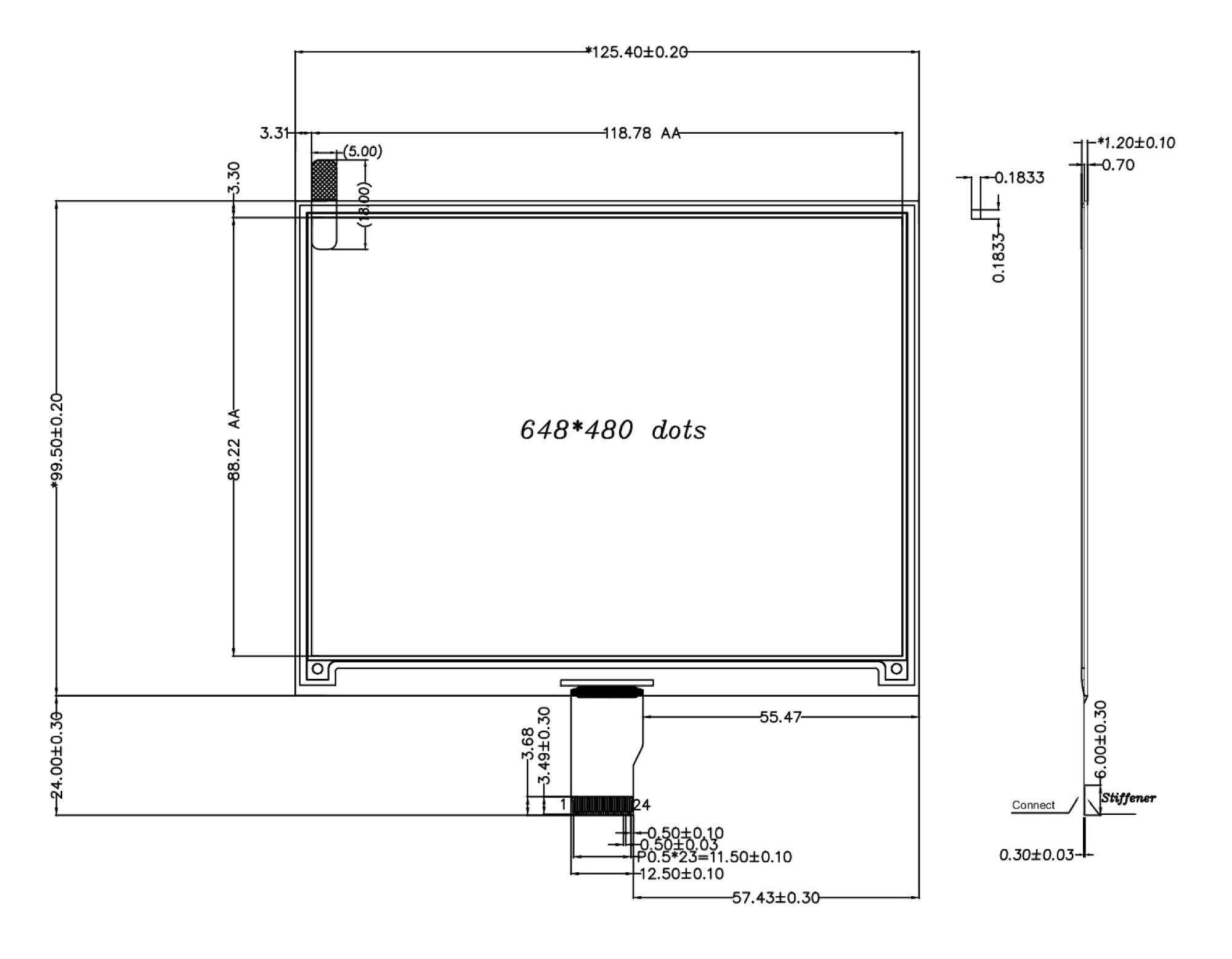

Drawing Details

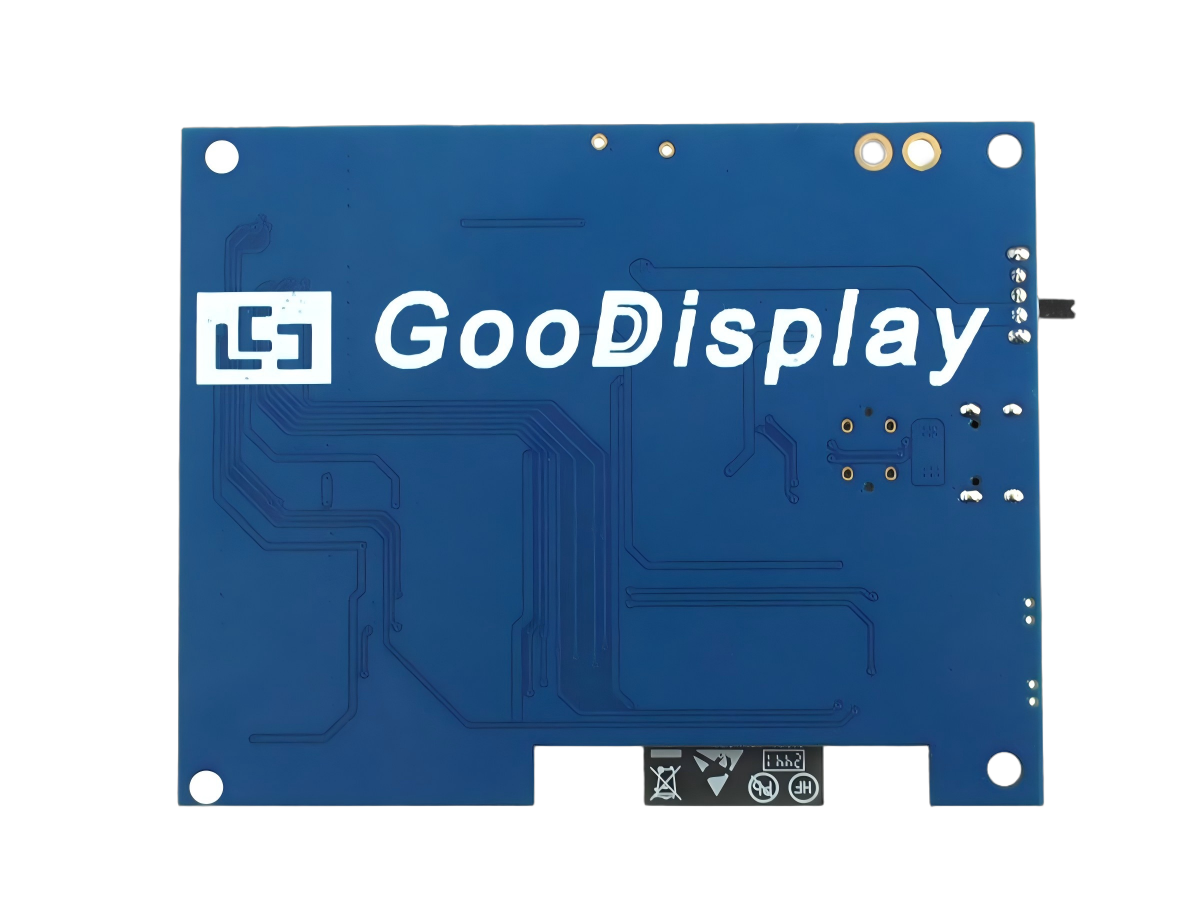

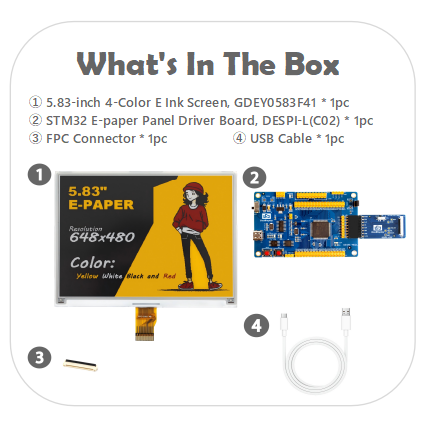

Matching Driver Boards

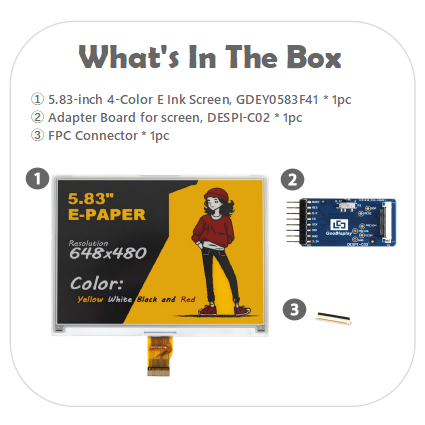

DESPI-C02

Pure interface adapter (no MCU) for connecting external boards to 24-pin SPI EPDs.

View Details

DESPI-L(C02)

Top-tier industrial processing power (Cortex-M), featuring USB data transmission.

View Details

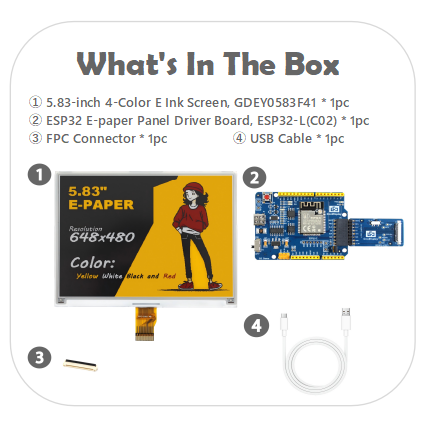

ESP32-L(C02)

Supports common WiFi/BT/USB data transmission.

View Details

ESP32E6-E01

Dedicated 50-pin port for E6 displays + standard 24-pin port.Top-tier ESP32-S3 performance with WiFi/BT/USB.

View Details

Files & Download

Typical Applications

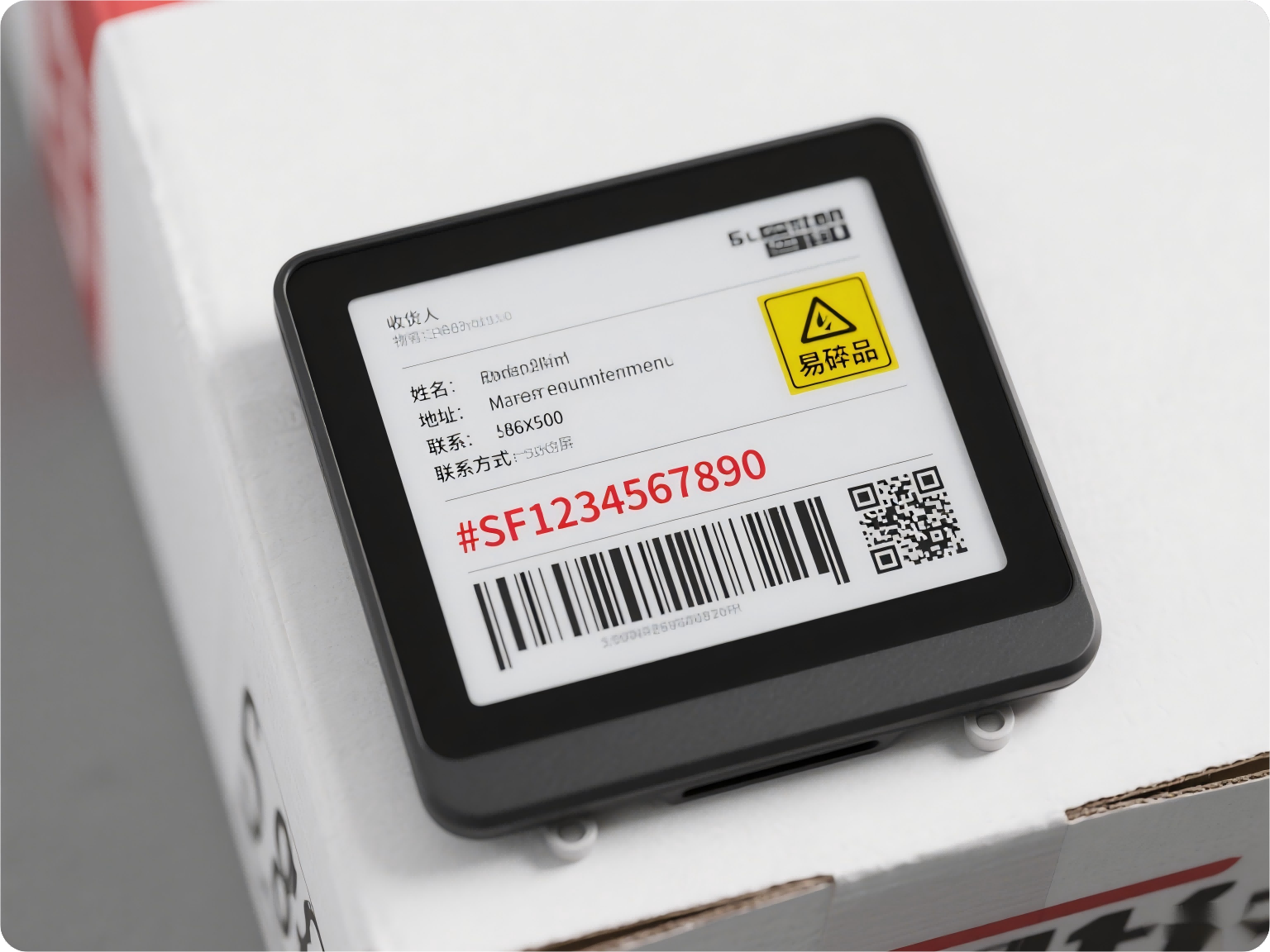

Retail

Electronic Shelf Labels (ESL)

Highlights promotions, out-of-stock items; strong visual impact.

Industrial

Equipment Status Dashboards

Intuitively indicates operational status (normal, warning, fault).

Smart Home

Kitchen Labels, Control Panels

Warns about expiration dates, visually shows device status.

We Also Recommend

Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.

Why GooDisplay E-Paper Refreshes Faster

Optimized Fast-Refresh FPL

We rigorously select fast-refresh FPL films at the raw material level, laying a solid hardware foundation for high-speed performance.

Smart Temp-Controlled Drive

Our engineers optimize waveform files for different temperature ranges, ensuring excellent display quality even during rapid refresh cycles.

Chip-Level Integrated Solution

Optimized waveforms are built into the display driver chip—activate fast refresh mode with a simple code call!

Display Type	Refresh Capability	Available Sizes
Black & White (B/W) Displays	Supports fast refresh, partial refresh, and 4-level grayscale	0.97" to 10.3"
Black, White & Red (BWR) Displays	Supports fast refresh and partial B/W refresh	2.13" to 11.6"
Black, White, Red & Yellow (BWRY) Displays	Supports fast refresh with multi-color layered updating	0.97" to 11.6"
