2.9 Inch E-Paper Module Screen For E Ink Color SPI Electronic DIY Screen, GDEY029Z94 with adapter board DESPI-C02

(0)

1 Sold

$6.96 ~~$8.70~~

20% OFF

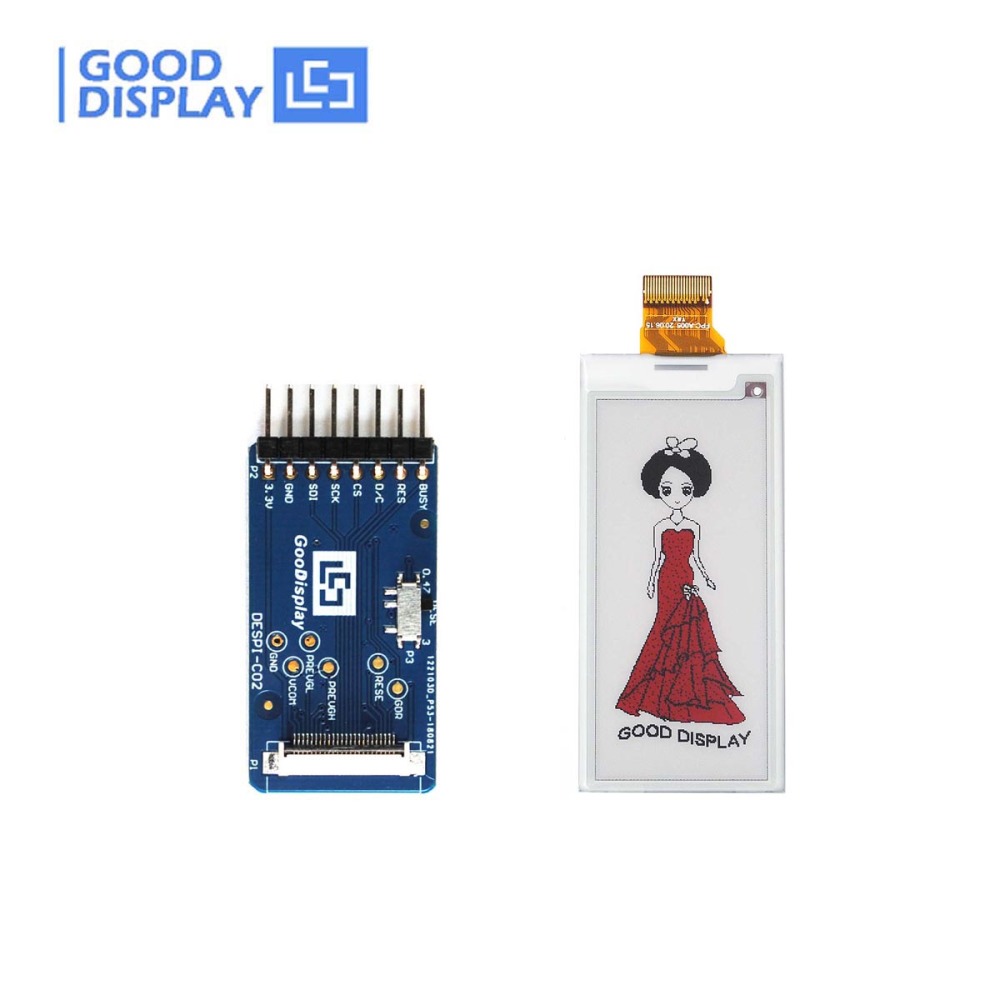

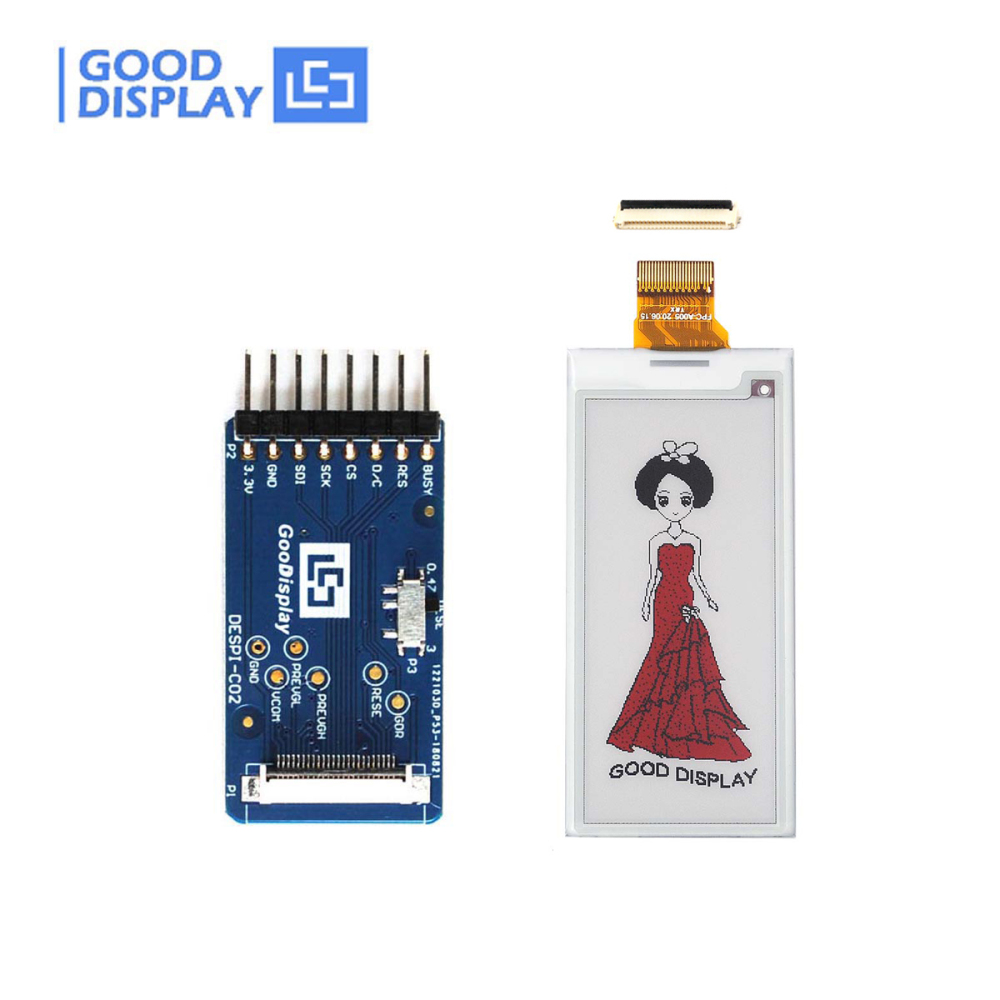

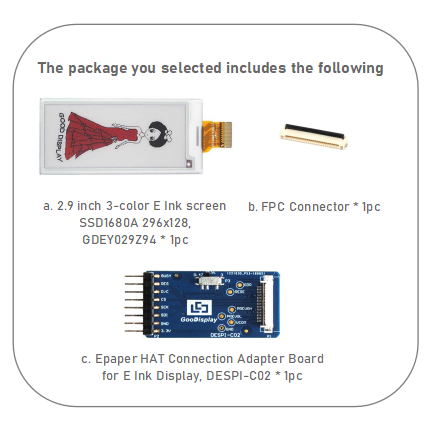

This is a e-paper module consist of 2.9 inch e-paper screen and e-paper connection board DESPI-C02, 296x128 Resolution, SPI interface.

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Wholesale:

Quantity:

0 in stock

1 * $6.96 = $6.96

save $0.00

Add to Favorites (0)

1/1

Description

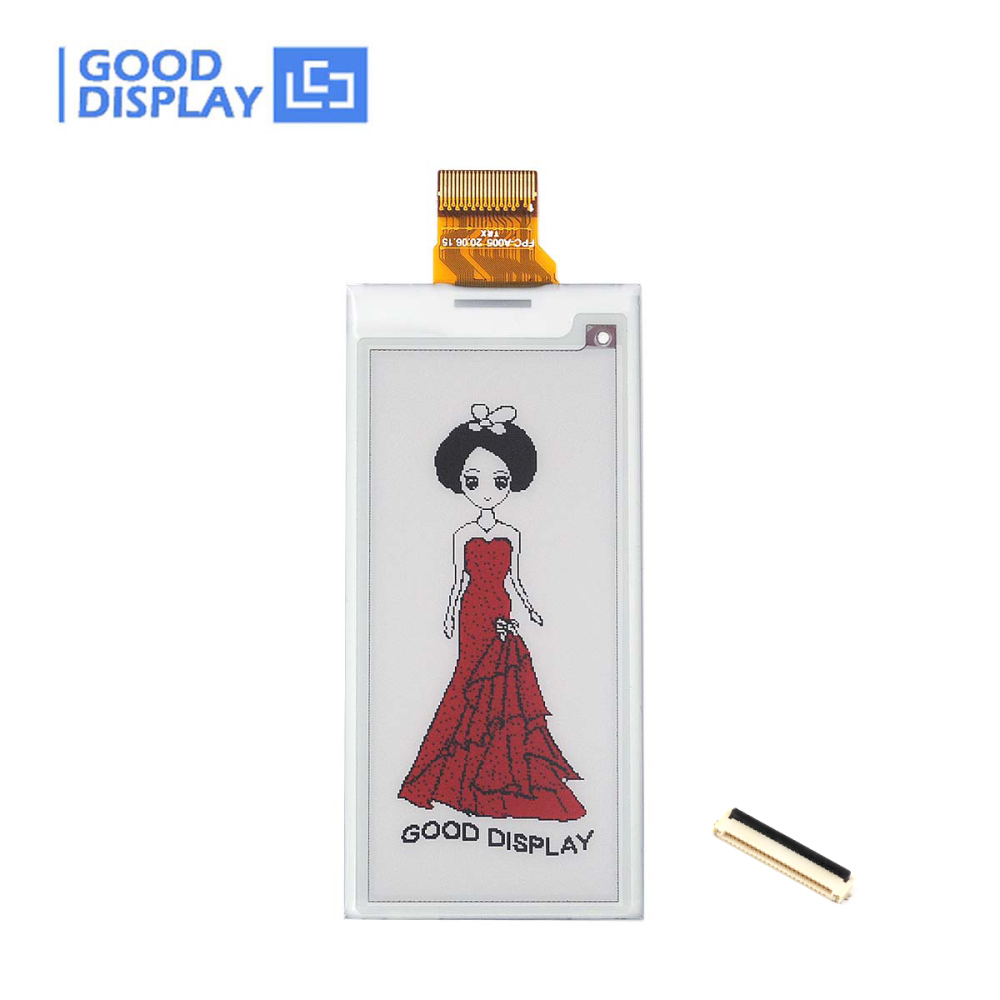

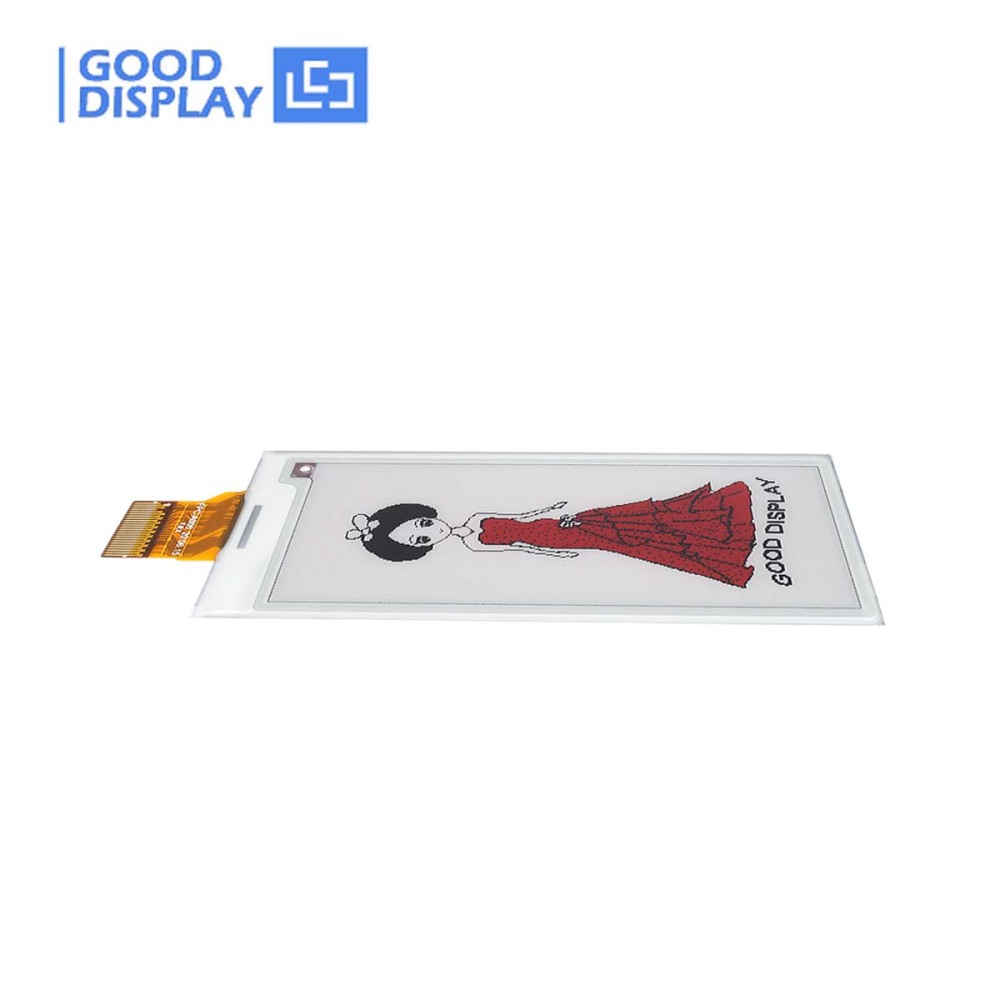

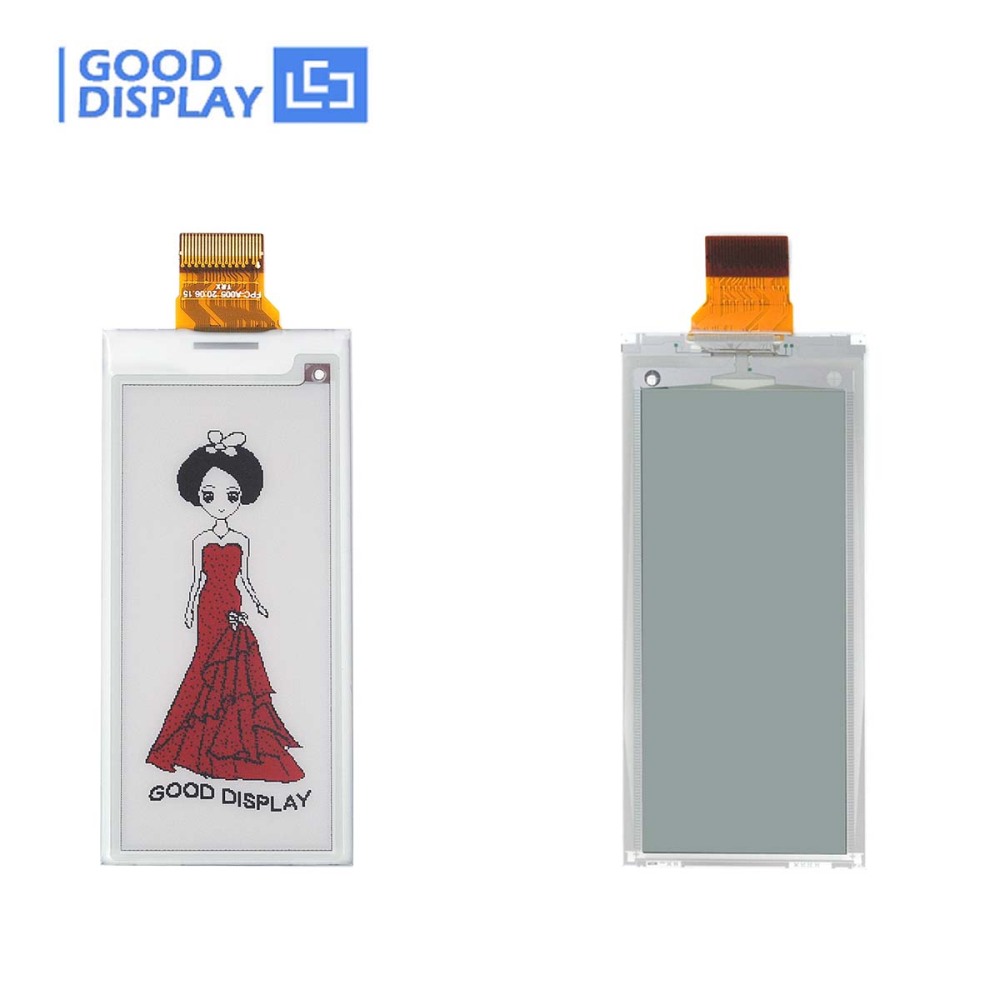

		2.9'' Tri-Color E Ink Display with adapter board
		This is a e-paper module consist of 2.9 inch e-paper screen and e-paper connection board DESPI-C02, 296x128 Resolution, SPI interface. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY029Z94 is perfect for low power devices powered by solar or batteries. This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)

		Special Features
		Our product boasts distinctive features that set it apart from the competition
		● Portable Perfection: Experience portability at its finest with our compact 2.9-inch display. Featuring a crystal-clear 296x128 resolution, it delivers stunning visuals wherever you go. ● Vivid Tri-Color Display: Stand out with vibrant red accents that highlight crucial information effortlessly. This tri-color innovation enhances readability and grabs attention. ● Efficiency Redefined: Say goodbye to power woes! Our display consumes minimal energy when static and retains content even when unplugged, ensuring uninterrupted performance. ● Eye-Safe Technology: Protect your eyes with zero blue light and radiation-free operation. Perfect for frequent use in smart cards and tags without compromising on safety. ● Built Tough: Designed to withstand the rigors of any environment, our display boasts a robust, scratch-resistant surface. It’s your reliable choice for durability and longevity.

Product Specifications

Please refer to the product specifications for more details

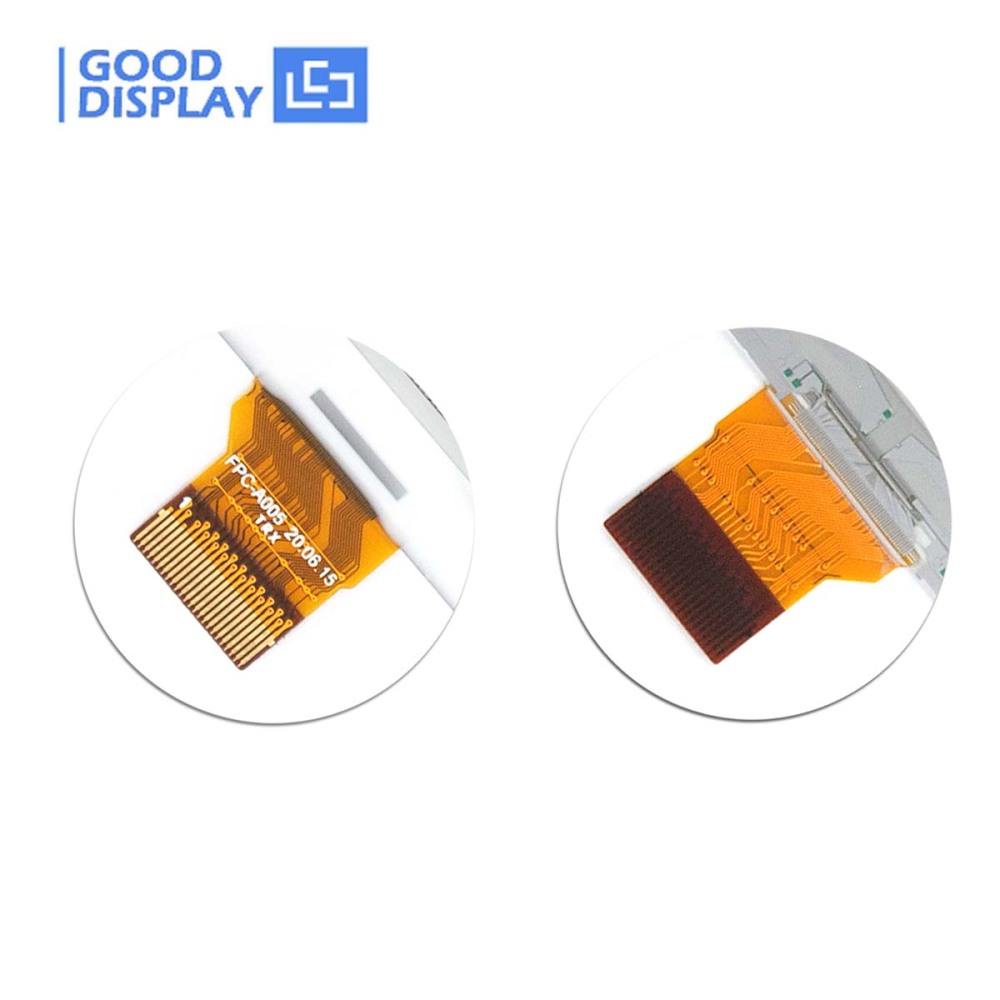

PART NUMBER	GDEY029Z94	CONNECTOR	24 Pin FPC
SIZE	2.9 inch	TYPE	Dot Matrix
IC	SSD1680A	MAX GRAYSCALE	2
RESOLUTION	296x128	COLOR	Black, White, Red
OUTLINE SIZE(mm)	79x36.7x1.2	INTERFACE	SPI
ACTIVE SIZE(mm)	66.896x29.056	FULL REFRESH(s)	22
PIXEL PITCH(mm)	0.227x0.226	POWER CONSUMPTION OF THE REFRESH(mW)	24.9
OPERATING TEMP.	0℃~40℃	STANDBY POWER CONSUMPTION (mW)	0.006
STORAGE TEMP.	-25℃~70℃

PART NUMBER	DESPI-C02	OUTSIDE DIMENSION	41 x 22mm
PLATFORM	STM32	OPERATING TEMP.	-20~70℃
FEATURE	Fully and Partial Refresh	POWER INPUT	DC3.3V

		Product Drawings
		Please refer to the product drawings for detailed dimensions

Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you. Click image to buy

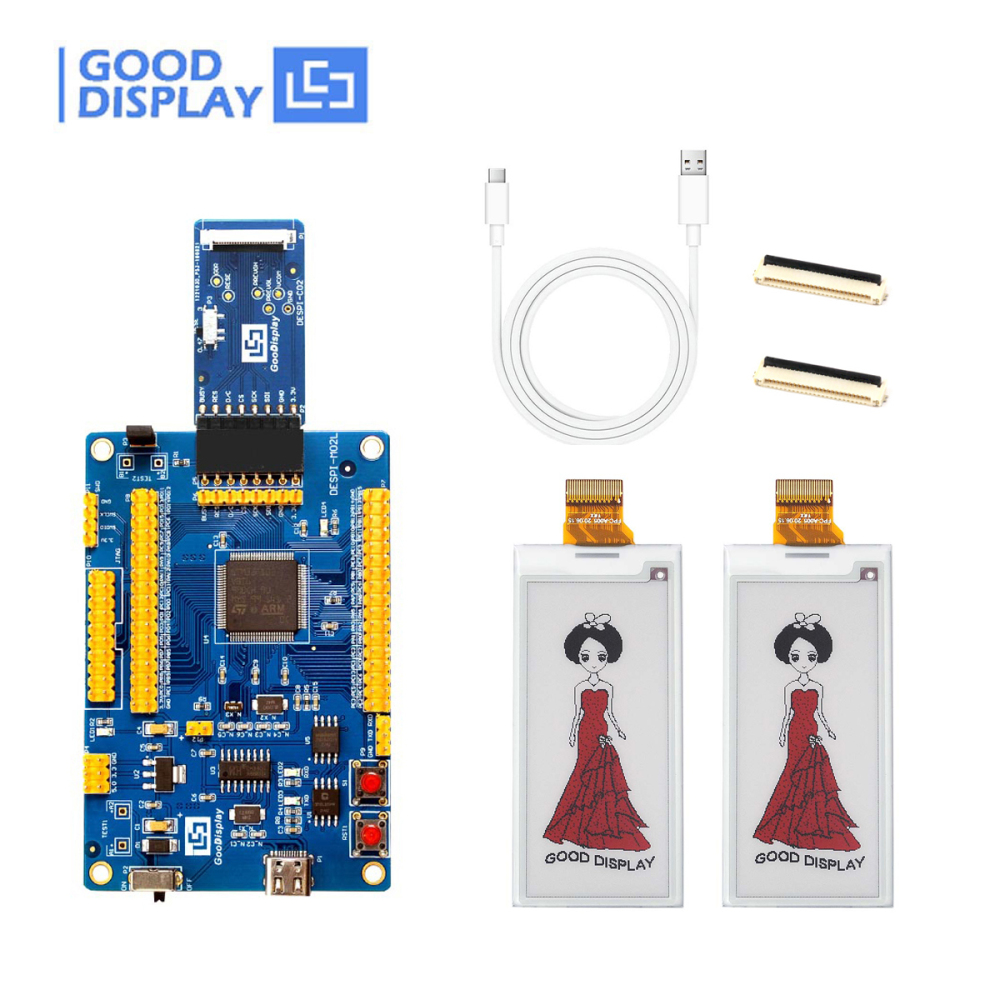

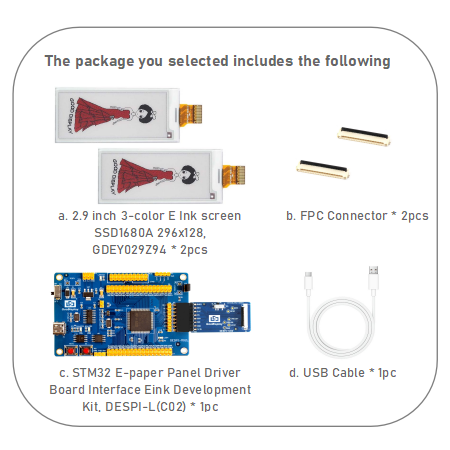

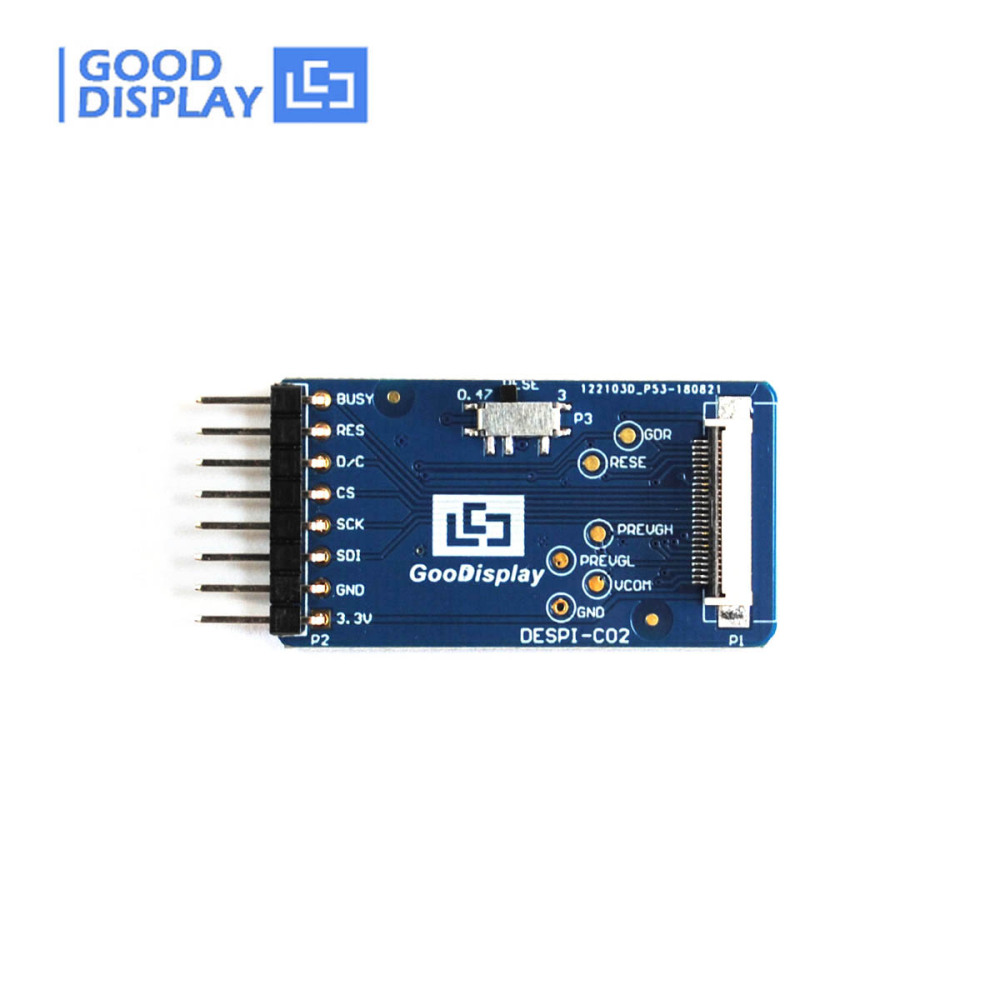

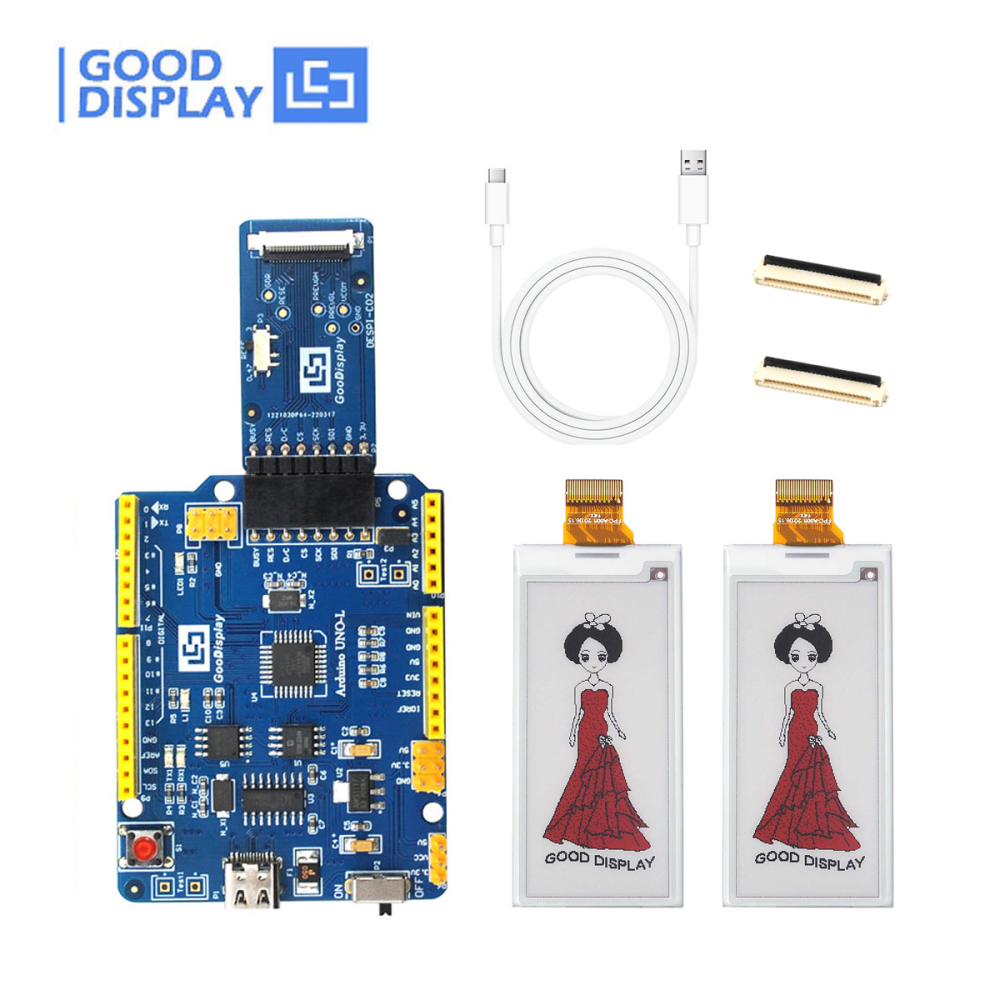

a. DESPI-C02 (E-ink Display adapter Board)	b. DESPI-L(C02) (STM32 Demo Kit)	c. DEArduino-L(C02) (Arduino Platform Demo Kit)

d.ESP8266-L(C02) (ESP8266 Demo Kit)	e.ESP32-L(C02) (ESP32 Demo Kit)

Related Information Download Click on the subheadings below to download

	● GDEY029Z94 Specification	● GDEY029Z94 ESP8266 Sample Code
	● SSD1680A Driver IC Datasheet	● GDEY029Z94 Arduino Sample Code
	● GDEY029Z94 Picture Production and Bitmap Conversion	● The latest Catalog of ePaper display
	● GDEY029Z94 STM32 Sample Code	● Disabling-Pop-Up-Blockers
	● GDEY029Z94 ESP32 Sample Code

WE ALSO SUGGEST
Click the following image to buy


2.9 inch e-paper screen 296x128 customizable 1.5s fast refresh Raspberry pi SPI display, GDEY029T94	2.9 inch fast refresh partial refresh e-ink display with frontlight, GDEY029T94-FL03	2.9 inch fast refresh partial refresh e-ink display with frontlight, GDEY029T94-FL03	2.9 inch Touch & Frontlight ePaper Display, GDEY029T94-FT01

2.9 inch e ink flexible ultra-thin 4 grayscale e-paper display GDEW029I6FD	2.9 inch black white, yellow red four-color Eink screen 296x128 GDEY029F51	2.9 inch e-paper display screen low temperature 296x128, GDEY029D57LT	2.9 inch Black and white partial refresh e-paper display module, GDEM029E97

ABOUT US

Thank you for your interest in our product. We could provide front light, touch screen, and other accessories for you. For more information, please refer to the relevant manual available in our Library or visit our official website at [www.good-display.com].

If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
