☆ INTRODUCTION

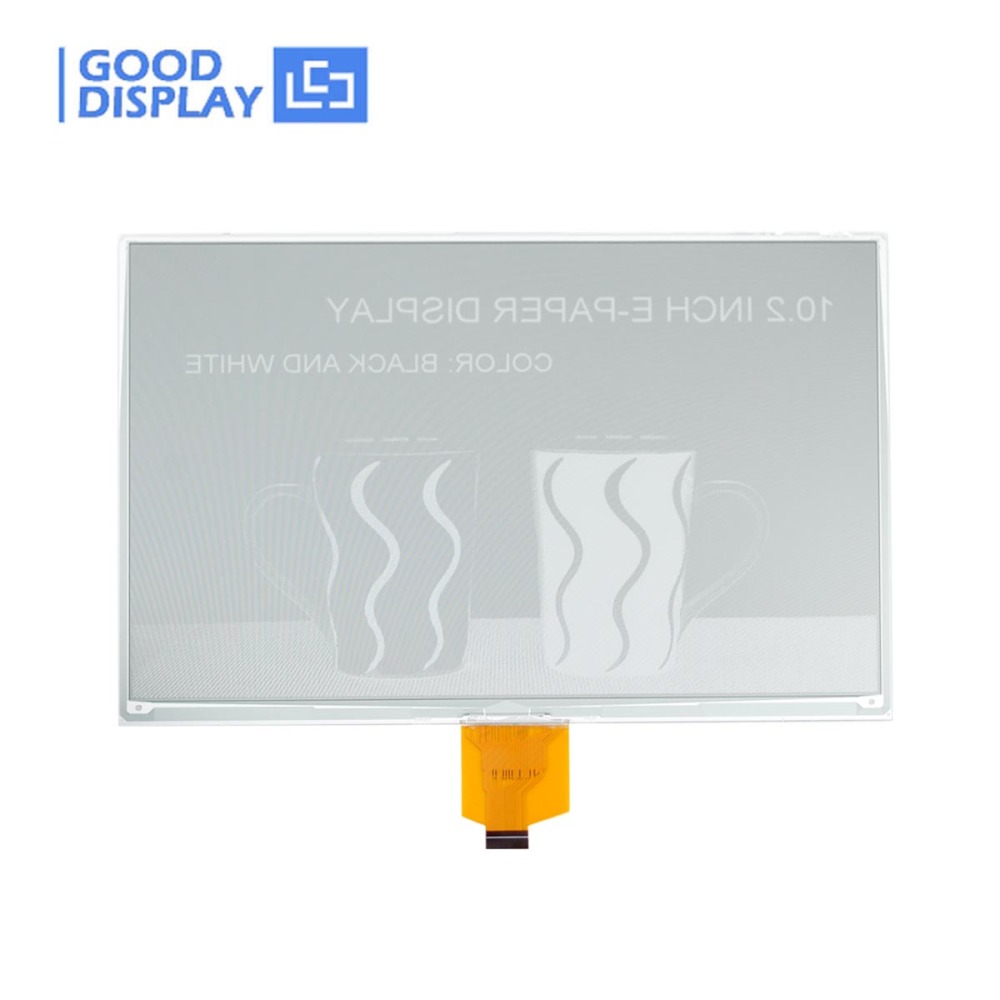

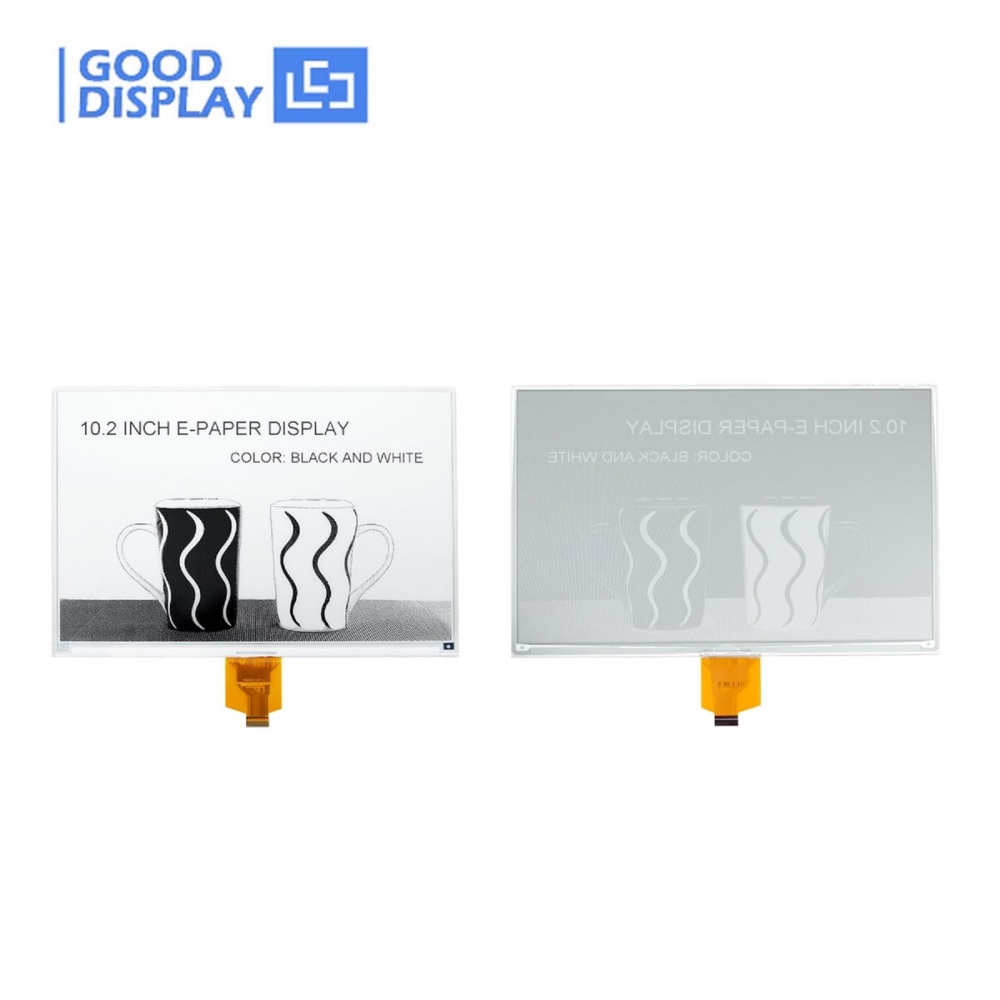

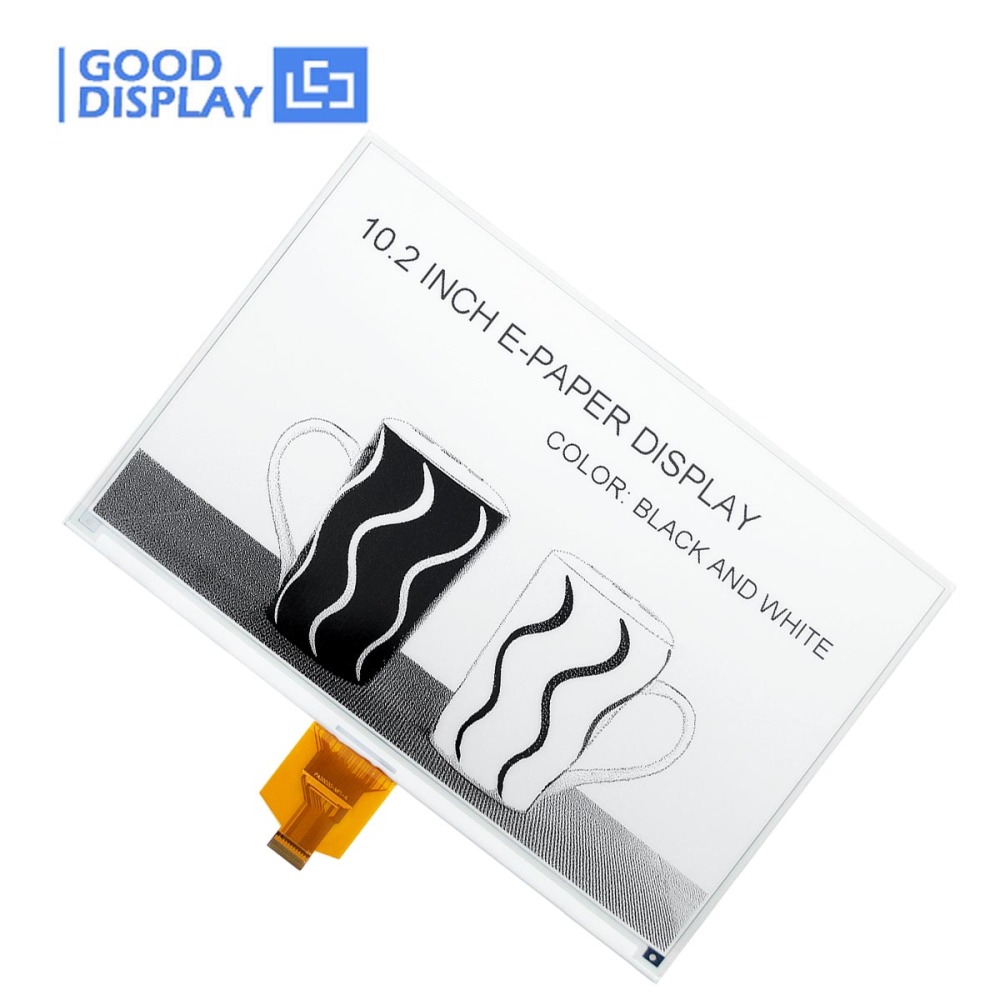

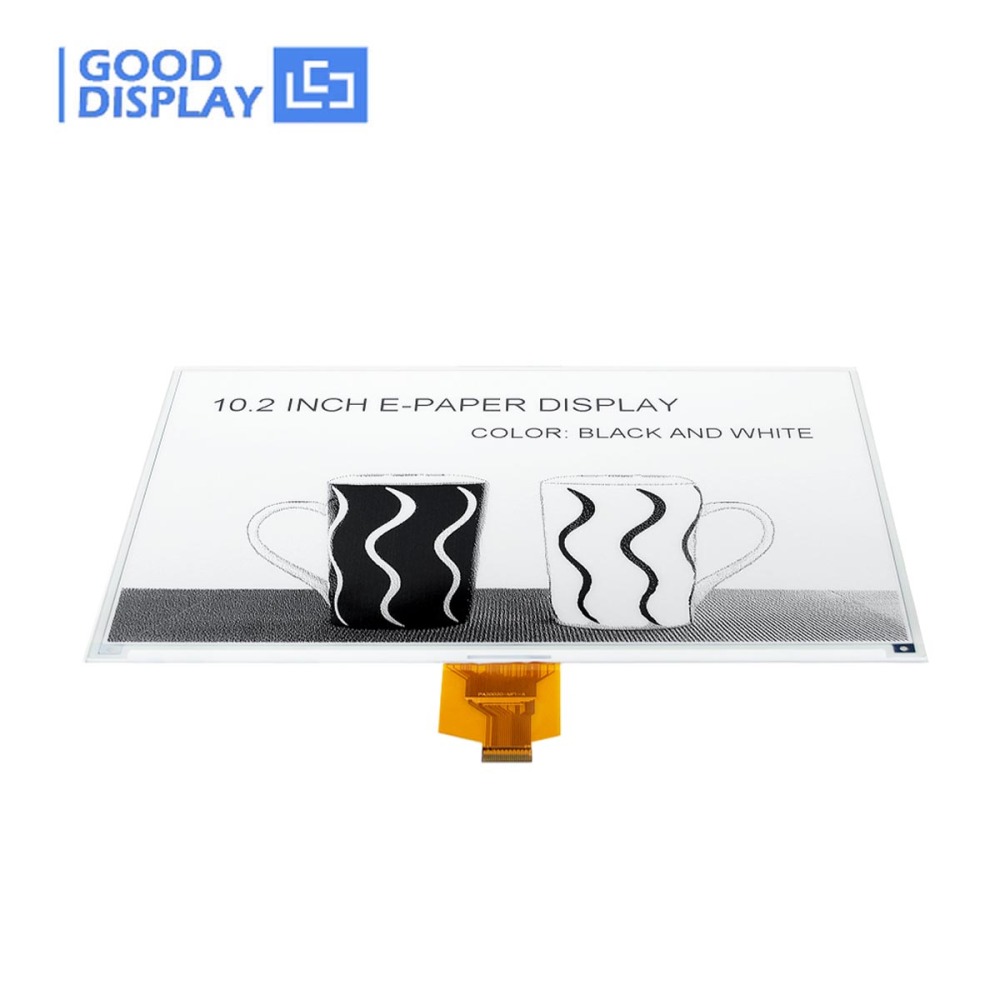

This is a 10.2 inch electronic paper display screen with a resolution of 960x640, 24 pin FPC connection, SPI serial communication, Embedded controller (COG package) and waveforms stored on the chip, supporting black and white display. Supports reading built-in temperature sensors. GDEM102T91 is an excellent choice for shelf labels, smart tags, smart home applications, industrial instruments, smart cards, and other related products.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We also could provide front light, touch screen and other accessories for you.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
☆ FEATURE
● Ultra low power consumption, no refresh and no power consumption
● Continue to display the latest refresh content when power is off
● SPI interface, which can connect to the development board
● I2C signal interface for reading external temperature sensors.
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
☆ THE ABOVE PRICE INCLUDE
1) 10.2 e-ink paper display panel HD e ink display 10 inch big electronic paper * 1pc
2) FPC Connector * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEQ102T90
|
|
|
TYPE
|
Dot Matrix
|
STORAGE TEMP. |
-25℃~60℃ |
|
SIZE
|
10.2 inch
|

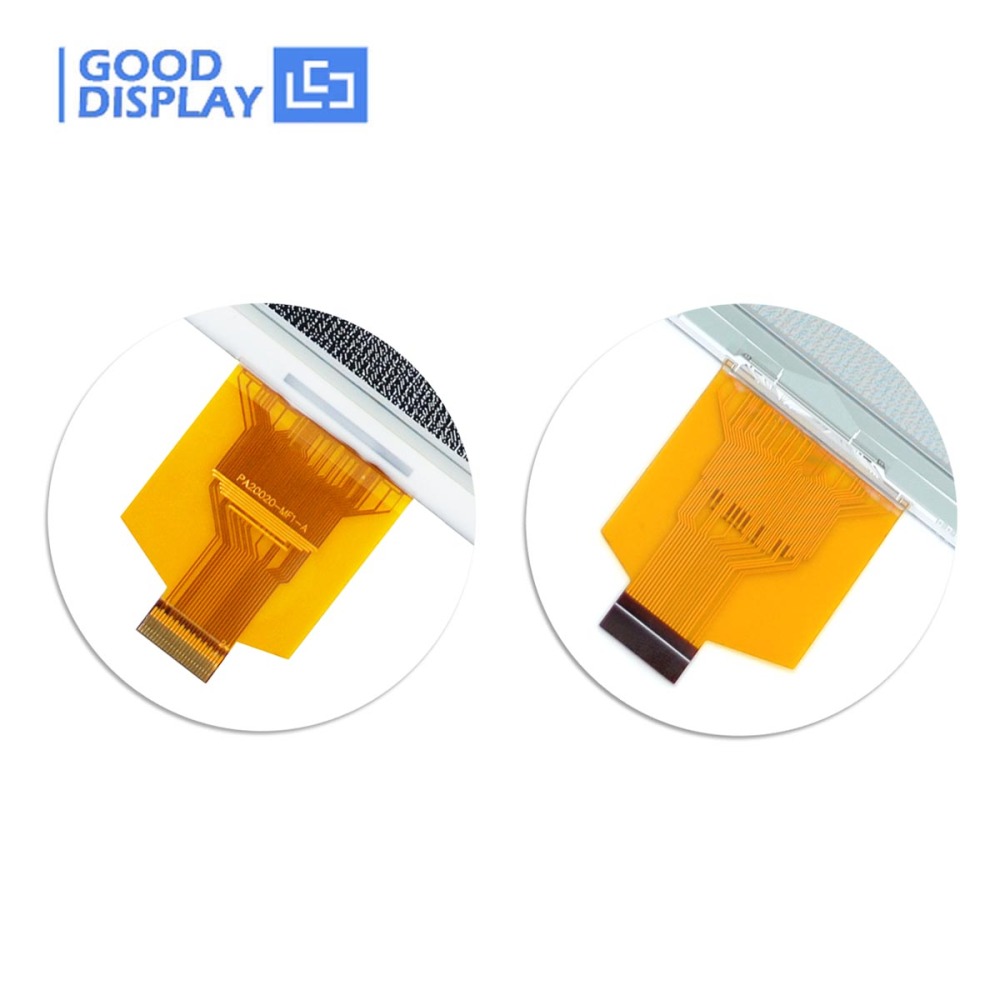

CONNECTOR |
24 Pin FPC |
|
IC
|
SSD1677
|
COLOR |
Black, White |
|
RESOLUTION
|
960x640
|
INTERFACE |
SPI |
|

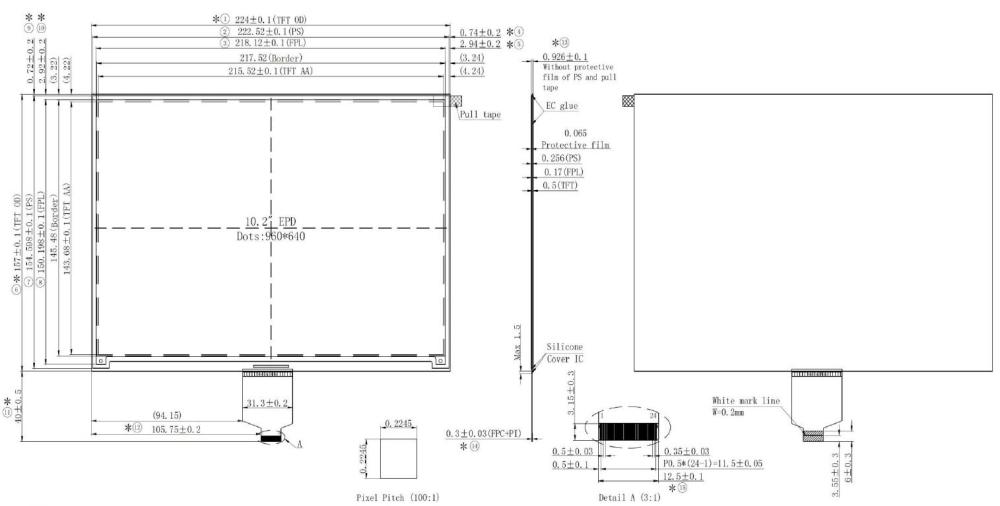

OUTLINE SIZE(mm)
|
224x197x0.912
|
FULL REFRESH(s) |
4 |
|
ACTIVE SIZE(mm)
|
215.52x143.68
|
POWER CONSUMPTION OF THE REFRESH(mW) |
49.5 |
|
PIXEL PITCH(mm)
|
0.2245x0.2245
|
STANDBY POWER CONSUMPTION (mW) |
0.0066 |
|
OPERATING TEMP.
|
0℃~50℃
|
|
|
☆ MATCHED DEVELOPMENT KIT
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP8266-L(C02) (WiFi)
● ESP32-L(C02) (WiFi / Bluetooth)
● DESPI-C03 (Rasberry Pi Epaper HAT)
