Arduino E-paper Driving Board Type-C Interface EPD Module with Raspberry Pi HAT, DEArduino-L(C03)

DEArduino-L(C03) evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display.
Sold:1
Price:
USD
$27.99
Wholesale:
1-9
$27.99
10-29
$27.33
30+
$26.59
Quantity:
-
+
(104 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Library
  • Selection Guide
  • Reviews



☆ INTRODUCTION



Arduino is a simple I/O platform based on open raw code, using languages similar to Java and C. The Arduino language functions some of the parameter settings so that users don't need to know the underlying code.

This evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It supports driving Good Display's SPI e-paper display. And it is added the functions of USB serial port and LED indicator light, Reset button, font chip, Flash chip and etc. What’s more, DESPI-C03 can drive touch panel and front light panel.

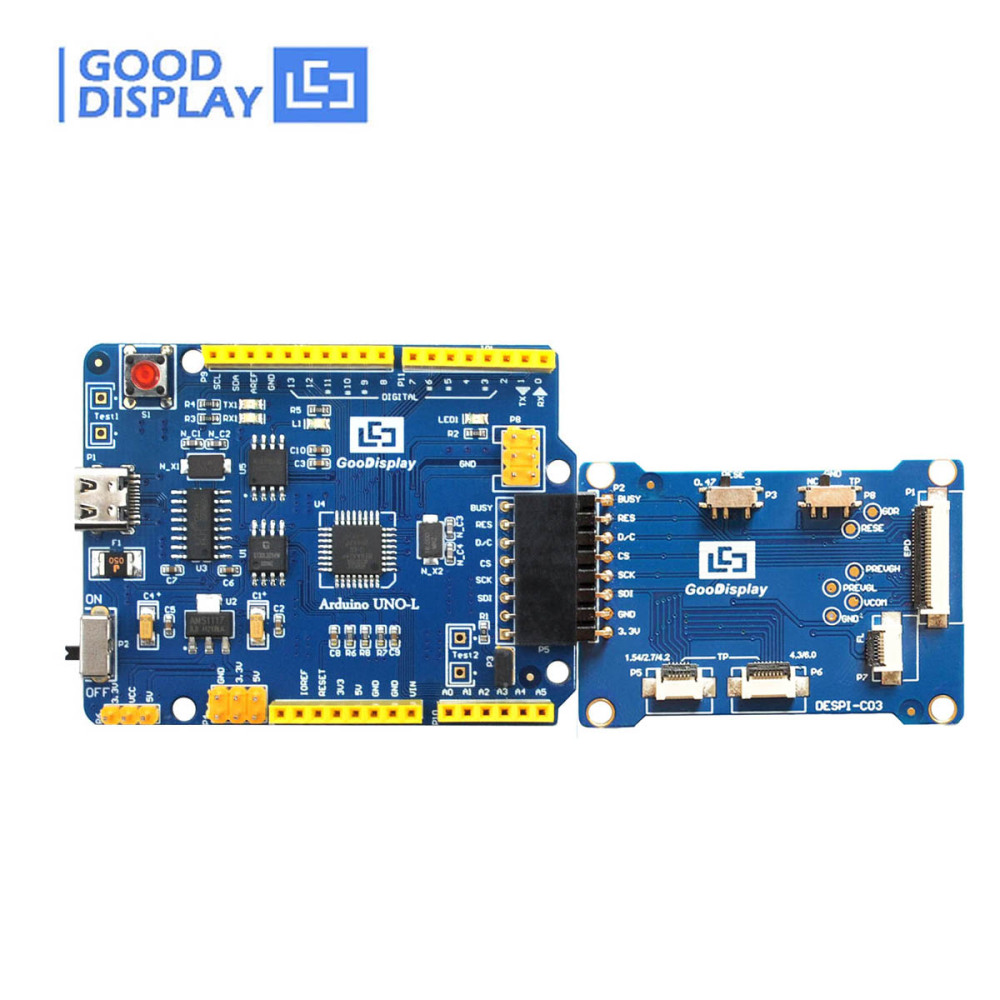

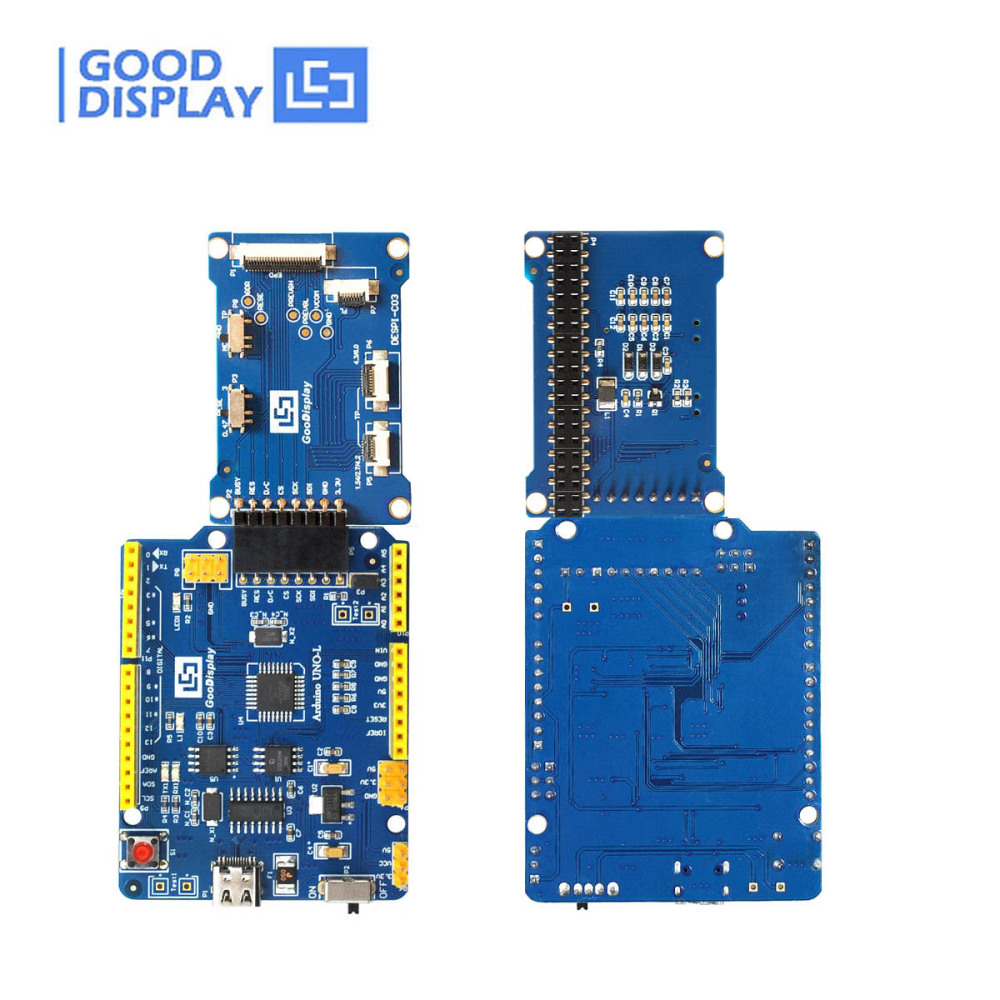

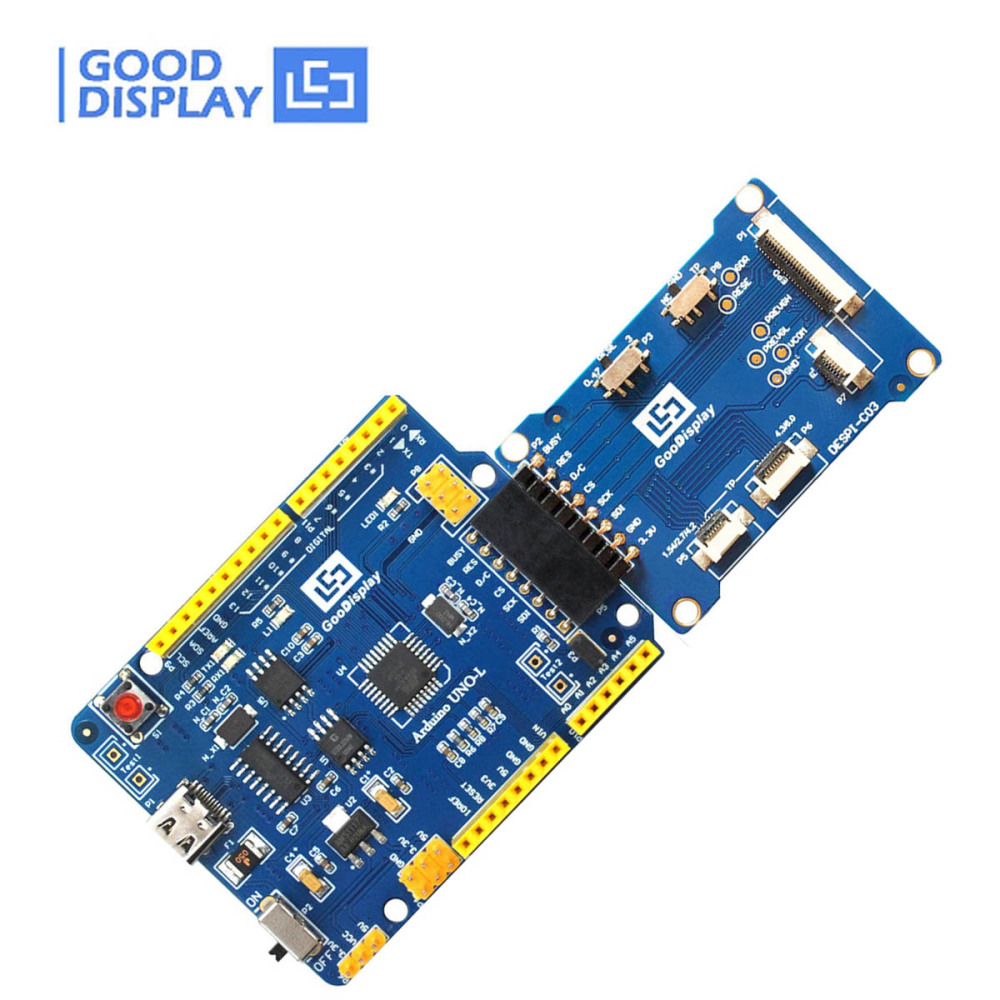

DEArduino（C03） development kit consists of motherboard Arduino UNO for EPD and connector board DESPI-C03.

Relevant manual about this product on our official website (www.good-display.com), contact us please.





☆ THE ABOVE PRICE INCLUDE

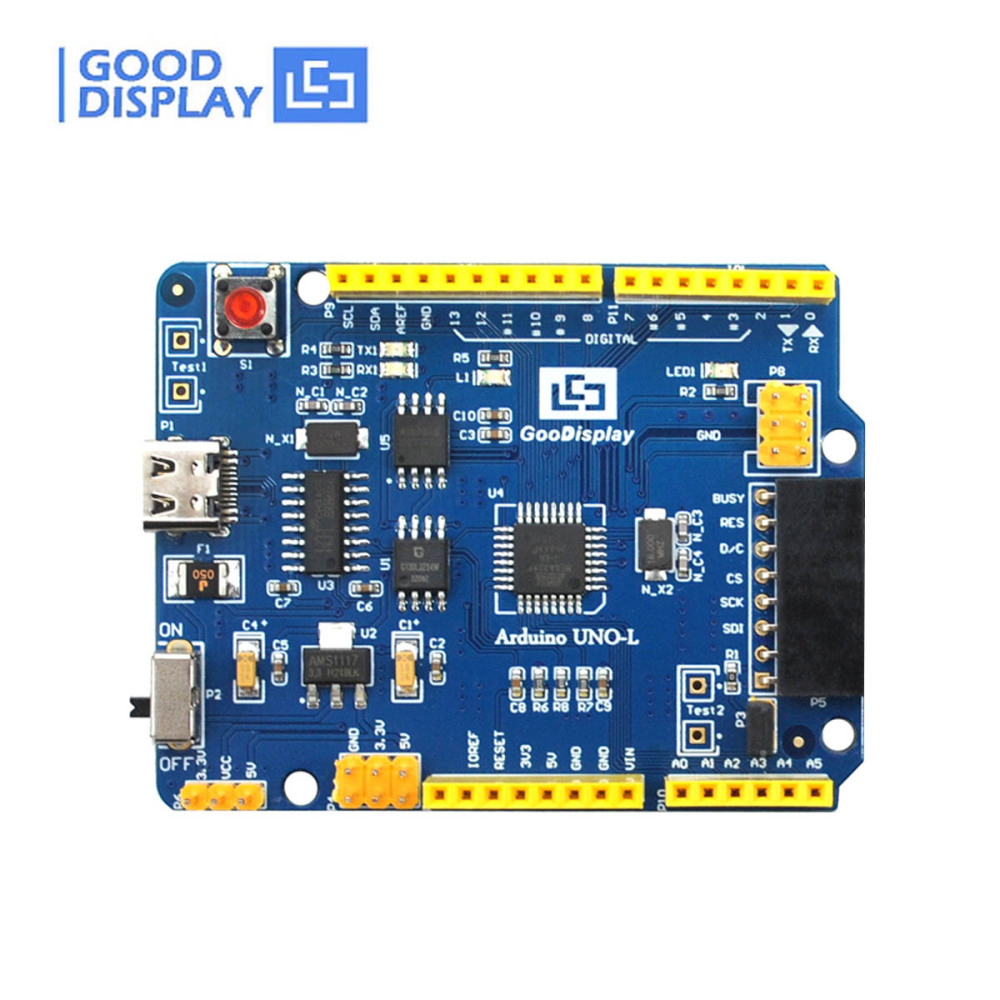

1)  Driving board for EPD Arduino UNO-L * 1pc
2)  Connector board DESPI-C03* 1pc
3)  USB port cable* 1pc






☆ DETAILS



☆ MAIN PARAMETERS



PARAMETER

DEArduino-L(C03)


PLATFORM Arduino MAIN FUNCTION

1. Learn to drive E-Paper Display based on Arduino.

2. Test and evaluate E-Paper Display.

3. Secondary secondary development
4. Drive E-paper Display's Frontlight and Touch Panel

FUNCTION

Drive E-paper Display

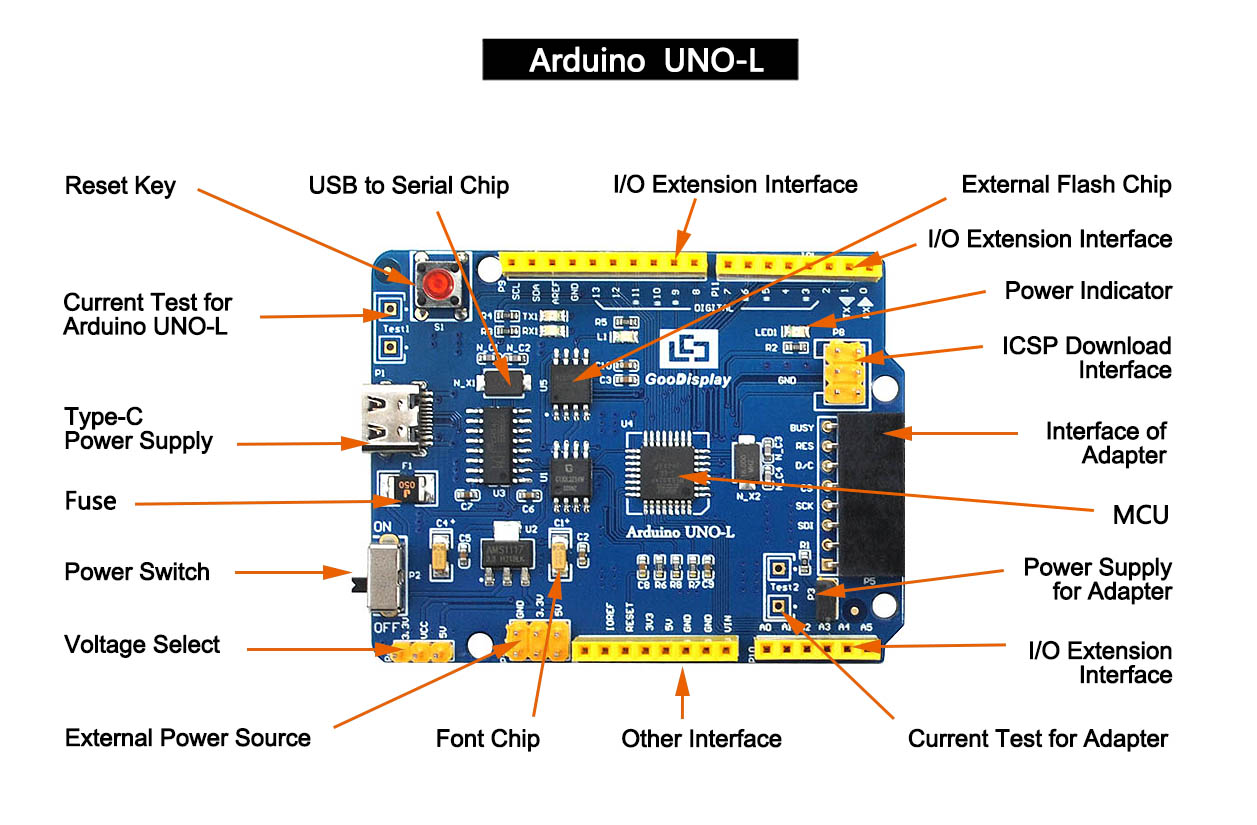

 ADDITIONAL FUNCTION Type-C, LED indicatro, Reset button, Font chip, Flash chip, Current detection

OUTSIDE DIMENSION (mm)

70x54mm(Arduino UNO-L)

52x36mm (DESPI-C03)

 OPERATING TEMP. -20℃~70℃

POWER INTERFACE

Type-C

 EXAMPLE CODE Available







☆ ABOUT US


Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com




☆ SPECIFICATION DOWNLOAD



1. Relevant information of DEArduino-L(C03)
①  DEArduino-L(C03) Specification
②  DEArduino-L UNO for EPD-SCH
③  DESPI-C03 Specification
④  DESPI-C03-SCH




PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √ √ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -20℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃ √   SPI
GDEW0154M09 1.54'' BW 2 200x200 27.6x27.6 0.82 0℃~50℃ √   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -20℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √ √ SPI
GDEM0213B74 2.13'' BW 4 250x122 48.55x23.7 3 0℃~50℃     SPI
GDEM0213U23 2.13'' BWR 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEM0213D23 2.13'' BW 2 250x122 23.67x48.50 - 0℃~25℃     SPI
GDEW0213V7LT 2.13'' BW 2 212x104 48.55x23.71 3 -25℃~10℃ √   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃ √   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃ √   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃ √   SPI
GDEM029E97 2.9'' BW 2 296x128 66.9x29.06 3 0℃~50℃     SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEM029T94 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √   SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃ √   SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -20℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √ √ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √   SPI
GDEH037Z01 3.71'' BWR 2 416x240 81.54x47.04 16 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
