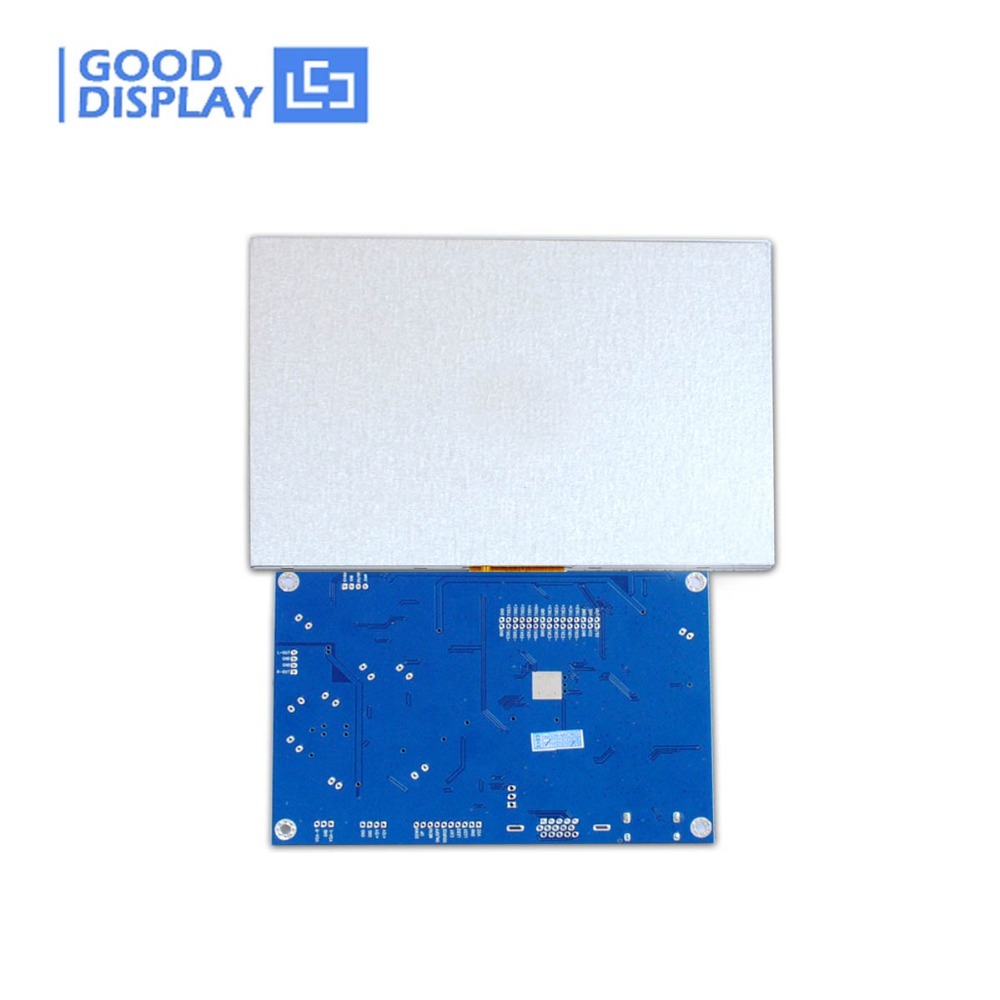

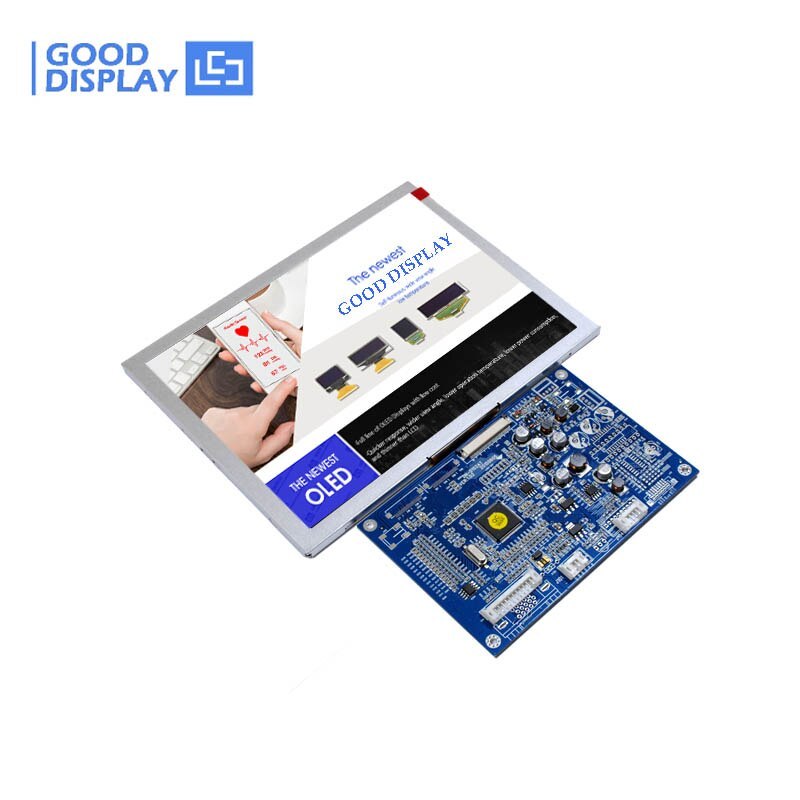

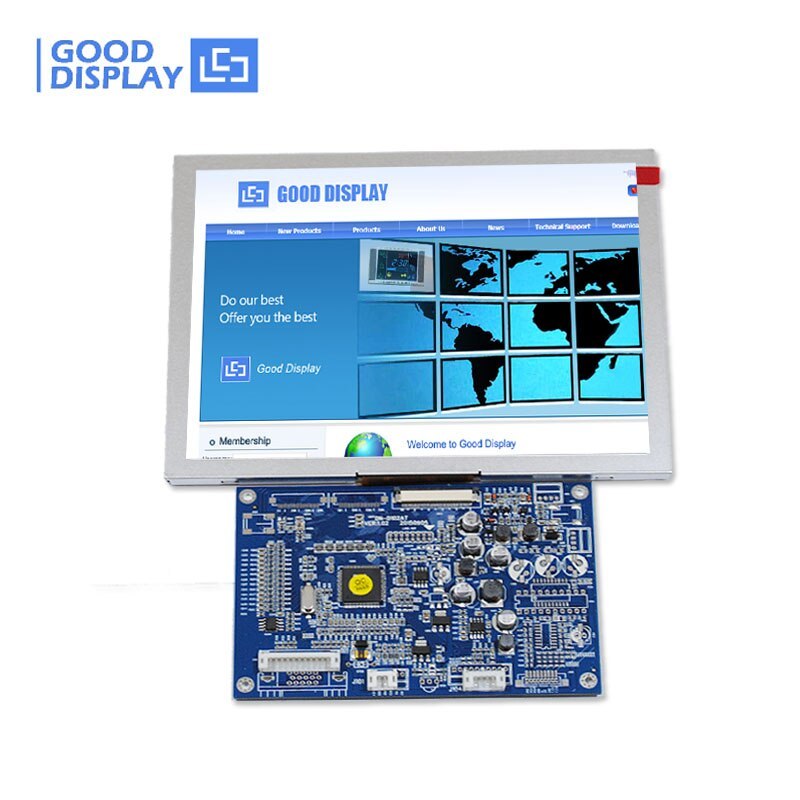

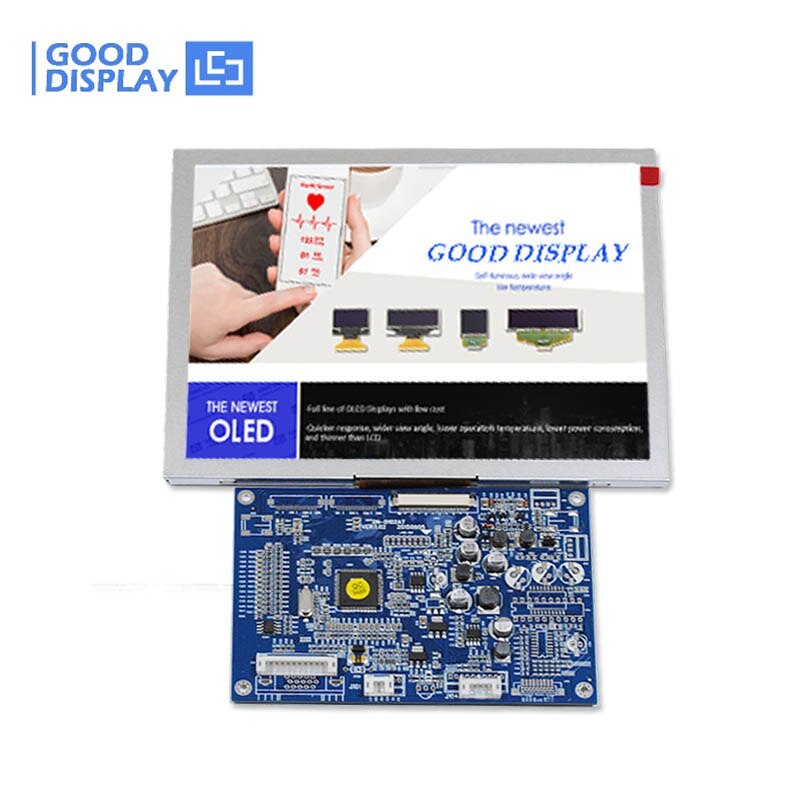

☆ INTRODUCTION
8.0 inch, 800x600 dots, color TFT-LCD module display with video & VGA driver board, it can be used in any embedded systems, cars, industrial device, security and hand-held equipment which require display in high quality and colorful video.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ FEATURE
● 800x600 resolutio
● Video&VGA driver board
● Viewing Angle 50°/70°/70°/70°（L/R/U/D）
● Operating temperature -10℃~60℃
● Optional touch screen
● Optional 8.0 inch 4-wire resistive touch panel with USB driver board and cable
● Optional capacitive touch panel with USB controller board and cable
☆ THE ABOVE PRICE INCLUDE

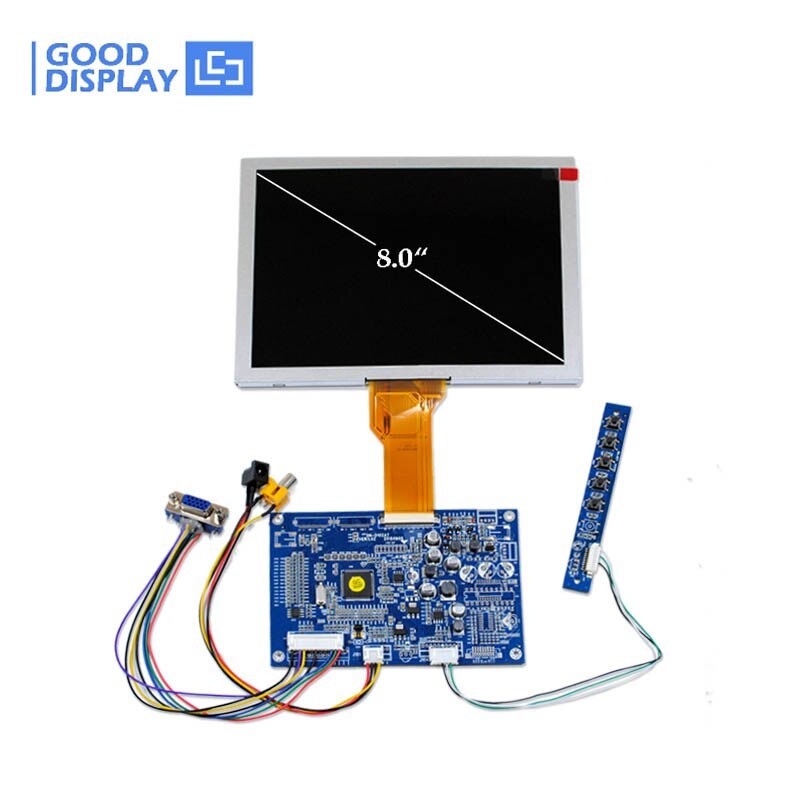

1) 8'' 800x600 TFT LCD Panel *1pc
2) DC12V power input AD Board with VGA interface *1pc
3) Cable with VGA terminal *1pc
4) Cable with Keypad terminal *1pc
5) Cable with Power input terminal *1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDN-D102AT-GTI080NA
|
|
SIZE
|
8.0’’(4:3)
|
|
RESOLUTION
|
800X600
|
|
BRIGHTNESS
|
250cd/m2
|
|
WORKING VOLTAGE
|
DC12V(Typ.) (Min.9V, Max.15V)
|
|
VIEWING ANGLE
|
50/70/70/70°
|
|
CONTRAST RATIO
|
500
|
|
SIGNAL INPUT
|
VGA
|
|
OUTSIDE DIMENSION OF LCD PANEL(mm)
|
183.0( W)x141.0( H)x5.6(D)
|
|
ACTIVE AREA OF LCD PANEL(mm)
|
162.0(W)x121.5(H)
|
|
STRUCTURAL DIMENSION OF PCBA(mm)
|
128.8(W)x85.4(H)x16.0(D)
|
|
BACKLIGHT
|
LED
|
|
OPERATING TEMP.
|
-10C~+60C
|
|
STORAGE TEMP.
|
-20C~+70C
|
☆ PRECAUTIONS
1. TFT have used by special instrument to adjust precision and aging, test before leave factory, no need adjust again.
2. Please correctly connect power, video signal before you adjust, should be on/off power and video signal to check the image’s effect.
3. Due to this product is electronic product, please notice prevent static.
4. The TFT-LCD Panel is a glasswork, place carefully ,broken for fear.
5. Don’t touch pushbutton’s pin feet when you adjust potentiometers, due to person have resistance, you will effect pushbutton’s function when touch it.
