5.83 inch 3-color three colors yellow e-paper display eink screen module GDEW0583C64 with HAT connection board

GDEW0583C64+DESPI-C02

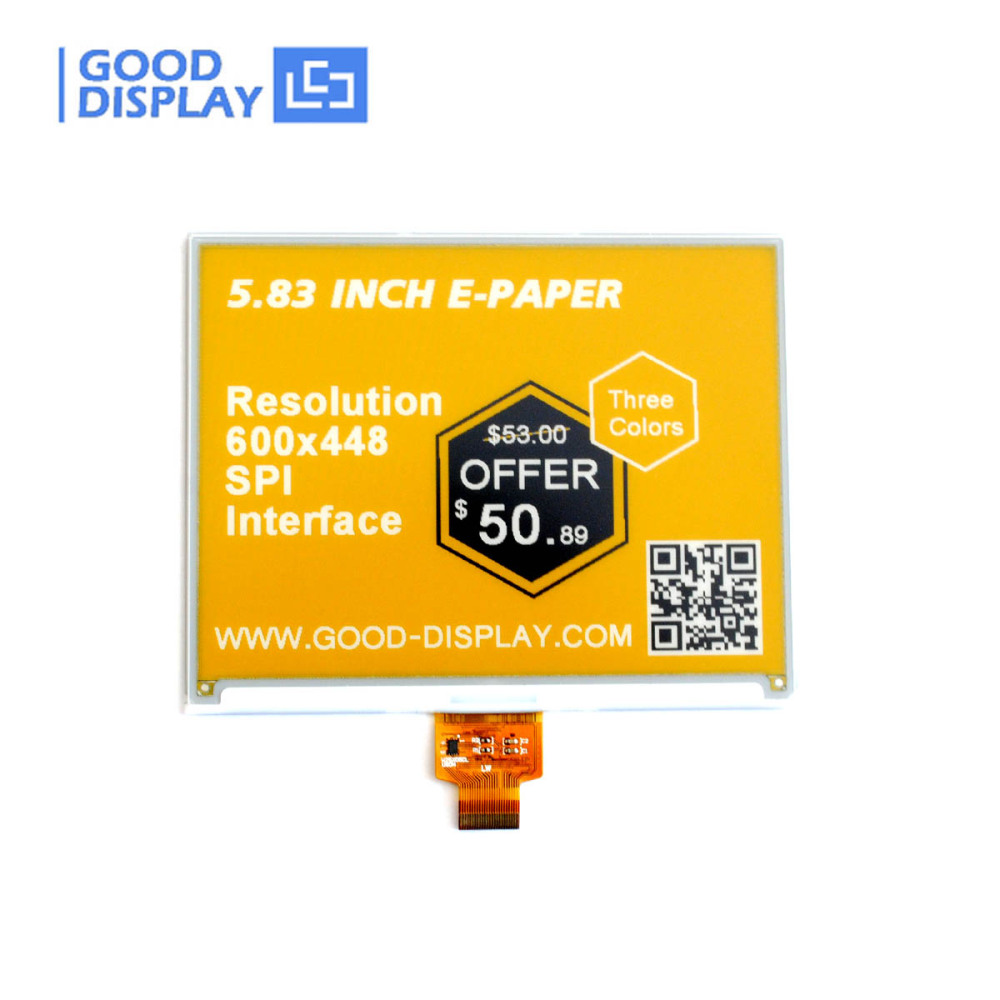

This is an E ink E paper display panel, 5.83 inch, 600x448 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, supports black, white and yellow. With HAT connection board.
Sold:1
Price:
USD
$46.99
Quantity:
-
+
(19 available)
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews

Any questions, please feel free to contact me, my email is: clara@good-display.com

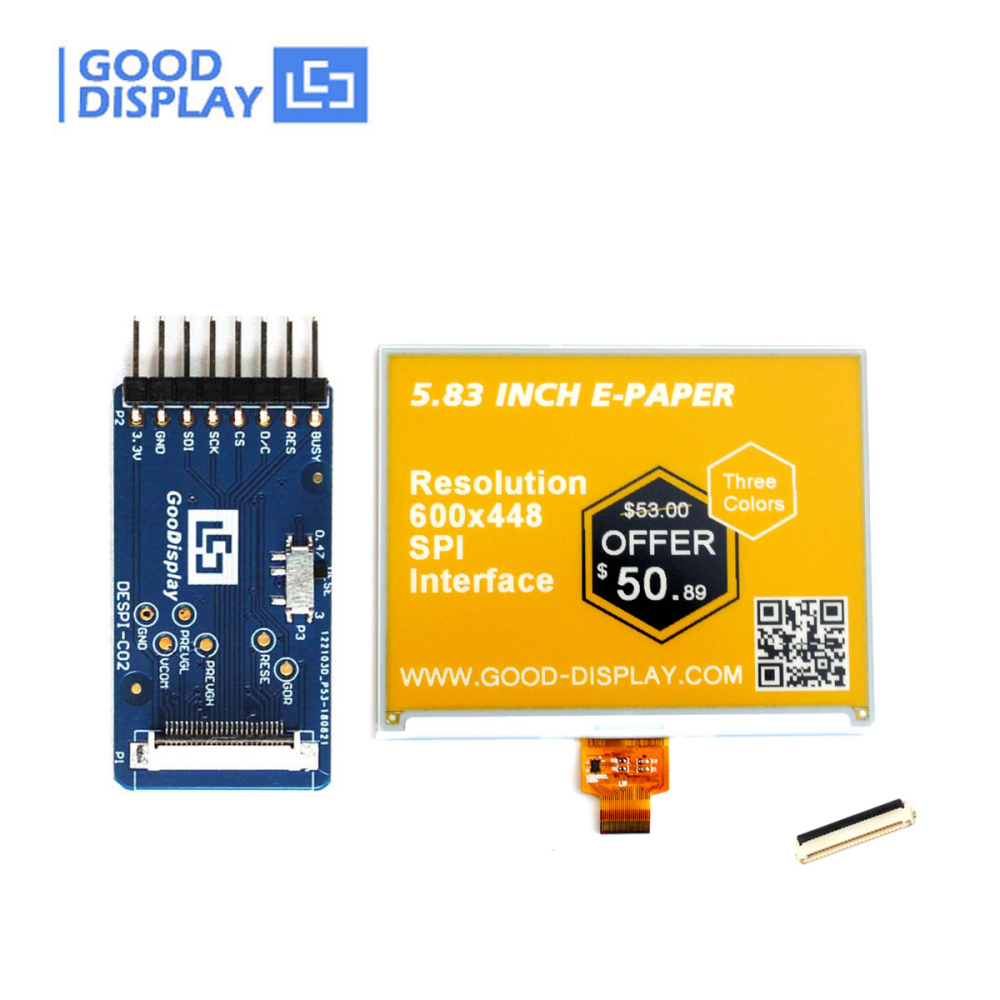

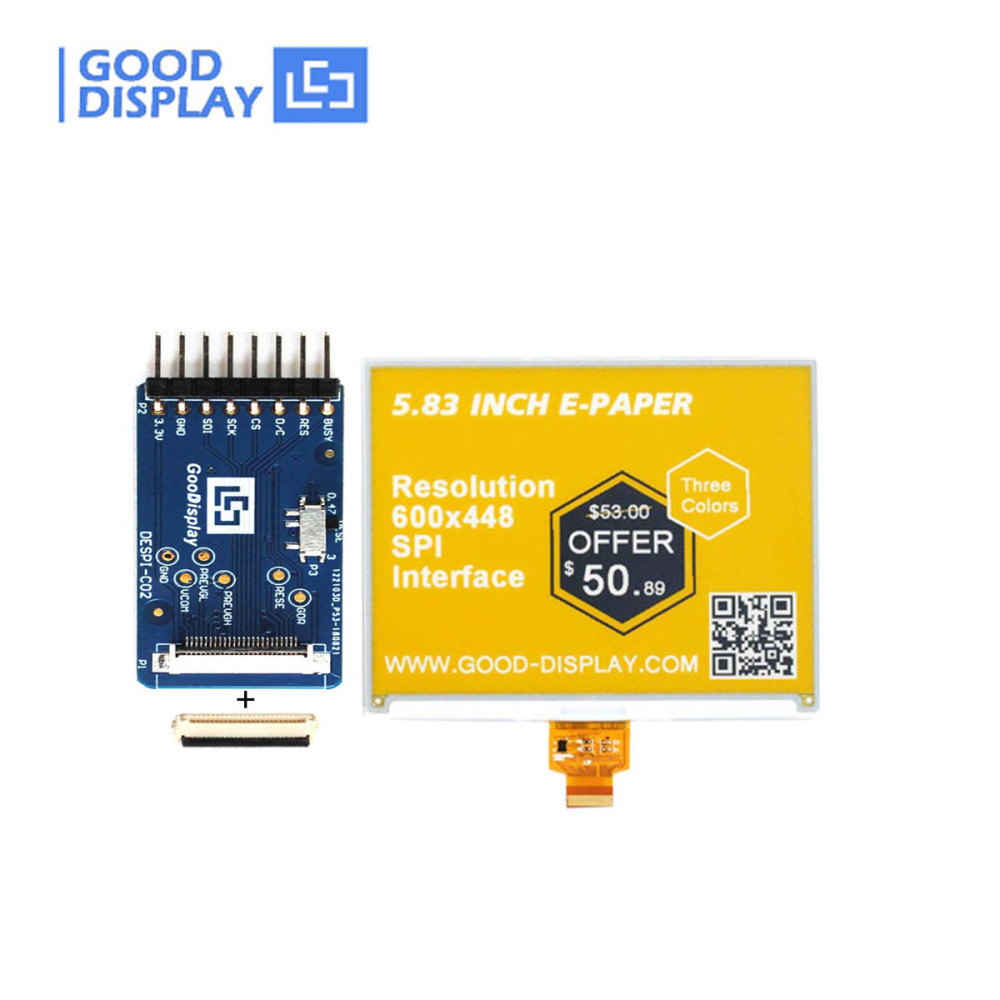

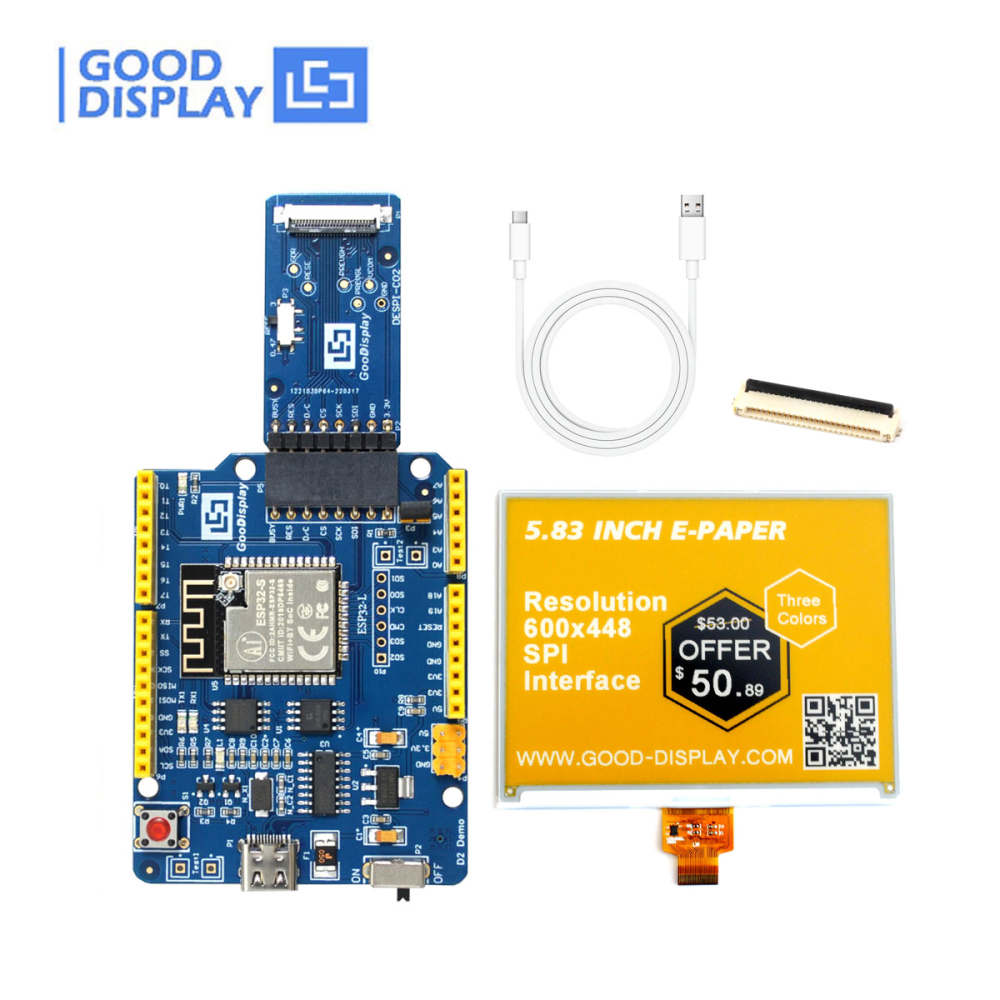

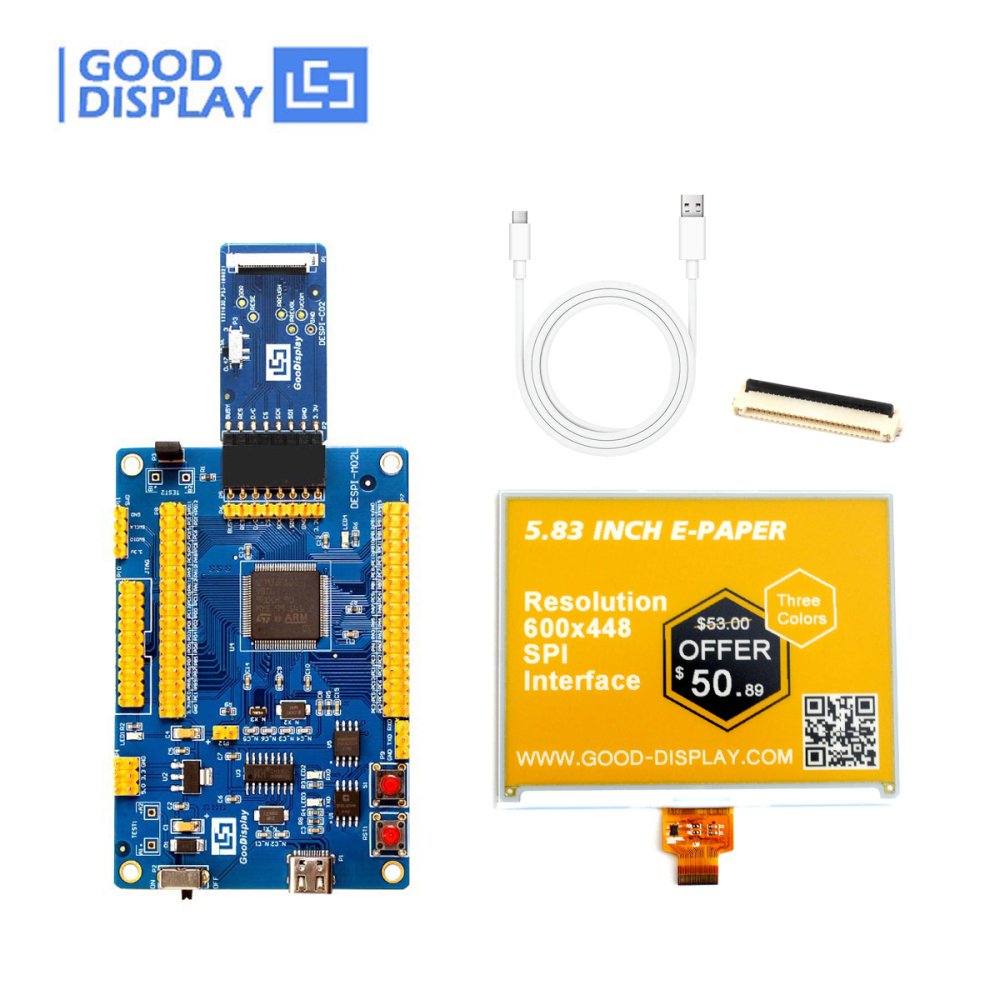

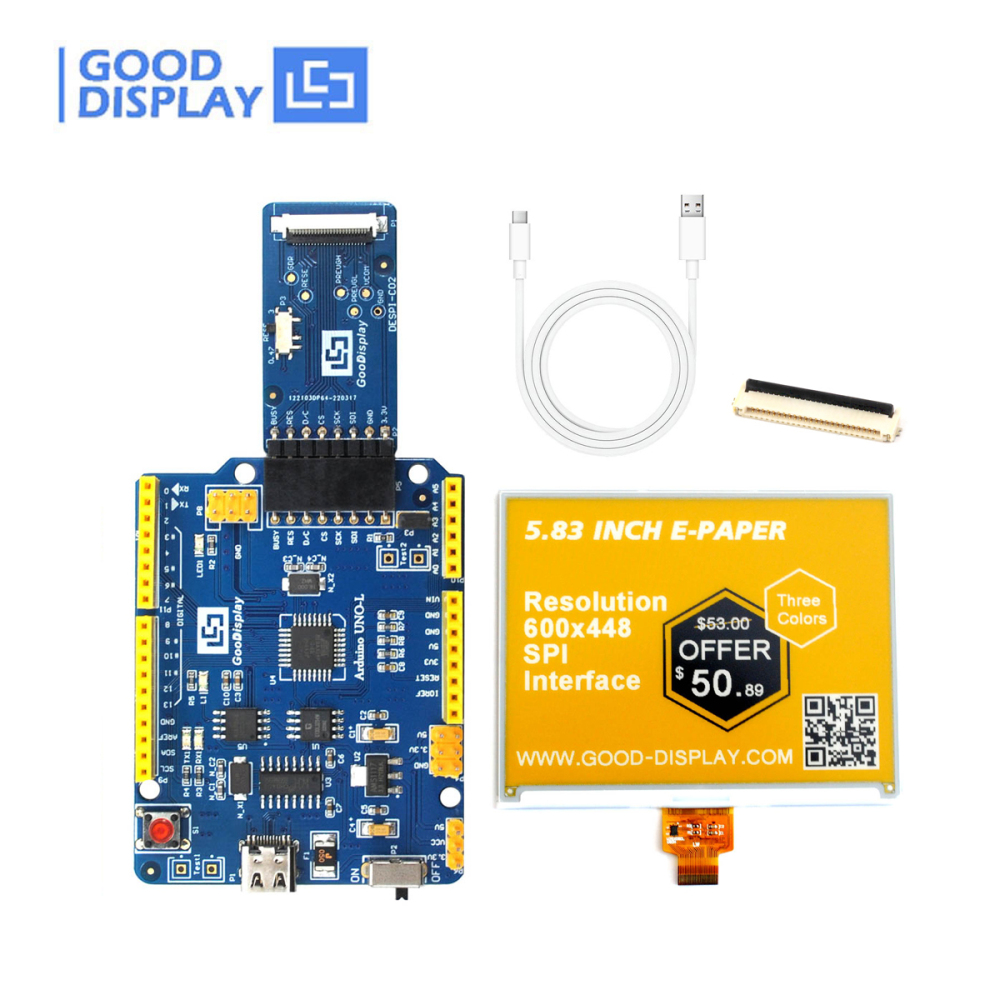

This is a set of demo kit with a 5.83 inch 600x448 color e-ink e-paper display panel and a connection board DESPI-C02 which aims to help users to learn how to use the e-paper display easier. It communicates via SPI interface and IC driver. The IC Driver is UC8159.

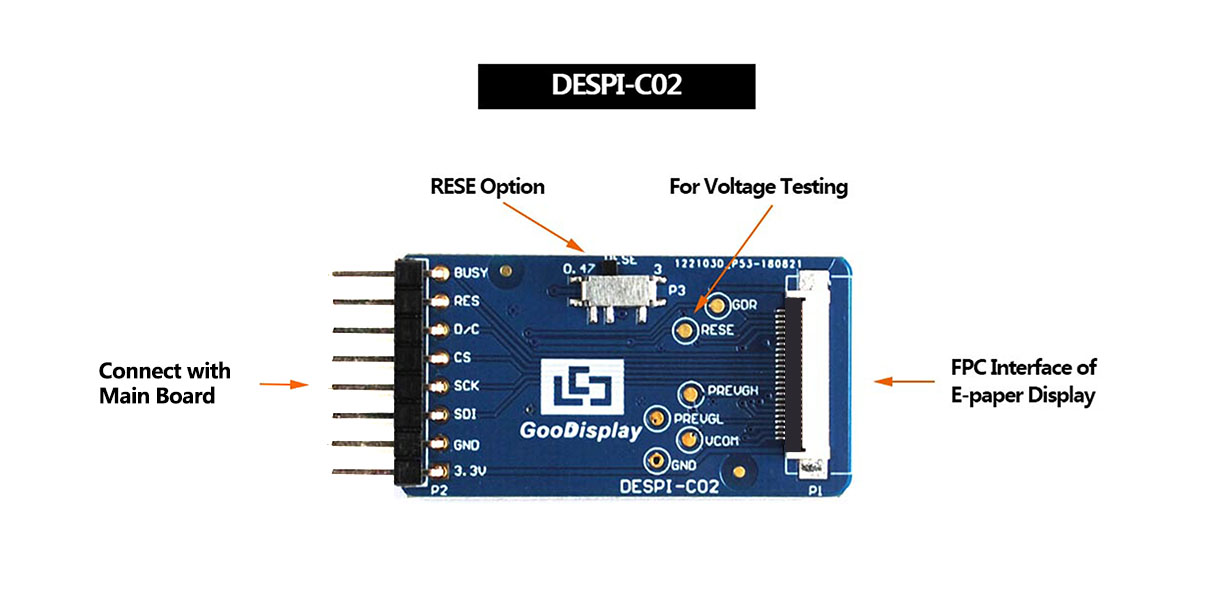

This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) : 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''.


· Three colors, black, white and yellow
· 600x448 resolution
· The I2C signal master interface to read built-in temperature sensor.

· Comes with helpful development resources and manual (STM32 platform )
· Development platform available
STM32 / Arduino Raspberry Pi / ESP8266/ ESP32

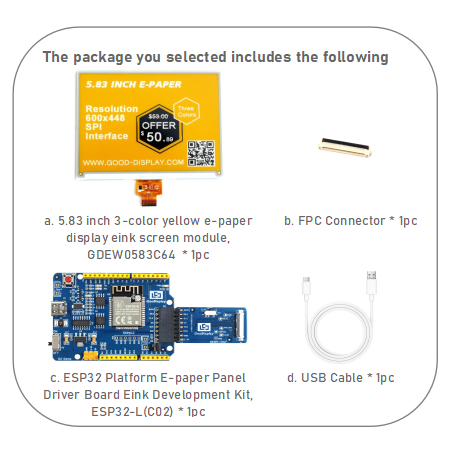

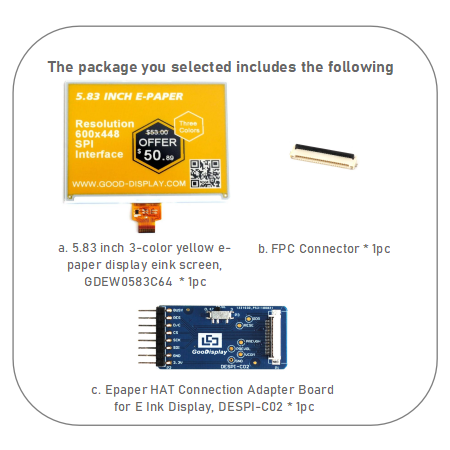

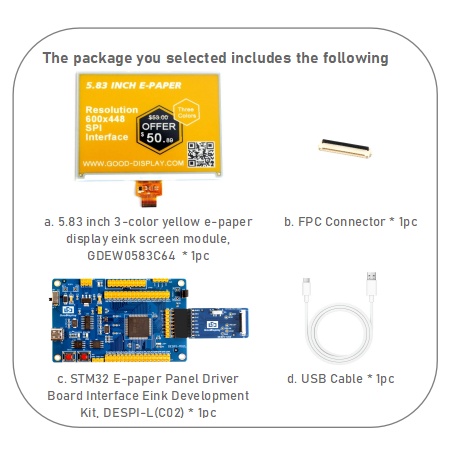

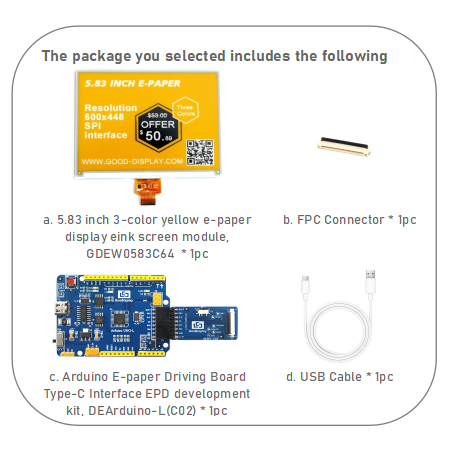

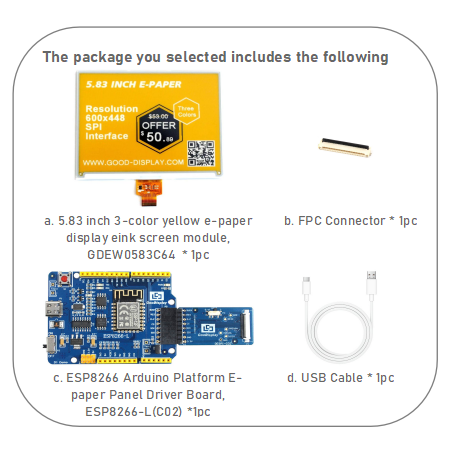

1. Color 5.83 inch 600x448 low power consumption e-paper display GDEW0583C64*1pc
2. Matched FPC Connector*1pc
3. Connector board DESPI-C02 *1pc
4. Helpful resources and manual(sent via email or download link) *1pc

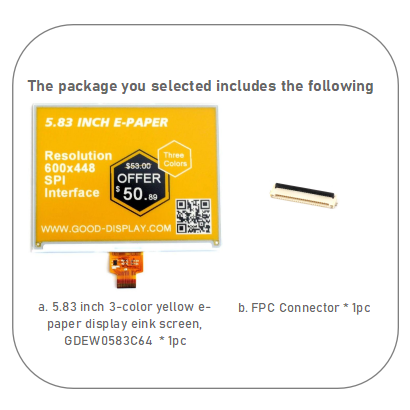

If you only want to buy this e-paper display, click here:
https://buy-lcd.com/products/583-inch-3-color-eaper-display

Part Number

GDEW0583C64

Type

Dot Matrix

IC  UC8159

Resolution

600*448

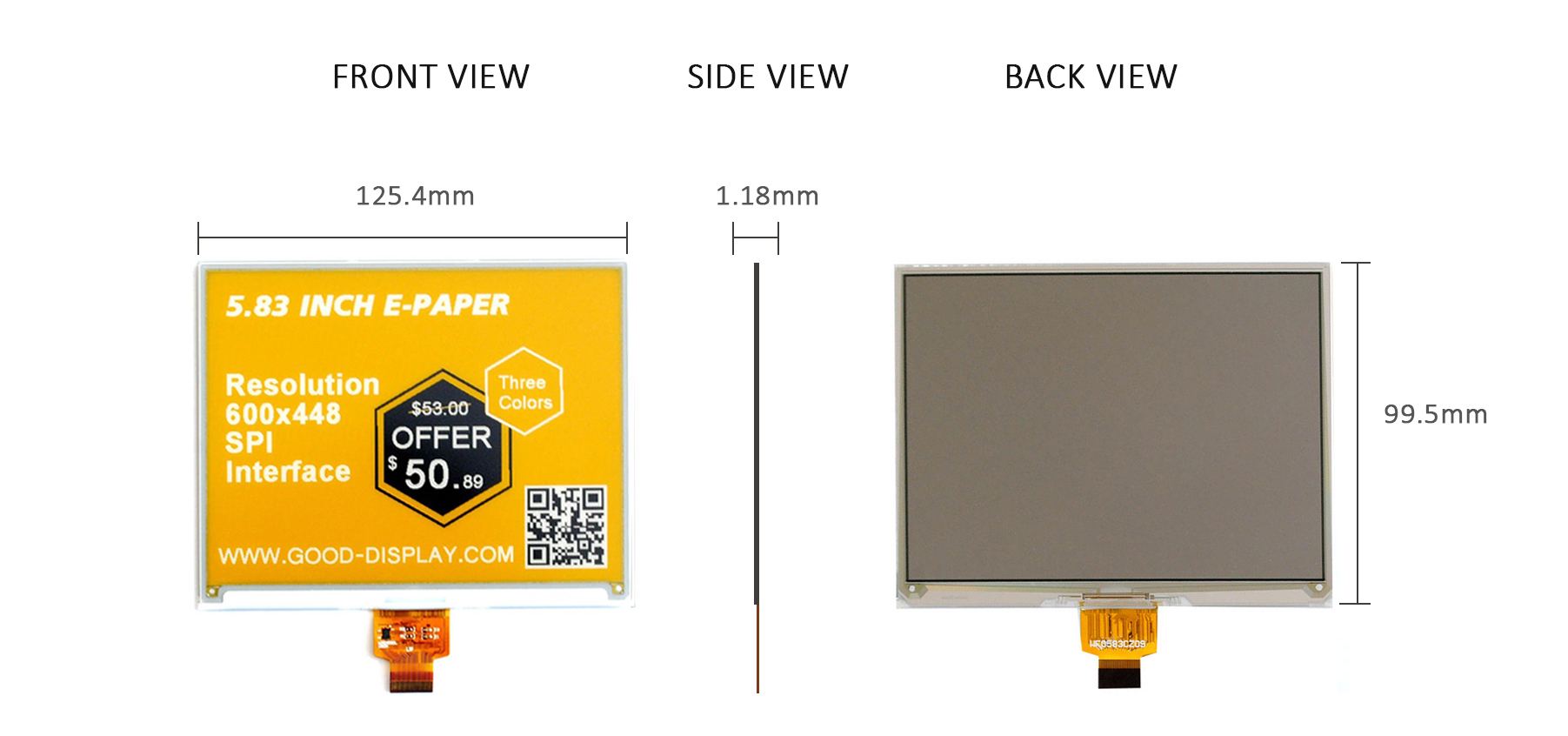

Outline Size(mm)

125.40*99.50*1.18

Active Size(mm)

118.80*88.26

Pixel Pitch(mm)

0.198*0.197

Operating Temp.

0~40C

Storage Temp.

-25~60C

Max Grayscale

2

Color

Black, White, Yellow

Interface

SPI

Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 25

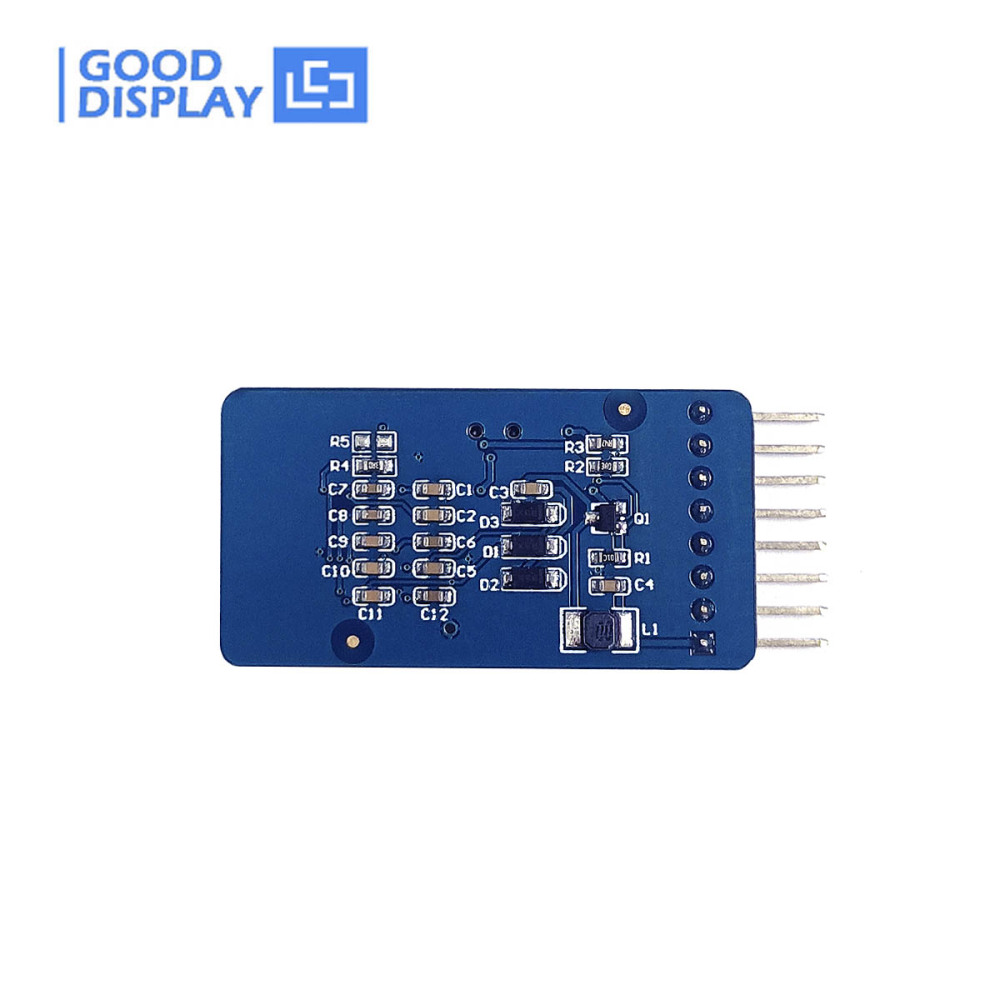

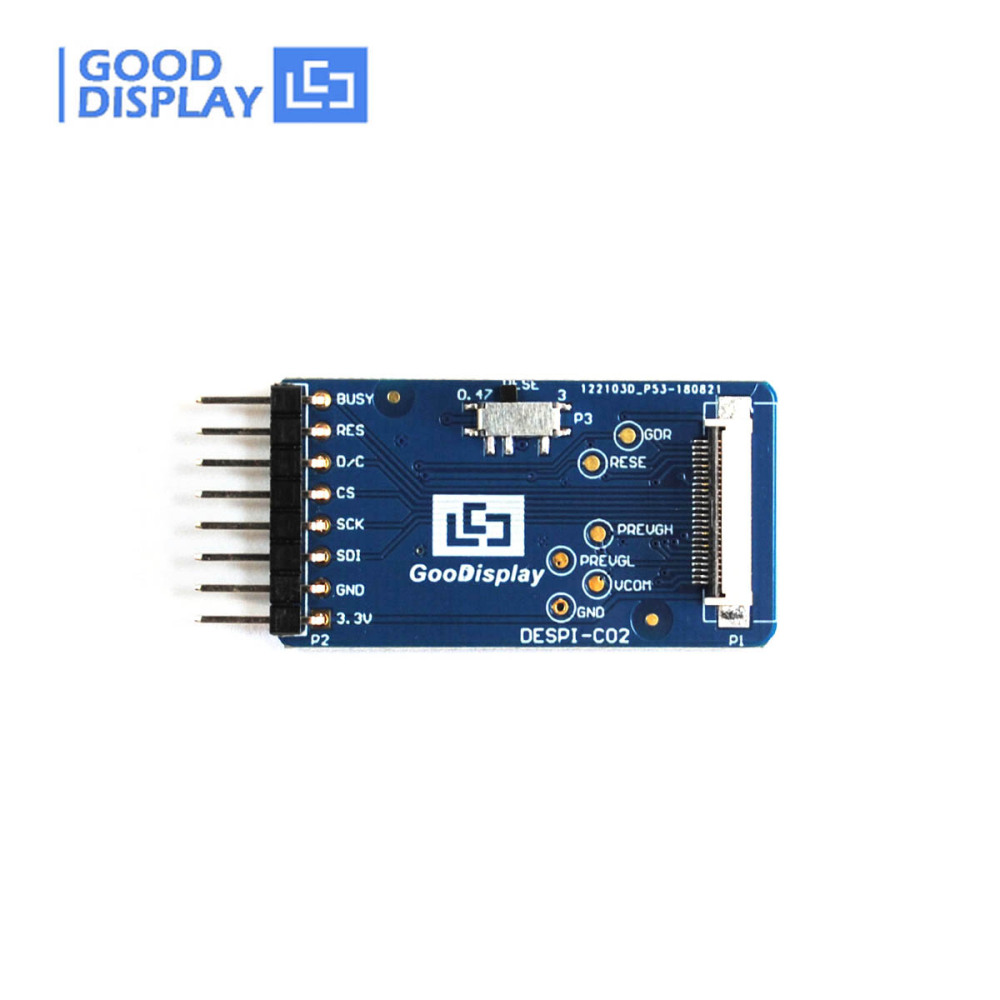

Part Number

DESPI-C02

Platform

STM32

Function

Connection E-paper Display with DESPI-M02

Outside Dimension

41x22mm

Interface

SPI

Power Input

DC3.3V

Feature

Fully and Partial refresh

Operating Temp

-20~70℃




Part Number

Color

Features

Refresh Time T/P(optional)     Front-Light
(optional)

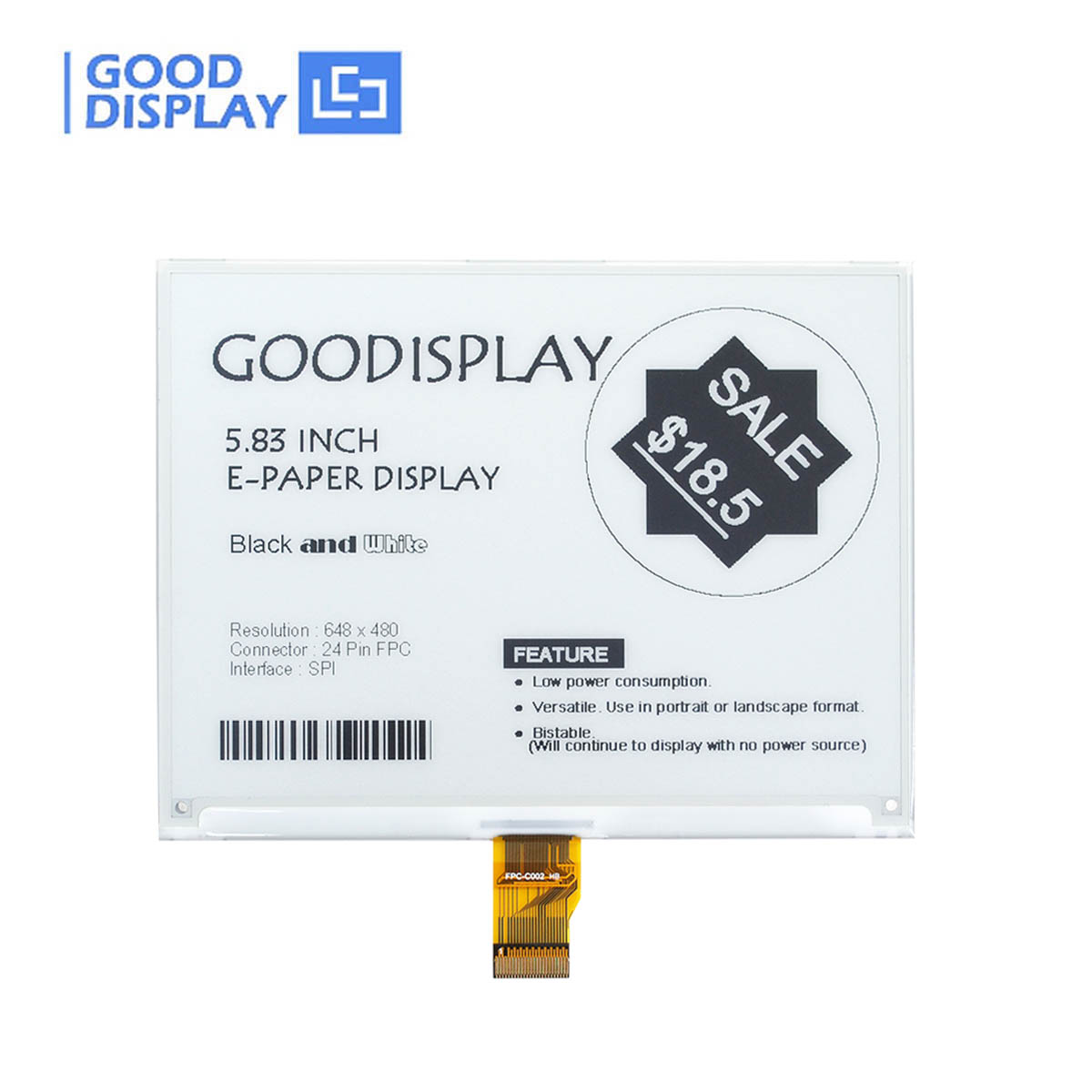

GDEW0583T7

B/W

SPI interface

3S --

--

GDEW0583Z21

B/W/R

Three colors

15S --

--

GDEW0583Z83 B/W/R Three colors,high resolution 12S -- --

GDEW0583C64

B/W/Y

Three colors

25S --

--




UTB8OqyuEyDEXKJk43Oqq6Az3XXaU     27.78USD

https://zh-tw.buyepaper.com/e-paper-display-development-kit-with-spi-interface-and-micro-usb-interface-p0031-p0031.html



https://www.e-paper-display.com/products_detail/productId=388.html
