☆ INTRODUCTION

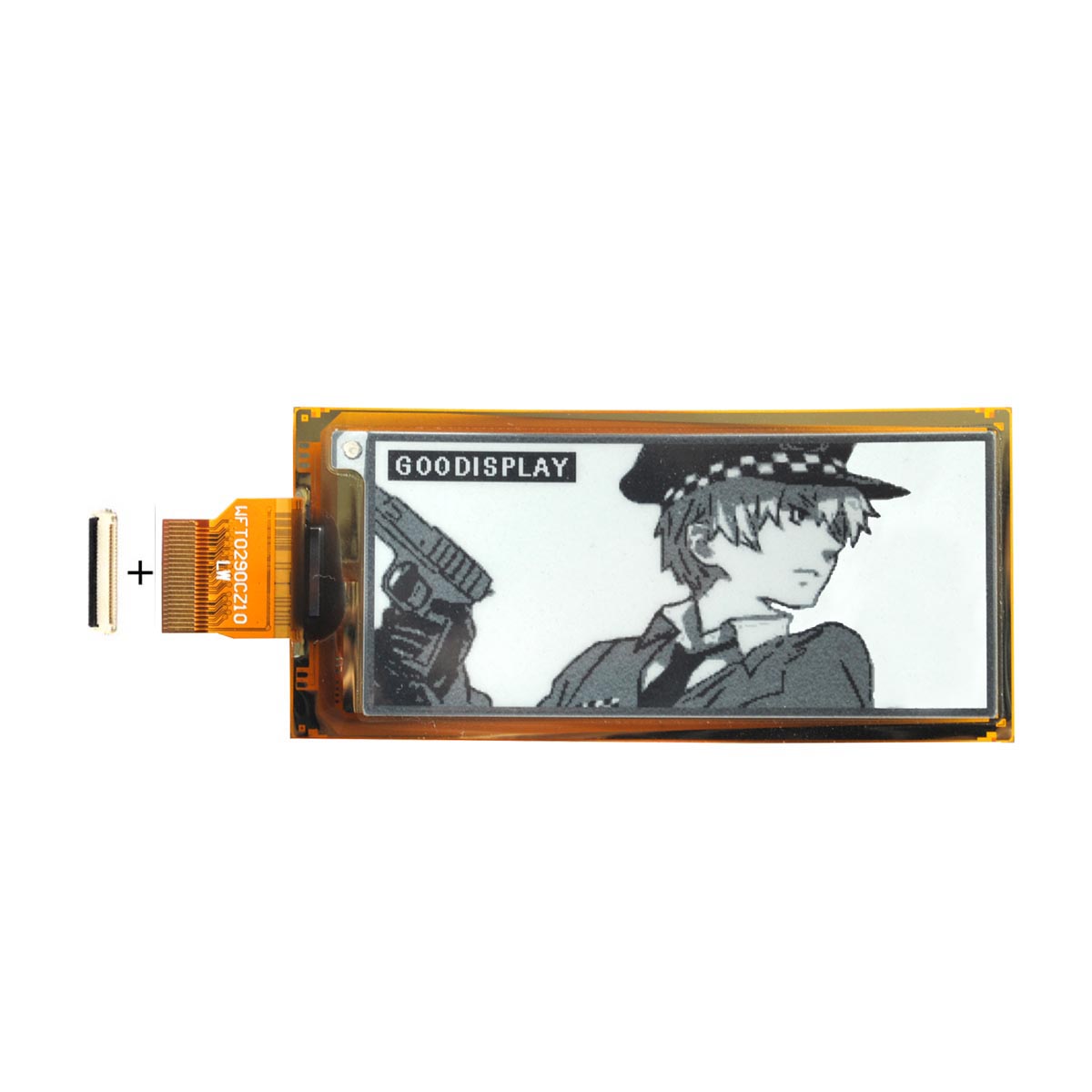

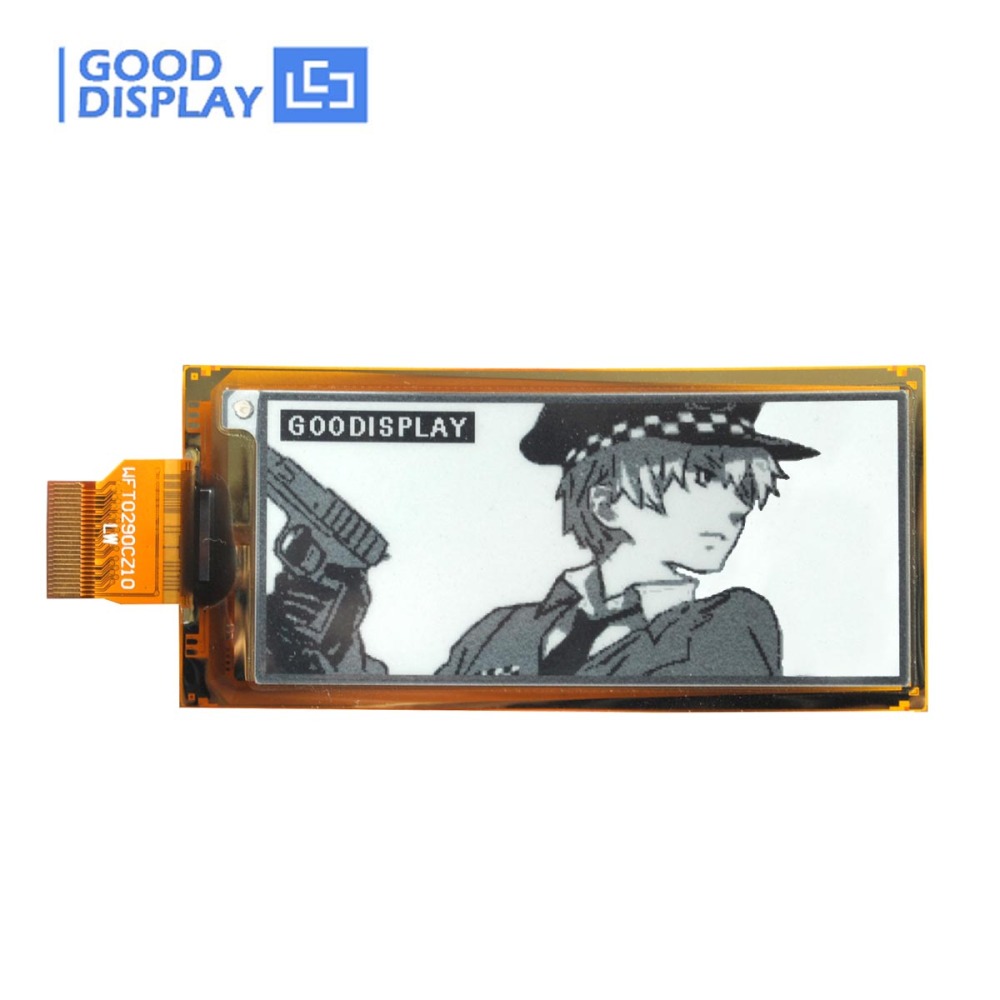

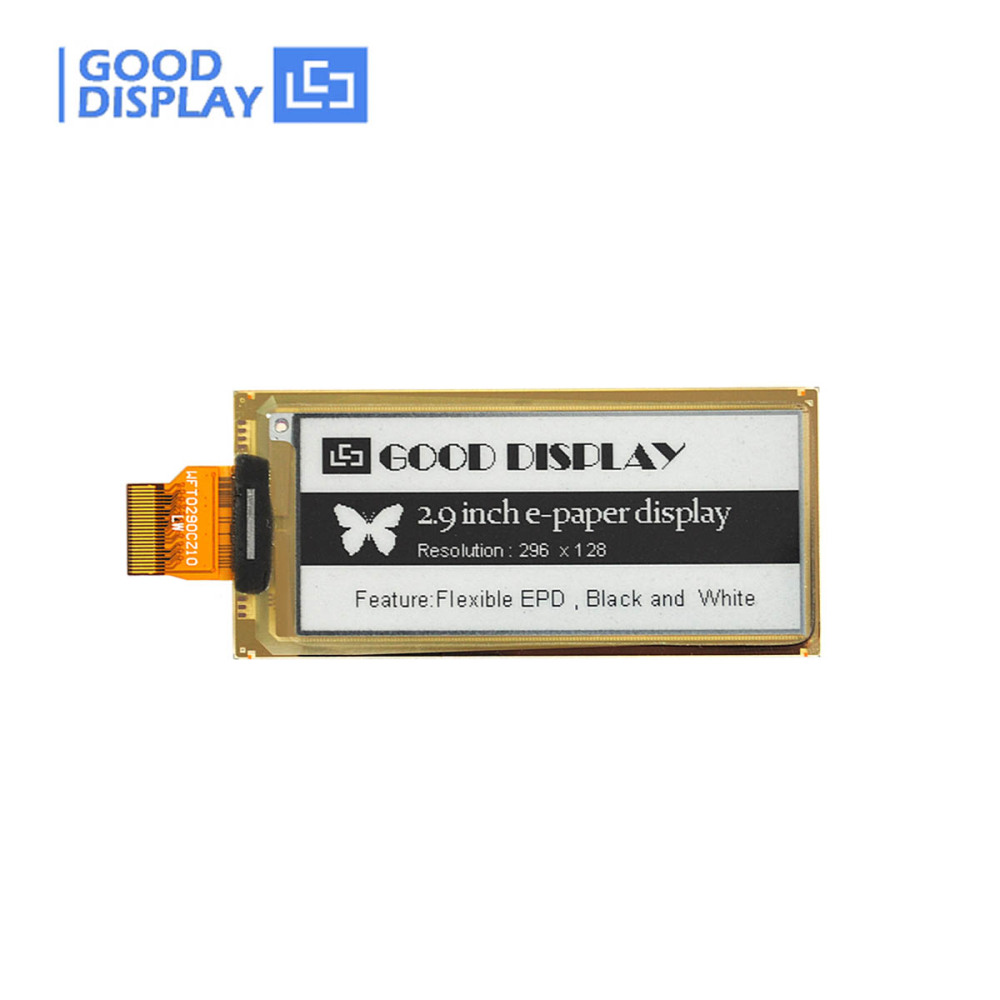

This is a 2.9 inch flexible eink display ESP32 module use the flexible substrate as base plate, with 296x128 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW029I6FD is perfect for low power devices powered by solar or batteries.

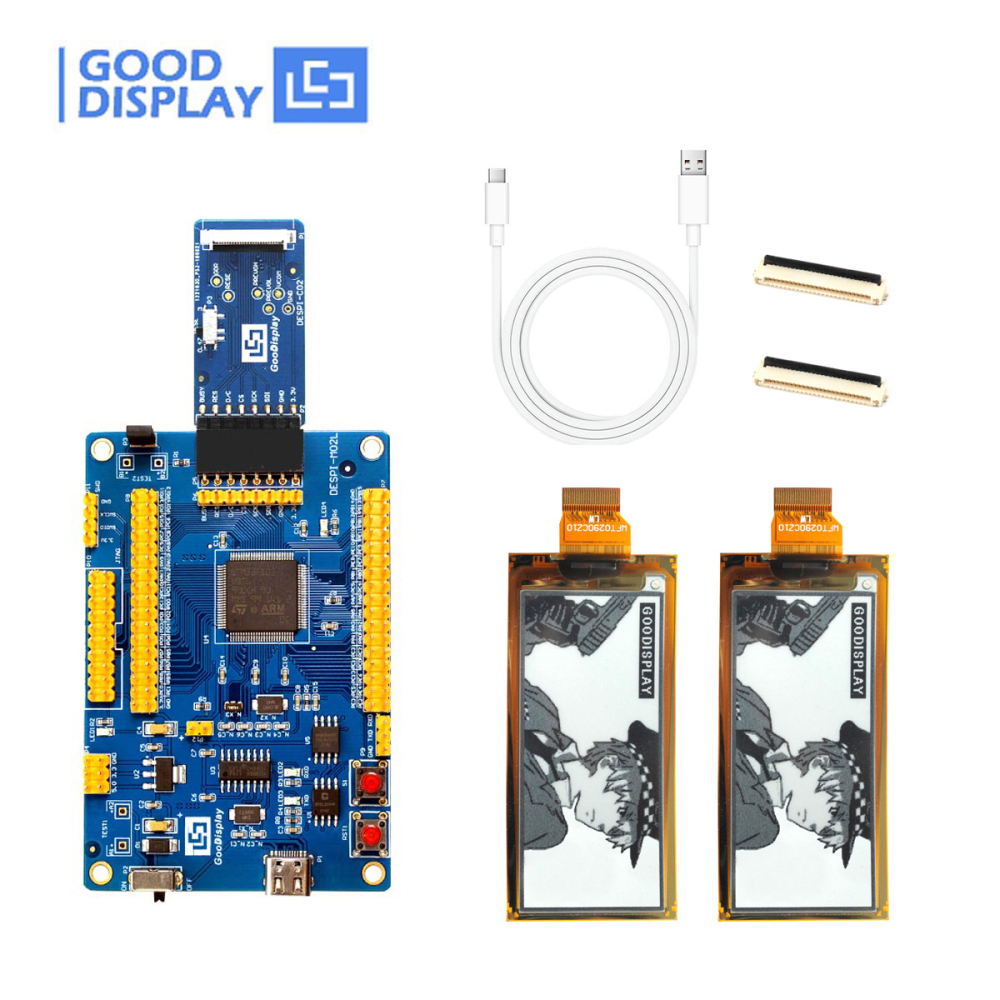

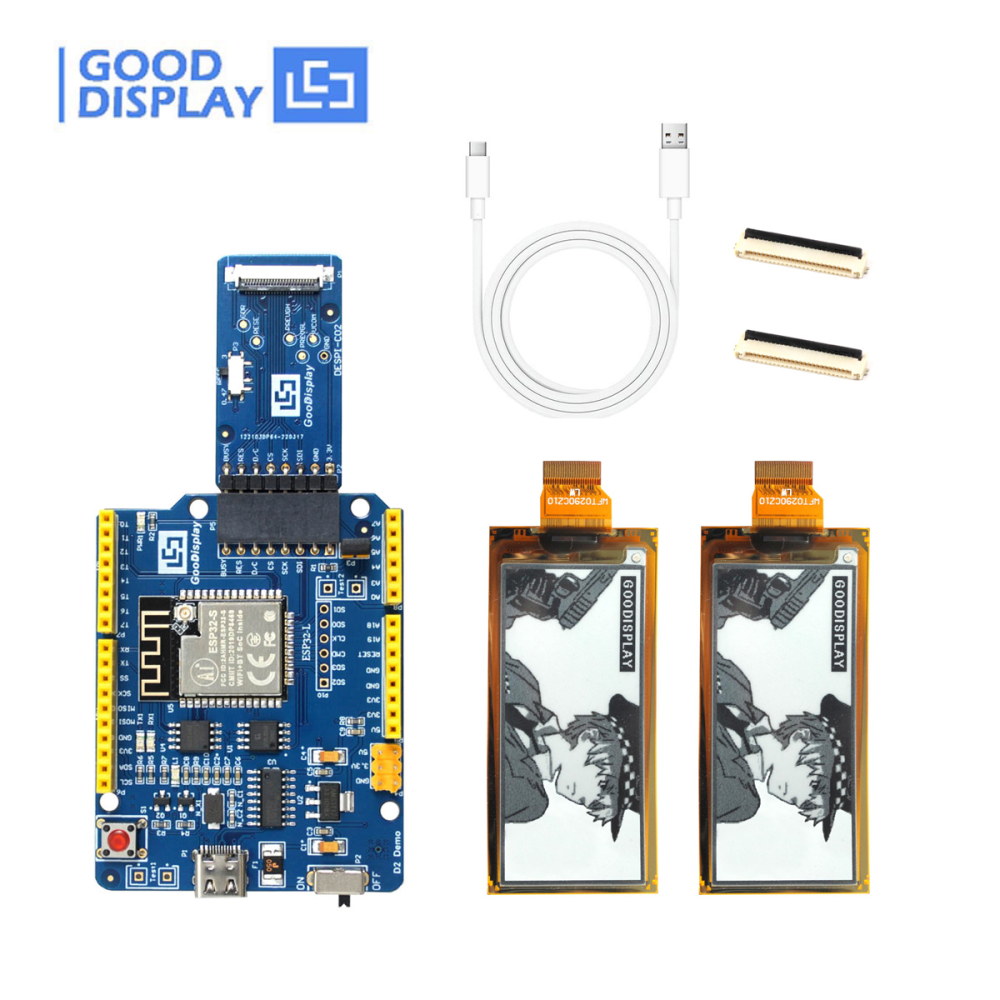

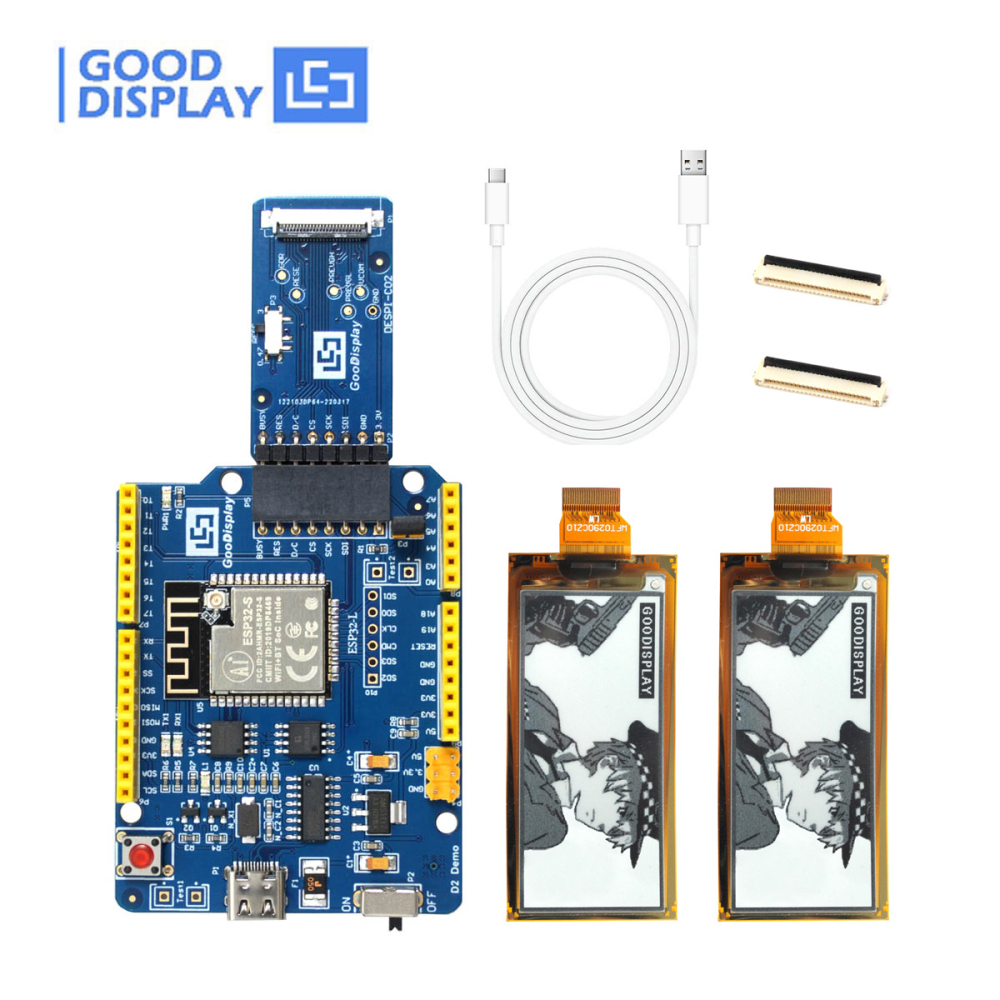

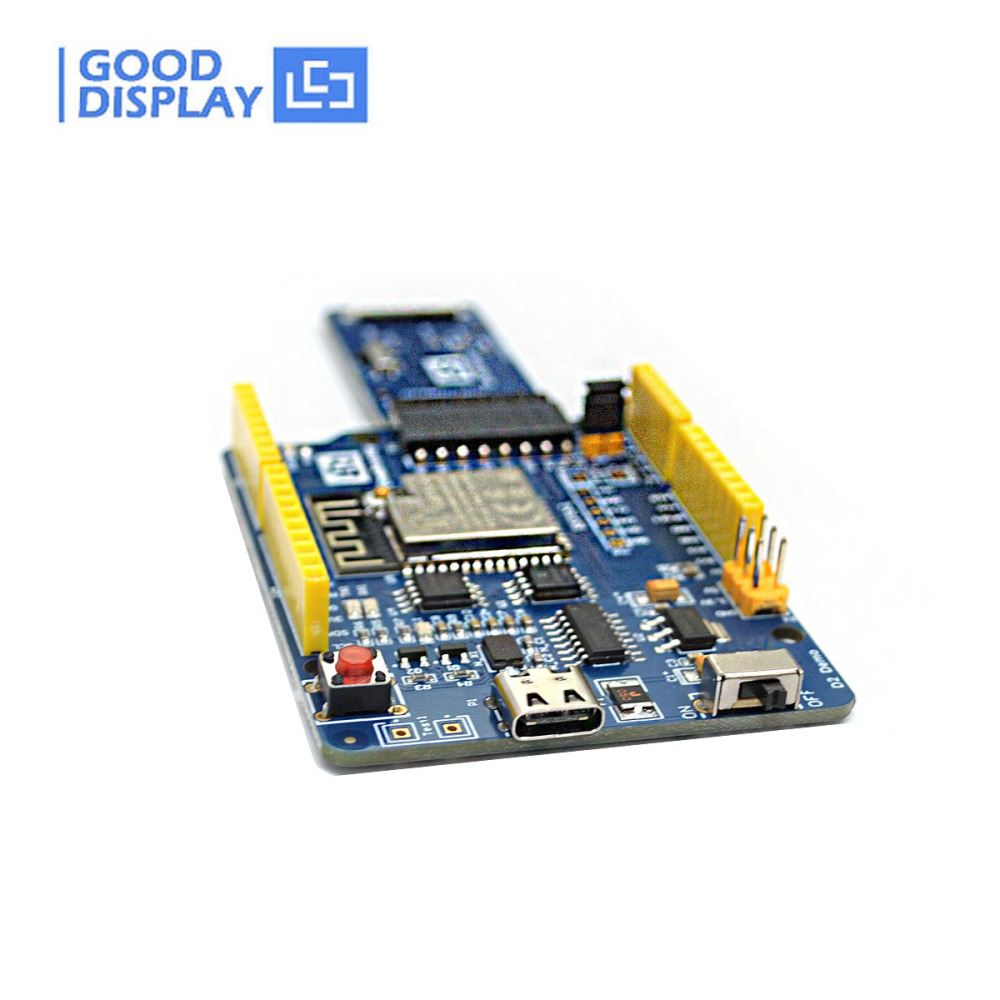

ESP32-L(C02) development kit is only for users to develop and drive electronic paper display. The application of WiFi, Bluetooth and other functions requires users to develop on their own according to the project.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

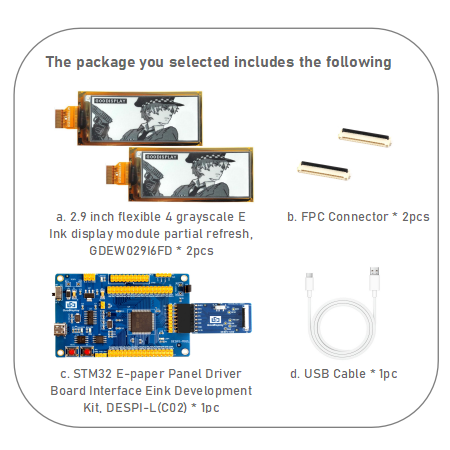

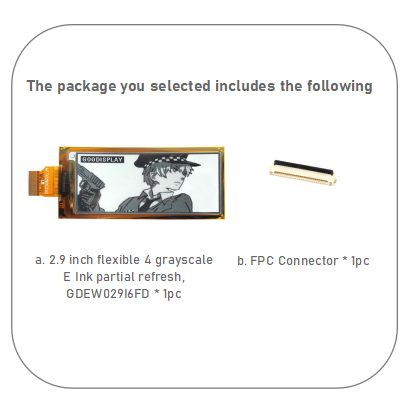

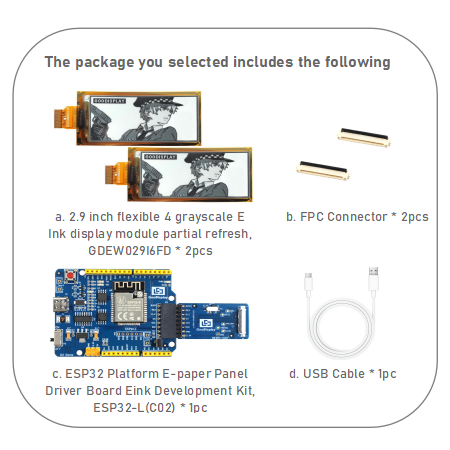

☆ THE ABOVE PRICE INCLUDE
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEW029I6FD
|
|
TYPE
|
Dot Matrix
|

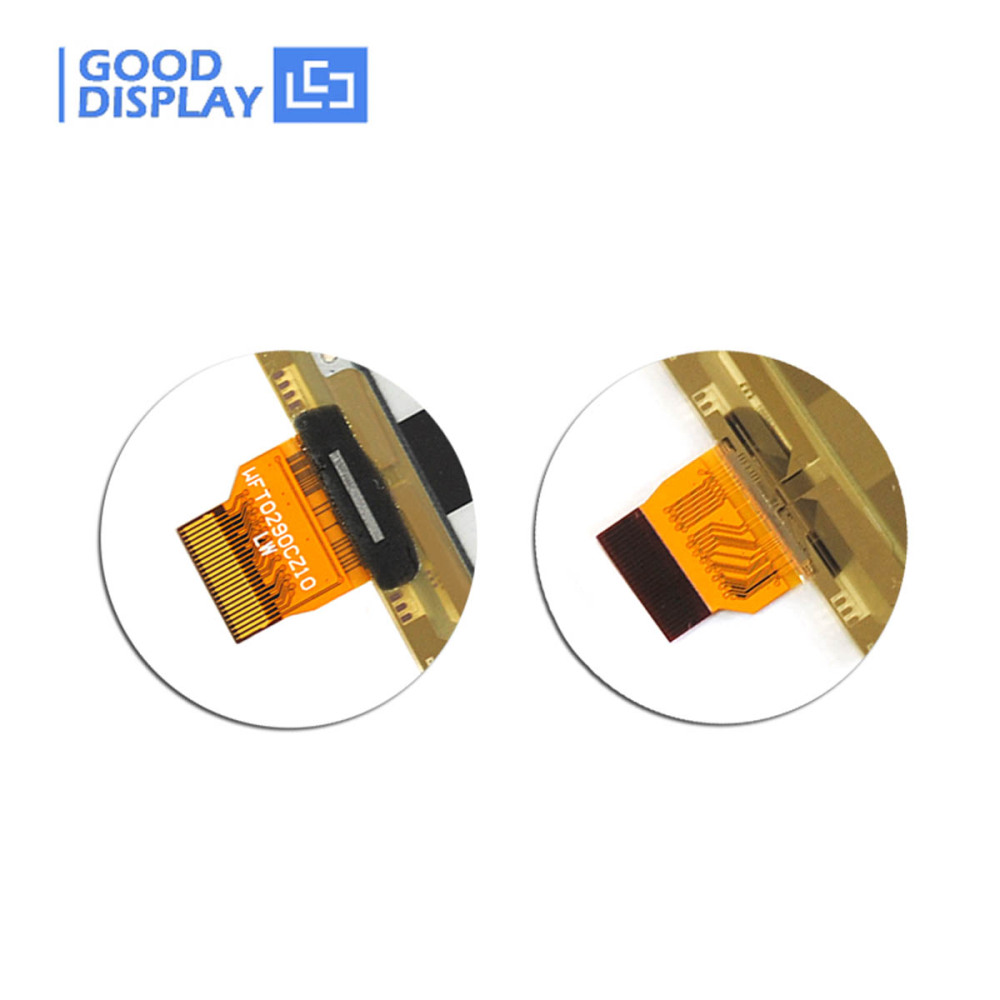

CONNECTOR |
24 Pin FPC |
|
SIZE
|
2.9 inch
|
MAX GRAYSCALE |
4 |
|
IC
|
UC8151D
|
COLOR |
Black, White |
|
RESOLUTION
|
296x128
|
INTERFACE |
SPI |
|
OUTLINE SIZE(mm)
|
79x36.7x0.34
|
FULL REFRESH(s) |
3 |
|
ACTIVE SIZE(mm)
|
66.9x29.06
|
PARTIAL REFRESH TIME(s) |
0.3 |
|
PIXEL PITCH(mm)
|
0.227x0.226
|
POWER CONSUMPTION OF THE REFRESH(mW) |
26.4 |
|
OPERATING TEMP.
|
0℃~50℃
|
STANDBY POWER CONSUMPTION (mW) |
0.0165 |
|
STORAGE TEMP.
|
-25℃~70℃
|
|
|
| PART NUMBER |

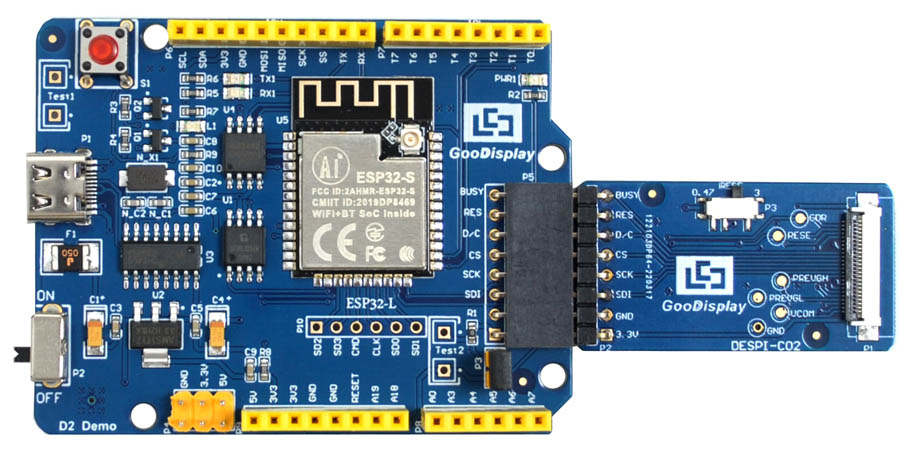

ESP32-L(C02) |
| PLATFORM |
Arduino |
OUTSIDE DIMENSION |
70x54mm (ESP32-L)

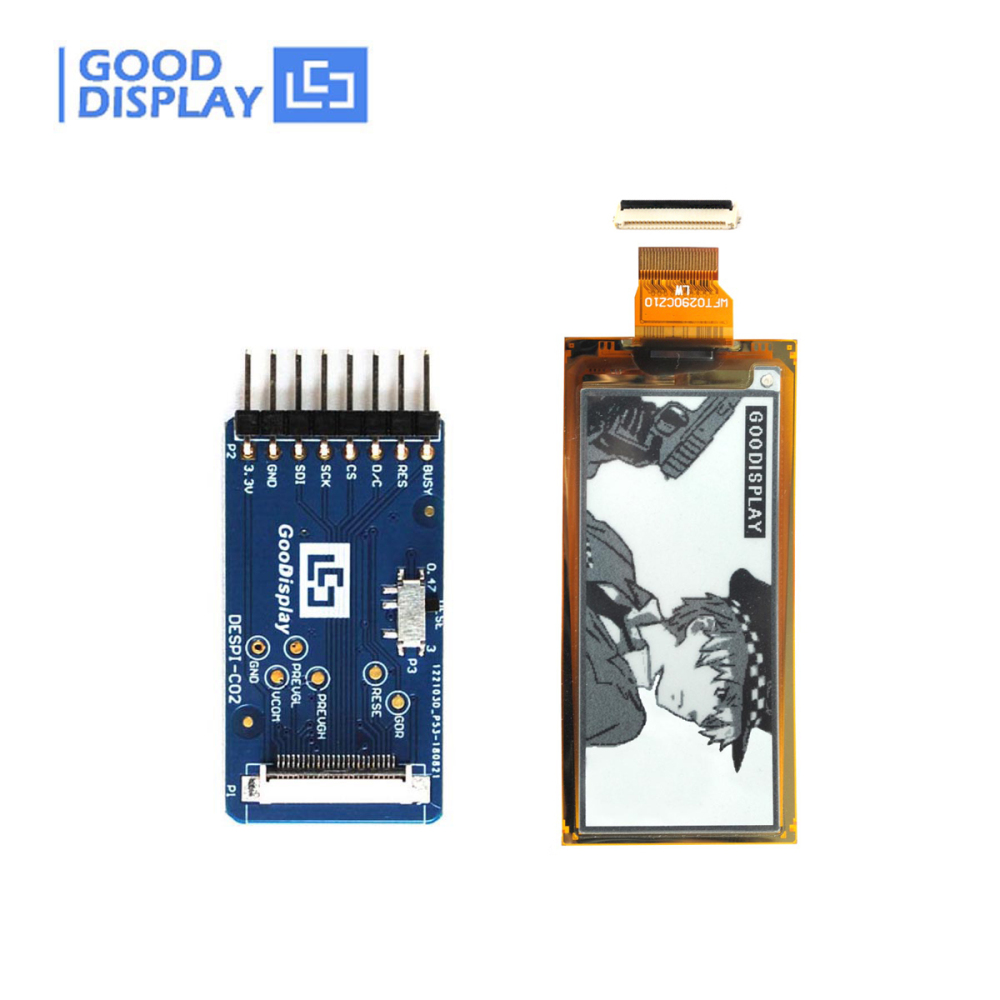

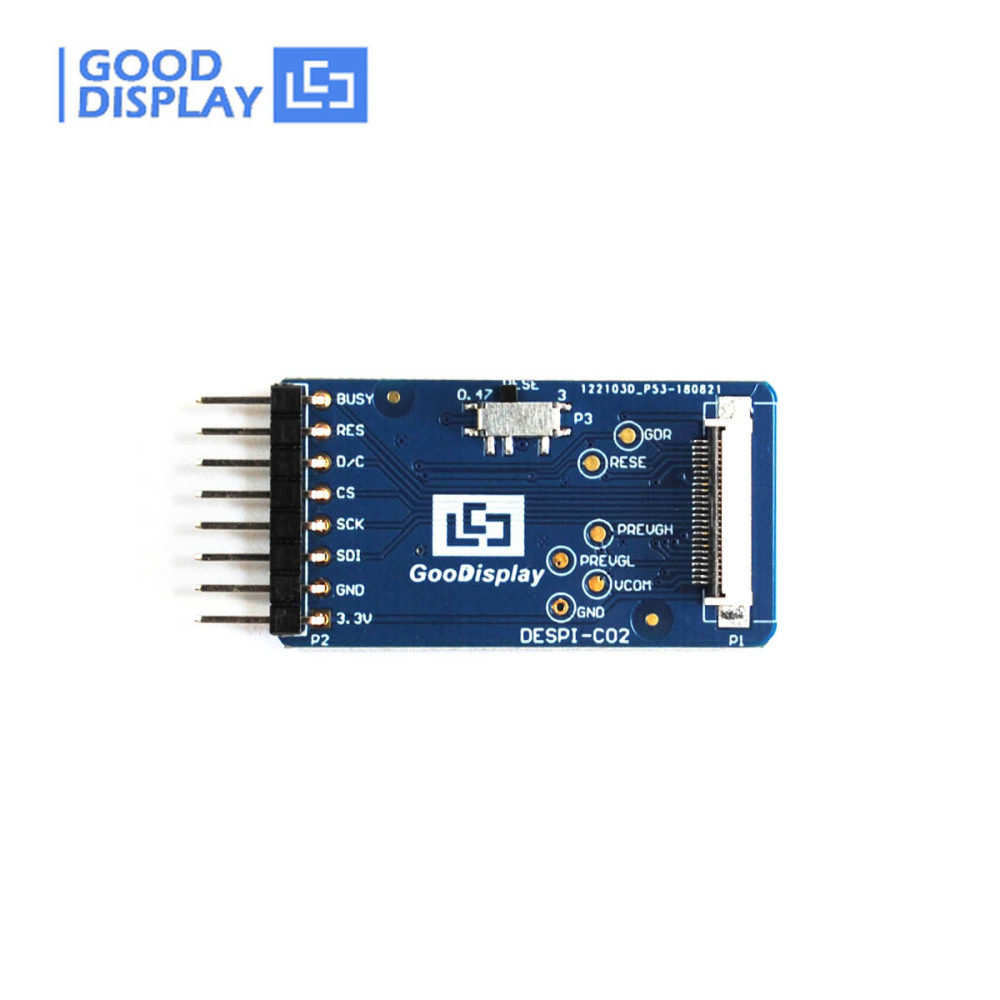

41x22mm (DESPI-C02) |
| POWER INPUT |
DC3.3V |
OPERATING TEMP. |
-20~70℃ |
| SAMPLE CODE |
Available (please contact sales) |
| MAIN FUNCTION |
Learn to drive E-paper display;
Test and evaluate e-paper display;
Support secondary development |
| OTHER FUNCTION |

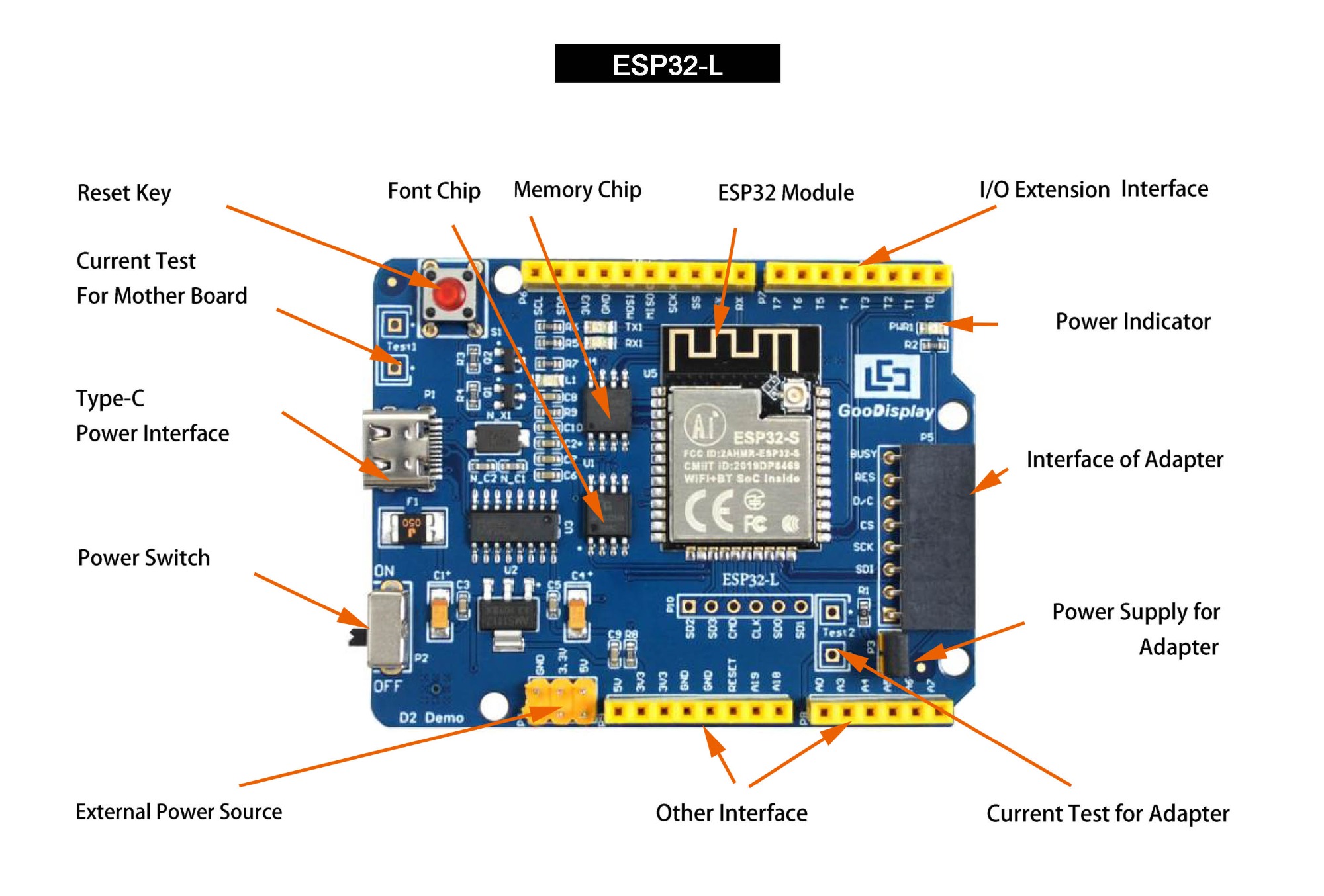

Type-C,LED indicator, Reset button, Font chip, Flash chip, Current detection |
☆ FEATURE
● Support 4 Grayscale
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports small bending because its flexible feature
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
