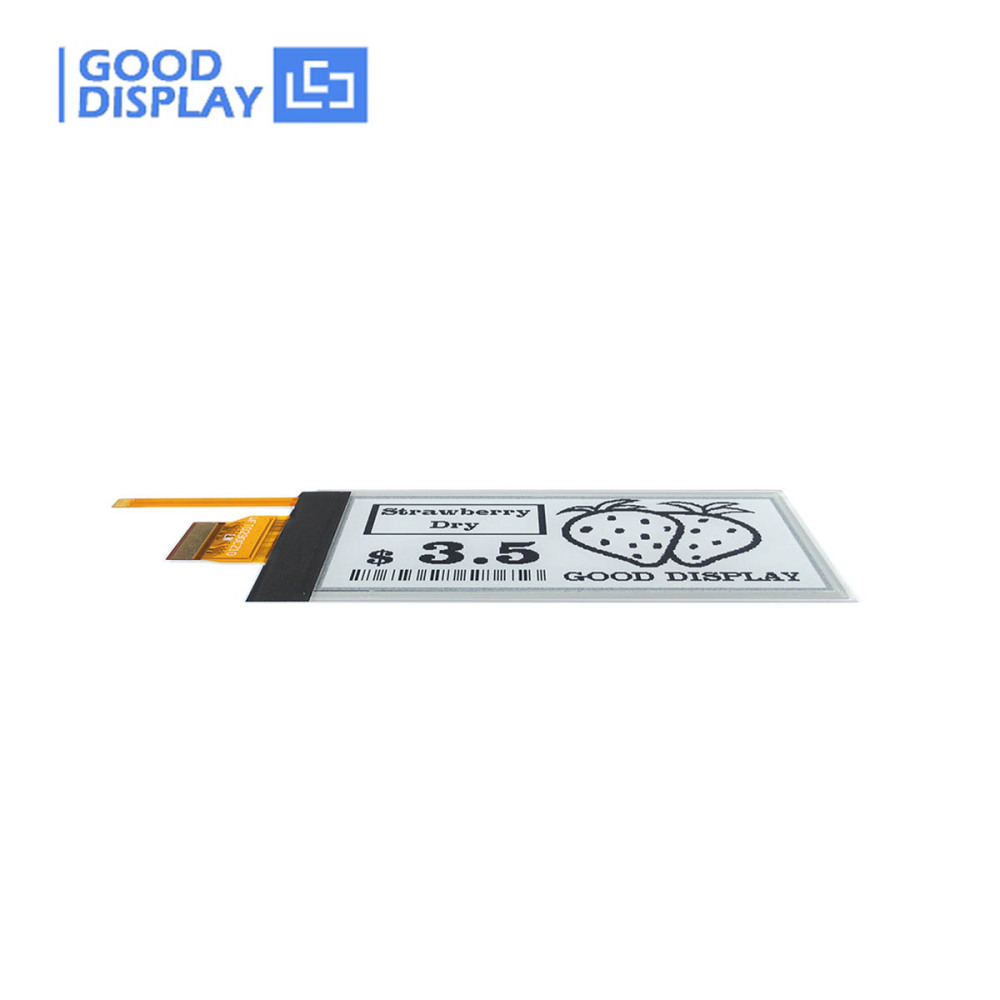

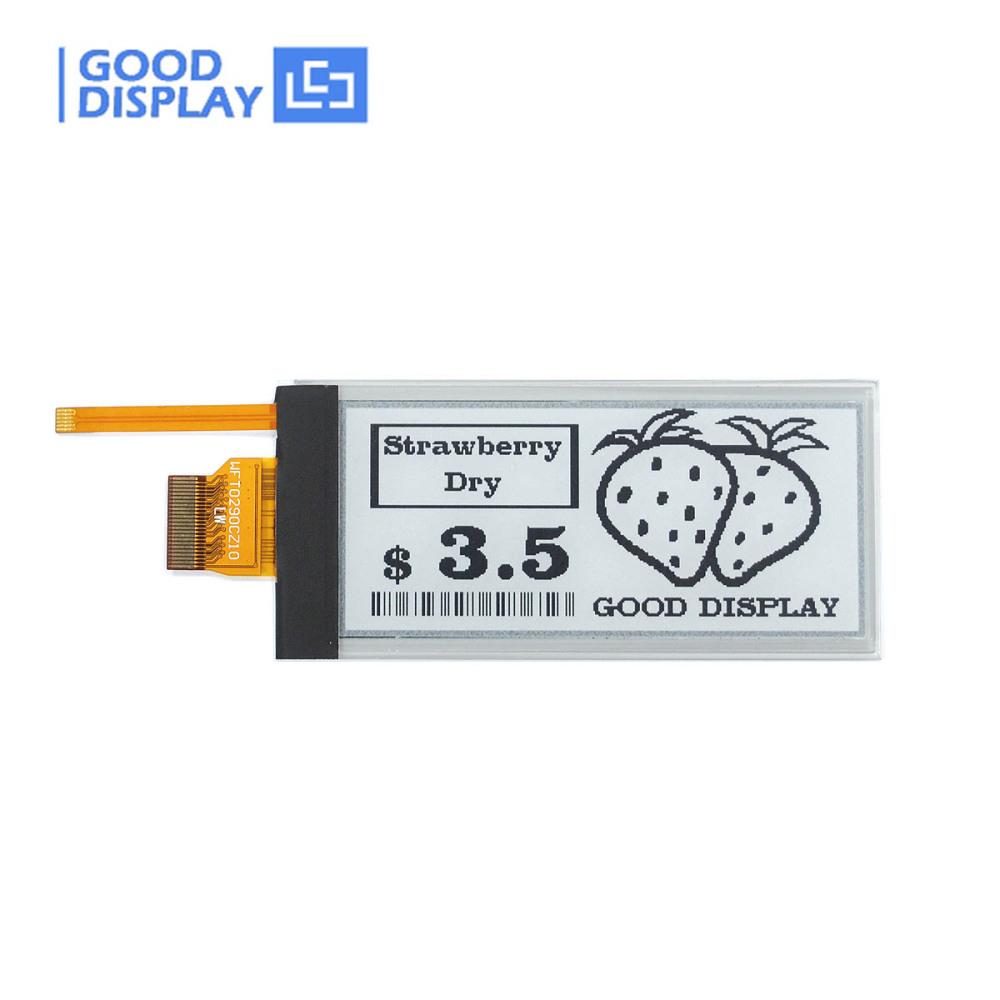

2.9'' E-Paper Eink Display UC8151C Backlit Electronic Paper Screen, GDEW029T5-FL02

This is an E ink E paper display panel with backlit, 2.9 inch, UC8151C, 296x128 resolution, 24 pins FPC connection, SPI interface, 4 Grayscale,  supports black and white.
Have a question?
Price:
USD
$10.61
$11.78
(10% OFF)
Quantity:
-
+
(50 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Library
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION



This is a 2.9 inch e-paper screen with frontlight 296x128 resolution, SPI interface, UC8151C, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW029T5-FL02 is perfect for low power devices powered by solar or batteries.


We provide the E-Ink Adapter Board for you to connect the E-paper Display.


Relevant manual about this product, contact us please.



Use our free e-paper software to prepare your bitmap image for this display.






☆ FEATURE

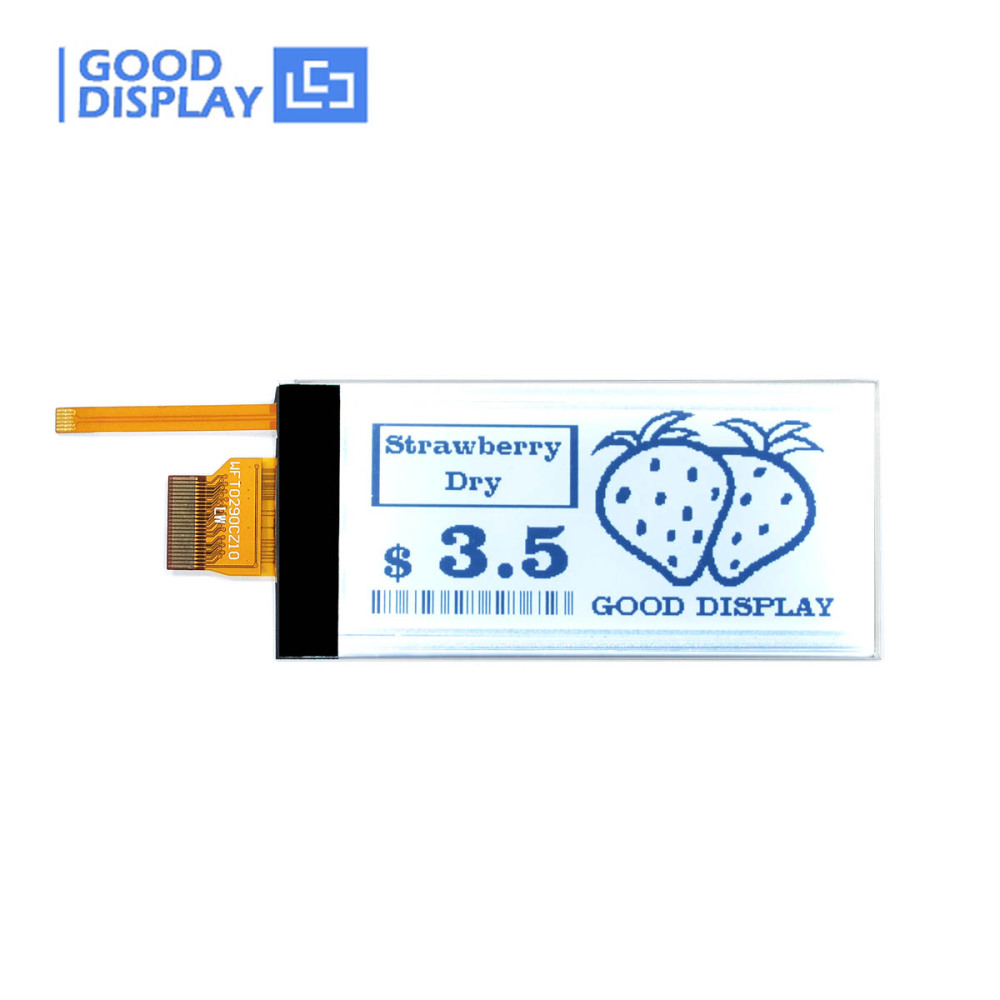

●  With 4 LED Frontlight.
●  Support 4 Grayscale

●  Black and white monochrome is easy to read.

●  Versatile. Use in portrait or landscape format.

●  Bistable. (Will continue to display with no power source)

●  Support partial refresh. The partial refresh rate is 0.3s/frame

●  I2C Signal Master Interface to read external temperature sensor.

● Development platform available STM32(DESPI-03) / Arduino(DEArduion(C03))/ Raspberry Pi(DESPI-C03) / ESP8266(ESP8266(C03)) / ESP32(ESP32-03)







☆ THE ABOVE PRICE INCLUDE


1)  2.9'' E-Paper Eink Display UC8151C Backlit Electronic Paper Screen * 1pc
2)  Matched FPC Connector for EPD * 1pc
3)  Matched FPC Connector for frontlight * 1pc





☆ MAIN PARAMETERS



PART NUMBER GDEW029T5-FL02
SIZE 2.9''
IC UC8151C
TYPE Dot Matrix
RESOLUTION 296x128

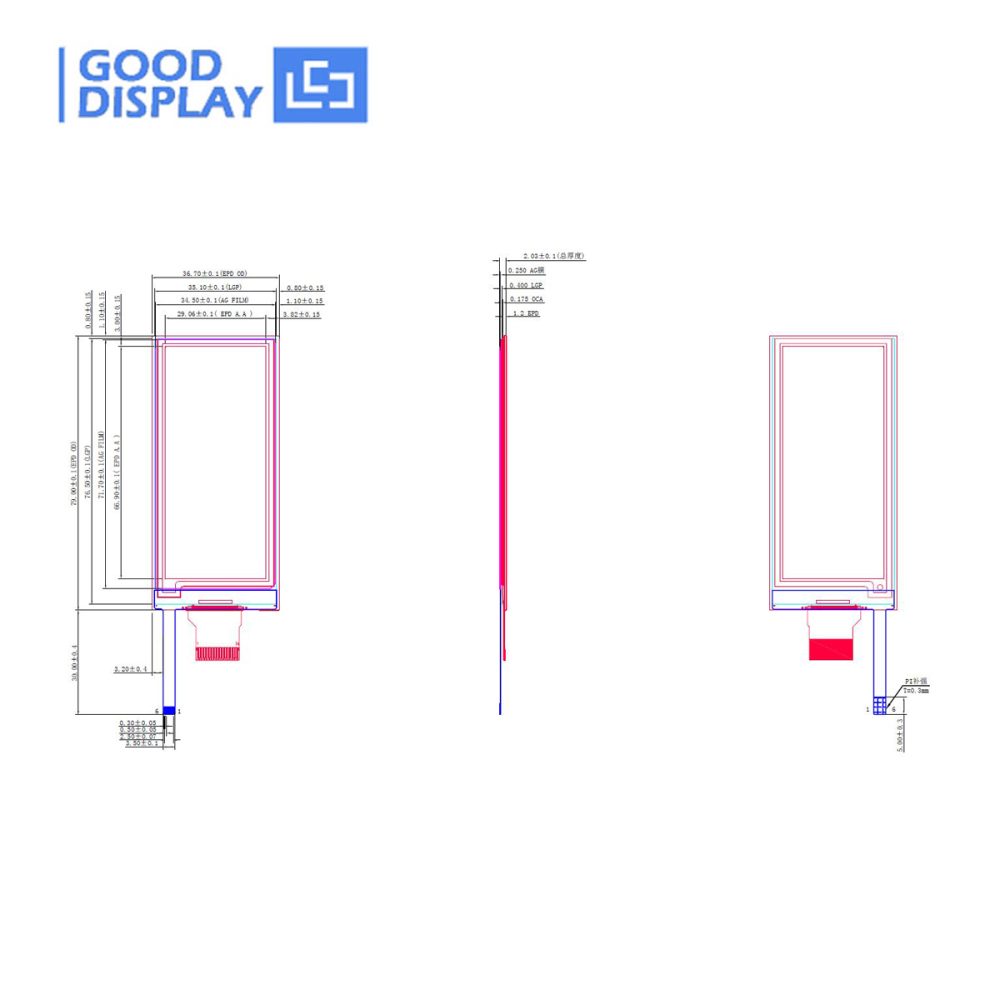

OUTLINE SIZE(mm) 79x36.7x2.3
ACTIVE SIZE(mm) 66.9x29.06
PIXEL PITCH(mm) 0.227x0.226
OPERATING TEMP. 0℃~50℃
STORAGE TEMP. -25℃~70℃

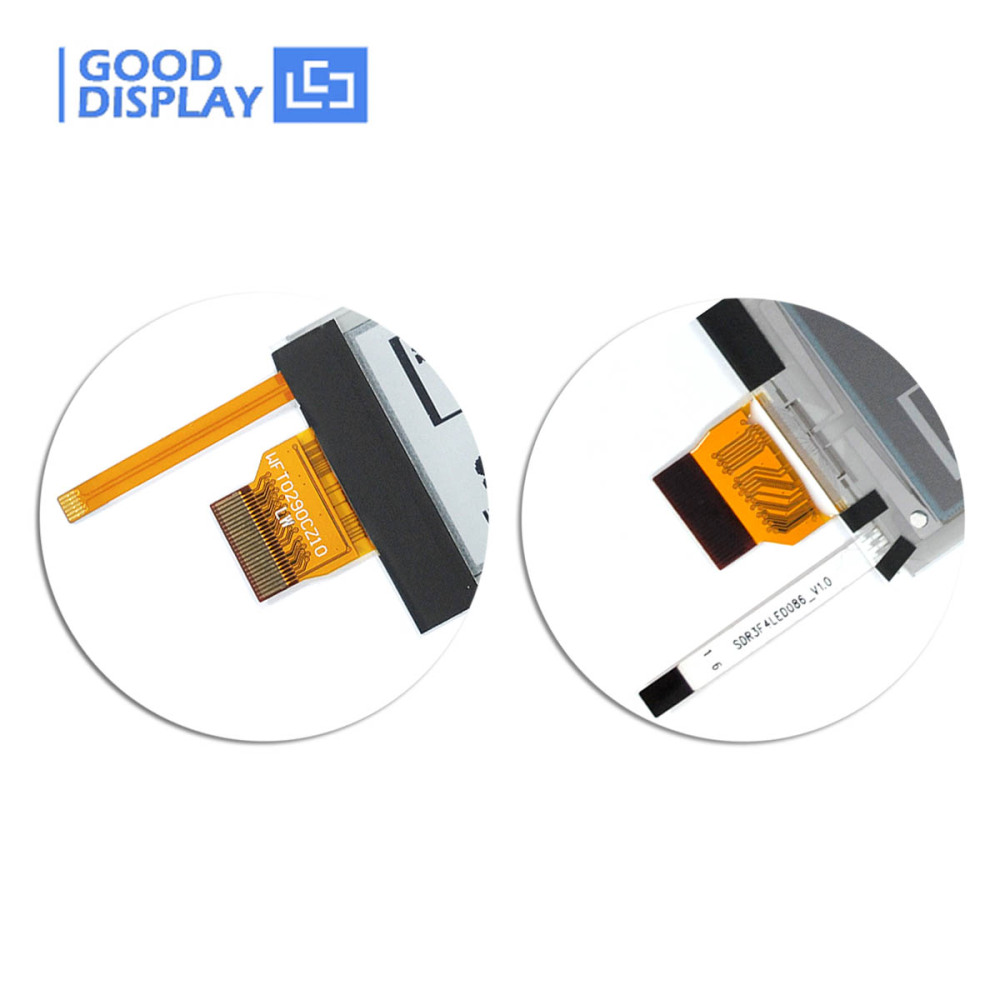

CONNECTOR FOR EPD 24 Pin FPC, Pitch:0.5mm
CONNECTOR FOR FRONTLIGHT 6 Pin
MAX GRAYSCALE 4
PARTIAL REFRESH TIME(s) 0.3
REFRESH TIME(s) 3
NUMBER OF LEDs 4
INTERFACE SPI
COLOR Black, White








☆ OTHER PRODUCTS



Part Number

Color

 IC

Features

 Refresh Time
GDEY029T94 B/W SSD1680 Partial refresh, 4 Grayscale 3s

GDEW029T5D

B/W

 UC8151D Fast refresh, Partial refresh, 4 Grayscale

0.82s(fast refresh)
GDEY029Z94 B/W/R SSD1680A Red 12s
GDEH029Z13 B/W/R UC8151D Red 15s
GDEW029Z13 B/W/R UC8151D Red 12s









☆ ABOUT US


Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com

Size Chart

Size Chart

Size Chart

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √ √ SPI

GDEW0102I4FC

 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √ √ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃ √   SPI
GDEW0154M09 1.54'' BW 2 200x200 27.6x27.6 0.82 0℃~50℃ √   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √ √ SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -10℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √ √ SPI
GDEQ0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃ √   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃ √   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃ √   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃ √   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃ √   SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃ √   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -10℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √ √ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √   SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI

PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW042C37 4.2'' BWY 2 400x300 84.8x63.6 28 0℃~40℃     SPI
GDEW042T2 4.2'' BW 4 400x300 84.8x63.6 3 0℃~50℃     SPI
GDEQ042Z21 4.2'' BWR 2 400x300 84.8x63.6 19 0℃~40℃     SPI
GDE043A3 4.3'' BW 16 800x600 88x66 1 0℃~50℃ √   Parallel
GDEW0583C64 5.83'' BWY 2 600x448 118.80x88.26 25 0℃~40℃     SPI
GDEW0583T8 5.83'' BW 2 648x480 119.232x88.32 4 0℃~50℃     SPI
GDEW0583Z83 5.83'' BWR 2 648x480 119.232x88.32 12 0℃~40℃     SPI
GDE060F3 6.0'' BW 16 1024x758 90.581x122.368 1 0℃~50℃ √   Parallel
GDEY075T7 7.5'' BW 4 800x480 163.2x97.72 3 0℃~50℃ √   SPI
GDEY075Z08 7.5'' BWR 2 800x480 163.2x97.72 12 0℃~40℃     SPI
GDEH116T91 11.6'' BW 2 960x640 244.512x163.008 5 0℃~50℃     SPI
GDEH116Z91 11.6'' BWR 2 960x640 244.512x163.008 30 0℃~35℃     SPI
