☆ INTRODUCTION

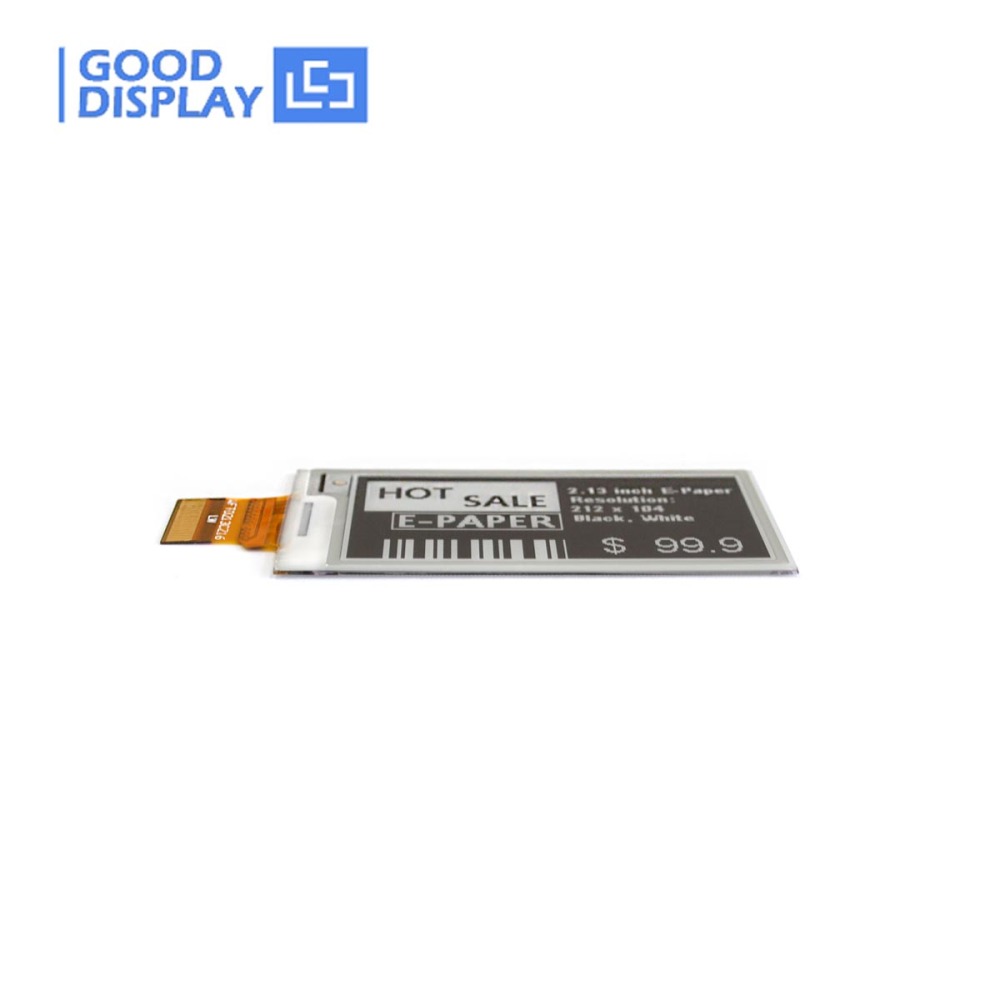

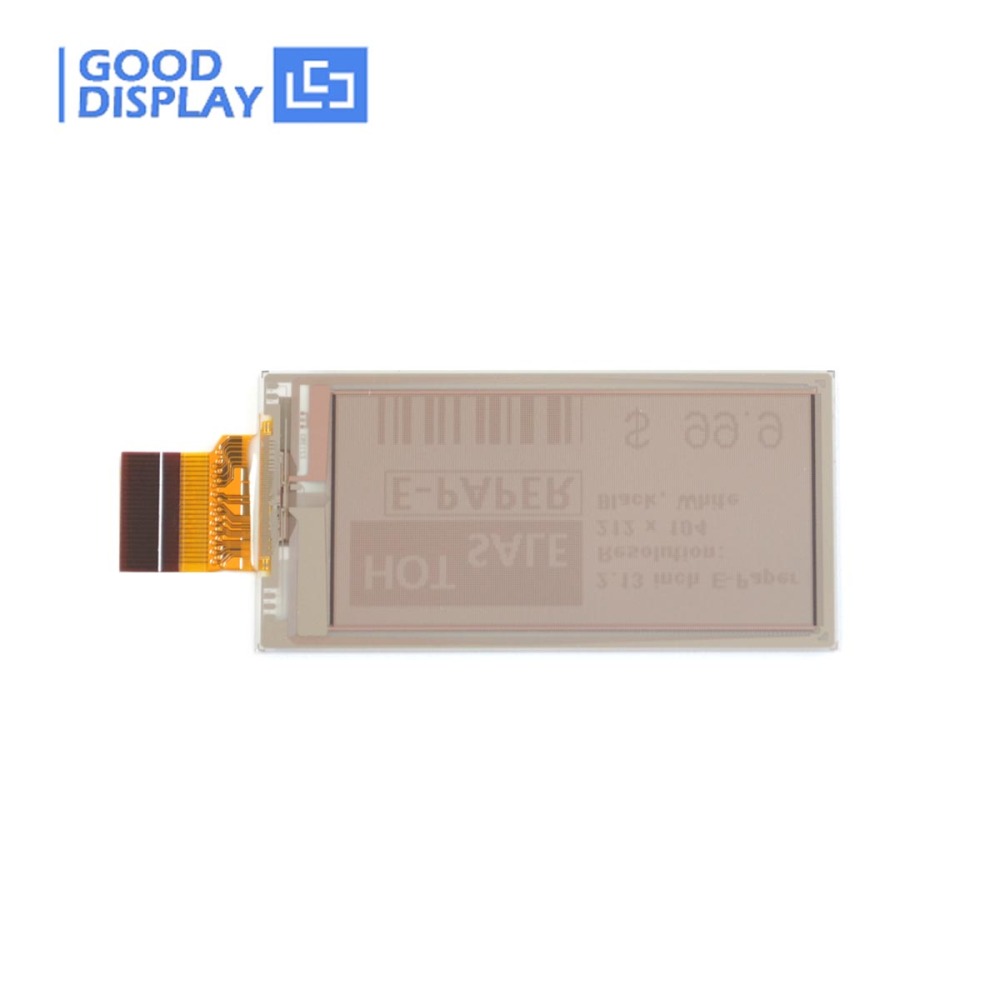

This is a set of EPAPER HAT with 2.13 inch e-paper screen with 212x104 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0213T5D is perfect for low power devices powered by solar or batteries.
This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ FEATURE
● Support 4 Grayscale
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Development platform available STM32 / Arduino/ ESP8266 / ESP32

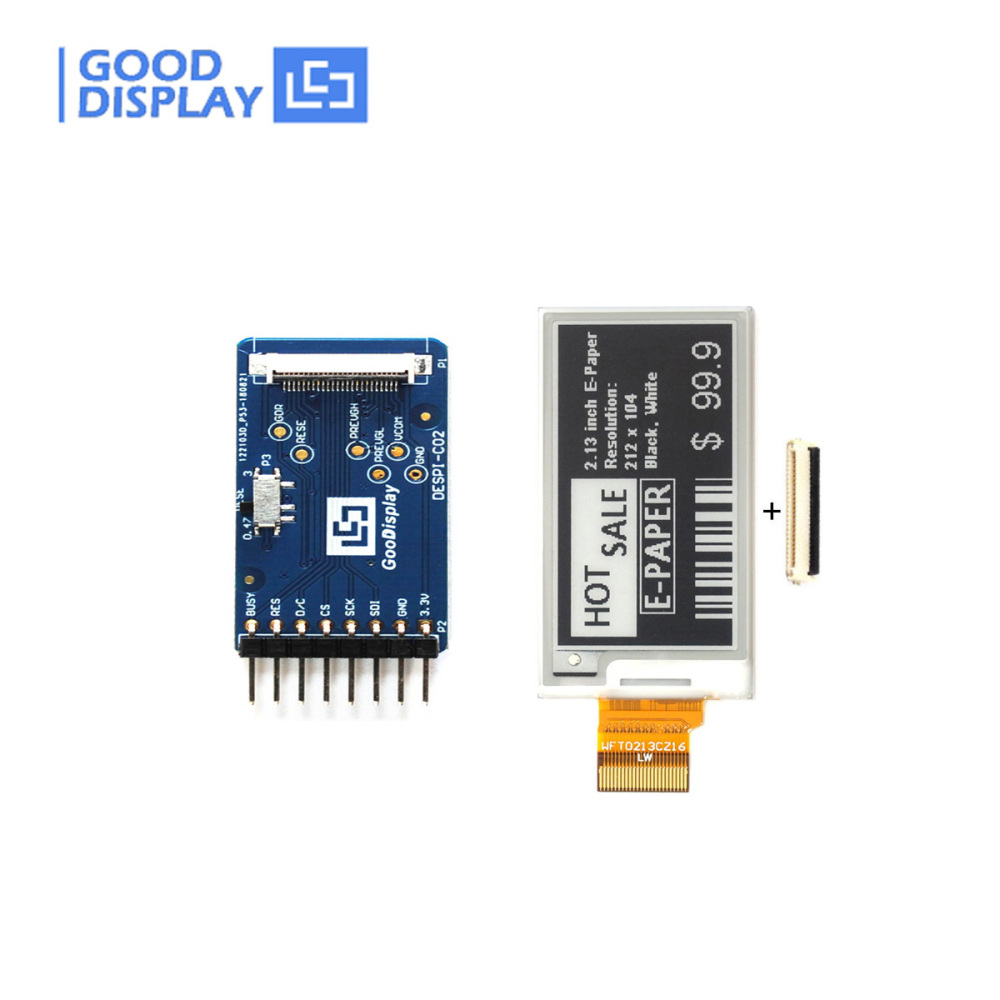

☆ THE ABOVE PRICE INCLUDE
1) 2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5D * 1pc
2) FPC Connector * 1pc
3) Connector board DESPI-C02 * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEW0213T5D
|
|
TYPE
|
Dot Matrix
|
|
SIZE
|
2.13 inch
|
|
IC
|
UC8151D
|
|
RESOLUTION
|
212x104
|
|

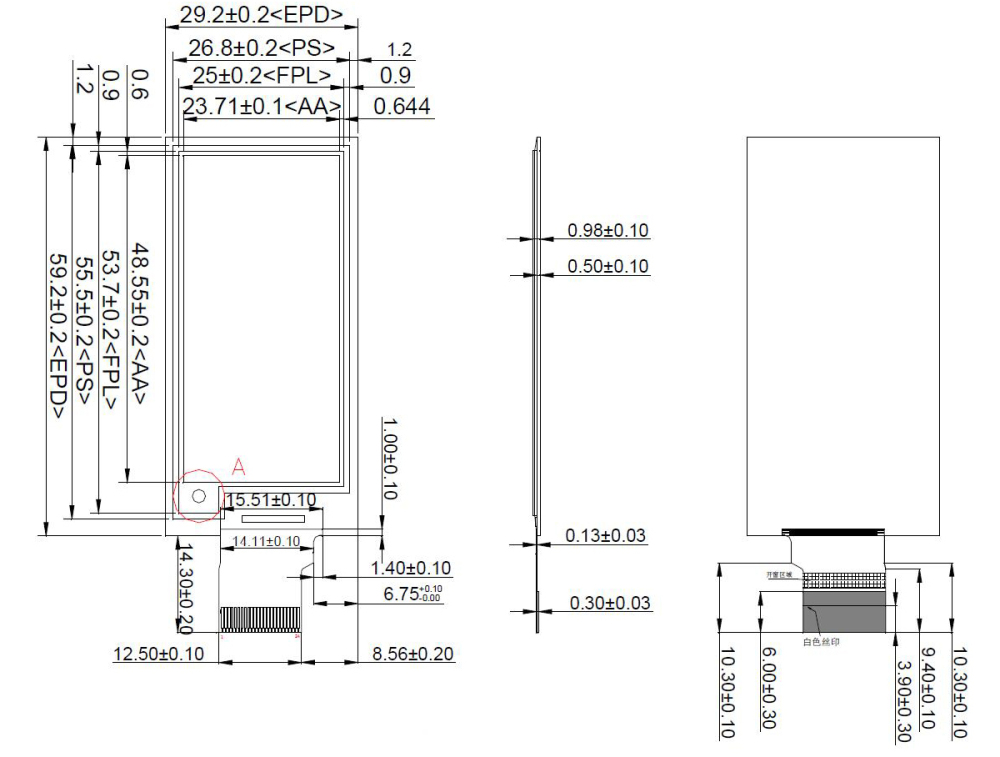

OUTLINE SIZE(mm)
|
59.2x29.2x0.98
|
|
ACTIVE SIZE(mm)
|
48.55x23.71
|
|
PIXEL PITCH(mm)
|
0.229x0.228
|
|
OPERATING TEMP.
|
0℃~50℃
|
|
STORAGE TEMP.
|
-25℃~70℃
|
|

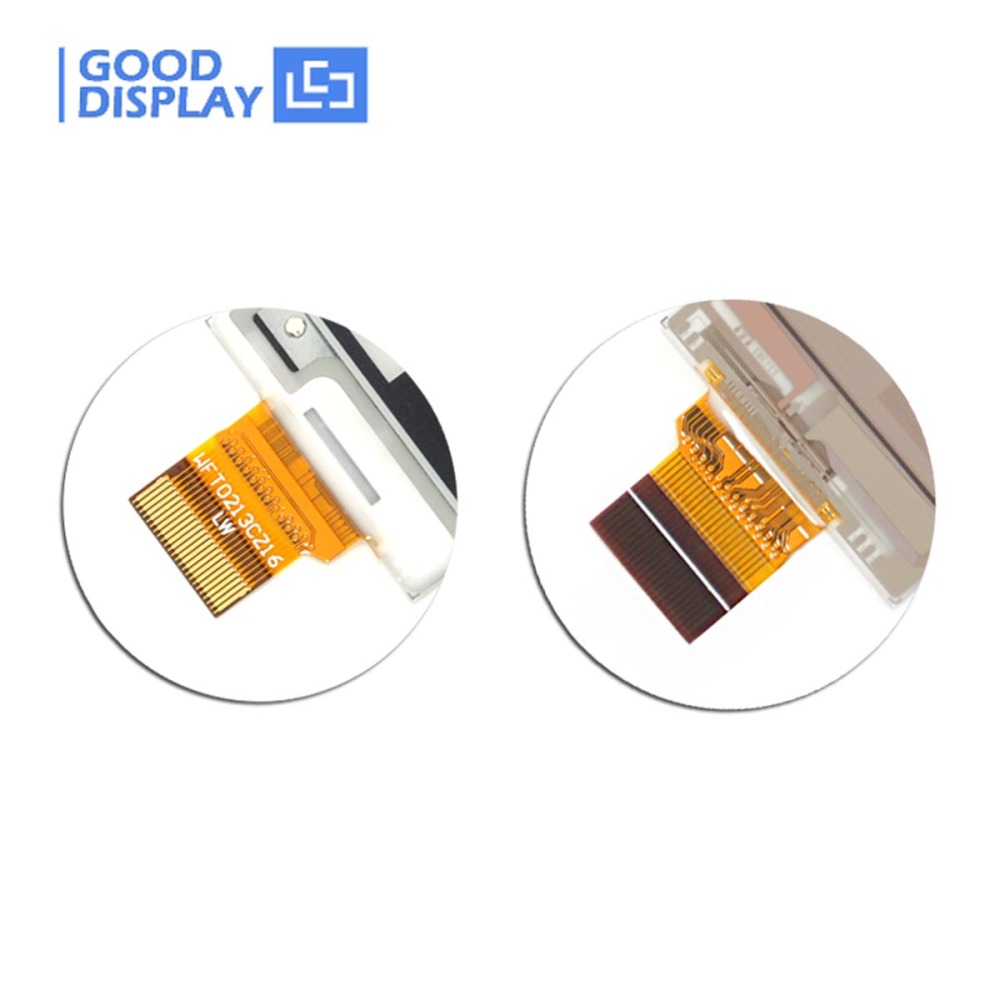

CONNECTOR
|
24 Pin FPC
|
|
MAX GRAYSCALE
|
4
|
|
COLOR
|
Black,White
|
|
INTERFACE
|
SPI
|
|
FULL REFRESH(s)
|
3
|
|
PARTIAL REFRESH TIME(s)
|
0.3
|
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
26.4
|
|
STANDBY POWER CONSUMPTION (mW)
|
0.0165
|
|

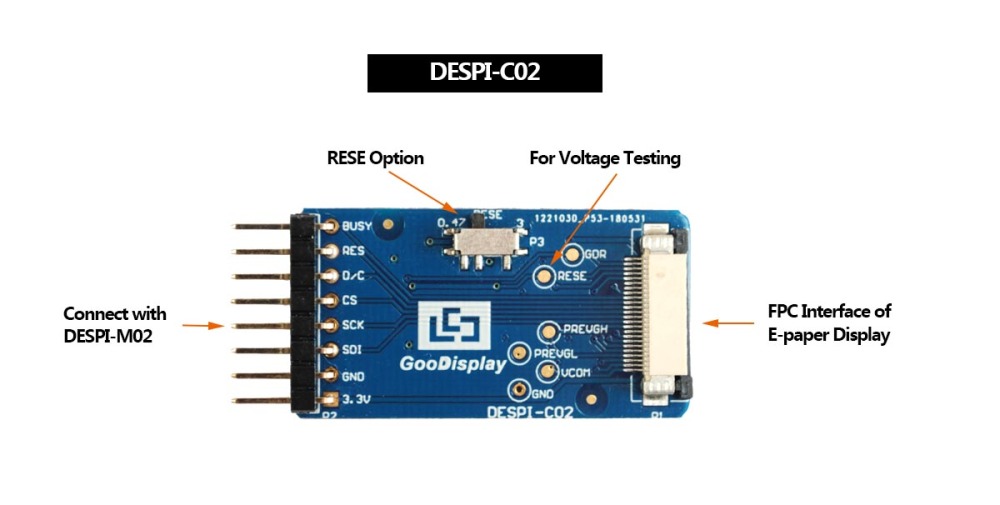

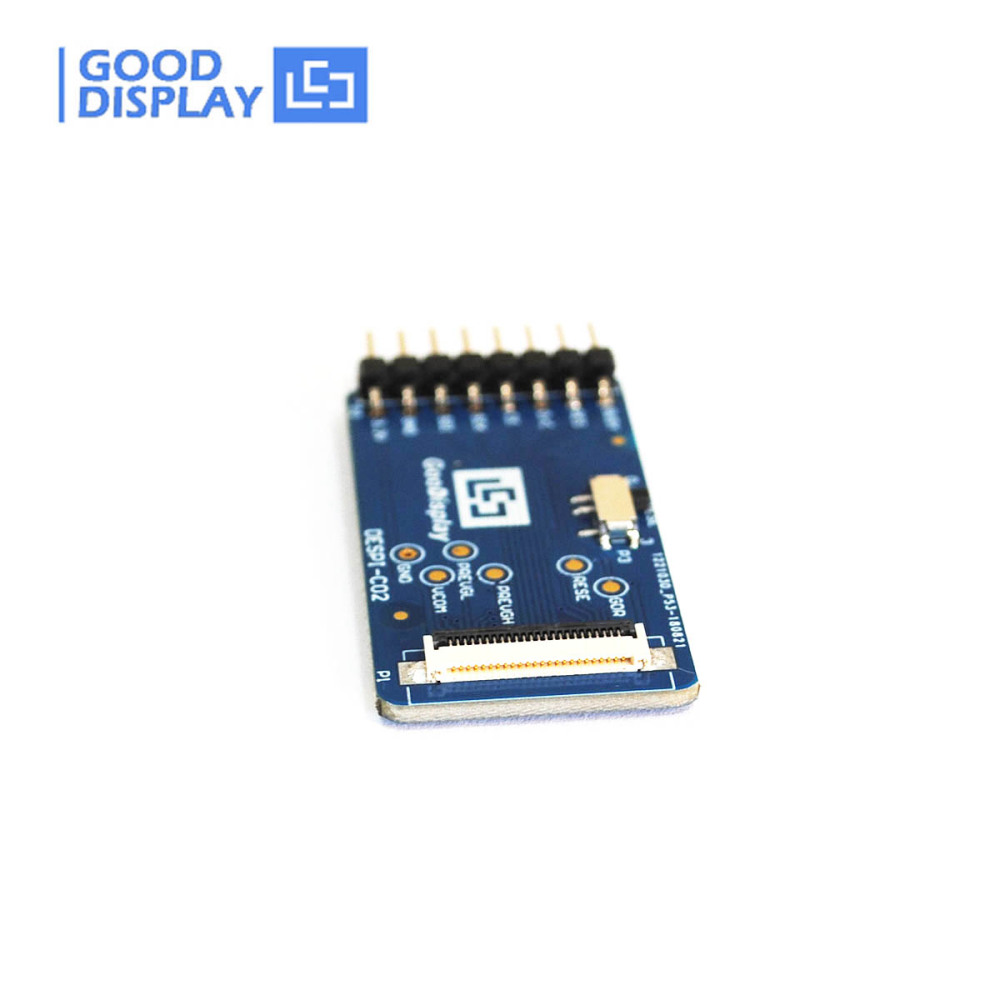

PART NUMBER
|
DESPI-C02
|
|
PLATFORM
|
STM32
|
|
FUNCTION
|
Connection E-paper Display with Drive Board
|
|
OUTSIDE DIMENSION
|
41x22mm
|
|
INTERFACE
|
SPI
|
|
POWER INPUT
|
DC3.3V
|
|
FEATURE
|
Fully and Partial Refresh
|
|
OPERATING TEMP.
|
-20℃~70℃
|
☆ OTHER PRODUCTS
|
Part Number
|
Color
|
IC |
Resolution |
Features
|
Refresh Time |
| GDEW0213T5D |
BW |
UC8151D |
212x104 |
Partial Refresh, 4 Grayscale |
3s |
| GDEW0213T5-FL01 |
BW |
UC8151C |
212x104 |
Used in dark environment |
3s |
| GDEW0213I5F |
BW |
UC8151C |
212x104 |
Flexible, Partial Refresh |
3s |
| GDEY0213B74 |
BW |
SSD1680 |
250x122 |
Partial Refresh |
3s |
| GDEW0213V7LT |
BW |
UC8151D |
212x104 |
-25℃~10℃, Partial Refresh |
3s |
| GDEY0213Z98 |
BWR |
SSD1680 |
250x122 |
Colorful(Red) |
14s |
