2.13 inch e-paper display with frontlight backlit partial refresh E-ink GDEW0213T5D-FL01

This is an E ink E paper display panel with frontlight backlit, 2.13 inch, 212*104 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, 4 Grayscale,  supports black and white.
Sold:18
Price:
USD
$8.90
  • 规格:
    EPD
    With adapter board

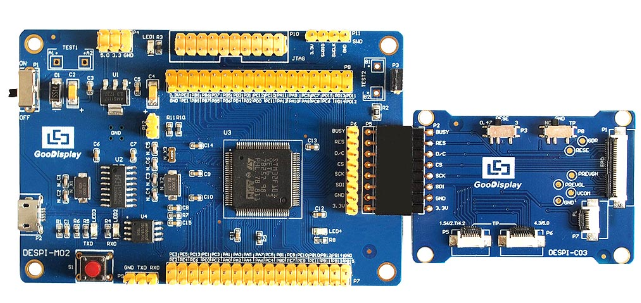

    With demo kit
Quantity:
-
+
(21 available)
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews

Any questions, please feel free to contact me, my email is: clara@good-display.com

This is an E ink E paper display panel with frontlight, 2.13 inch, 212*104 resolution, support partial and 4 Grayscale, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black and white. It's IC Driver is UC8151D.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW0213T5D-FL01 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.


· With frontlight backlit
· Support partial refresh, fast update and no flicker update.
· 4 Grayscale
· Support fast refresh, 0.82s.
· 212x104 resolution
· The I2C signal master interface to read built-in temperature sensor.
· Come with helpful development resources and manual
· Development platform available
STM32 / Arduino Raspberry Pi / ESP8266 / ESP32

1. 2.13 inch e-paper e-ink screen with frontlight GDEW0213T5D-FL01 *1pc
2. Matched FPC Connector*2pcs
3.Helpful resources and manual(sent via email or download link) *1pc

Part Number GDEW0213T5D-FL01
Size 2.13 inch
IC UC8151D
Resolution 212x104
Outline Size(mm) 59.2x29.2x1.8
Active Size(mm) 48.55x23.71
Pixel Pitch(mm) 0.229x0.228
Operating Temp. 0℃~50℃
Storage Temp. -25℃~70℃
Max Grayscale 4
Color Black,White
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 3
Time of partial refresh(s) 0.3
Inteface SPI
LED 3 pcs
Voltage of frontlight ≤9V
Current of frontlight ≤15mA

Part Number Color Resolution

Feature

Full refresh time

GDEM0213B74 B/W 250x122 Partial refresh, 4 Grayscale 3s
GDEW0213M21 B/W 212x104 DES,wide working temperature range: -20℃~60℃, can be used in sunlight and cold environments, Partial refresh 3s
GDEW0213T5D B/W 212x104 Fast refesh, Partial refresh, 4 Grayscale 0.82s(fast refresh)
GDEW0213I5F B/W 212x104 Flexible, Partial refresh, 4 Grayscale 3s
GDEH0213D30LT B/W 212x104 Low temperature 3s
GDEW0213V7LT B/W 212x104 Low temperature 3s
GDEM0213D23 B/W 250x122 SPI interface --
GDEH0213Z98 B/W/R 250x122 Three colors 13s
GDEH0213Z19 B/W/R 212x104 Three colors 15s
GDEM0213U23 B/W/R 250x122 Three colors --
GDEW0213C38 B/W/Y 212x104 Three colors 18s
