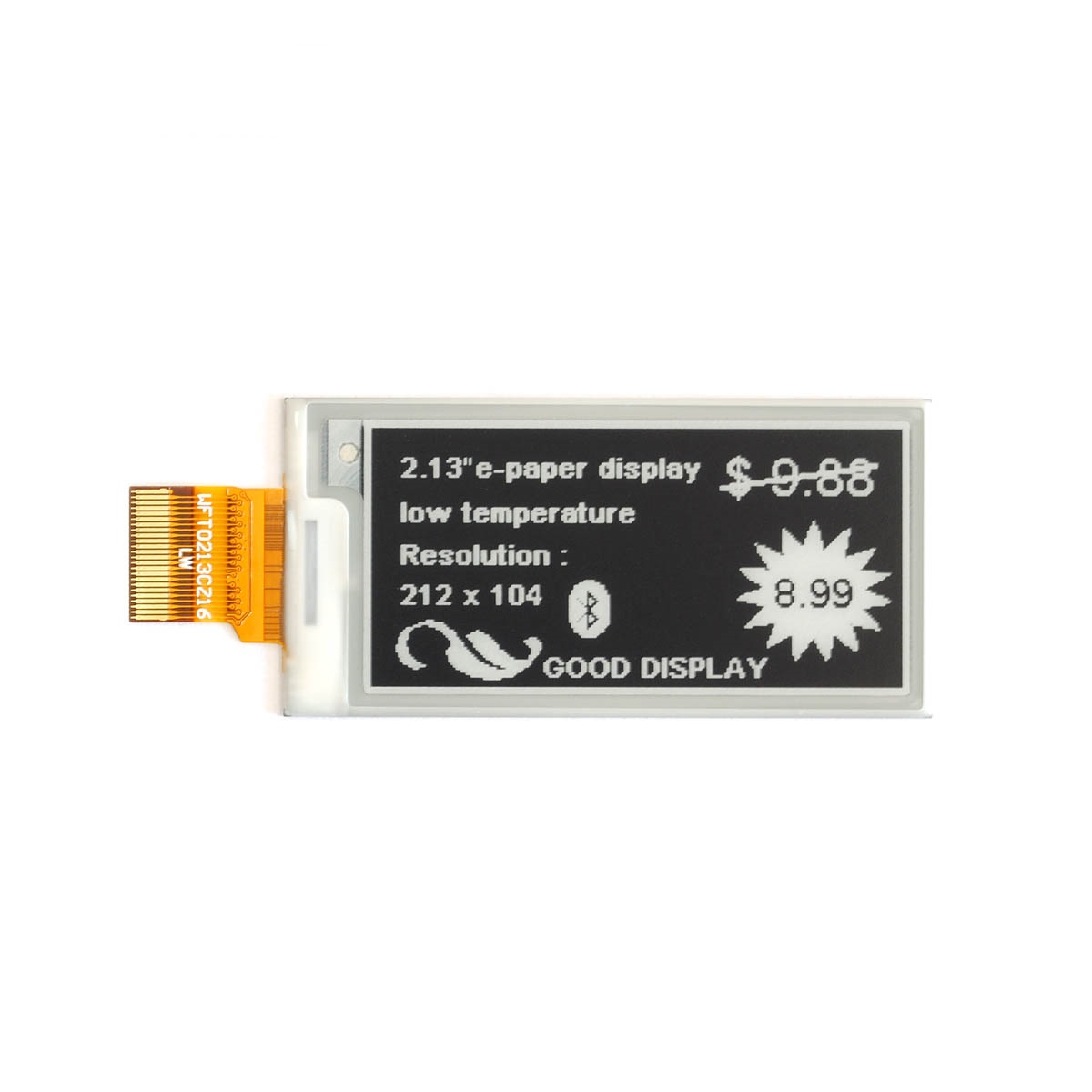

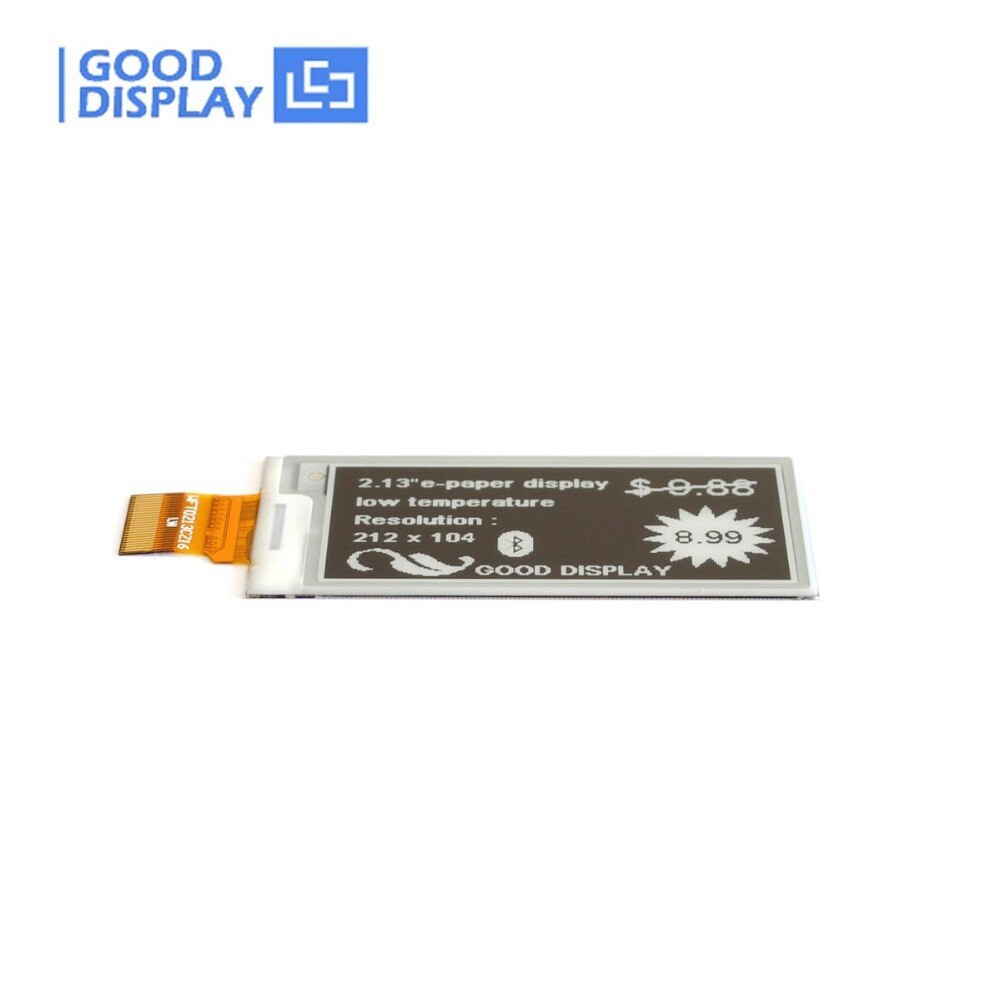

2.13 inch e-paper display Low temperature electronic paper module eink GDEW0213V7LT

GDEW0213V7LT
This is ultra low temperature (-25~10℃) 2.13 inch e-paper display with 212*104 resolution. It has 24 pins FPC connection, optional FPC connector, also communicated via SPI interface, supports black and white.
Sold:2
Price:
USD
$6.07
  • 规格:
    EPD

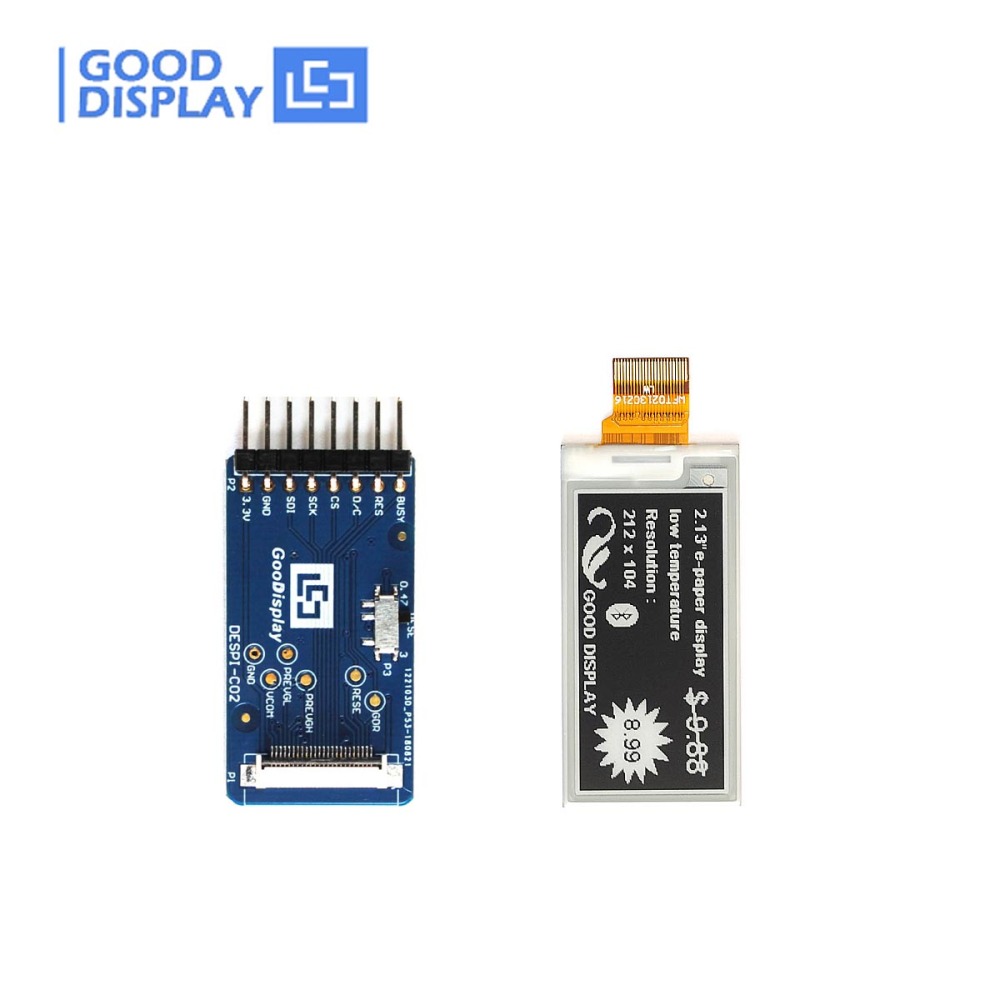

    EPD with adapter board

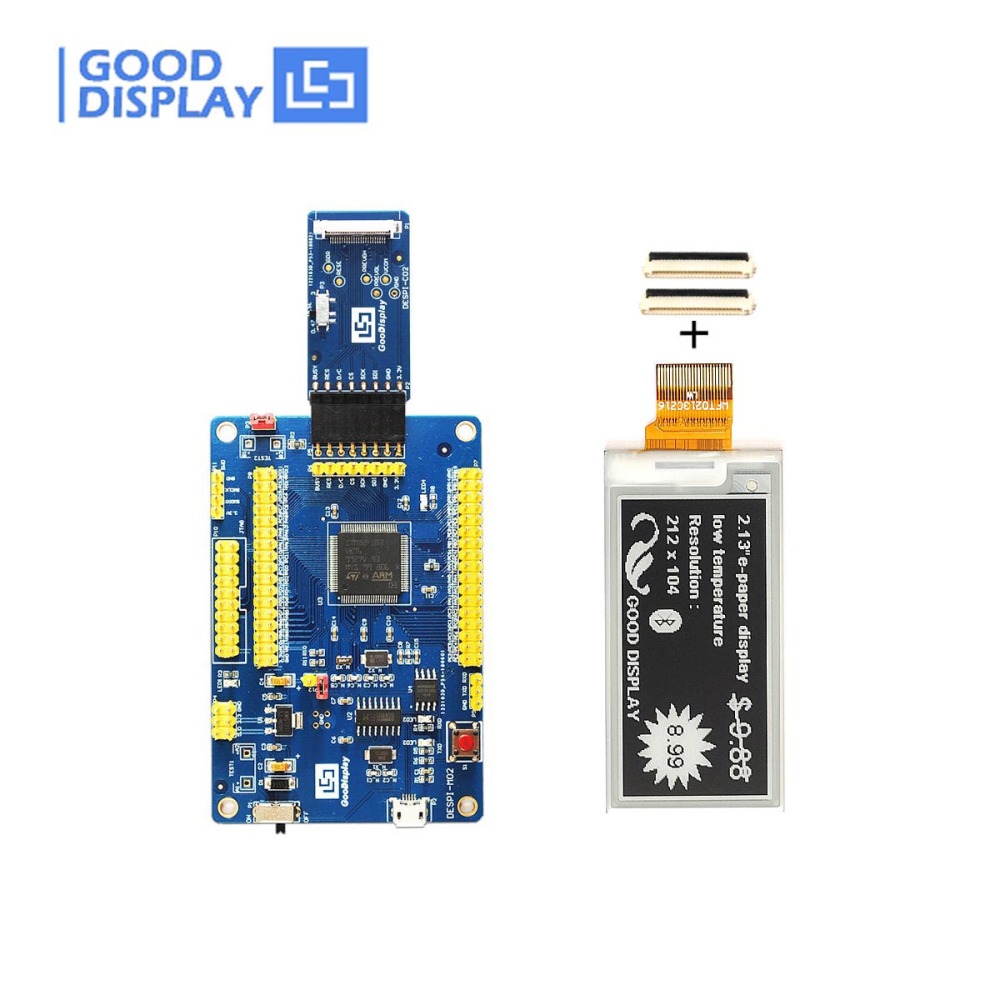

    EPD with demo kit
Quantity:
-
+
(90 available)
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION



This is a 2.13 inch low temperature -25~10℃ e ink panel with 212x104 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink panel GDEW0213V7LT is perfect for low power devices powered by solar or batteries, and it's also suitable for the cold environment.



We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on our official website (www.good-display.com), contact us please.


Use our free e-paper software to prepare your bitmap image for this display.



 FEATURE




●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  It supports partial refresh, the refresh rate is 0.3s/frame

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Low operating temperature range: -25~10℃ (Normal e-paper display: 0~50℃, Normal color e-paper display: 0℃~40℃).

●  Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32







 THE ABOVE PRICE INCLUDE

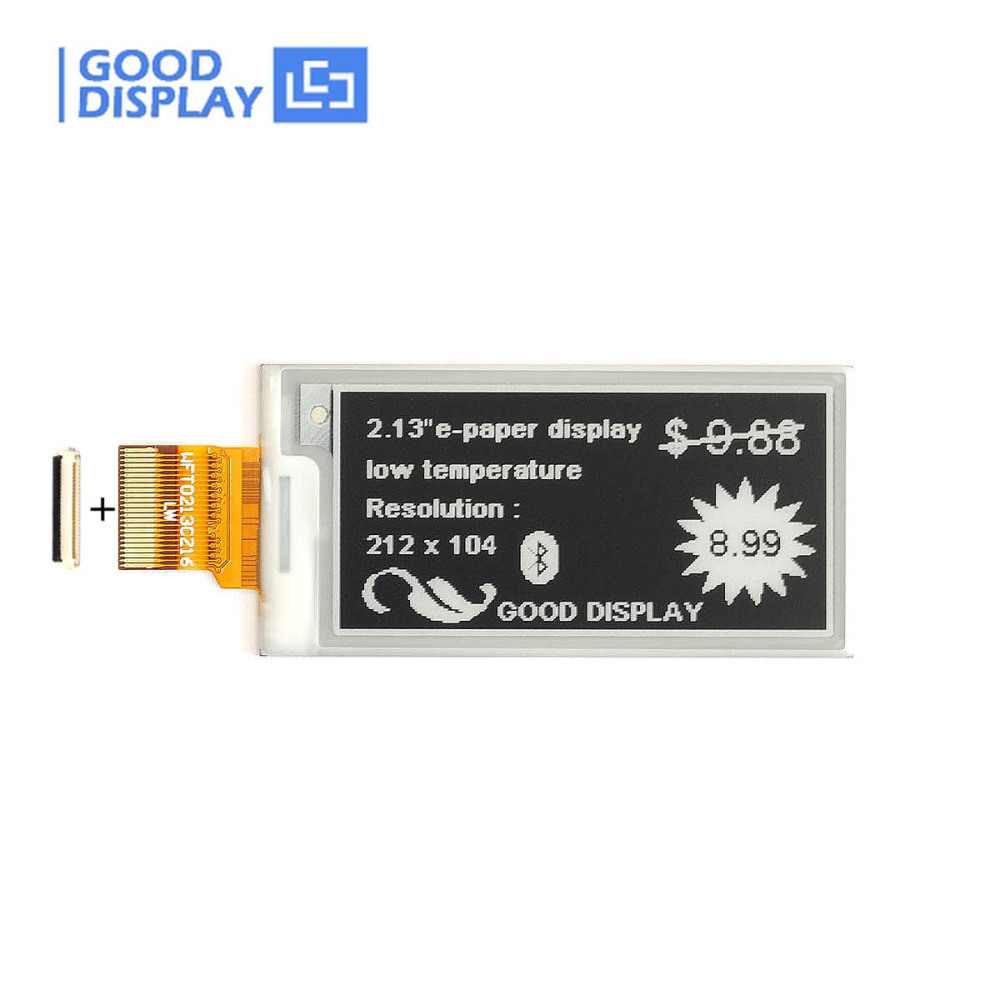

1) 2.13 inch e-paper display Low temperature electronic paper module eink  * 1pc
2) FPC Connector * 1pc
3) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)





 MAIN PARAMETERS




PART NUMBER

GDEW0213V7LT

TYPE

Dot Matrix

SIZE

2.13 inch

IC

UC8151D

RESOLUTION

212x104

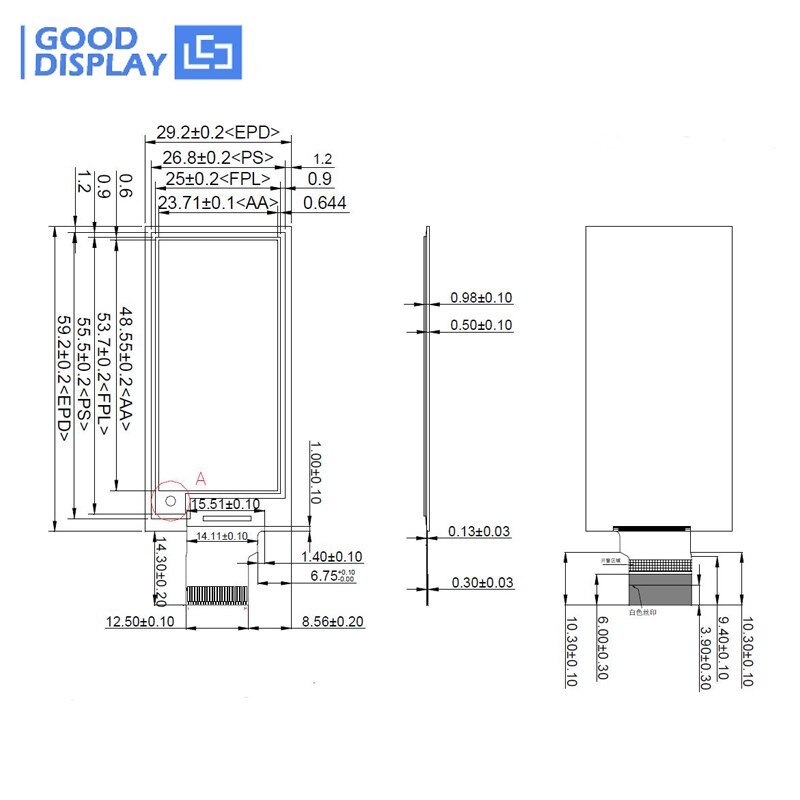

OUTLINE SIZE(mm)

59.2x29.2x0.98

ACTIVE SIZE(mm)

48.55x23.71

PIXEL PITCH(mm)

0.229x0.228

OPERATING TEMP.

-25℃~10℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

24 Pin FPC

MAX GRAYSCALE

2

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH(s)

3

PARTIAL REFRESH TIME(s)

0.3

POWER CONSUMPTION OF THE REFRESH(mW)

26.4

STANDBY POWER CONSUMPTION (mW)

0.0165





 SPECIFICATION DOWNLOAD




1)  GDEW0213V7LT Specification
2)  IC Driver UC8151C Datasheet
3)  GDEW0213V7LT STM32 Sample Code




 OTHER REFERENCES



International Shipping & Delivery FAQs>>
Payment Methods>>
Shipping & Returns>>







☆ OTHER PRODUCTS




Part Number

Color

Resolution

Features

Refresh Time
GDEW0213M21 BW 212x104 UC8151D, DES, High contrast 3s
GDEW0213T5D BW 212x104 UC8151D, Partial Refresh, 4 Grayscale 3s
GDEW0213I5FD BW 212x104 UC8151D, Flexible, Partial Refresh 3s
GDEM0213B74 BW 250x122 SSD1680, Partial Refresh 3s
GDEM0213D23 BW 250x122 High Resolution -
GDEW0213V7LT BW 212x104 UC8151D, -25℃~10℃, Partial Refresh 3s
GDEM0213U23 BWR 250x122 Colorful(Red) -
GDEY0213Z98 BWR 250x122 SSD1680, Colorful(Red) 14s
GDEH0213Z19 BWR 212x104 UC8151D, Colorful(Red) 15s
