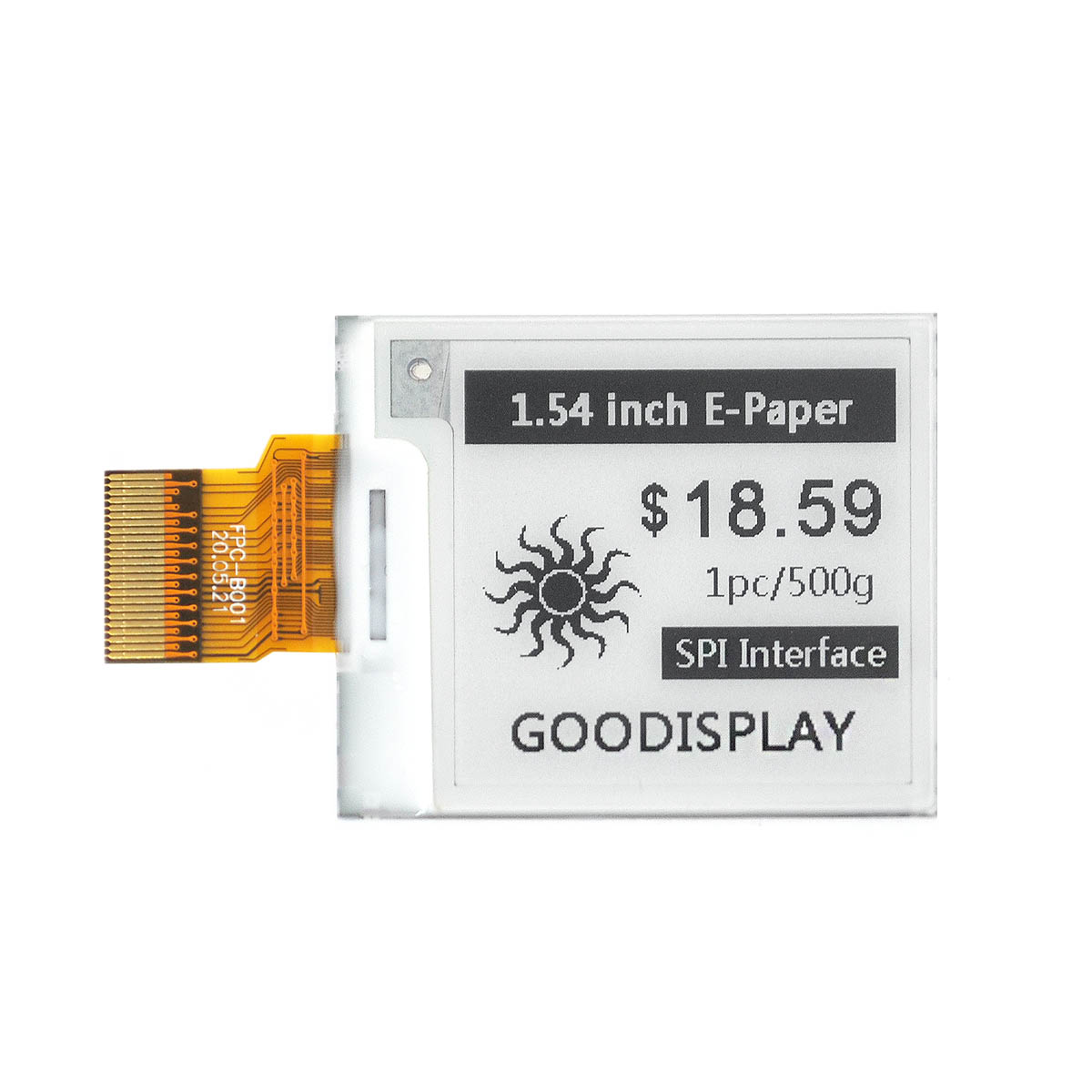

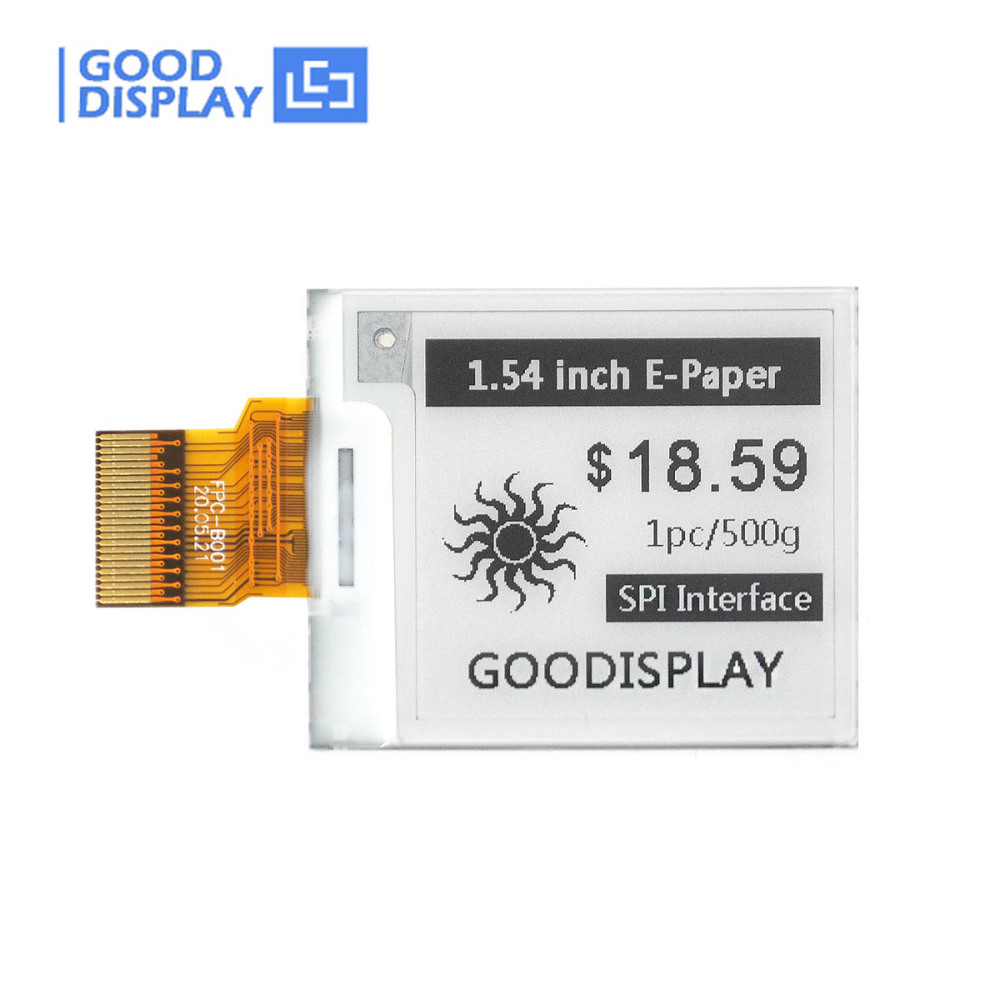

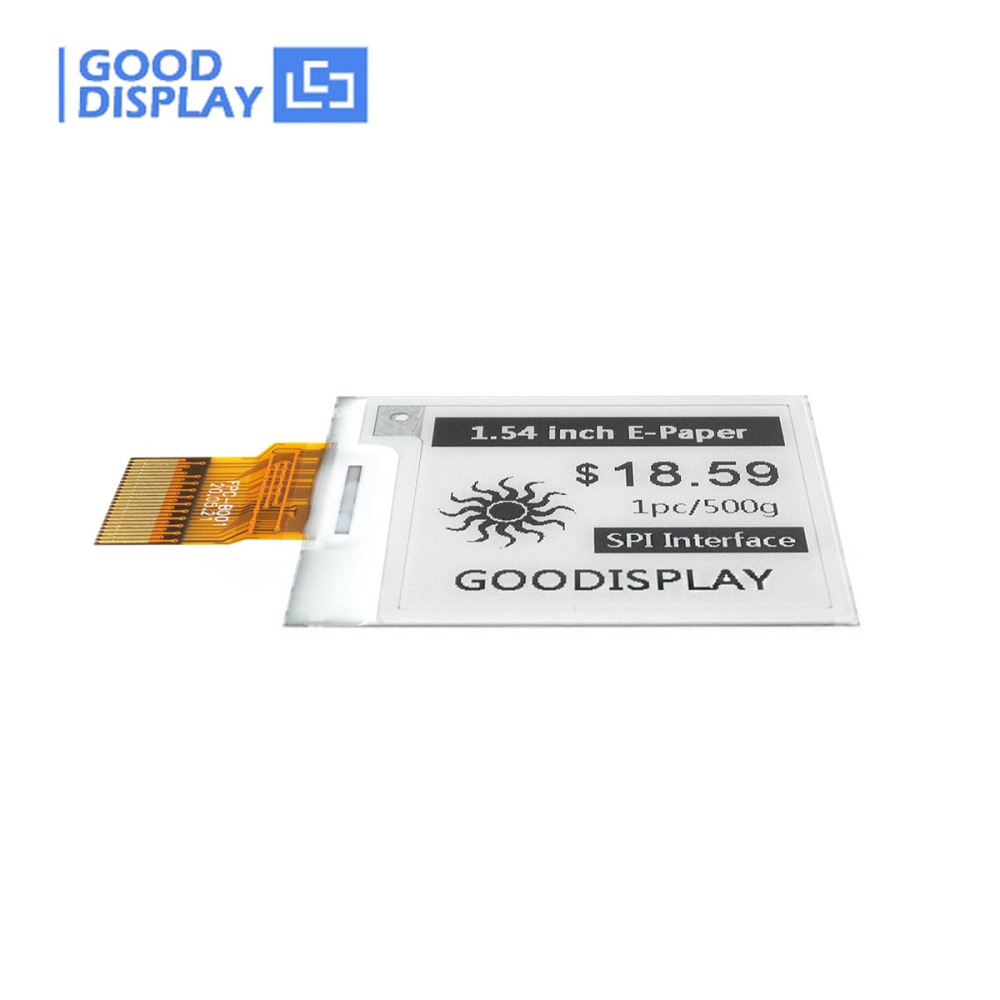

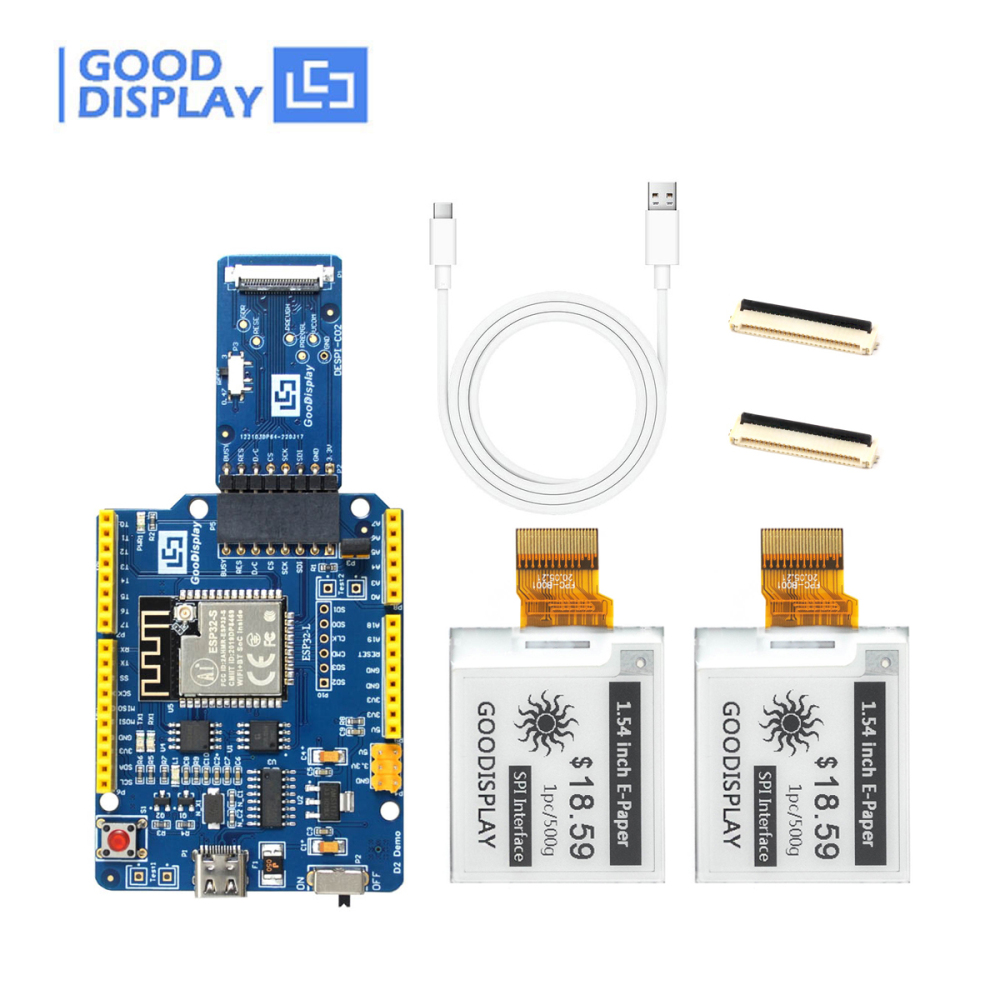

This is a set of epaper ESP8266 driver board ESP8266-L(C02) with 1.54 inch e-paper screen with 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.This e-paper display GDEY0154D67 is perfect for low power devices powered by solar or batteries.

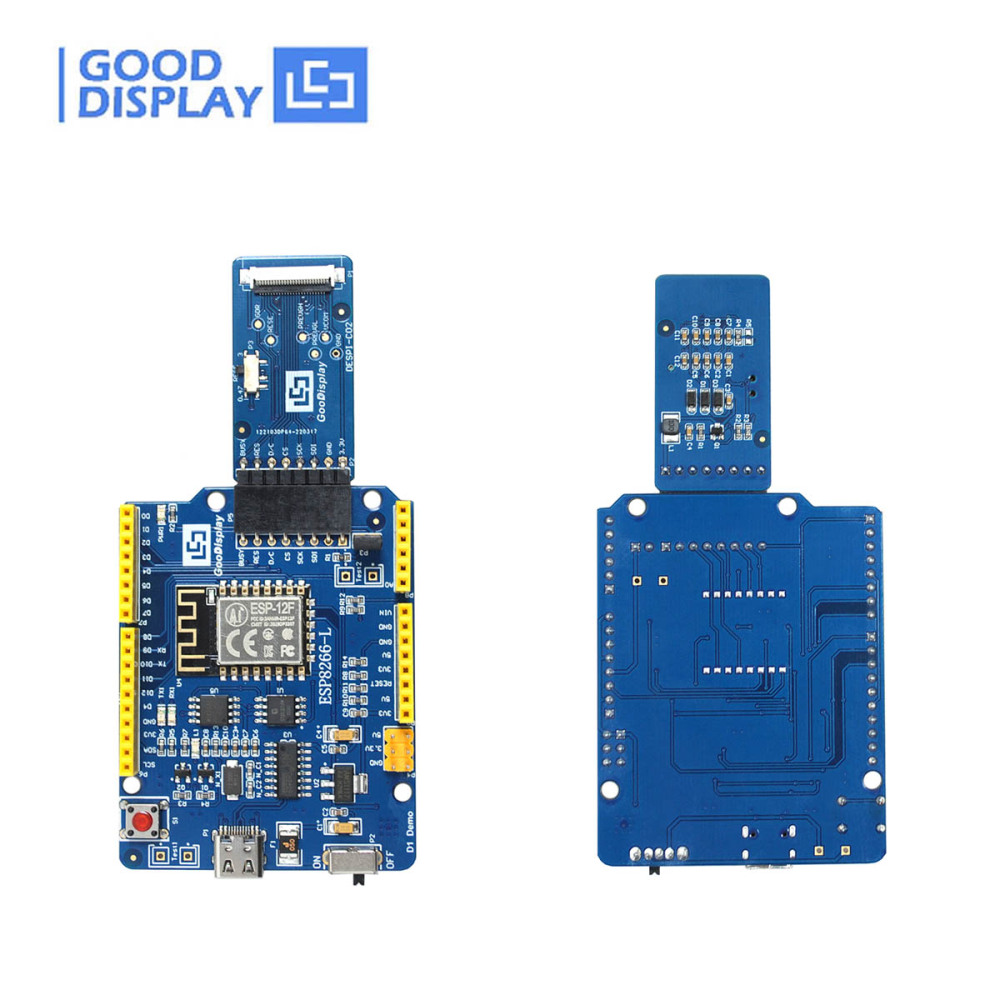

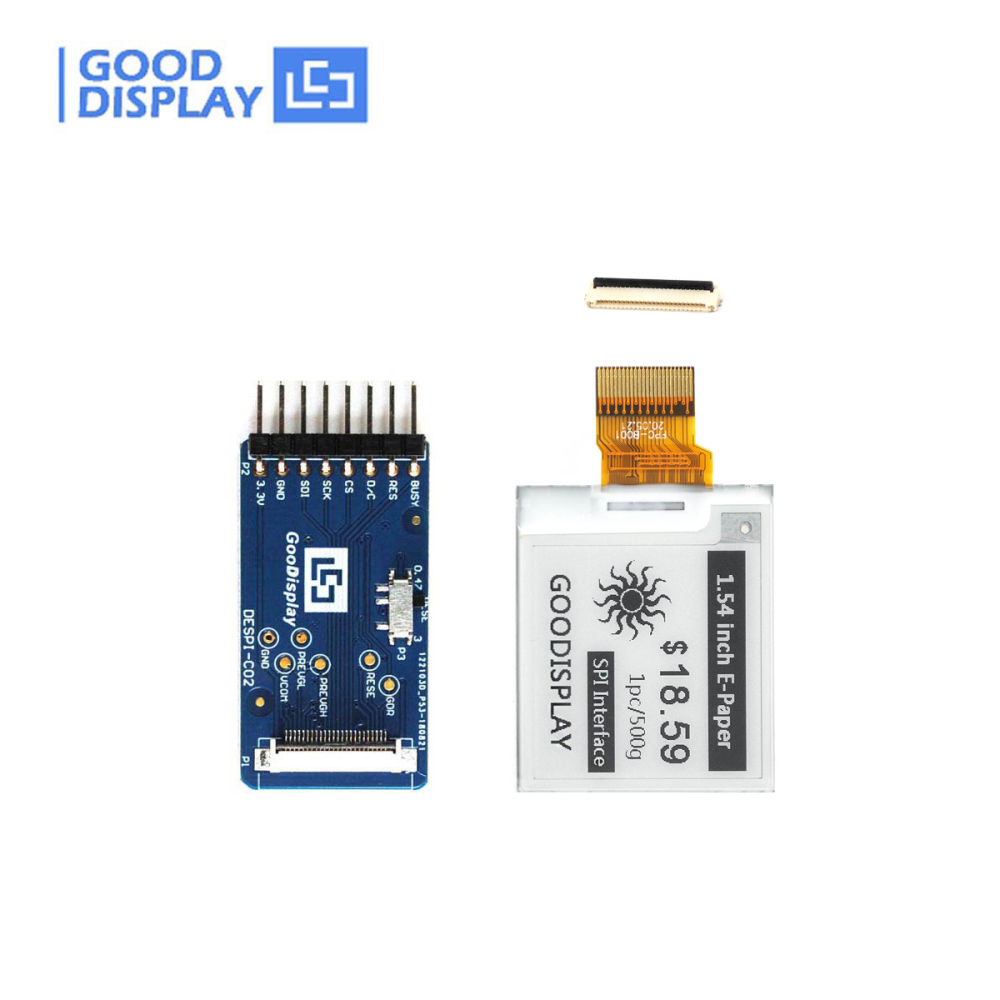

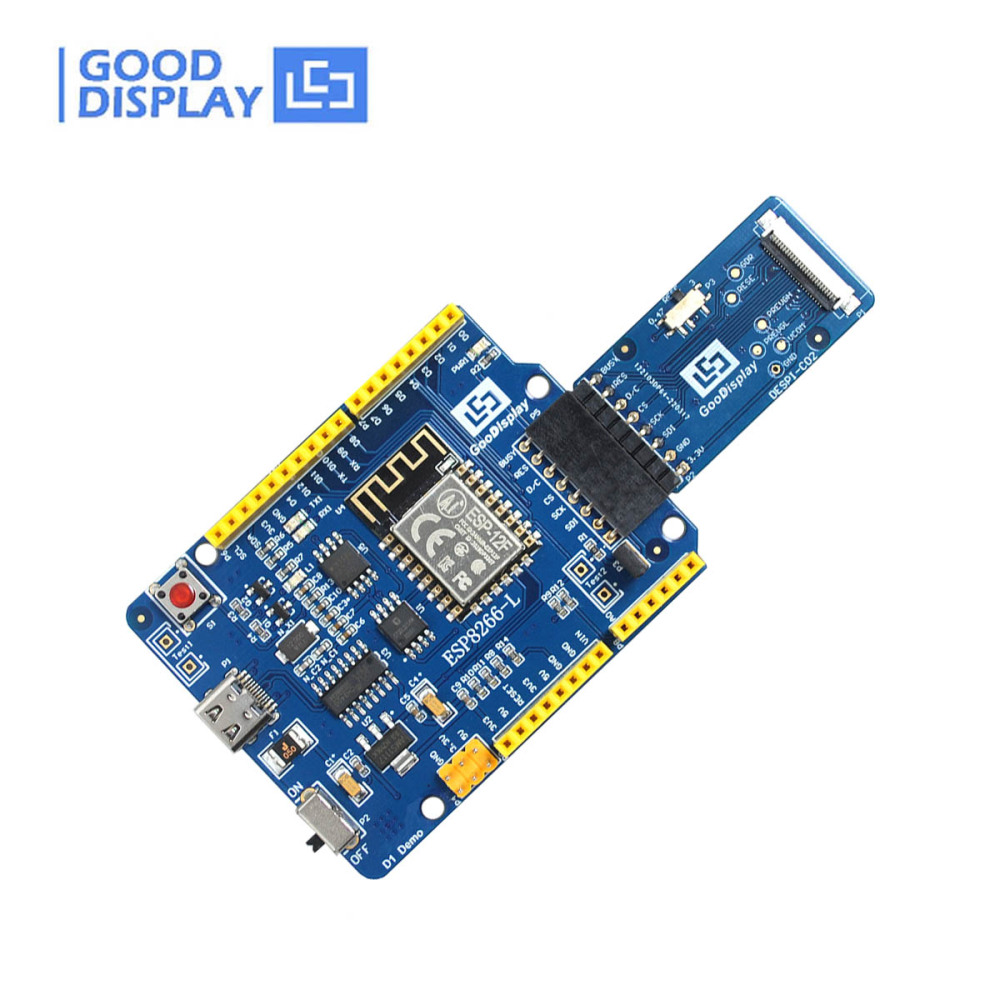

ESP8266-L (C02) development kit consists of motherboard ESP8266-L for EPD and connector board DESPI-C02.
ESP8266-L evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Display's e-paper display. And it is added the functions of USB serial port and LED indicator light, Reset button, font chip, Flash chip and etc.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
* Note: We can customize the OTP code to make the refresh time of this 1.54 inch e-paper display GDEY0154D67 reach to 1.5s, if you need, please contact us.

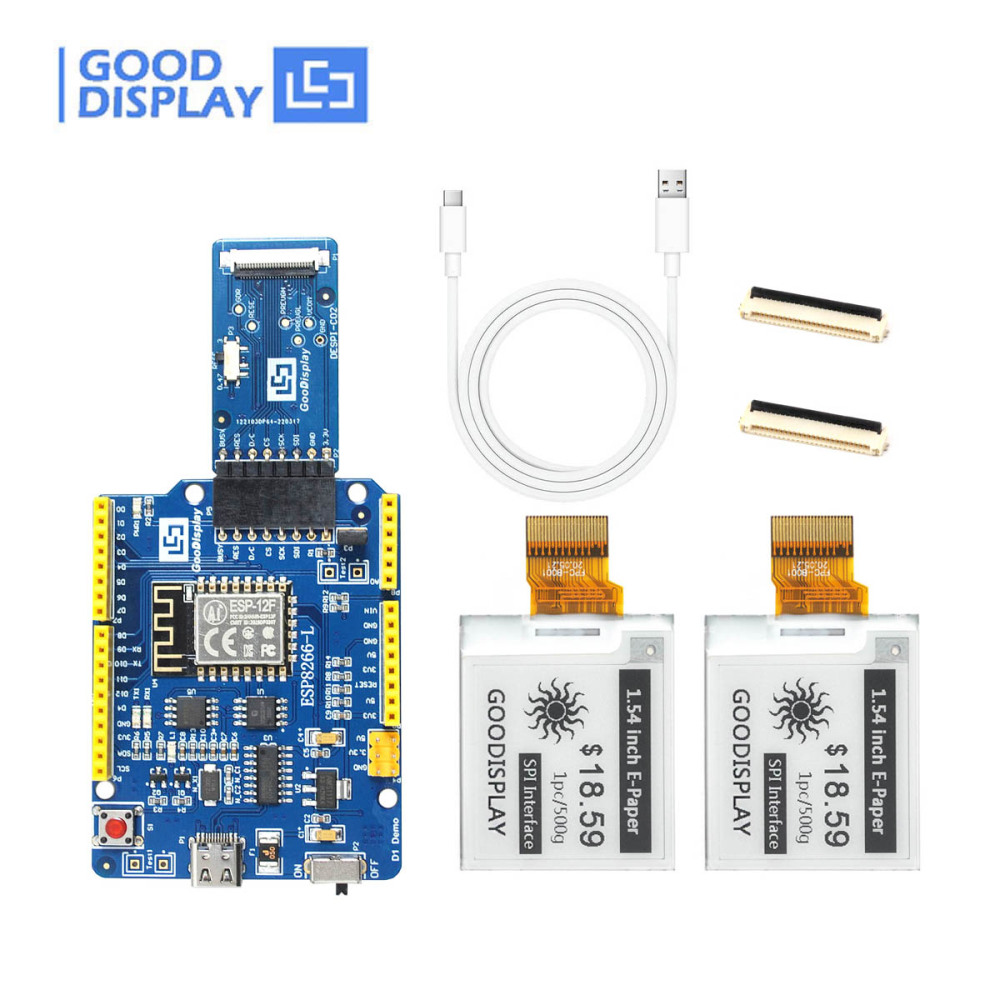

| Package A |  |
+ |  |
+ |  |
+ |  |
||
| a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 2pcs | b. FPC Connector * 2pcs | c. ESP8266 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP8266-L(C02) *1pc | d. USB Cable *1pc | ||||||
|
|
|||||||||
| Package B | |
+ | |
+ |  |
+ | |
||
| a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 2pcs | b. FPC Connector * 2pcs | c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02) *1pc | d. USB Cable *1pc | ||||||
|
|

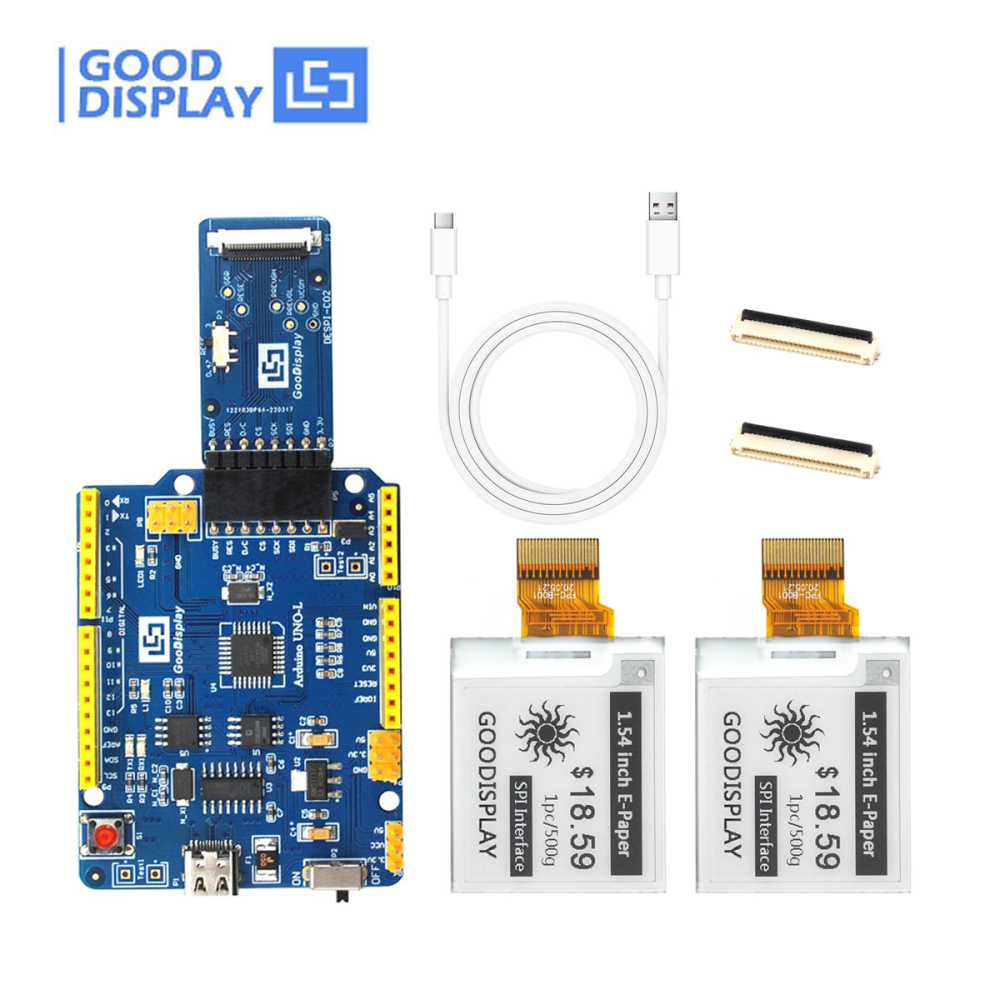

|||||||||
| Package C | |
+ | |
+ | |
+ | |
| a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 2pcs | b. FPC Connector * 2pcs | c.Arduino E-paper Driving Board Type-C Interface EPD development kit, DEArduino-L(C02) *1pc | d. USB Cable *1pc | ||||
|
|
|||||||
| Package D | |
+ | |
+ |  |
+ | |
| a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 2pcs | b. FPC Connector * 2pcs | c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) *1pc | d. USB Cable *1pc | ||||
|
|
|||||||
| Package E | |
+ | |
+ |  |
||
| a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 1pc | b. FPC Connector * 1pc | c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02 *1pc | |||||
|
|
|||||||
| Package F | |
+ | |
||||
| a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 1pc | b. FPC Connector * 1pc | ||||||
|

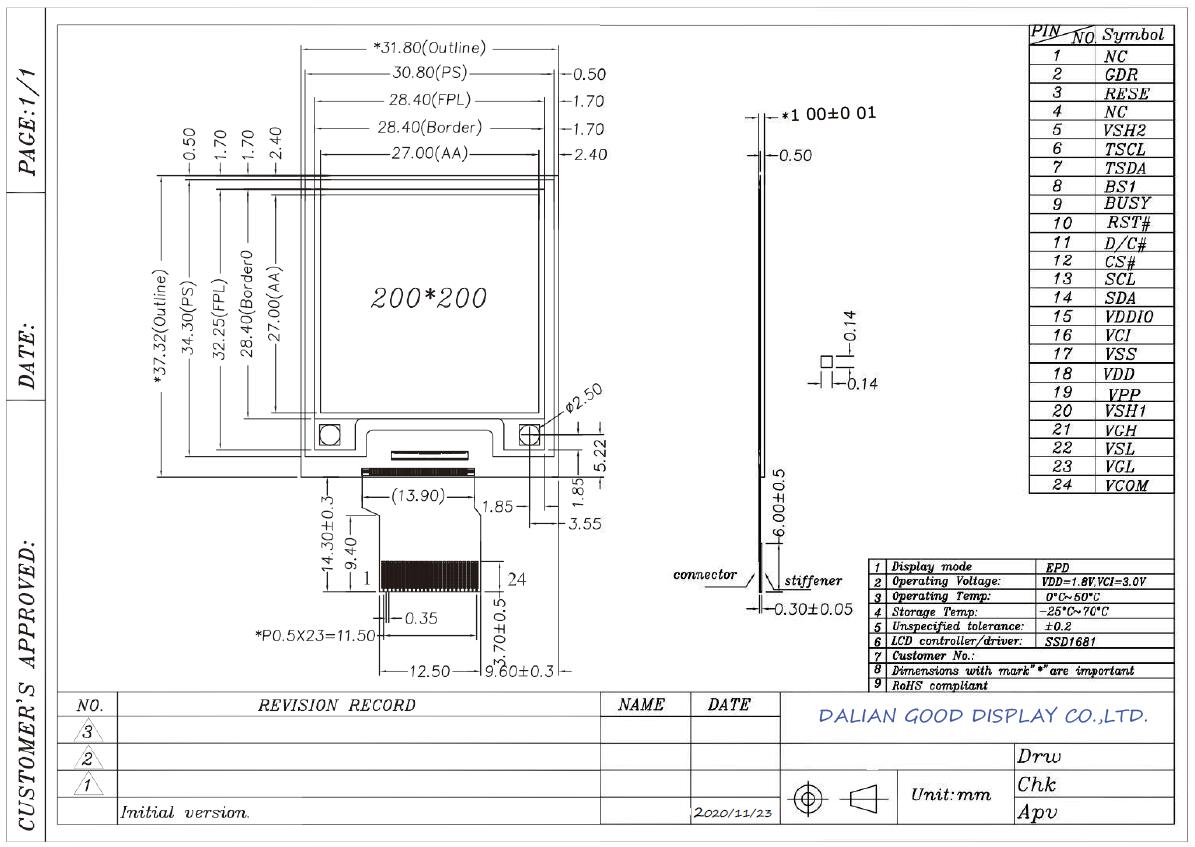

PART NUMBER |
GDEY0154D67 |
||
| SIZE | 1.54 inch | MAX GRAYSCALE | 4 |
|
DISPLAY FORMAT |
200x200 |
INTERFACE | SPI |
| IC | SSD1681 | POWER CONSUMPTION OF THE REFRESH(mW) | 4.5 |
|
OUTLINE DIMENSION(mm) |
37.32x31.8x1 |
STANDBY POWER CONSUMPTION (mW) | 0.003 |
|
ACTIVE AREA(mm) |
27x27 |
FULL REFRESH(s) | 2 |
|
OPERATING TEMP. |
0℃~50℃ |
PARTIAL REFRESH TIME(s) | 0.26 |
|
STORAGE TEMP. |
-25℃~70℃ |
COLOR | Black, White |
| PART NUMBER | ESP8266-L(C02) | ||
| PLATFORM | Arduino | OUTSIDE DIMENSION | 70mm x 54mm (ESP8266-L) 41mm x 22mm (DESPI-C02) |
| POWER INTERFACE | Type-C | OPERATING TEMP. | -20~70℃ |
| SAMPLE CODE | Available (please contact sales) | ||
| MAIN FUNCTION | Learn to drive e-paper display; Test and evaluate e-paper display; Support secondary development |
||
| Additional Funtion | Type-C interface; Indicator light; Reset button; Font chip; Flash chip; Current detection; Touch screen driving. | ||
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● It supports partial refresh, the refresh rate is 0.26s/frame.
● Bistable. (Will continue to display with no power source)
● I²C Signal Master Interface to read external temperature sensor
|
Part Number |
Color |
IC | Resolution |
Features |
Refresh Time |
| GDEW0154I9FC | BW | UC8151D | 152x152 | Flexible, Partial Refresh | 3s |
|
BW |
SSD1681 |
200x200 |
Partial Refresh, With Frontlight |
2s |
|
| GDEY0154D67 | BW | SSD1681 | 200x200 | Partial Refresh | 2s |
| GDEW0154T11 | BW | UC8154 | 200x200 | SPI Interface | 2s |
| GDEW0154M10 | BW | UC8151D | 152x152 | DES, High Contrast Ratio | 3s |
|
BW |
UC8151C |
152x152 |
Fast Refresh, Partial Refresh, With Frontlight |
0.82s |
|
|
BW |
UC8151D |
152x152 |
Fast Refresh, Partial Refresh |
0.82s |
|
|
BWR |
SSD1681 |
200x200 |
Colorful(Red) |
15s |
|
| GDEM0154Z91 | BWR | SSD1680 | 152x152 | Colorful(Red) | 14s |
● GDEY0154D67 Specification
● IC Driver SSD1681
● GDEY0154D67 Picture Production and Bitmap Conversion
● GDEY0154D67 STM32 Sample Code
● GDEY0154D67 Arduino Sample Code
● GDEY0154D67 Raspberry Pi Pico Sample Code
● GDEY0154D67 ESP32 Sample Code
● ESP8266-L(C102) Specification
● DESPI-C102(30P) Specification
● ESP8266-L_SCH
● DESPI-C102-SCH
Thank you for your interest in our product. If you need any further assistance or have any other questions, please feel free to contact us. We sincerely invite you to send your inquiries to our email at [buyepaper@good-display.com].
