☆ INTRODUCTION
This is a set of development kit with 1.54 inch e-paper display with 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEH0154D67 is perfect for low power devices powered by solar or batteries.
This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display.
☆ FEATURE
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● It supports partial refresh, the refresh rate is 0.26s/frame.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Compared with other 1.54 inch electronic paper displays, the power consumption is lower.
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
☆ THE ABOVE PRICE INCLUDE

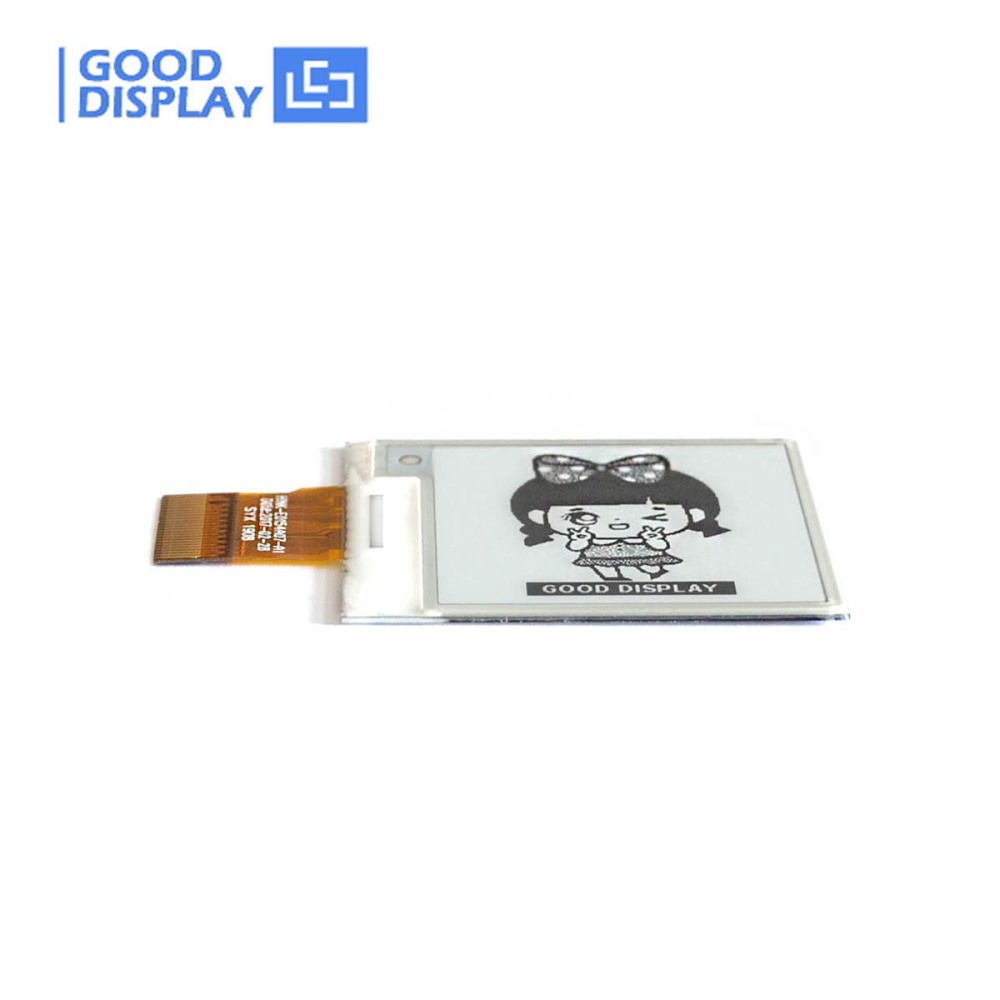

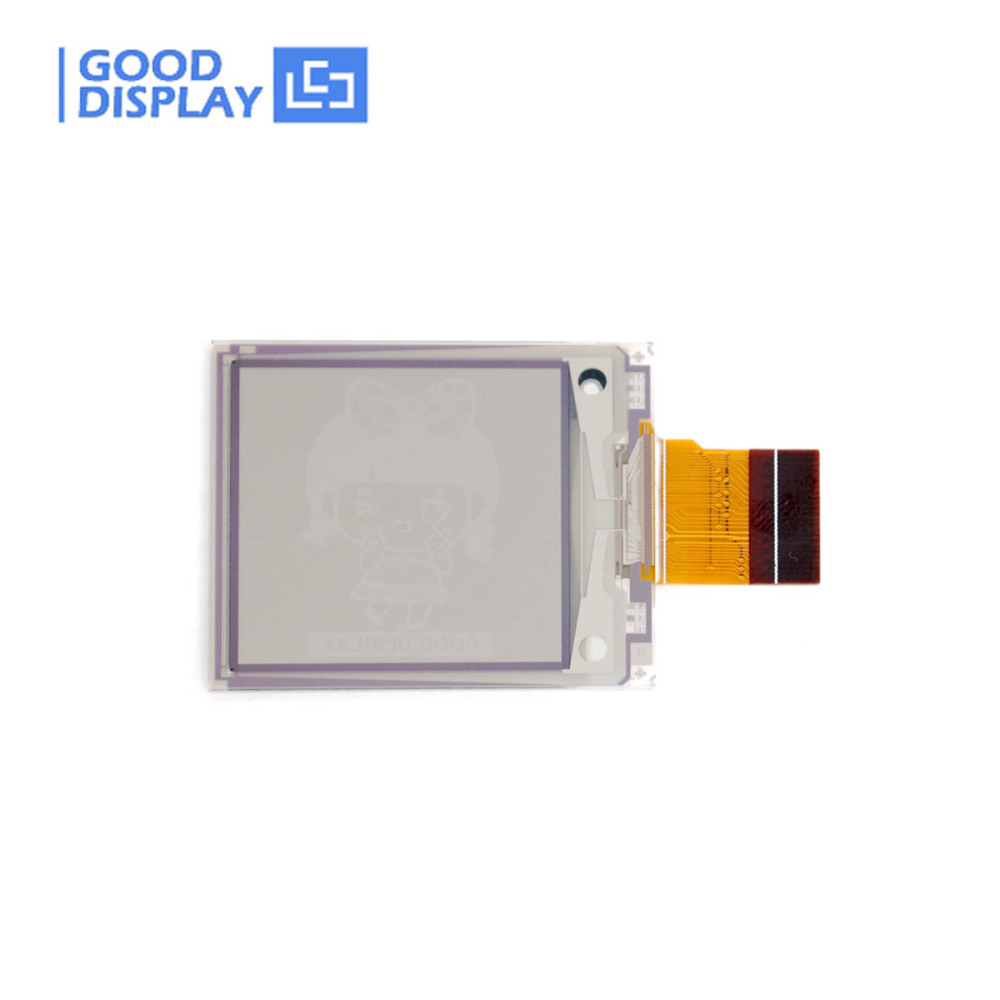

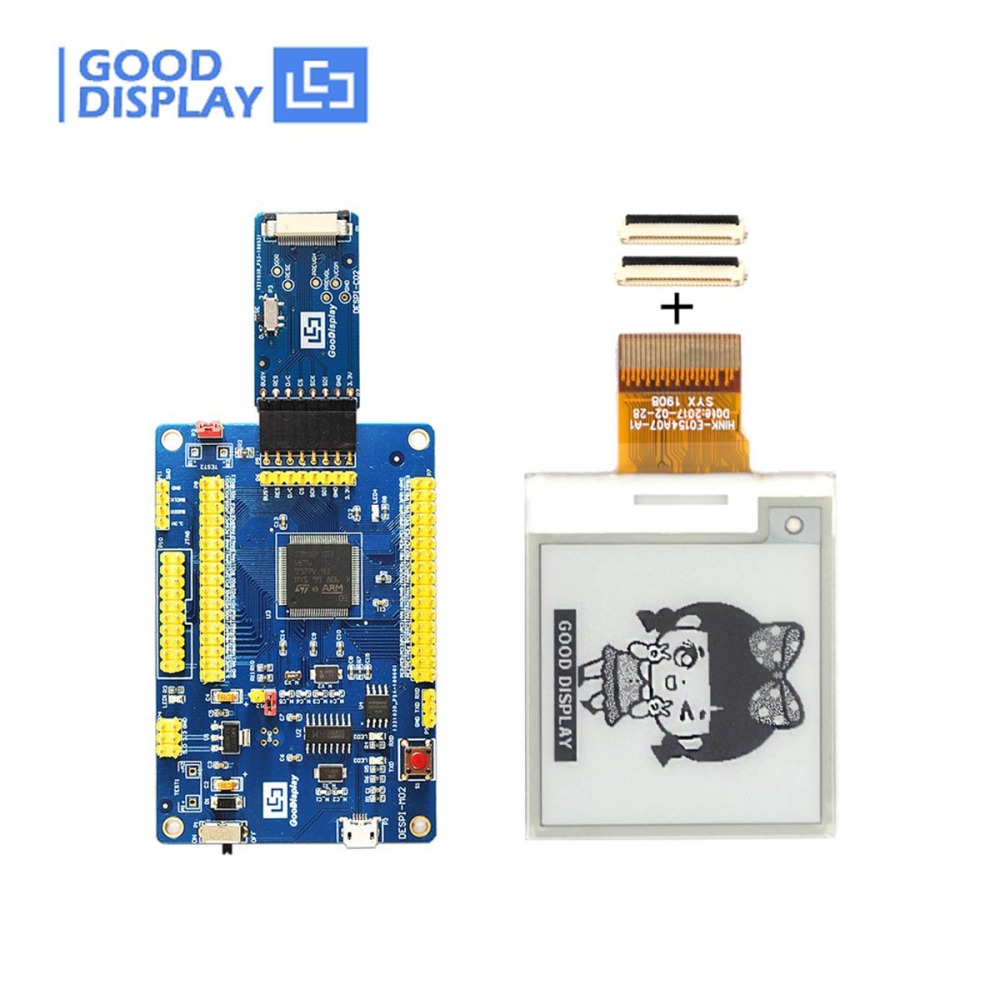

1) 1.54 inch e-ink display with 200x200 resolution e-paper display * 2pcs

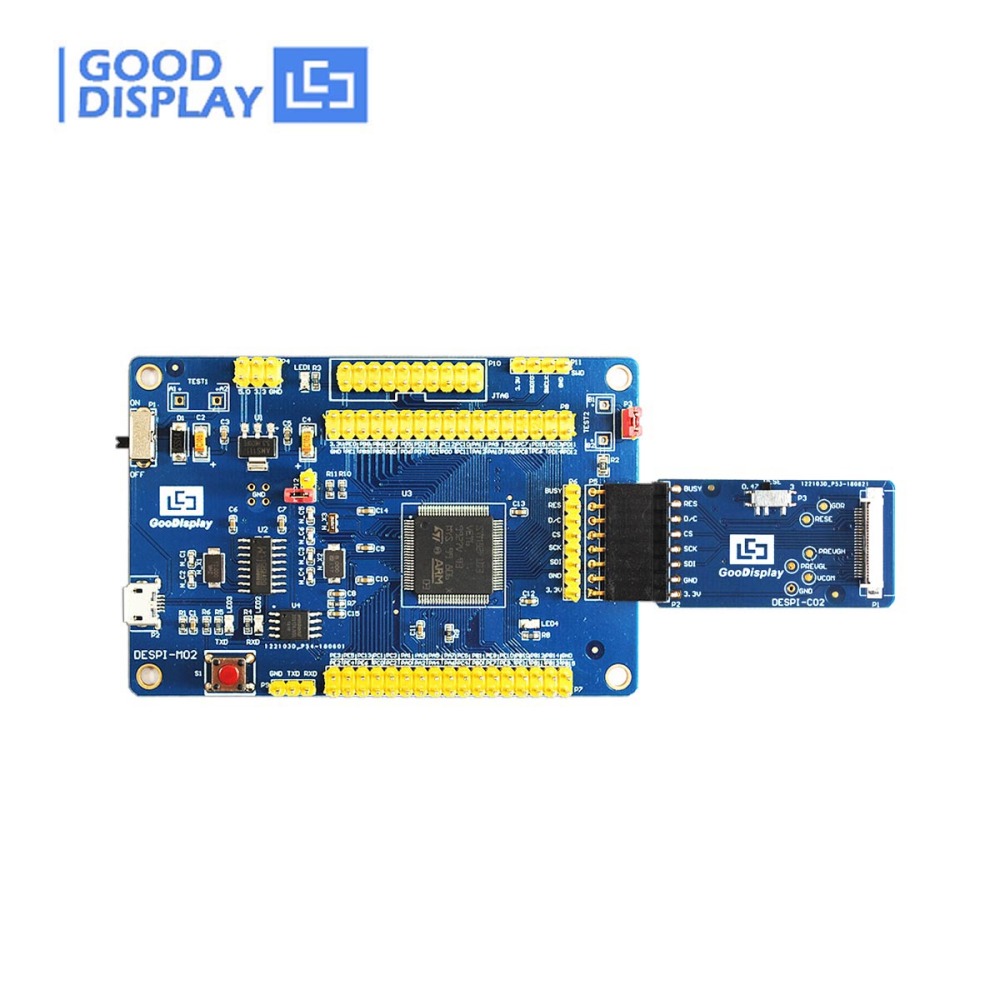

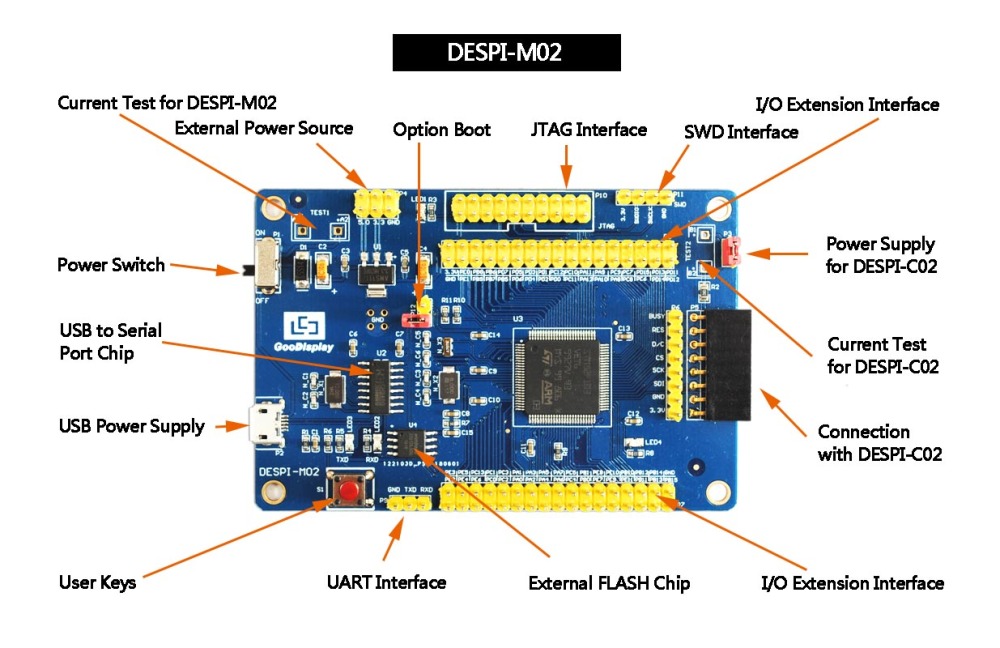

2) Driving board DESPI-M02 *1pc

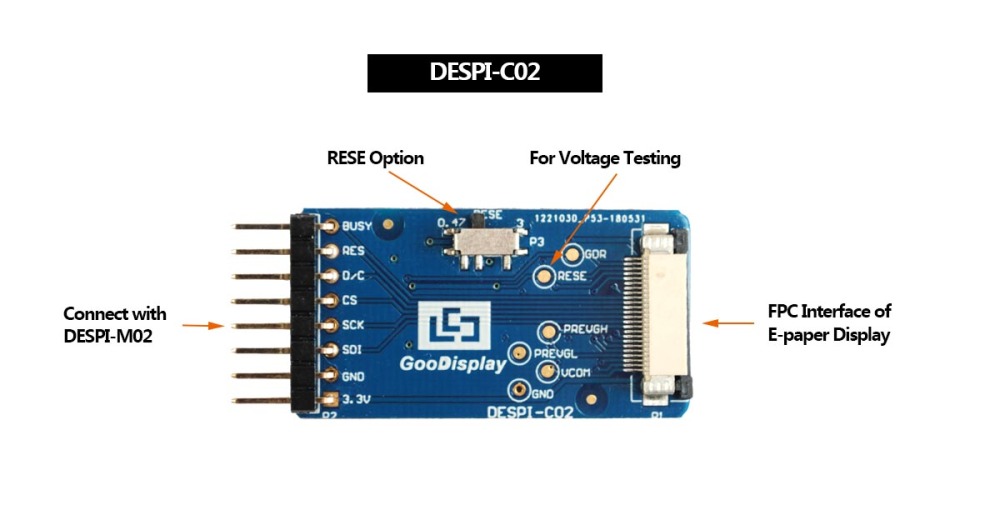

3) Connector board DESPI-C02 *1pc
4) USB port cable *1pc
5) FPC Connector * 2pcs
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEH0154D67
|
|
TYPE
|
Dot Matrix
|
|
SIZE
|
1.54 inch
|
|
IC
|
SSD1681
|
|
RESOLUTION
|
200x200
|
|
OUTLINE SIZE(mm)
|
31.8x37.32x1.05
|
|
ACTIVE SIZE(mm)
|
27x27
|
|
PIXEL PITCH(mm)
|
0.135x0.135
|
|
OPERATING TEMP.
|
0℃~50℃
|
|
STORAGE TEMP.
|
-25℃~60℃
|
|
CONNECTOR
|

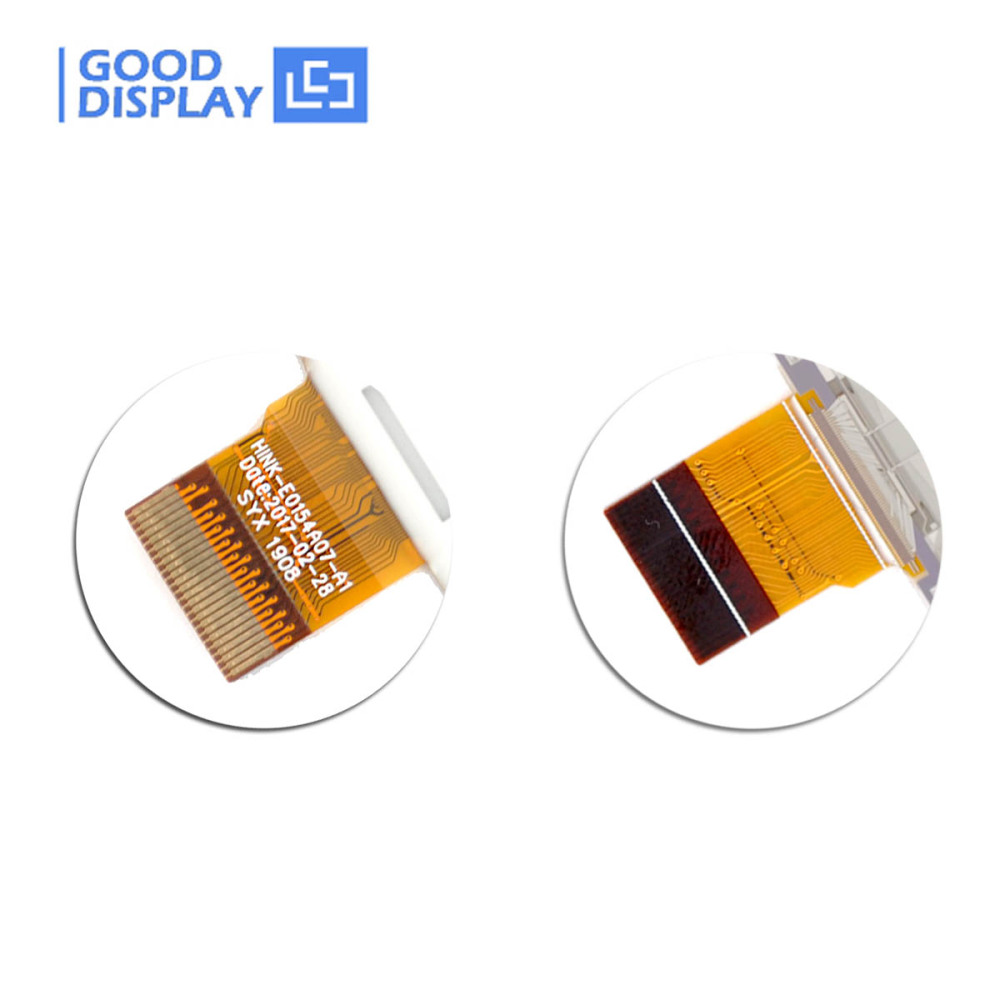

24 Pin FPC
|
|
MAX GRAYSCALE
|
4
|
|
COLOR
|
Black,White
|
|
INTERFACE
|
SPI
|
|
FULL REFRESH(s)
|
2
|
|
PARTIAL REFRESH TIME(s)
|
0.26
|
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
4.95
|
|
STANDBY POWER CONSUMPTION (mW)
|
0.006
|
|
PART NUMBER
|
DESPI
|
|
PLATFORM
|
STM32
|
|
FUNCTION
|
Drive E-paper Display
|
|
OUTSIDE DIMENSION
|
90x60mm(DESPI-M02)
41x22mm(DESPI-C02)
|
|
INTERFACE
|
USB
|
|
POWER INPUT
|
DC5V
|
|
FEATURE
|
Fully and Partial Refresh
|
|
OPERATING TEMP.
|
-20℃~70℃
|
|
RECOMMENDED
|
Keil 4
|
☆ OTHER PRODUCTS
|
Part Number
|
Color
|
IC |
Resolution |
Features
|
Refresh Time |
| GDEW0154I9FC |
BW |
UC8151D |
152x152 |
Flexible, Partial Refresh |
3s |
|
GDEH0154D67-FL
|
BW
|
SSD1681 |
200x200
|
Partial Refresh, With Frontlight
|
2s
|
| GDEY0154D67 |
BW |
SSD1681 |
200x200 |
Partial Refresh |
2s |
| GDEW0154T11 |
BW |
UC8154 |
200x200 |
SPI Interface |
2s |
| GDEW0154M10 |
BW |
UC8151D |
152x152 |
DES, High Contrast Ratio |
3s |
|
GDEW0154T8-FL
|
BW
|
UC8151C |
152x152
|
Fast Refresh, Partial Refresh, With Frontlight
|
0.82s
|
|
GDEW0154T8D
|
BW
|
UC8151D |
152x152
|
Fast Refresh, Partial Refresh
|
0.82s
|
|
GDEH0154Z90
|
BWR
|
SSD1681 |
200x200
|
Colorful(Red)
|
15s
|
| GDEM0154Z91 |
BWR |
SSD1680 |
152x152 |
Colorful(Red) |
14s |
