0.91 inch Small mini graphic OLED Display Module

GDO0091B

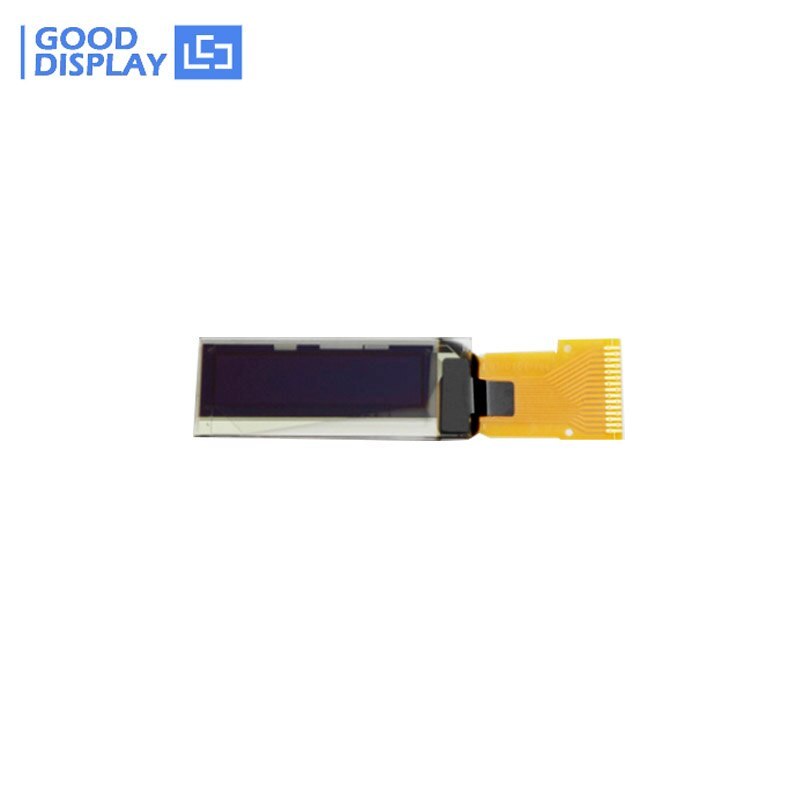

GDO0091B is the graphic OLED display module made of 128x32 individual blue OLED pixels,diagonal is only 0.91 inch.
Sold:1
Price:
USD
$3.54
Quantity:
-
+
(9 available)
Please select the information you wantX
  • Description
  • Library
  • Selection Guide
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com

GDO0091B is the graphic OLED display module made of 128x32 individual blue OLED pixels,diagonal is only 0.91 inch.The controller ic SSD1306, communicates via 4-wire serial spi interface only,thanks to controller's built-in voltage generation,only a single 2.8V power supply is needed. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.


Part Number GDO0091B
Outline Dimension 30.0(W)x11.50(H)x1.45(T)mm
Visual Area 24.38x7.58mm
Active Area 22.384(W)x5.584(H)mm
Display Format 128x32 Dots
Interface I2C
Appearance Blue on Black
Display Type OLED
Viewing Angle Range Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree
Operating Temperature -30℃~70℃
Storage Temperature -40℃~80℃
Power Supply 2.8V

http://www.good-display.com/product/296.html


Part Number Size Type Resolution IC Driver
GDO0066B 0.66 inch Display 64x48 SSD1306
GDO066W 0.66 inch Display 64x48 SSD1306
GDOA0069W 0.69 inch Display 96x16 SSD1306
GDOR0075W 0.75 inch Display 128x128 SSD1327
GDO0086W 0.86 inch Display 96x32 SSD1316
GDO0091B 0.91 inch Display 128x32 SSD1306
GDO0096YB 0.96 inch Display 128x64 SSD1306
GDMN0096WP30 0.96 inch Module 128x64 SSD1315
GDMN0129WP30 1.29 inch Module 128x64 SSD1315
GDOR0140CP20  1.39 inch Display 400x400 --
GDO0150C 1.5 inch Display 128x128 SSD1351
GDOE0240G 2.4 inch Display 128x64 SSD1305
GDOB5500CT 55 inch Display 1920x1080 --
GDOB5500CB 55 inch Display 1920x1080 --
