☆ INTRODUCTION
IR60BH1A radar module is a radar detection module based on the millimeter wave Doppler radar theory, adopts 60G millimeter wave radar technology to realize the non-contact perception of personnel's breathing rate and heart rate. This module is based on the enhanced Doppler radar signal processing theory, and achieves wireless perception of the status of personnel in a specific place through the synchronous sensing technology of Doppler parameters of personnel movement and physiological parameters of personnel. It can be tested with our radar test board (DERADAR-24G).
Relevant manual about this product on Library or you could go to our official website (www.iflabel.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
1) Wireless 60G Bio-Radar Sensor personnel's respiratory rate and heart rate Radar, IR60BH1A * 1pc
☆ MAIN PARAMETERS
| PRODUCT NAME |
60G personnel's breathing rate and heart rate Radar Sensor Module |
| PART NUMBER |
IR60BH1A |
OUTLINE DIMENSION |
≤35MM×30MM×5MM |
| OPERATING FREQUENCY |
61-61.5GHz |
INSTALLATION METHOD |
Top/down/level |
| TRANSMIT POWER |
6dBm |
INSTALLATION HEIGHT |
2m |
| POWER INPUT |
5V/93mA |
DETECTING ANGLE |
Horizontal 40° & Vertical 40° |
| Detection Distance(Chest) |
0.4m≤x≤2m |
| OUTPUT CONTENT |
Humanned/Unmanned, active/inactive, Physical sign parameter size，Respiratory heart rate detection,Sleep quality monitoring |
☆ FEATURE
● Radar detection based on FMCW signal.
● Realize synchronous perception of human breathing rate and heart rate.
● The detection distance of breathing and heartbeat is 0.4-2m.
● Low output power, no harm to human body.
● It is not affected by temperature, humidity, noise, air flow, dust, light and other environmental factors.
● The product supports secondary development and adapts to a variety of scenario.
● General UART communication interface, providing general protoco.
● Four groups of I\O are reserved, which can be input and output according to user-defined or simple interface simulatio.
☆ PRODUCT FUNCTIONS
1. Detection of respiration
a) Detection distance：
i. 0.4m≤x≤2m//Detection distance between chest and radar antenna surface
b) Accuracy： ≥90%
2. Detection of heart rate
a) Detection distance：
i. 0.4m≤x≤2m//Detection distance between chest and radar antenna surface
b) Accuracy： ≥85%
3. Perception of presence
a) Detection distance： ≤3m //Distance between antenna surface and personnel
b) Accuracy： ≥90%
4. Detection of movement
a) Motion-triggered
b) Motion direction and position perception
☆ INDUCTION RANGE
The beam coverage of radar module is shown in. The radar coverage is a three-dimensional sector area with 80 ° horizontal and 80 ° pitch.
Due to the influence of radar beam characteristics, the radar operates far in the normal direction of the antenna surface, but the operating distance deviates from the normal direction of the antenna will become shorter.
When the radar is installed on the top or obliquely, the radar action range will be reduced due to the influence of the radar beam range and effective radiation space, which requires additional attention during use.

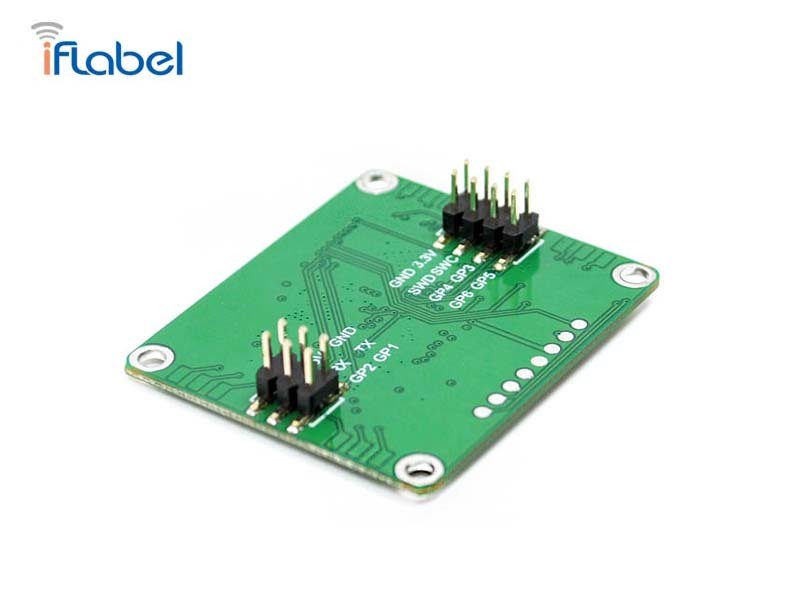

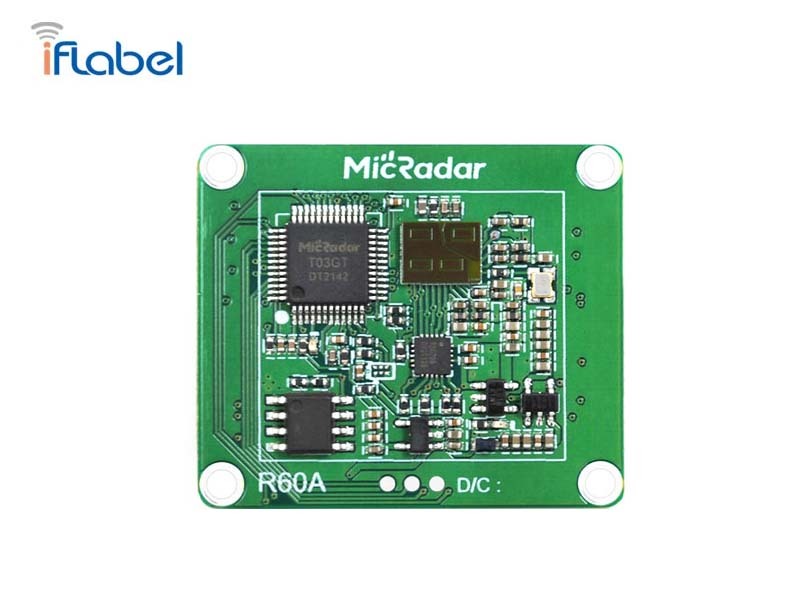

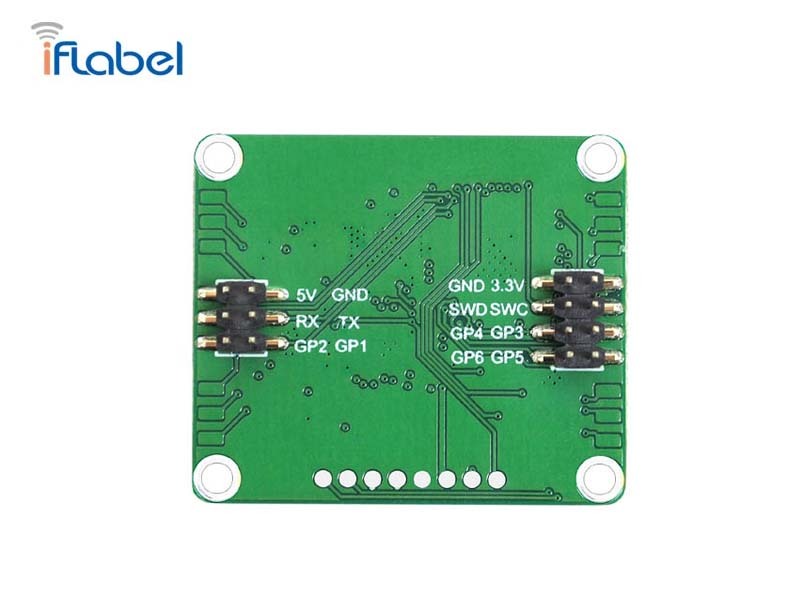

☆ APPEARANCE INTRODUCTION
☆ INSTALLATION INSTRUCTIONS
Radar detection is based on the undulating movement of the large body surface caused by breathing rate and the undulation of the human chest and back will become obvious. Therefore, the radar needs to be installed facing the chest or back of the human body.
Based on the radar action mode, the following installation modes are mainly considered:

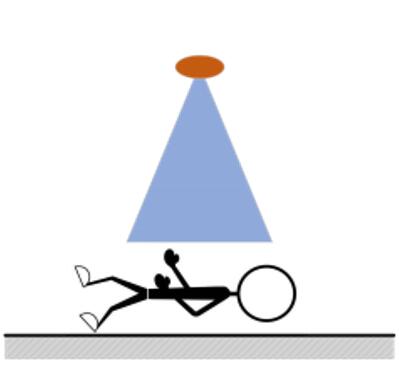

● Top-mounted
For people that are bedridden or with sleep needs, it is recommended to install on the top: the radar beam is vertically downward facing the human body, and the center of the radar beam is facing the human chest.
In this installation mode, the distance between the radar and the human body to be measured is required to be ≤ 2m

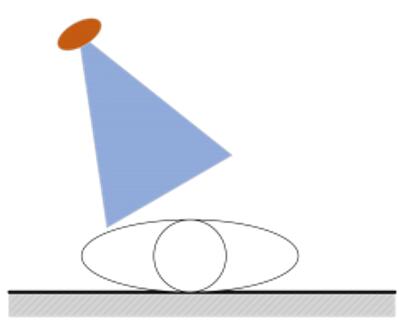

● Oblique-mounted
When the radar is installed obliquely, it needs to be fixed on the wall or beside the bed. The radar is installed obliquely: the radar beam irradiates the human body obliquely, and the center of the radar beam is facing the chest of the human body.
In this installation mode, the radial distance between the radar and the human body to be measured is required to be ≤ 2m.
● Horizontal-mounted
The radar is installed horizontally, and the radar is fixed on the wall or placed on the desktop: the radar beam irradiates the human body in a positive direction, and the center of the radar beam is facing the chest of the human body.
In this installation mode, the radial distance between the radar and the human body to be measured is required to be ≤ 2m.
.
