☆ INTRODUCTION
This is a graphic dot matrix LCD with 128x64 dots, 6 o'clock viewing direciton. Its backlight is white. And YM12864-G35 is FSTN Mode, transflective type, so can be used with backlight for working in dark surroudings. Operating temperature is -20~70℃, so it is suitable for industrial instrument.
☆ MAIN PARAMETERS
| Module Number |
YM12864-G35 |
| Display Contect |
128x64 |
| Outline Dimension |
80.2mm x 51.2mm x 5.6mm |
| Active Area |
66.52mm x 33.24mm |
| Driver IC |
ST7565R |
| View Direction |
6 o'clock |
| Operating Temp. |
-20℃~70℃ |
| Storage Temp. |
-30℃~80℃ |
| Connector |
OG+PIN |
| Power Supply |
3.0V |
| LED color |
White |
| LCD Type |
FSTN, Positive Mode |
☆ INCLUDING

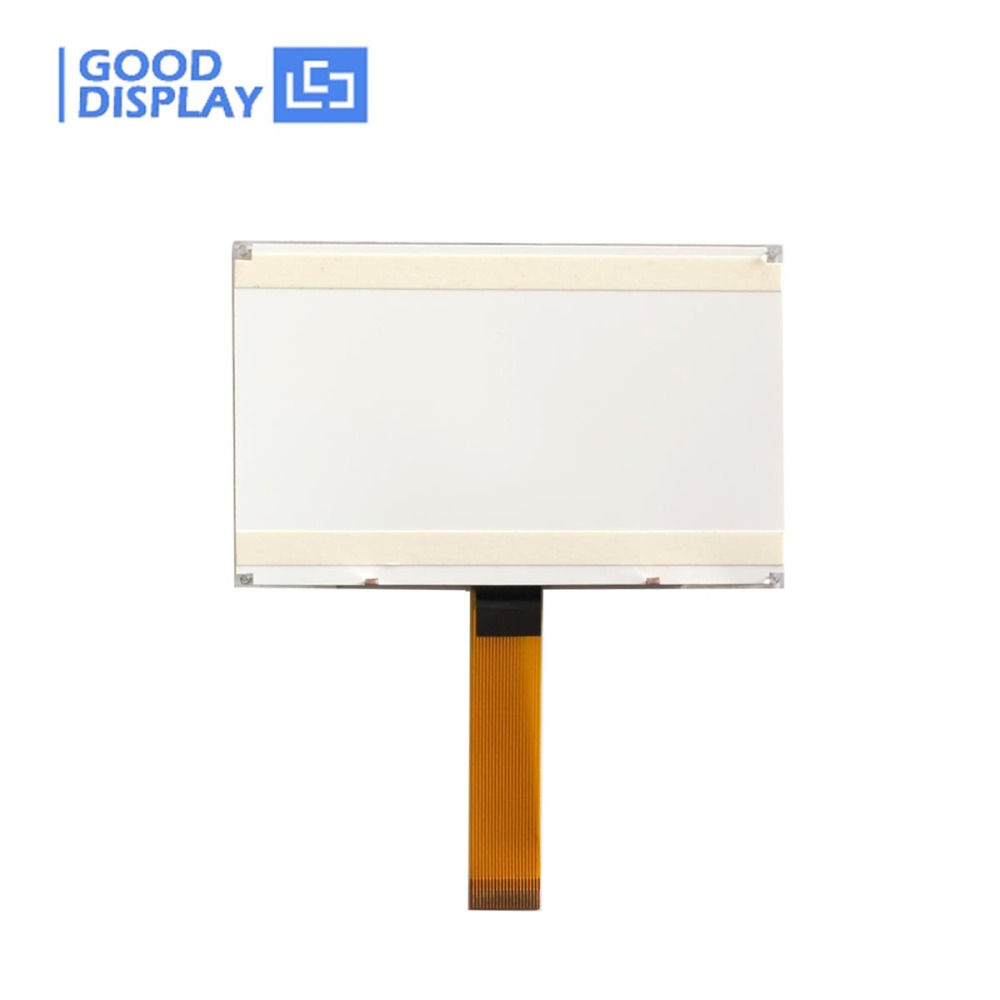

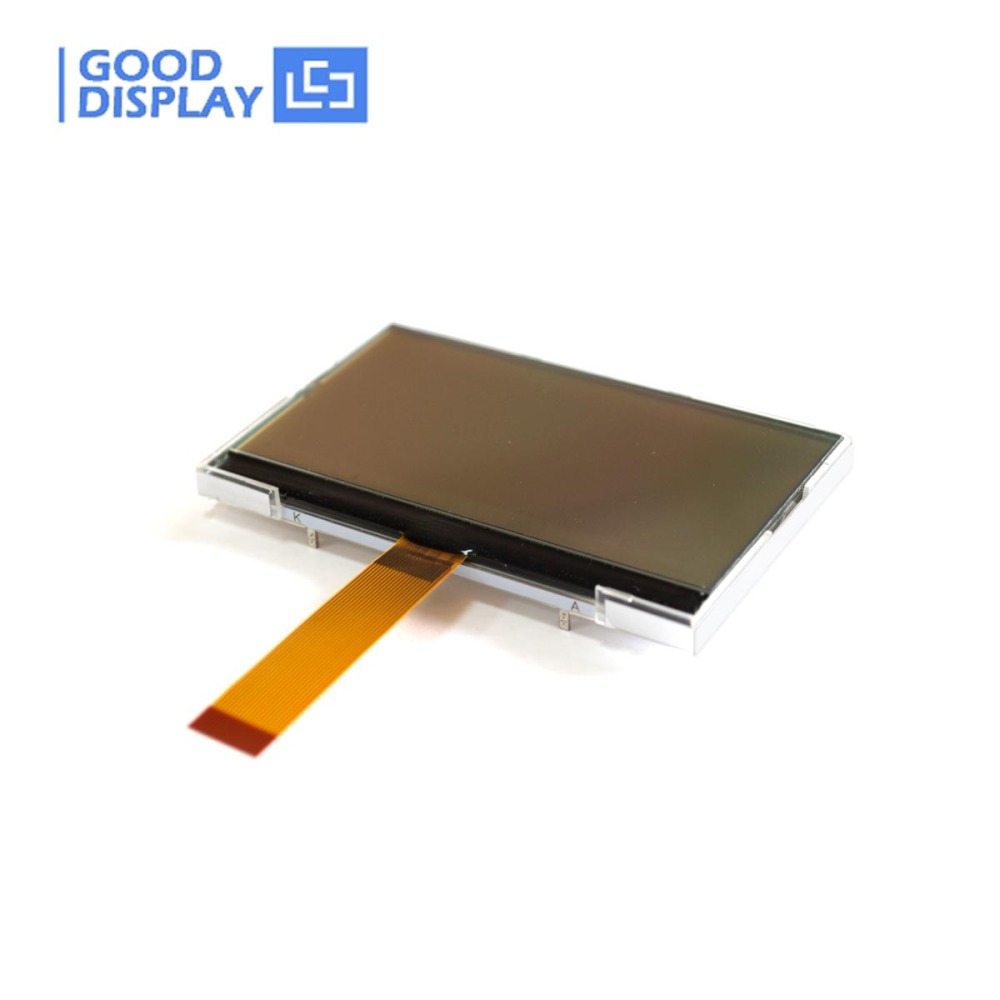

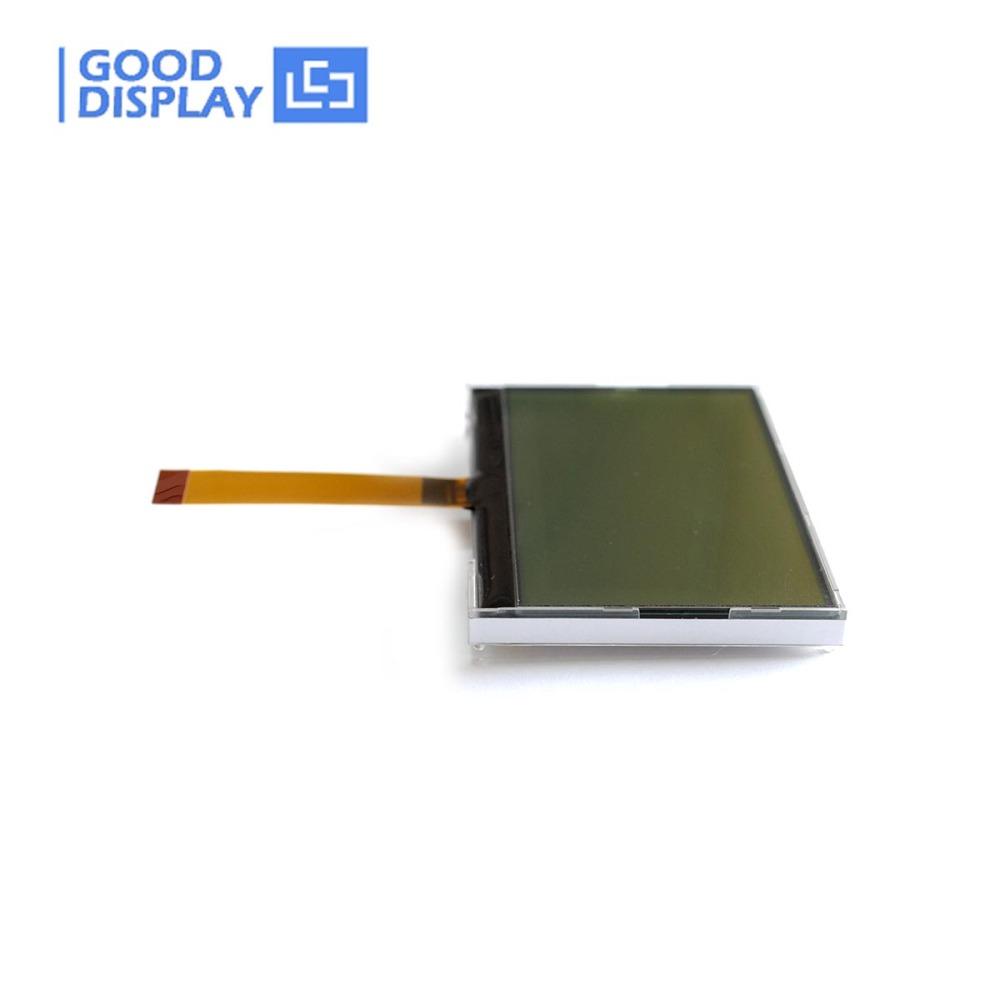

1) Transflective FSTN Mode LCD Module White YM12864-G35 * 1 pc
☆ FEATURE
● Operating temperature is -20~70℃
● 6 o'clock viewing direciton
● FSTN Mode, transflective type

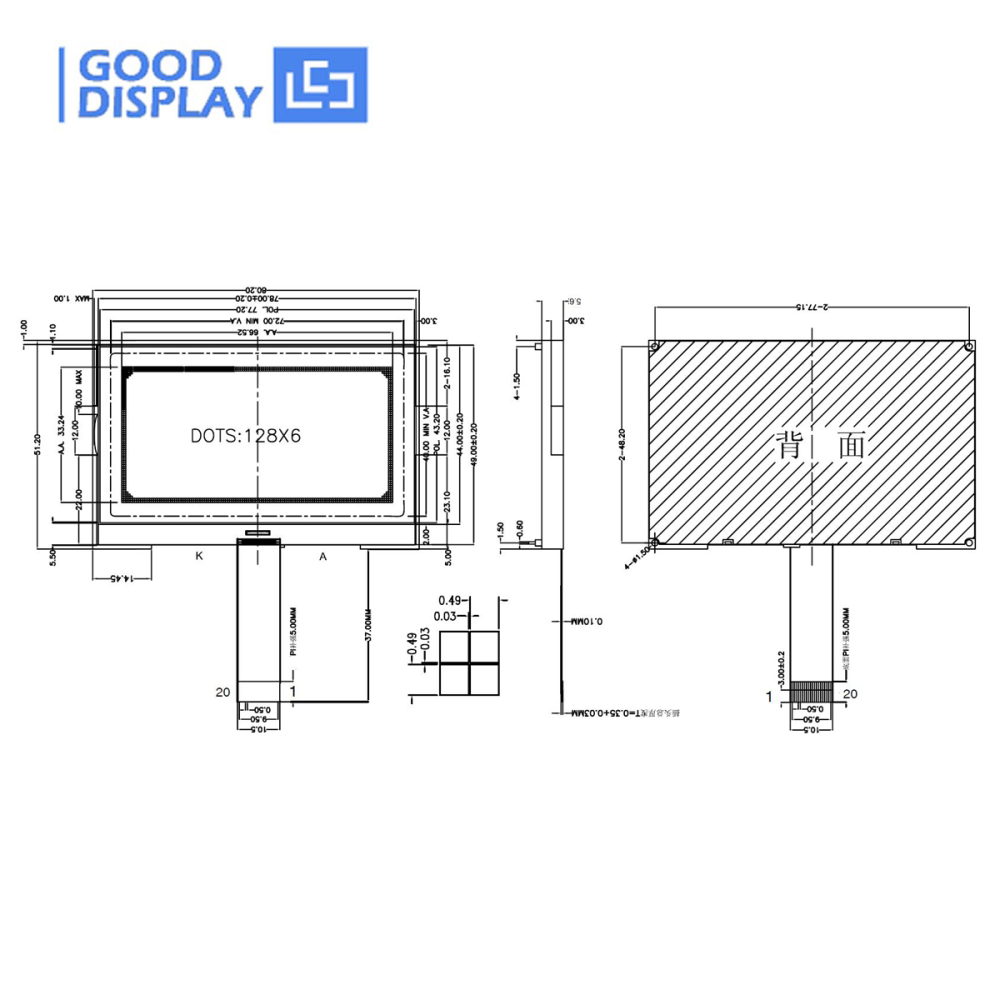

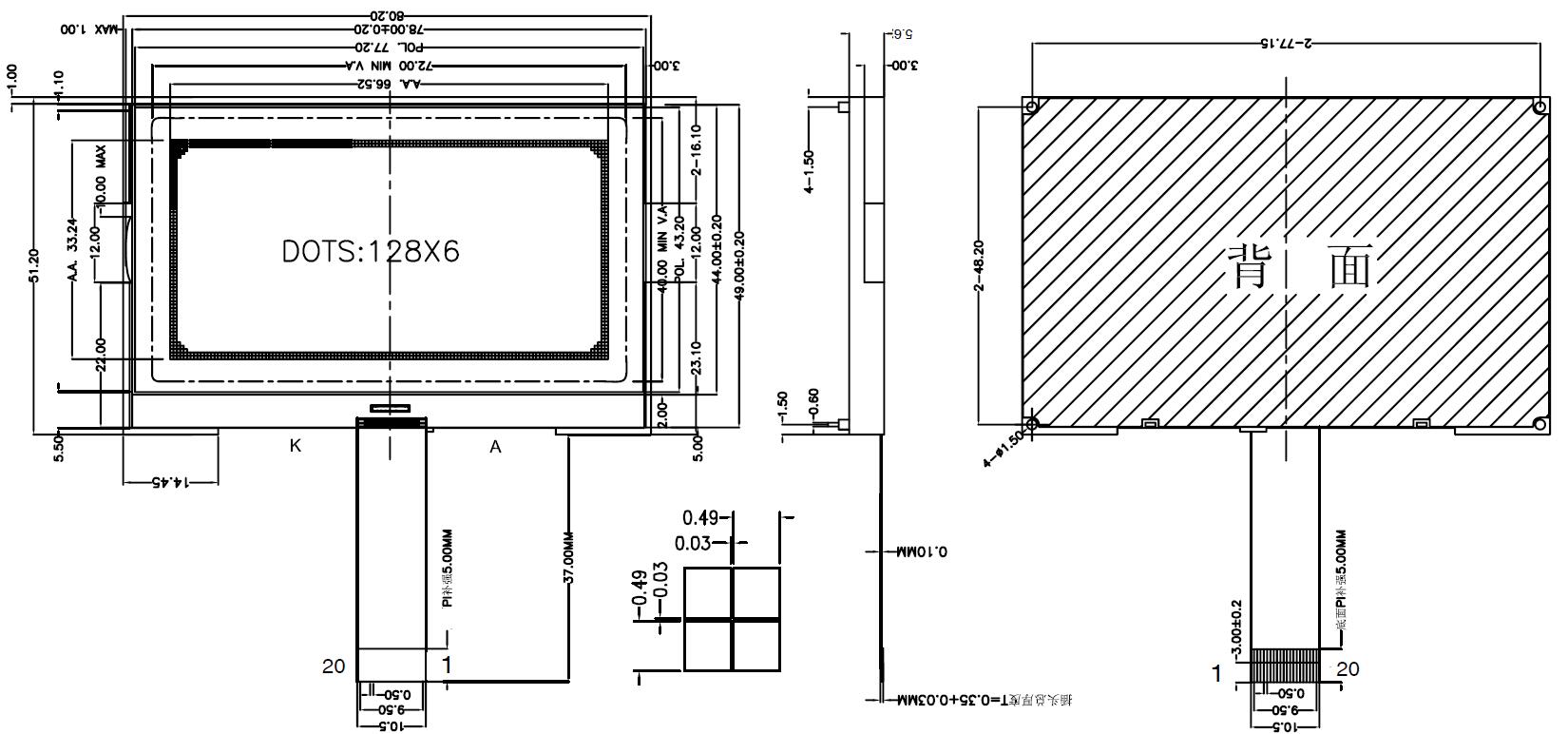

☆ DRAWING
