☆ INTRODUCTION
This is a 2.7 inch e-ink display, 264x176 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW027C44 is perfect for low power devices powered by solar or batteries.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
*TIPS: Affordable prices, welcome to grab a deal!
☆ THE ABOVE PRICE INCLUDE
1) 2.7 inch E-Paper , GDEW027C44 * 1pc
2) FPC Connector * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEW027C44
|
|
TYPE
|
Dot Matrix
|
CONNECTOR |

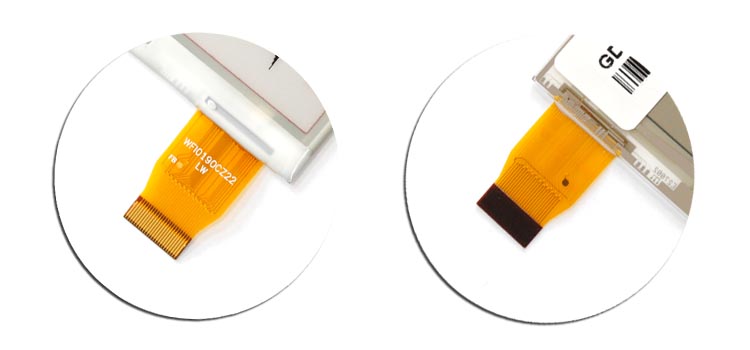

24 Pin FPC |
|
SIZE
|
2.7 inch
|
FULL UPDATE TIME(s) |
16
|
|
RESOLUTION
|
264x176
|
COLOR |
Black,white,red |
|

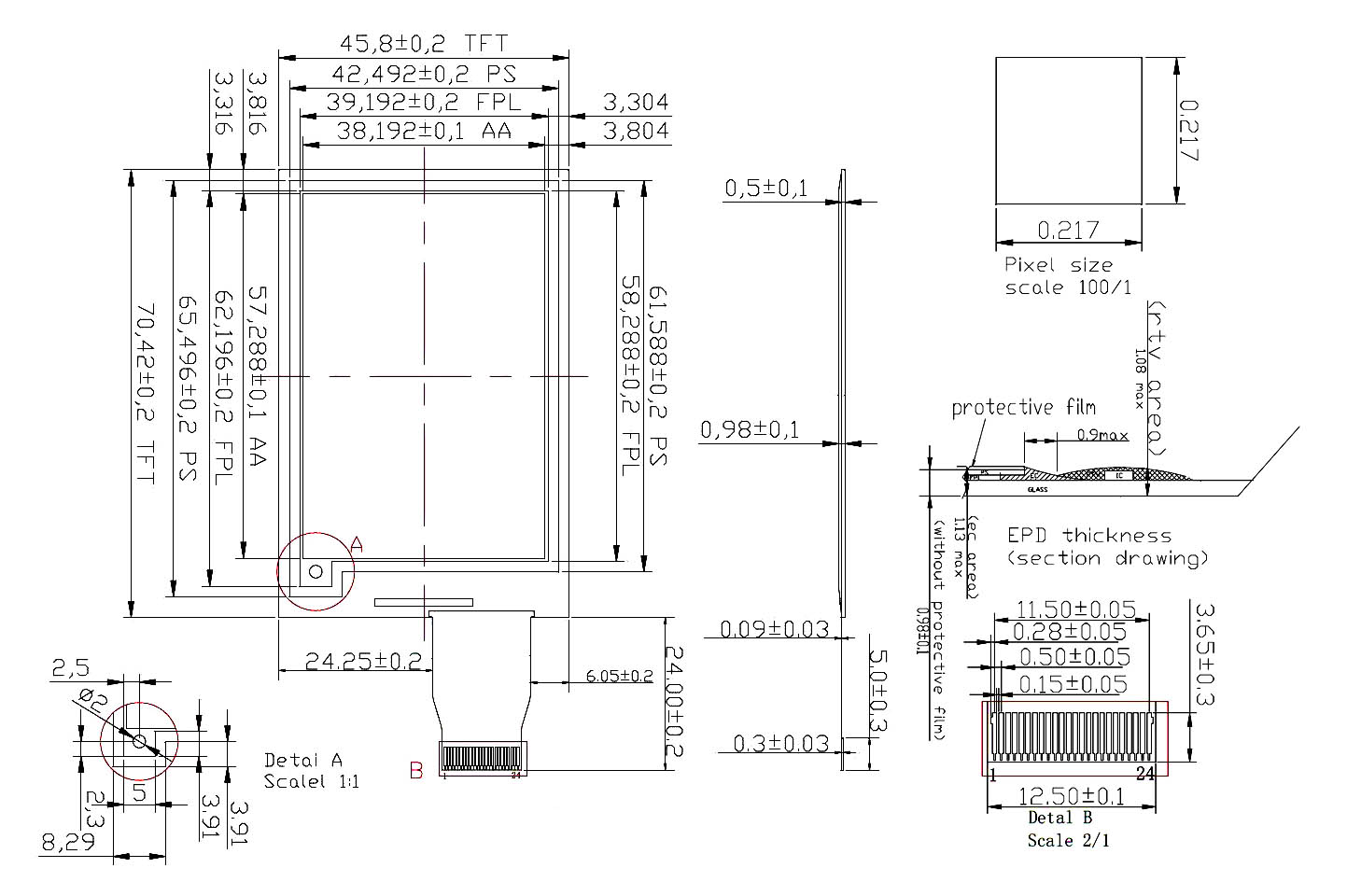

OUTLINE SIZE(mm)
|
70.42x45.8x0.98
|
INTERFACE |
SPI |
| OPERATING TEMP. |
0℃~40℃ |
STORAGE TEMP. |
-25℃~60℃ |
☆ FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266

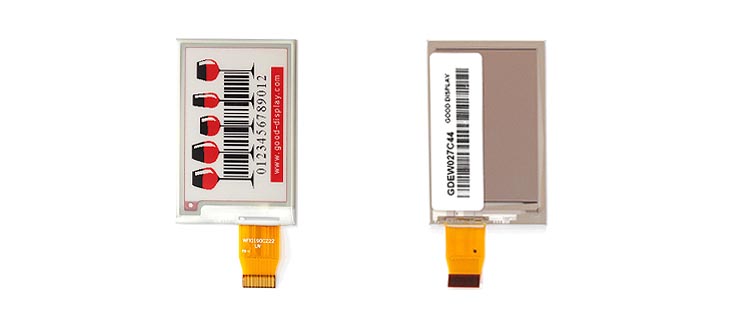

☆ DETAILS
☆ MATCHED DEVELOPMENT KIT
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP8266-L(C02) (WiFi)
● DESPI-PICO (Rasberry Pi Epaper HAT)
☆ RELATED INFORMATION DOWNLOAD
● GDEW027C44 Specification
● IC Driver EK79652
● GDEW027C44 STM32 Sample Code
● GDEW027C44 ESP8266 Sample Code
● GDEW027C44 Arduino Sample Code
● GDEW027C44 Arduino Sample Code
● Readme
● How to choose EPD
