☆ INTRODUCTION

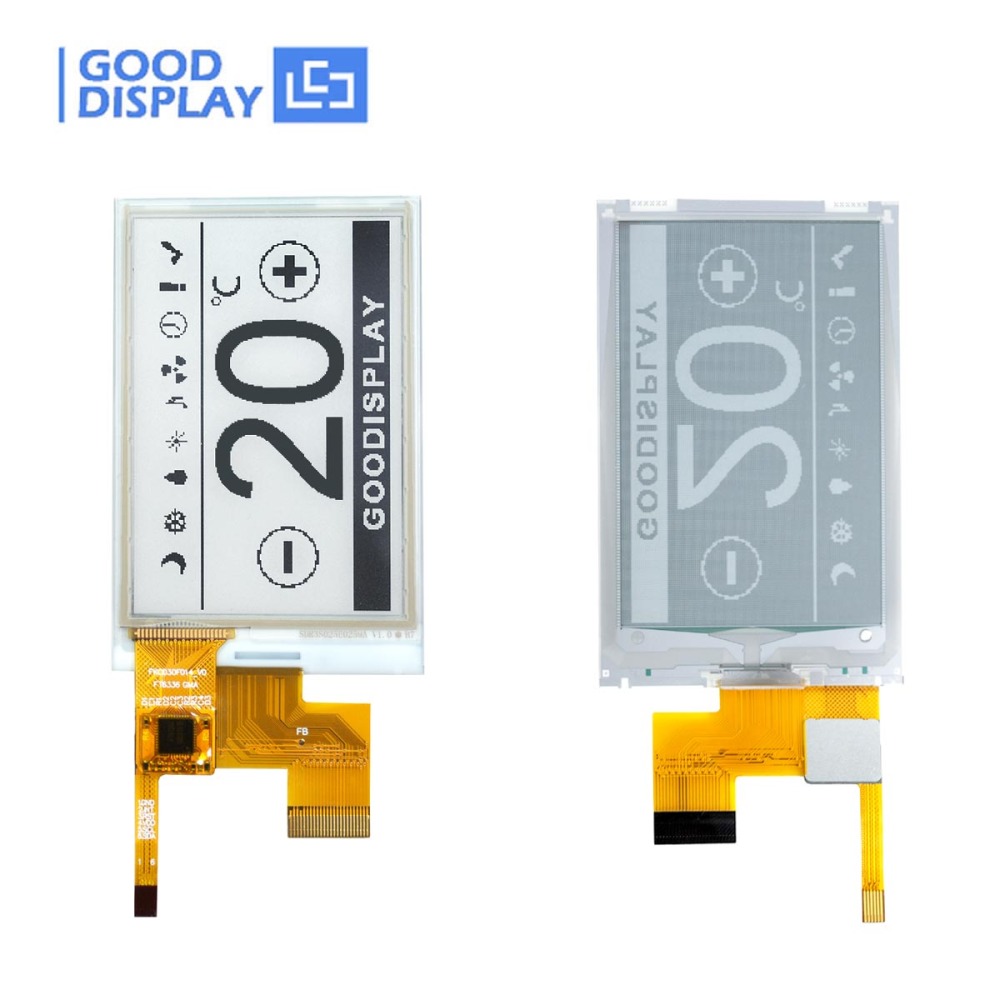

This is a epaper module consist of E-ink demo kit STM32-L(T01) and 2.7 inch small capacitive touch screen e-ink display GDEY027T91-T01, 264x176 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW027T91-T01 is perfect for low power devices powered by solar or batteries.

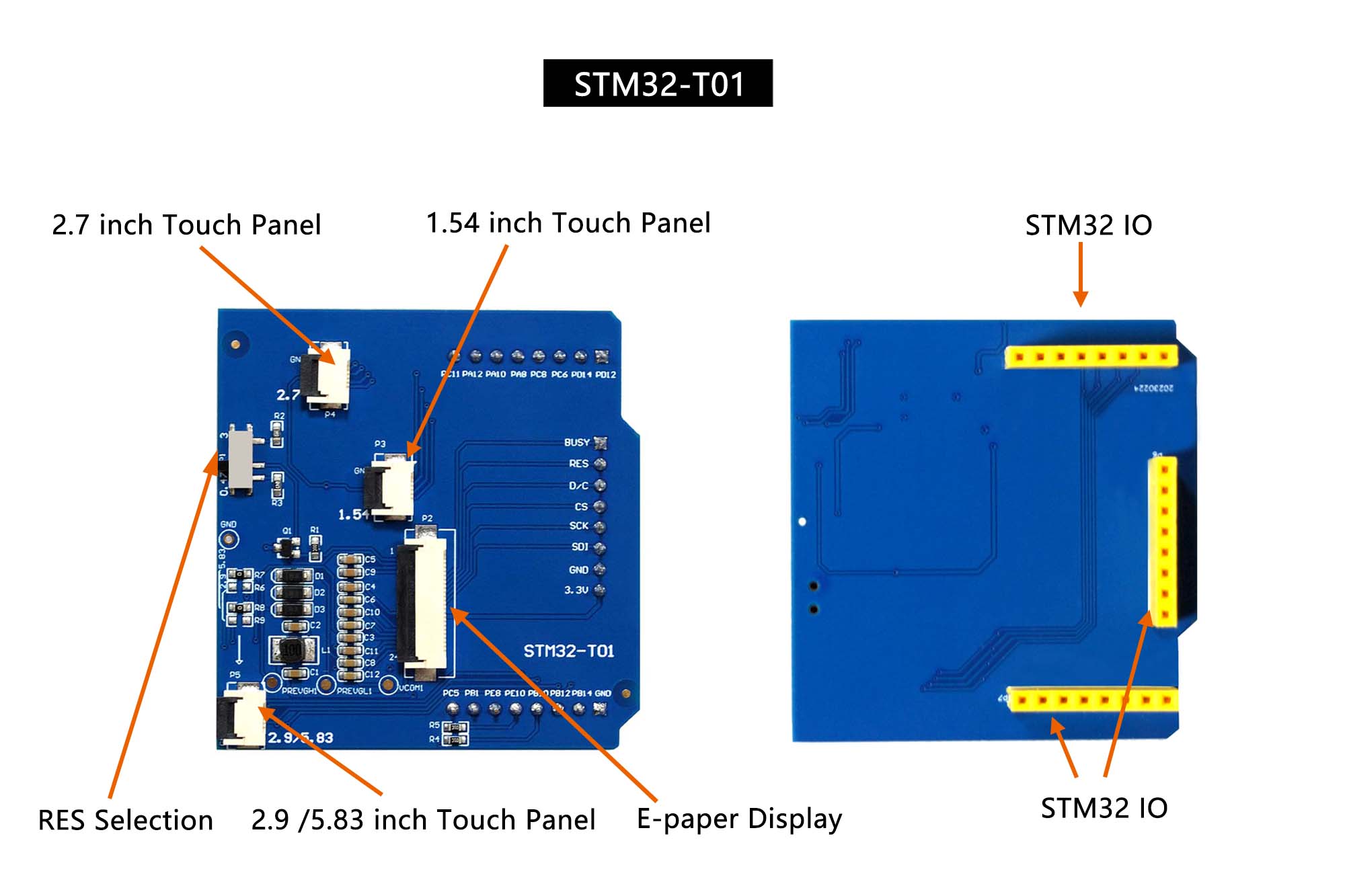

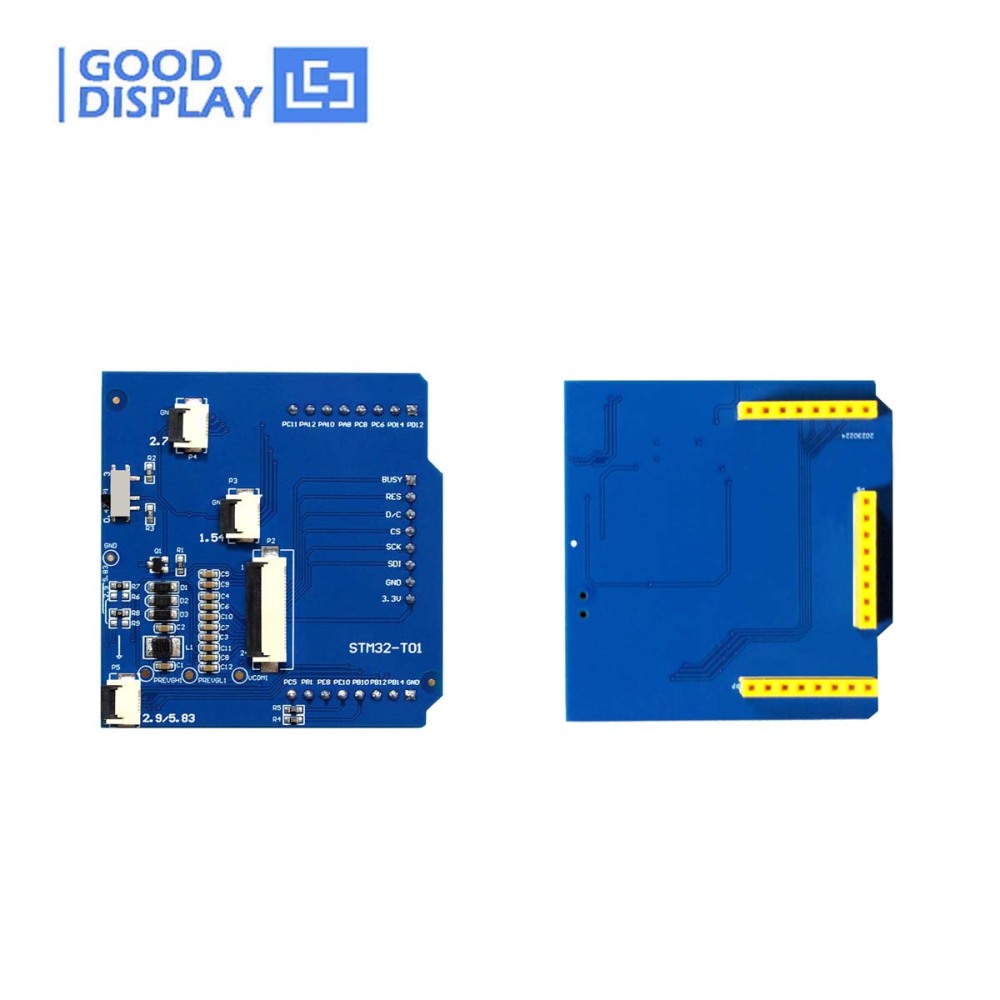

STM32-L(T01) development kit is used to help users develop epaper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It support USB to serial port, LED indicator, reset key, user-defined button, font chip, FLash chip and other functions;support via PC software to control e-paper display.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
1) 2.7 inch epaper eink display touch screen * 1pc
2) Development Kit STM32-T01 * 1pc
3) USB port cable *1pc
4) FPC Connector for EPD * 1pc
5) FPC Connector for touch panel * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEY027T91-T01
|
|
|
TYPE
|
Dot Matrix
|
CONNECTOR |
24 Pin FPC |
|
SIZE
|
2.7 inch
|
MAX GRAYSCALE |
4 |
|
IC
|
SSD1680
|
COLOR |
Black,White |
|
RESOLUTION
|
264x176
|
INTERFACE |
SPI |
|
OUTLINE SIZE(mm)
|
70.42x45.8x1.23
|
FULL REFRESH(s) |
3 |
|
ACTIVE SIZE(mm)
|
57.29x38.19
|
FAST REFRESH(s) |
1.5 |
|
PIXEL PITCH(mm)
|
0.217x0.217
|
PARTIAL REFRESH TIME(s) |
0.42 |
|
OPERATING TEMP.
|
0℃~50℃
|
POWER CONSUMPTION OF THE REFRESH(mW) |
9 |
|
STORAGE TEMP.
|
-25℃~70℃
|
STANDBY POWER CONSUMPTION (mW) |
0.003 |
|
OPERATING VOLTAGE(V)
|
3.3
|
TOUCH SCREEN INTERFACE
|
IIC
|
|
TOUCH SCREEN CURRENT(mA)
|
5
|
|
|
| PART NUMBER |
STM32-T01 |
| OUTSIDE DIMENSION |
53x51mm |
| OPERATING TEMP. |
-20~70℃ |
| EXAMPLE CODE |
Available |
| MAIN FUNCTION |
Supporting most part of the SPI interface EPD which size is less than 5.83 inch, also corresponding touch panel. |
☆ DRAWING
☆ FEATURE
● Support 4 Grayscale
● Support 1.5s fast refresh
● With capacitive touch screen
● Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.42s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
