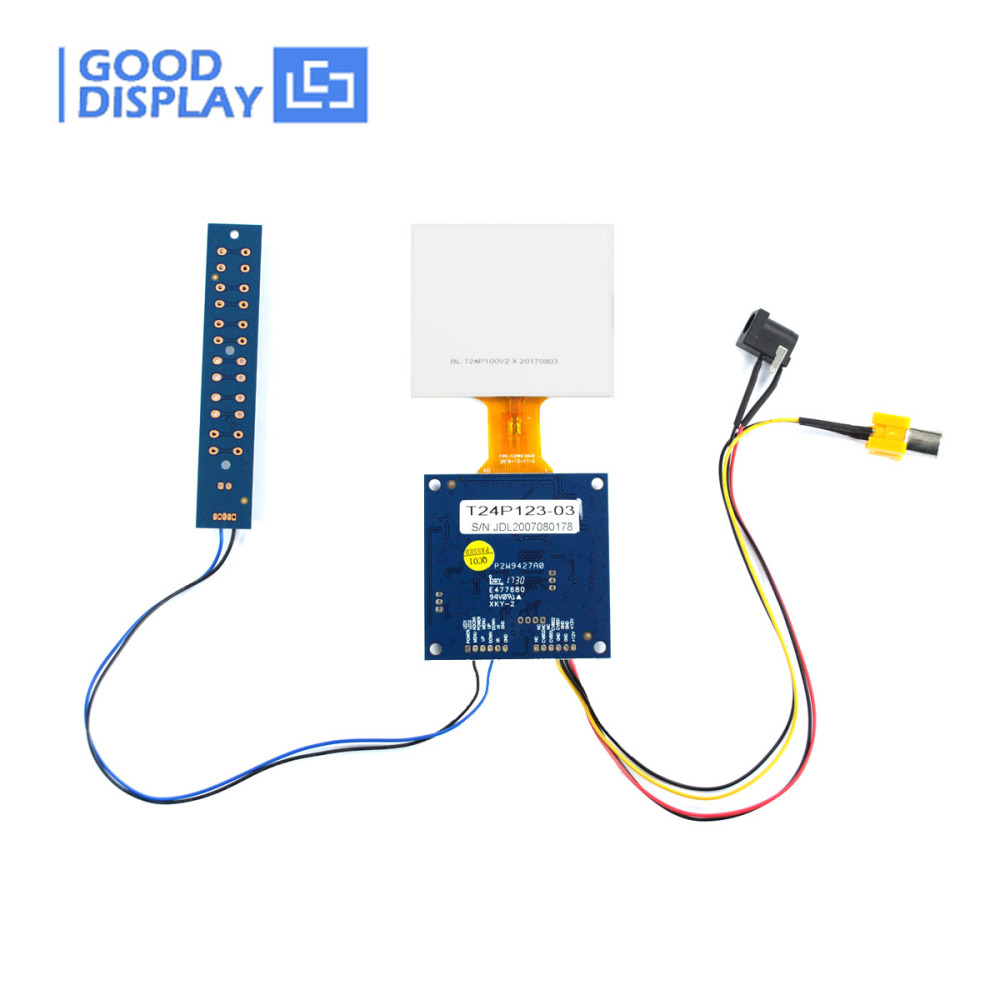

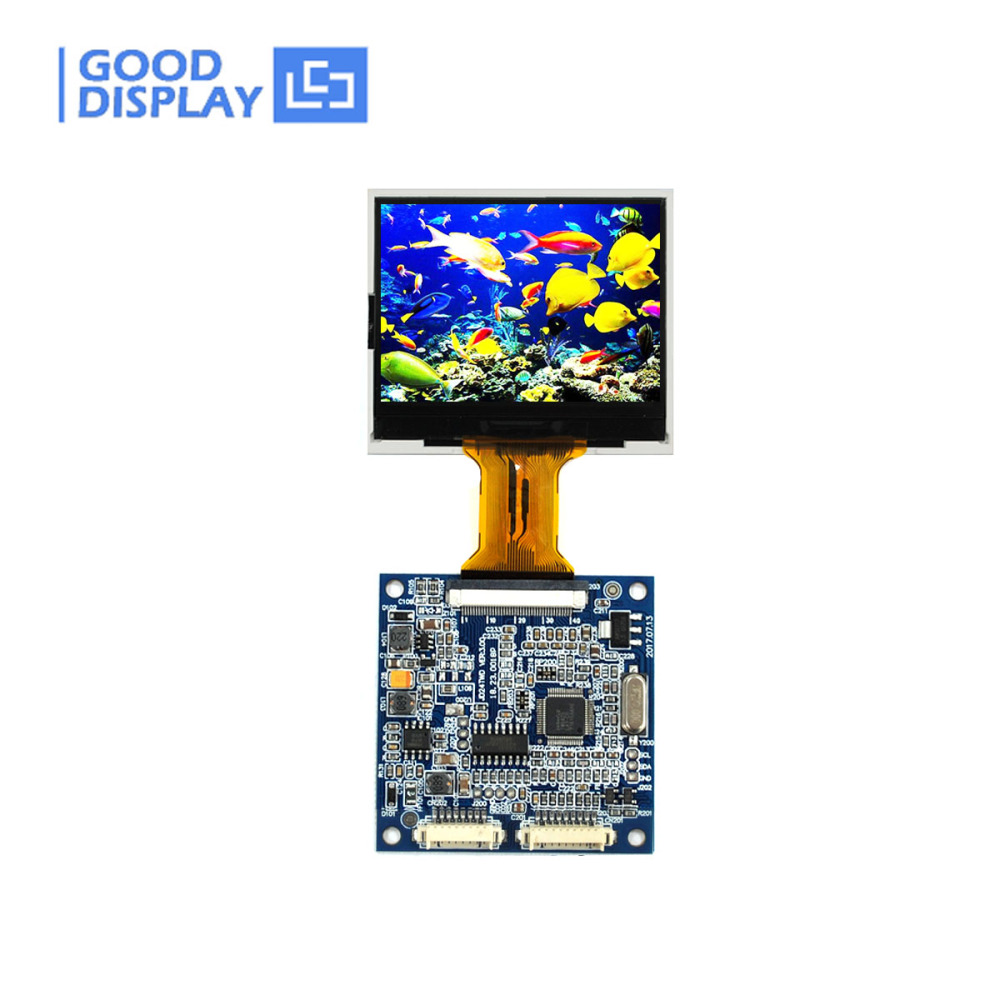

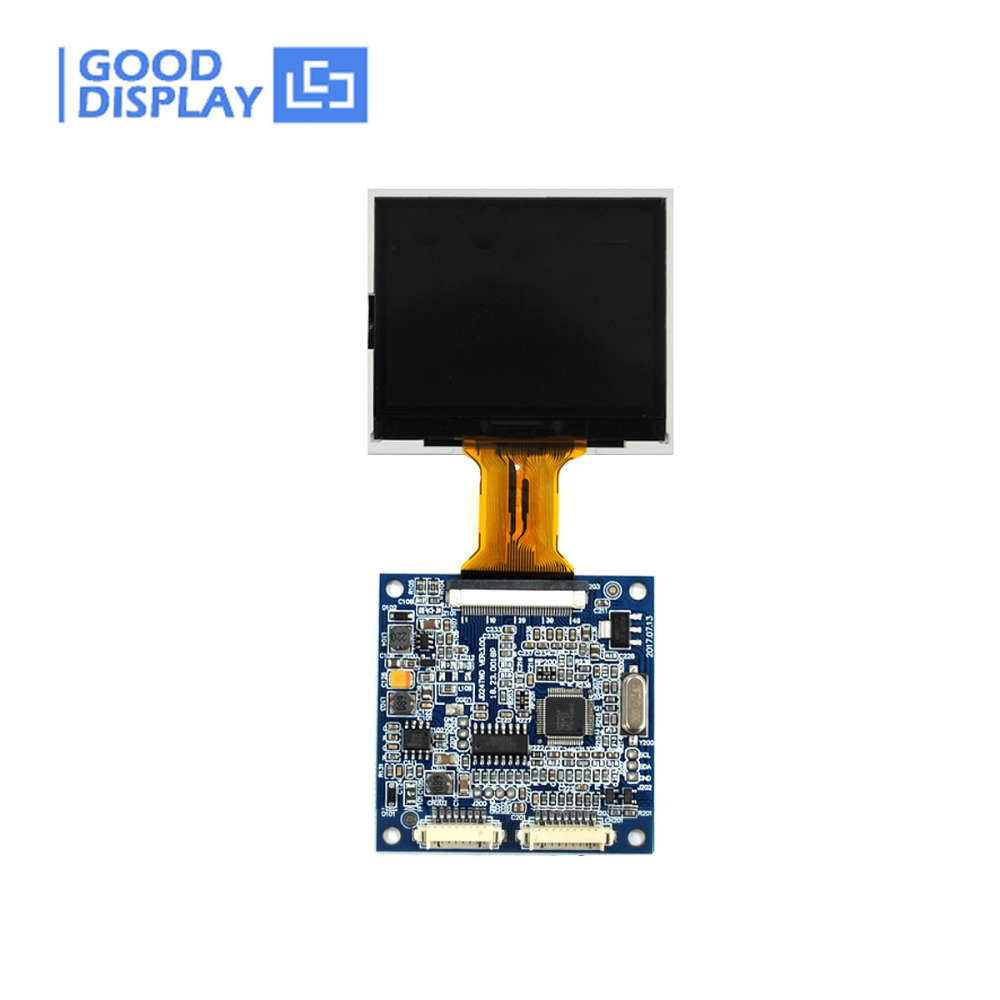

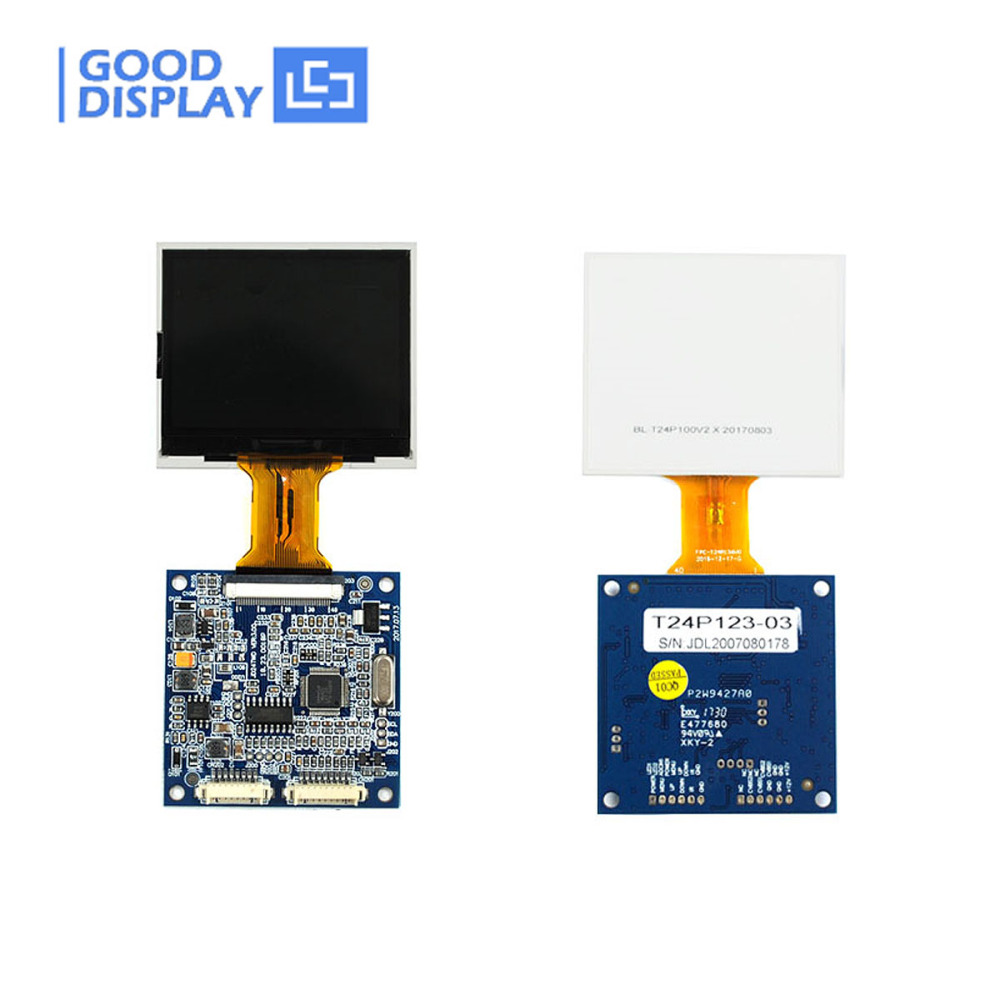

GD24TWD-GTT24P123 VER:3.00 Color Digital TFT LCD Module is comprised by driver board GD24TWD VER:3.00 and TFT LCD Display GTT24P123. The LCD module supports CVBS signal input, NTSC and PAL formats which two formats applies to auto identification. Button adjustment with OSD menu control. It is mainly used for video phones and other display electronic devices.
2.4 inch TFT LCD 480x234 Pixels Display * 1pc
Cable with DC12V power input&video input terminal * 1pc

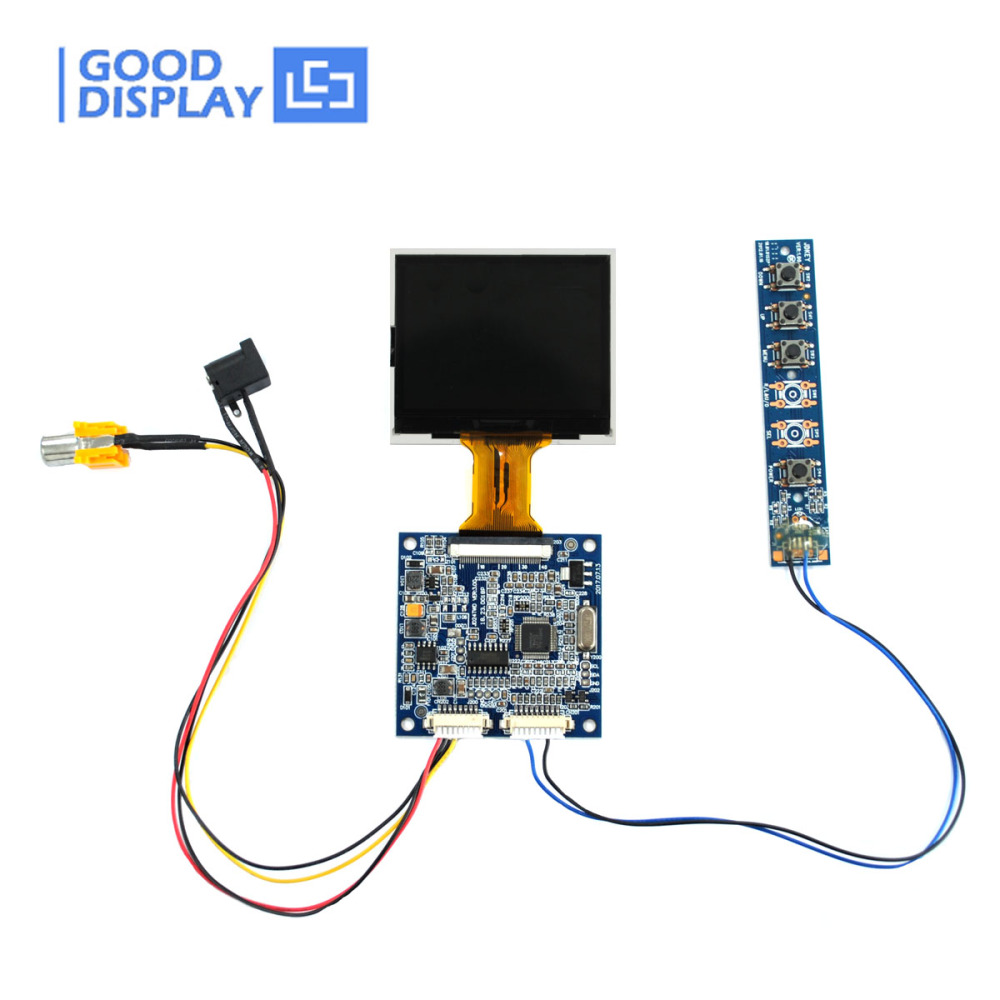

Cable with keyboard terminal * 1pc
Driver Board * 1pc
Relevant Datasheet* 1pc
TFT have used by special instrument to adjust precision and aging, test before leave factory, no need adjust again.
Please correctly connect power, video signal before you adjust, should be on/off power and video signal to check the image’s effect.
Due to this product is electronic product, please notice prevent static.
2.4”TFT-LCD Panel is a glasswork, place carefully ,broken for fear.
Don’t touch pushbutton’s pin feet when you adjust potentiometers, due to person have resistance, you will effect pushbutton’s function when touch it.
| Part Number | GD24TWD-GTT24P123 |
| Display mode | 16.7M |
| Size | 2.4 inch |
| Dirve IC | OTA5182A |
| LCD Display Ratio | 4:3 |
| Backlight | LED |
| Brightness | 300 cd/m2 |
| Resolution | 480(RGB)×234 |
| Viewing Direction | 50/65/65/65(U/D/L/R) |

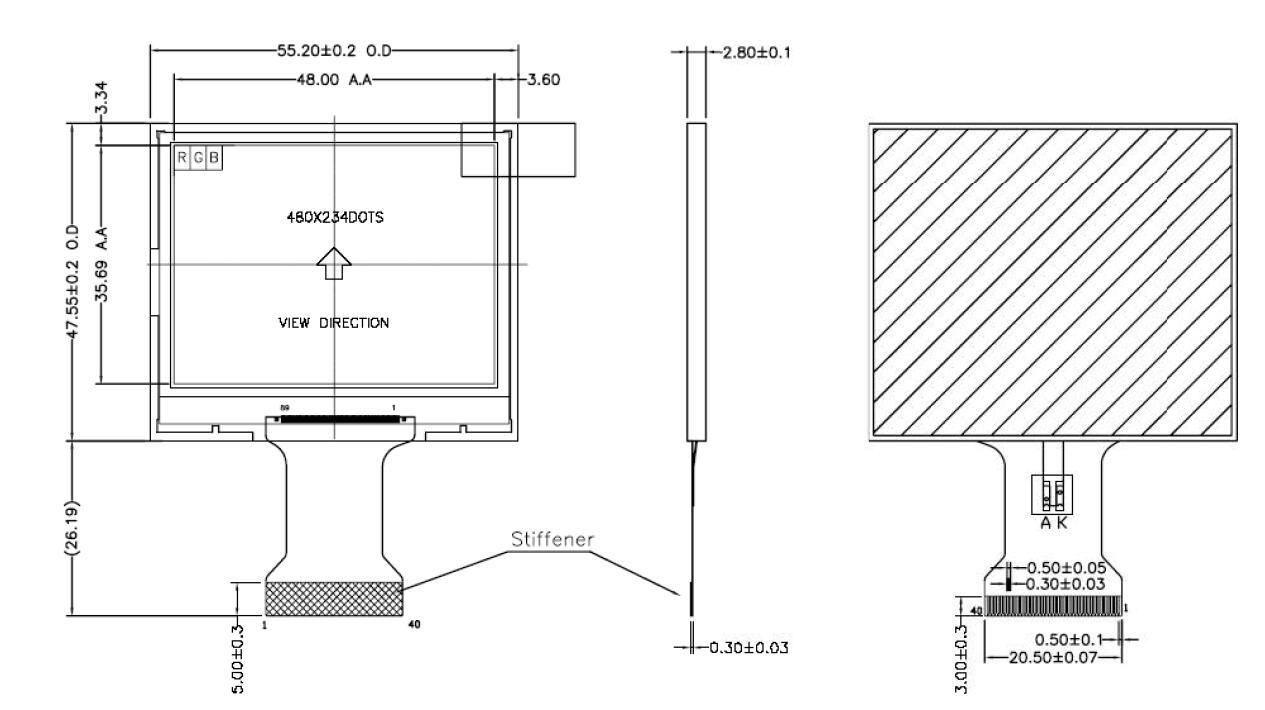

| Outline Dimension of display(mm) | 55.2(W)x47.5(H)x2.8(D) |
| Active Area(mm) | 48.0(H)x35.69(V) |
| Dimension of drive board(mm) | 50.0(W)x50.0(H)x5.2(D) |
| Working Voltage (Wave<0.3VP-P) | Min:DC9V; Standard: DC12V; Max: DC15V; |
| Working Current (DC 12V supply) | DC50mA±10Ma |
| Power Consumption | 0.6W（TYP） |
| Start Time | ≤1.0 S |
| Operating Temp. | -10℃~60℃ |
| Storage Temp. | -20℃~70℃ |
| ENV. Humidity | 5~95％RH |
|
Part Number |
Size |
Resolution |
Features |
| GDT250T2080 | 2.5 inch | 320 x 240 | TFT LCD panel |
| GDS058SZY35KV |
5.8 inch |
800 x 300 |
bar TFT display |
| GDS088JZA31QE |
8.8 inch |
1280 x 320 |
bar TFT display |
| GHT210HDP33 |
21 inch |
1920 x 132 |
bar TFT display |
|
5.6 inch |
640 x480 |
TFT LCD panel |
|
| GTI056TN52-U |
5.6 inch |
640 x 480 |
TFT LCD panel |
| GTI070TN90 |
7.0 inch |
800 x 480 |
TFT LCD panel |
| GTI070TN92 | 7.0 inch | 800 x 480 | TFT LCD panel |
| GTIEJ080NA-05B |
8.0 inch |
800 x 600 |
TFT LCD panel |
| GD24TWD-GTT24P138 |
2.4 inch |
480 x 234 |
TFT LCD module |
| GD35TTD | 3.5 inch | 320 x 240 | TFT LCD module |
| GDN-D43AT-GTT035KDH03 |
3.5 inch |
320 x 240 |
TFT LCD module |
| GDN43M03-GTT035KDH03 |
3.5 inch |
320 x 240 |
TFT LCD module |
| GD40M05-GTT035KDH03 |
3.5 inch |
320 x 240 |
TFT LCD module |
| GDN-D43AT-GDS043WQ26H |
4.3 inch |
480 x 272 |
TFT LCD module |
| GDTE043A1-4 | 4.3 inch | 480 x 272 | TFT LCD module |
| GDTE043A1-7 | 4.3 inch | 800x480 | TFT LCD module |
| GDTE050A1-4 | 5.0 inch | 800x480 | TFT LCD module |
| GDN-D567AT-GTI050NA-08C-RM |
5.0 inch |
640 x 480 |
TFT LCD module |
| GDN-D567AT-GTI056TN52-U |
5.6 inch |
640 x 480 |
TFT LCD module |
| GDN-D567AT-GTI056TN52 |
5.6 inch |
640 x 480 |
TFT LCD module |
| GD567M03-GTI070TN90 |
7.0 inch |
800 x 480 |
TFT LCD module |
| GD70MLXD-GTI070TN83 |
7.0 inch |
800 x 480 |
TFT LCD module |
| GDN-HD156AU-GTI070NA |
7.0 inch |
1024 x 600 |
TFT LCD module |
| GD102M03-GTI070TN92-W-RM | 7.0 inch | 800 x 480 | TFT LCD module |
| GDTE070A1-3 | 7.0 inch | 800 x 480 | TFT LCD module |
| GDTE070A1-5 | 7.0 inch | 800 x 480 | TFT LCD module |
| GDTE070A1-6 | 7.0 inch | 1024 x 600 | TFT LCD module |
| GDN-D102AT-GTI080NA |
8.0 inch |
800 x 600 |
TFT LCD module |
| GDN-HD156AU-GTI080IA |
8.0 inch |
1024 x 768 |
TFT LCD module |
| GDN-D102AT-GTT104SDH01 |
10.4 inch |
800 x 480 |
TFT LCD module |
