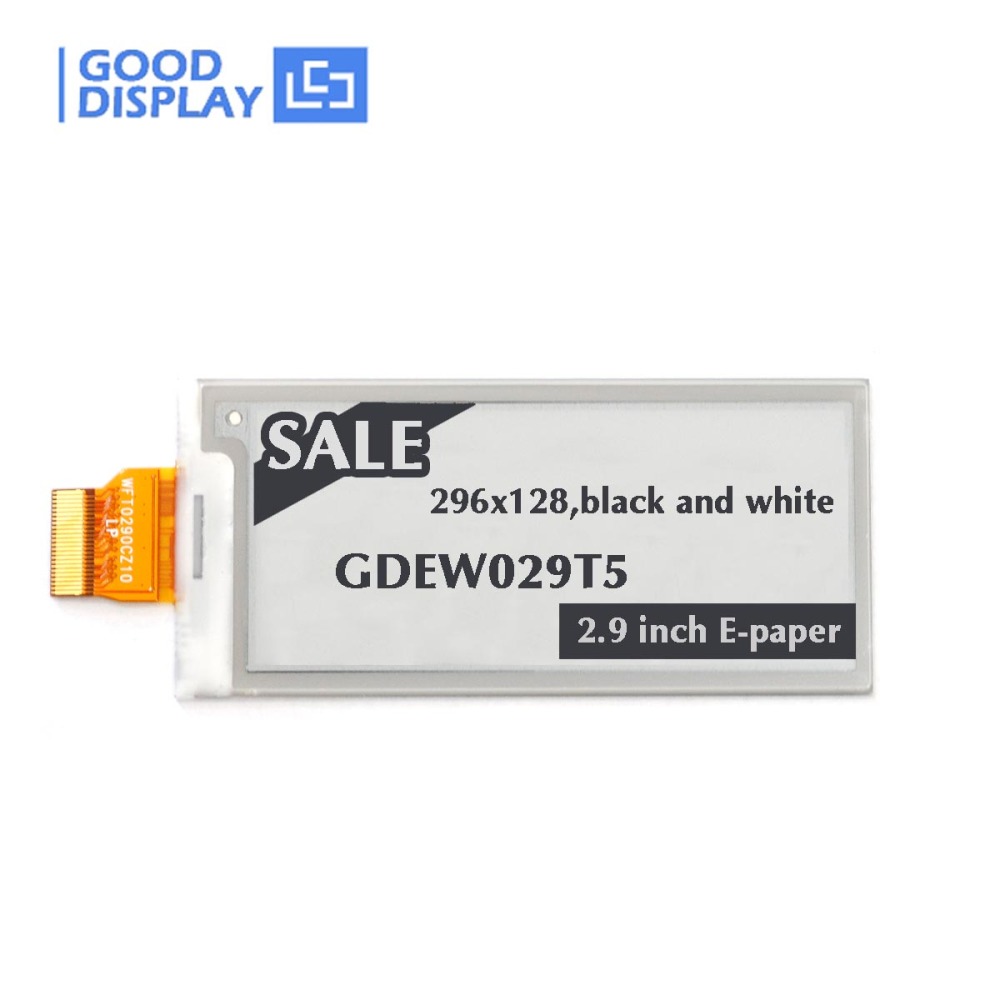

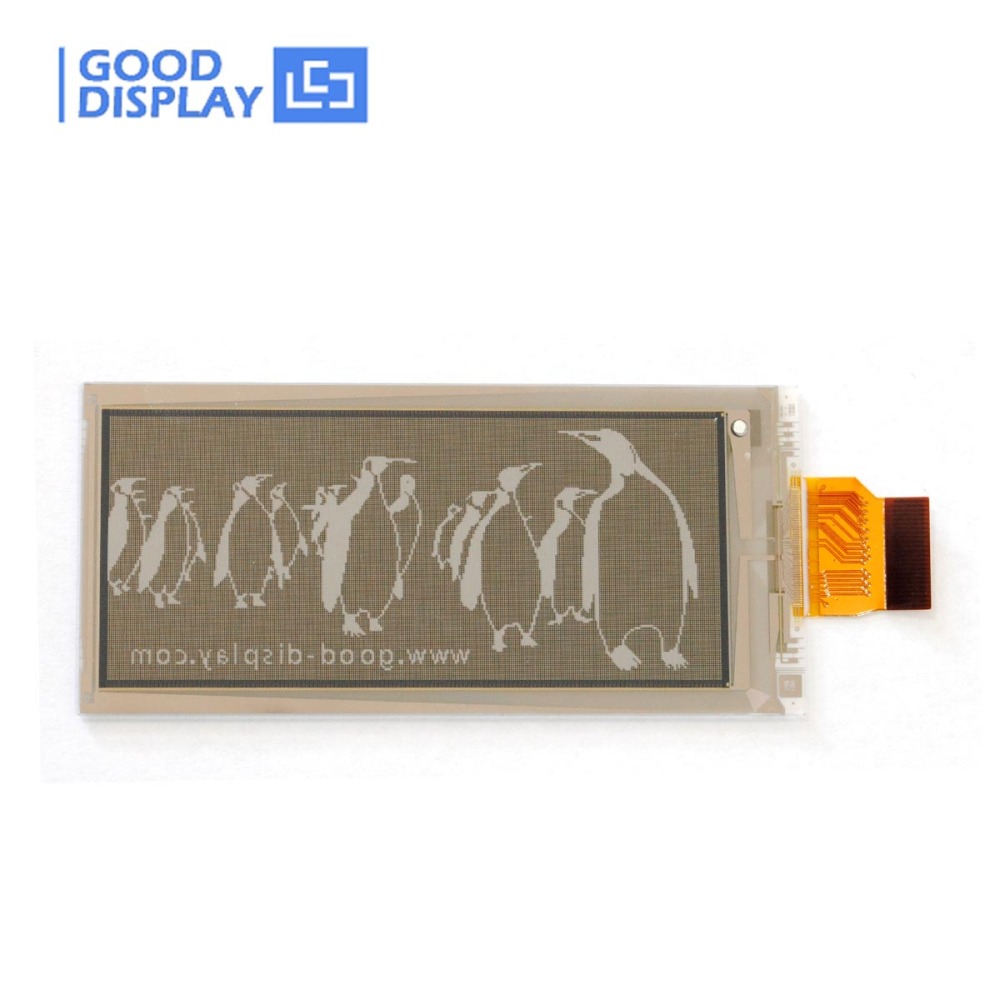

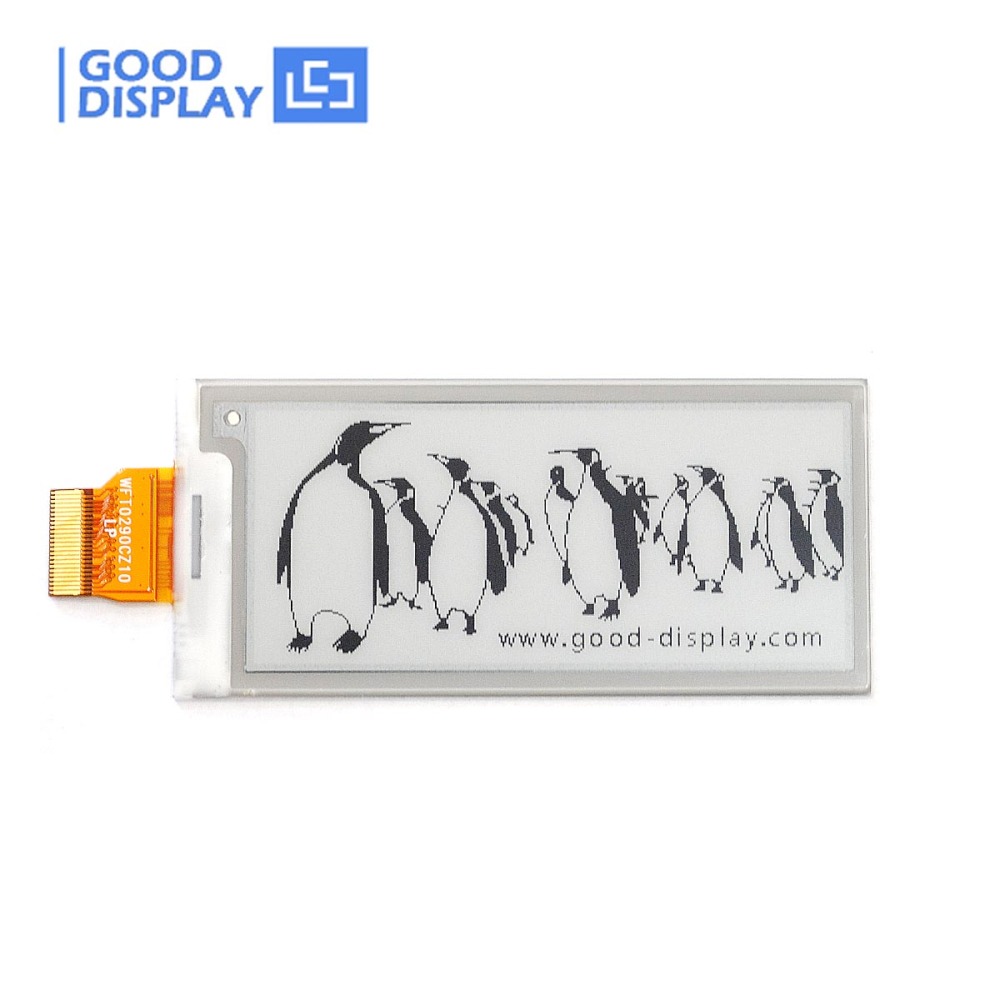

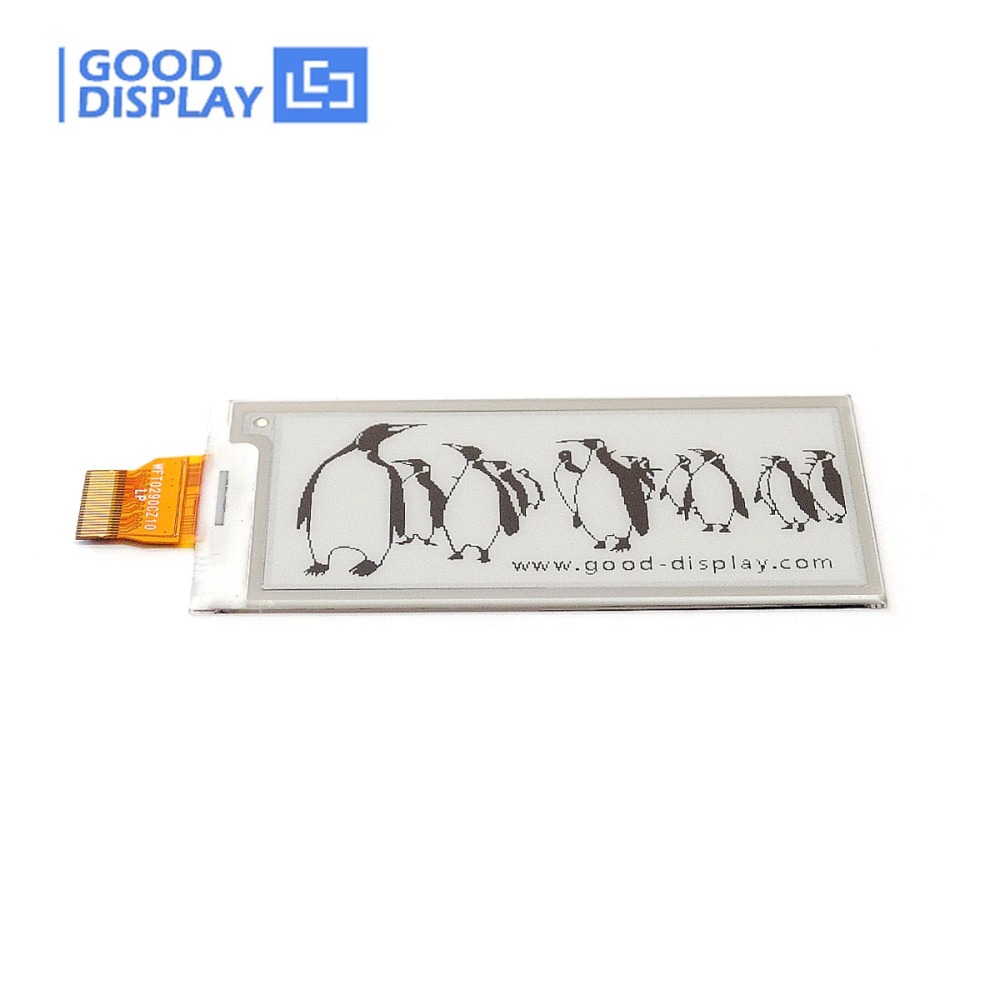

Promotion!!!2.9 inch 296x128 SPI interface 4 grayscale e-paper panel partial refresh(5 pieces)

GDEW029T5(5 pieces)
The display is a TFT active matrix electrophoretic display with an interface and reference system design. 2.9 " 296 × 128 pixels, 4 grayscale, and has a white / black full display. Support partial refresh.
Sold:3
Price:
USD
$39.30
    Please select the information you wantX
Quantity:
-
+
(495 available)
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews

Any questions, please feel free to contact me, my email is: clara@good-display.com

The above price inclundes

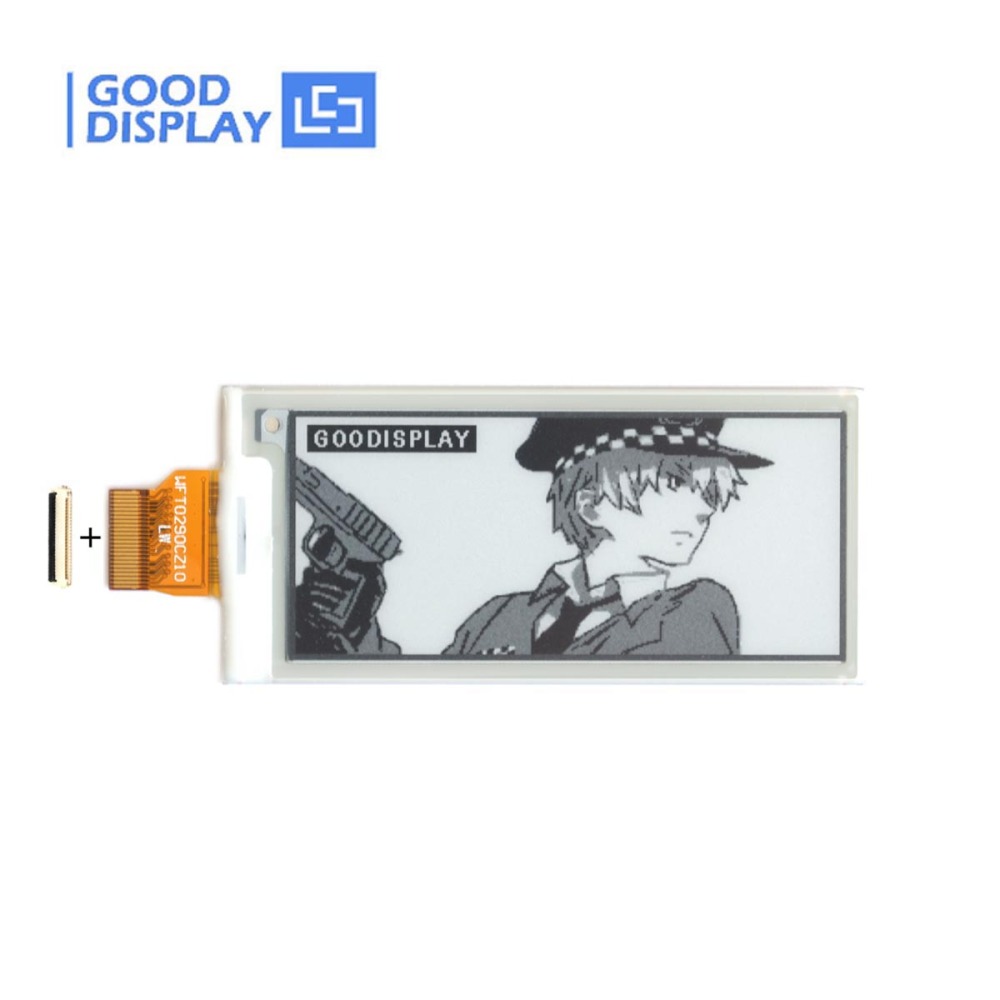

1)2.9'' 296x128 e-paper GDEW029T5 *5pc
2)FPC connector *5pc

General DescriptionThis is a low cost product, with relatively lower solution:296x128.
Wide viewing angle makes the display easily readable from all directions.
Supports 4 wire SPI for communications
4 grayscale
Support fast refresh, 0.82s.
The I2C signal master interface to read built-in temperature sensor.
Development platform available STM32 / Arduino Raspberry Pi ESP8266

Although the range on spec is 0~50C, but in fact, the true range can be -10~60C.
Sunlight Readable! Displays reflect light like ordinary paper, making them easy to read in direct sunlight.Bi-stable image displays without any flickering.
Long lifetime: ~5 years / ~1M updates.


Feature
Partial refresh
4 grayscale
Come with helpful development resources and manual (STM32 platform )
Main Parameters

2.9inch 296x128 SPI interface e-paper display

Model

GDEW029T5

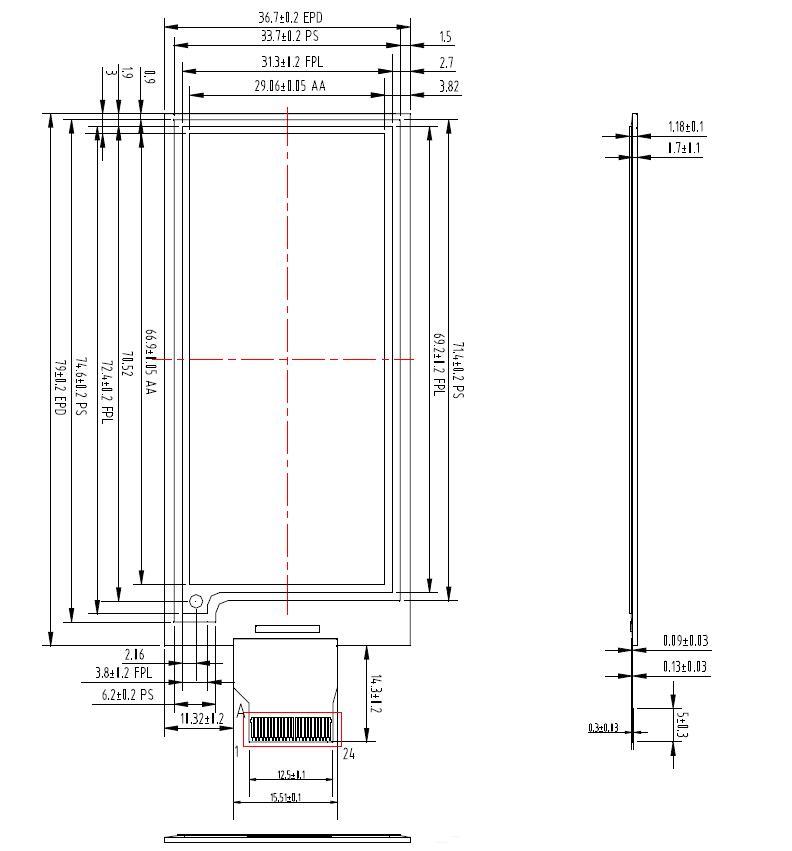

Dimension

79.0 (H)x36.7 (V) x1.05(D)mm

Screen Size

2.9inch

E-Paper Type

E-ink (EPD)

Resolution

296(H)x128(V)

Pixel Pitch

0.227×0.226mm

Active Area

66.9 (H)×29.1 (V)mm

Operation Temperature

0Cto60C

Storage Temperature

-25Cto85C

Weight

7.35±0.5g

Pixel Configuration

Rectangle

Max Grayscale 4
Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 3
Time of partial refresh(s) 0.3

COG Type, use TFT ITO Glass as substrate.




Related Products

Part Number

Color

Features

Refresh Time

GDEH029A1

B/W

Partial refresh

3S

GDEW029Z10

B/W/R

Three colors

16S

    GDEM029E97

B/W

SPI interface

--

GDEW029C32

B/W/Y

Three colors

18S

GDEM029Z90 B/W/Y Three colors 30S

GDEW029T5

B/W

Fast refresh, Partial refresh, 4 Grayscale

0.82S(fast refresh)

GDEH029D57LT

B/W

Ultra-low temperature

3S

GDEW029I6F

B/W

Flexible, Partial refresh, 4 Grayscale

3S

GDEH029Z92 B/W/R Three colors 13S
GDEH029Z13 B/W/R Three colors 15S

Specification download

http://www.e-paper-display.com/products_detail/productId=347.html
