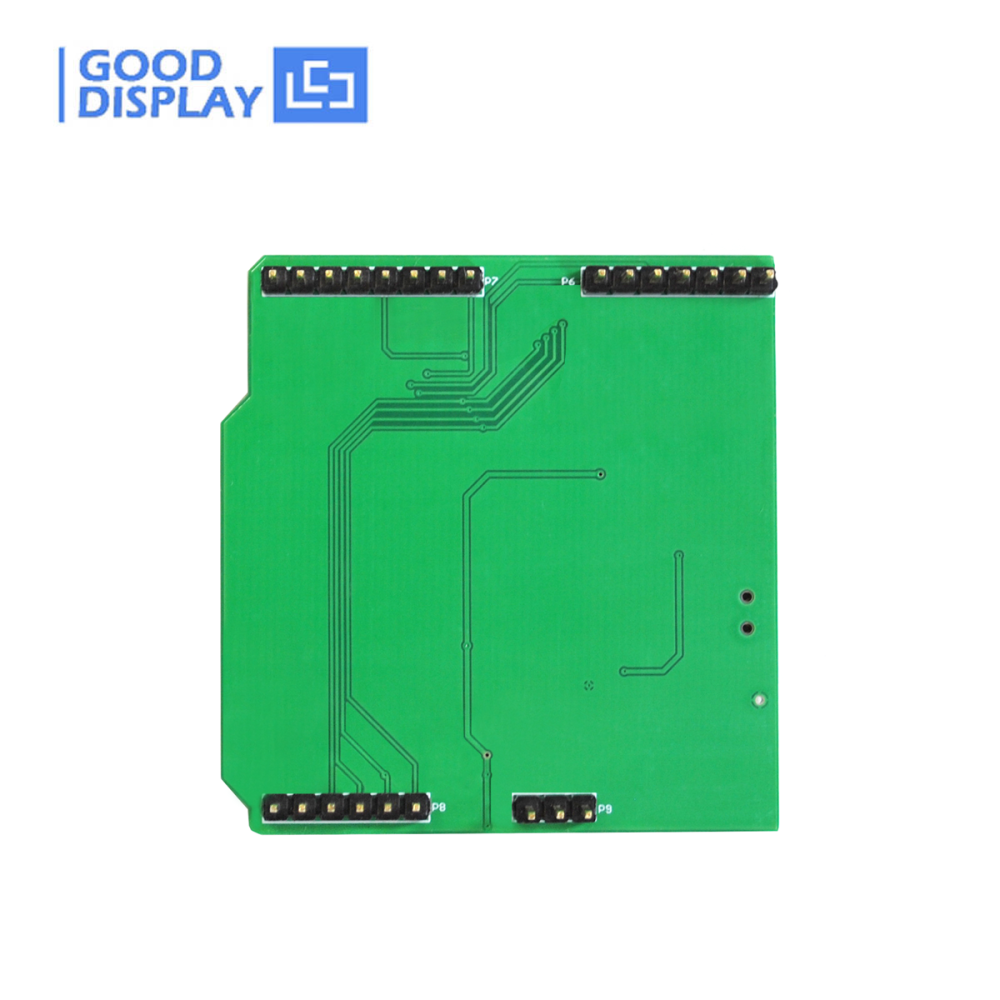

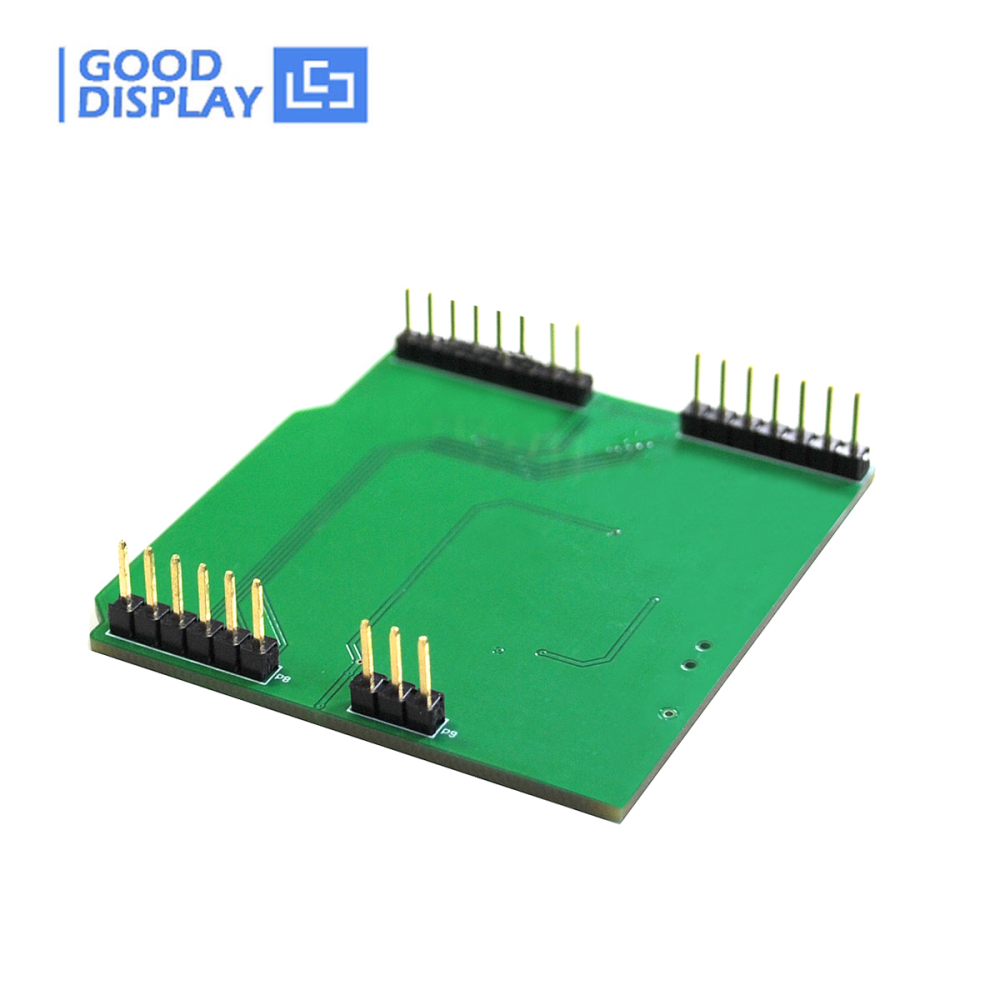

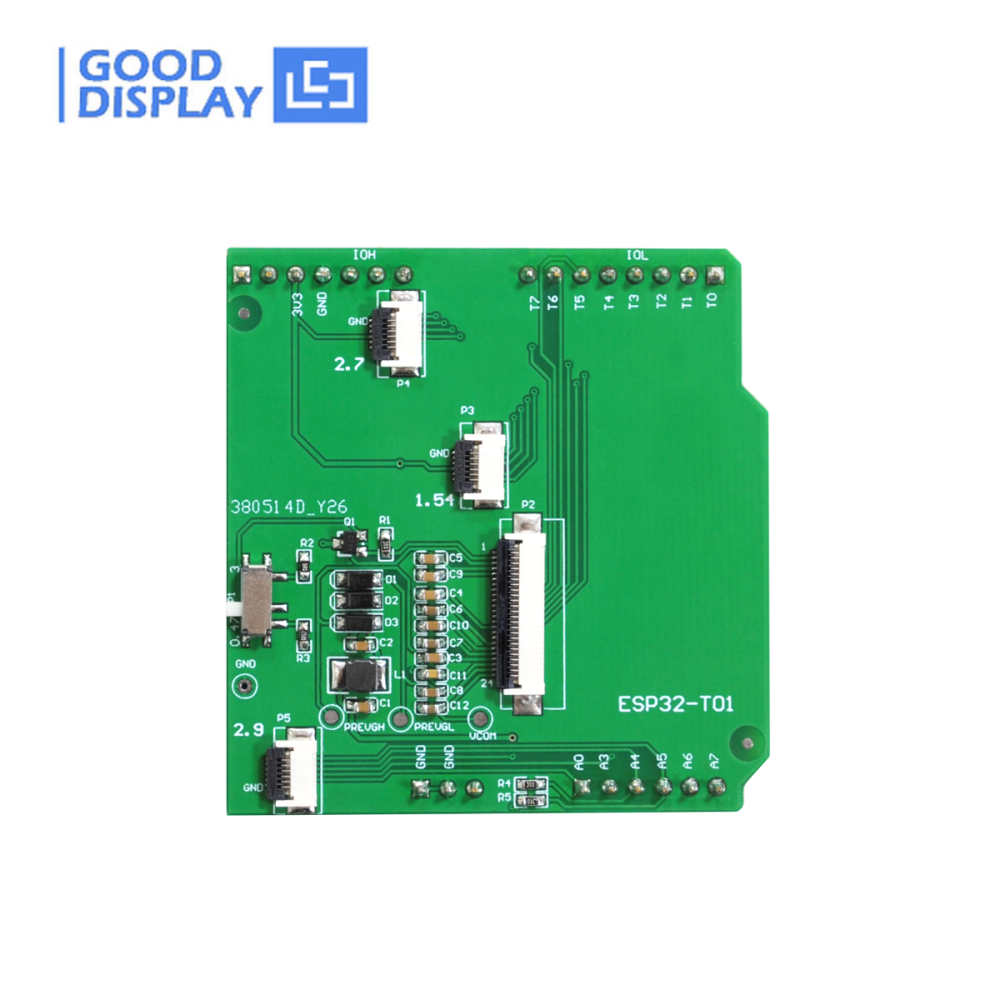

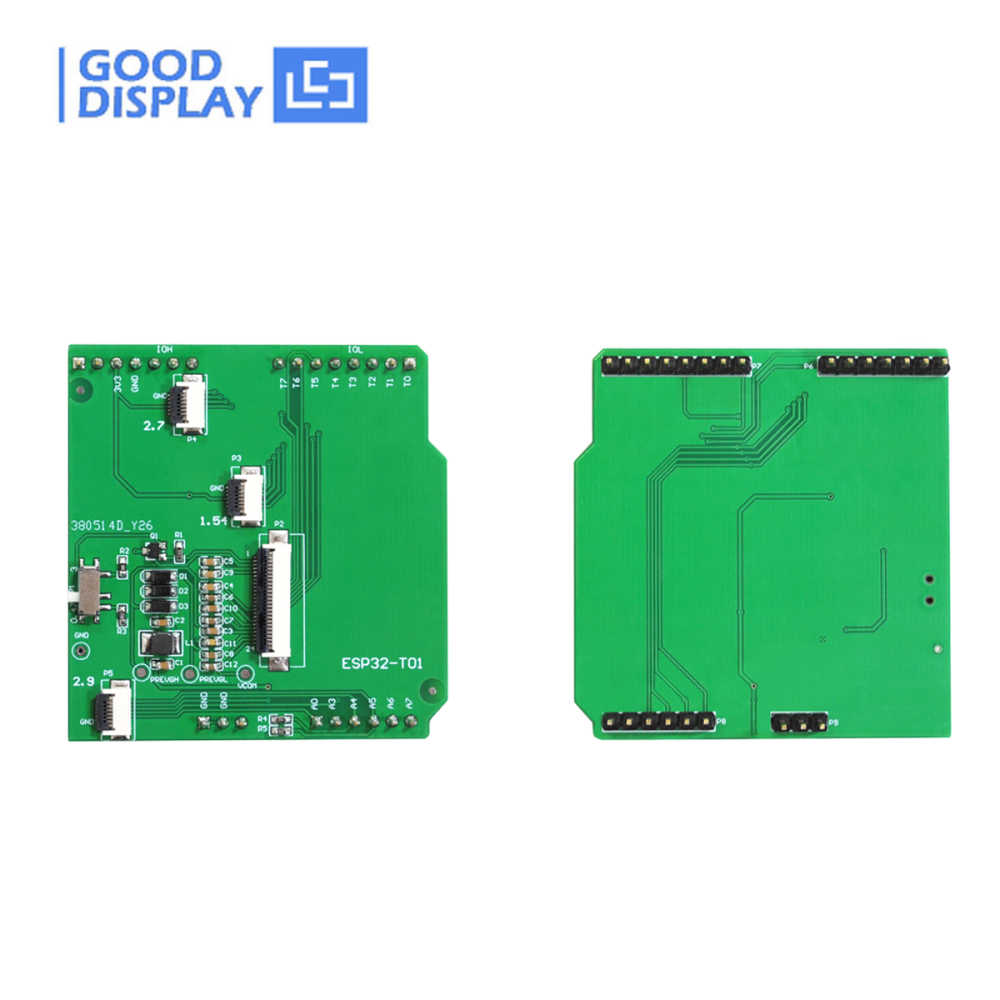

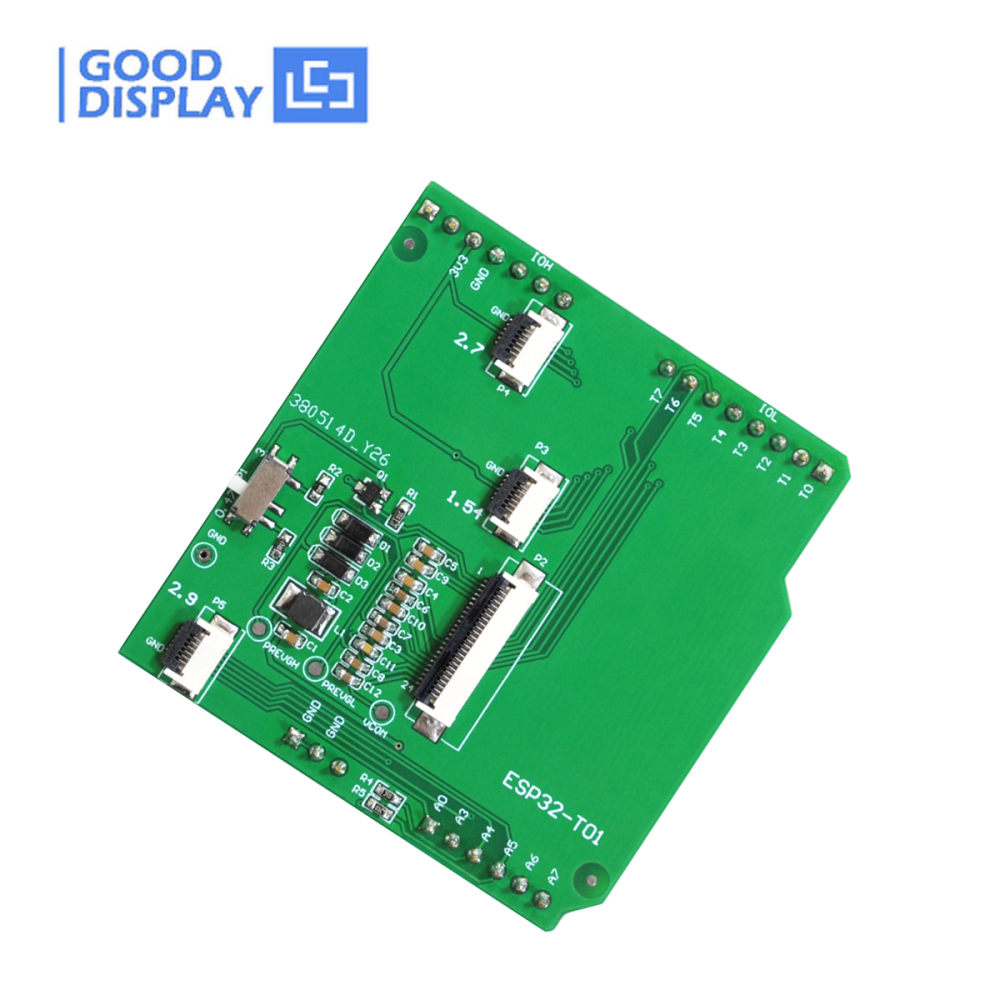

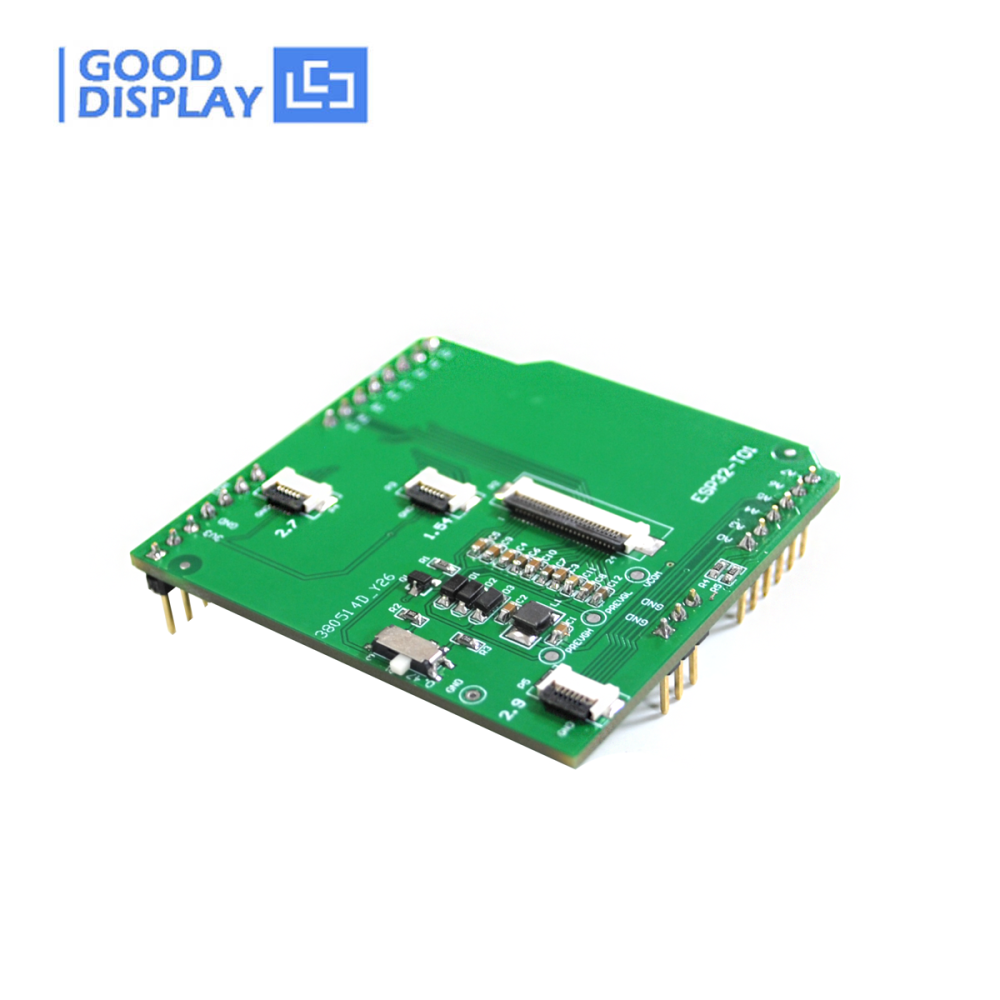

Multifunction E-paper HAT connection ESP32 adapter board, ESP32-T01

ESP32-T01 can realize the collaboration of touch screen / back light and e-paper display to facilitate the early debugging of customers.
Price:
USD
$7.99
Quantity:
-
+
(10 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews

☆ INTRODUCTION




This Epaper HAT ESP32-T01 is aim to help users to learen how to use the E-paper Display easier, and it is used for Good Display's SPI interface E-paper Display. It also has interface for touch screen. It can realize the collaboration of touch screen and e-paper display to facilitate the early debugging of customers.

Relevant manual about this product on our official website (www.good-display.com), contact us please.




 THE ABOVE PRICE INCLUDE



1) Multifunction E-paper HAT connection ESP32 adapter board  * 1pc


 MAIN PARAMETERS




PART NUMBER

ESP32-T01

PLATFORM

 Arduino

OUTSIDE DIMENSION

53x51mm

POWER INPUT

DC3.3V

OPERATING TEMP.

-20~70℃

MAIN FUNCTION Driving e-paper display and touch screen;
Connect e-paper display and the main board;
Convenient for users to grasp the use of e-paper display and touch screen as soon as possible.
OTHER FUNCTION E-paper display power consumption measurement;
E-paper display working state detection


 DETAILS





☆ SUITABLE E-PAPER DISPLAY




1.54 inch E-paper Display 200x200 Resolution Partial Screen Update Touch Eink Display, GDEY0154D67-T03

2.13 inch E-Paper Eink Display SSD1680Z Backlit Electronic Paper Screen, GDEY0213B74-FL01

2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel, GDEY027T91-T01









PART NUMBER SIZE COLOR RESOLUTION ACTIVE SIZE(mm) FULL UPDATE (S) OPERATING TEMP. PARTIAL UPDATE FLEXIBLE
GDEW0097T50 0.97'' BW 184x88 22.264x10.648 4 0℃~50℃
GDEW0097C50 0.97'' BWY 184x88 22.264x10.648 22 0℃~40℃
GDEW0102T4 1.02'' BW 128x80 21.76x14 3 0℃~50℃
GDEW0102I3F 1.02'' BW 128x80 21.76x14 3 0℃~50℃

GDEW0102I4FC

1.02''

BW

128x80

21.76x14

3

0℃~50℃

GDEW0154M10 1.54'' BW 152x152 27.512x27.512 3 -10℃~60℃
GDEY0154D67 1.54'' BW 200x200 27x27 2 0℃~50℃
GDEW0154T8D 1.54'' BW 152x152 27.51x27.51 3 0℃~50℃
GDEY0154Z90 1.54'' BWR 200x200 27x27 16 0℃~40℃
GDEW0154I9FC 1.54'' BW 152x152 27.51x27.51 3 0℃~50℃
GDEW0213I5FD 2.13'' BW 212x104 48.55x23.71 3 0℃~50℃
GDEY0213B74 2.13'' BW 250x122 48.55x23.7046 3 0℃~50℃
GDEY0213Z98 2.13'' BWR 250x122 48.55x23.7046 14 0℃~40℃
GDEW0213T5D 2.13'' BW 212x104 48.55x23.71 3 0℃~50℃
GDEW026T0D 2.6'' BW 296x152 60.09x30.7 3 0℃~50℃
GDEY0266T90 2.66'' BW 296x152 60.088x30.704 3 0℃~50℃
GDEY0266Z90 2.66'' BWR 296x152 60.088x30.704 12 0℃~40℃
GDEY027T91 2.7'' BW 264x176 57.29x38.19 3 0℃~50℃
GDEY029T94 2.9'' BW 296x128 66.896x29.056 3 0℃~50℃
GDEY029Z94 2.9'' BWR 296x128 66.896x29.056 12 0℃~40℃
GDEW029I6FD 2.9'' BW 296x128 66.9x29.06 3 0℃~50℃
GDEQ031T10 3.1'' BW 320x240 62.72x47.04 3 0℃~50℃
GDEY037Z03 3.71'' BWR 416x240 81.54x47.04 12 0℃~40℃
GDEY037T03 3.71'' BW 416x240 81.54x47.04 3 0℃~50℃

PART NUMBER SIZE COLOR RESOLUTION ACTIVE SIZE(mm) FULL UPDATE (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE
GDEW042C37 4.2'' BWY 400x300 84.8x63.6 28 0℃~40℃
GDEW042T2 4.2'' BW 400x300 84.8x63.6 3 0℃~50℃
GDEY042T91 4.2'' BW 400x300 84.8x63.6 3 0℃~50℃
GDEQ042Z21 4.2'' BWR 400x300 84.8x63.6 19 0℃~40℃
GDEY0579T93 5.79'' BW 792x272 139.00×47.74 3 0℃~50℃
GDEY0579Z93 5.79'' BWR 792x272 139.00×47.74 20 0℃~40℃
GDEW0583C64 5.83'' BWY 600x448 118.80x88.26 25 0℃~40℃
GDEY0583T8 5.83'' BW 648x480 118.78x88.22 3 0℃~50℃
GDEW0583Z83 5.83'' BWR 648x480 119.232x88.32 12 0℃~40℃
GDEY075T7 7.5'' BW 800x480 163.2x97.72 3 0℃~50℃
GDEY075Z08 7.5'' BWR 800x480 163.2x97.72 12 0℃~40℃
GDEP097TC2

9.7''

BW

1200x825

202.8x139.425

1

0℃~50℃



GDEQ102T90 10.2'' BW 960x640 215.52x143.68 4 0℃~50℃
GDEQ102Z90 10.2'' BWR 960x640 215.52x143.68 4 0℃~50℃
GDEH116T91 11.6'' BW 960x640 244.512x163.008 5 0℃~50℃
GDEH116Z91 11.6'' BWR 960x640 244.512x163.008 30 0℃~35℃
GDEY1248Z51 12.48'' BWR 1304x984 252.98x190.90 25 0℃~40℃
GDEP133UT3 13.3'' BW 1600x1200 270.4x202.8 1 -15℃~65℃
