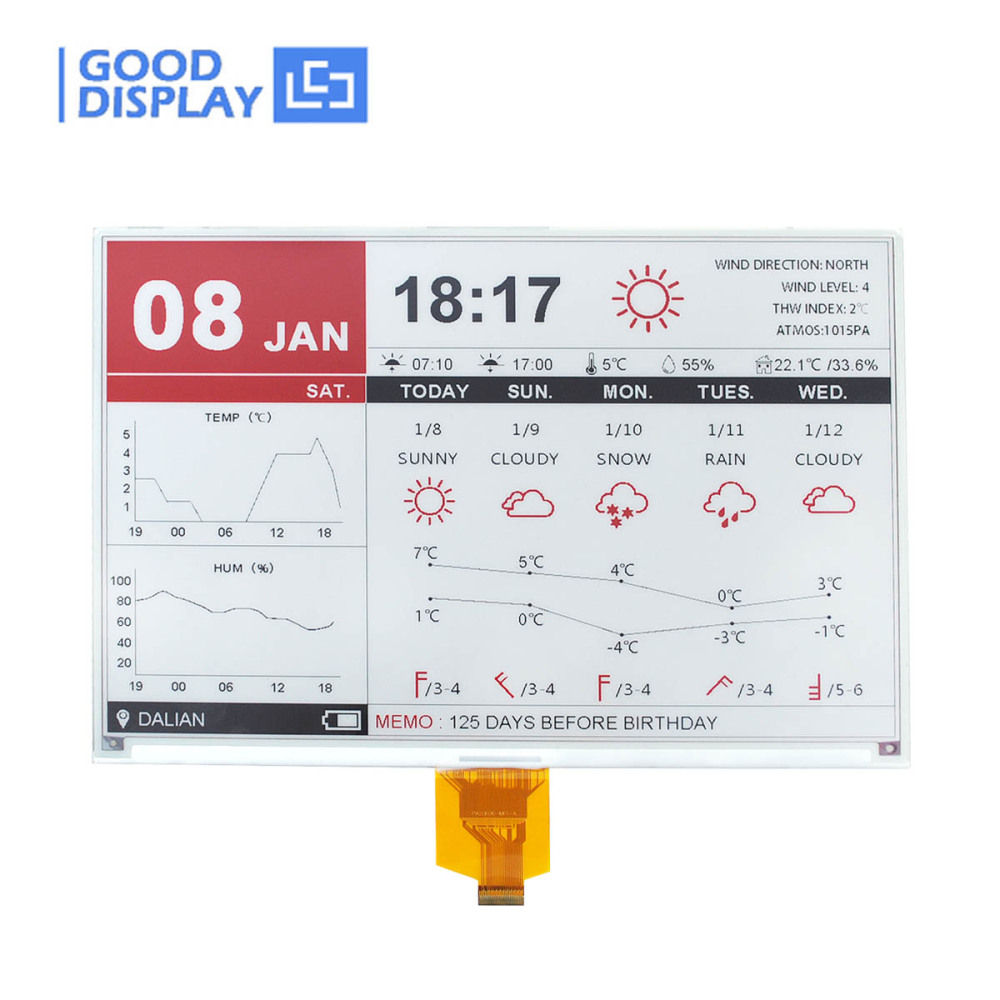

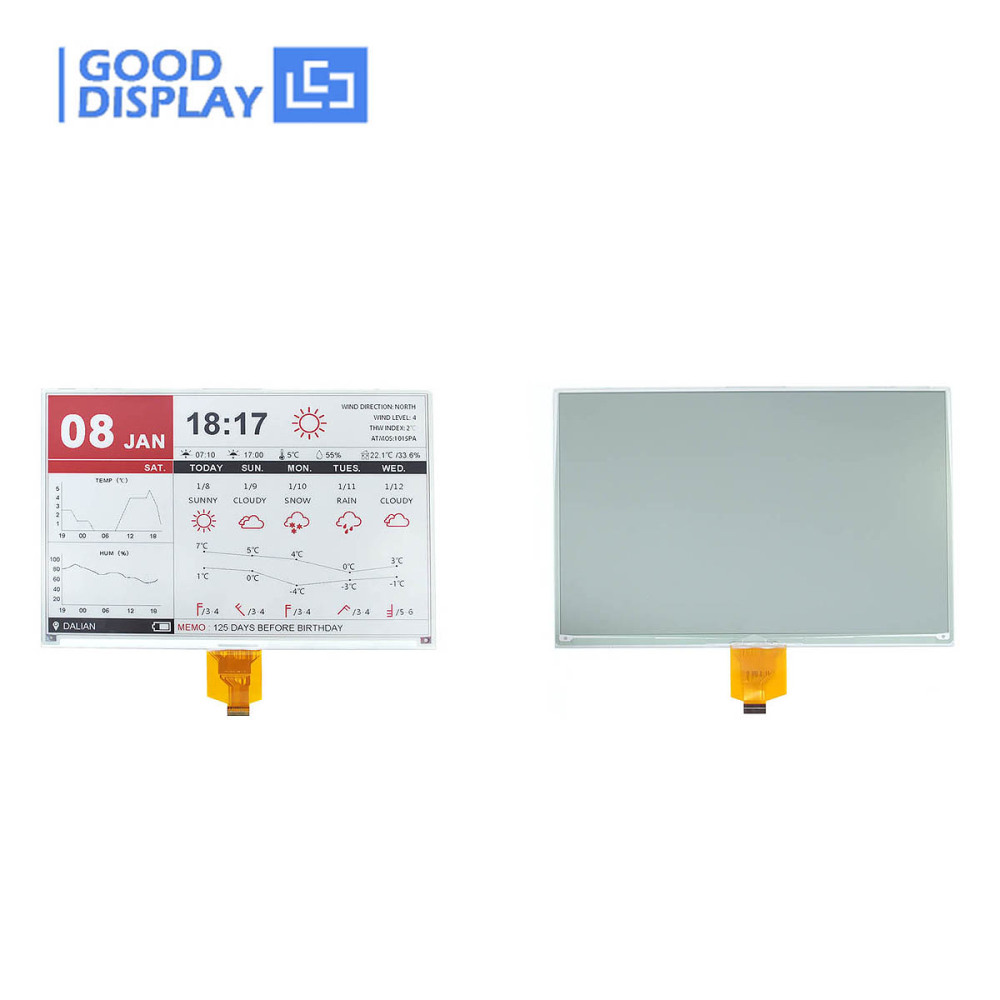

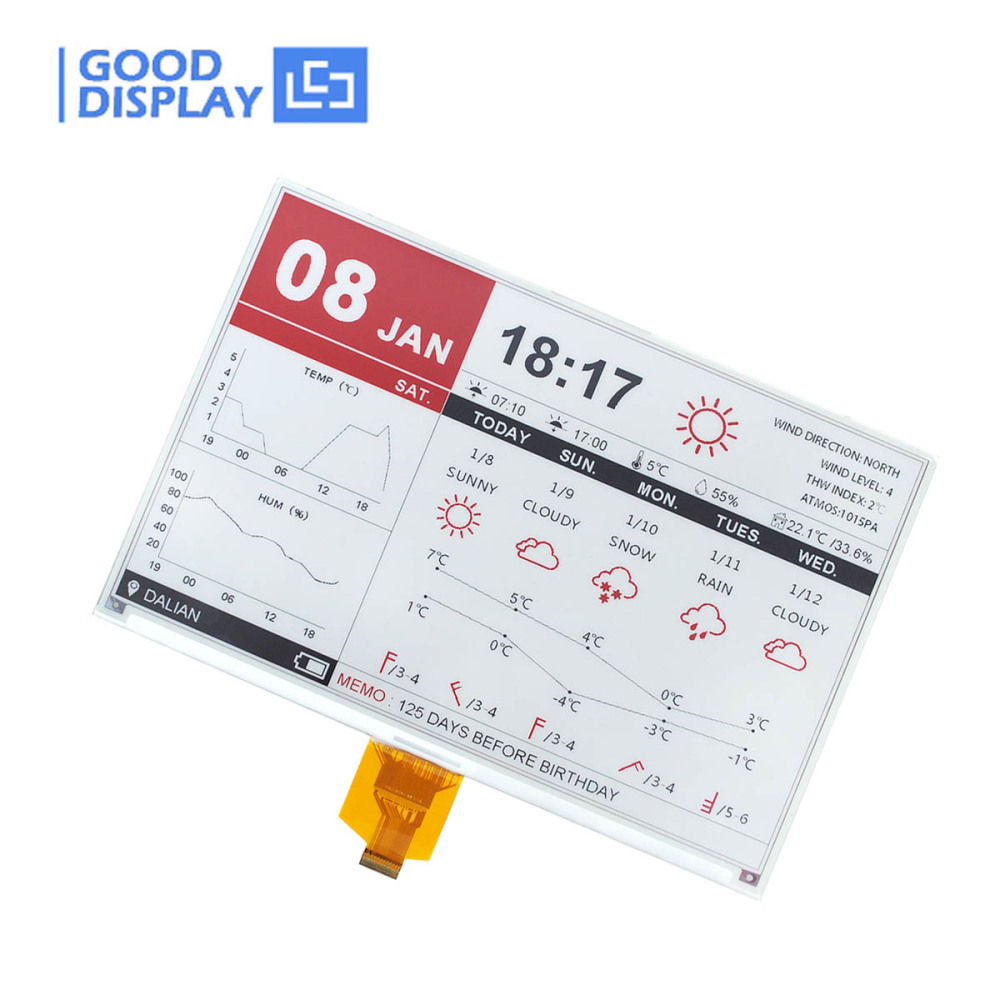

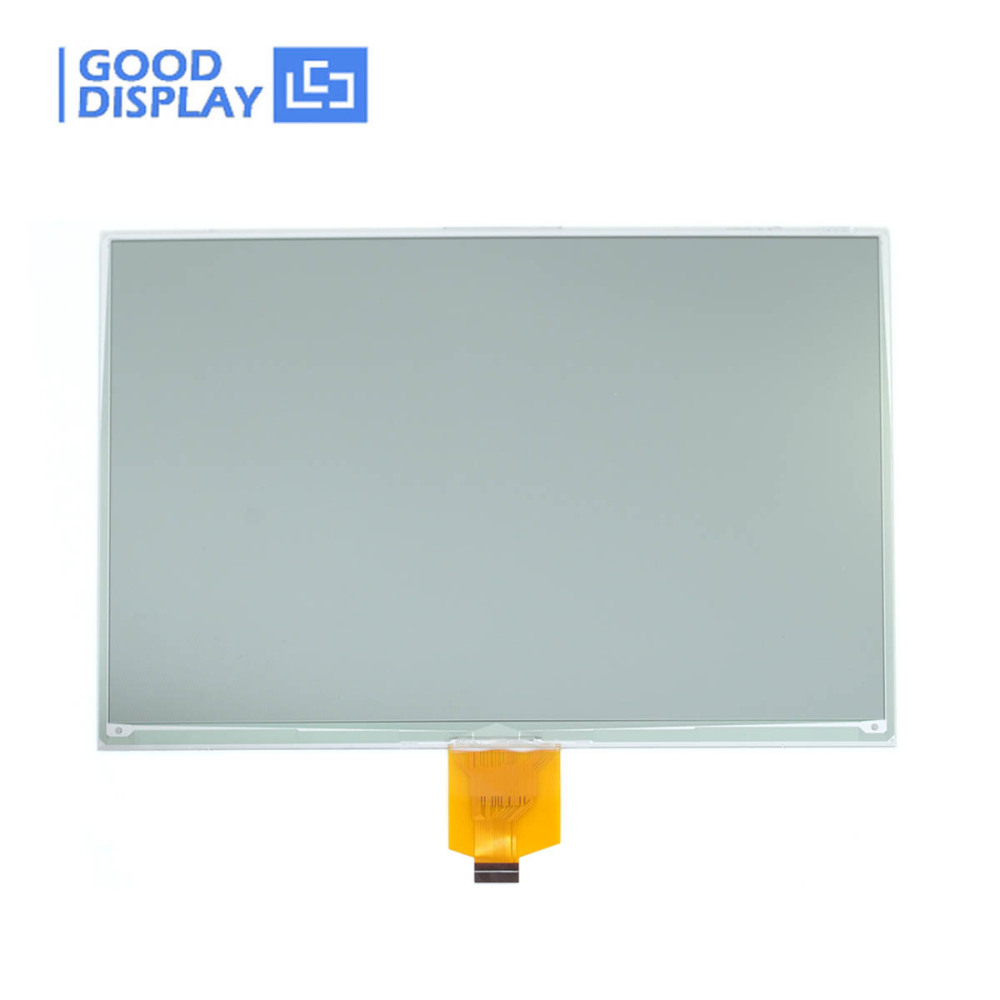

large e-paper 10.2 inch color eink epd screen for electronic menu, GDEQ102Z90

This is a large epaper e-ink display, 10.2 inch, with 960x640 resolution, SPI interface, and the display is capable to display images with black, white and red content.
Price:
USD
$88.00
Quantity:
-
+
(10 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide (Above 4.2 inch)
  • Reviews

☆ INTRODUCTION

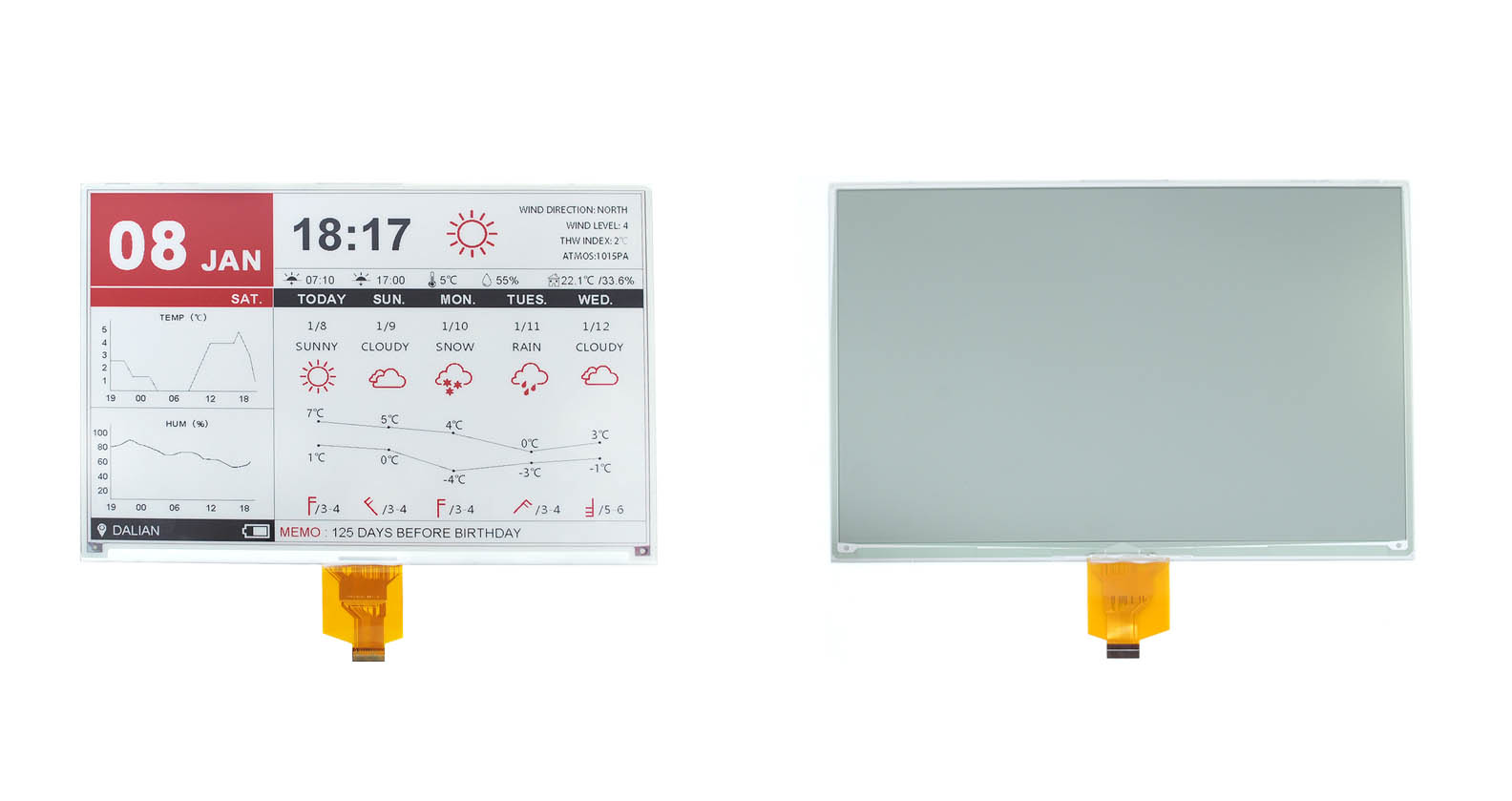

This is a large epaper e-ink display, 10.2 inch, with 960x640 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e paper display modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This epaper display GDEQ102Z90 is perfect for low power devices powered by solar or batteries.



We provide the E-Ink Adapter Board for you to connect the E-paper Display.

We also could provide front light, touch screen and other accessories for you.


You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array


☆ THE ABOVE PRICE INCLUDE



1) large e-paper 10.2 inch color eink epd screen for electronic menu * 1pc
2) FPC Connector * 1pc




 MAIN PARAMETERS




PART NUMBER

GDEQ102Z90



TYPE

Dot Matrix

STORAGE TEMP. -25℃~40℃

SIZE

10.2 inch

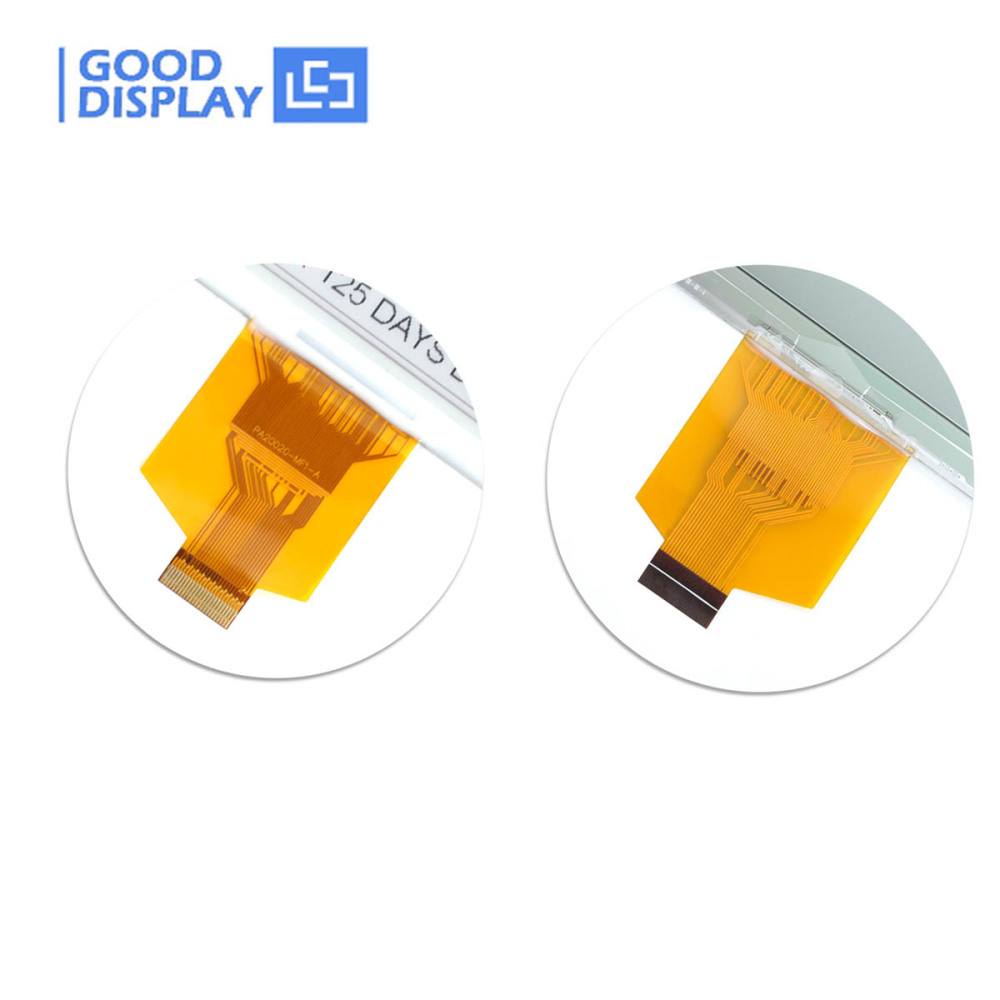

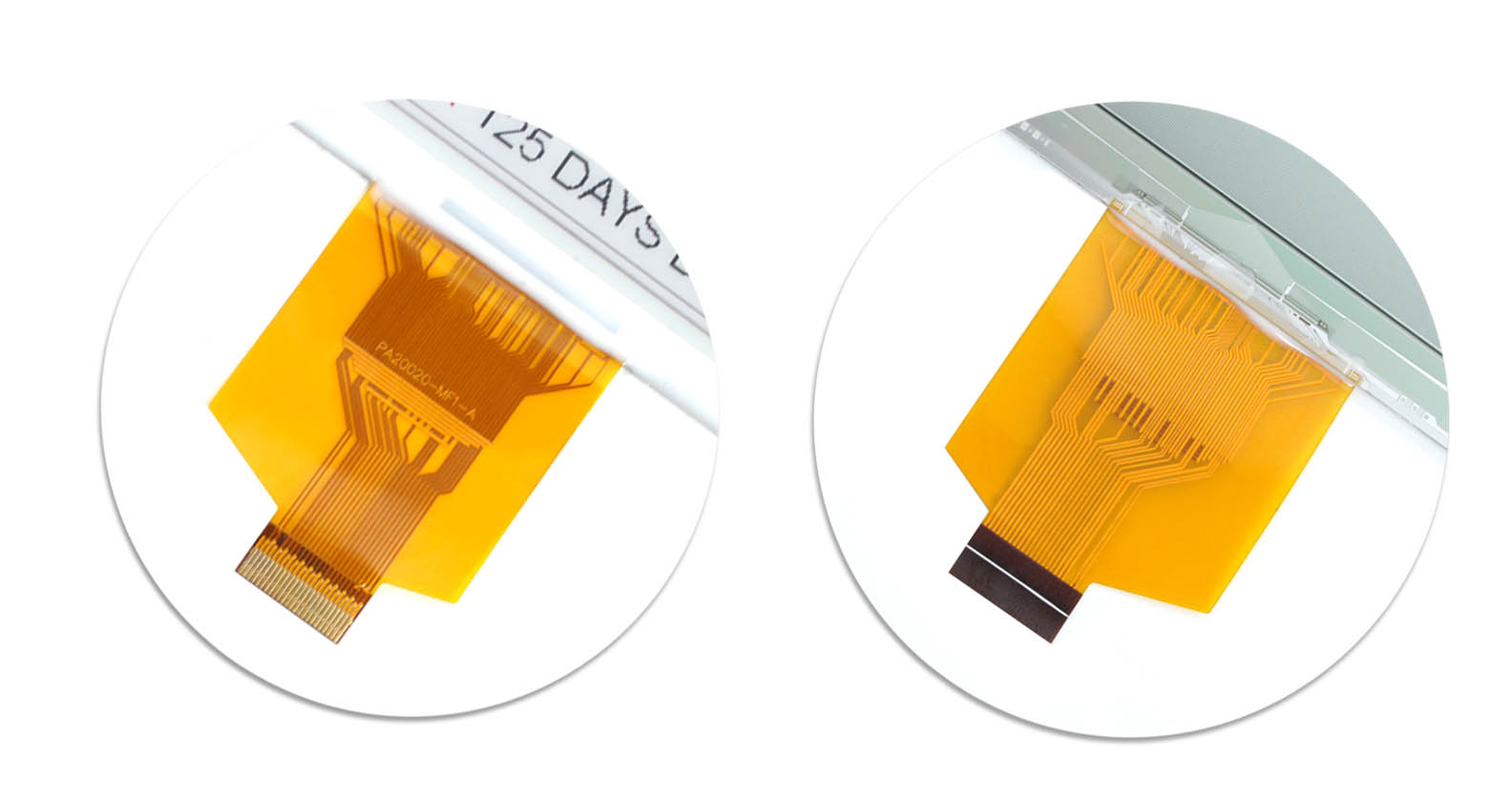

CONNECTOR 24 Pin FPC

IC

SSD1677

MAX GRAYSCALE 2

RESOLUTION

960x640

COLOR Black, White, Red

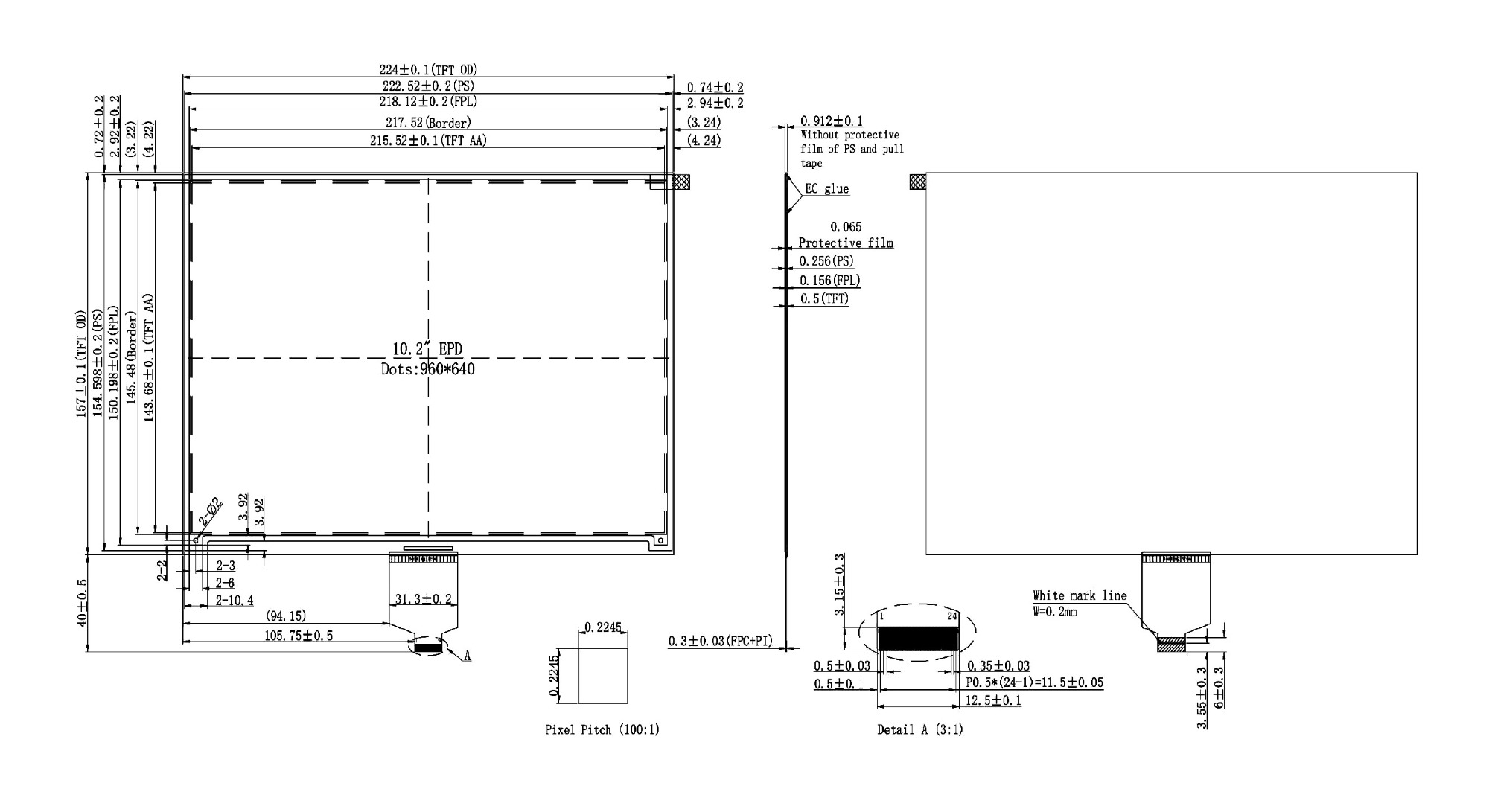

OUTLINE SIZE(mm)

224x157x0.912

INTERFACE SPI

ACTIVE SIZE(mm)

215.52x143.68

FULL REFRESH(s) 25

PIXEL PITCH(mm)

0.2245x0.2245

POWER CONSUMPTION OF THE REFRESH(mW) 49.5

OPERATING TEMP.

0℃~40℃

STANDBY POWER CONSUMPTION (mW) 0.0066



 DETAIL








 FEATURE




●  Versatile. Use in portrait or landscape format.

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor.

●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful

●  It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays

●  Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32






☆ WE ALSO SUGGEST...




7.5 inch large e-ink screen SPI electronic paper display, GDEY075T7

E-ink module 800x480 7.5 inch red tri-color electronic paper display, GDEY075Z08

12.48 inch Large E-ink Display UC8179 Big Epaper Color Screen, GDEY1248Z51




PART NUMBER SIZE COLOR RESOLUTION ACTIVE SIZE(mm) FULL UPDATE(S) OPERATING TEMP. PARTIAL UPDATE FLEXIBLE
GDEW042C37 4.2'' BWY 400x300 84.8x63.6 28 0℃~40℃
GDEW042T2 4.2'' BW 400x300 84.8x63.6 3 0℃~50℃
GDEY042T91 4.2'' BW 400x300 84.8x63.6 3 0℃~50℃
GDEQ042Z21 4.2'' BWR 400x300 84.8x63.6 19 0℃~40℃
GDEY0579T93 5.79'' BW 792x272 139.00×47.74 3 0℃~50℃
GDEY0579Z93 5.79'' BWR 792x272 139.00×47.74 20 0℃~40℃
GDEW0583C64 5.83'' BWY 600x448 118.80x88.26 25 0℃~40℃
GDEY0583T8 5.83'' BW 648x480 118.78x88.22 3 0℃~50℃
GDEW0583Z83 5.83'' BWR 648x480 119.232x88.32 12 0℃~40℃
GDEY075T7 7.5'' BW 800x480 163.2x97.72 3 0℃~50℃
GDEY075Z08 7.5'' BWR 800x480 163.2x97.72 12 0℃~40℃
GDEP097TC2

9.7''

BW

1200x825

202.8x139.425

1

0℃~50℃



GDEQ102T90 10.2'' BW 960x640 215.52x143.68 4 0℃~50℃
GDEQ102Z90 10.2'' BWR 960x640 215.52x143.68 4 0℃~50℃
GDEH116T91 11.6'' BW 960x640 244.512x163.008 5 0℃~50℃
GDEH116Z91 11.6'' BWR 960x640 244.512x163.008 30 0℃~35℃
GDEY1248Z51 12.48'' BWR 1304x984 252.98x190.90 25 0℃~40℃
GDEP133UT3 13.3'' BW 1600x1200 270.4x202.8 1 -15℃~65℃
