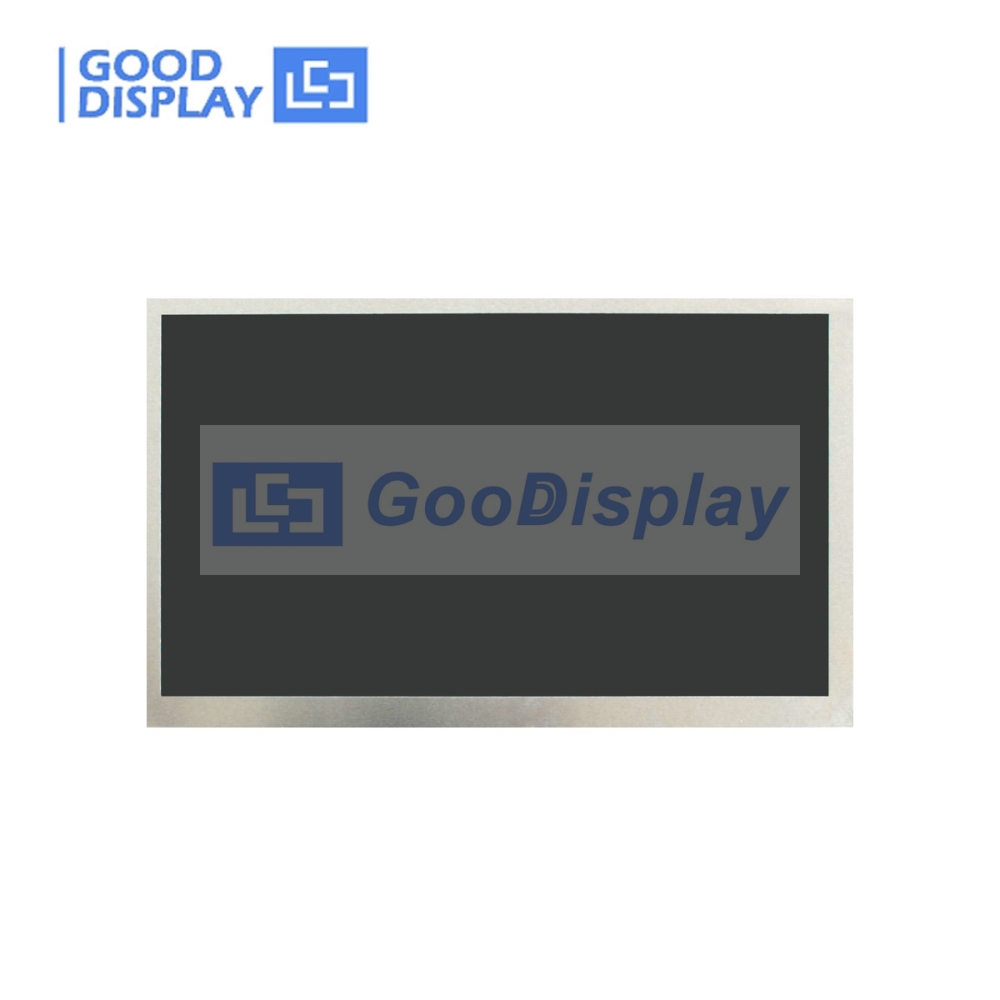

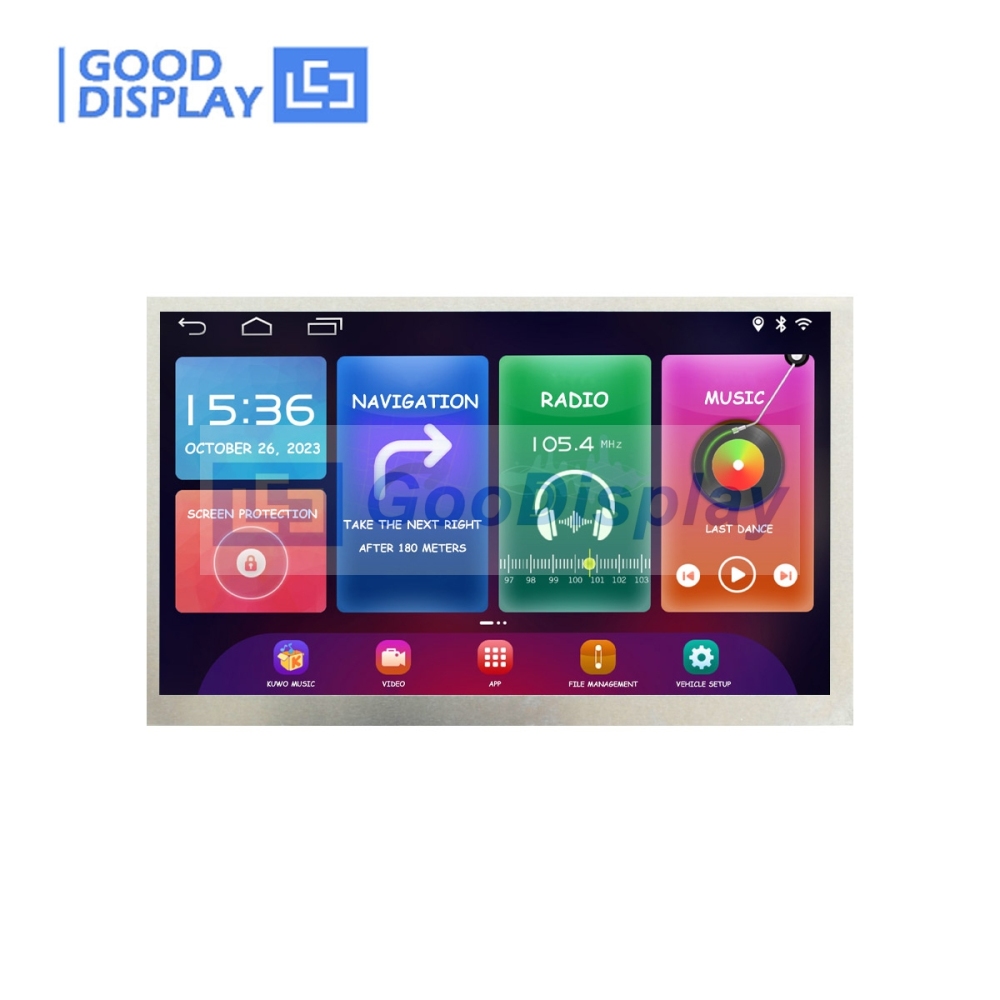

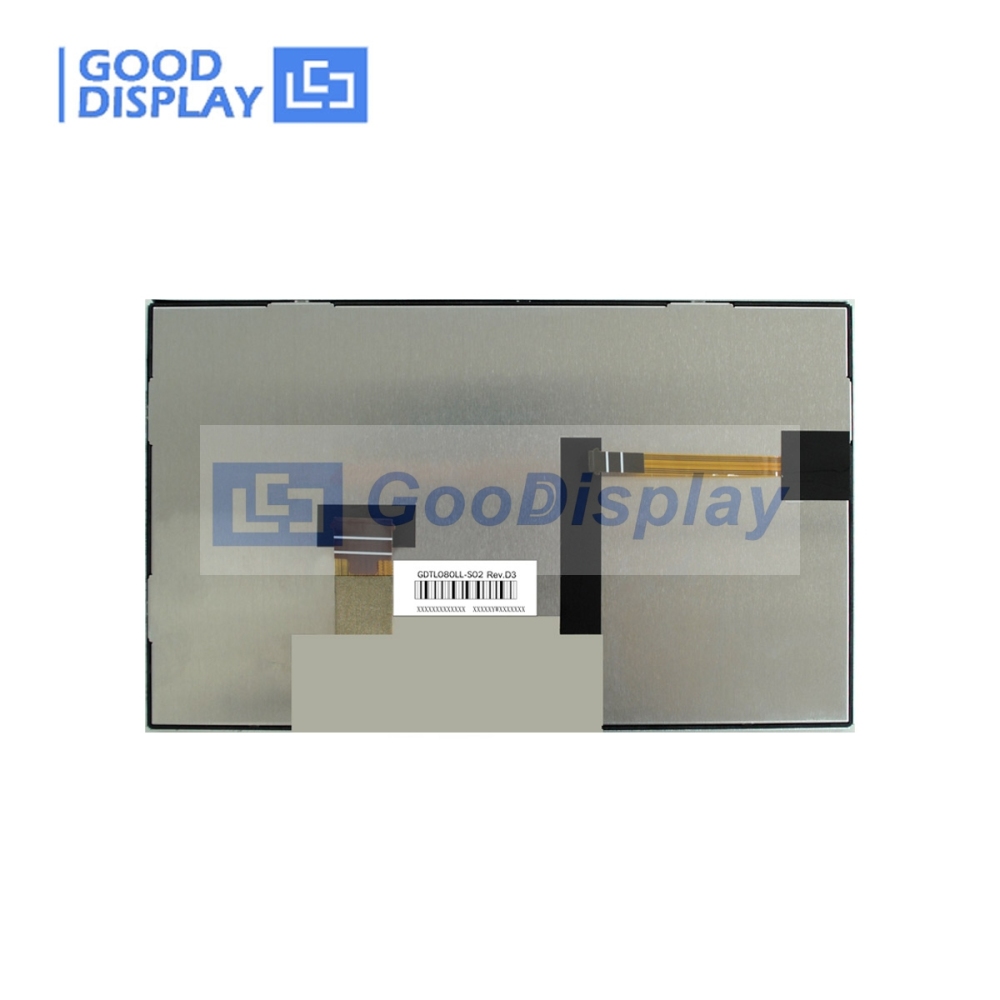

GDTL080LL-S02 is a color active matrix thin-film transistor (TFT) TN liquid crystal display (LCD)featuring amorphous silicon TFT as its switching technology. This display consists of a TFT LCD panel, driver ICs, an FPC, and a backlight.
Relevant manual about this product on our official website (www.einkpro.com),contact us please.
PART NUMBER | GDTL080LL-S02 |
PANEL SIZE | 8 inch |
TYPE | IPS |
DRIVER IC | HX8290-A/HX8695-E |
CONTRAST RATIO | 900 |
NUMBER OF DOTS | 1280×720 pixels |
LUMINANCE | 800cd/m2 |
NUMBER OF COLORS | 262K/16.7M |

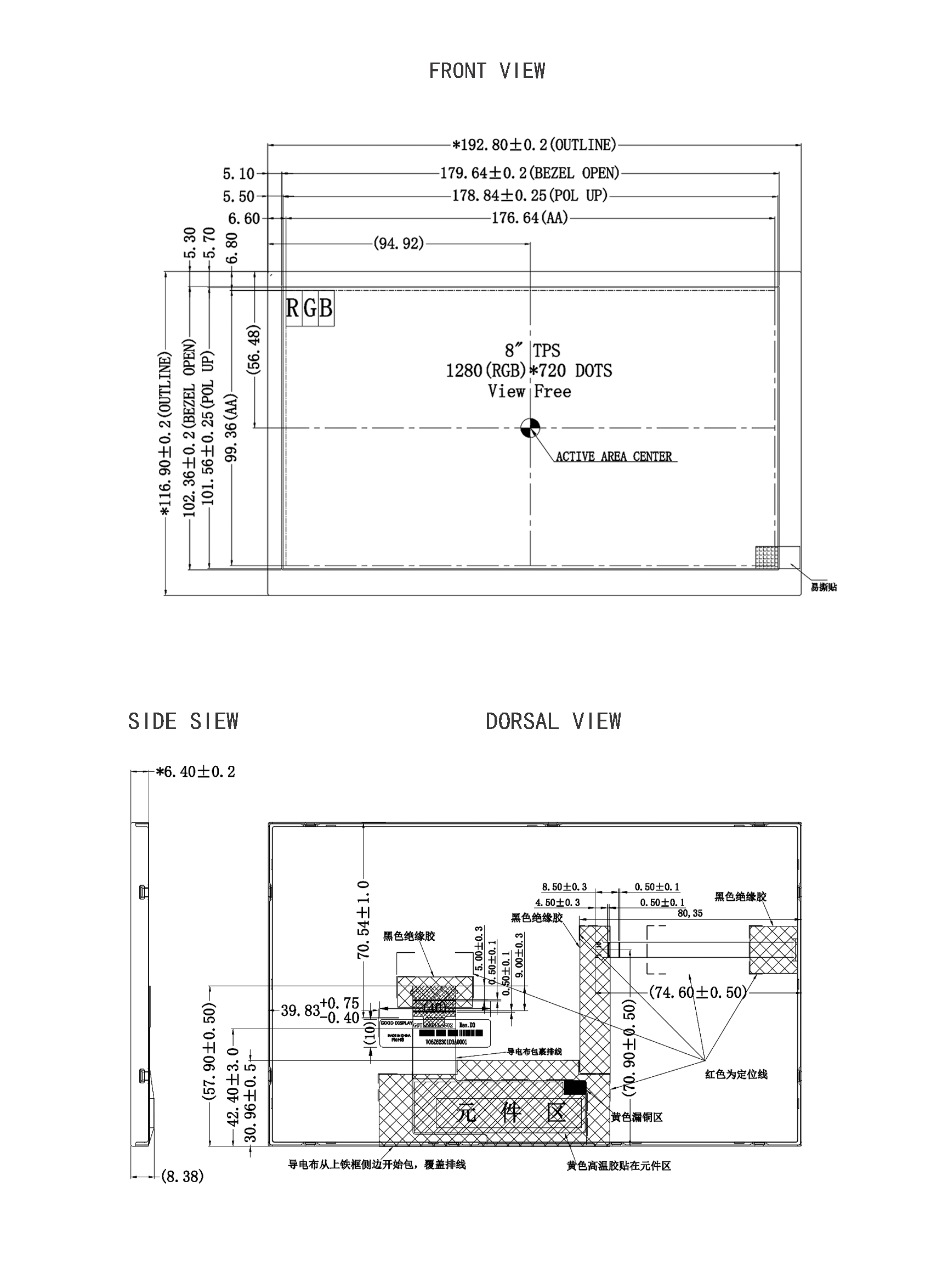

OUTLINE DIMENSION(mm) | 192.8×116.9×6.4 |
ACTIVE AREA(mm) | 176.64×99.36 |
PIXEL PITCH(mm) | 0.138×0.138 |
OPERATION TEMPERATURE | -30℃~85℃ |
STORAGE TEMPERATURE | -40℃~90℃ |
DISPLAY MODE | Normally Black |
VIEWING DIRECTION | 12 O'clock |
INTERFACE TYPE | LVDS |
1. Do not disassemble the module or insert anything into the Backlight unit.
2. If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.
3.After the module’s end of life, it is not harmful in case of normal operation and storage.
