☆ INTRODUCTION

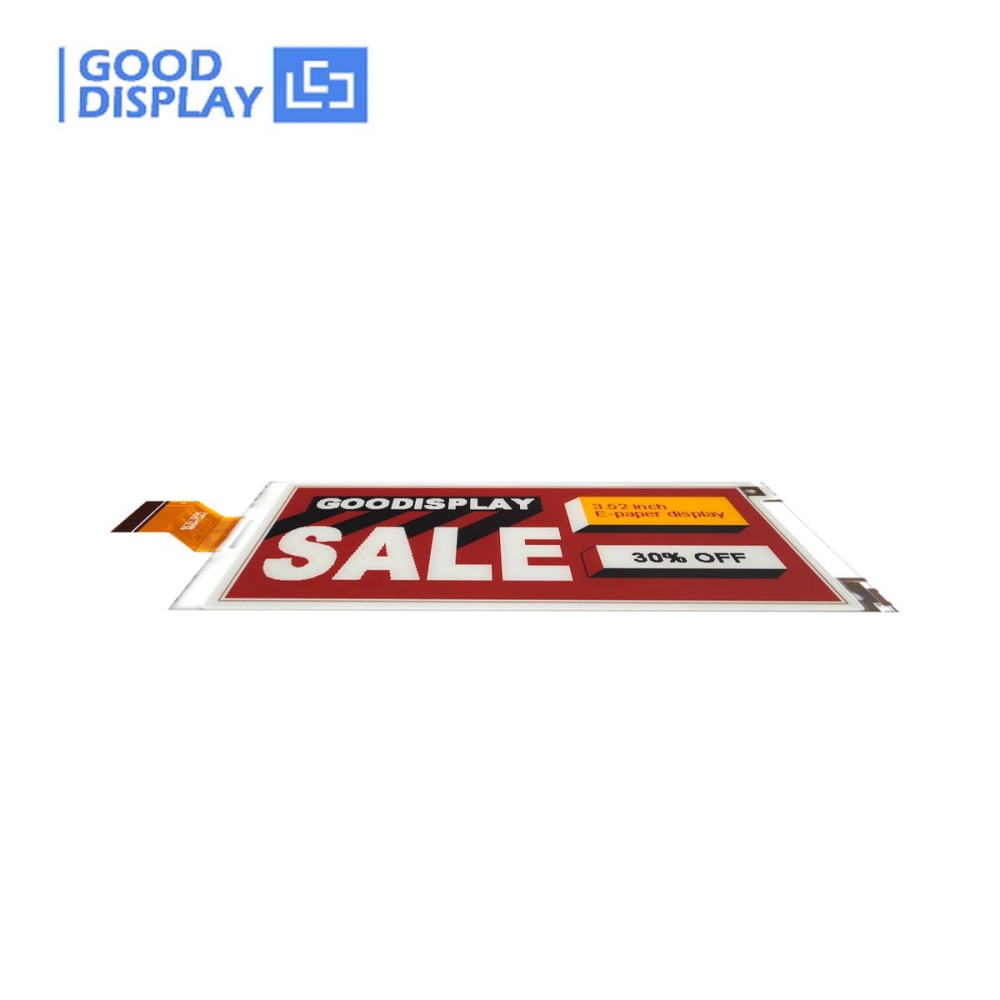

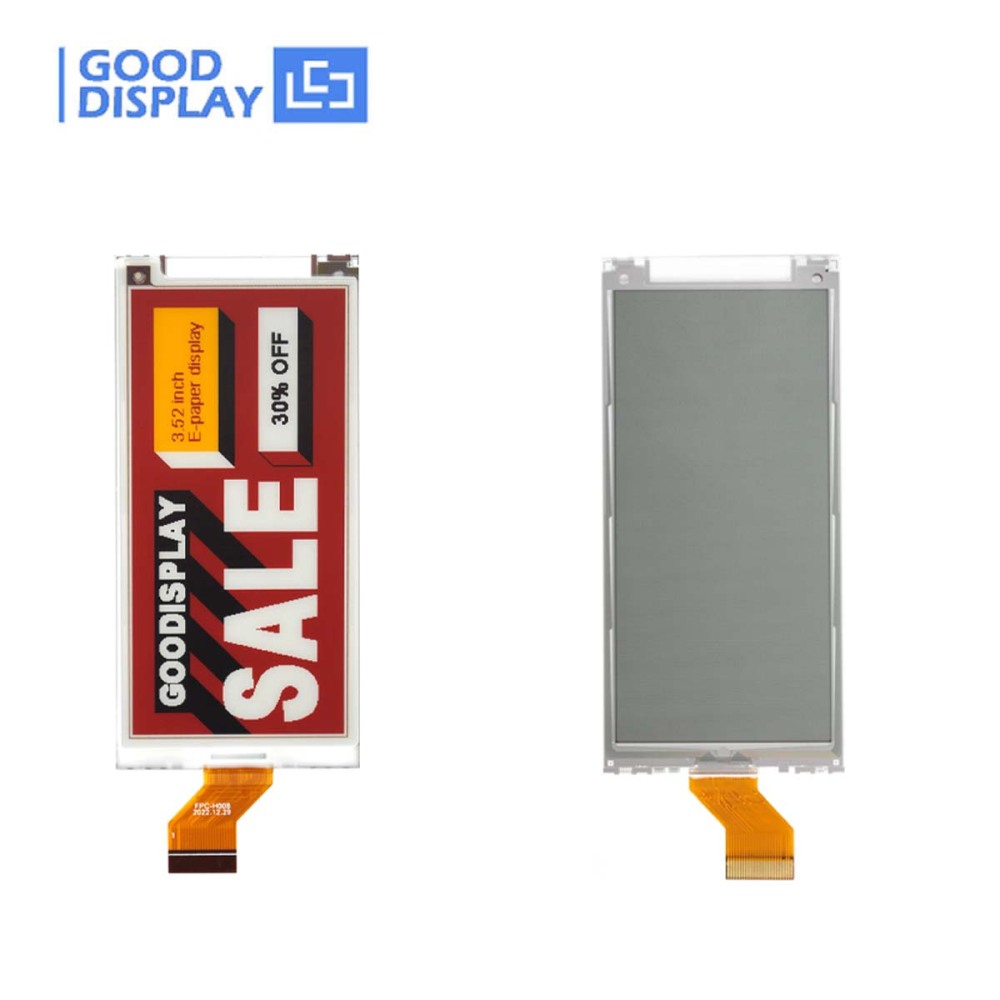

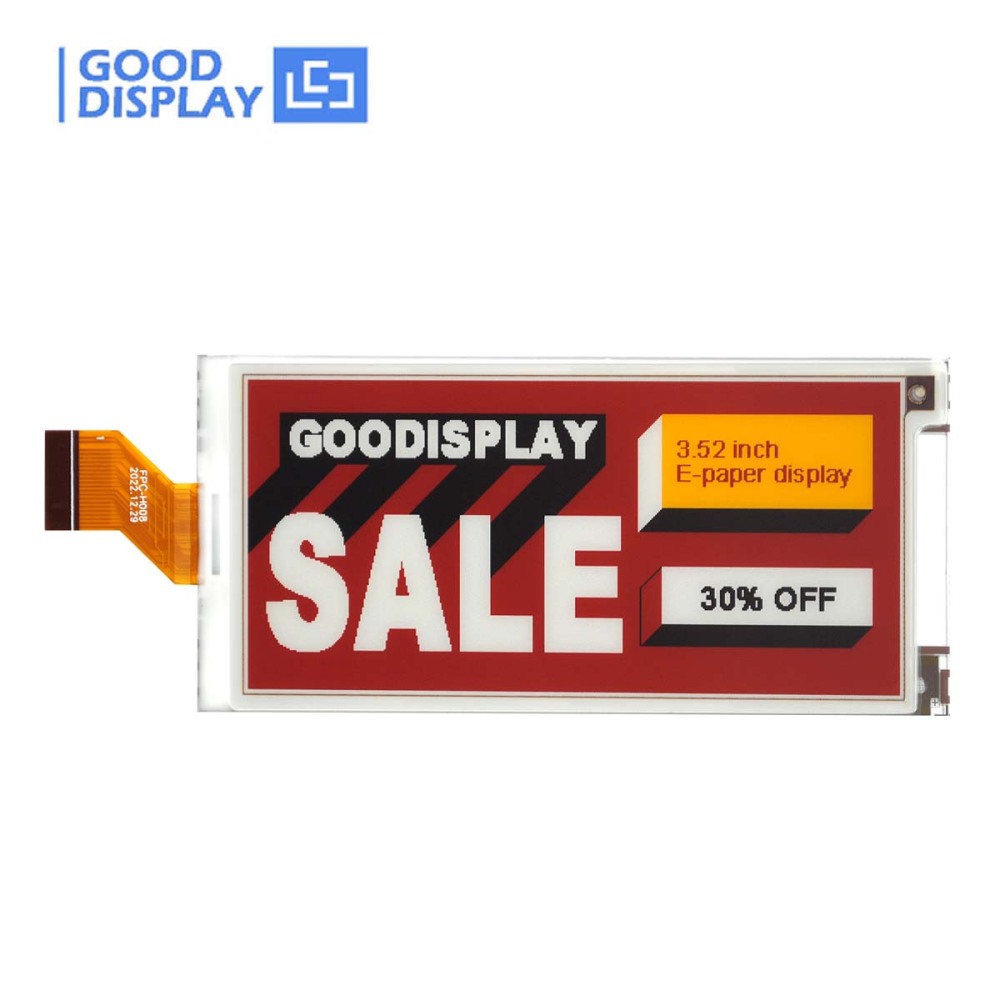

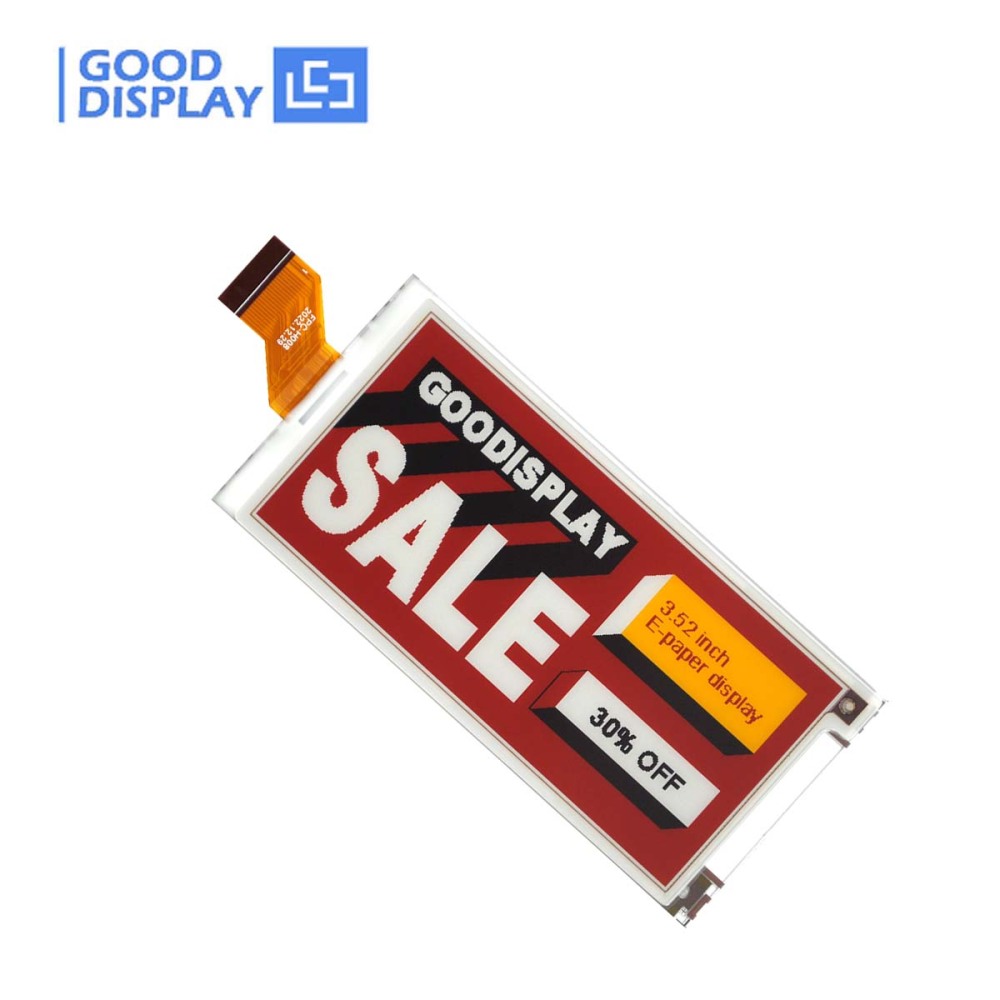

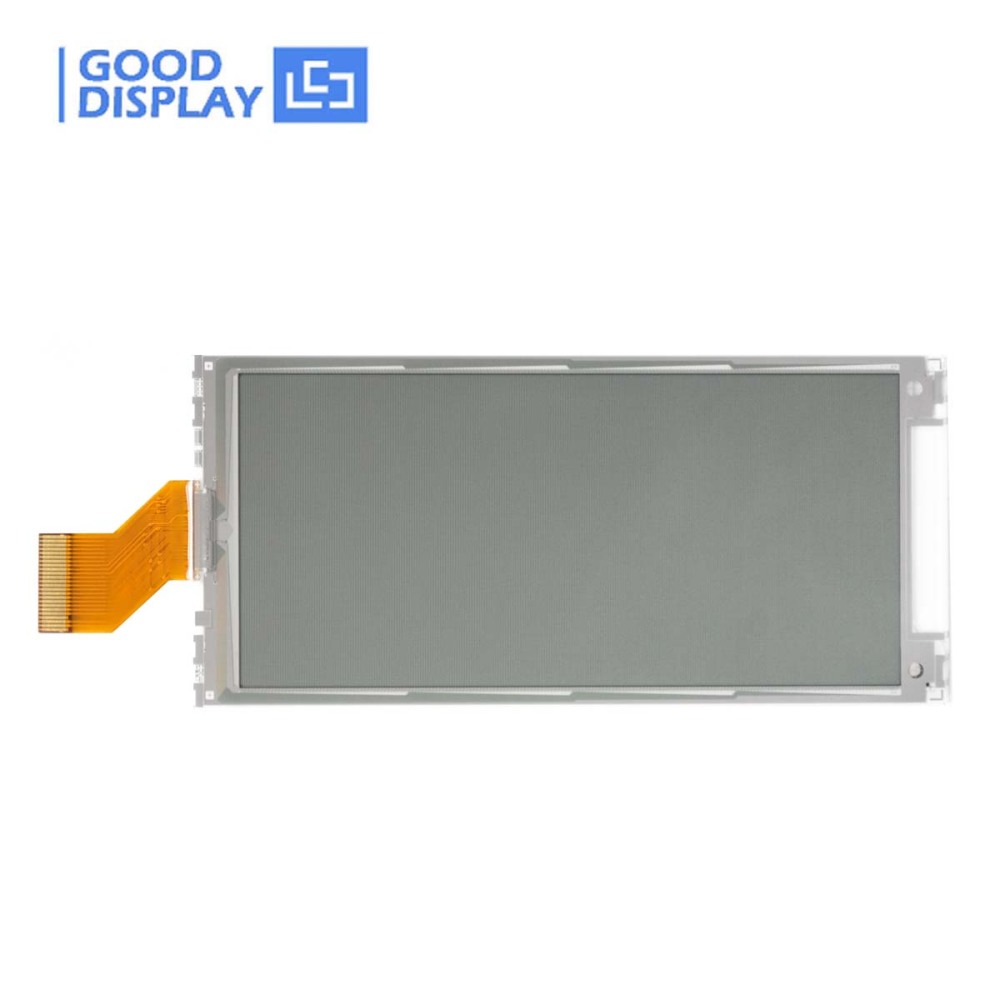

This is a 3.52 inch e-ink display, 384x180 resolution, SPI interface, and the display is capable to display images with multi-color EPD. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY0352F51 is perfect for low power devices powered by solar or batteries.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
☆ THE ABOVE PRICE INCLUDE
1) 3.52 " multi-color e-ink screen
2) FPC Connector for EPD * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEY0352F51
|
|
|
TYPE
|
Dot Matrix
|

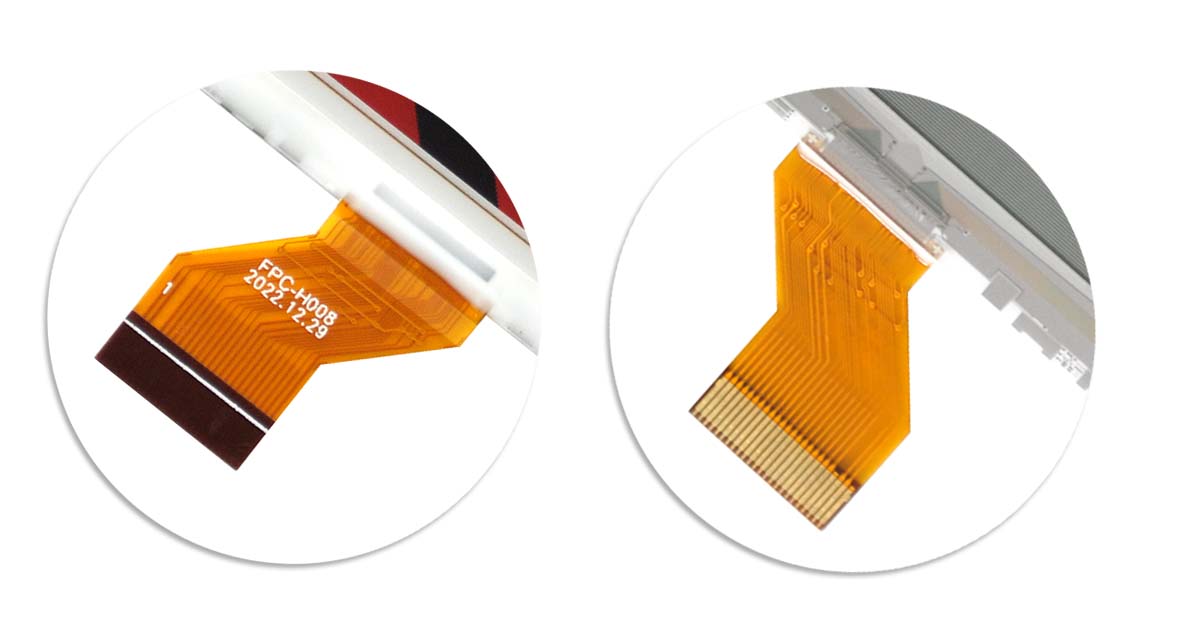

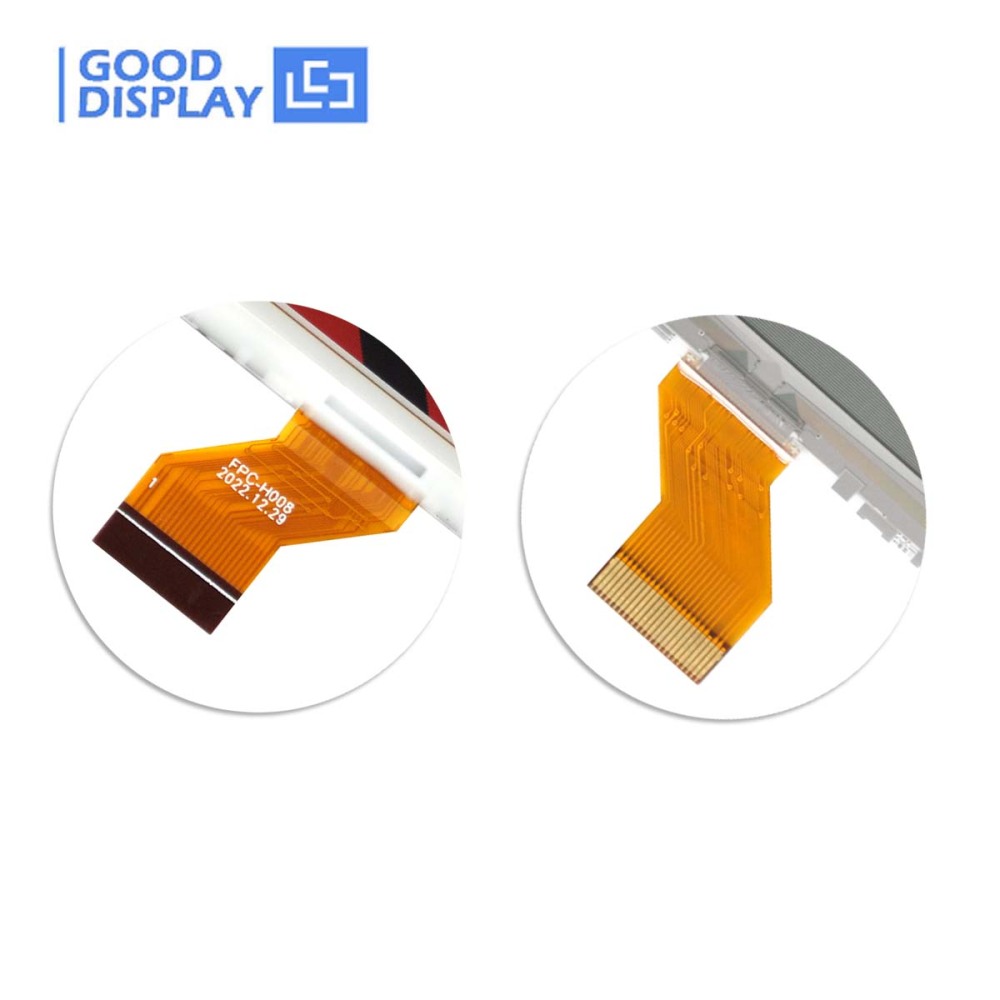

CONNECTOR |
24 Pin FPC |
|
SIZE
|
3.52 inch
|
Touch IC |
JD79667 |
|
RESOLUTION
|
384x180
|
COLOR |
Black,white,red,yellow |
|

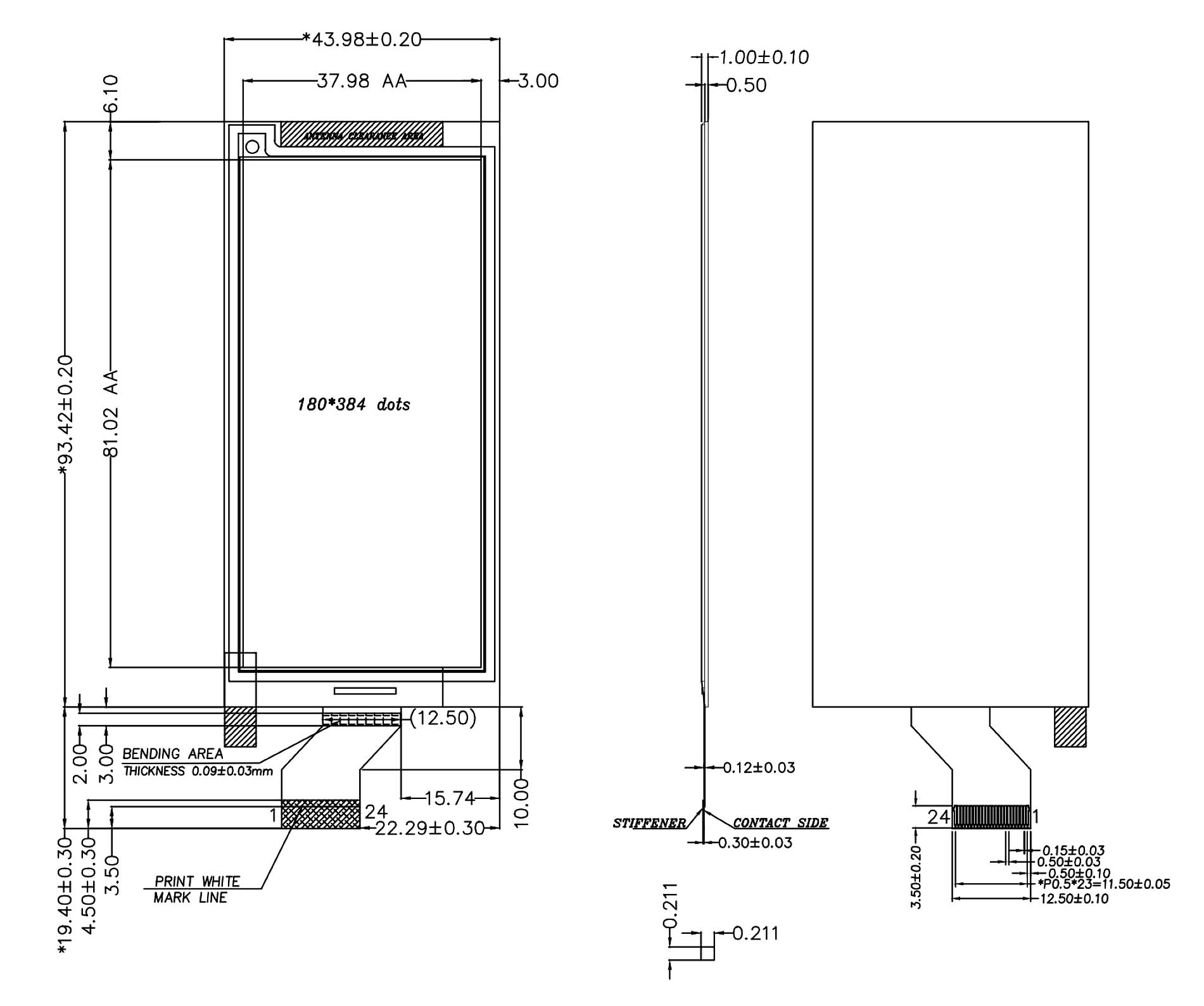

OUTLINE SIZE(mm)
|
93.42x43.98x1.0
|
INTERFACE |
SPI |
☆ FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

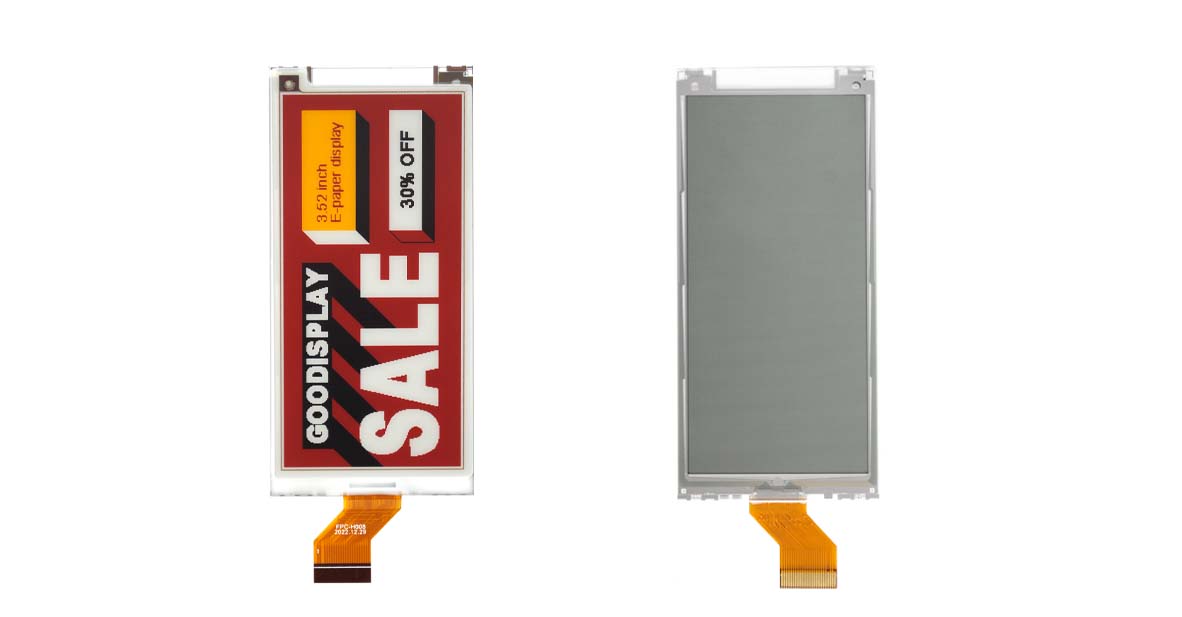

☆ DETAILS
☆ MATCHED DEVELOPMENT KIT
● DESPI-L(C03) (STM32 Platform/Universal)
● DEArduino-L(C03) (Arduino Platform)
● ESP8266-L(C03) (WiFi)
● ESP32-L(C03) (WiFi / Bluetooth)
● DESPI-C03 (Rasberry Pi Epaper HAT)
