☆ INTRODUCTION
This is a 1.54 inch e-ink display, 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY0154D67-FL04 is perfect for low power devices powered by solar or batteries.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
☆ THE ABOVE PRICE INCLUDE
1) 1.54 " e-ink display screen
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEY0154D67-FL04
|
|
|
TYPE
|
Dot Matrix
|

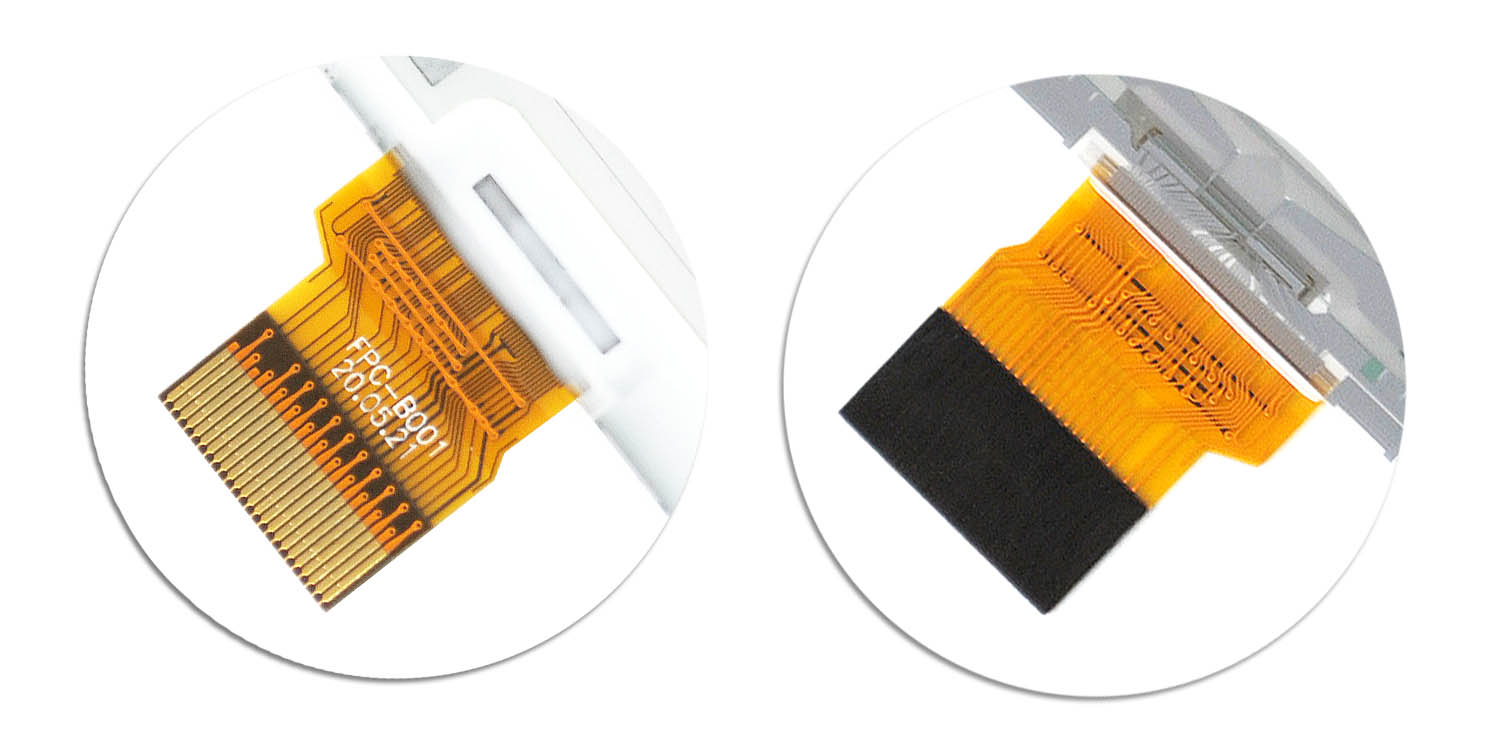

CONNECTOR |
24 Pin FPC |
|
SIZE
|
1.54 inch
|
IC |
SSD1681 |
| RESOLUTION |
200x200 |
COLOR |
Black, white |
|

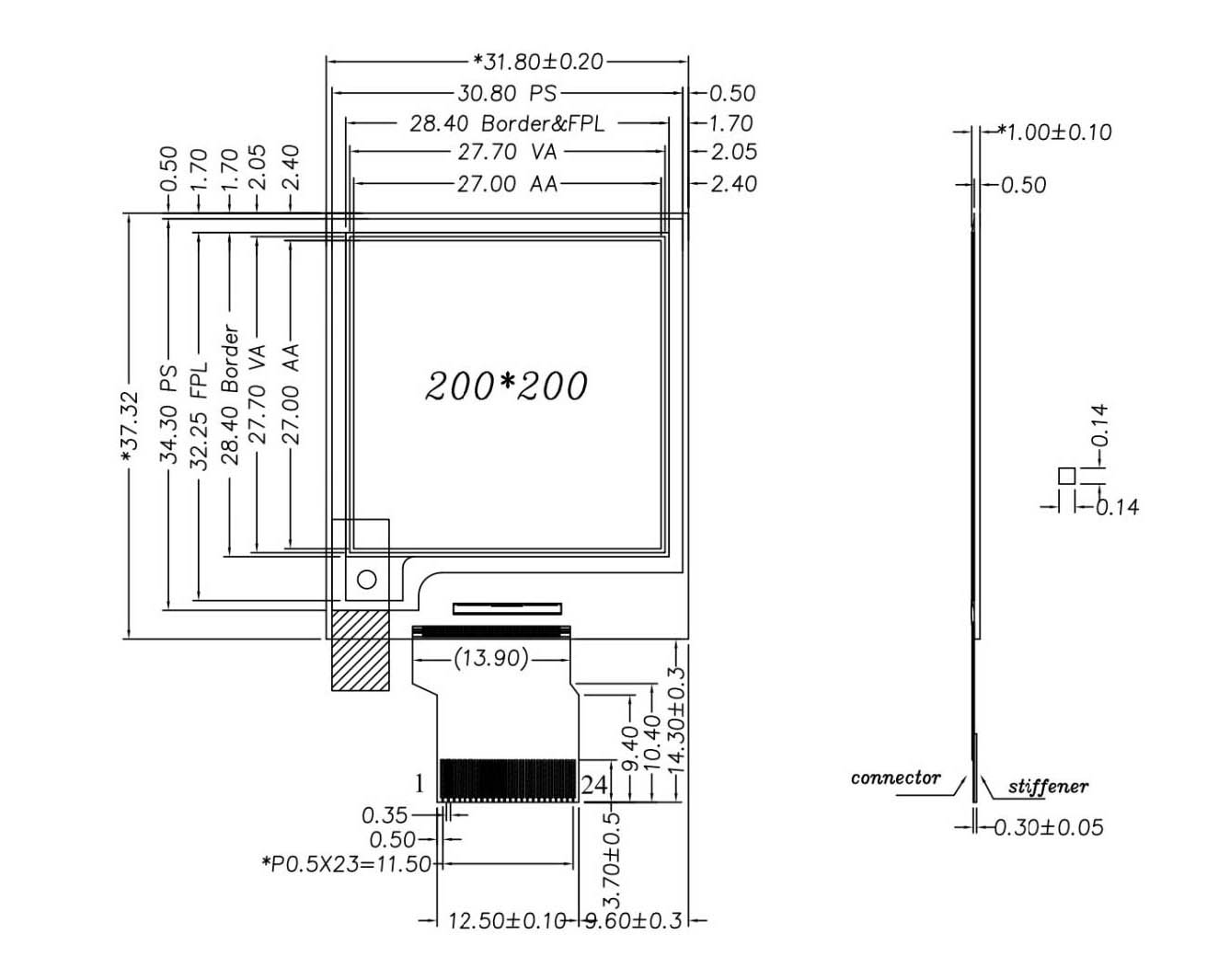

OUTLINE SIZE(mm)
|
31.8x37.32x1.00
|
INTERFACE |
SPI |
☆ FEATURE
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

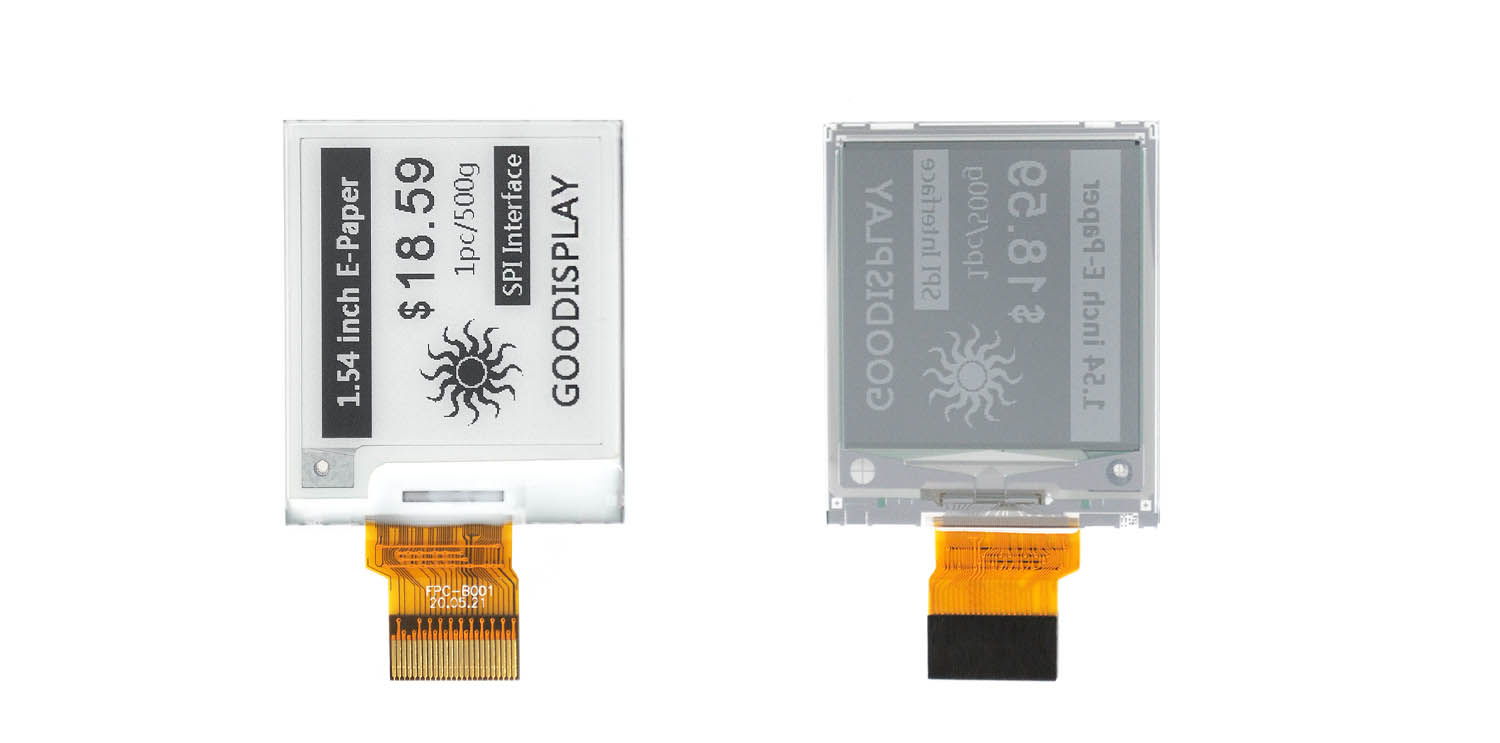

☆ DETAILS
☆ MATCHED DEVELOPMENT KIT
● DESPI-L(C03) (STM32 Platform/Universal)
● DEArduino-L(C03) (Arduino Platform)
● ESP8266-L(C03) (WiFi)
● ESP32-L(C03) (WiFi / Bluetooth)
● DESPI-C03 (Rasberry Pi Epaper HAT)
