25.3-inch Color E-Ink Display Module 3200x1800
|
|
|
| |
|
 |
|
|
| |
|
The GDEP253C02 has high color saturation and is the most vibrant model since E Ink launched its color electronic paper. This 25.3-inch e-ink display features a resolution of 3200x1800. It essentially replicates the effect of color printing with no noticeable differences. Additionally, this product has a wide operating temperature range, making it suitable for most environmental conditions.
|
|
|
Special Features
● Vibrant Color Display: Dive into a world of color with the E Ink Spectra 6! Enjoy a richer, more immersive reading experience with vibrant hues including classic black, crisp white, and vivid red. Perfect for bringing your content to life with striking visuals and enhanced clarity.
● Exceptional Contrast: Sharp, clear text and graphics, even in bright sunlight, with no glare.
● Power-Efficient Performance: Low power usage for longer battery life during reading sessions.
● Ultra-Thin and Lightweight: Portable and easy to carry for on-the-go convenience.
● Wide Viewing Angles: Clear, distortion-free display from almost any angle.
● Adaptable Readability: Easy-to-read paper-like display, even in direct sunlight or varying light conditions.
Why Choose the E Ink Spectra™ 6?
With unparalleled efficiency, reliability, and versatility, the E Ink Spectra™ 6 display provides a revolutionary solution for industries ranging from retail to logistics.
Brilliant Colors: Six-Color System
E Ink Spectra™ 6 introduces a six-color system (black, white, red, green, blue, yellow), delivering vibrant and highly saturated full-color displays.
High Resolution and Contrast
With a resolution of 145 PPI and a contrast ratio of 3200×1800, your content will stand out with stunning clarity and sharpness.
Adaptable to Any Environment
Whether indoors or outdoors, E Ink Spectra™ 6 operates seamlessly in temperatures ranging from 0°C to 50°C, making it perfect for diverse use cases.
Interactive Sparkle Technology
Draw attention with localized image flickering using E Ink Sparkle™, enhancing customer engagement with your content.
| |
Technical Details
|
|
 |
| |
Product Specifications
|
|
| PART NUMBER |
GDEP253C02 |
COLOR |
6 Colors(E Ink spectra 6) |
| SIZE |
25.3 inch |

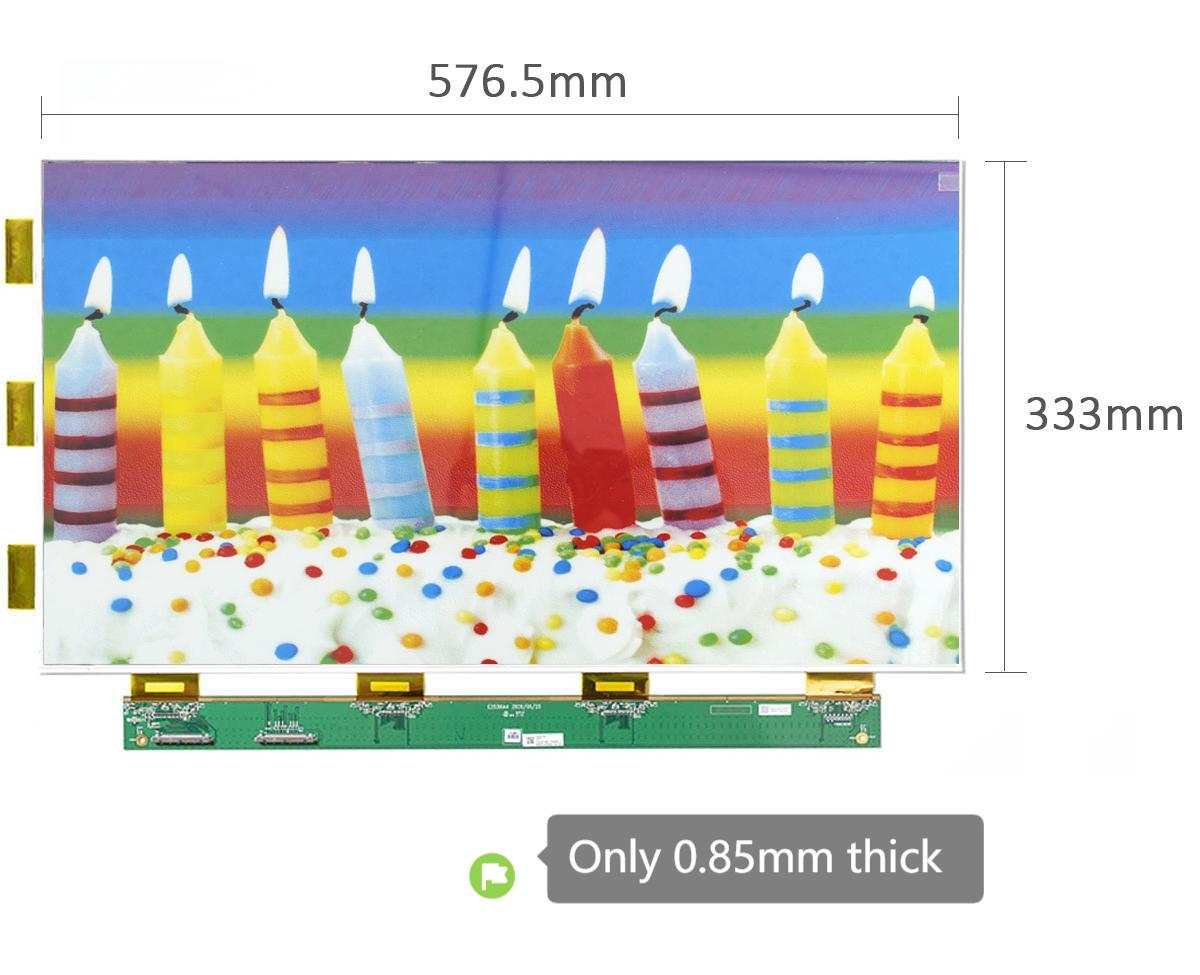

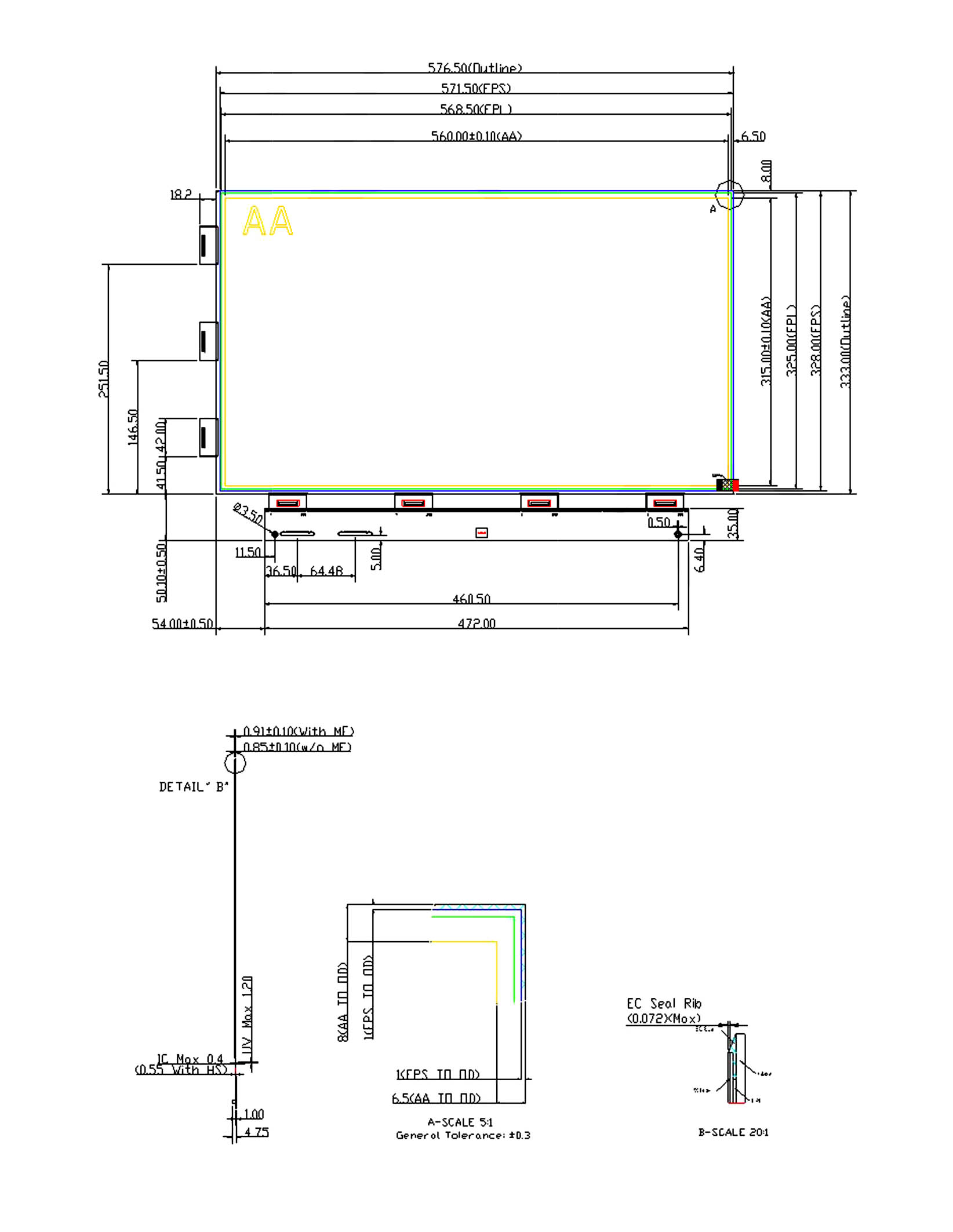

OUTLINE SIZE(mm) |
576.5x333.0x0.85 |
| TYPE |
Dot Matrix |
ACTIVE SIZE(mm) |
560.0x315.0 |
| RESOLUTION |
3200x1800 |
PIXEL PITCH(mm) |
0.175x0.175 |
| PPI |
145 |
OPERATING TEMP. |
0℃~50℃ |
| OPERATING TEMP. |
-25℃~60℃ |
|
|
| |
|
|
|
| |
Supporting Development Solutions
|
|

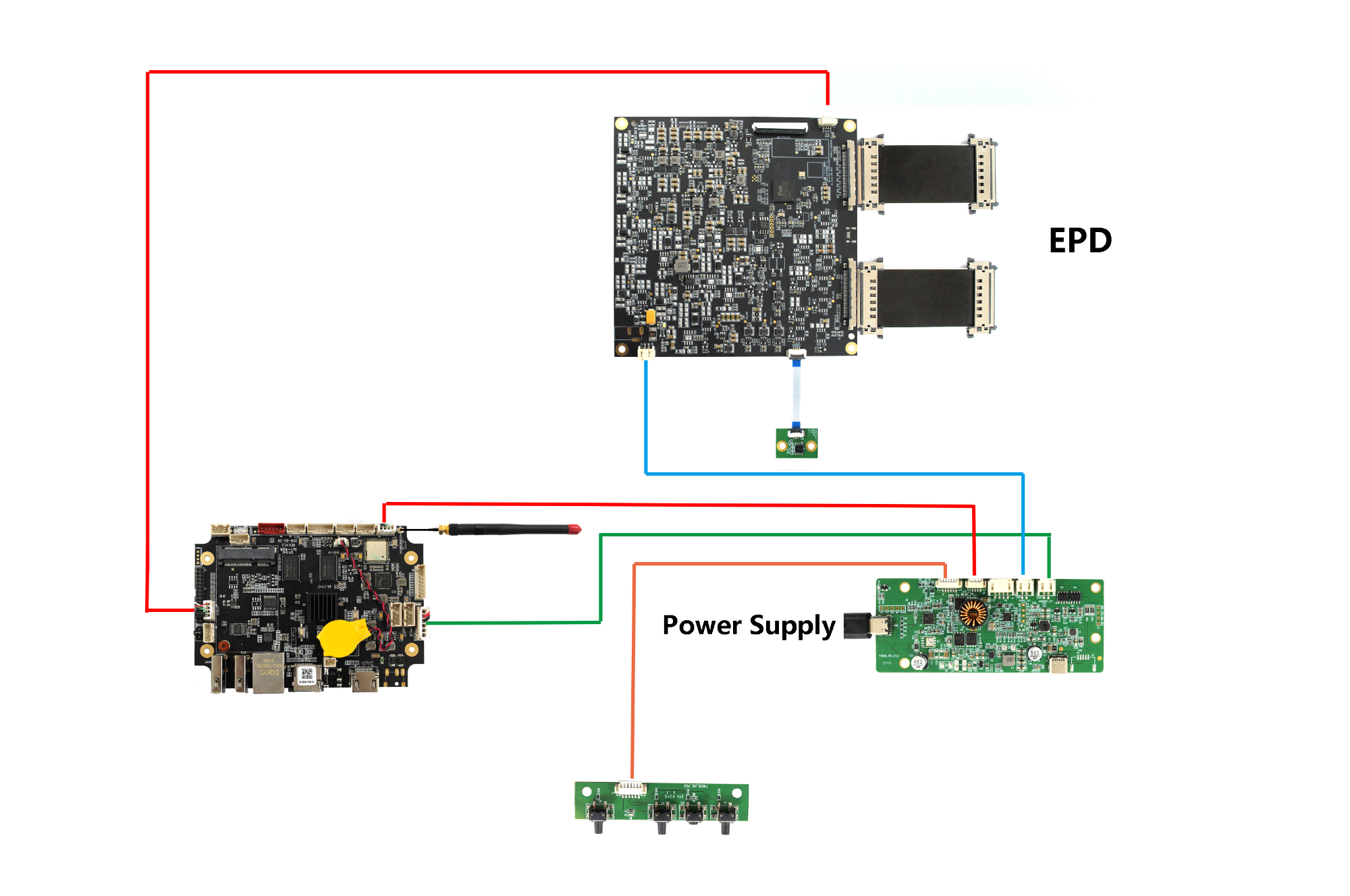

This development board is designed to drive the 25.3-inch E Ink Spectra™ 6 series, perfect for large signage applications. It features a TCON board and Android system motherboard, offering strong data processing and wireless transmission. The image update process is simple: images are processed via Windows software, copied to a USB, and automatically updated by the motherboard—quick and hassle-free. With built-in Wi-Fi and Bluetooth, it supports remote updates, and an SDK is provided for custom development, enabling flexible wireless communication and tailored solutions.
|
