☆ INTRODUCTION

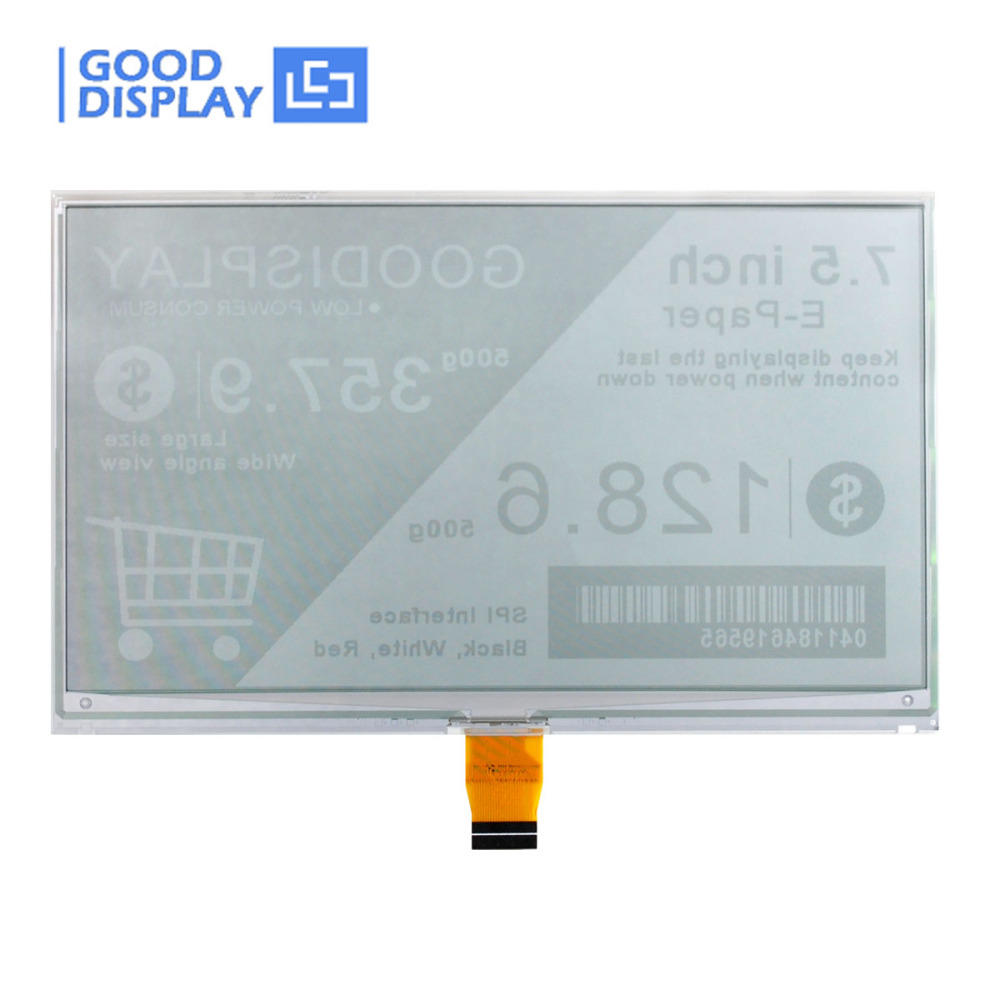

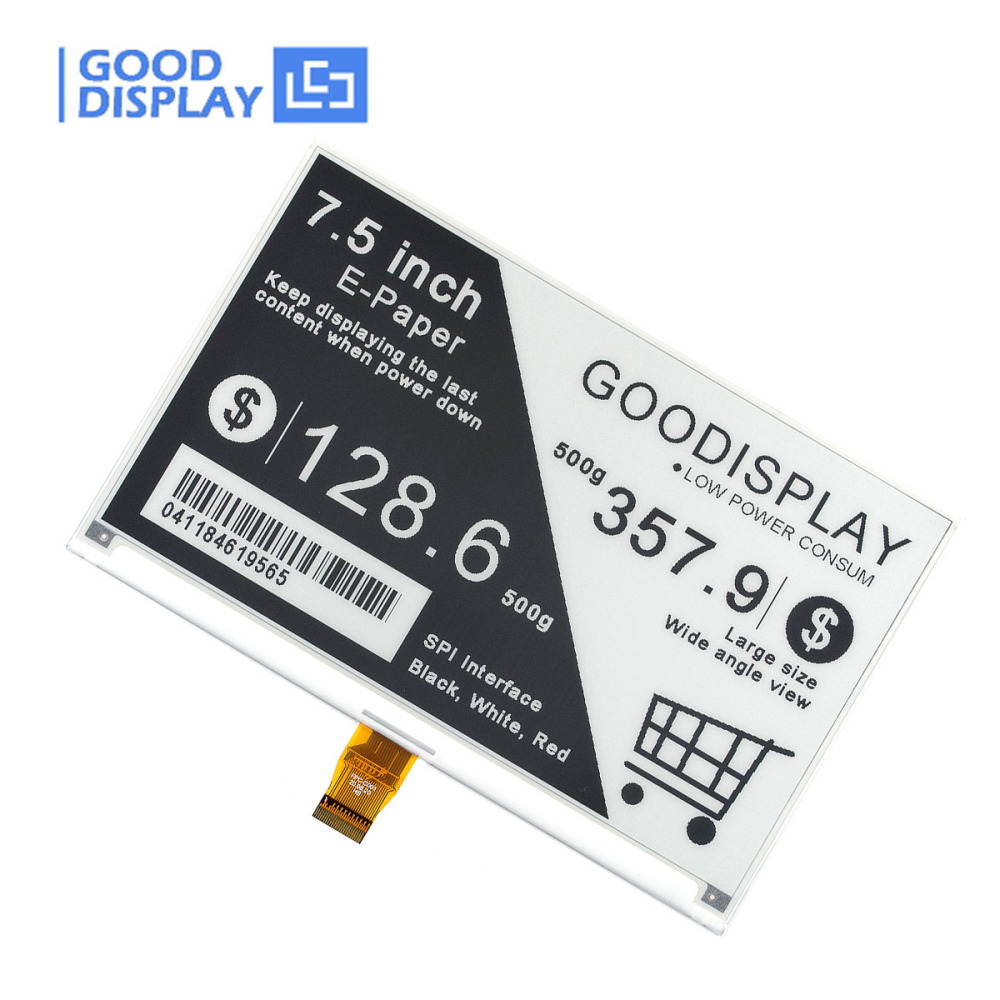

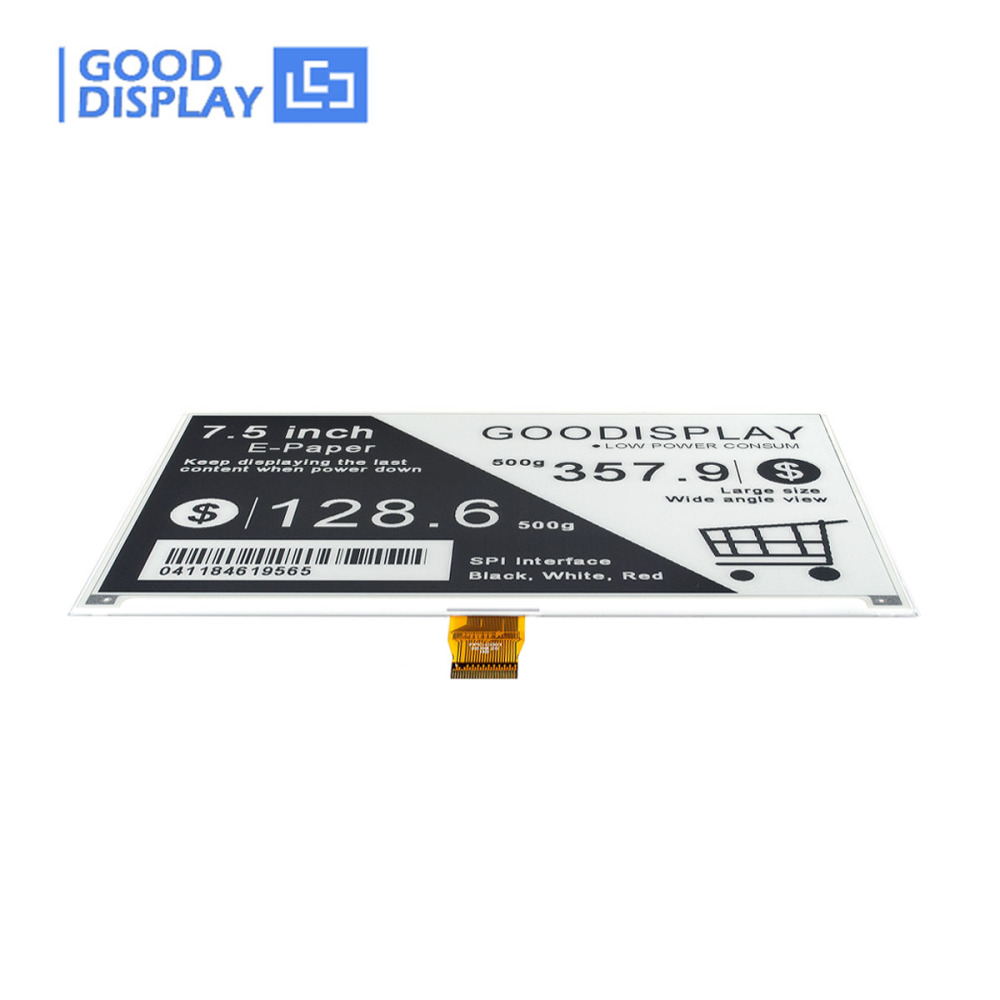

This is a 7.5 inch e-ink screen with 800x480 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.
ESP32-02 development kit supports program development using Arduino development platform.This development kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display.

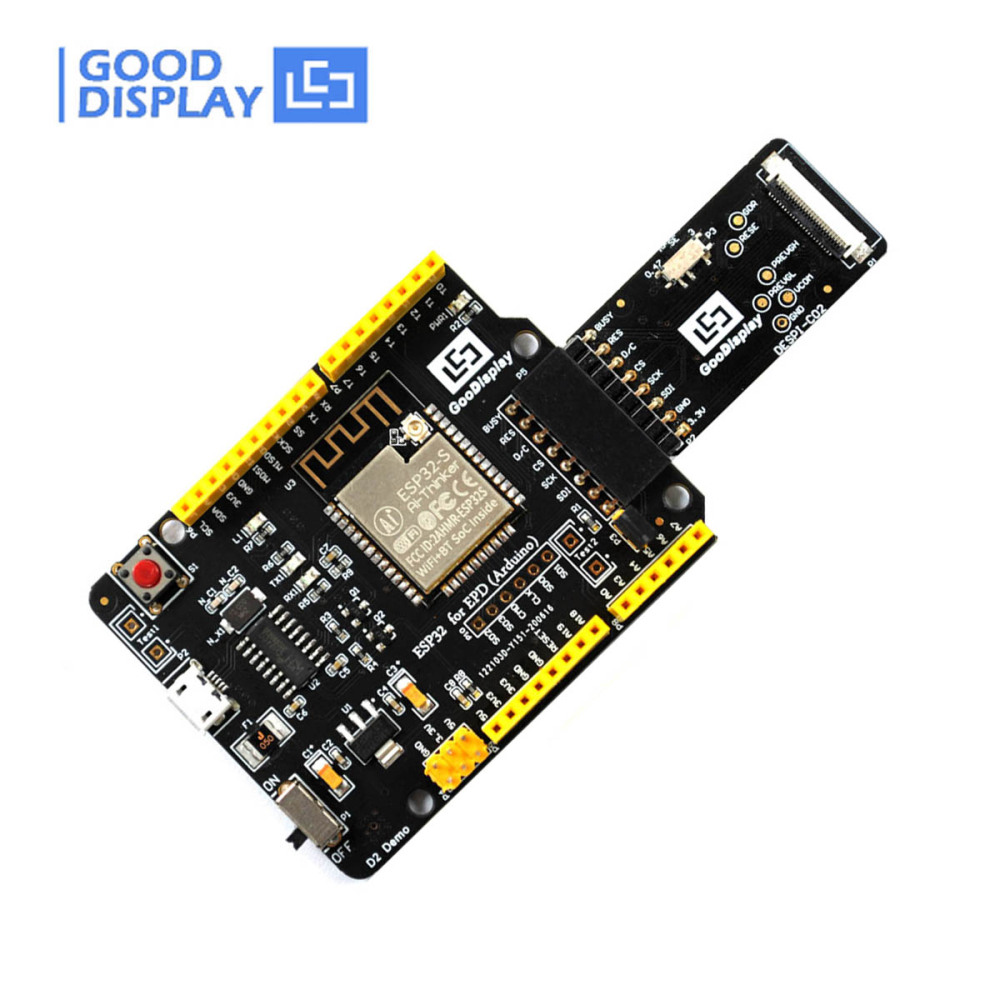

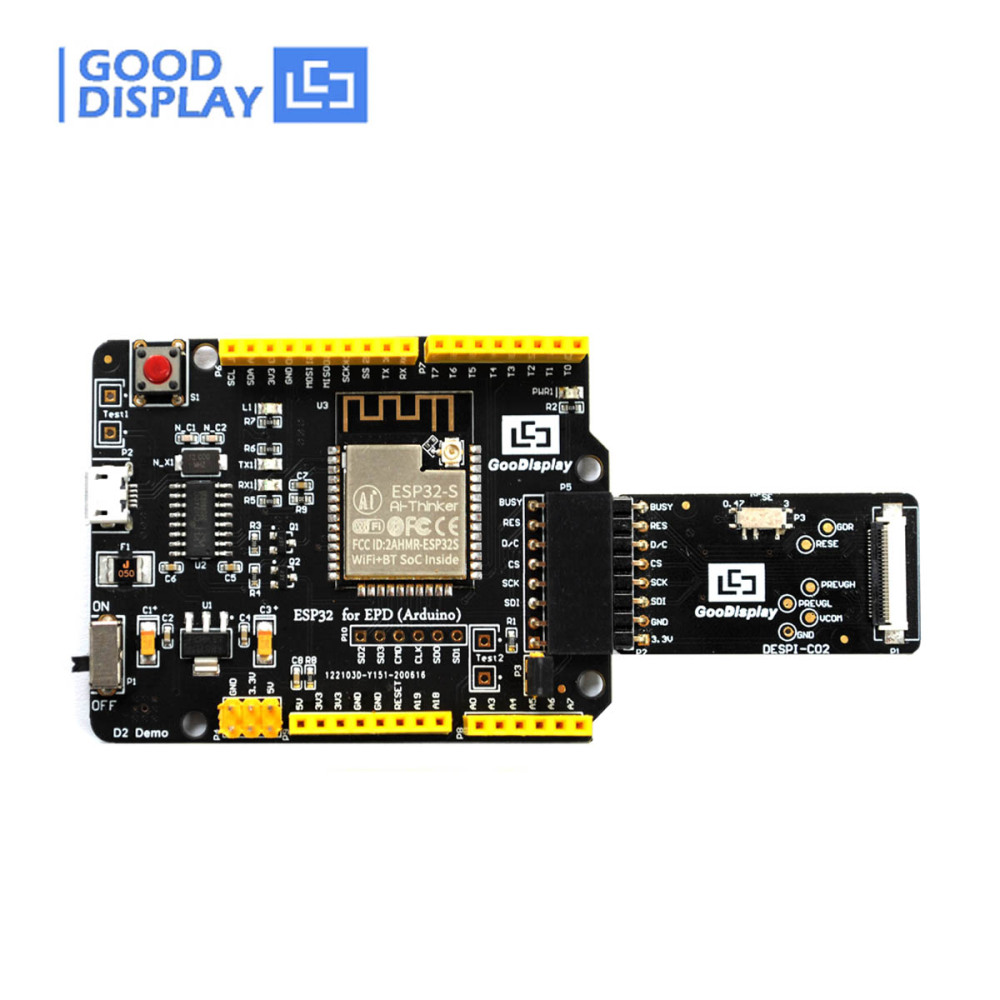

ESP32-02 development kit consists of motherboard ESP32-02 for EPD and connector board DESPI-C02.
ESP32-02 development kit is only for driving the e-paper, WI-FI, BLE and other functions need to be developed by users according to the project.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display.
☆ FEATURE
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Color Optional. We also have other color for you to choose.

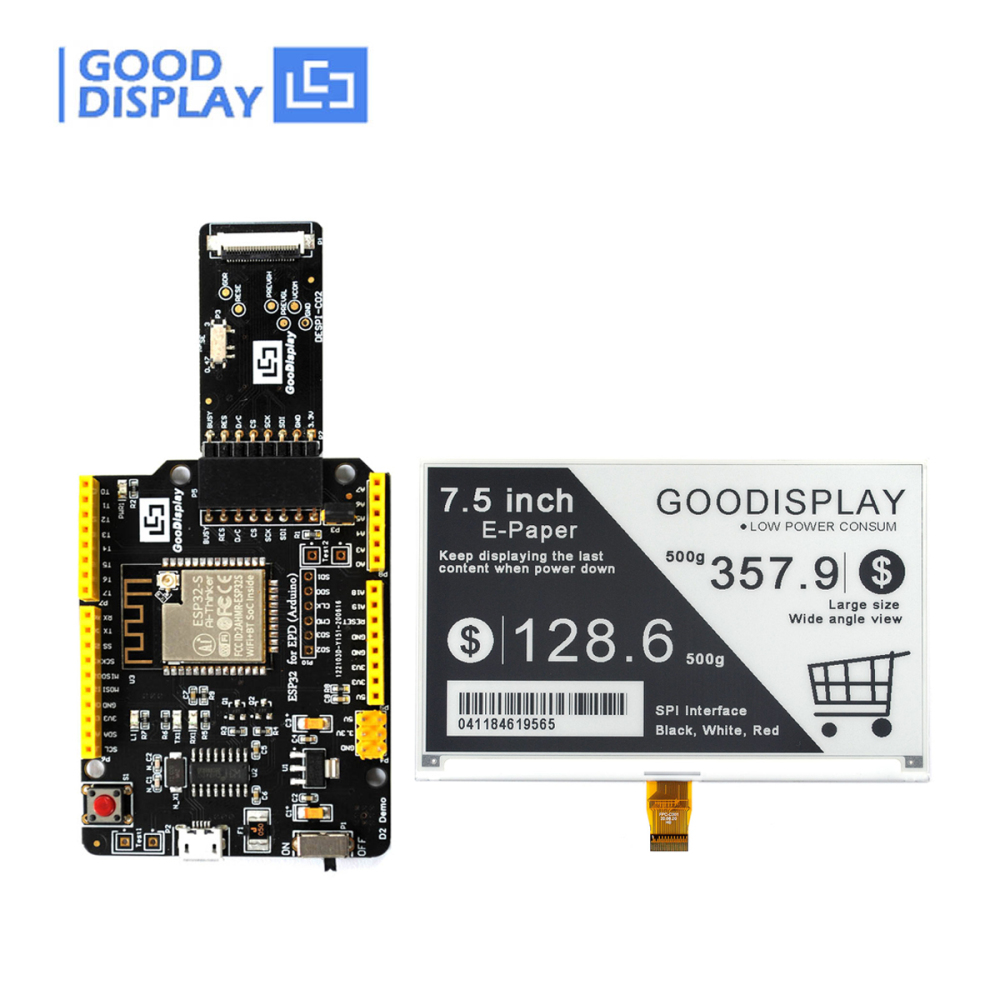

☆ THE ABOVE PRICE INCLUDE
1) 7.5 inch SPI Display 800x480 Resolution Big E-ink Screen * 1pc
2) FPC Connector * 1pc
3) Driving board ESP32 * 1pc
4) Connector board DESPI-C02 * 1pc
5) USB cable * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEY075T7
|
|
SIZE
|
7.5 inch
|
|
TYPE
|
Dot Matrix
|
|
IC
|
UC8179
|
|
RESOLUTION
|
800x480
|
|
OUTLINE SIZE(mm)
|
170.2x111.2x1.25
|
|
ACTIVE SIZE(mm)
|
163.2x97.72
|
|
PIXEL PITCH(mm)
|
0.204x0.204
|
|
OPERATING TEMP.
|
0℃~50℃
|
|
STORAGE TEMP.
|
-25℃~70℃
|
|
CONNECTOR
|
24 Pin FPC
|
|
MAX GRAYSCALE
|
4
|
|
COLOR
|
Black,White
|
|
INTERFACE
|
SPI
|
|
FULL REFRESH(s)
|
3
|
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
26.4
|
|
STANDBY POWER CONSUMPTION (mW)
|
0.0165
|
| PART NUMBER |
ESP32-02 |
| PLATFORM |
Arduino |
| OUTSIDE DIMENSION |
70mm x 54mm (ESP32)
41mm x 22mm (DESPI-C02) |
| POWER INTERFACE |
USB Interface |
| SAMPLE CODE |
Available (please contact sales) |
| OPERATING TEMP. |
-20~70℃ |
| MAIN FUNCTION |
Learn to drive e-paper display;
Test and evaluate e-paper display;
For secondary development. |
| RESERVED FUNCTION |
USB to serial port;
Indicator light;
Reset key; Current measurement. |
☆ 7.5 INCH E-PAPER DISPLAY
|
Part Number
|
Color
|
IC |
Resolution |
Features
|
Refresh Time |
|
GDEY075T7
|
BW
|
UC8179 |
800x480
|
4 Grayscale
|
3s
|
|
GDEY075Z08
|
BWR
|
UC8179 |
800x480
|
Red
|
12s
|
