☆ INTRODUCTION

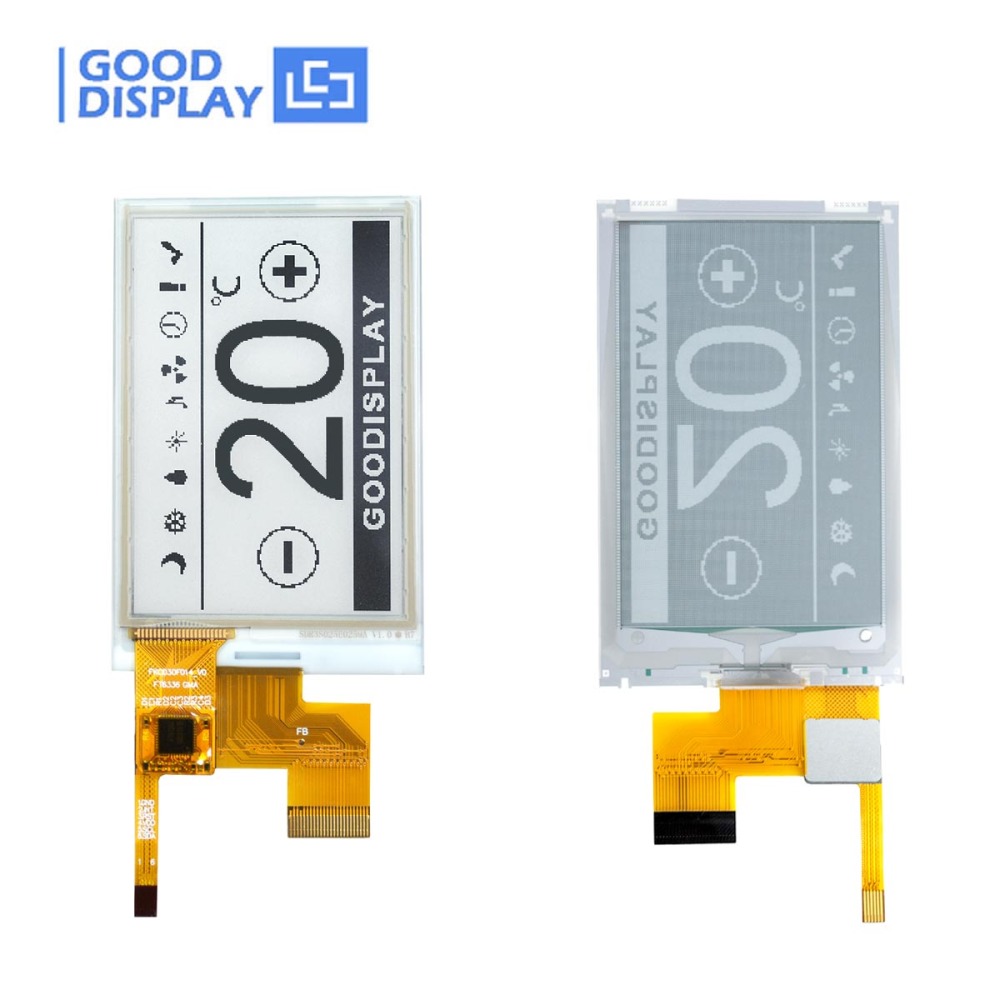

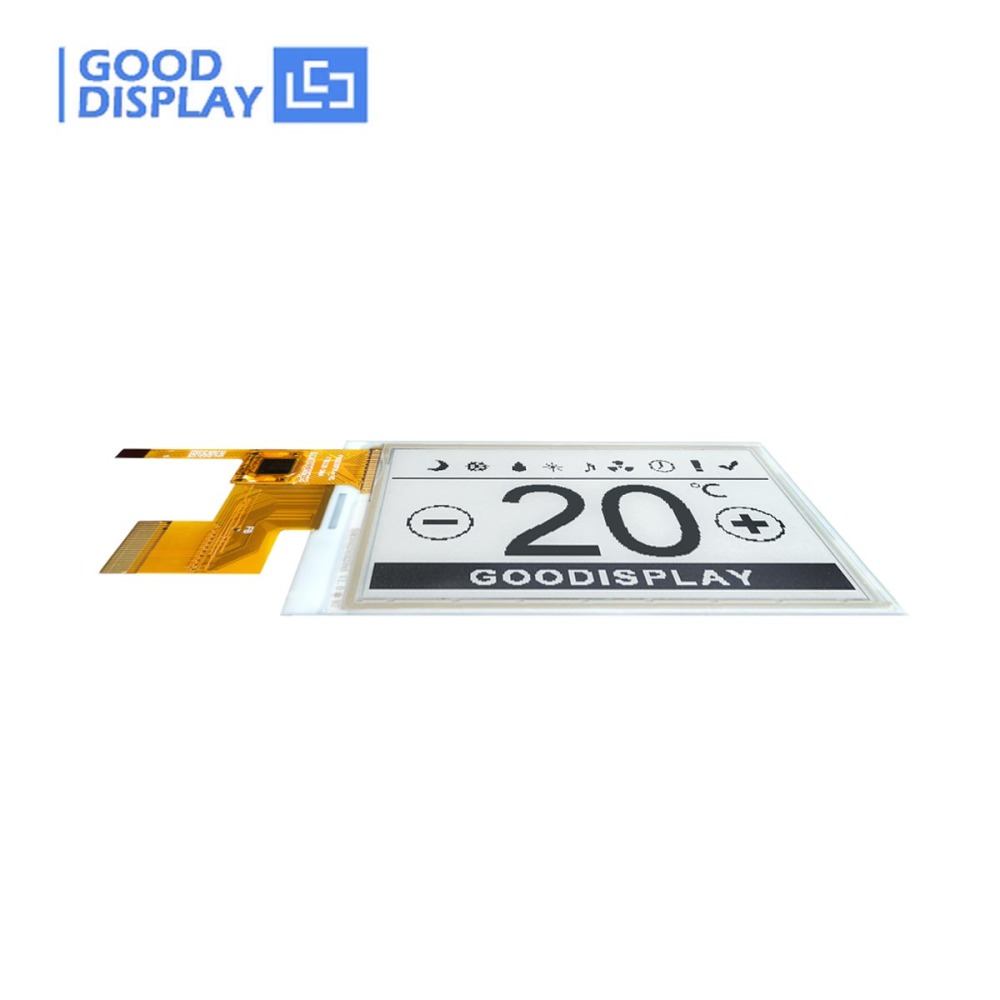

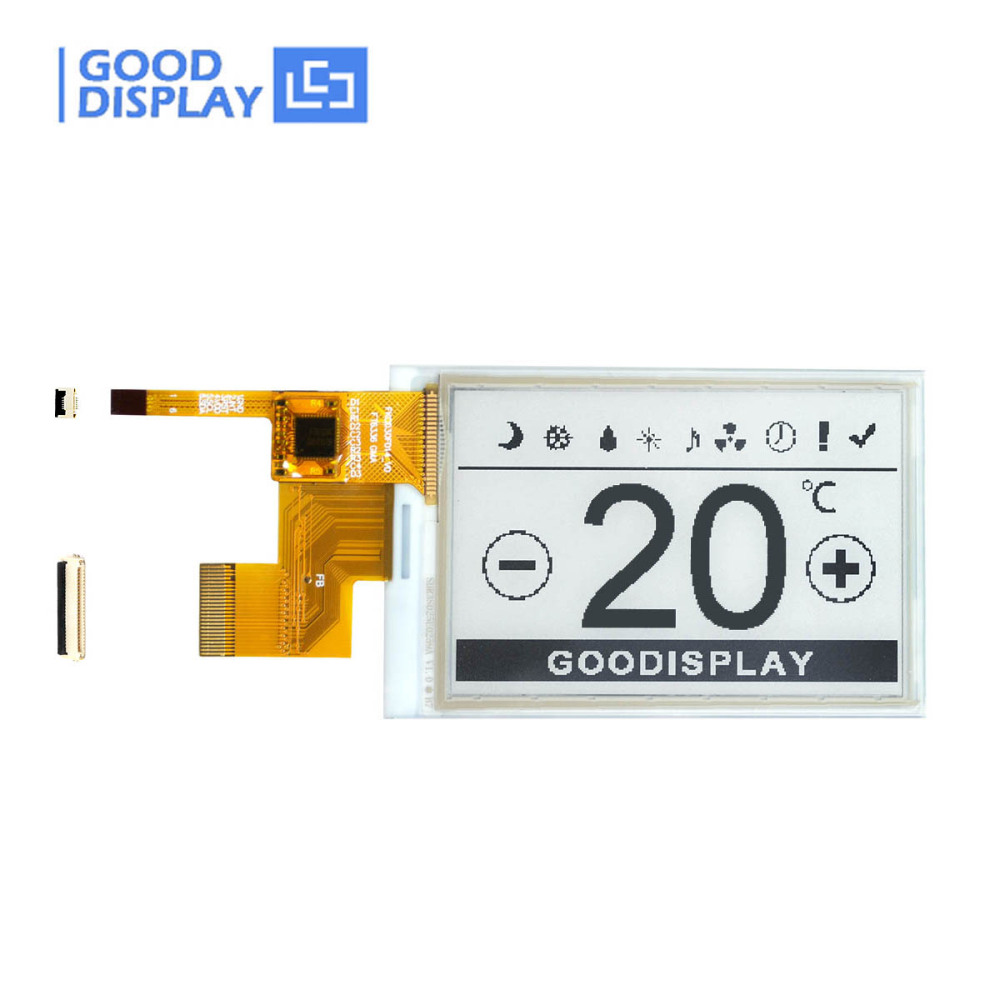

This is a epaper module consist of 2.7 inch capacitive touch screen e-ink display module with its development board, 264x176 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 3s full refresh, 1.5s fast refresh and 0.42s partial refresh. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY027T91-T01 is perfect for low power devices powered by solar or batteries.

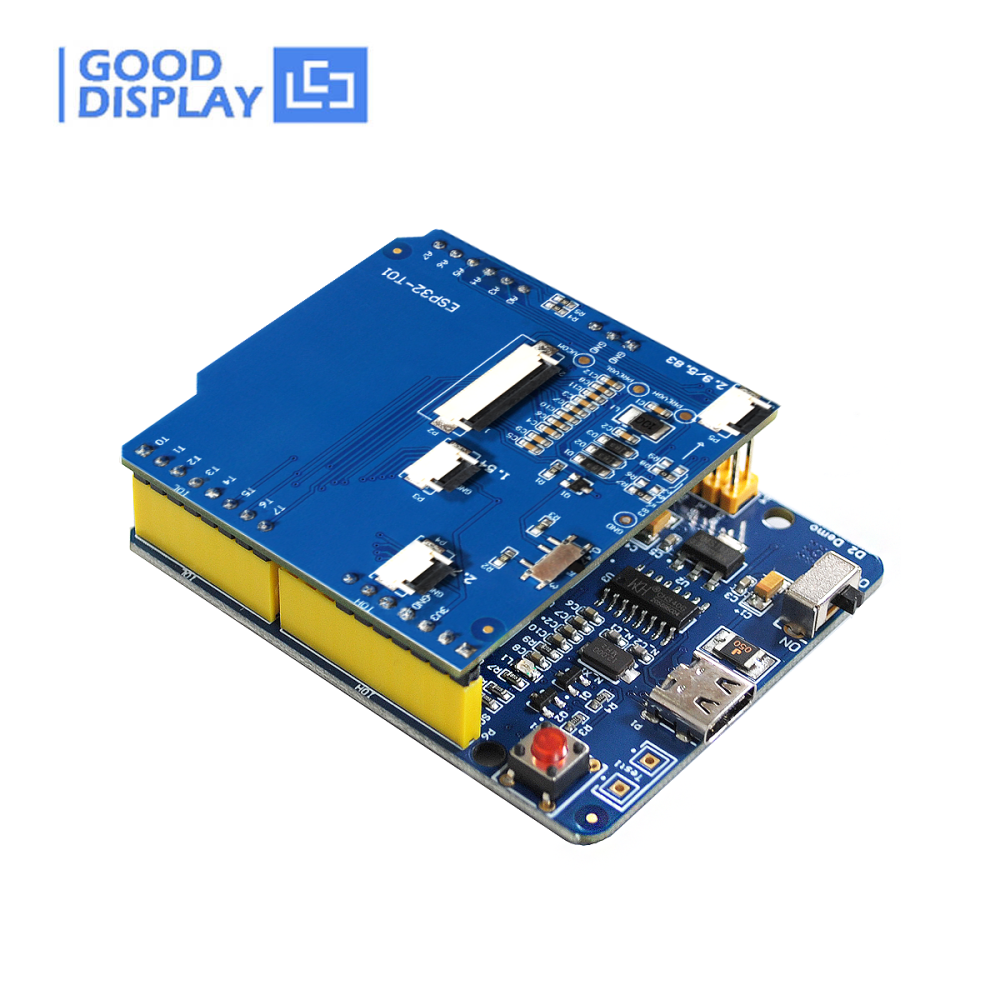

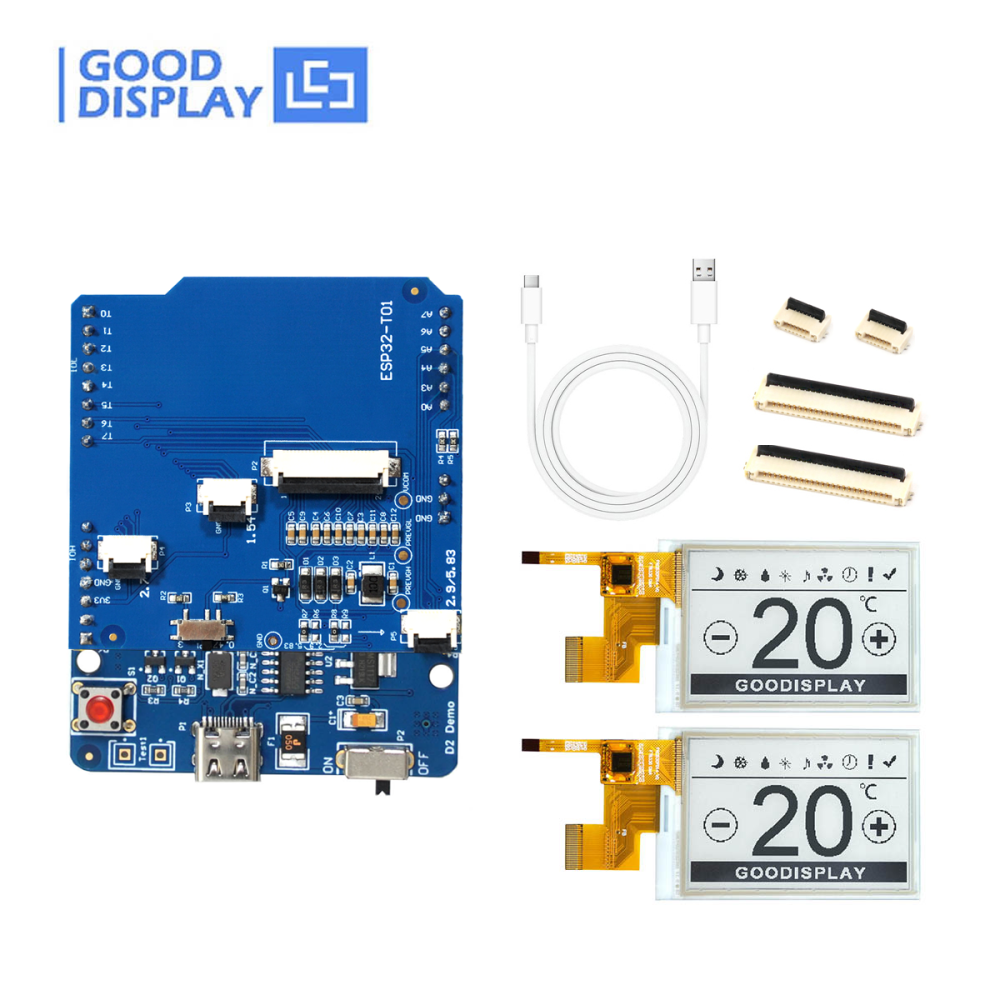

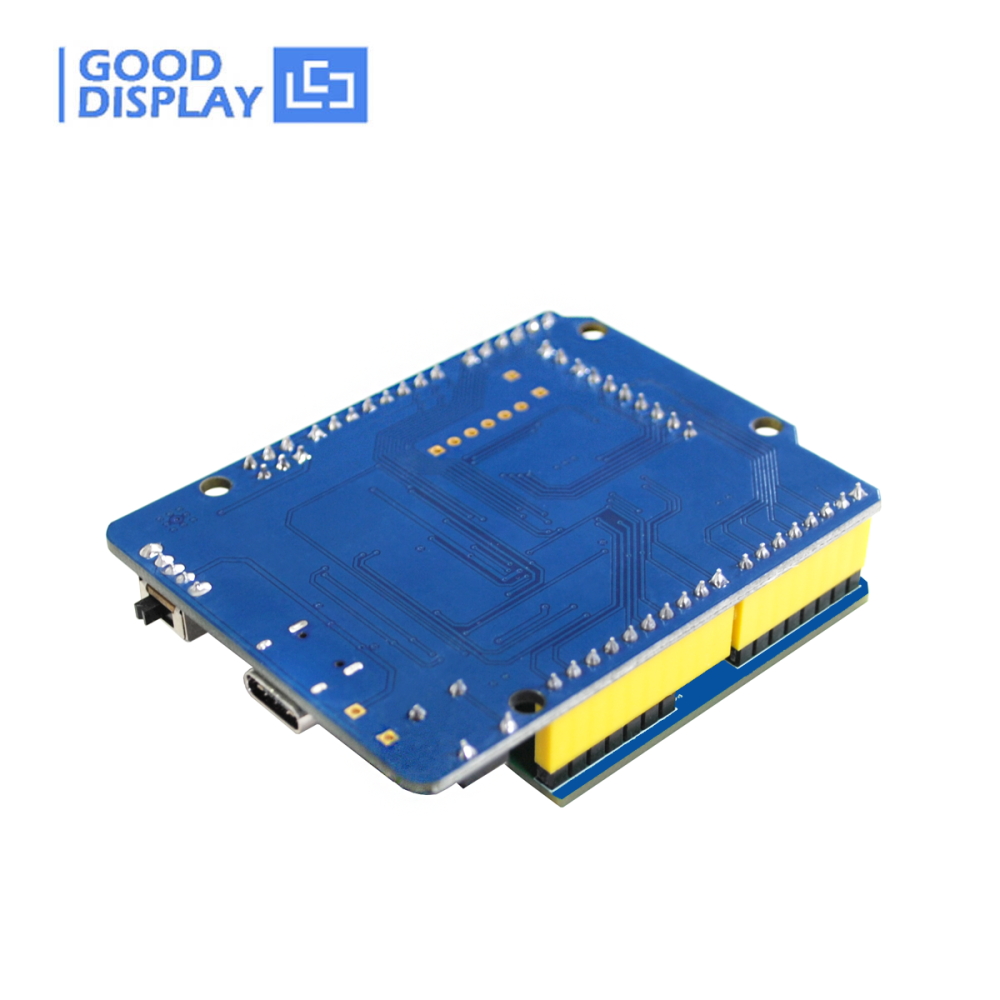

ESP32-L(T01) evaluation kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It can realize the collaboration of touch screen and e-paper display to facilitate the early debugging of customers. And it is added the functions of LED indicator light, Reset button, font chip, Flash chip and etc.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
☆ THE ABOVE PRICE INCLUDE
| Package D |
 |
+ |
  |
+ |
 |
|
|

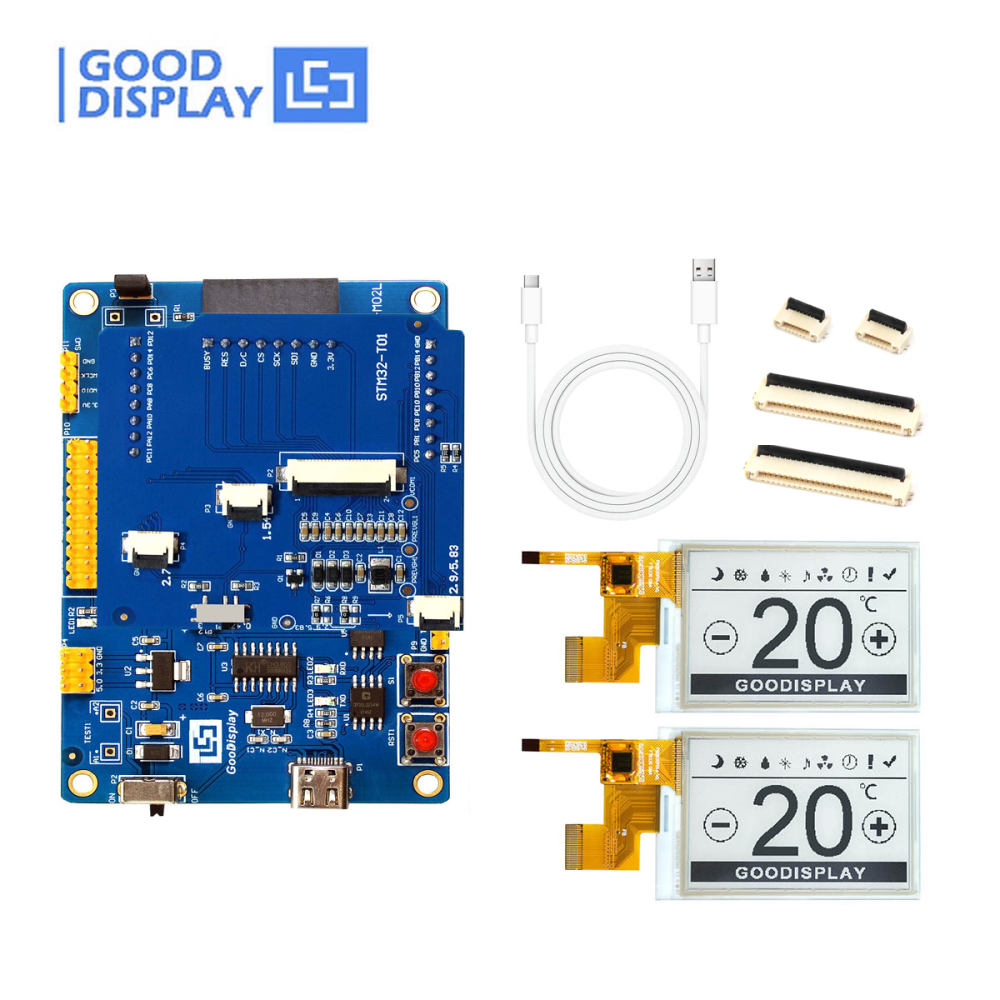

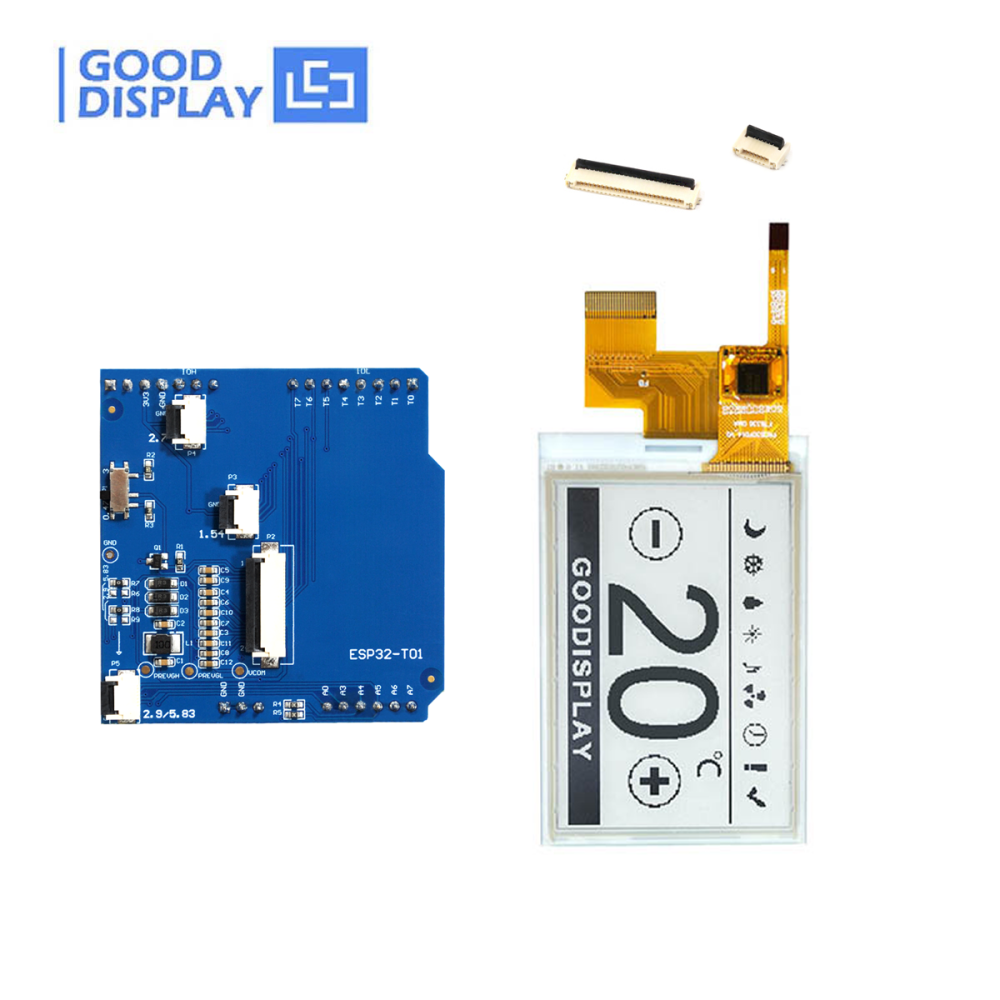

| a. 2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel,GDEY027T91-T01 *1pc |
|
b. FPC Connector * 2pcs |
|

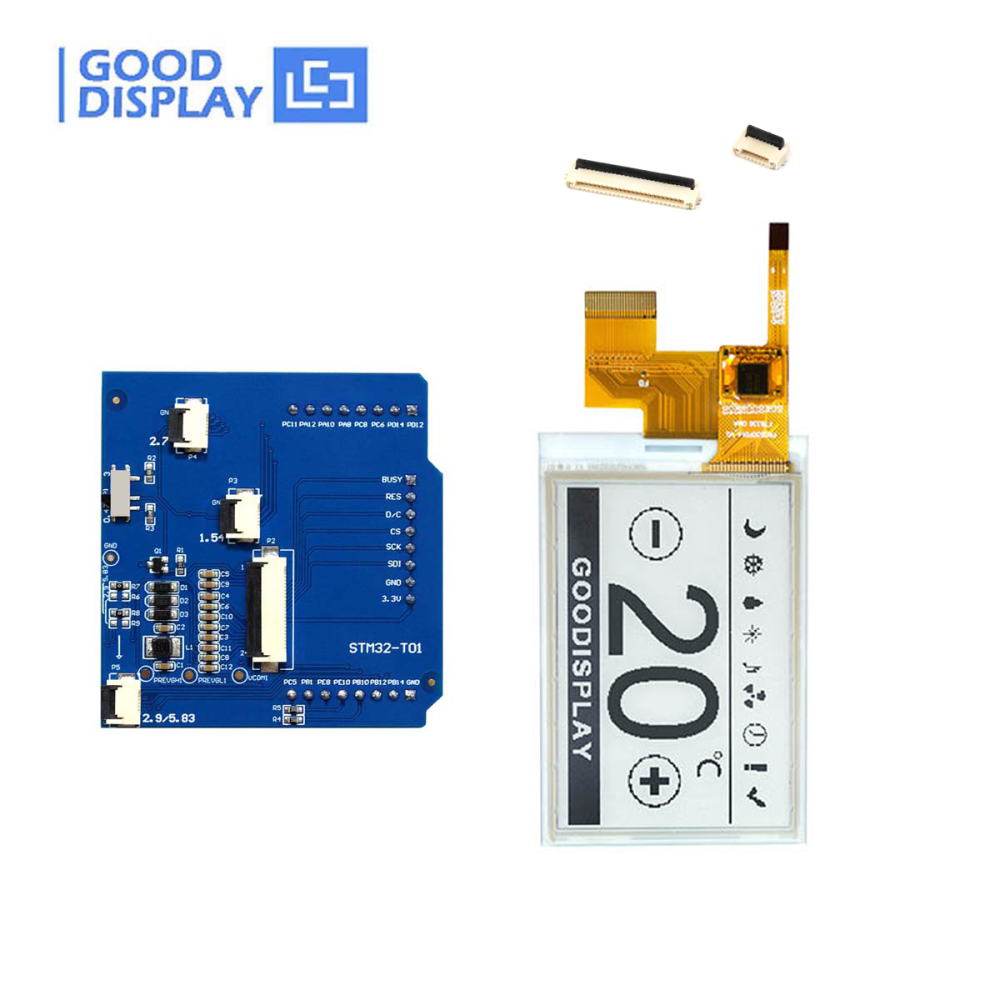

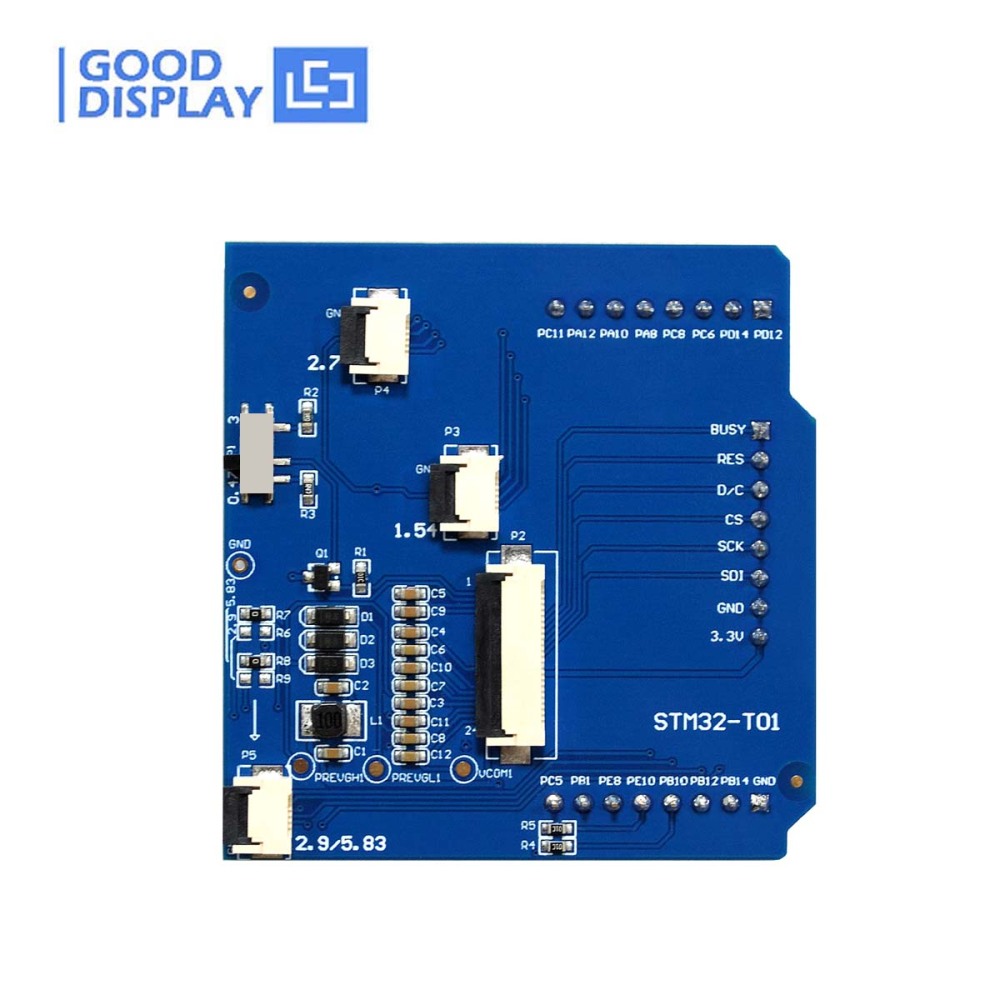

c. Multifunction E-paper HAT connection STM32 adapter board, STM32-T01* 1pc |
|
|
|
| Package E |
|
+ |
|
|
|
|
|
| a. 2.7 inch e-ink touch screen SPI interface China 4 Grayscale e-ink screen manufacturer with touch panel,GDEY027T91-T01 *1pc |
|
b. FPC Connector * 2pcs |
|
|
|
|
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEY027T91-T01
|
|
TYPE
|
Dot Matrix
|
CONNECTOR |
24 Pin FPC |
|
SIZE
|
2.7 inch
|
MAX GRAYSCALE |
4 |
|
IC
|
SSD1680
|
COLOR |
Black,White |
|
RESOLUTION
|
264x176
|
INTERFACE |
SPI |
|
OUTLINE SIZE(mm)
|
70.42x45.8x1.23
|
FULL REFRESH(s) |
3 |
|
ACTIVE SIZE(mm)
|
57.29x38.19
|
FAST REFRESH(s) |
1.5 |
|
PIXEL PITCH(mm)
|
0.217x0.217
|
PARTIAL REFRESH TIME(s) |
0.42 |
|
OPERATING TEMP.
|
0℃~50℃
|
POWER CONSUMPTION OF THE REFRESH(mW) |
9 |
|
STORAGE TEMP.
|
-25℃~70℃
|
STANDBY POWER CONSUMPTION (mW) |
0.003 |
|
OPERATING VOLTAGE(V)
|
3.3
|
TOUCH SCREEN INTERFACE
|
IIC
|
|
TOUCH SCREEN CURRENT(mA)
|
5
|
|
|
| PART NUMBER |
ESP32-L(T01) |
| PLATFORM |
Arduino |
OUTSIDE DIMENSION |
70 x 54mm (ESP32-L)
53 x51mm (ESP32-T01) |
| POWER INTERFACE |
Type-C |
OPERATING TEMP. |
-20~70℃ |
| MAIN FUNCTION |
Learn to drive e-paper display;
Test and evaluate e-paper display;
Support secondary development |
| Additional Funtion |
Type-C interface; Indicator light; Reset button; Font chip; Flash chip; Current detection; Touch screen driving. |
☆ FEATURE
● Support 4 Grayscale
● Support 1.5s fast refresh
● With capacitive touch screen
● Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.42s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
